CO-44
[VK45DE]
RADIATOR
Revision: 2005 July 2005 FX
CAUTION:
When installing a radiator cap, thoroughly wipe out the radiator filler neck to remove any waxy residue
or foreign material.
Checking RadiatorABS008FZ
Check radiator for mud or clogging. If necessary, clean radiator as follows:
CAUTION:
Be careful not to bend or damage the radiator fins.
When radiator is cleaned without removal, remove all surrounding parts such as cooling fan, radi-
ator shroud and horns. Then tape the harness and electrical connectors to prevent water from
entering.
1. Apply water by hose to the back side of the radiator core vertically downward.
2. Apply water again to all radiator core surface once per minute.
3. Stop washing if any stains no longer flow out from radiator.
4. Blow air into the back side of radiator core vertically downward.
Use compressed air lower than 490 kPa (5 kg/cm2 , 71 psi) and keep distance more than 30 cm (11.8
in).
5. Blow air again into all the radiator core surfaces once per minute until no water sprays out.
Page 1250 of 4731
RADIATOR (ALUMINUM TYPE) CO-45
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX
RADIATOR (ALUMINUM TYPE)PFP:21460
Disassembly and AssemblyABS006JL
PREPARATION
1. Attach spacer to tip of radiator plate pliers A (SST).
Spacer specification: 18 mm (0.71 in) wide × 8.5 mm (0.335 in)
long × 1.5 mm (0.059 in) thick.
2. Make sure that when radiator plate pliers A are closed dimension H ′′ is approx. 7.6 mm (0.299 in).
3. Adjust dimension H ′′ with spacer, if necessary.
DISASSEMBLY
1. Remove upper and lower tanks with radiator plate pliers B
(SST).
CAUTION:
Do not disassemble lower tank and A/T fluid cooler.
NOTE:
Regard lower tank and A/T fluid cooler as an assembly.

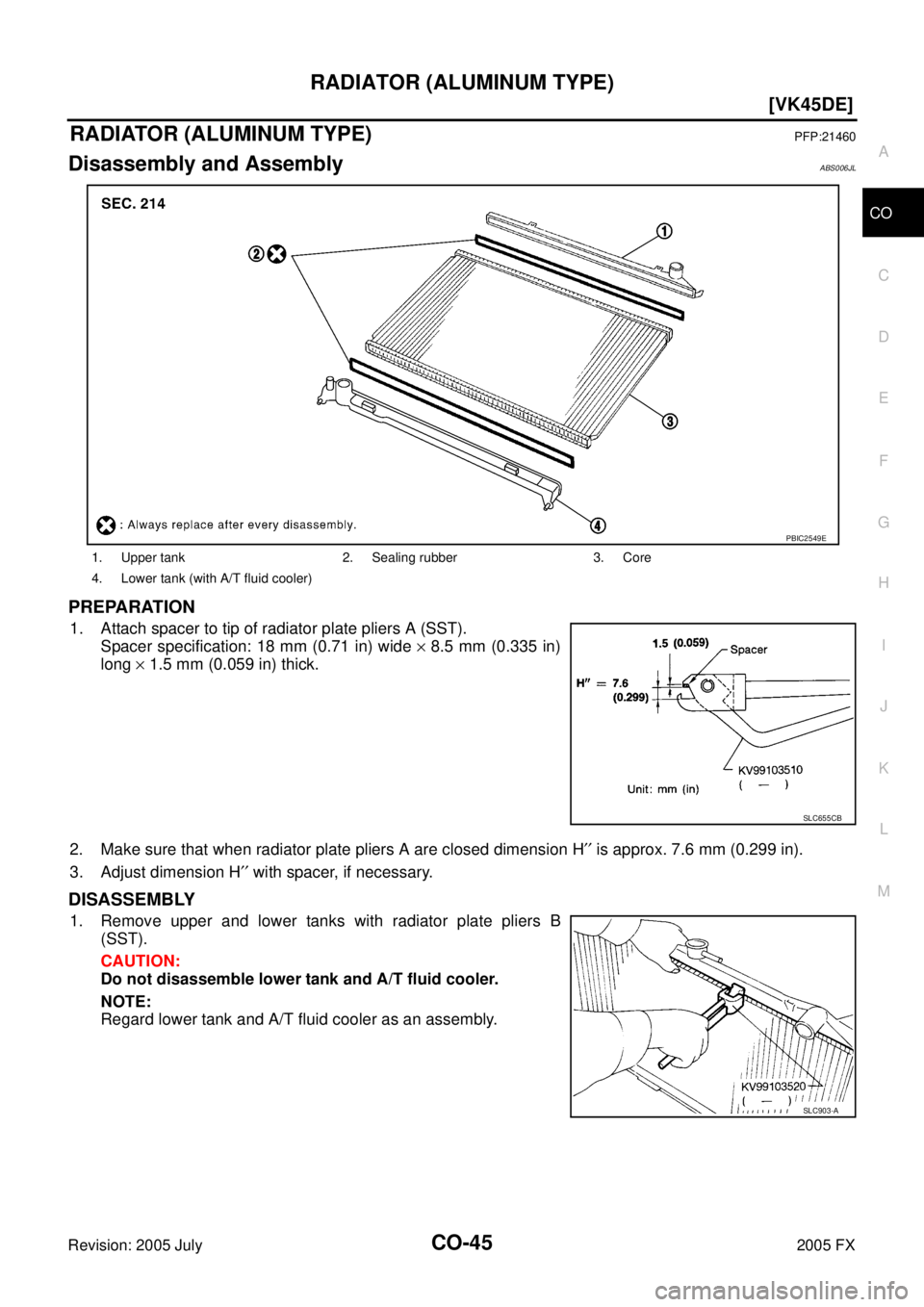

1. Upper tank 2. Sealing rubber 3. Core
4. Lower tank (with A/T fluid cooler)
PBIC2549E
SLC655CB
SLC903-A
Page 1251 of 4731
CO-46
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2005 July 2005 FX
Grip the crimped edge and bend it upwards so that radiator
plate pliers B slips off.
CAUTION:
Do not bend excessively.
In areas where radiator plate pliers B cannot be used, use
flat-blade screwdriver to bend the edge up.
CAUTION:
Be careful not to damage tank.
2. Remove sealing rubber.
3. Make sure the edge stands straight up.
ASSEMBLY
1. Clean contact portion of tank.
SLC893
SLC930
SLC931
SLC932
Page 1252 of 4731
RADIATOR (ALUMINUM TYPE) CO-47
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX

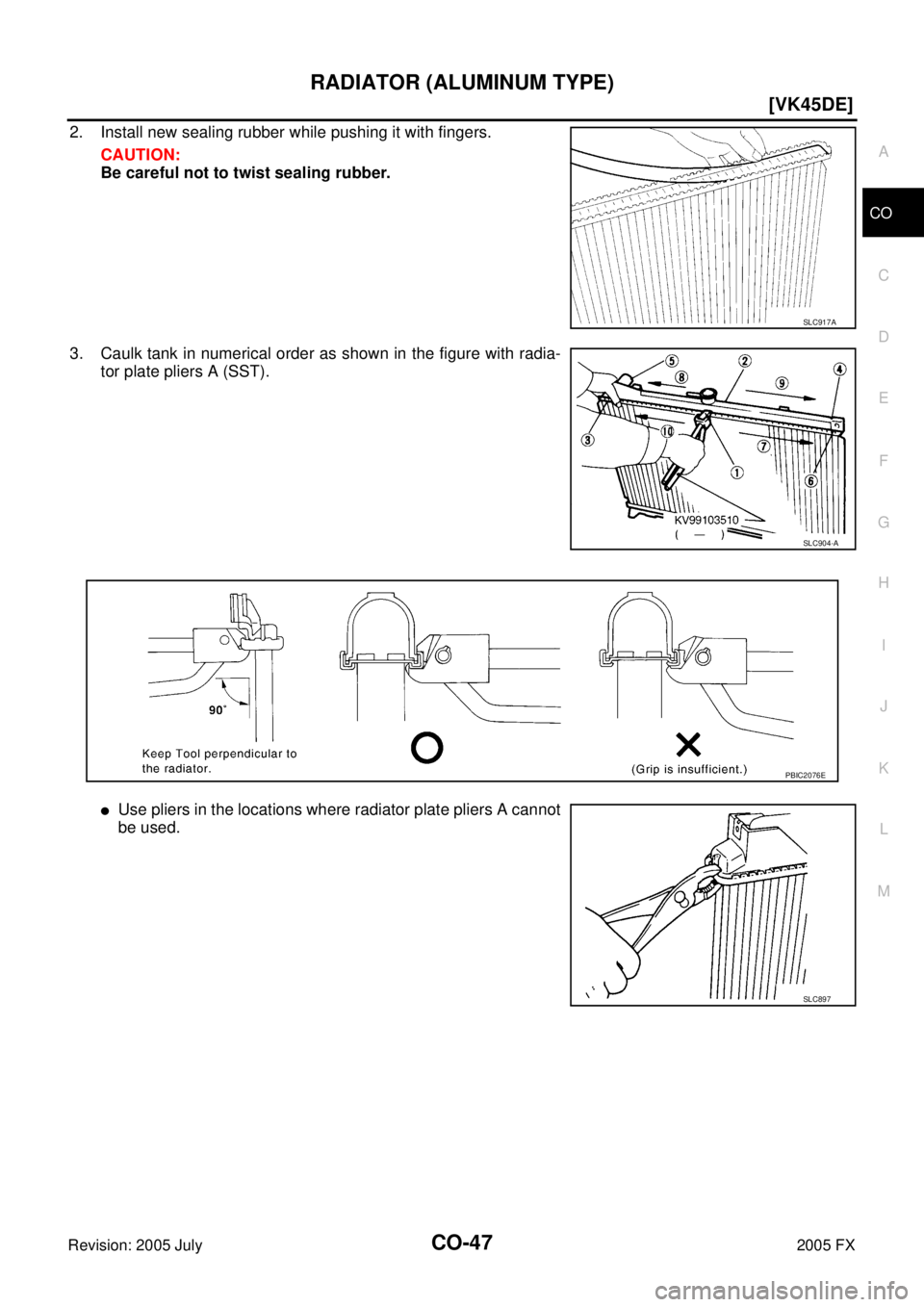

2. Install new sealing rubber while pushing it with fingers.
CAUTION:
Be careful not to twist sealing rubber.
3. Caulk tank in numerical order as shown in the figure with radia- tor plate pliers A (SST).
Use pliers in the locations where radiator plate pliers A cannot
be used.
SLC917A
SLC904-A
PBIC2076E
SLC897
Page 1253 of 4731
![INFINITI FX35 2005 Service Manual CO-48
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2005 July 2005 FX
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage.Refer to CO-48, "
INSPECTION" .
INSPEC INFINITI FX35 2005 Service Manual CO-48
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2005 July 2005 FX
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage.Refer to CO-48, "
INSPECTION" .
INSPEC](/manual-img/42/57020/w960_57020-1252.png)
CO-48
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2005 July 2005 FX
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage.Refer to CO-48, "
INSPECTION" .
INSPECTION
1. Apply pressure with radiator cap tester adapter (SST) and radia-
tor cap tester (commercial service tool).
provide used radiator and connect it to tested radiator using
radiator hoses as shown in the figure.
NOTE:
The used radiator should be tested beforehand to confirm it
has no leakage. If used one is not available, it is possible to
use new service part as a radiator testing tool.
WARNING:
To prevent the risk of hose coming undone while under pressure, securely fasten it down with
hose clamp.
CAUTION:
Attach hose to A/T fluid cooler to seal its inlet and outlet.
2. Check for leakage by soaking radiator in water container with the testing pressure applied. Standard height “H” : 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Testing pressure
: 157 kPa (1.6 kg/cm
2 , 23 psi)PBIC1658E
PBIC1699E
Page 1254 of 4731
![INFINITI FX35 2005 Service Manual COOLING FAN CO-49
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX
COOLING FANPFP:21140
Removal and Installation (Crankshaft Driven Type)ABS00E9P
REMOVAL
1. Remove air duct INFINITI FX35 2005 Service Manual COOLING FAN CO-49
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX
COOLING FANPFP:21140
Removal and Installation (Crankshaft Driven Type)ABS00E9P
REMOVAL
1. Remove air duct](/manual-img/42/57020/w960_57020-1253.png)
COOLING FAN CO-49
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX
COOLING FANPFP:21140
Removal and Installation (Crankshaft Driven Type)ABS00E9P
REMOVAL
1. Remove air duct (inlet). Refer to EM-176, "AIR CLEANER AND AIR DUCT" .
2. Remove engine front undercover with power tool.
3. Remove radiator shroud (lower). Refer to CO-41, "
RADIATOR" .
4. Remove drive belts. Refer to EM-173, "
DRIVE BELTS" .
5. Remove fan coupling and cooling fan assembly. CAUTION:
Do not damage or scratch radiator core when removing.
6. Remove cooling fan from fan coupling.
INSPECTION AFTER REMOVAL
Fan Coupling
Inspect fan coupling for oil leakage and bimetal conditions.
If anything is found, replace fan coupling.
Cooling Fan
Inspect cooling fan for crack or unusual bend.
If anything is found, replace cooling fan.
INSTALLATION
Note the following, install in the reverse order of removal.
Install cooling fan with its front mark “F” facing front of vehicle. Refer to CO-49, "Removal and Installation
(Crankshaft Driven Type)" .
1. Cooling fan 2. Fan coupling 3. Fan pulley
4. Water pump
PBIC1537E
SLC072
Page 1255 of 4731
CO-50
[VK45DE]
COOLING FAN
Revision: 2005 July 2005 FX
Removal and Installation (Motor Driven Type)ABS006JU
REMOVAL
1. Remove front grille. Refer to EI-22, "FRONT GRILLE" .
2. Disconnect harness connector from fan motor.
3. Remove cooling fan assembly. CAUTION:
Do not damage or scratch A/C condenser when removed.
INSTALLATION
Install in the reverse order of removal.
Cooling fan is controlled by ECM. For details. Refer to EC-1213, "DTC P1217 ENGINE OVER TEMPER-
ATURE" .
Disassembly and Assembly (Motor Driven Type)ABS00A3O
DISASSEMBLY
1. Remove cooling fan from fan motor.
2. Remove fan motor from fan grille.
INSPECTION AFTER DISASSEMBLY
Cooling Fan
Inspect cooling fan for crack or unusual bend.
If anything is found, replace cooling fan.
ASSEMBLY
Assemble in the reverse order of disassembly.
1. Cooling fan 2. Fan grille 3. Fan motor
PBIC1666E
Page 1256 of 4731
![INFINITI FX35 2005 Service Manual WATER PUMP CO-51
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX
WAT E R P U MPPFP:21020
Removal and InstallationABS006JO
CAUTION:
When removing water pump, be careful n INFINITI FX35 2005 Service Manual WATER PUMP CO-51
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX
WAT E R P U MPPFP:21020
Removal and InstallationABS006JO
CAUTION:
When removing water pump, be careful n](/manual-img/42/57020/w960_57020-1255.png)
WATER PUMP CO-51
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX
WAT E R P U MPPFP:21020
Removal and InstallationABS006JO
CAUTION:
When removing water pump, be careful not to get engine coolant on drive belts.
Water pump can not be disassembled and should be replaced as a unit.
After installing water pump, connect hose and clamp securely, then check for leaks using radiator
cap tester (commercial service tool) and radiator cap tester adapter [SST: EG17650301 (J33984-
A)].
REMOVAL
1. Drain engine coolant from drain plugs on radiator and both side of cylinder block. Refer to CO-37, "Chang-
ing Engine Coolant" and EM-246, "DISASSEMBLY" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belts.
2. Remove following parts:
Engine front undercover
Air duct (inlet); Refer to EM-176, "AIR CLEANER AND AIR DUCT" .
Alternator, water pump and A/C compressor belt; Refer to EM-173, "DRIVE BELTS" .
3. Remove fan coupling with cooling fan, and then water pump pulley.
4. Remove water pump.
Engine coolant will leak from cylinder block, so have a receptacle ready under vehicle.
CAUTION:
Handle the water pump vane so that it does not contact any other parts.
Do not disassemble water pump.
1. Water pump pulley 2. Water pump 3. Gasket
