INFINITI FX35 2005 Service Manual SE-8
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trun

SE-8
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger room.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

Page 4482 of 4731

INFINITI FX35 2005 Service Manual SQUEAK AND RATTLE TROUBLE DIAGNOSIS SE-9
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX

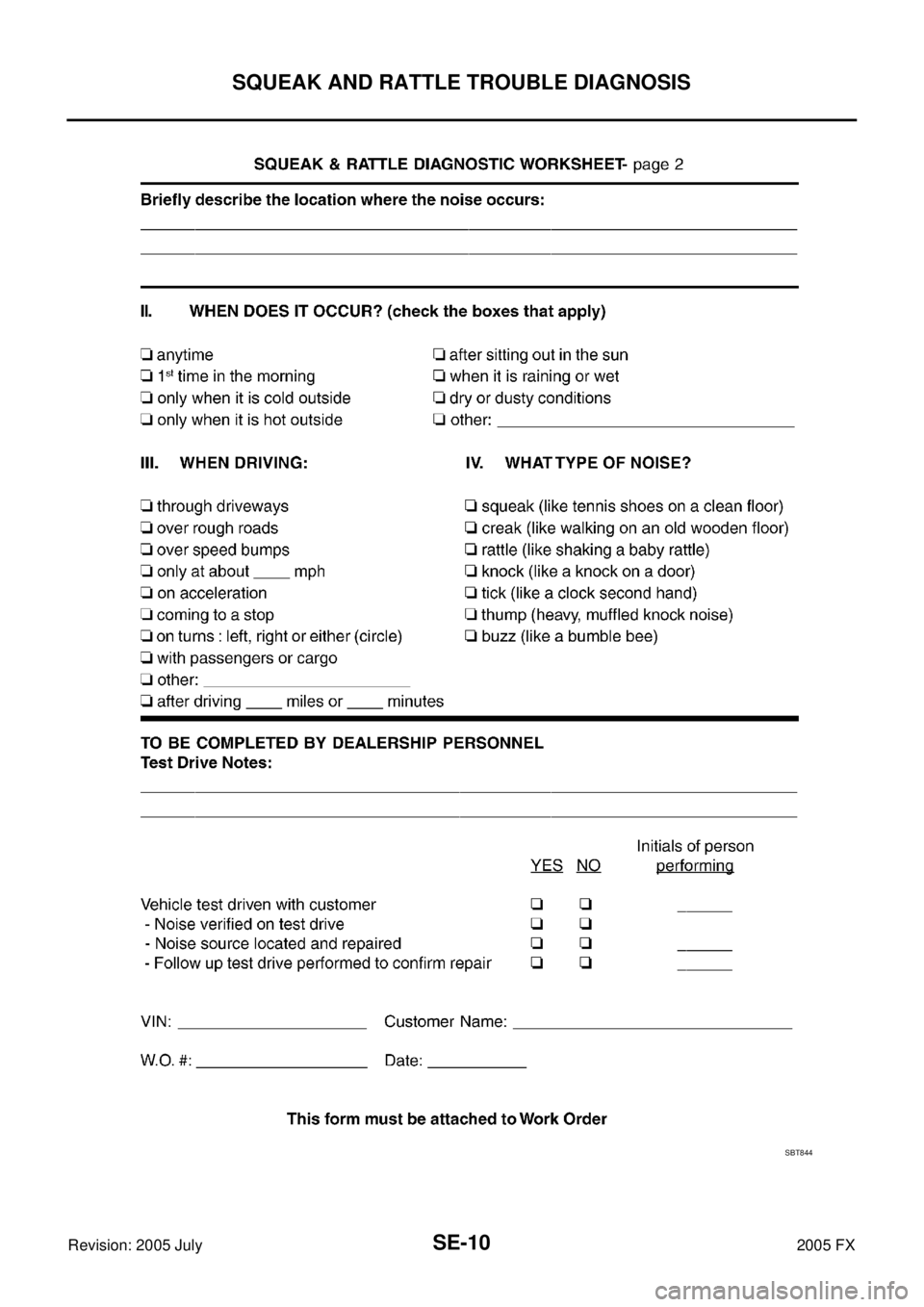

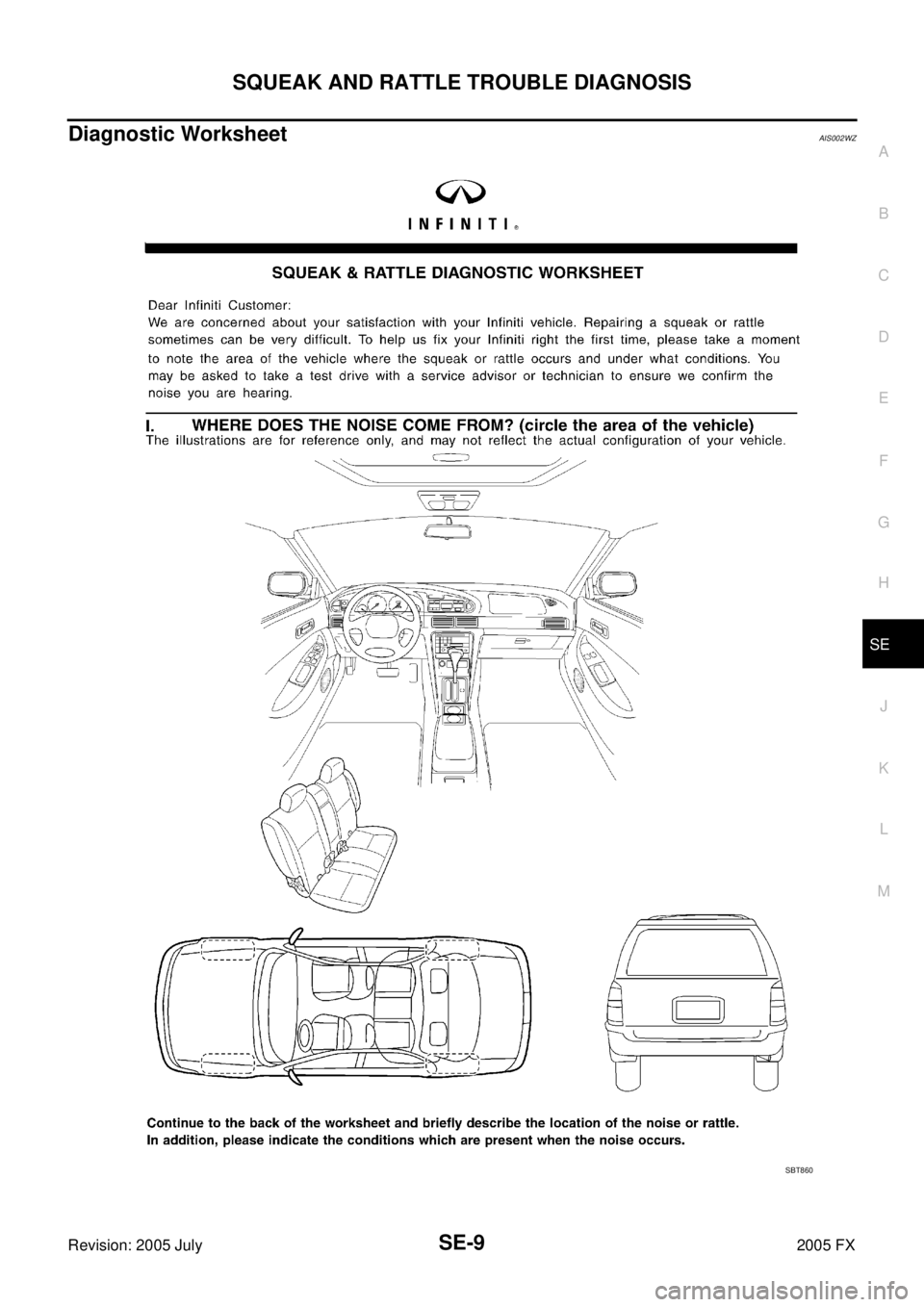

Diagnostic WorksheetAIS002WZ
SBT860

Page 4483 of 4731

INFINITI FX35 2005 Service Manual SE-10
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
SBT844

Page 4484 of 4731

INFINITI FX35 2005 Service Manual AUTOMATIC DRIVE POSITIONER SE-11
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX
AUTOMATIC DRIVE POSITIONERPFP:28491
System Description AIS002XB
The system automatically moves the

AUTOMATIC DRIVE POSITIONER SE-11
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX
AUTOMATIC DRIVE POSITIONERPFP:28491
System Description AIS002XB
The system automatically moves the driver seat to facilitate entry/exit to/from the vehicle. The automatic
drive positioner control unit can also store the optimum driving positions (driver seat, pedal position and
door mirror position) for 2 people. If the driver is changes, one-touch operation allows changing to the
other driving position.
The settings (ON/OFF) of the automatic sliding seat (Entry/Exiting operation) at entry/exit can be changed
as desired, using the display unit in the center of the instrument panel. The set content is transmitted by
CAN communication, from display unit (without NAVI) or display control unit (with NAVI) to driver seat con-
trol unit.
Using CONSULT-II, the seat slide amount at entry/exit setting can be changed.
MANUAL OPERATION
The driving position [seat position, steering wheel position (tilt, telescopic) and door mirror position] can be
adjusted with the power seat switch or ADP steering switch or door mirror remote control switch.
NOTE:
The seat can be manually operated with the ignition switch OFF.
The door mirrors can be manually operated with the ignition switch turned ACC or ON.
A U T O M AT I C O P E R AT I O N
NOTE:
Disconnecting the battery erases the stored memory.
After connecting the battery, insert the key into the ignition cylinder and turn the driver door switch ON (open) →OFF (close) →ON
(open), the Entry/ Exiting operation becomes possible.
After exiting operation is carried out, return operation can be operated.
NOTE:
During automatic operation, if the ignition switch is turned ON →START, the automatic operation is suspended. When the ignition switch
returns to ON, it resumes. Function Description
Memory switch operation The seat, steering and door mirror move to the stored driving position by pushing
memory switch (1 or 2).
Entry/Exiting function Exiting operation At exit, the seat moves backward and steering wheel moves forward/upward.
Entry operation
At entry, the seat and steering wheel returns from the exiting position to the previous
driving position.
Key fob interlock operation Perform memory operation, exiting operation and entry operation by pressing key fob
unlock button.
Auto operation temporary stop
conditions. When ignition switch turned to START during memory switch operation and return opera-
tion, memory switch operation and entry operation is stopped.
Auto operation stop conditions.
When the vehicle speed becomes 7 km/h (4 MPH) or higher.
When the setting switch, memory switch 1, or 2 are pressed.
When A/T selector lever is in any position other than P.
When the door mirror remote control switch is operated (when ignition switch turned to
ON or ACC).
When power seat switch turned ON.
When ADP steering switch turned ON (telescopic operation or tilt operation).
When door mirror operates (only memory switch operation).
When driver seat sliding Entry/Exiting setting is OFF (only entry/exiting operation).
When steering wheel tilt and telescopic Entry/Exiting setting is OFF (only entry/exiting
operation).
When the tilt and telescopic sensor malfunction is detected.

Page 4485 of 4731

INFINITI FX35 2005 Service Manual SE-12
AUTOMATIC DRIVE POSITIONER
Revision: 2005 July 2005 FX

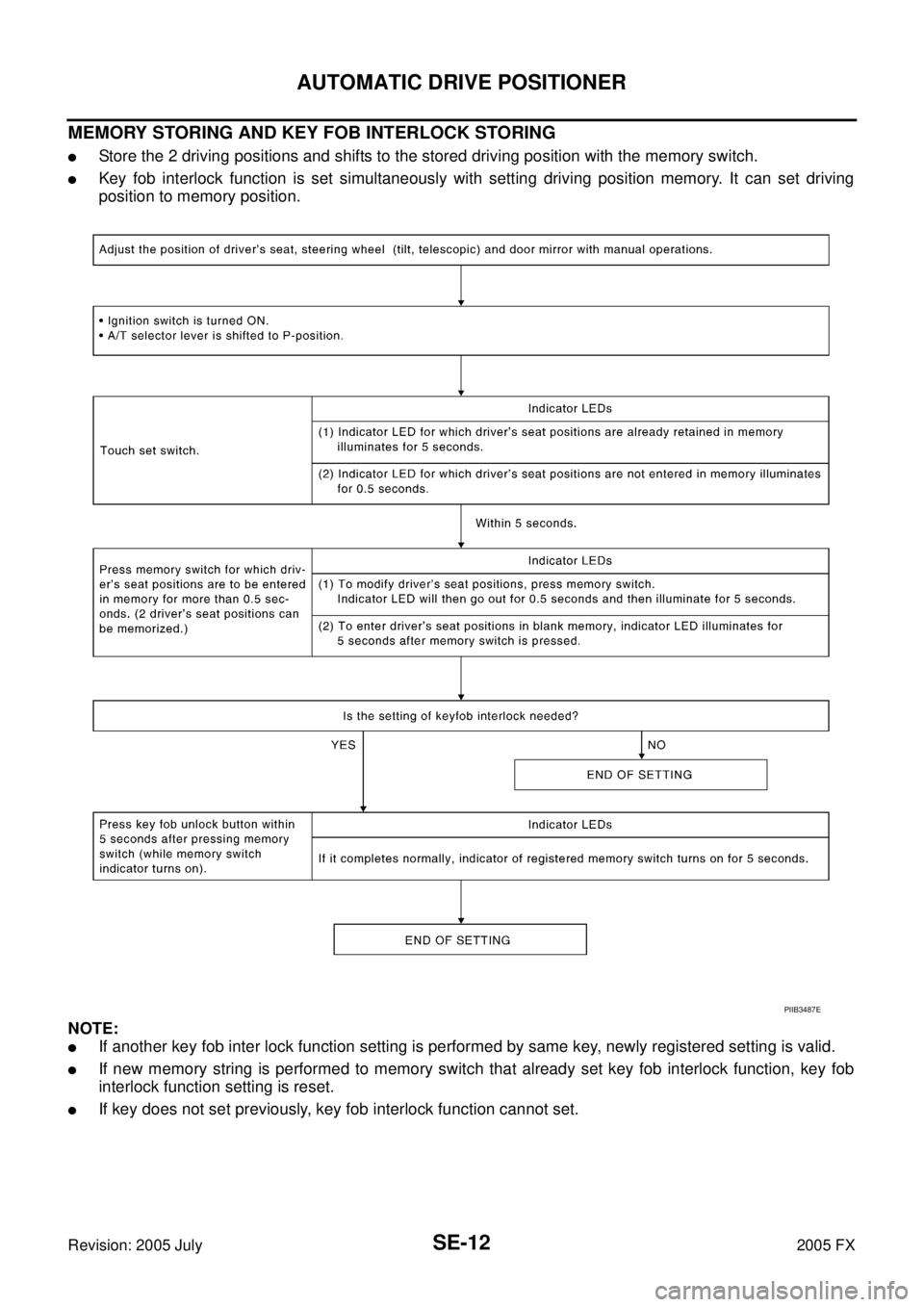

MEMORY STORING AND KEY FOB INTERLOCK STORING
Store the 2 driving positions and shifts to the stored driving position with the memory switc

Page 4486 of 4731

INFINITI FX35 2005 Service Manual AUTOMATIC DRIVE POSITIONER SE-13
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX
MEMORY SWITCH OPERATION
Selecting the memory
NOTE:
The drivers seat position and steering adjust

Page 4487 of 4731

INFINITI FX35 2005 Service Manual SE-14
AUTOMATIC DRIVE POSITIONER
Revision: 2005 July 2005 FX

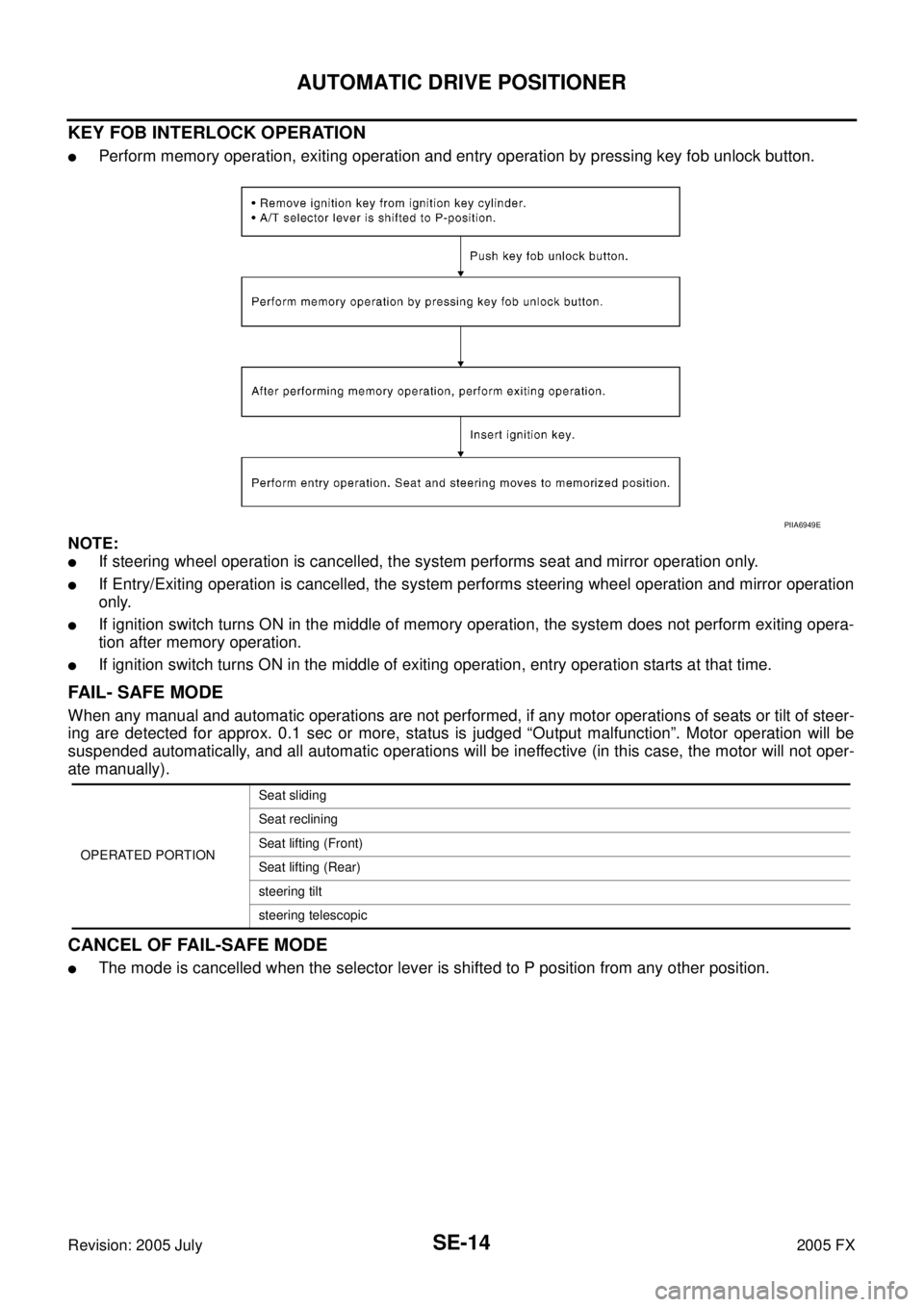

KEY FOB INTERLOCK OPERATION
