Page 4249 of 4731

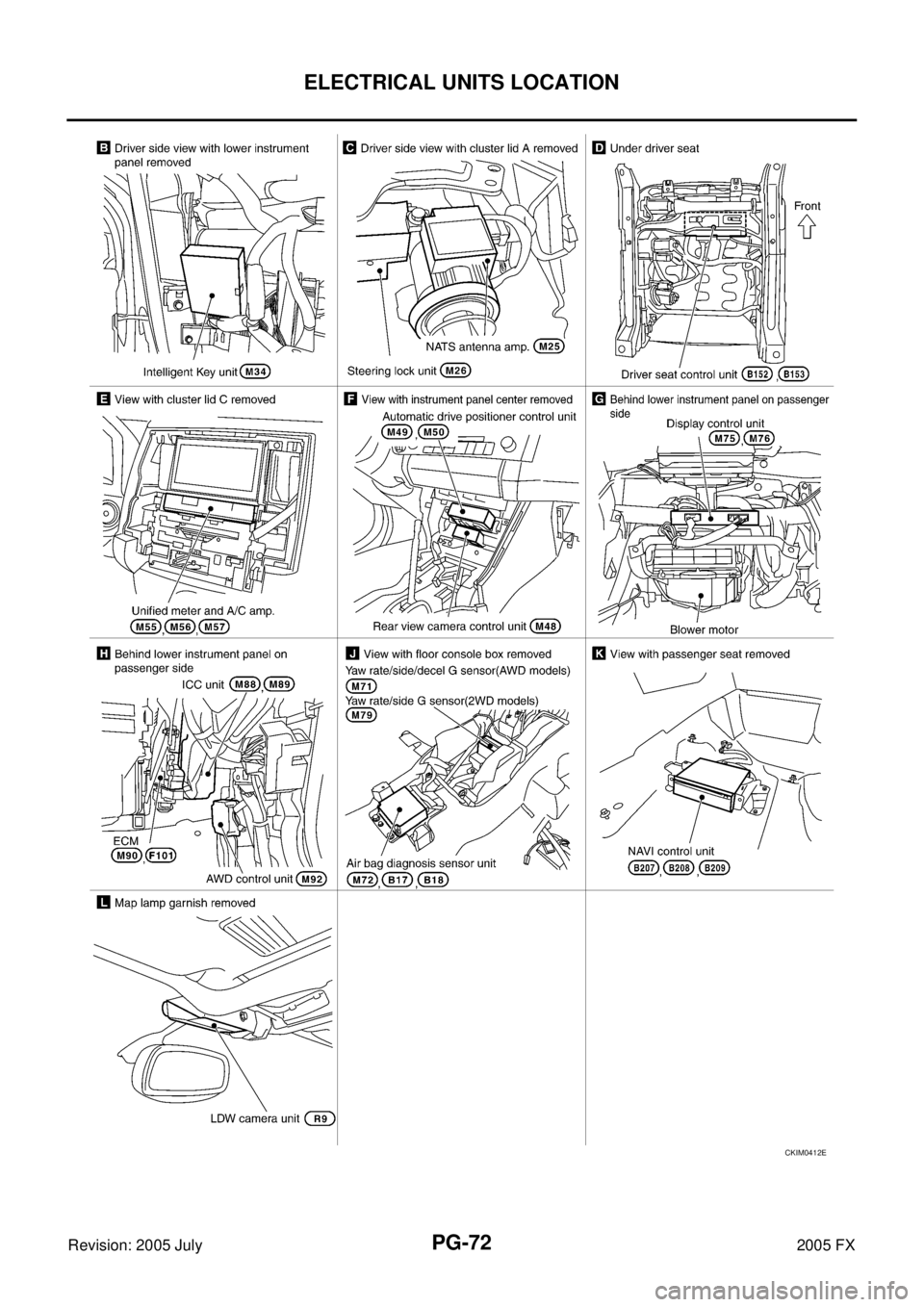

INFINITI FX35 2005 Service Manual PG-72 ELECTRICAL UNITS LOCATION Revision: 2005 July 2005 FX CKIM0412E

Page 4250 of 4731

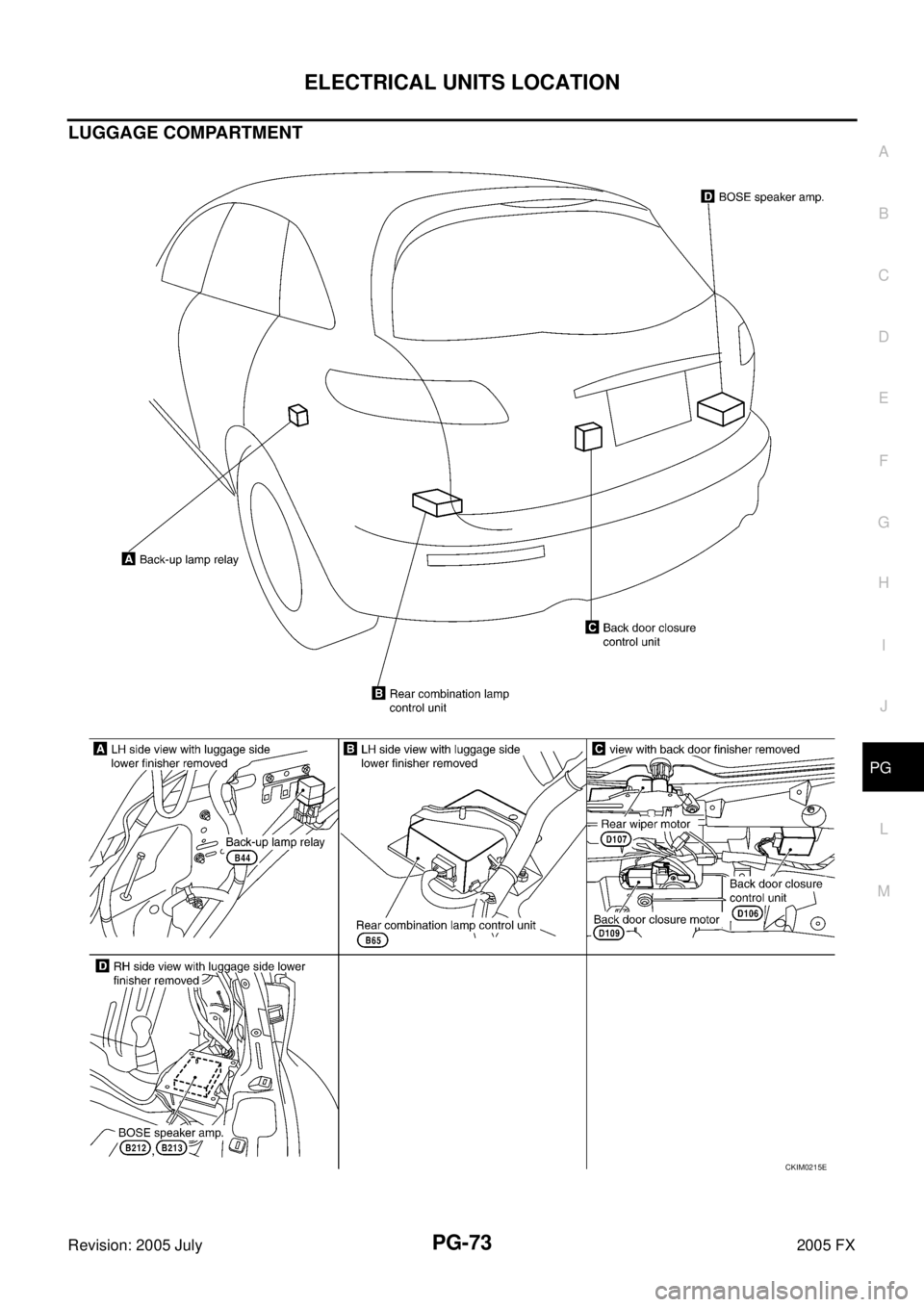

INFINITI FX35 2005 Service Manual ELECTRICAL UNITS LOCATION PG-73 C D E F G H I J L M A B PG Revision: 2005 July 2005 FX LUGGAGE COMPARTMENT CKIM0215E

Page 4251 of 4731

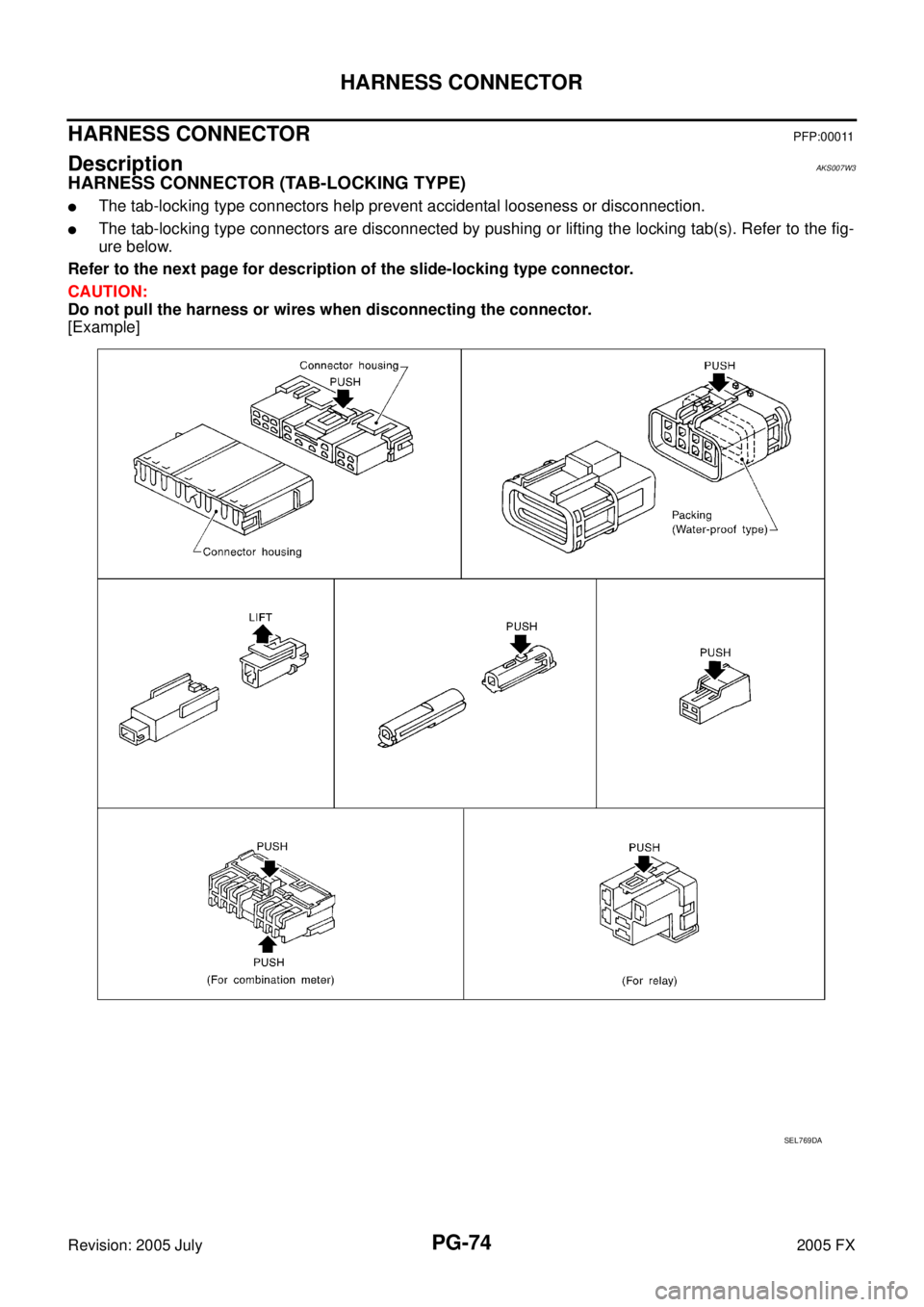

INFINITI FX35 2005 Service Manual PG-74 HARNESS CONNECTOR Revision: 2005 July 2005 FX HARNESS CONNECTOR PFP:00011 DescriptionAKS007W3 HARNESS CONNECTOR (TAB-LOCKING TYPE) The tab-locking type connectors help prevent accidental loose

Page 4252 of 4731

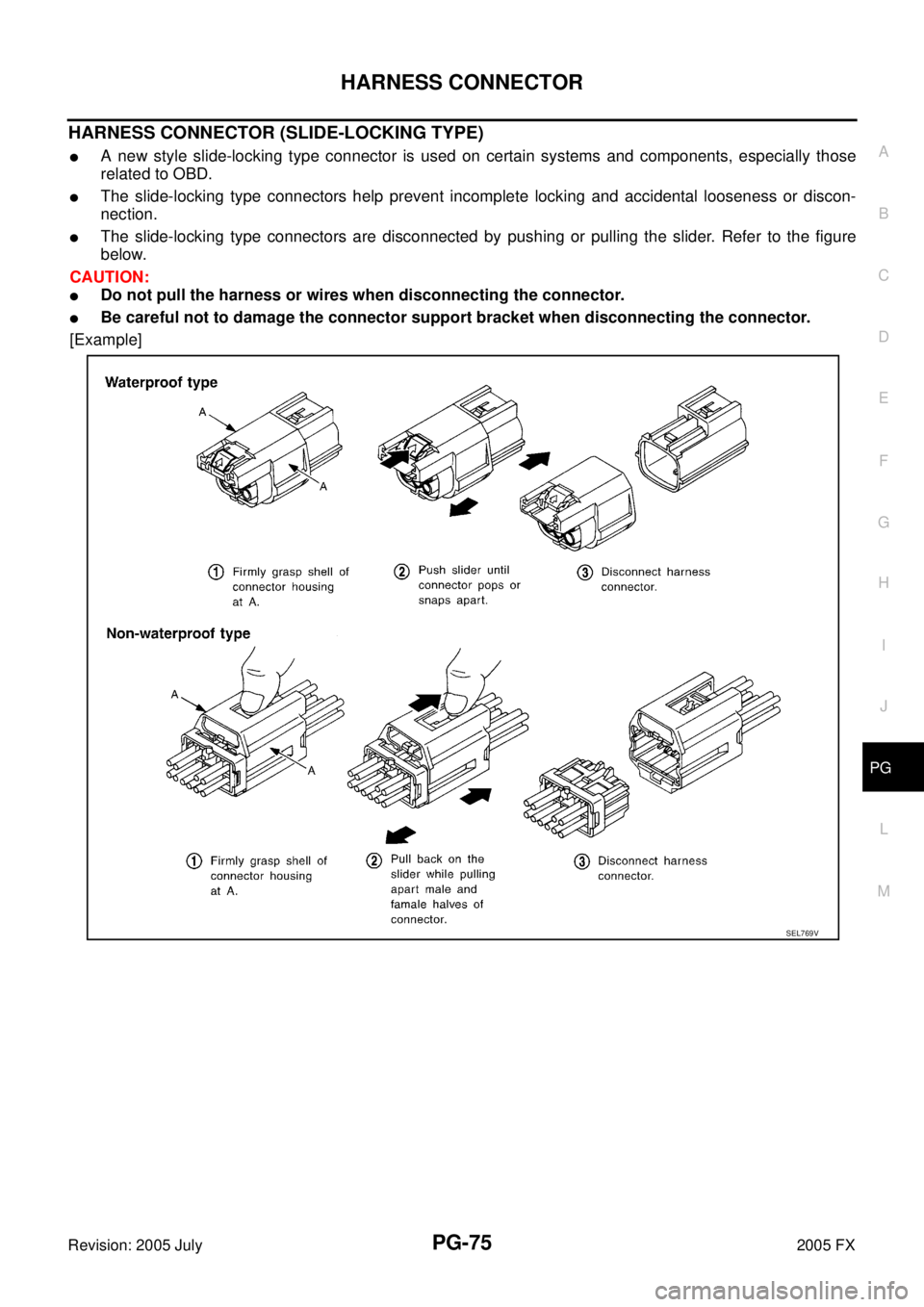

INFINITI FX35 2005 Service Manual HARNESS CONNECTOR PG-75 C D E F G H I J L M A B PG Revision: 2005 July 2005 FX HARNESS CONNECTOR (SLIDE-LOCKING TYPE) A new style slide-locking type connector is used on certain systems

Page 4253 of 4731

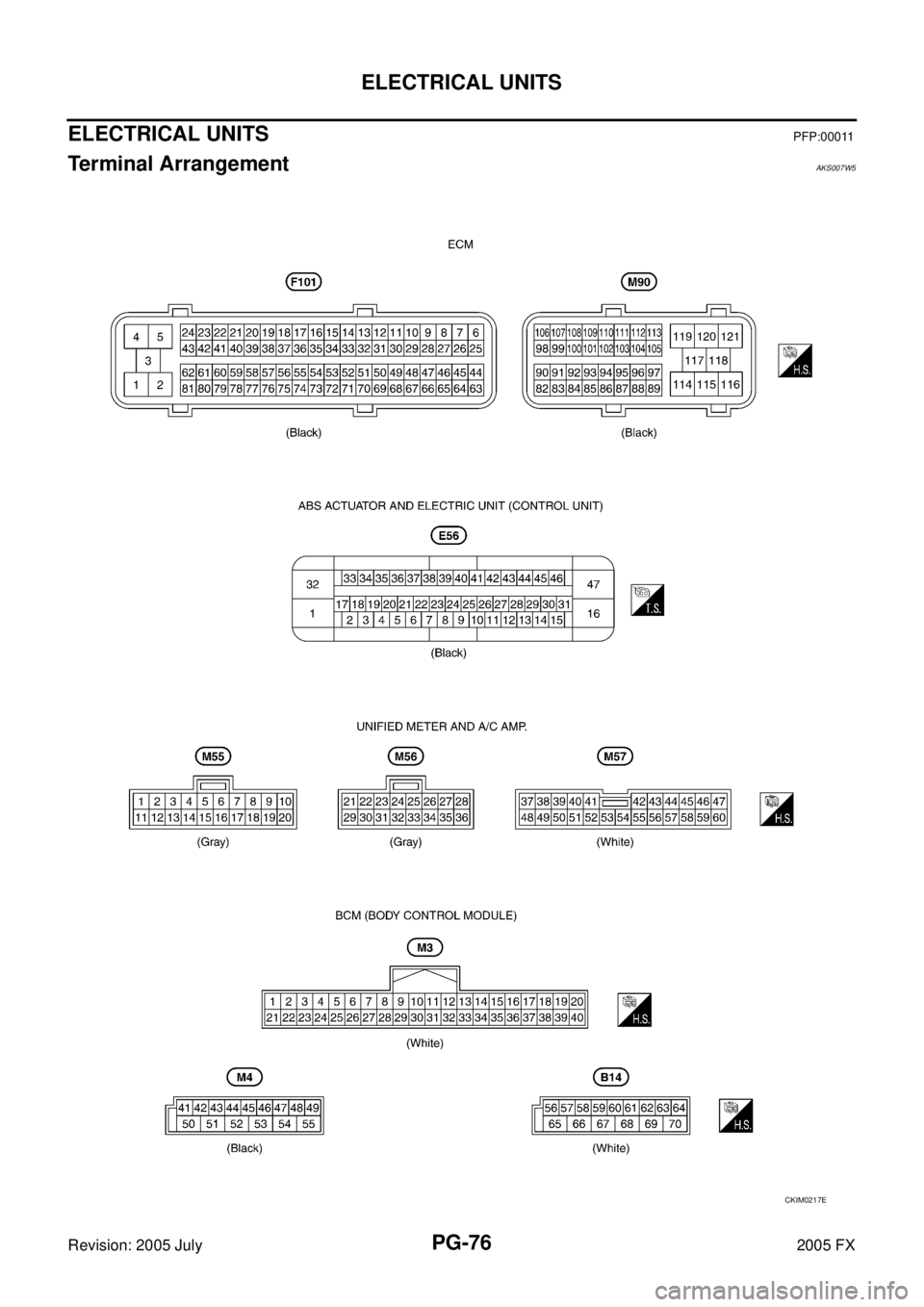

INFINITI FX35 2005 Service Manual PG-76 ELECTRICAL UNITS Revision: 2005 July 2005 FX ELECTRICAL UNITS PFP:00011 Terminal Arrangement AKS007W5 CKIM0217E

Page 4254 of 4731

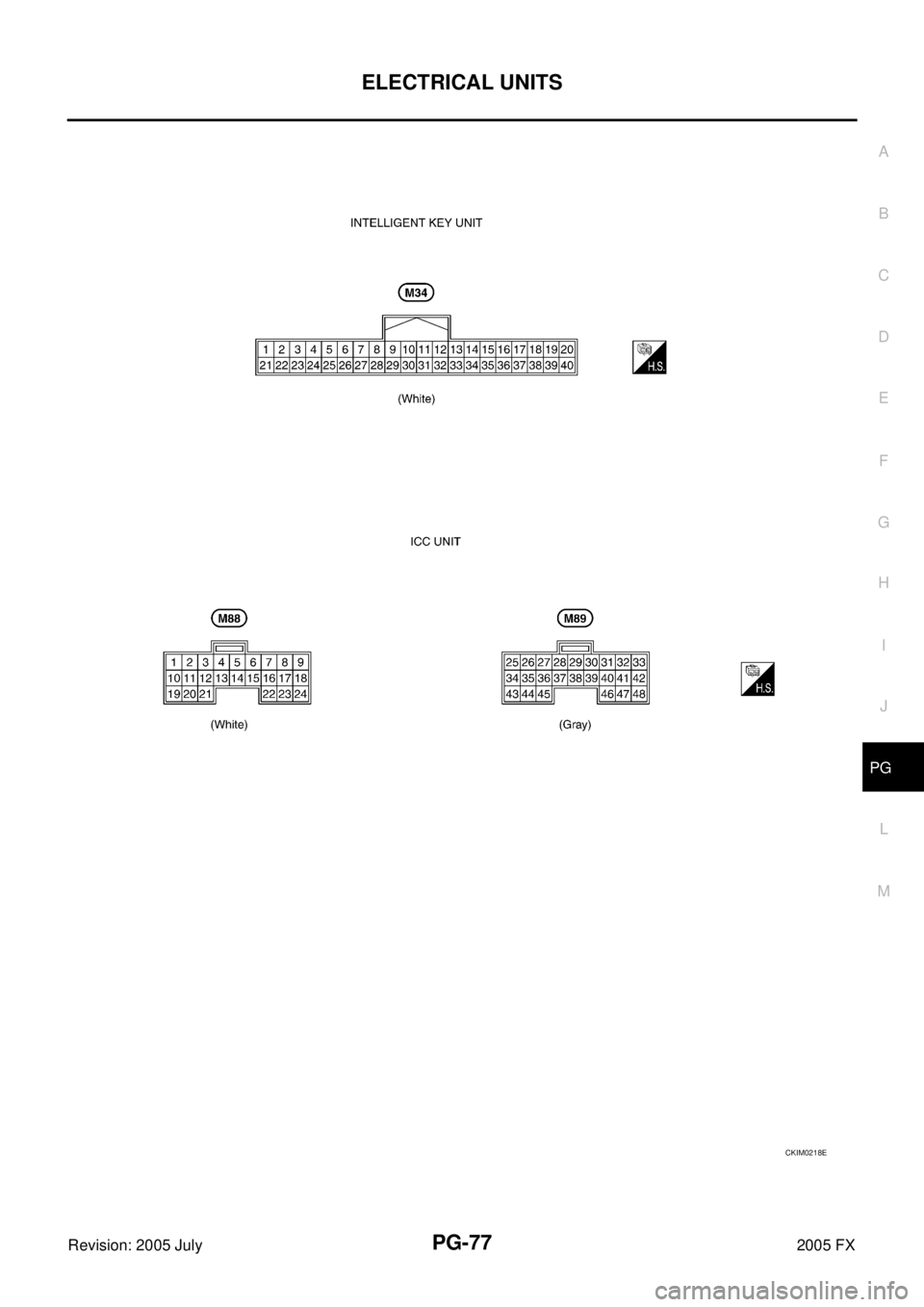

INFINITI FX35 2005 Service Manual ELECTRICAL UNITS PG-77 C D E F G H I J L M A B PG Revision: 2005 July 2005 FX CKIM0218E

Page 4255 of 4731

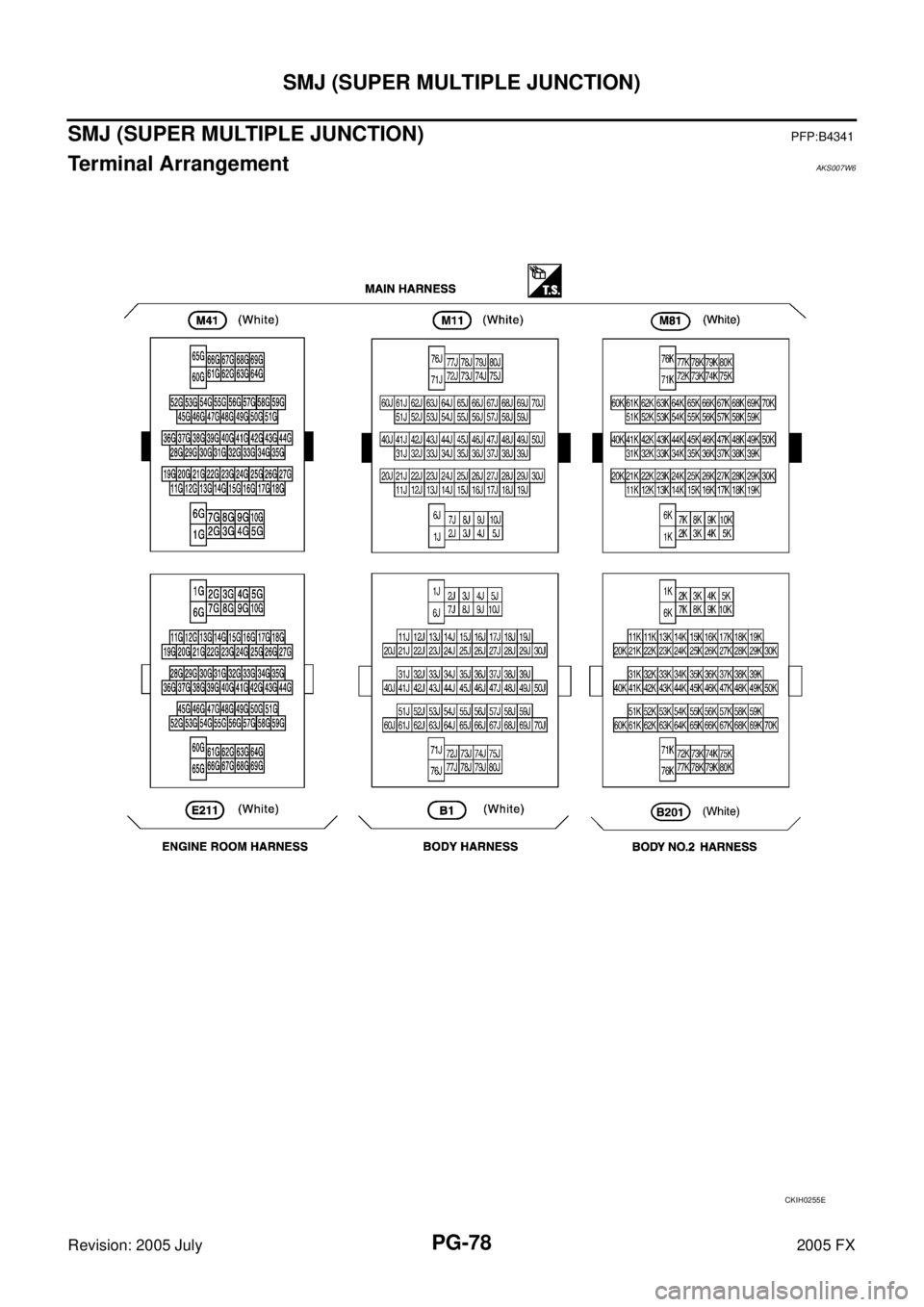

INFINITI FX35 2005 Service Manual PG-78 SMJ (SUPER MULTIPLE JUNCTION) Revision: 2005 July 2005 FX SMJ (SUPER MULTIPLE JUNCTION)PFP:B4341 Terminal ArrangementAKS007W6 CKIH0255E

Page 4256 of 4731

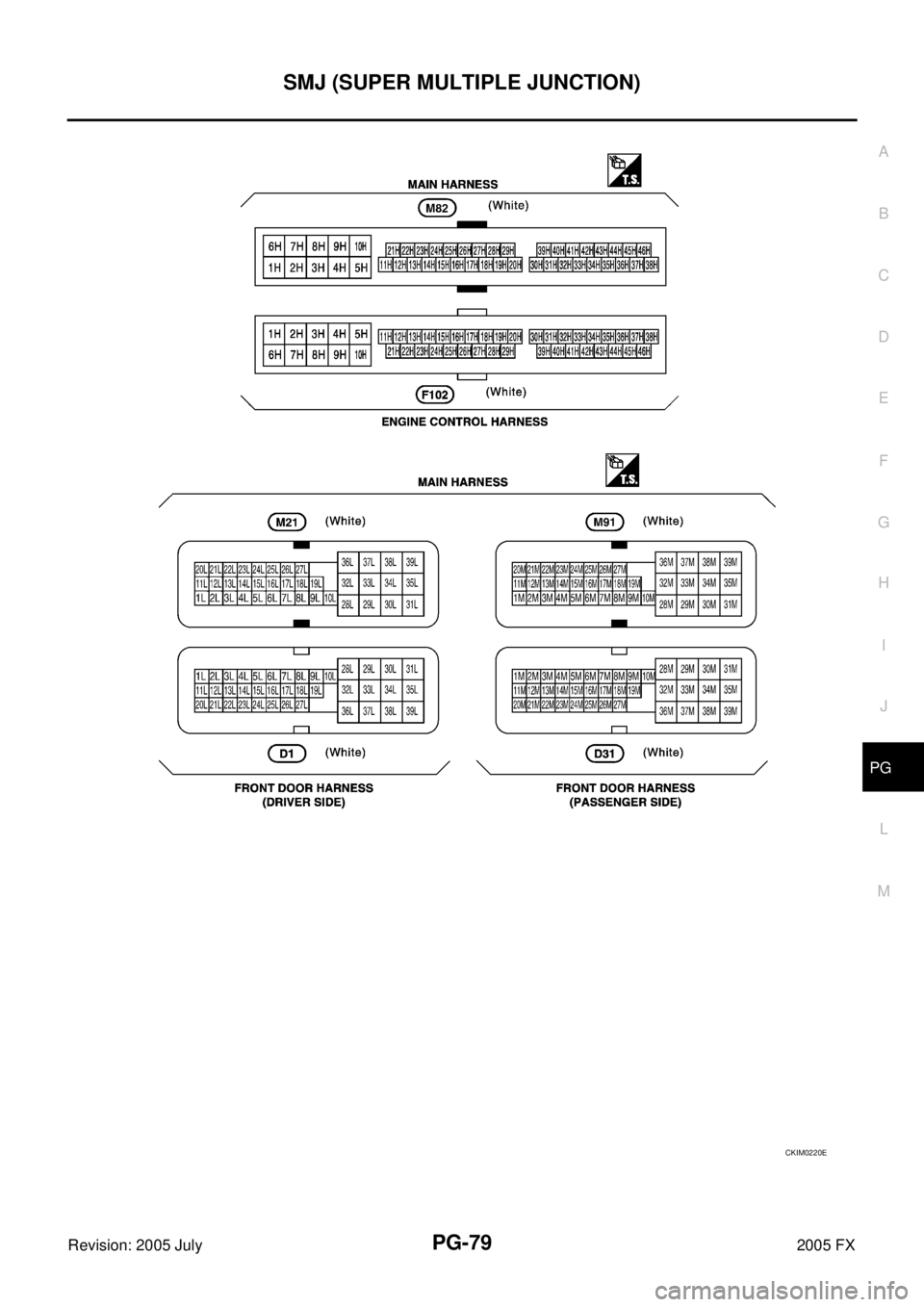

INFINITI FX35 2005 Service Manual SMJ (SUPER MULTIPLE JUNCTION) PG-79 C D E F G H I J L M A B PG Revision: 2005 July 2005 FX CKIM0220E
