Page 273 of 4731
AT-190
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2005 July 2005 FX
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Wiring Diagram — AT — NONDTCACS0080R
TCWM0254E
Page 274 of 4731
TROUBLE DIAGNOSIS FOR SYMPTOMS AT-191
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
TCWM0268E
Page 275 of 4731
AT-192
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2005 July 2005 FX
TCWM0269E
Page 276 of 4731

TROUBLE DIAGNOSIS FOR SYMPTOMS AT-193
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
TCM terminals and data are reference value. Measured between each terminal and ground.
A/T CHECK Indicator Lamp Does Not Come OnACS0080S
SYMPTOM:
A/T CHECK indicator lamp does not come on for about 2 seconds when turning ignition switch to
“ON”.
DIAGNOSTIC PROCEDURE
1. CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to AT- 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 0 6 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK A/T CHECK INDICATOR LAMP CIRCUIT
Check the combination meter. Refer to DI-5, "
COMBINATION METERS" .
OK or NG
OK >> GO TO 3
NG >> Repair or replace damaged parts.
3. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 3 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Terminal Wire
color Item Condition Data (Approx.)
3 L CAN-H – –
4PU K-line (CONSULT-
II signal) The terminal is connected to the data link connector for CONSULT-II. –
7OR Back-up lamp
relay Selector lever in “R” position. 0V
Selector lever in other positions. Battery voltage
8 R CAN-L – –
Page 277 of 4731

AT-194
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2005 July 2005 FX
Engine Cannot Be Started in “P” or “N” PositionACS0080T
SYMPTOM:
Engine cannot be started with selector lever in “P” or “N” position.
Engine can be started with selector lever in “D”or “R” position.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT
Perform self-diagnosis. Refer to AT- 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Do the self-diagnosis results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT- 11 4 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
2. CHECK CONTROL LINKAGE
Check the control linkage.
Refer to AT- 2 3 5 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control linkage. Refer to AT- 2 3 5 , "
Adjustment of
A/T Position" .
3. CHECK STARTING SYSTEM
Check starting system. Refer to SC-10, "
STARTING SYSTEM" .
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
SCIA2119E
Page 278 of 4731

TROUBLE DIAGNOSIS FOR SYMPTOMS AT-195
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
In “P” Position, Vehicle Moves When PushedACS0080U
SYMPTOM:
Even though the selector lever is set in the “P” position, the parking mechanism is not actuated,
allowing the vehicle to be moved when it is pushed.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT
Perform self-diagnosis. Refer to AT- 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Do the self-diagnostic results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT- 11 4 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
2. CHECK CONTROL LINKAGE
Check the control linkage.
Refer to AT- 2 3 5 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control linkage. Refer to AT- 2 3 5 , "
Adjustment of
A/T Position" .
3. CHECK PARKING COMPONENTS
Check parking components. Refer to AT- 2 5 5 , "
Parking Components (2WD Models Only)" (2WD models) or
AT- 2 9 0 , "
Disassembly" (AWD models).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 4 3 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 2 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> INSPECTION END
NG >> Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 , "
Symp-
tom Chart" (Symptom No.65).
SCIA2119E
SCIA5199E
Page 279 of 4731

AT-196
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2005 July 2005 FX

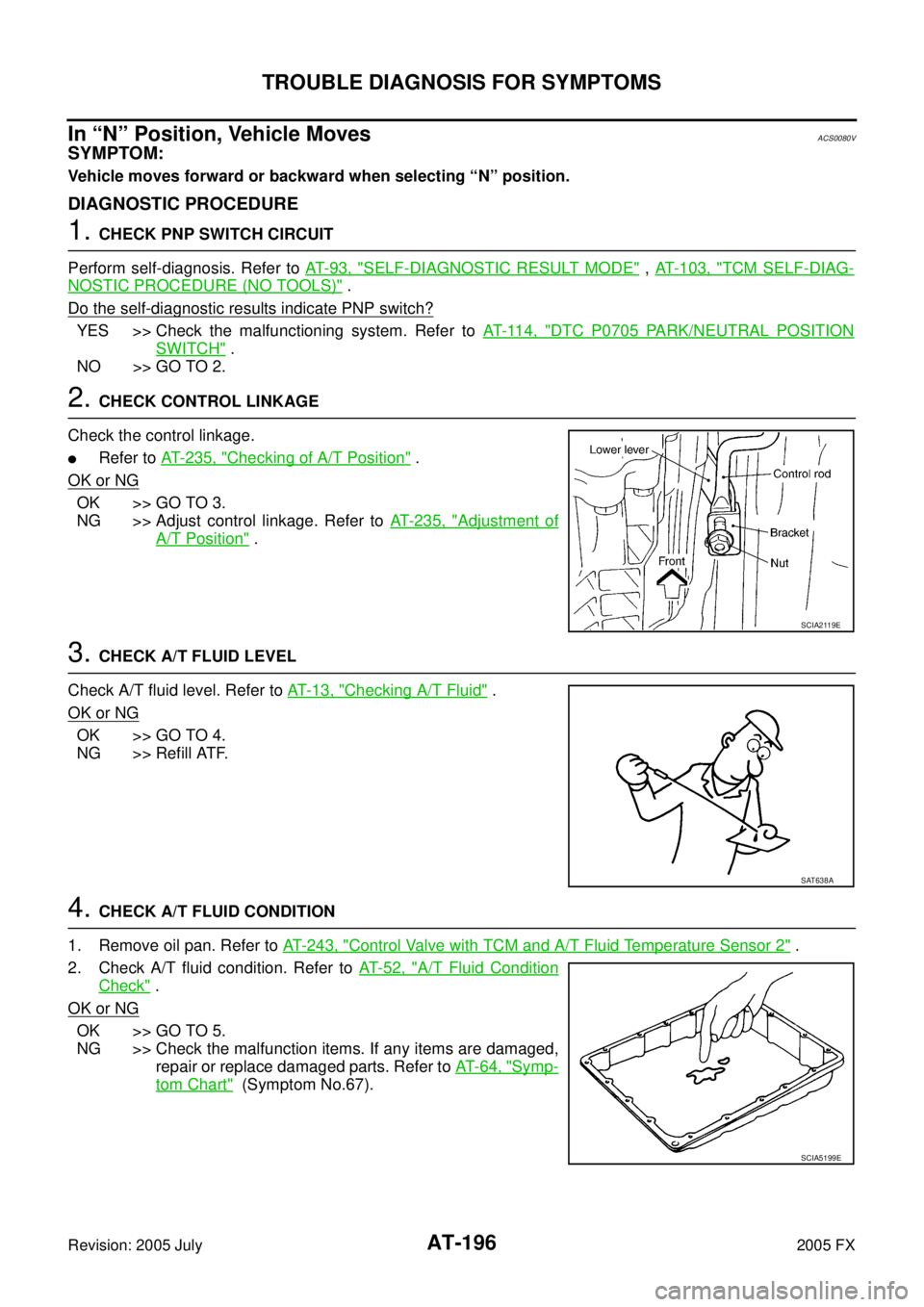

In “N” Position, Vehicle MovesACS0080V
SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT
Perform self-diagnosis. Refer to AT- 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Do the self-diagnostic results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT- 11 4 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
2. CHECK CONTROL LINKAGE
Check the control linkage.
Refer to AT- 2 3 5 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control linkage. Refer to AT- 2 3 5 , "
Adjustment of
A/T Position" .
3. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 3 , "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 4.
NG >> Refill ATF.
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 4 3 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 2 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 5.
NG >> Check the malfunction items. If any items are damaged,
repair or replace damaged parts. Refer to AT- 6 4 , "
Symp-
tom Chart" (Symptom No.67).
SCIA2119E
SAT638A
SCIA5199E
Page 280 of 4731

TROUBLE DIAGNOSIS FOR SYMPTOMS AT-197
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX

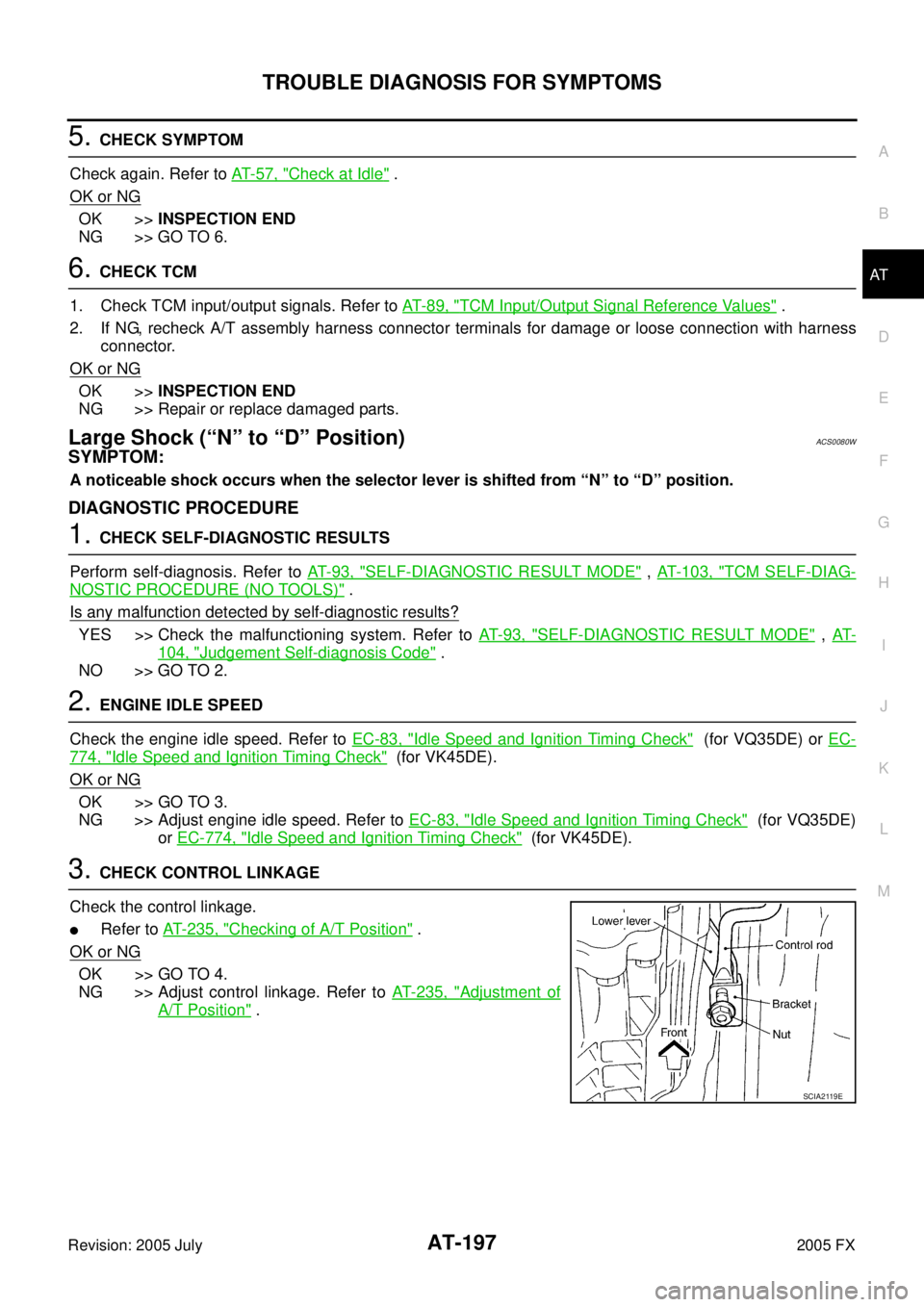

5. CHECK SYMPTOM
Check again. Refer to AT- 5 7 , "
Check at Idle" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
6. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Large Shock (“N” to “D” Position)ACS0080W
SYMPTOM:
A noticeable shock occurs when the selector lever is shifted from “N” to “D” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 3 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to AT- 9 3 , "SELF-DIAGNOSTIC RESULT MODE" , AT-
104, "Judgement Self-diagnosis Code" .
NO >> GO TO 2.
2. ENGINE IDLE SPEED
Check the engine idle speed. Refer to EC-83, "
Idle Speed and Ignition Timing Check" (for VQ35DE) or EC-
774, "Idle Speed and Ignition Timing Check" (for VK45DE).
OK or NG
OK >> GO TO 3.
NG >> Adjust engine idle speed. Refer to EC-83, "
Idle Speed and Ignition Timing Check" (for VQ35DE)
or EC-774, "
Idle Speed and Ignition Timing Check" (for VK45DE).
3. CHECK CONTROL LINKAGE
Check the control linkage.
Refer to AT- 2 3 5 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 4.
NG >> Adjust control linkage. Refer to AT- 2 3 5 , "
Adjustment of
A/T Position" .
SCIA2119E
