DTC P1148, P1168 CLOSED LOOP CONTROLPFP:22690
On Board Diagnosis LogicABS006UW
These self-diagnoses have the one trip detection logic.
DTC P1148 or P1168 is displayed with another DTC for air fuel ratio (A/F) sensor 1.
Perform the trouble diagnosis for the corresponding DTC.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1148
1148
(Bank 1) Closed loop control
function The closed loop control function for bank 1
does not operate even when vehicle is driving
in the specified condition.
Harness or connectors
[The air fuel ratio (A/F) sensor 1 circuit is
open or shorted.]
Air fuel ratio (A/F) sensor 1
Air fuel ratio (A/F) sensor 1 heater
P1168
1168
(Bank 2) The closed loop control function for bank 2
does not operate even when vehicle is driving
in the specified condition.
Page 1858 of 4731
![INFINITI FX35 2005 Service Manual DTC P1211 TCS CONTROL UNIT EC-465
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1211 TCS CONTROL UNITPFP:47850
DescriptionABS006V0
The malfunction information relat INFINITI FX35 2005 Service Manual DTC P1211 TCS CONTROL UNIT EC-465
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1211 TCS CONTROL UNITPFP:47850
DescriptionABS006V0
The malfunction information relat](/manual-img/42/57020/w960_57020-1857.png)
DTC P1211 TCS CONTROL UNIT EC-465
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1211 TCS CONTROL UNITPFP:47850
DescriptionABS006V0
The malfunction information related to TCS is transferred through the CAN communication line from “ABS
actuator and electric unit (control unit)” to ECM.
Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.
On Board Diagnosis LogicABS006V1
Freeze frame data is not stored in the ECM for this self-diagnosis. The MIL will not light up for this self-
diagnosis.
DTC Confirmation ProcedureABS006V2
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 60 seconds.
4. If 1st trip DTC is detected, go to EC-465, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureABS00E9C
Go to BRC-12, "TROUBLE DIAGNOSIS" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1211
1211 TCS control unit ECM receives a malfunction information from
“ABS actuator and electric unit (Control unit)”.
ABS actuator and electric unit (control
unit)
TCS related parts
SEF058Y
Page 1859 of 4731
![INFINITI FX35 2005 Service Manual EC-466
[VQ35DE]
DTC P1212 TCS COMMUNICATION LINE
Revision: 2005 July 2005 FX
DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionABS006V4
NOTE:
If DTC P1212 is displayed with DTC U1000 or U1001, fir INFINITI FX35 2005 Service Manual EC-466
[VQ35DE]
DTC P1212 TCS COMMUNICATION LINE
Revision: 2005 July 2005 FX
DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionABS006V4
NOTE:
If DTC P1212 is displayed with DTC U1000 or U1001, fir](/manual-img/42/57020/w960_57020-1858.png)
EC-466
[VQ35DE]
DTC P1212 TCS COMMUNICATION LINE
Revision: 2005 July 2005 FX
DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionABS006V4
NOTE:
If DTC P1212 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-171
.
This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse
signals are exchanged between ECM and “ABS actuator and electric unit (control unit)”.
Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.
On Board Diagnosis LogicABS006V5
Freeze frame data is not stored in the ECM for this self-diagnosis. The MIL will not light up for this self-
diagnosis.
DTC Confirmation ProcedureABS006V6
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 10 seconds.
4. If a 1st trip DTC is detected, go to EC-466, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureABS00E9D
Go to BRC-12, "TROUBLE DIAGNOSIS" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1212
1212 TCS communication
line ECM can not receive the information
from “ABS actuator and electric unit (con-
trol unit)”.
Harness or connectors
(The CAN communication line is open or
shorted.)
ABS actuator and electric unit (control unit)
Dead (Weak) battery
SEF058Y
Page 1860 of 4731
![INFINITI FX35 2005 Service Manual DTC P1217 ENGINE OVER TEMPERATURE EC-467
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
DescriptionABS00B4M
SYSTEM DESCRIPTION
INFINITI FX35 2005 Service Manual DTC P1217 ENGINE OVER TEMPERATURE EC-467
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
DescriptionABS00B4M
SYSTEM DESCRIPTION](/manual-img/42/57020/w960_57020-1859.png)
DTC P1217 ENGINE OVER TEMPERATURE EC-467
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
DescriptionABS00B4M
SYSTEM DESCRIPTION
NOTE:
If DTC P1217 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-171
.
Cooling Fan Control
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM through CAN communication line.
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 4-step control [HIGH/MIDDLE/LOW/OFF].
Cooling Fan Operation
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
1
Cooling fan
control IPDM E/R
(Cooling fan relay)
Battery
Battery voltage*
1
Wheel sensor*2Vehicle speed
Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch*
2Air conditioner ON signal
Refrigerant pressure sensor Refrigerant pressure
PBIB2215E
Page 1861 of 4731
EC-468
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2005 July 2005 FX
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
COMPONENT DESCRIPTION
Cooling Fan Motor
The cooling fan operates at each speed when the current flows in the cooling fan motor as follows.
The cooling fan operates at low (LOW) speed when cooling fan motors-1 and -2 are circuited in series under
middle speed condition.
Cooling fan speed Cooling fan relay
123
Stop (OFF) OFF OFF OFF
Low (LOW) OFF ON OFF
Middle (MID) OFF OFF ON
High (HI) ON OFF ON
Cooling fan speed Cooling fan motor terminals
(+) ( −)
Middle (MID) 1 3 and 4
2 3 and 4
1 and 2 3
1 and 2 4
High (HI) 1 and 2 3 and 4
Page 1862 of 4731
![INFINITI FX35 2005 Service Manual DTC P1217 ENGINE OVER TEMPERATURE EC-469
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
CONSULT-II Reference Value in Data Monitor ModeABS006V9
Specification data are ref INFINITI FX35 2005 Service Manual DTC P1217 ENGINE OVER TEMPERATURE EC-469
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
CONSULT-II Reference Value in Data Monitor ModeABS006V9
Specification data are ref](/manual-img/42/57020/w960_57020-1861.png)
DTC P1217 ENGINE OVER TEMPERATURE EC-469
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
CONSULT-II Reference Value in Data Monitor ModeABS006V9
Specification data are reference values.
On Board Diagnosis LogicABS006VA
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-11, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-9, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to use coolant with the proper mixture ratio. Refer to MA-13, "
Anti-Freeze Coolant Mixture Ratio" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
Overall Function CheckABS006VB
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
MONITOR ITEM CONDITION SPECIFICATION
AIR COND SIG
Engine: After warming up, idle
the engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.) ON
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFF Engine coolant temperature is 94
°C
(201 °F) or less OFF
Engine coolant temperature is
between 95 °C (203 °F) and 99 °C
(210 °F) LOW
Engine coolant temperature is
between 100 °C (212 °F) and 104 °C
(219 °F) MID
Engine coolant temperature is 105 °C
(221 °F) or more HI
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217 Engine over tempera-
ture (Overheat)
Cooling fan does not operate properly (Over-
heat).
Cooling fan system does not operate prop-
erly (Overheat).
Engine coolant level was not added to the
system using the proper filling method.
Engine coolant is not within the specified
range.
Harness or connectors
(The cooling fan circuit is open or
shorted.)
IPDM E/R
Cooling fan
Radiator hose
Radiator
Radiator cap
Water pump
Thermostat
For more information, refer to EC-478,
"Main 12 Causes of Overheating" .
Page 1863 of 4731
![INFINITI FX35 2005 Service Manual EC-470
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2005 July 2005 FX
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking cool INFINITI FX35 2005 Service Manual EC-470
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2005 July 2005 FX
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking cool](/manual-img/42/57020/w960_57020-1862.png)
EC-470
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2005 July 2005 FX
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-473,
"PROCEDURE A" .
2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to EC-473,
"PROCEDURE A" .
3. Turn ignition switch ON.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON- SULT-II.
5. If the results are NG, go to EC-473, "
PROCEDURE A" .
WITH GST
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-473,
"PROCEDURE A" .
2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to EC-473,
"PROCEDURE A" .
3. Perform IPDM E/R auto active test and check cooling fan motors operation, refer to PG-24, "
Auto Active Test"
4. If NG, go to EC-473, "PROCEDURE A" .
SEF621W
SEF646X
SEF621W
Page 1864 of 4731
DTC P1217 ENGINE OVER TEMPERATURE EC-471
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

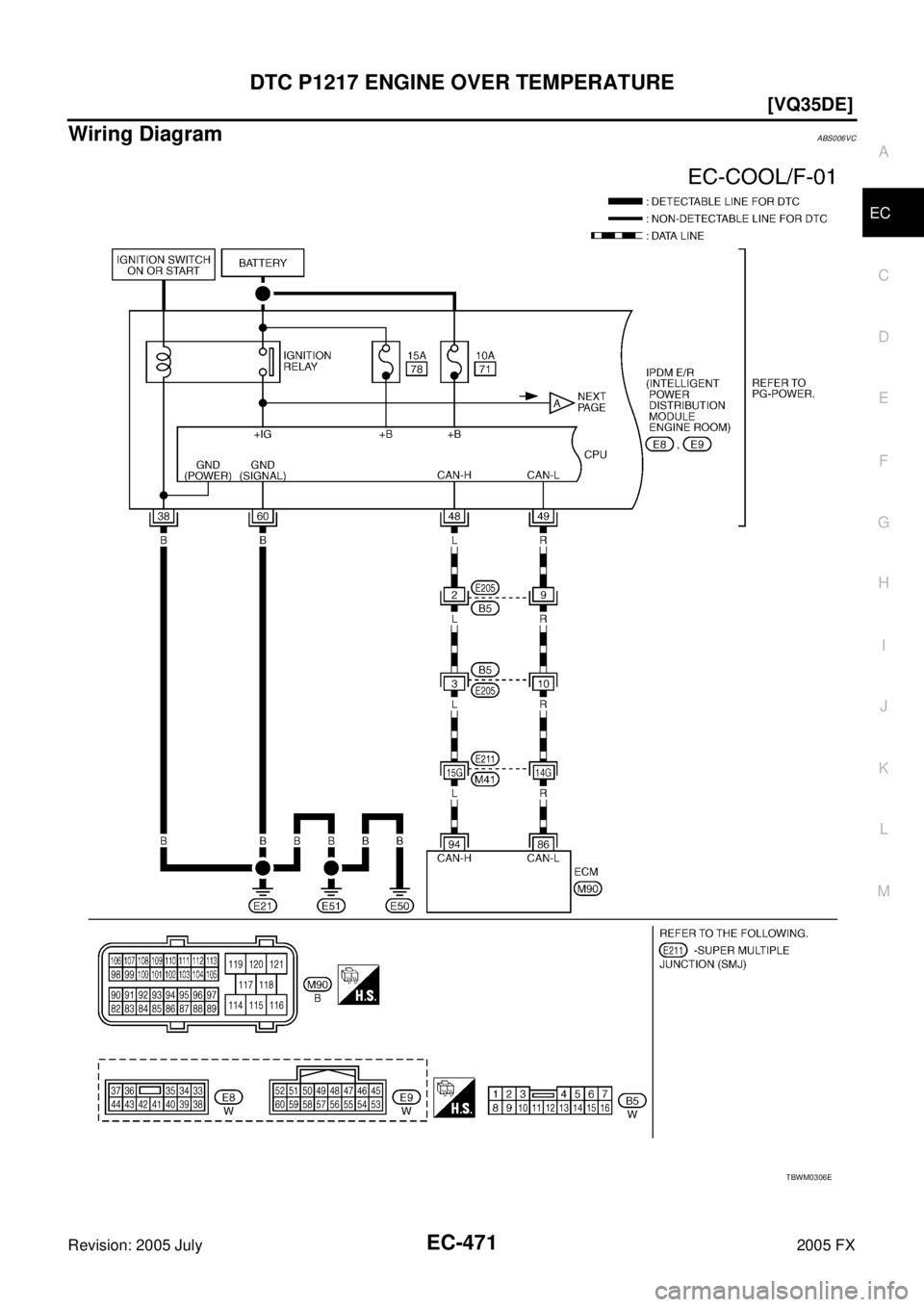

Wiring DiagramABS006VC
TBWM0306E
