Page 2161 of 4731

INFINITI FX35 2005 Service Manual EC-768 [VK45DE] ON BOARD DIAGNOSTIC (OBD) SYSTEM Revision: 2005 July 2005 FX EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR “MISFIRE <EXHAUST QUALITY DETERIORATION>”, “FUEL INJECTION SYSTEM”

Page 2162 of 4731

INFINITI FX35 2005 Service Manual BASIC SERVICE PROCEDURE EC-769 [VK45DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX BASIC SERVICE PROCEDUREPFP:00018 Basic InspectionABS00E4C 1. INSPECTION START 1. Check serv

Page 2163 of 4731

INFINITI FX35 2005 Service Manual EC-770 [VK45DE] BASIC SERVICE PROCEDURE Revision: 2005 July 2005 FX 3. CHECK TARGET IDLE SPEED With CONSULT-II 1. Run engine at about 2,000 rpm for about 2 minutes under no load. 2. Rev engine (2,0

Page 2164 of 4731

INFINITI FX35 2005 Service Manual BASIC SERVICE PROCEDURE EC-771 [VK45DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX 6. PERFORM IDLE AIR VOLUME LEARNING Refer to EC-787, " Idle Air Volume Learning" . Is Id

Page 2165 of 4731

INFINITI FX35 2005 Service Manual EC-772 [VK45DE] BASIC SERVICE PROCEDURE Revision: 2005 July 2005 FX 10. CHECK IGNITION TIMING 1. Run engine at idle. 2. Check ignition timing with a timing light. Refer to EC-774 . OK or NG OK >

Page 2166 of 4731

INFINITI FX35 2005 Service Manual BASIC SERVICE PROCEDURE EC-773 [VK45DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX 15. CHECK IGNITION TIMING AGAIN 1. Run engine at idle. 2. Check ignition timing with a tim

Page 2167 of 4731

INFINITI FX35 2005 Service Manual EC-774 [VK45DE] BASIC SERVICE PROCEDURE Revision: 2005 July 2005 FX Idle Speed and Ignition Timing CheckABS00E4D IDLE SPEED With CONSULT-II Check idle speed in “DATA MONITOR” mode with CONSULT-I

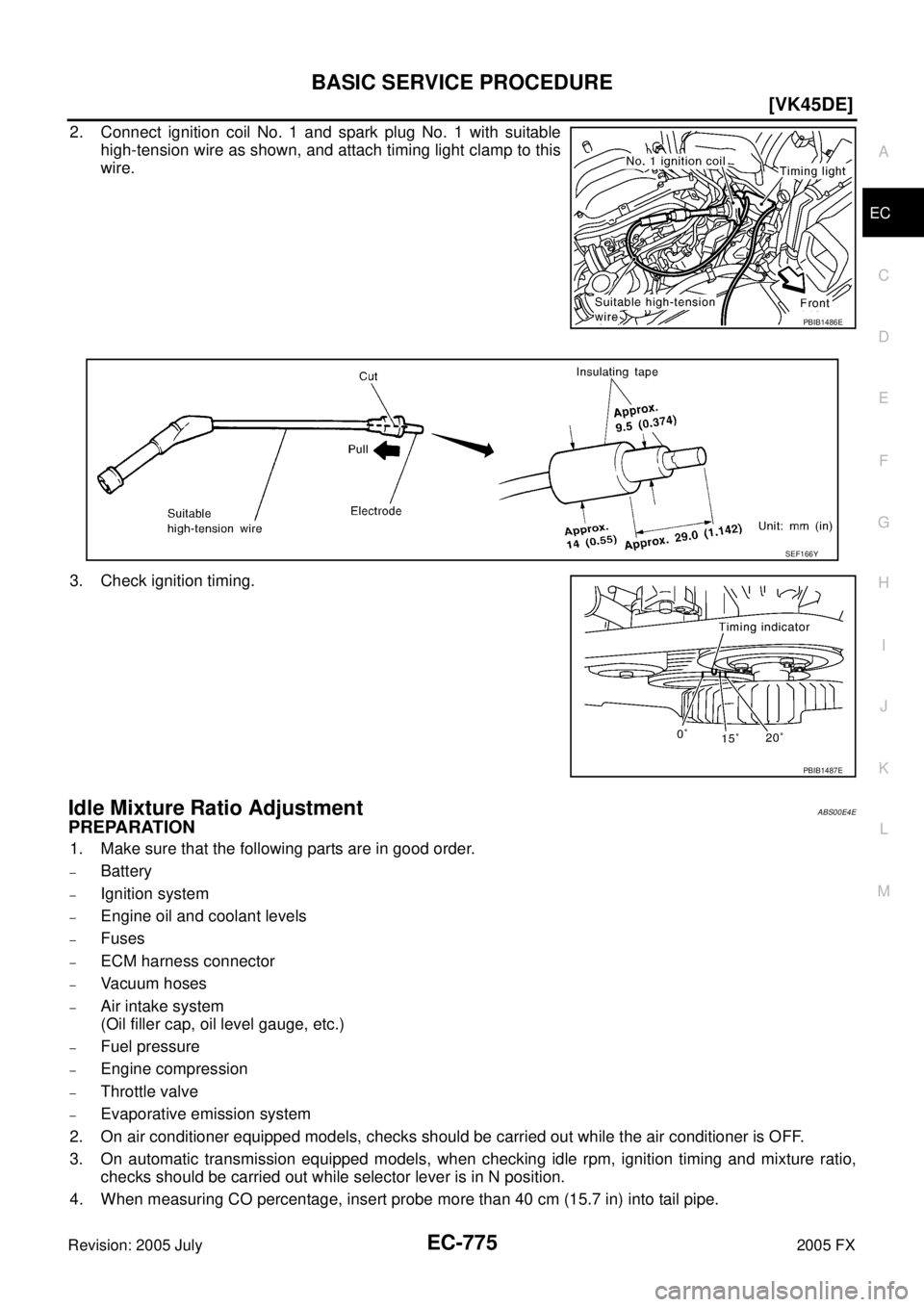

Page 2168 of 4731

INFINITI FX35 2005 Service Manual BASIC SERVICE PROCEDURE EC-775 [VK45DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX 2. Connect ignition coil No. 1 and spark plug No. 1 with suitable high-tension wire as show
