EC-568
[VQ35DE]
DTC P1446 EVAP CANISTER VENT CONTROL VALVE
Revision: 2005 July 2005 FX
DTC P1446 EVAP CANISTER VENT CONTROL VALVEPFP:14935
Component DescriptionABS006W2
The EVAP canister vent control valve is located on the EVAP canis-
ter and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows EVAP
Control System diagnosis.
CONSULT-II Reference Value in Data Monitor ModeABS006W3
Specification data are reference values.
On Board Diagnosis LogicABS006W4
PBIB1263E
PBIB1611E
MONITOR ITEM CONDITION SPECIFICATION
VENT CONT/V
Ignition switch: ON OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1446
1446 EVAP canister vent con-
trol valve close EVAP canister vent control valve remains
closed under specified driving conditions.
EVAP canister vent control valve
EVAP control system pressure sensor
and the circuit
Blocked rubber tube to EVAP canister
vent control valve
EVAP canister is saturated with water
Page 1962 of 4731
![INFINITI FX35 2005 Service Manual DTC P1446 EVAP CANISTER VENT CONTROL VALVE EC-569
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC Confirmation ProcedureABS006W5
NOTE:
If DTC Confirmation Procedure h INFINITI FX35 2005 Service Manual DTC P1446 EVAP CANISTER VENT CONTROL VALVE EC-569
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC Confirmation ProcedureABS006W5
NOTE:
If DTC Confirmation Procedure h](/manual-img/42/57020/w960_57020-1961.png)
DTC P1446 EVAP CANISTER VENT CONTROL VALVE EC-569
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC Confirmation ProcedureABS006W5
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-II.
4. Start engine and let it idle for at least 1 minute.
5. Repeat next procedures 3 times.
a. Increase the engine speed up to 3,000 to 3,500 rpm and keep it for 2 minutes and 50 seconds to 3 minutes.
Never exceed 3 minutes.
b. Fully released accelerator pedal and keep engine idle for about 5 seconds.
6. If 1st trip DTC is detected, go to EC-571, "
Diagnostic Procedure"
.
If 1st trip DTC is not detected, go to the next step.
7. Repeat next procedure 20 times.
a. Quickly increase the engine speed up to 4,000 to 4,500 rpm or more and keep it for 25 to 30 seconds.
b. Fully released accelerator pedal and keep engine idle for at least 35 seconds.
8. If 1st trip DTC is detected, go to EC-571, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
PBIB0972E
Page 1963 of 4731
EC-570
[VQ35DE]
DTC P1446 EVAP CANISTER VENT CONTROL VALVE
Revision: 2005 July 2005 FX

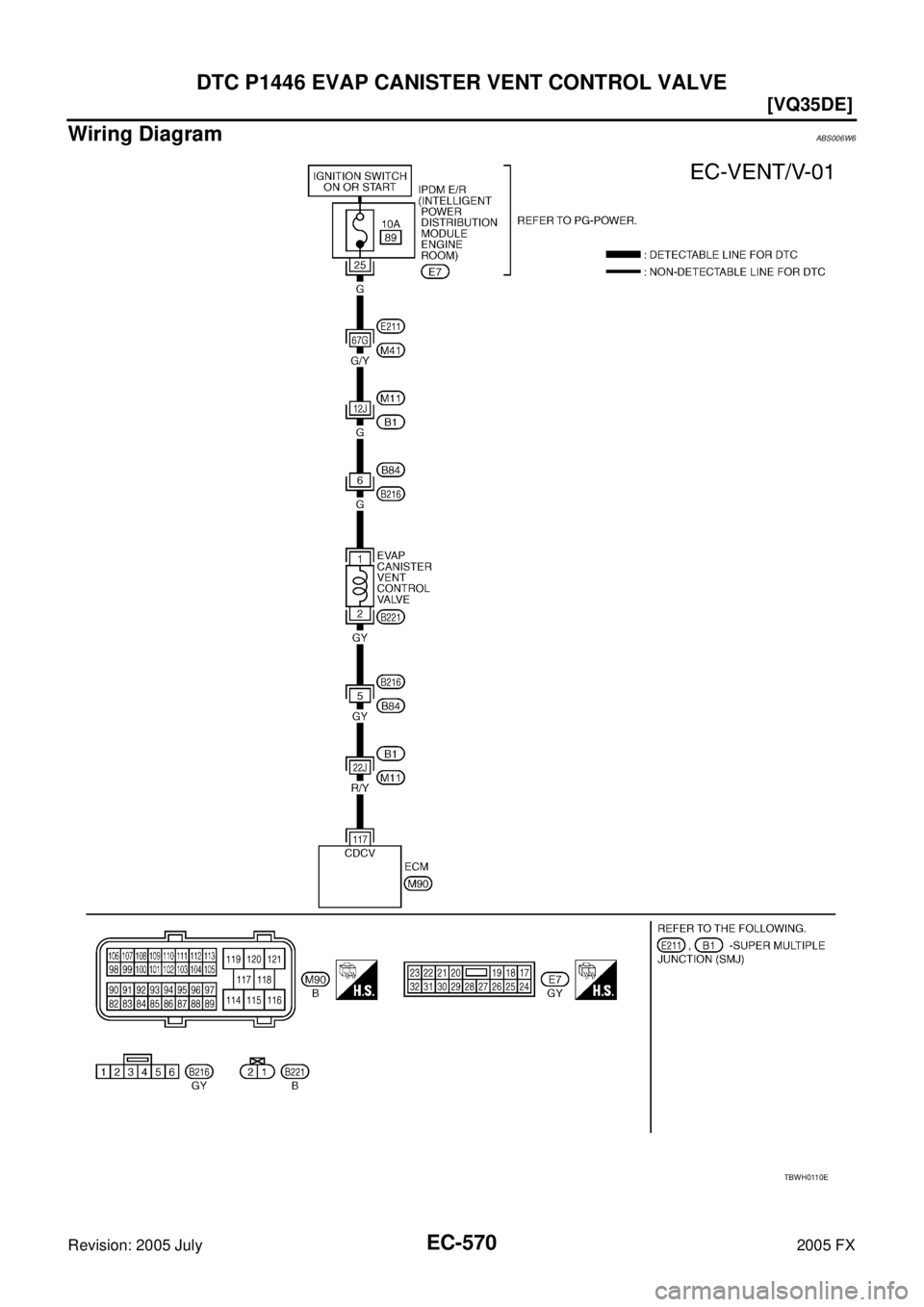

Wiring DiagramABS006W6
TBWH0110E
Page 1964 of 4731
![INFINITI FX35 2005 Service Manual DTC P1446 EVAP CANISTER VENT CONTROL VALVE EC-571
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each ter INFINITI FX35 2005 Service Manual DTC P1446 EVAP CANISTER VENT CONTROL VALVE EC-571
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each ter](/manual-img/42/57020/w960_57020-1963.png)
DTC P1446 EVAP CANISTER VENT CONTROL VALVE EC-571
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS006W7
1. CHECK RUBBER TUBE
1. Turn ignition switch OFF.
2. Disconnect rubber tube connected to EVAP canister vent control valve.
3. Check the rubber tube for clogging.
OK or NG
OK >> GO TO 2.
NG >> Clean rubber tube using an air blower.
2. CHECK EVAP CANISTER VENT CONTROL VALVE
Refer to EC-348, "
Component Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Replace EVAP canister vent control valve.
3. CHECK IF EVAP CANISTER SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Check if water will drain from the EVAP canister.
Ye s o r N o
Ye s > > G O T O 4 .
No >> GO TO 6.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
11 7 R / Y EVAP canister vent control
valve [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB1611E
PBIB1031E
Page 1965 of 4731
![INFINITI FX35 2005 Service Manual EC-572
[VQ35DE]
DTC P1446 EVAP CANISTER VENT CONTROL VALVE
Revision: 2005 July 2005 FX
4. CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system INFINITI FX35 2005 Service Manual EC-572
[VQ35DE]
DTC P1446 EVAP CANISTER VENT CONTROL VALVE
Revision: 2005 July 2005 FX
4. CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system](/manual-img/42/57020/w960_57020-1964.png)
EC-572
[VQ35DE]
DTC P1446 EVAP CANISTER VENT CONTROL VALVE
Revision: 2005 July 2005 FX
4. CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.1 kg (4.6 lb).
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
EVAP canister for damage
EVAP hose between EVAP canister and vehicle frame for clogging or poor connection
>> Repair hose or replace EVAP canister.
6. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check connectors for water.
OK or NG
OK >> GO TO 7.
NG >> Replace EVAP control system pressure sensor.
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-358, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace EVAP control system pressure sensor.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionABS006W8
EVAP CANISTER VENT CONTROL VALVE
With CONSULT-II
1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B of EVAP canister vent control valve for being
rusted.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.
3. Reconnect harness connectors disconnected.
4. Turn ignition switch ON. Water should not exist.
PBIB1033E
Page 1966 of 4731
![INFINITI FX35 2005 Service Manual DTC P1446 EVAP CANISTER VENT CONTROL VALVE EC-573
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air INFINITI FX35 2005 Service Manual DTC P1446 EVAP CANISTER VENT CONTROL VALVE EC-573
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air](/manual-img/42/57020/w960_57020-1965.png)
DTC P1446 EVAP CANISTER VENT CONTROL VALVE EC-573
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air passage continuity and operation delay time. Make sure new O-ring is installed properly.
Operation takes less than 1 second.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.
7. Clean the air passage (Portion A to B ) of EVAP canister vent control valve using an air blower.
8. Perform step 6 again.
Without CONSULT-II
1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B of EVAP canister vent control valve for being
rusted.
3. Check air passage continuity and operation delay time under the following conditions.
Make sure new O-ring is installed properly.
Operation takes less than 1 second.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.
4. Clean the air passage (Portion A to B ) of EVAP canister vent control valve using an air blower.
5. Perform step 3 again.
Condition VENT CONTROL/V Air passage continuity between A and B
ON No
OFF Yes
PBIB1679E
PBIB1033E
Condition Air passage continuity between A and B
12V direct current supply between
terminals 1 and 2 No
OFF Yes
PBIB1034E
Page 1967 of 4731
![INFINITI FX35 2005 Service Manual EC-574
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2005 July 2005 FX
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionABS007YZ
ICC steering switch has variant values of electrical resi INFINITI FX35 2005 Service Manual EC-574
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2005 July 2005 FX
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionABS007YZ
ICC steering switch has variant values of electrical resi](/manual-img/42/57020/w960_57020-1966.png)
EC-574
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2005 July 2005 FX
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionABS007YZ
ICC steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of
switch, and determines which button is operated.
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeABS007Z0
Specification data are reference values.
On Board Diagnosis LogicABS007Z1
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this self-diagnosis .
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-402
.
DTC Confirmation ProcedureABS007Z2
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PBIB2557E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW
Ignition switch: ON MAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW
Ignition switch: ON CANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ON RESUME/ACCELERATE switch: Pressed ON
RESUME/ACCELERATE switch: Released OFF
SET SW
Ignition switch: ON SET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
DIST SW
Ignition switch: ON DISTANCE switch: Depressed ON
DISTANCE switch: Released OFF
DTC No. Trouble Diagnosis
Name DTC Detecting Condition Possible Cause
P1564
1564 ICC steering switch
An excessively high voltage signal from the
ICC steering switch is sent to ECM.
ECM detects that input signal from the ICC
steering switch is out of the specified range.
ECM detects that the ICC steering switch is
stuck ON.
Harness or connectors
(The switch circuit is open or shorted.)
ICC steering switch
ECM
Page 1968 of 4731
DTC P1564 ICC STEERING SWITCH EC-575
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press MAIN switch for at least 10 seconds, then release it and wait at least 10 seconds.
5. Press RESUME/ACCELERATE switch for at least 10 seconds, then release it and wait at least 10 sec- onds.
6. Press SET/COAST switch for at least 10 seconds, then release it and wait at least 10 seconds.
7. Press DISTANCE switch for at least 10 seconds, then release it and wait at least 10 seconds.
8. Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.
9. If DTC is detected, go to EC-577, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
