DI-100
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch any of “ALL SIGNALS” and “SELECTION FROM MENU” on selection screen.
3. Touch “START”.
4. Display the data monitor.
5. If necessary, touch “COPY” in turn, and print data.
Monitored Item
× : Applicable
VHCL SPD DATA MALF
[C1B02] ××
Wheel sensor malfunction
ABS actuator and electric unit (control unit) malfunction
A/T vehicle speed sensor malfunction
TCM malfunction DI-105
ABNRML TEMP DETECT
[C1B03] ××
Temperature around LDW camera unit is excessively
high. DI-105
CAN COMM CIRCUIT
[U1000] ×× LDW camera unit detected CAN communication malfunc-
tion. DI-105
CONTROL UNIT (CAN)
[U1010] ××LDW camera unit detected internal CAN communication
circuit malfunction. DI-105
Display item [Code]LDW indicator
lamp Fail-safe Malfunctions detected where... Reference
page
Monitored Item [unit] ALL
SIGNALS SELECTION
FROM
MENU Description
MAIN SW
[ON/OFF] ××
Displays [ON/OFF] status as judged from LDW switch signal.
SW ON LAMP
[ON/OFF] ××
Displays [ON/OFF] status of LDW system ON indicator signal output.
INDICATE LAMP
[ON/OFF] ××
Displays [ON/OFF] status of LDW indicator signal output.
BUZZER OUTPUT
[ON/OFF] ××
Displays [ON/OFF] status of LDW chime operation signal output.
LDW INACCURAT
[ON/OFF] ××
Displays LDW camera unit status.
VHCL SPD SE
[km/h] or [mph] ×× Displays vehicle speed calculated by LDW camera unit through CAN commu-
nication [ABS actuator and electric unit (control unit) transmits wheel sensor
signal through CAN communication].
VHCL SPD AT
[km/h] or [mph] ×× Displays vehicle speed calculated from A/T vehicle speed sensor by LDW
camera unit through CAN communication (TCM transmits A/T vehicle speed
sensor signal through CAN communication).
TURN SIGNAL
[OFF/LH/RH] ×× Displays “Turn signal” status, determined from BCM through CAN communica-
tion.
LANE DETCT LH
[ON/OFF] ××
Displays left lane marker is detected.
LANE DETCT RH
[ON/OFF] ××
Displays right lane marker is detected.
CROSS LANE LH
[ON/OFF] ××
Displays vehicle is crossing left lane.
CROSS LANE RH
[ON/OFF] ××
Displays vehicle is crossing right lane.
WARN LANE LH
[ON/OFF] ××
Displays warning for left lane.
Page 1362 of 4731

LANE DEPARTURE WARNING SYSTEM DI-101
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
ACTIVE TEST
CAUTION:
Never perform the active test while driving.
Active test cannot be started while LDW indicator lamp is illuminated.
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen. Refer to DI-98, "
CONSULT-II BASIC OPERA-
TION" .
2. Touch any field, “BUZZER DRIVE ”, “SYSTEM ON LAMP DRIVE” and “INDICATOR LAMP DRIVE”, on selection screen.
3. Touch necessary item and “START”.
4. Active test screen will be shown.
Active Test Item
BUZZER DRIVE
Touch “ON” and “OFF” to check if LDW chime operates as follows.
WARN LANE RH
[ON/OFF] ××
Displays warning for right lane.
VALID POS LH
[VLD/INVLD] ××
Displays lateral position for left lane marker is valid.
VALID POS RH
[VLD/INVLD] ××
Displays lateral position for right lane marker is valid.
AIMING DONE
[OK/NG] ××
Displays camera aiming done.
AIMING RESULT
[OK/NOK] ××
Displays camera aiming result.
FCTRY AIM YAW
[deg] ××
Displays camera unit installation condition.
FCTRY AIM ROLL
[deg] ××
Displays camera unit installation condition.
FCTRY AIM PIT
[deg] ××
Displays camera unit installation condition.
XOFFSET
[pixel] ××
Displays camera unit installation condition.
Monitored Item [unit]
ALL
SIGNALS SELECTION
FROM
MENU Description
Active test item Operation item Function
Reference
page
BUZZER DRIVE LDW chime This test is able to check LDW chime operation. DI-101
SYSTEM ON LAMP DRIVE LDW system ON
indicator This test is able to check LDW system ON indicator
operation. DI-102
INDICATOR LAMP DRIVE LDW indicator lamp This test is able to check LDW indicator lamp operation.
DI-102
“BUZZER DRIVE”
Touch “ON” : LDW chime is activated.
Touch “OFF” : LDW chime is not activated.
SKIB1787E
Page 1363 of 4731

DI-102
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX
SYSTEM ON LAMP DRIVE
Touch “ON” and “OFF” to check if LDW system ON indicator oper-
ates as follows.
NOTE:
Perform “SYSTEM ON LAMP DRIVE” when LDW system ON indica-
tor turns OFF.
INDICATOR LAMP DRIVE
Touch “ON” and “OFF” to check that LDW indicator lamp operates as
follows.
Trouble DiagnosisAKS00C7O
HOW TO PERFORM TROUBLE DIAGNOSIS
1. Check the symptom and customer complaint.
2. Understand the outline of system. Refer to DI-82, "
System Description" .
3. Perform the preliminary inspection. Refer to DI-103, "
Preliminary Inspection" .
4. Referring to symptom chart, repair or replace the cause of the malfunction. Refer to DI-102, "
SYMPTOM
CHART" .
5. Erase DTC and perform self-diagnosis of LDW system again. Then perform LDW system running test. Refer to DI-98, "
CONSULT-II Function (LDW)" and DI-85, "LDW SYSTEM RUNNING TEST" .
6. Does LDW system operate normally? If it operates normally, GO TO 7. If not, GO TO 4.
7. INSPECTION END
SYMPTOM CHART

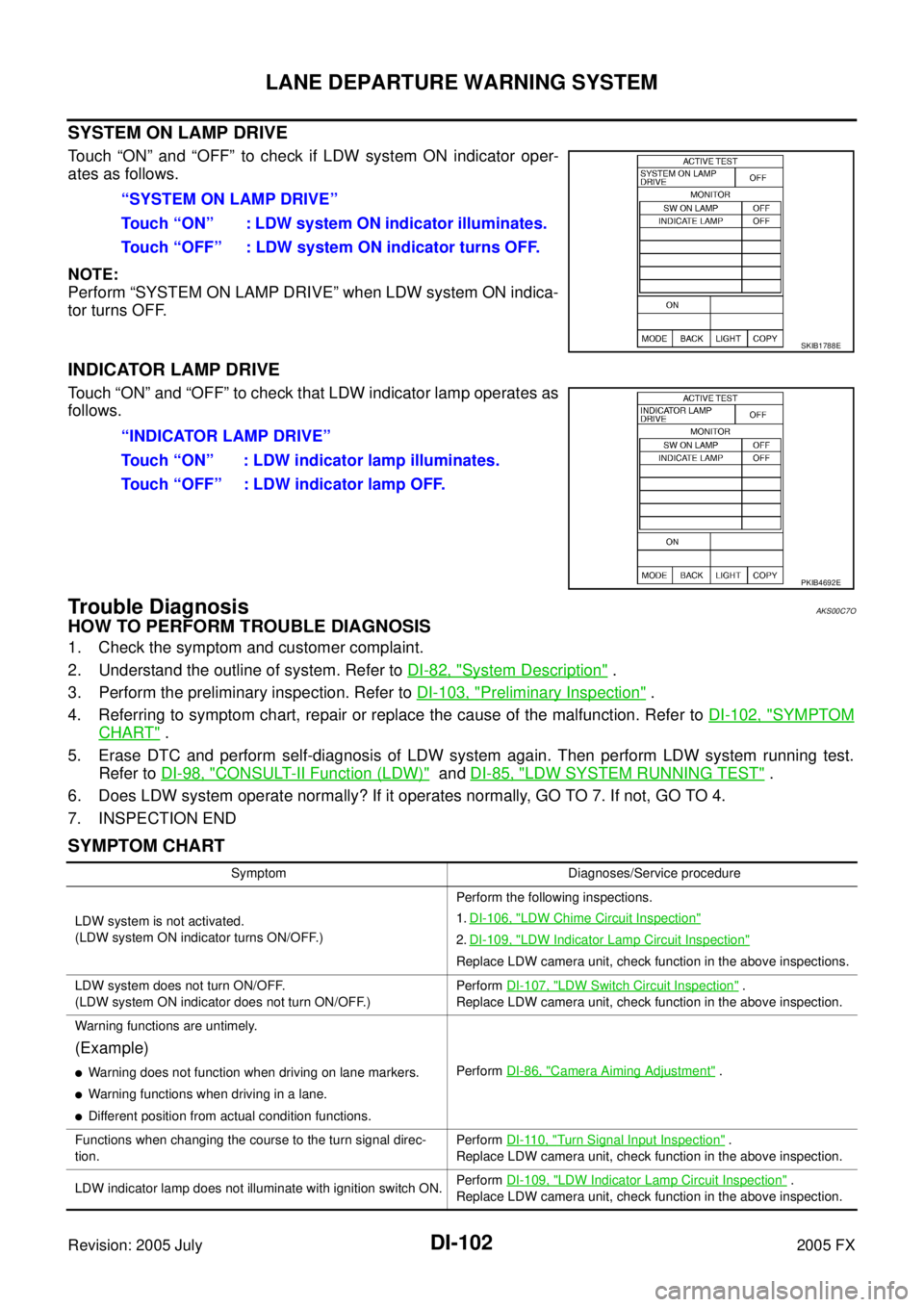

“SYSTEM ON LAMP DRIVE”
Touch “ON” : LDW system ON indicator illuminates.
Touch “OFF” : LDW system ON indicator turns OFF.
SKIB1788E
“INDICATOR LAMP DRIVE”
Touch “ON” : LDW indicator lamp illuminates.
Touch “OFF” : LDW indicator lamp OFF.
PKIB4692E
Symptom Diagnoses/Service procedure
LDW system is not activated.
(LDW system ON indicator turns ON/OFF.) Perform the following inspections.
1. DI-106, "
LDW Chime Circuit Inspection"
2.DI-109, "LDW Indicator Lamp Circuit Inspection"
Replace LDW camera unit, check function in the above inspections.
LDW system does not turn ON/OFF.
(LDW system ON indicator does not turn ON/OFF.) Perform
DI-107, "
LDW Switch Circuit Inspection" .
Replace LDW camera unit, check function in the above inspection.
Warning functions are untimely.
(Example)
Warning does not function when driving on lane markers.
Warning functions when driving in a lane.
Different position from actual condition functions. Perform
DI-86, "
Camera Aiming Adjustment" .
Functions when changing the course to the turn signal direc-
tion. Perform
DI-110, "
Turn Signal Input Inspection" .
Replace LDW camera unit, check function in the above inspection.
LDW indicator lamp does not illuminate with ignition switch ON. Perform
DI-109, "
LDW Indicator Lamp Circuit Inspection" .
Replace LDW camera unit, check function in the above inspection.
Page 1364 of 4731

LANE DEPARTURE WARNING SYSTEM DI-103
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
Preliminary InspectionAKS00C9K
1. CHECK CAMERA LENS AND WINDSHIELD
Are camera lens and windshield contaminated with foreign materials?
YES >> Clean camera lens and windshield.
NO >> GO TO 2.
2. CHECK CAMERA UNIT INSTALLATION CONDITION
Check camera unit installation condition (installation position, properly tightened, a bent bracket).
OK or NG
OK >> GO TO 3.
NG >> Install camera unit properly, and adjust camera aiming. Refer to DI-86, "
Camera Aiming Adjust-
ment" .
3. CHECK VEHICLE HEIGHT
Check vehicle height. Refer to FSU-18, "
SERVICE DATA" .
Is vehicle height appropriate?
OK >> GO TO 4.
NG >> Repair vehicle to appropriate height.
4. CHECK LDW CAMERA UNIT SELF-DIAGNOSIS
Perform the LDW camera unit self-diagnosis. Refer to DI-98, "
CONSULT-II Function (LDW)" .
Self
-diagnostic results content
No malfunction detected>>GO TO 5.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
5. CHECK COMBINATION METER
Check combination meter function.
Do speedometer and turn signal indicator normal function?
YES >> INSPECTION END
NO >> Check combination meter. Refer to DI-15, "
Trouble Diagnosis" .
Page 1365 of 4731

DI-104
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX
Power Supply and Ground Circuit InspectionAKS00C82
1. CHECK FUSE
Check for blown LDW camera unit fuse.
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
82, "FUSE BLOCK - JUNCTION BOX (J/B)" .
2. CHECK POWER SUPPLY CIRCUIT

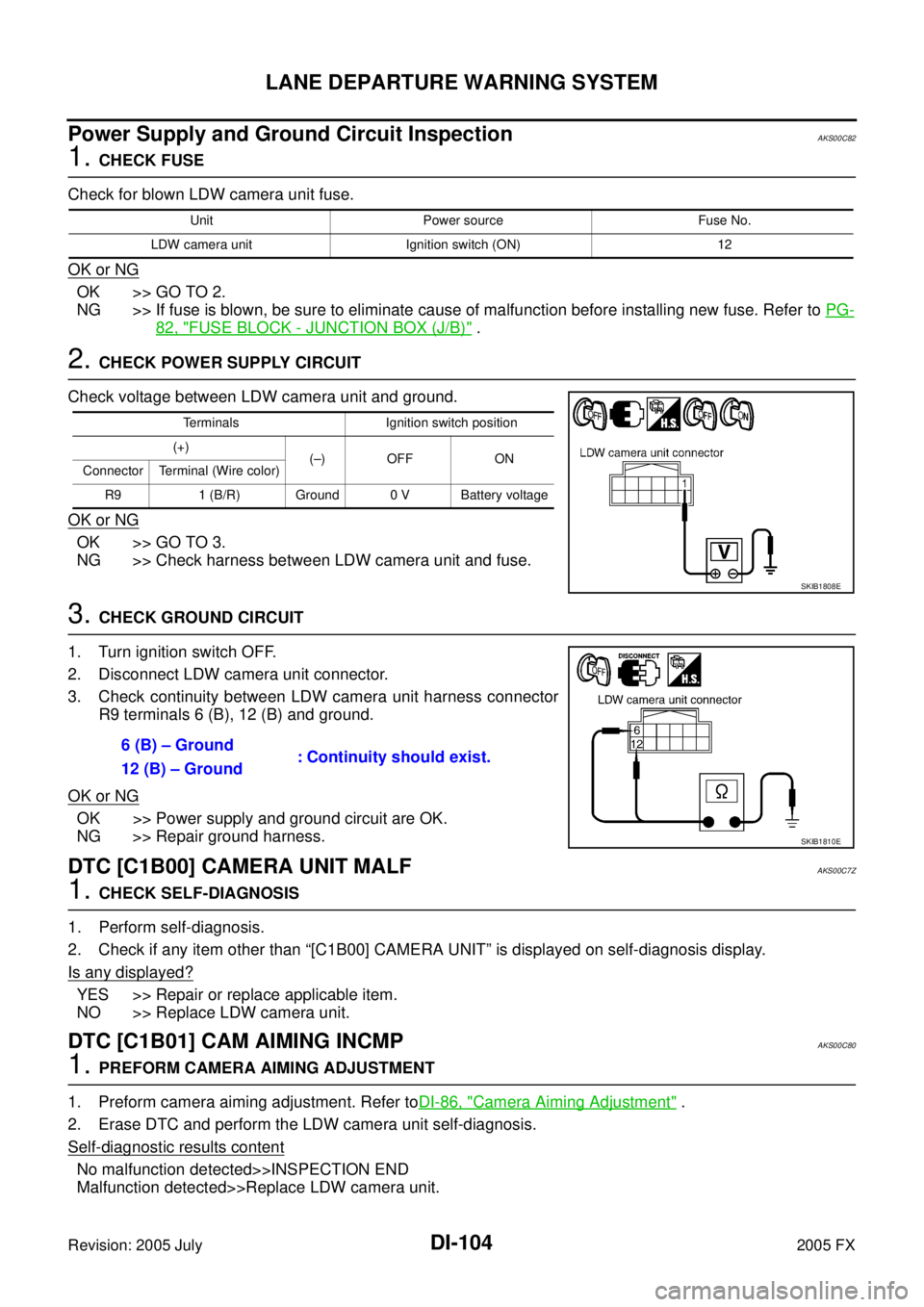

Check voltage between LDW camera unit and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between LDW camera unit and fuse.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect LDW camera unit connector.
3. Check continuity between LDW camera unit harness connector R9 terminals 6 (B), 12 (B) and ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Repair ground harness.
DTC [C1B00] CAMERA UNIT MALFAKS00C7Z
1. CHECK SELF-DIAGNOSIS
1. Perform self-diagnosis.
2. Check if any item other than “[C1B00] CAMERA UNIT” is displayed on self-diagnosis display.
Is any displayed?
YES >> Repair or replace applicable item.
NO >> Replace LDW camera unit.
DTC [C1B01] CAM AIMING INCMPAKS00C80
1. PREFORM CAMERA AIMING ADJUSTMENT
1. Preform camera aiming adjustment. Refer to DI-86, "
Camera Aiming Adjustment" .
2. Erase DTC and perform the LDW camera unit self-diagnosis.
Self
-diagnostic results content
No malfunction detected>>INSPECTION END
Malfunction detected>>Replace LDW camera unit.
Unit Power source Fuse No.
LDW camera unit Ignition switch (ON) 12
Terminals Ignition switch position
(+) (–) OFF ON
Connector Terminal (Wire color)
R9 1 (B/R) Ground 0 V Battery voltage
SKIB1808E
6 (B) – Ground : Continuity should exist.
12 (B) – Ground
SKIB1810E
Page 1366 of 4731
![INFINITI FX35 2005 Service Manual LANE DEPARTURE WARNING SYSTEM DI-105
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
DTC [C1B02] VHCL SPD DATA MALFAKS00C7Y
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) S INFINITI FX35 2005 Service Manual LANE DEPARTURE WARNING SYSTEM DI-105
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
DTC [C1B02] VHCL SPD DATA MALFAKS00C7Y
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) S](/manual-img/42/57020/w960_57020-1365.png)
LANE DEPARTURE WARNING SYSTEM DI-105
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
DTC [C1B02] VHCL SPD DATA MALFAKS00C7Y
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS
Perform the ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-25, "
CONSULT-II Func-
tions" .
Self
-diagnostic results content
No malfunction detected>>GO TO 2.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
2. TCM SELF-DIAGNOSIS
Perform the TCM self-diagnosis. Refer to AT- 9 0 , "
CONSULT-II Function (A/T)" .
Self
-diagnostic results content
No malfunction detected>>Replace LDW camera unit.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
DTC [C1B03] ABNRML TEMP DETECTAKS00C81
1. COOLING CAMERA UNIT
1. Cooling camera unit.
2. Erase DTC and perform the LDW camera unit self-diagnosis.
Self
-diagnostic results content
No malfunction detected>>INSPECTION END
Malfunction detected>>Replace LDW camera unit.
DTC [U1000] CAN COMM CIRCUITAKS00C7X
1. CHECK CAN COMMUNICATION
1. Select “SELF-DIAG RESULTS” mode for “LDW” with CONSULT-II.
2. Print out CONSULT-II screen.
>> Go to “LAN SYSTEM”. Refer to LAN-5, "
Precautions When Using CONSULT-II" .
DTC [U1010] CONTROL UNIT (CAN)AKS00C9I
Replace LDW camera unit, when “[U1010] CONTROL UNIT (CAN)” is displayed on self-diagnosis display.
Page 1367 of 4731

DI-106
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX
LDW Chime Circuit InspectionAKS00C83
1. CHECK LDW CHIME OPERATION
Check LDW chime operation “BUZZER DRIVE” in “ACTIVE TEST”
mode with CONSULT-II.
OK or NG
OK >> LDW chime is OK. Return to DI-102, "SYMPTOM
CHART" .
NG >> GO TO 2.
2. CHECK LDW CHIME POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect LDW chime connector.
3. Turn ignition switch ON.
4. Check voltage between warning chime harness connector M97 terminal 1 (G/R) and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between fuse and LDW chime.
3. CHECK LDW CHIME GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between LDW chime harness connector M97 terminal 3 (B) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK LDW CHIME SIGNAL CIRCUIT
1. Disconnect LDW camera unit connector.
2. Check continuity between LDW camera unit harness connector R9 terminal 3 (R/W) and LDW chime harness connector M97
terminal 2 (R/W).
3. Check continuity between LDW camera unit harness connector R9 terminal 3 (R/W) and ground.
OK or NG
OK >> GO TO 5.

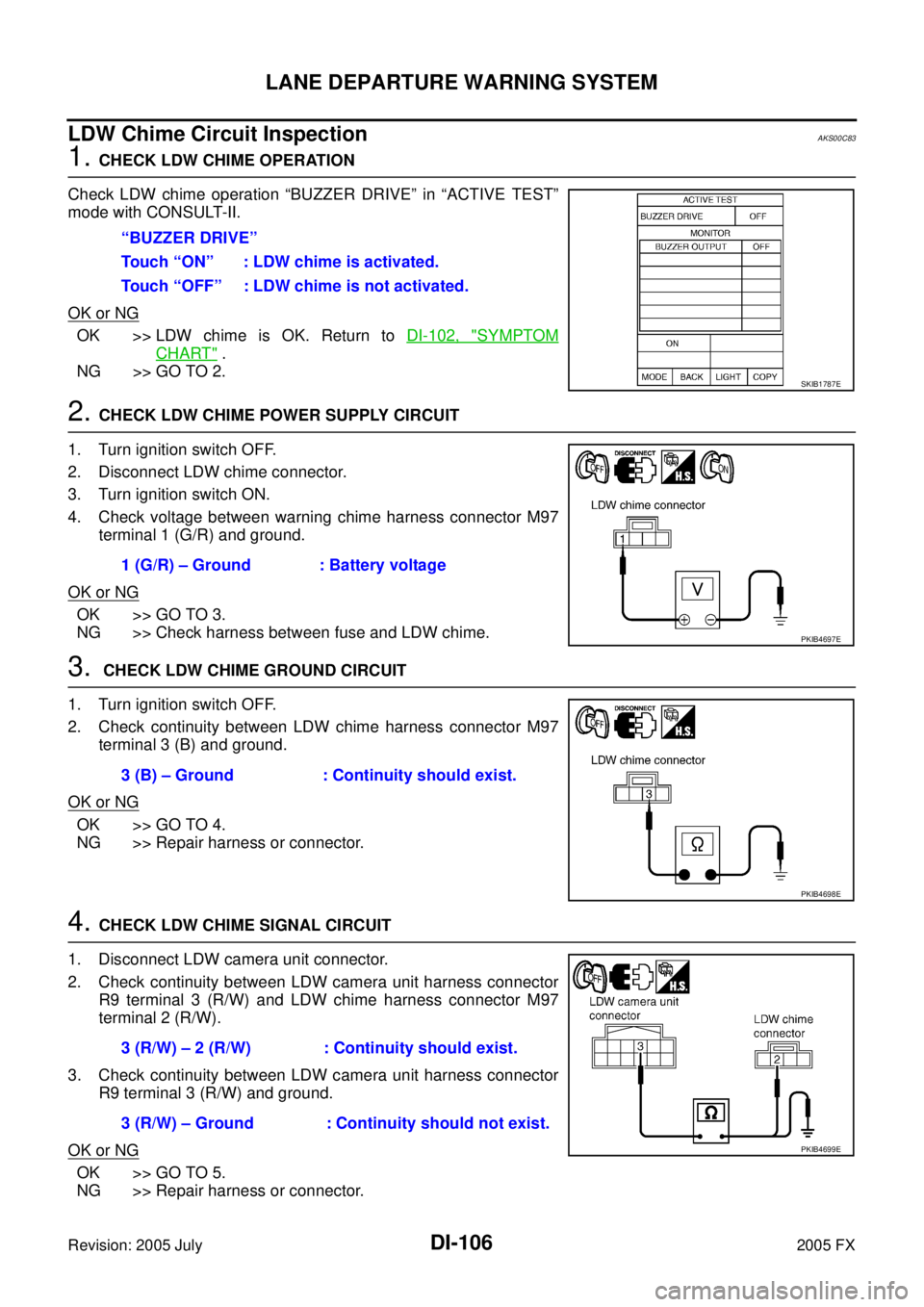

NG >> Repair harness or connector. “BUZZER DRIVE”
Touch “ON” : LDW chime is activated.
Touch “OFF” : LDW chime is not activated.
SKIB1787E
1 (G/R) – Ground : Battery voltage
PKIB4697E
3 (B) – Ground : Continuity should exist.
PKIB4698E
3 (R/W) – 2 (R/W) : Continuity should exist.
3 (R/W) – Ground : Continuity should not exist.
PKIB4699E
Page 1368 of 4731

LANE DEPARTURE WARNING SYSTEM DI-107
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
5. CHECK LDW CHIME OPERATION
1. Connect LDW chime connector.
2. Turn ignition switch ON.
3. Ground LDW chime harness connector M97 terminal 2 (R/W).
OK or NG
OK >> Replace LDW camera unit.
NG >> Replace LDW chime.
LDW Switch Circuit InspectionAKS00C84
1. CHECK LDW SYSTEM ON INDICATOR OPERATION
Check LDW system ON indicator operation when LDW switch is ON/OFF.
OK or NG
OK >> LDW system ON indicator is OK. Return to DI-102, "SYMPTOM CHART" .
NG >> GO TO 2.
2. CHECK LDW SWITCH SIGNAL INPUT
Check voltage between LDW camera unit harness connector R9 ter-
minal 9 (G) and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
3. CHECK LDW SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect LDW switch connector.
3. Check continuity between LDW switch connector M96 terminal 6 (B) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector. 2 (R/W) – Ground : LDW chime should operate.
PKIB4700E
9 (G) – Ground
When LDW switch is pushed : Approx. 0 V
When LDW switch is released : Approx. 5 V
PKIB4701E
6 (B) – Ground : Continuity should exist.
PKIB4702E
