Page 1313 of 4731

INFINITI FX35 2005 Service Manual DI-52
WARNING LAMPS
Revision: 2005 July 2005 FX
5. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and oil pressure switch connector.
3. Check continu

Page 1314 of 4731

INFINITI FX35 2005 Service Manual WARNING LAMPS DI-53
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
3. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R ha

Page 1315 of 4731

INFINITI FX35 2005 Service Manual DI-54
A/T INDICATOR
Revision: 2005 July 2005 FX
A/T INDICATORPFP:24814
Wiring Diagram — AT/IND —AKS005NI
TKWM1282E

Page 1316 of 4731

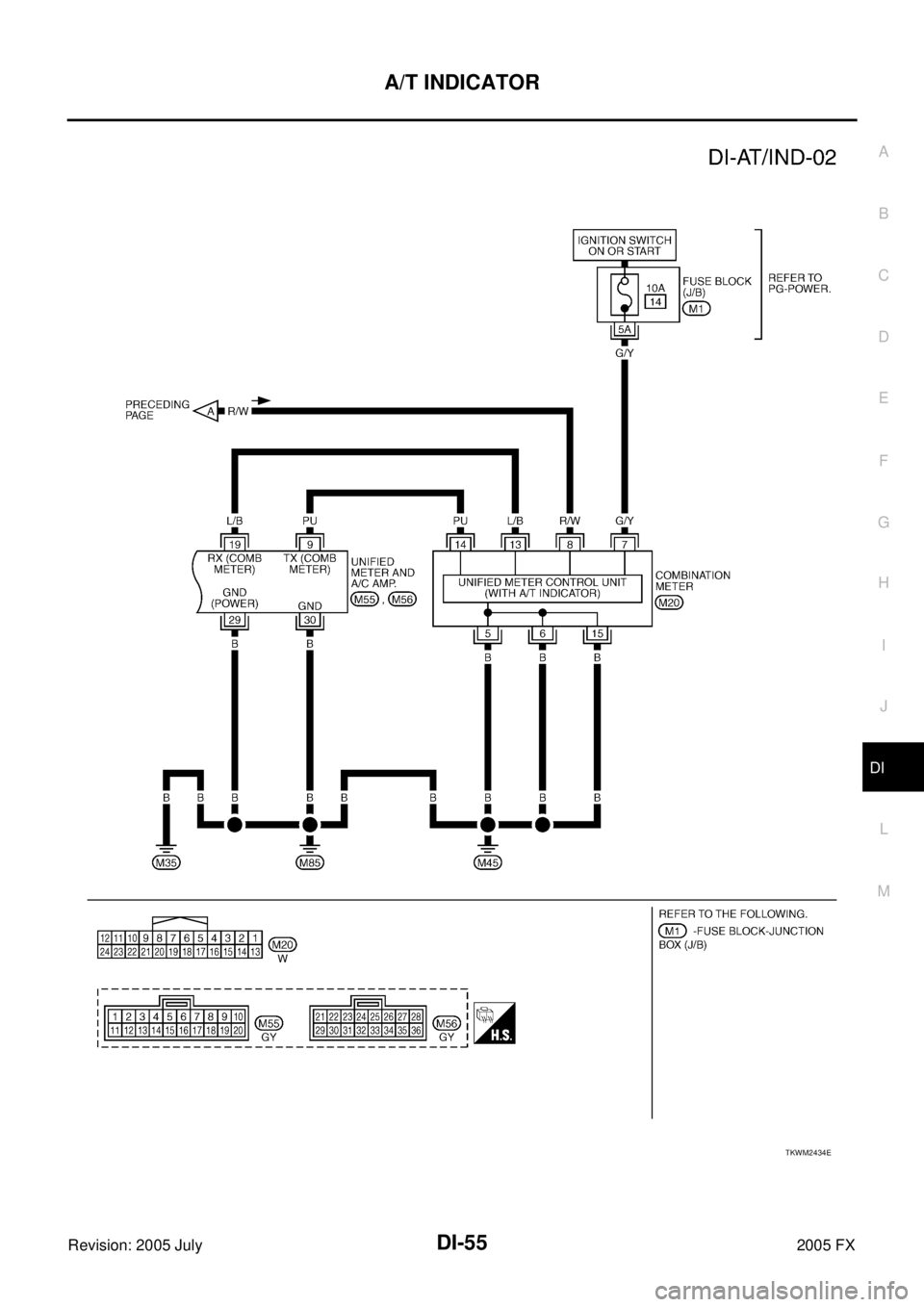

INFINITI FX35 2005 Service Manual A/T INDICATOR DI-55
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
TKWM2434E

Page 1317 of 4731

INFINITI FX35 2005 Service Manual DI-56
A/T INDICATOR
Revision: 2005 July 2005 FX
A/T Indicator Is MalfunctionAKS005NJ
1. CHECK SELF-DIAGNOSIS OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to DI-14, "
OPERA-

Page 1318 of 4731

INFINITI FX35 2005 Service Manual A/T INDICATOR DI-57
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
5. CHECK TCM
Check TCM input/output signal. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .

Page 1319 of 4731

INFINITI FX35 2005 Service Manual DI-58
WARNING CHIME
Revision: 2005 July 2005 FX
WARNING CHIMEPFP:24814
System DescriptionAKS005NL
FUNCTION
Power is supplied at all times
through 50A fusible link (letter M , located in the fuse and

DI-58
WARNING CHIME
Revision: 2005 July 2005 FX
WARNING CHIMEPFP:24814
System DescriptionAKS005NL
FUNCTION
Power is supplied at all times
through 50A fusible link (letter M , located in the fuse and fusible link block)
to BCM terminal 55,
through 15A fuse [No. 22, located in the fuse block (J/B)]
to key switch and ignition knob switch terminal 3 (with Intelligent Key)
to key switch terminal 2 (without Intelligent Key), and
to BCM terminal 42,
through 10A fuse [No. 38, located in the fuse and fusible link block (with Intelligent Key)]
to key switch and ignition knob switch terminal 1,
through 10A fuse [No. 19, located in the fuse block (J/B)]
to unified meter and A/C amp. terminal 21, and
to combination meter terminal 8.
When ignition switch is in ON or START position, power is supplied
through 15A fuse [No. 1, located in the fuse block (J/B)]
to BCM terminal 38,
through 10A fuse [No. 12, located in the fuse block (J/B)]
to unified meter and A/C amp. terminal 22,
through 10A fuse [No. 14, located in the fuse block (J/B)]
to combination meter terminal 7.
Ground is supplied
to BCM terminals 49 and 52,
to unified meter and A/C amp. terminals 29 and 30, and
to combination meter terminals 5, 6 and 15
through grounds M35, M45 and M85.
NOTE:
When ignition key warning chime, light warning chime, and seat belt warning chime should be performed at
the same time, the priorities for each chime are the following.
1. Seat belt warning chime
2. Light warning chime
3. Ignition key warning chime
IGNITION KEY WARNING CHIME (WITHOUT INTELLIGENT KEY)
With the key inserted into the ignition switch, and the ignition switch OFF or ACC, when driver's door is
opened, the warning chime will sound.
Power is supplied
through key switch terminal 1
to BCM terminal 37.
Ground is supplied
to BCM terminal 62
through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM detects key inserted into the ignition switch, and sends key warning signal to unified meter and A/C amp.
with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination meter
with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.

Page 1320 of 4731

INFINITI FX35 2005 Service Manual WARNING CHIME DI-59
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
IGNITION KEY WARNING CHIME (WITH INTELLIGENT KEY)
When Mechanical Key Is Used
With the key inserted into the ig

WARNING CHIME DI-59
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
IGNITION KEY WARNING CHIME (WITH INTELLIGENT KEY)
When Mechanical Key Is Used
With the key inserted into the ignition switch, and the ignition switch LOCK or ACC, when driver's door is
opened, the warning chime will sound.
Power is supplied
through key switch and ignition knob switch terminal 4
to BCM terminal 37.
Ground is supplied
to BCM terminal 62
through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM detects key inserted into the ignition switch, and sends key warning signal to unified meter and A/C amp.
with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination meter
with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.
When Intelligent Key Is Carried With The Driver
When the ignition knob is in LOCK (push switch ON) or ACC, when driver's door is opened, the warning chime
will sound.
Power is supplied
through key switch and ignition knob switch terminal 2
to Intelligent Key unit terminal 27.
Ground is supplied
to BCM terminal 62
through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM sends front door switch signal to Intelligent Key unit with CAN communication line.
Intelligent Key unit detects ignition knob return is forgotten, and sends key warning signal to unified meter and
A/C amp. with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination
meter with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.
LIGHT WARNING CHIME
With the key removed from the ignition switch or when the ignition knob is in LOCK (push switch OFF) [with
Intelligent Key], the driver's door is opened, and the lighting switch is in ON position, the warning chime will
sound. [Except when headlamp battery saver control operates (for 5 minutes after ignition switch is turned to
OFF or ACC position) and headlamps do not illuminate.]
Signal is supplied
from combination switch (lighting switch) terminals 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10
to BCM terminals 2, 3, 4, 5, 6, 32, 33, 34, 35 and 36.
NOTE:
BCM detected lighting switch in 1st or 2nd position, refer to BCS-3, "
COMBINATION SWITCH READING
FUNCTION" .
Ground is supplied
to BCM terminal 62
through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM detects headlamps are illuminated, and sends light warning signal to unified meter and A/C amp. with
CAN communication line. Unified meter and A/C amp. sends light warning signal to combination meter with
communication line between unified meter and A/C amp. and combination meter.
When combination meter receives light warning signal, it sounds warning chime.
SEAT BELT WARNING CHIME
With ignition switch turned ON and seat belt unfastened [seat belt buckle switch (driver side) ON], warning
chime will sound for approximately 6 seconds.
Ground is supplied
