9. CHECK SNOW MODE SWITCH
Refer to EC-1392, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace snow mode switch.
10. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionABS00A2M
SNOW MODE SWITCH
1. Check continuity between snow mode switch terminals 1 and 4
under the following conditions.
2. If NG, replace snow mode switch. If OK, go to following step.
3. Check continuity between snow mode switch terminals 2 and 4 under the following conditions.
4. If NG, replace snow mode switch.
CONDITION CONTINUITY
Snow mode switch: ON Should exist
Snow mode switch: OFF Should not exist
PBIB2563E
CONDITION CONTINUITY 1 Should exist.
2 Should not exist.
PBIB2564E
Page 2786 of 4731
MIL AND DATA LINK CONNECTOR EC-1393
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
MIL AND DATA LINK CONNECTORPFP:24814

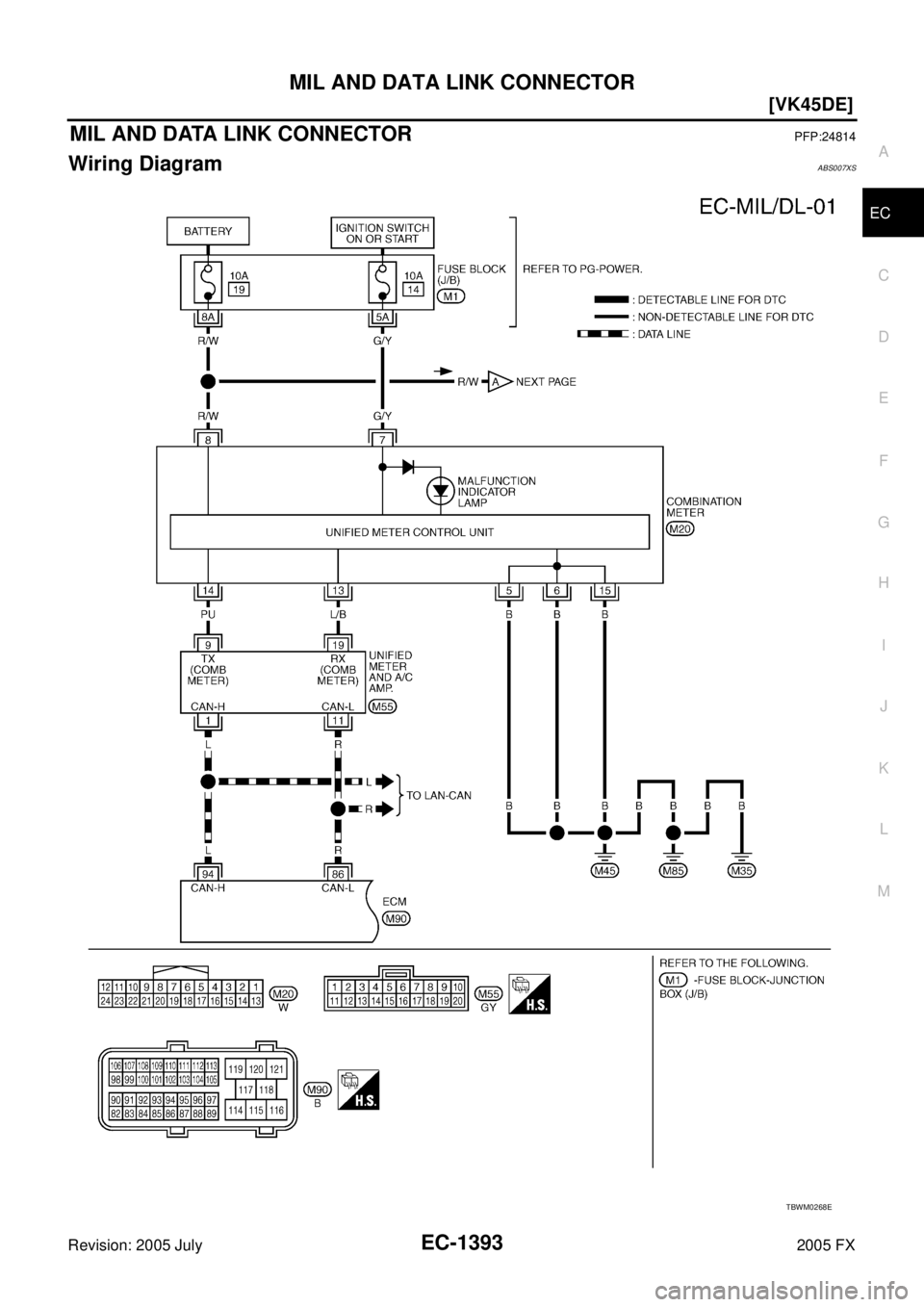

Wiring DiagramABS007XS
TBWM0268E
Page 2787 of 4731
EC-1394
[VK45DE]
MIL AND DATA LINK CONNECTOR
Revision: 2005 July 2005 FX
TBWM0269E
Page 2788 of 4731
![INFINITI FX35 2005 Service Manual SERVICE DATA AND SPECIFICATIONS (SDS) EC-1395
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureABS007Y4
Idle Spe INFINITI FX35 2005 Service Manual SERVICE DATA AND SPECIFICATIONS (SDS) EC-1395
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureABS007Y4
Idle Spe](/manual-img/42/57020/w960_57020-2787.png)
SERVICE DATA AND SPECIFICATIONS (SDS) EC-1395
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureABS007Y4
Idle Speed and Ignition TimingABS007Y5
*: Under the following conditions:
Air conditioner switch: OFF
Electric load: OFF (Lights, heater fan & rear window defogger)
Steering wheel: Kept in straight-ahead position
Calculated Load ValueABS007Y6
Mass Air Flow SensorABS007Y7
*: Engine is warmed up to normal operating temperature and running under no-load.
Intake Air Temperature SensorABS007Y8
Engine Coolant Temperature SensorABS007Y9
Fuel Tank Temperature SensorABS00E8W
Crankshaft Position Sensor (POS)ABS007YC
Refer to EC-1042, "Component Inspection" .
Camshaft Position Sensor (PHASE)ABS007YD
Refer to EC-1049, "Component Inspection" .
Heated Oxygen Sensor 1 HeaterABS007YA
Fuel pressure at idling kPa (kg/cm2 , psi) Approximately 350 (3.57, 51)
Target idle speed No-load* (in P or N position) 650
±50 rpm
Air conditioner: ON In P or N position 700 rpm or more
Ignition timing In P or N position 12 ° ± 5 ° BTDC
Condition Calculated load value% (Using CONSULT-II or GST)
At idle 14.0 - 33.0
At 2,500 rpm 12.0 - 25.0
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle 1.0 - 1.3V*
Mass air flow (Using CONSULT-II or GST) 2.0 - 6.0 g·m/sec at idle*
7.0 - 20.0 g·m/sec at 2,500 rpm*
Temperature °C ( °F) Resistance k Ω
25 (77) 1.94 - 2.06
Temperature °C ( °F) Resistance k Ω
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
Temperature °C ( °F) Resistance k Ω
20 (68) 2.3 - 2.7
50 (122) 0.79 - 0.90
Resistance [at 25°C (77 °F)] 3.3 - 4.0 Ω
Page 2789 of 4731
