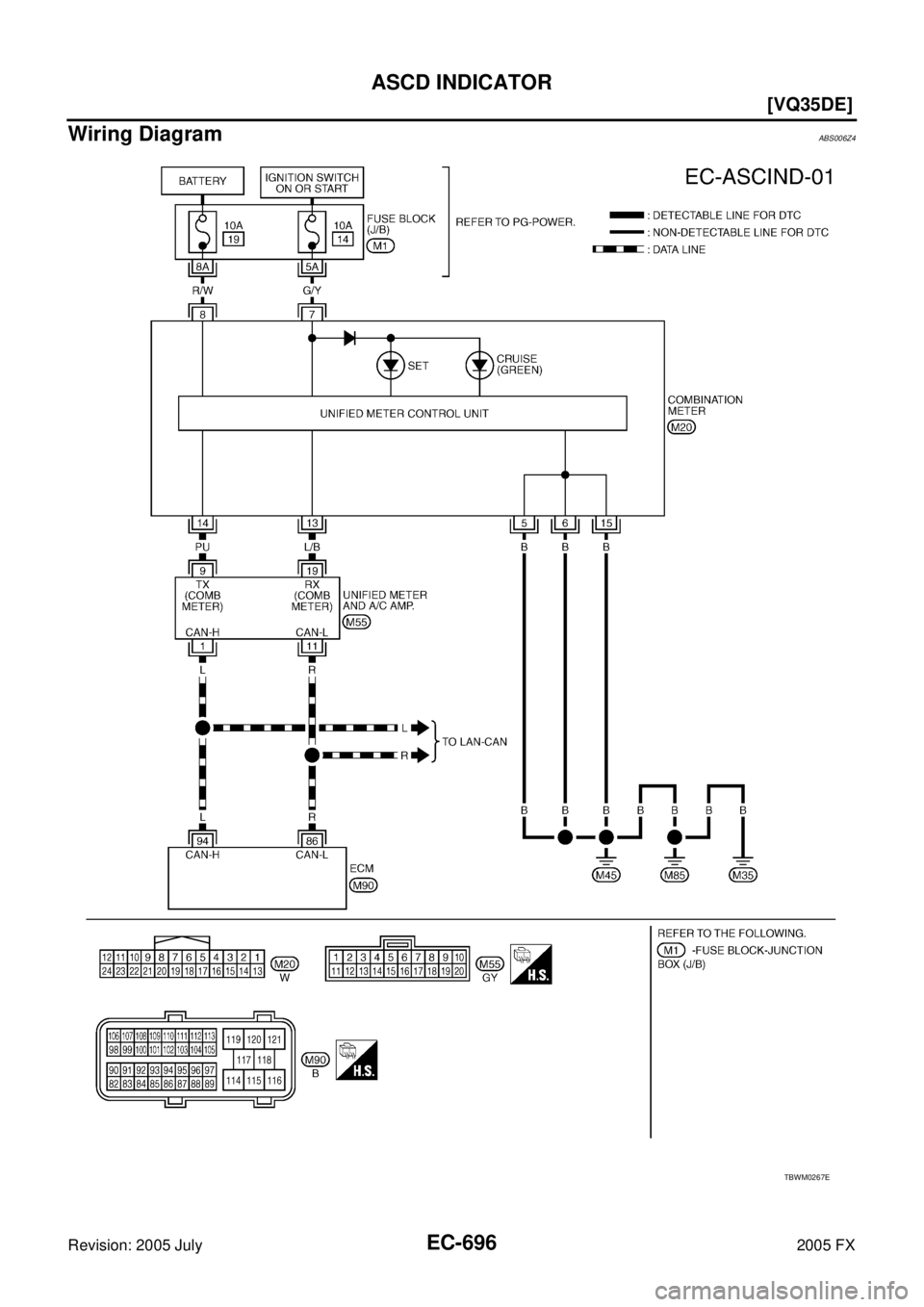

Wiring DiagramABS006Z4
TBWM0267E
Page 2090 of 4731
![INFINITI FX35 2005 Service Manual ASCD INDICATOR EC-697
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS006Z5
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following cond INFINITI FX35 2005 Service Manual ASCD INDICATOR EC-697
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS006Z5
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following cond](/manual-img/42/57020/w960_57020-2089.png)
ASCD INDICATOR EC-697
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS006Z5
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
2. CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
OK >> GO TO 3.
NG >> Perform trouble diagnoses for DTC U1000, U1001. Refer to EC-171, "
DTC U1000, U1001 CAN
COMMUNICATION LINE" .
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-32, "
SELF-DIAGNOSTIC RESULTS" .
OK or NG
OK >> GO TO 4.
NG >> Go to DI-34, "
DTC [B2202] Meter Communication Circuit" .
4. CHECK INTERMITTENT INCIDENT
Refer to EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
ASCD INDICATOR CONDITION SPECIFICATION
CRUISE LAMP
Ignition switch: ONMAIN switch: pressed at the 1st
time → at the 2nd time ON
→ OFF
SET LAMP
MAIN switch: ON
When vehicle speed is
between 40km/h (25MPH)
and 144km/h (89MPH) ASCD: Operating ON
ASCD: Not operating OFF
Page 2091 of 4731
![INFINITI FX35 2005 Service Manual EC-698
[VQ35DE]
SNOW MODE SWITCH
Revision: 2005 July 2005 FX
SNOW MODE SWITCHPFP:25310
DescriptionABS00A2B
NOTE:
If DTC U1000 or U1001 are displayed, first perform the trouble diagnosis for DTC U1000 INFINITI FX35 2005 Service Manual EC-698
[VQ35DE]
SNOW MODE SWITCH
Revision: 2005 July 2005 FX
SNOW MODE SWITCHPFP:25310
DescriptionABS00A2B
NOTE:
If DTC U1000 or U1001 are displayed, first perform the trouble diagnosis for DTC U1000](/manual-img/42/57020/w960_57020-2090.png)
EC-698
[VQ35DE]
SNOW MODE SWITCH
Revision: 2005 July 2005 FX
SNOW MODE SWITCHPFP:25310
DescriptionABS00A2B
NOTE:
If DTC U1000 or U1001 are displayed, first perform the trouble diagnosis for DTC U1000, U1001.
Refer to EC-171, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
The snow mode switch signal is sent to the “unified meter and A/C amp.” from the snow mode switch. The
“unified meter and A/C amp.” then sends the signal to the ECM by CAN communication line.
The snow mode is used for driving or starting the vehicle on snowy roads or slippery areas. If the snow mode
is activated, the vehicle speed will not be accelerated immediately than your original pedal in due to avoid the
vehicle slip. In other words, ECM controls the rapid engine torque change by controlling the electric throttle
control actuator operating speed.
CONSULT-II Reference Value in the Data Monitor ModeABS00A2C
MONITOR ITEM CONDITION SPECIFICATION
SNOW MODE SW
Ignition switch: ON SNOW MODE SW: ON ON
SNOW MODE SW: OFF OFF
Page 2092 of 4731
SNOW MODE SWITCH EC-699
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

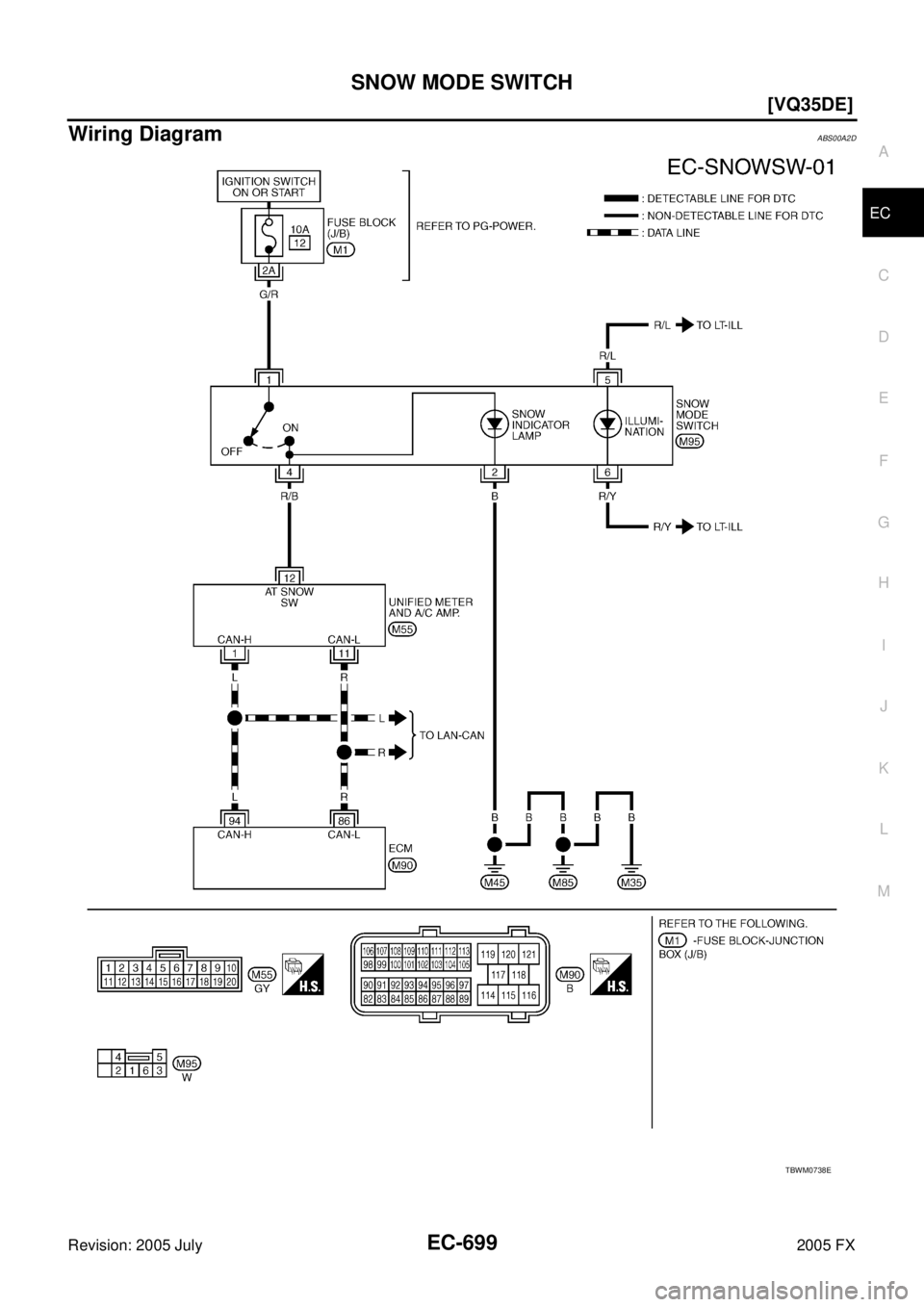

Wiring DiagramABS00A2D
TBWM0738E
Page 2093 of 4731
![INFINITI FX35 2005 Service Manual EC-700
[VQ35DE]
SNOW MODE SWITCH
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS00E9B
1. CHECK SNOW MODE SWITICH OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Select “SNOW MODE SW” in INFINITI FX35 2005 Service Manual EC-700
[VQ35DE]
SNOW MODE SWITCH
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS00E9B
1. CHECK SNOW MODE SWITICH OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Select “SNOW MODE SW” in](/manual-img/42/57020/w960_57020-2092.png)
EC-700
[VQ35DE]
SNOW MODE SWITCH
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS00E9B
1. CHECK SNOW MODE SWITICH OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Select “SNOW MODE SW” in “DATA MONITOR” mode with CONSULT-II.
3. Check “SNOW MODE SW” indication under the following condi- tions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK SNOW MODE SWITICH OVERALL FUNCTION-II
1. Turn ignition switch ON.
2. Start engine.
3. Check the snow mode indicator in the snow mode switch under the following condition.
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-32, "
SELF-DIAGNOSTIC RESULTS" .
OK or NG
OK >> GO TO 4.
NG >> Go to DI-28, "
UNIFIED METER AND A/C AMP" .
4. CHECK SNOW MODE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect snow mode switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between snow mode switch terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
CONDITION INDICATION
Snow mode switch: ON ON
Snow mode switch: OFF OFF
PBIB2009E
CONDITION INDICATION
Snow mode switch: ON ON
Snow mode switch: OFF OFF
Voltage: Battery voltage.
PBIB2562E
Page 2094 of 4731
![INFINITI FX35 2005 Service Manual SNOW MODE SWITCH EC-701
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) M1
10A fuse
Harness for ope INFINITI FX35 2005 Service Manual SNOW MODE SWITCH EC-701
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) M1
10A fuse
Harness for ope](/manual-img/42/57020/w960_57020-2093.png)
SNOW MODE SWITCH EC-701
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) M1
10A fuse
Harness for open or short between snow mode switch and fuse.
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK SNOW MODE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C amp.” harness connector.
3. Check harness continuity between snow mode switch terminal 4 and “unified meter and A/C amp.” termi- nal 12. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-861, "
Ground Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace ground connections.
8. CHECK SNOW MODE INDICATOR LAMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between snow mode switch terminal 2 and ground. Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to power in harness or connectors. Continuity should exist.
PBIB2625E
Continuity should exist.
Page 2095 of 4731
EC-702
[VQ35DE]
SNOW MODE SWITCH
Revision: 2005 July 2005 FX
9. CHECK SNOW MODE SWITCH
Refer to EC-1392, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace snow mode switch.
10. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionABS00A2P
SNOW MODE SWITCH
1. Check continuity between snow mode switch terminals 1 and 4
under the following conditions.
2. If NG, replace snow mode switch. If OK, go to following step.
3. Check continuity between snow mode switch terminals 2 and 4 under the following conditions.
4. If NG, replace snow mode switch.
CONDITION CONTINUITY
Snow mode switch: ON Should exist
Snow mode switch: OFF Should not exist
PBIB2563E
CONDITION CONTINUITY 1 Should exist.
2 Should not exist.
PBIB2564E
Page 2096 of 4731
MIL AND DATA LINK CONNECTOR EC-703
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
MIL AND DATA LINK CONNECTORPFP:24814
Wiring DiagramABS006Z6
TBWM0268E
