EC-1272
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
DTC Confirmation ProcedureABS00E5I
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
Procedure for malfunction B is not described here. It takes extremely long time to complete procedure for
malfunction B. By performing procedure for malfunction A, the incident that causes malfunction B can be
detected.
TESTING CONDITION:
Steps 4 and 5 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine (VDC switch OFF).
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Press MAIN switch and make sure that CRUISE lamp lights up.
4. Drive the vehicle for at least 5 consecutive seconds under the following conditions.
If 1st trip DTC is detected, go to EC-1274, "
Diagnostic Proce-
dure" .
If 1st trip DTC is not detected, go to the following step.
5. Drive the vehicle for at least 5 consecutive seconds under the following conditions.
6. If 1st trip DTC is detected, go to EC-1274, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
PBIB2386E
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
Driving location Depress the brake pedal for more than
five seconds so as not to come off from
the above-mentioned vehicle speed.
Page 2666 of 4731
DTC P1572 ASCD BRAKE SWITCH EC-1273
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

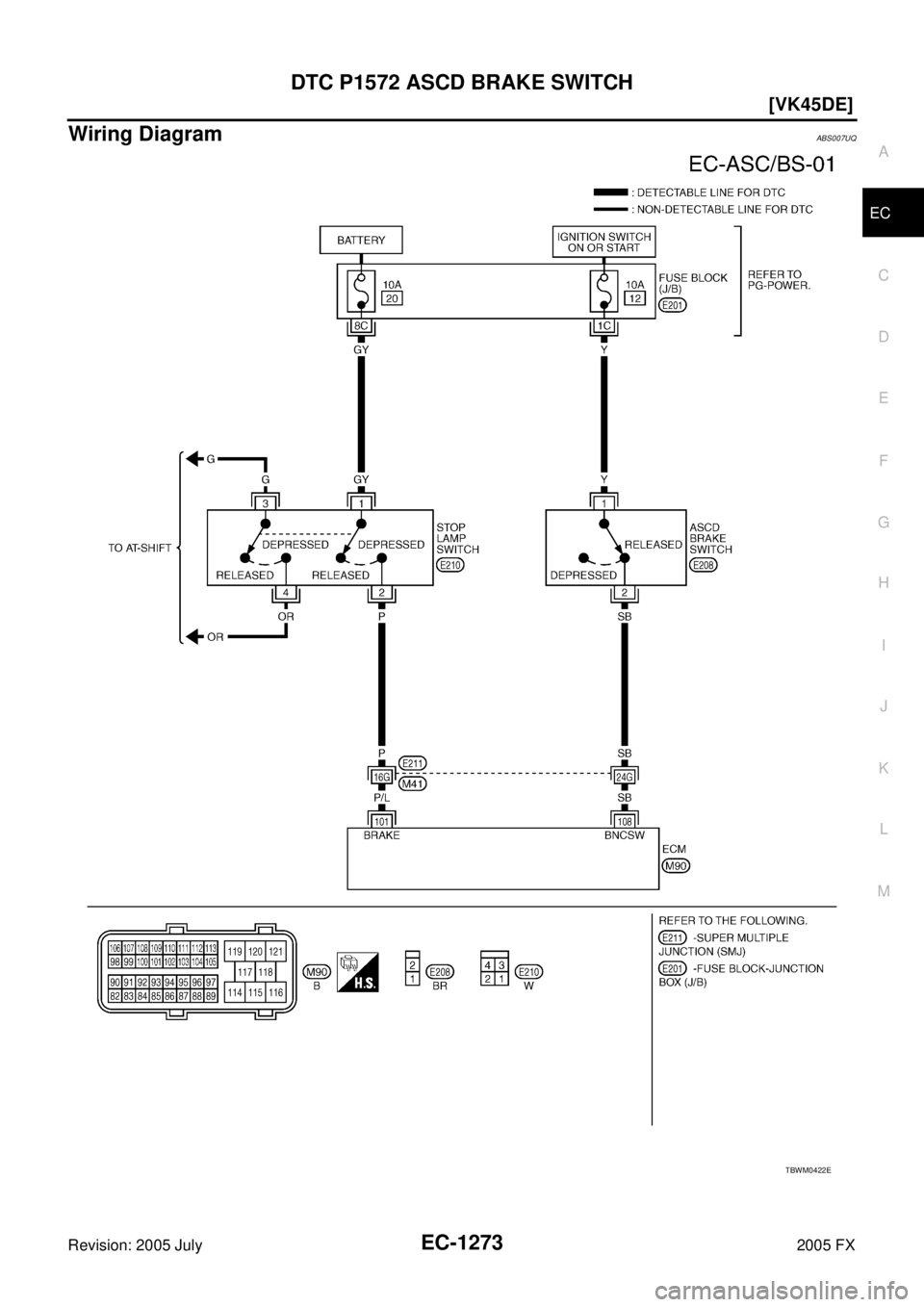

Wiring Diagram ABS007UQ
TBWM0422E
Page 2667 of 4731
![INFINITI FX35 2005 Service Manual EC-1274
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground ter INFINITI FX35 2005 Service Manual EC-1274
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground ter](/manual-img/42/57020/w960_57020-2666.png)
EC-1274
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS007UR
1. CHECK OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT-II.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
101 P/L Stop lamp switch [Ignition switch: OFF]
Brake pedal: Fully released
Approximately 0V
[Ignition switch: OFF]
Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14V)
108 SB ASCD brake switch [Ignition switch: ON]
Brake pedal: Slightly depressed
Approximately 0V
[Ignition switch: ON]
Brake pedal: Fully released BATTERY VOLTAGE
(11 - 14V)
CONDITION INDICATION
When brake pedal: Slightly depressed OFF
When brake pedal: Fully released ON
SEC011D
CONDITION VOLTAGE
When brake pedal: Slightly depressed Approximately 0V
When brake pedal: Fully released Battery voltage
MBIB0061E
Page 2668 of 4731
DTC P1572 ASCD BRAKE SWITCH EC-1275
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
2. CHECK OVERALL FUNCTION-II
With CONSULT-II
Check “BRAKE SW2” indication in “DATA MONITOR” mode.
Without CONSULT-II
Check voltage between ECM terminal 101 and ground under the following conditions.
OK or NG
OK >> GO TO 13.
NG >> GO TO 8.
CONDITION INDICATION
When brake pedal: Fully released OFF
When brake pedal: Slightly depressed ON
SEC013D
CONDITION VOLTAGE
When brake pedal: Fully released Approximately 0V
When brake pedal: Slightly depressed Battery voltage
PBIB1537E
Page 2669 of 4731
![INFINITI FX35 2005 Service Manual EC-1276
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connecto INFINITI FX35 2005 Service Manual EC-1276
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connecto](/manual-img/42/57020/w960_57020-2668.png)
EC-1276
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E201
10A fuse
Harness for open or short between ASCD brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and ASCD brake switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2558E
Voltage: Battery voltage
PBIB0857E
Continuity should exist.
Page 2670 of 4731
![INFINITI FX35 2005 Service Manual DTC P1572 ASCD BRAKE SWITCH EC-1277
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
7. CHECK ASCD BRAKE SWITCH
Refer to EC-1278, "
Component Inspection"
OK or NG
OK INFINITI FX35 2005 Service Manual DTC P1572 ASCD BRAKE SWITCH EC-1277
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
7. CHECK ASCD BRAKE SWITCH
Refer to EC-1278, "
Component Inspection"
OK or NG
OK](/manual-img/42/57020/w960_57020-2669.png)
DTC P1572 ASCD BRAKE SWITCH EC-1277
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
7. CHECK ASCD BRAKE SWITCH
Refer to EC-1278, "
Component Inspection"
OK or NG
OK >> GO TO 13.
NG >> Replace ASCD brake switch.

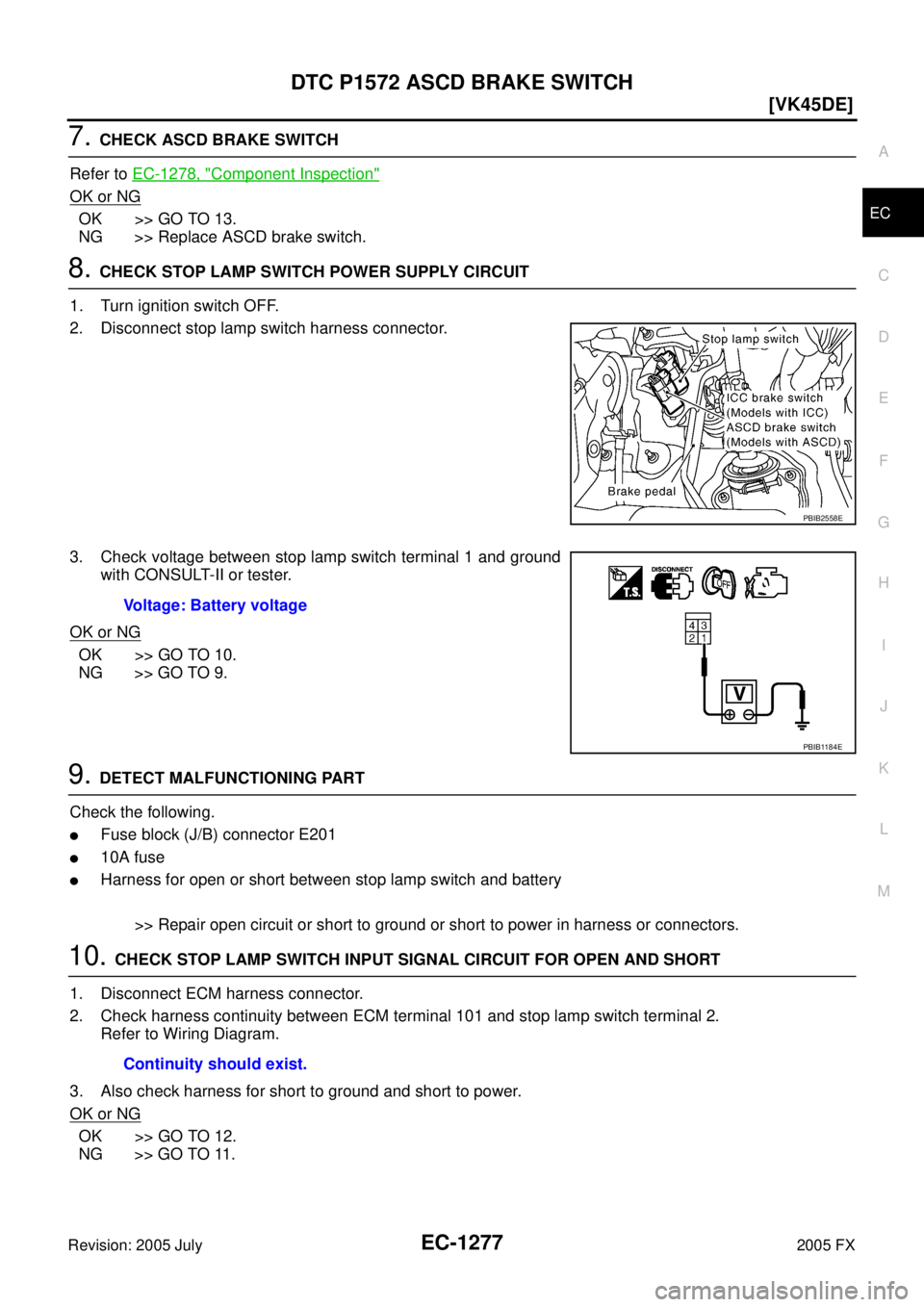

8. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E201
10A fuse
Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
PBIB2558E
Voltage: Battery voltage
PBIB1184E
Continuity should exist.
Page 2671 of 4731
![INFINITI FX35 2005 Service Manual EC-1278
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and INFINITI FX35 2005 Service Manual EC-1278
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and](/manual-img/42/57020/w960_57020-2670.png)
EC-1278
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and stop lamp switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK STOP LAMP SWITCH
Refer to EC-1278, "
Component Inspection"
OK or NG
OK >> GO TO 13.
NG >> Replace stop lamp switch.
13. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionABS007US
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.
4. If NG, adjust ASCD brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
4. If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
Condition Continuity
When brake pedal: Fully released. Should exist.
When brake pedal: Slightly depressed. Should not exist.
PBIB1536E
Condition Continuity
When brake pedal: Fully released. Should not exist.
When brake pedal: Slightly depressed. Should exist.
PBIB1535E
Page 2672 of 4731
![INFINITI FX35 2005 Service Manual DTC P1574 ICC VEHICLE SPEED SENSOR EC-1279
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1574 ICC VEHICLE SPEED SENSORPFP:31036
Component DescriptionABS007UT
The EC INFINITI FX35 2005 Service Manual DTC P1574 ICC VEHICLE SPEED SENSOR EC-1279
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1574 ICC VEHICLE SPEED SENSORPFP:31036
Component DescriptionABS007UT
The EC](/manual-img/42/57020/w960_57020-2671.png)
DTC P1574 ICC VEHICLE SPEED SENSOR EC-1279
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1574 ICC VEHICLE SPEED SENSORPFP:31036
Component DescriptionABS007UT
The ECM receives two vehicle speed signals via CAN communication line. One is sent from “unified meter and
A/C amp.”, and the other is from TCM (Transmission control module). The ECM uses these signals for ICC
control. Refer to ACS-6, "
DESCRIPTION" for ICC functions.
On Board Diagnosis LogicABS007UU
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-862, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500.
Refer to EC-1123, "
DTC P0500 VSS" .
If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1134, "
DTC P0605 ECM".
DTC Confirmation ProcedureABS007UV
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine (VDC switch OFF).
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Drive the vehicle at more than 40 km/h (25MPH).
4. If DTC is detected, go to EC-1280, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis
name DTC detecting condition Possible cause
P1574
1574 ICC vehicle speed
sensor ECM detects a difference between two vehicle
speed signals is out of the specified range.
Harness or connectors
(The CAN communication line is open or
shorted.)
Unified meter and A/C amp.
ABS actuator and electric unit (control unit)
Wheel sensor
TCM
ECM
SEF058Y
