Page 4009 of 4731
LT-120
STOP LAMP
Revision: 2005 July 2005 FX

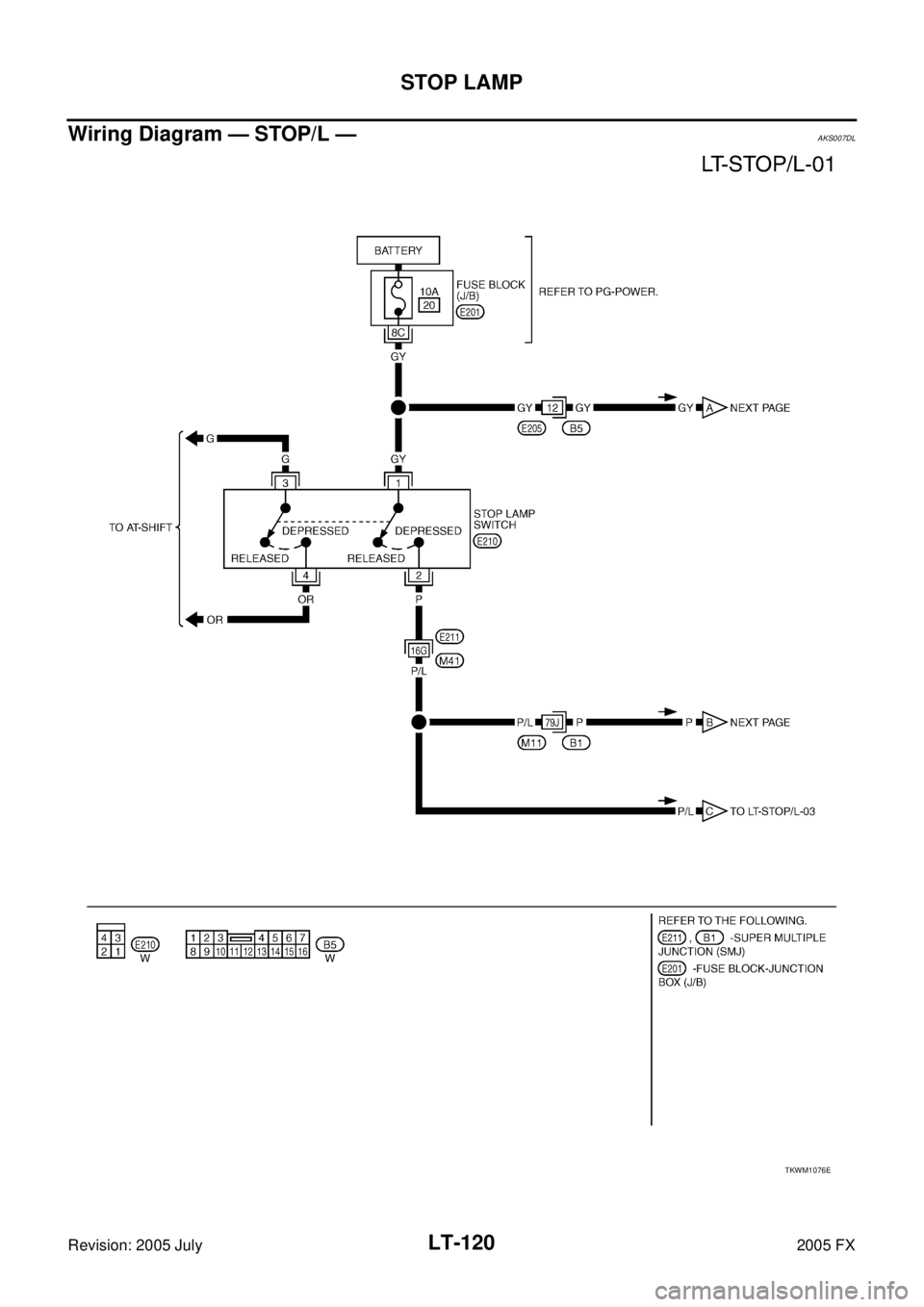

Wiring Diagram — STOP/L —AKS007DL
TKWM1076E

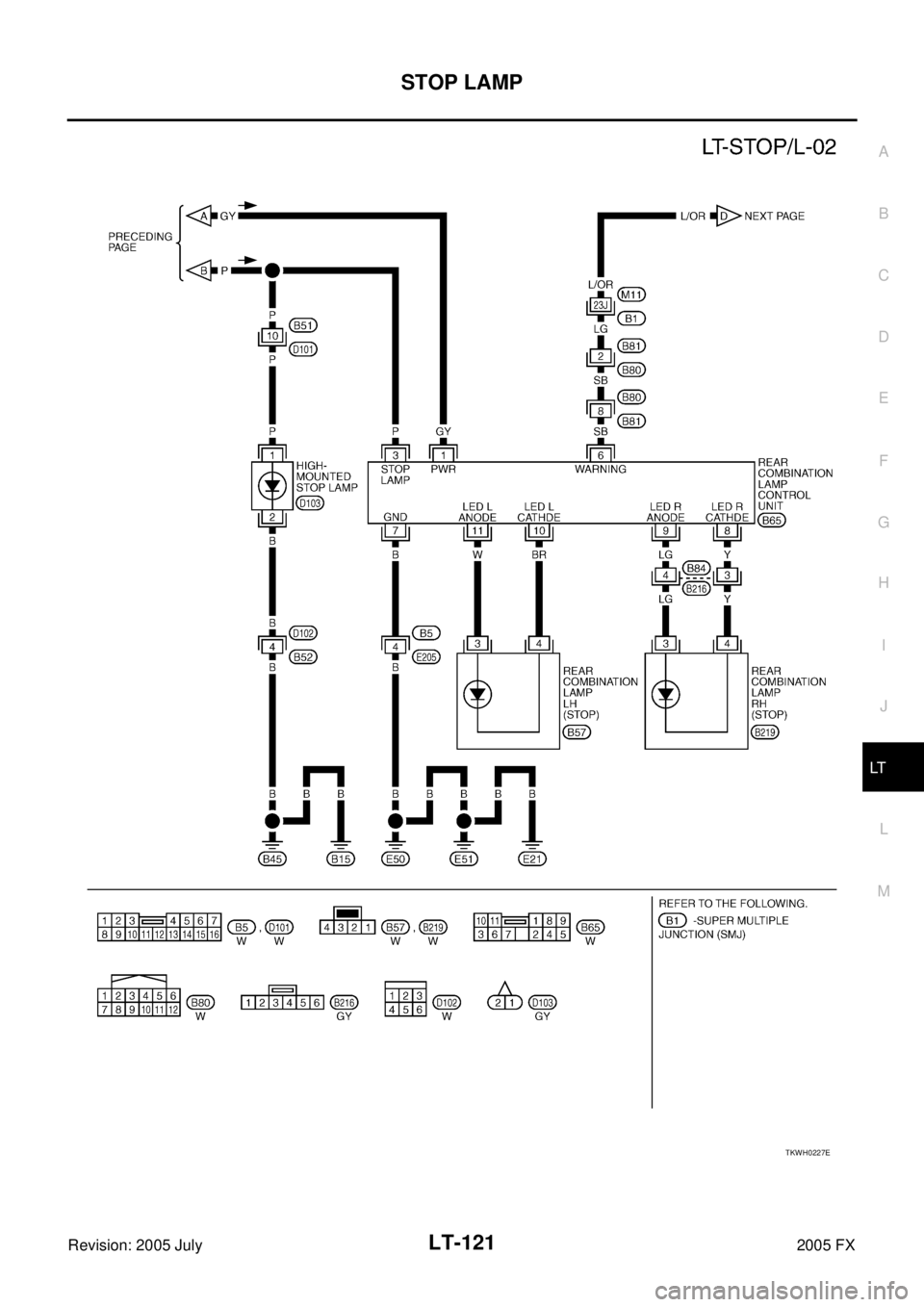

Page 4010 of 4731
STOP LAMP LT-121
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX

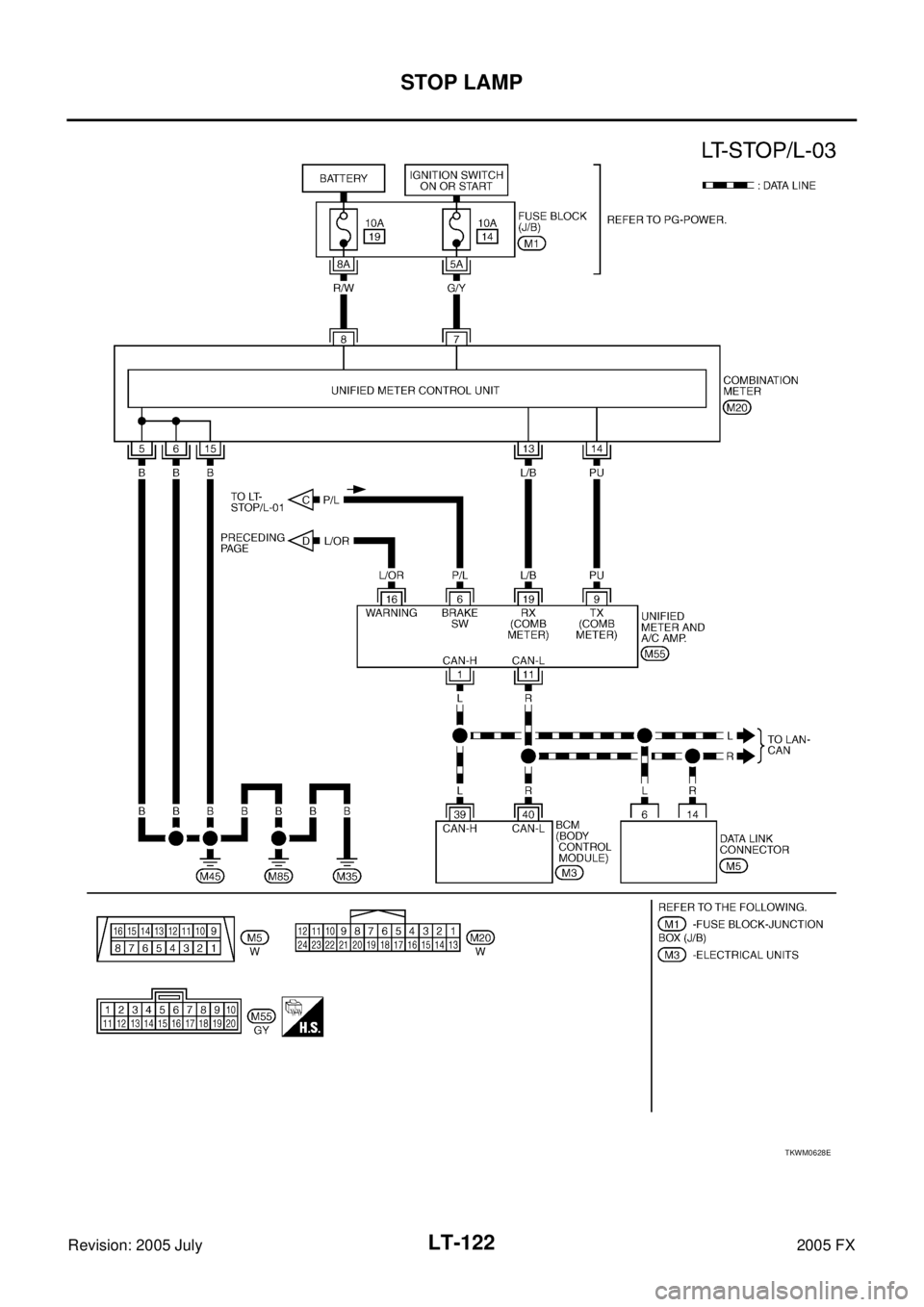

TKWH0227E
Page 4011 of 4731
LT-122
STOP LAMP
Revision: 2005 July 2005 FX
TKWM0628E
Page 4012 of 4731

STOP LAMP LT-123
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX

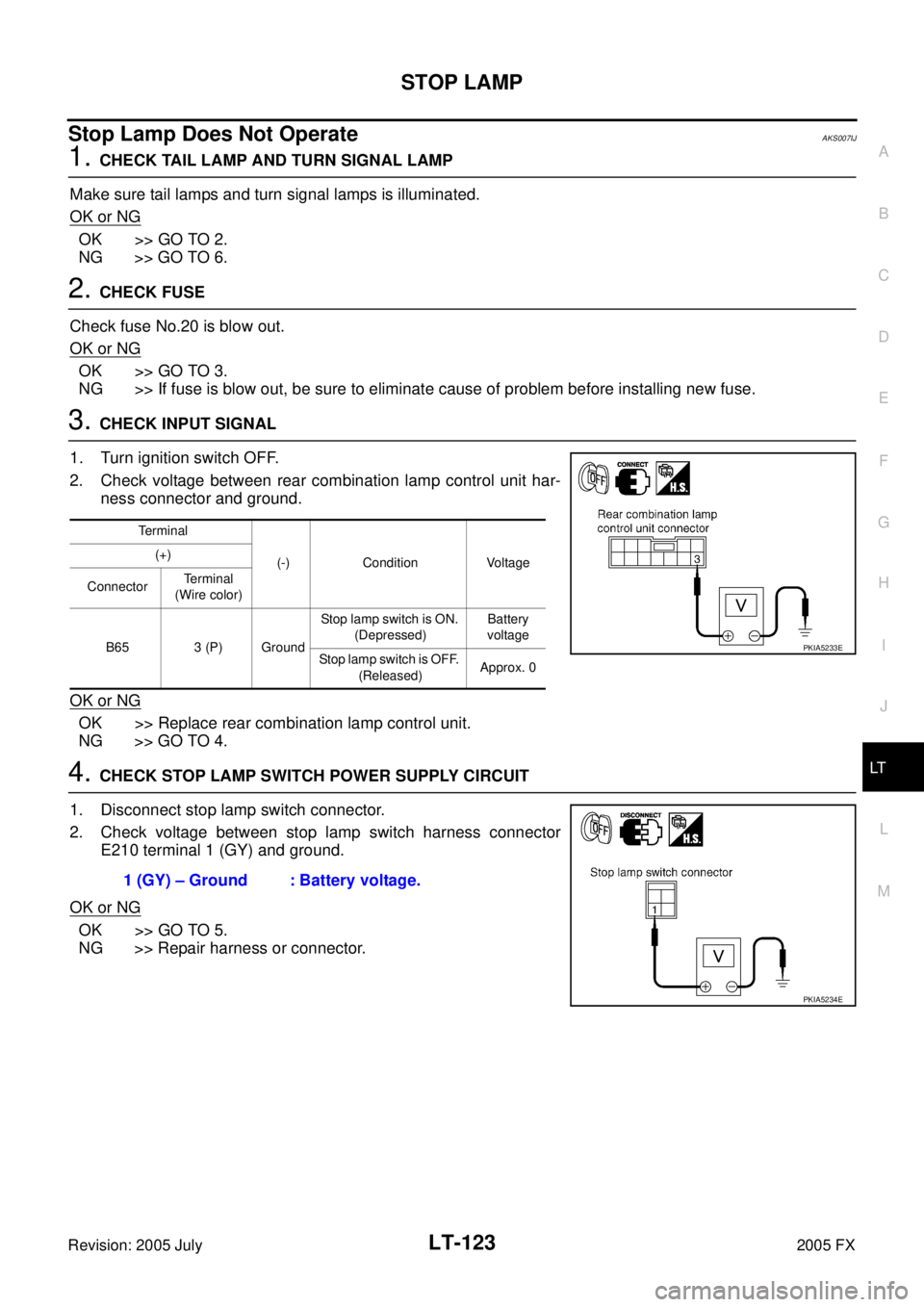

Stop Lamp Does Not OperateAKS007IJ
1. CHECK TAIL LAMP AND TURN SIGNAL LAMP
Make sure tail lamps and turn signal lamps is illuminated.
OK or NG
OK >> GO TO 2.
NG >> GO TO 6.
2. CHECK FUSE
Check fuse No.20 is blow out.
OK or NG
OK >> GO TO 3.
NG >> If fuse is blow out, be sure to eliminate cause of problem before installing new fuse.
3. CHECK INPUT SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between rear combination lamp control unit har- ness connector and ground.
OK or NG
OK >> Replace rear combination lamp control unit.
NG >> GO TO 4.
4. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Disconnect stop lamp switch connector.
2. Check voltage between stop lamp switch harness connector E210 terminal 1 (GY) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
Te r m i n a l
(-) Condition Voltage
(+)
Connector Terminal
(Wire color)
B65 3 (P) Ground Stop lamp switch is ON.
(Depressed) Battery
voltage
Stop lamp switch is OFF. (Released) Approx. 0
PKIA5233E
1 (GY) – Ground : Battery voltage.
PKIA5234E
Page 4013 of 4731
LT-124
STOP LAMP
Revision: 2005 July 2005 FX
5. CHECK STOP LAMP SWITCH CIRCUIT
1. Disconnect rear combination lamp control unit connector.
2. Check continuity between stop lamp switch harness connector E210 terminal 2 (P) and rear combination lamp control unit har-
ness connector B65 terminal 3 (P).
OK or NG
OK >> Replace stop lamp switch.
NG >> Repair harness or connector.
6. CHECK POWER SUPPLY CIRCUIT
1. Disconnect rear combination lamp control unit connector.
2. Check voltage between rear combination lamp control unit har- ness connector B65 terminal 1 (GY) and ground.
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.
7. CHECK GROUND CIRCUIT
Check continuity between rear combination lamp control unit har-
ness connector B65 terminal 7 (B) and ground.
OK or NG
OK >> GO TO 8.
NG >> Repair harness or connector. 2 (P) – 3 (P) : Continuity should exist.
PKIA5235E
1 (GY) – Ground : Battery voltage.
SKIA5907E
7 (B) – Ground : Continuity should exist.
SKIA5908E
Page 4014 of 4731

STOP LAMP LT-125
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
8. CHECK STOP LAMPS CIRCUIT
1. Disconnect rear combination lamp RH and LH connector.
2. Check continuity between rear combination lamp control unit harness connector B65 terminal 11 (W) and rear combination
lamp LH harness connector B57 terminal 3 (W).
3. Check continuity between rear combination lamp control unit harness connector B65 terminal 10 (BR) and rear combination
lamp LH harness connector B57 terminal 4 (BR).
4. Check continuity between rear combination lamp control unit harness connector B65 terminal 9 (LG) and rear combination lamp RH harness connector B219 terminal 3
(LG).
5. Check continuity between rear combination lamp control unit harness connector B65 terminal 8 (Y) and rear combination lamp RH harness connector B219 terminal 4 (Y).
OK or NG
OK >> Replace rear combination lamp control unit or rear combination lamp, and then check if turn signal lamps is illuminated.
NG >> Repair harness or connector.
High-Mounted Stop LampAKS007DM
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove cap from back door finisher and remove nuts. Refer to EI-45, "
Removal and Installation" in “EI” section.
2. Disconnect high-mounted stop lamp connector.
3. Remove washer tube from high-mounted stop lamp, and remove high-mounted stop lamp from the rear air spoiler.
4. Remove seal packing from the rear air spoiler.
5. Installation is the reverse order of removal.
CAUTION:
Seal packing cannot be reused.
Stop LampAKS007DN
BULB REPLACEMENT
Refer to LT- 1 4 9 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
REMOVAL AND INSTALLATION
Refer to LT- 1 4 9 , "Removal and Installation" in “REAR COMBINATION LAMP”.
Rear Combination Lamp Control UnitAKS007NY
REMOVAL AND INSTALLATION
Refer to LT- 1 0 9 , "Removal and Installation of Rear Combination Lamp Control Unit" in “TURN SIGNAL AND
HAZARD WARNING LAMPS”. 11 (W) – 3 (W) : Continuity should exist.
10 (BR) – 4 (BR) : Continuity should exist.
9 (LG) – 3 (LG) : Continuity should exist.
8 (Y) – 4 (Y) : Continuity should exist.
SKIA5910E
High-mounted stop lamp : LED
SKIA5562E
Page 4015 of 4731
LT-126
STEP LAMP
Revision: 2005 July 2005 FX
STEP LAMPPFP:26420
Front Door Step LampAKS007DO
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove door finisher. Refer to EI-34, "Removal and Installation"
in “EI” section.
2. Insert a screwdriver in lens and remove lens.
3. Remove bulb.
4. Installation is the reverse order of removal.
Rear Door Step LampAKS007DP
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove door finisher. Refer to EI-34, "Removal and Installation"
in “EI” section.
2. Insert a screwdriver in lens and remove lens.
3. Remove bulb.
4. Installation is the reverse order of removal. Step lamp : 12V - 5W
SKIA5564E
Step lamp : 12V - 5W
SKIA5565E
Page 4016 of 4731
BACK-UP LAMP LT-127
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
BACK-UP LAMPPFP:26550
Wiring Diagram — BACK/L —AKS007DQ
TKWM1370E
