Page 417 of 4731

INFINITI FX35 2005 Service Manual AT-334 ASSEMBLY Revision: 2005 July 2005 FX 26. Install return spring to parking pawl. 27. Install parking pawl (with return spring) and pawl shaft to rear extension (2WD models) or adapter case (AW

Page 418 of 4731

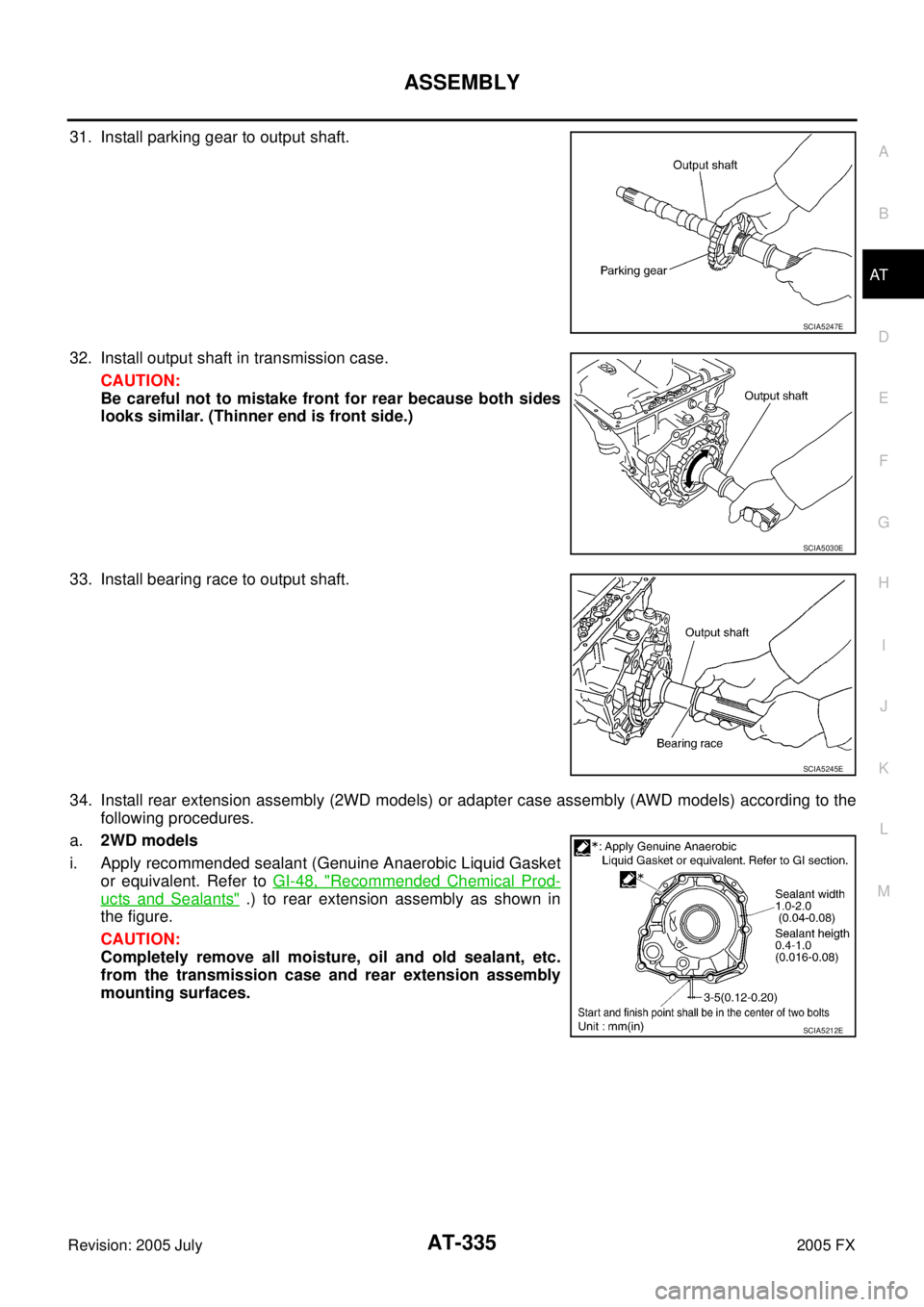

INFINITI FX35 2005 Service Manual ASSEMBLY AT-335 D E F G H I J K L M A B AT Revision: 2005 July 2005 FX 31. Install parking gear to output shaft. 32. Install output shaft in transmission case. CAUTION: Be careful not t

Page 419 of 4731

INFINITI FX35 2005 Service Manual AT-336 ASSEMBLY Revision: 2005 July 2005 FX ii. Install rear extension assembly to transmission case. CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support

Page 420 of 4731

INFINITI FX35 2005 Service Manual ASSEMBLY AT-337 D E F G H I J K L M A B AT Revision: 2005 July 2005 FX iii. Tighten adapter case assembly mounting bolts (1) to specified torque. [With bracket (2).] : Bolt (10) CAUTION

Page 421 of 4731

INFINITI FX35 2005 Service Manual AT-338 ASSEMBLY Revision: 2005 July 2005 FX 38. Using a flat-bladed screwdriver, align drive plate. 39. Install high and low reverse clutch hub, mid sun gear assembly and rear sun gear assembly as a

Page 422 of 4731

INFINITI FX35 2005 Service Manual ASSEMBLY AT-339 D E F G H I J K L M A B AT Revision: 2005 July 2005 FX 41. Install bearing race in rear carrier assembly. CAUTION: Apply petroleum jelly to bearing race. 42. Install rea

Page 423 of 4731

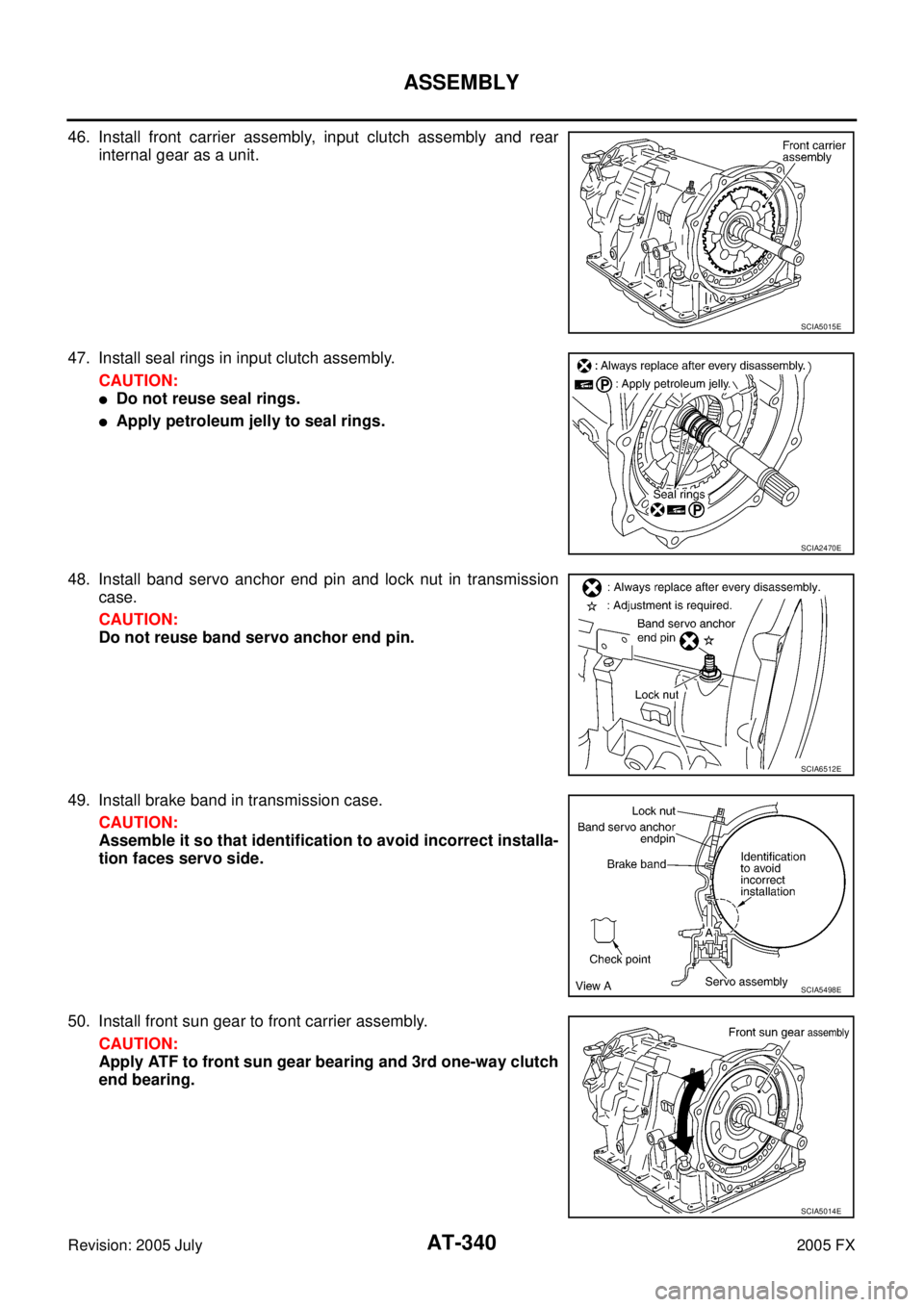

INFINITI FX35 2005 Service Manual AT-340 ASSEMBLY Revision: 2005 July 2005 FX 46. Install front carrier assembly, input clutch assembly and rear internal gear as a unit. 47. Install seal rings in input clutch assembly. CAUTION: Do

Page 424 of 4731

INFINITI FX35 2005 Service Manual ASSEMBLY AT-341 D E F G H I J K L M A B AT Revision: 2005 July 2005 FX 51. Install needle bearing to front sun gear. CAUTION: Apply petroleum jelly to needle bearing. 52. Adjust brake b
