SEAT BELT RETRACTOR OFF-VEHICLE INSPECTION
1. Remove the seat belt retractor assembly.

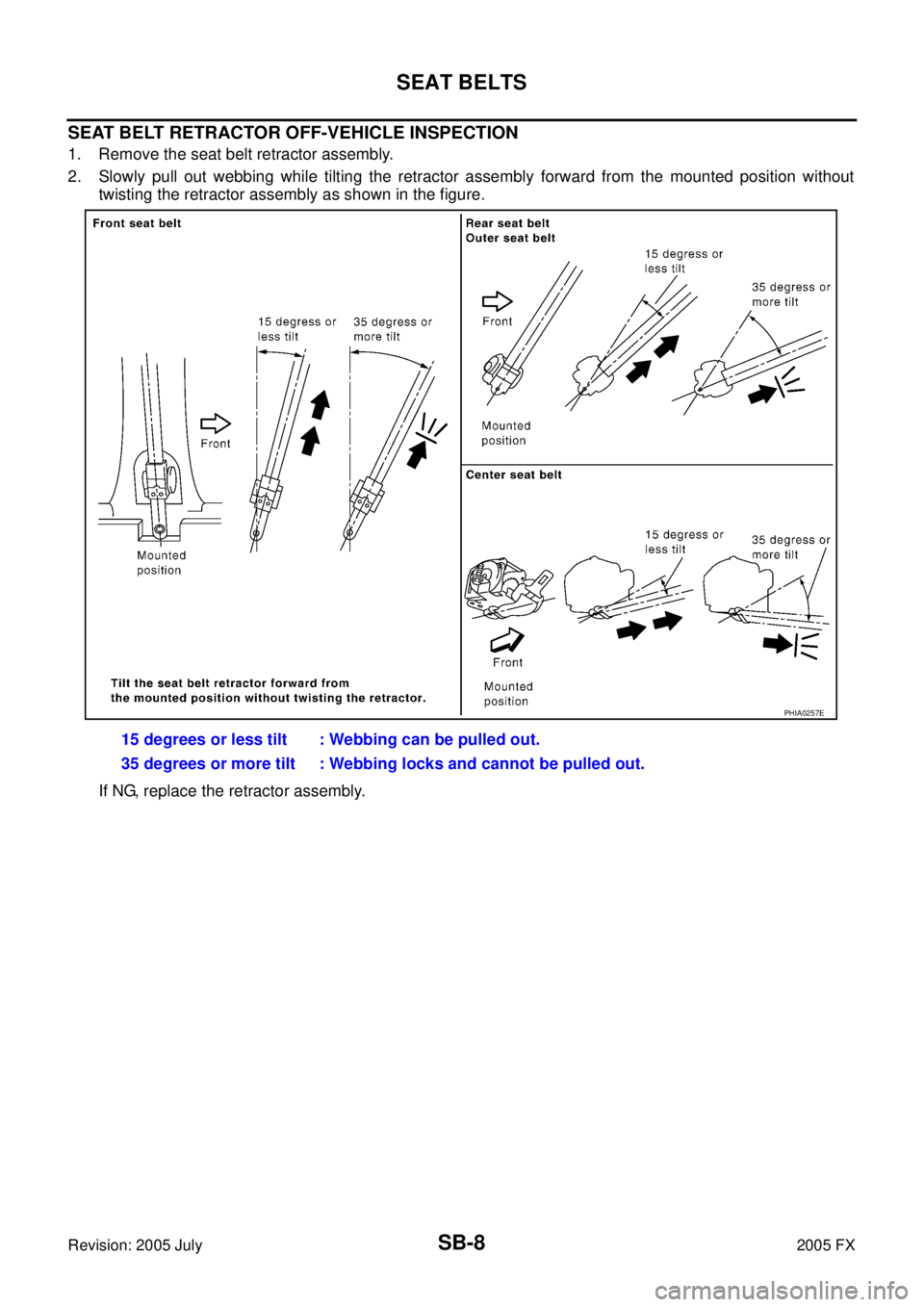

2. Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without twisting the retractor assembly as shown in the figure.
If NG, replace the retractor assembly. 15 degrees or less tilt : Webbing can be pulled out.
35 degrees or more tilt : Webbing locks and cannot be pulled out.
PHIA0257E
Page 4434 of 4731
LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM SB-9
C
D E
F
G
I
J
K L
M A
B
SB
Revision: 2005 July 2005 FX
LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEMPFP:75466
Removal and InstallationAHS000IE
CAUTION:
Replace anchor bolts if they are deformed or worn out.
REMOVAL
1. Remove the rear seat. Refer to SE-108, "REMOVAL" .
2. Remove LATCH (Lower Anchors and Tether for Children) sys- tem.
INSTALLATION
Install in the reverse order of removal.

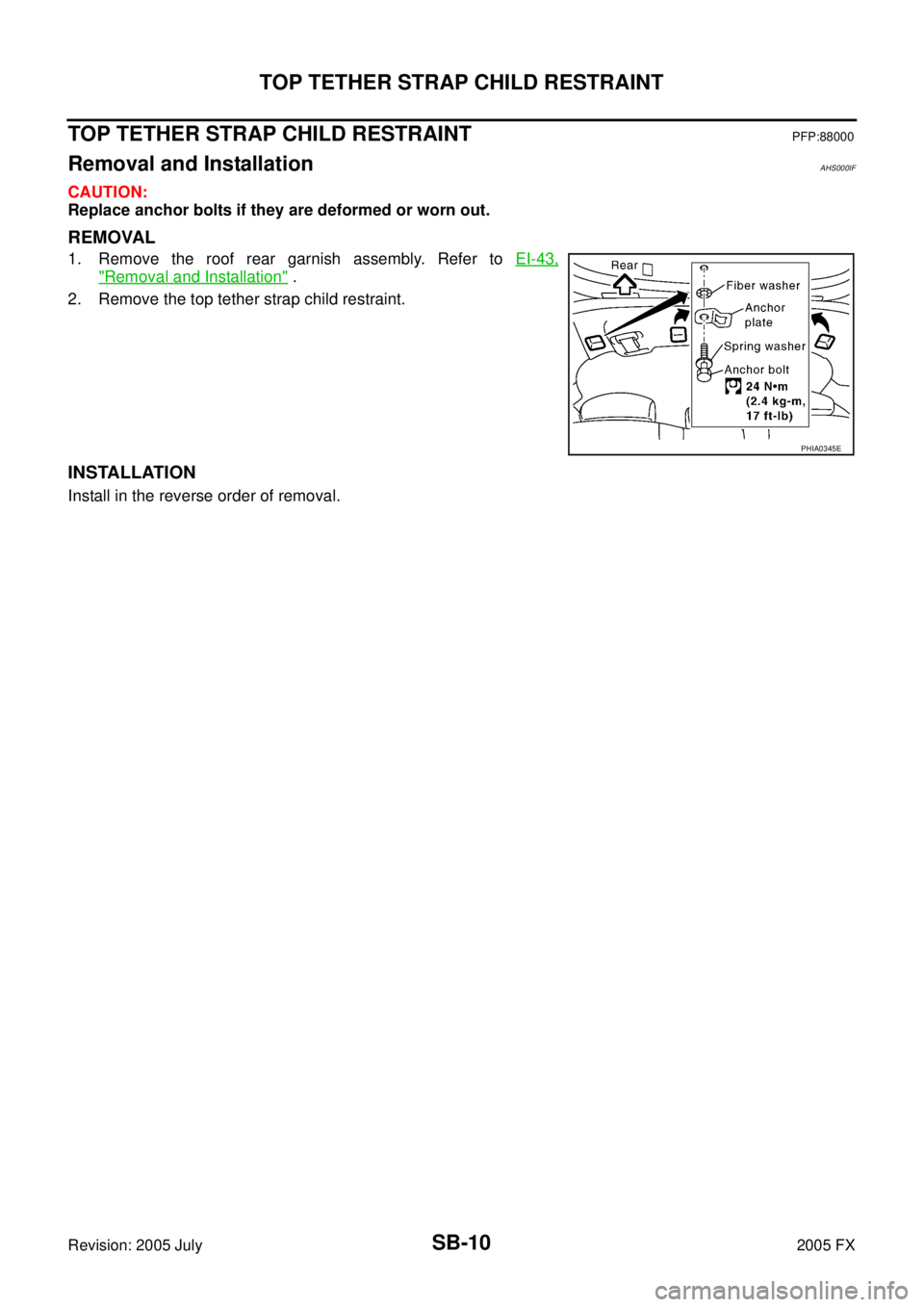

PHIA0344E
Page 4435 of 4731
SB-10
TOP TETHER STRAP CHILD RESTRAINT
Revision: 2005 July 2005 FX
TOP TETHER STRAP CHILD RESTRAINTPFP:88000
Removal and InstallationAHS000IF
CAUTION:
Replace anchor bolts if they are deformed or worn out.
REMOVAL
1. Remove the roof rear garnish assembly. Refer to EI-43,
"Removal and Installation" .
2. Remove the top tether strap child restraint.
INSTALLATION
Install in the reverse order of removal.
PHIA0345E
Page 4436 of 4731

SC-1
STARTING & CHARGING SYSTEM
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION SC
A
B
SC
Revision: 2005 July 2005 FX
STARTING & CHARGING SYSTEM
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 3
BATTERY ............................................................... ..... 4
How to Handle Battery ........................................ ..... 4
METHODS OF PREVENTING OVER-DIS-
CHARGE .......................................................... ..... 4
CHECKING ELECTROLYTE LEVEL ............... ..... 5
SPECIFIC GRAVITY CHECK .......................... ..... 5
CHARGING THE BATTERY ............................ ..... 6
Trouble Diagnosis with Battery/Starting/Charging
System Tester (Battery) ....................................... ..... 6
DIAGNOSTIC RESULT ITEM CHART ............. ..... 8
Removal and Installation ..................................... ..... 9
REMOVAL ........................................................ ..... 9
INSTALLATION ................................................ ..... 9
STARTING SYSTEM ............................................. ... 10
System Description ............................................. ... 10
Wiring Diagram — START — .............................. .... 11
VK45DE ENGINE MODELS ............................ .... 11
VQ35DE ENGINE MODELS ............................ ... 12
Trouble Diagnosis with Battery/Starting/Charging
System Tester (Starting) ...................................... ... 13
DIAGNOSTIC RESULT ITEM CHART ............. ... 13
WORK FLOW ................................................... ... 14
DIAGNOSTIC PROCEDURE 1 ........................ ... 15
DIAGNOSTIC PROCEDURE 2 ........................ ... 16
MINIMUM SPECIFICATION OF CRANKING
VOLTAGE REFERENCING COOLANT TEM-
PERATURE ...................................................... ... 16 Removal and Installation .....................................
... 17
VK45DE ENGINE MODELS ............................. ... 17
VQ35DE ENGINE MODELS (2WD) ................. ... 18
VQ35DE ENGINE MODELS (AWD) ................. ... 19
Disassembly and Assembly ................................. ... 20
VK45DE ENGINE MODELS ............................. ... 20
VQ35DE ENGINE MODELS (2WD) ................. ... 21
VQ35DE ENGINE MODELS (AWD) ................. ... 22
INSPECTION AFTER DISASSEMBLY ............. ... 22
CHARGING SYSTEM ............................................ ... 23
System Description .............................................. ... 23
MALFUNCTION INDICATOR ........................... ... 23
Wiring Diagram — CHARGE — .......................... ... 24
VK45DE ENGINE MODELS ............................. ... 24
VQ35DE ENGINE MODELS ............................ ... 25
Trouble Diagnosis with Battery/Starting/Charging
System Tester (Charging) .................................... ... 26
DIAGNOSTIC RESULT ITEM CHART ............. ... 27
WORK FLOW ................................................... ... 28
PRELIMINARY INSPECTION .......................... ... 29
DIAGNOSTIC PROCEDURE 1 ........................ ... 30
DIAGNOSTIC PROCEDURE 2 ........................ ... 31
DIAGNOSTIC PROCEDURE 3 ........................ ... 31
DIAGNOSTIC PROCEDURE 4 ........................ ... 32
Removal and Installation ..................................... ... 33
VK45DE ENGINE MODELS ............................. ... 33
VQ35DE ENGINE MODELS ............................ ... 34
Disassembly and Assembly ................................. ... 36
VK45DE ENGINE MODELS ............................. ... 36
VQ35DE ENGINE MODELS ............................ ... 37
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 38
Battery ................................................................. ... 38
Starter .................................................................. ... 38
Alternator ............................................................. ... 38
Page 4437 of 4731

SC-2
PRECAUTIONS
Revision: 2005 July 2005 FX
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AKS00794
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Page 4438 of 4731
PREPARATION SC-3
C
D E
F
G H
I
J
L
M A
B
SC
Revision: 2005 July 2005 FX
PREPARATIONPFP:00002

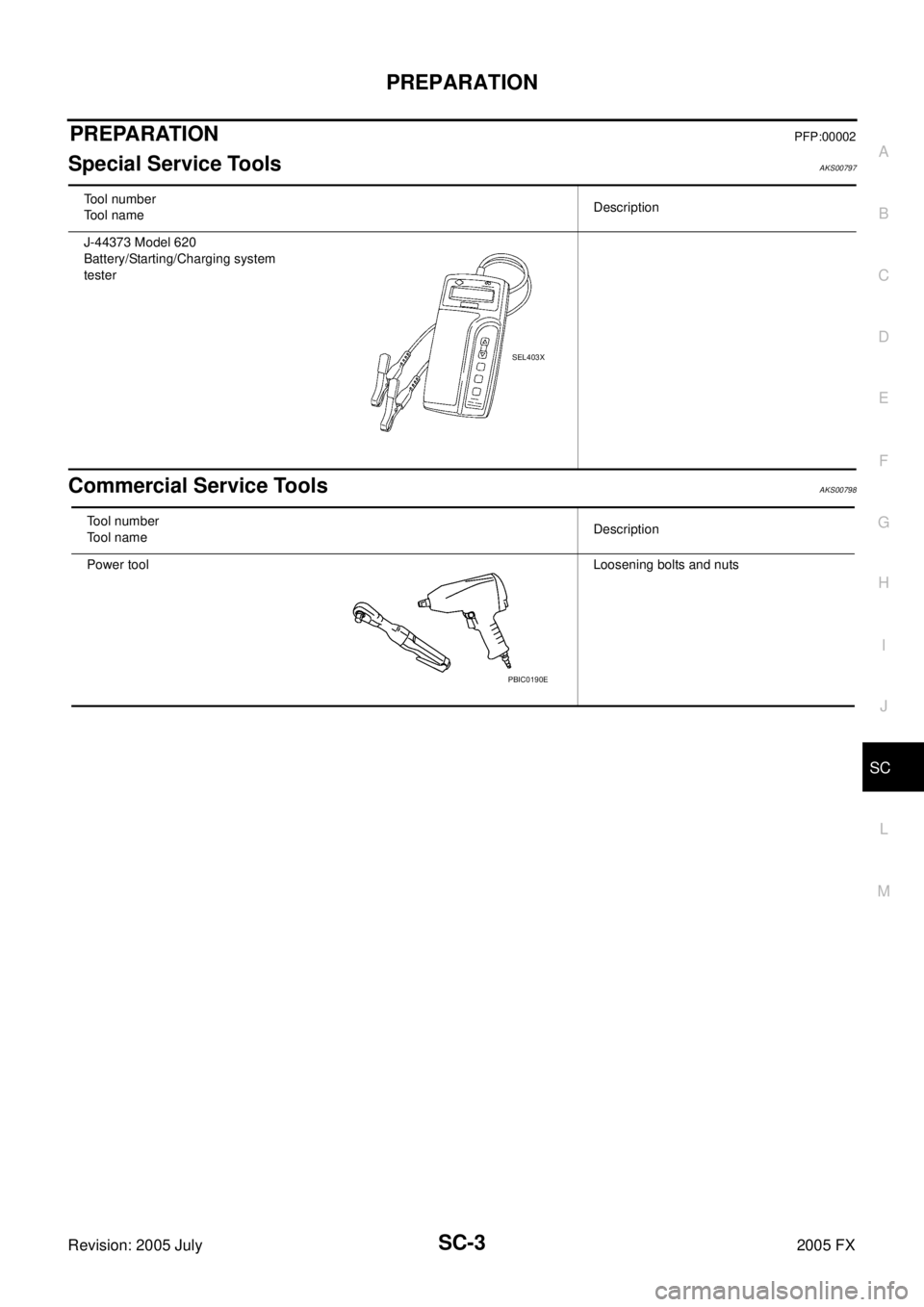

Special Service ToolsAKS00797
Commercial Service ToolsAKS00798
Tool number
Tool name Description
J-44373 Model 620
Battery/Starting/Charging system
tester
SEL403X
Tool number
Tool name Description
Power tool Loosening bolts and nuts
PBIC0190E
Page 4439 of 4731

SC-4
BATTERY
Revision: 2005 July 2005 FX
BATTERYPFP:AYBGL
How to Handle BatteryAKS00799
CAUTION:
If it becomes necessary to start the engine with a booster battery and jumper cables, use a 12-volt
booster battery.
After connecting battery cables, ensure that they are tightly clamped to battery terminals for good
contact.
METHODS OF PREVENTING OVER-DISCHARGE

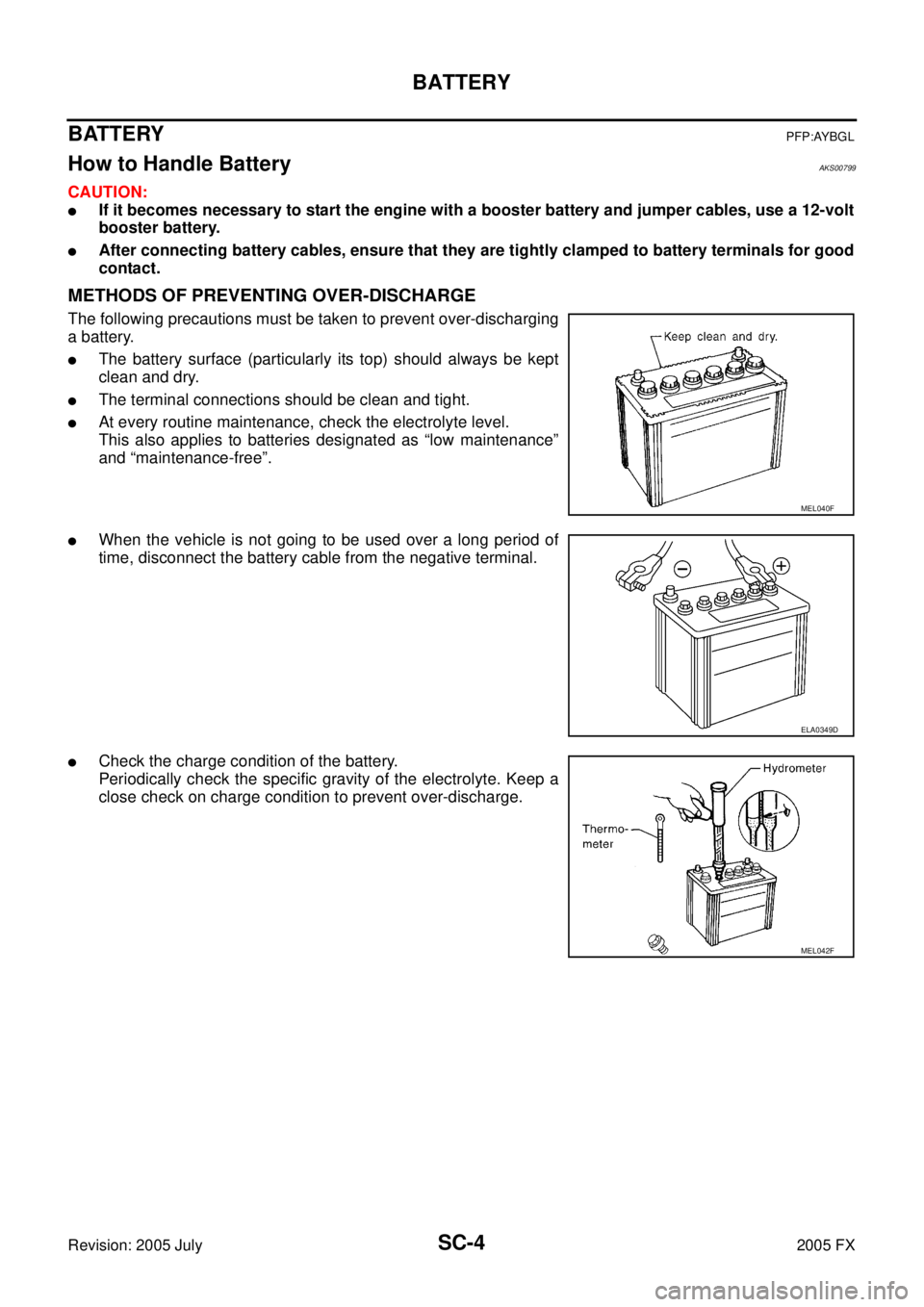

The following precautions must be taken to prevent over-discharging
a battery.
The battery surface (particularly its top) should always be kept
clean and dry.
The terminal connections should be clean and tight.
At every routine maintenance, check the electrolyte level.
This also applies to batteries designated as “low maintenance”
and “maintenance-free”.
When the vehicle is not going to be used over a long period of
time, disconnect the battery cable from the negative terminal.
Check the charge condition of the battery.
Periodically check the specific gravity of the electrolyte. Keep a
close check on charge condition to prevent over-discharge.
MEL040F
ELA0349D
MEL042F
Page 4440 of 4731

BATTERY SC-5
C
D E
F
G H
I
J
L
M A
B
SC
Revision: 2005 July 2005 FX
CHECKING ELECTROLYTE LEVEL
WARNING:
Never allow battery fluid to come in contact with skin, eyes, fabrics, or painted surfaces. After touch-
ing a battery, never touch or rub your eyes until you have thoroughly washed your hands. If acid con-
tacts eyes, skin or clothing, immediately flush with water for 15 minutes and seek medical attention.
Remove the cell plug using a suitable tool.
Add distilled water up to the MAX level.
Sulphation
A battery will be completely discharged if it is left unattended
for a long time and the specific gravity will become less than
1.100. This may result in sulphation on the cell plates.
To determine if a battery has been “sulphated”, note its voltage
and current when charging it. As shown in the figure, less cur-
rent and higher voltage are observed in the initial stage of
charging sulphated batteries.
A sulphated battery may sometimes be brought back into ser-
vice by means of a long, slow charge, 12 hours or more, fol-
lowed by a battery capacity test.
SPECIFIC GRAVITY CHECK
1. Read hydrometer and thermometer indications at eye level.
2. Use the chart below to correct your hydrometer reading accord- ing to electrolyte temperature.
Hydrometer Temperature Correction
MEL043F
PKIA2353E
MEL042FA
Battery electrolyte temperature °C ( °F) Add to specific gravity reading
71 (160) 0.032
66 (150) 0.028
60 (140) 0.024
54 (130) 0.020
49 (120) 0.016 43 (110) 0.012
38 (100) 0.008 32 (90) 0.004
27 (80) 0
21 (70) −0.004
