INFINITI FX35 2005 Service Manual LT-88
FRONT FOG LAMP
Revision: 2005 July 2005 FX
6. CHECK FRONT FOG LAMP GROUND
1. Turn ignition switch OFF.
2. Check continuity between front fog lamp RH harness connector E102 terminal 2 (B) and

Page 3978 of 4731

INFINITI FX35 2005 Service Manual FRONT FOG LAMP LT-89
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX

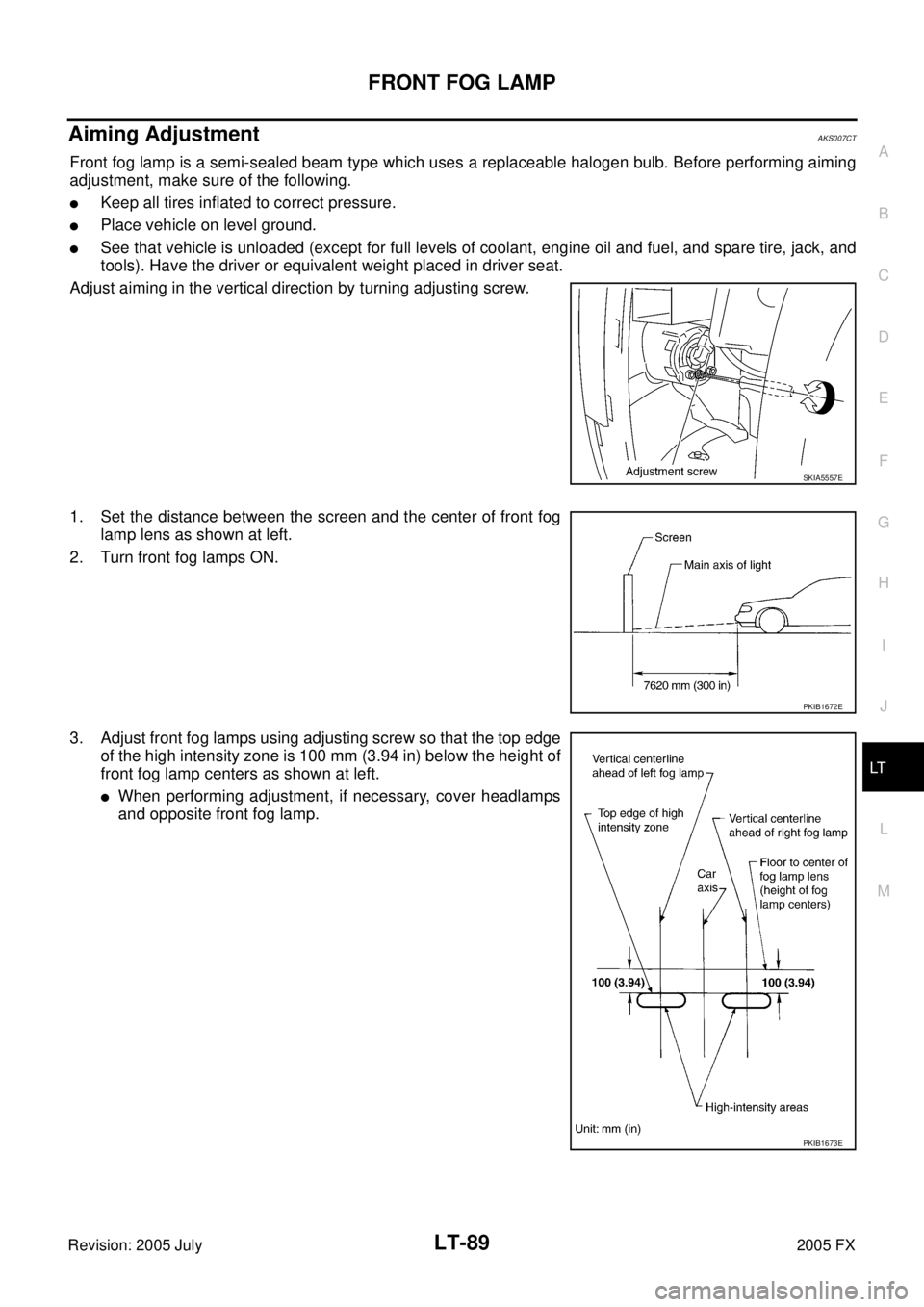

Aiming AdjustmentAKS007CT
Front fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Befo

Page 3979 of 4731

INFINITI FX35 2005 Service Manual LT-90
FRONT FOG LAMP
Revision: 2005 July 2005 FX
Bulb Replacement AKS007CU
1. Remove left side fender protector (front). Refer to EI-24,
"Removal and Installation" ,EI-14, "Removal and Installation"

Page 3980 of 4731

INFINITI FX35 2005 Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS LT-91
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120

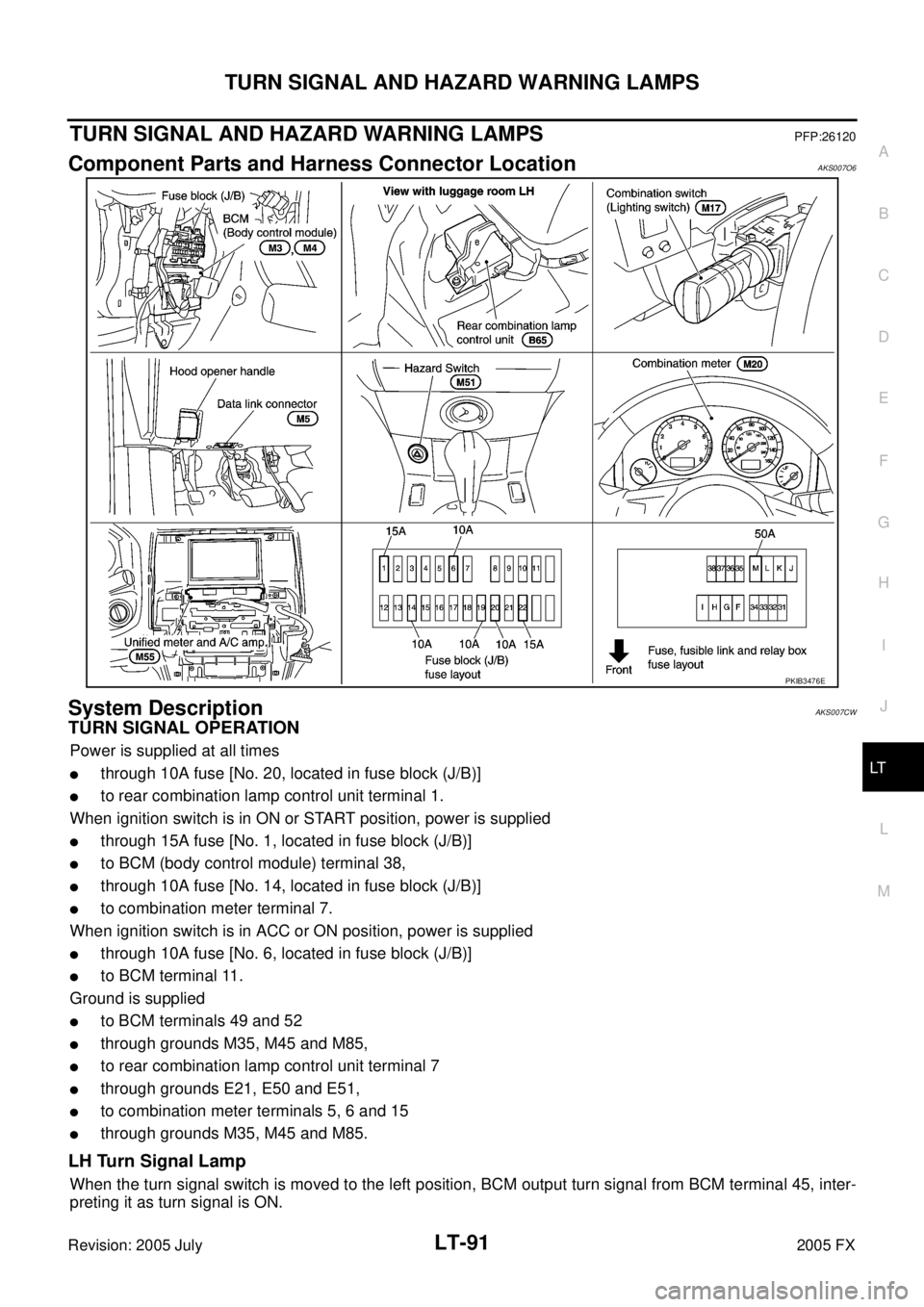

Component Parts and Harness Connector Locat

Page 3981 of 4731

INFINITI FX35 2005 Service Manual LT-92
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2005 July 2005 FX
Connected from BCM terminal 45 to front combination lamp LH terminal 4.
Turn signal lamp turns ON
through front combination lam

LT-92
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2005 July 2005 FX
Connected from BCM terminal 45 to front combination lamp LH terminal 4.
Turn signal lamp turns ON
through front combination lamp LH terminal 8
to grounds E21, E50 and E51.
Connected from BCM terminal 45 to rear combination lamp control unit terminal 4.
Rear turn signal (LED) turns ON
through rear combination lamp control unit terminal 11
to rear combination lamp LH terminal 3,
through rear combination lamp LH terminal 4
to rear combination lamp control unit terminal 10.
BCM sends signal to the unified meter and A/C amp. through CAN communication lines, and turns ON turn
signal indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn ON, rear combination lamp control unit sends signal to combi-
nation meter. And then unified meter and A/C amp. ends turn LED burnout status signal to BCM through CAN
communication lines for speeding up turn signal blinking.
RH Turn Signal Lamp
When the turn signal switch is moved to right position, BCM output turn signal from BCM terminal 46, interpret-
ing it as turn signal is ON.
Connected from BCM terminal 46 to front combination lamp RH terminal 4.
Turn signal lamp turns ON
through front combination lamp RH terminal 8
to grounds E21, E50 and E51.
Connected form BCM terminal 46 to rear combination lamp control unit terminal 5.
Rear turn signal (LED) turns ON
through rear combination lamp control unit terminal 9
to rear combination lamp RH terminal 3,
through rear combination lamp RH terminal 4
to rear combination lamp control unit terminal 8.
BCM sends signal to the unified meter and A/C amp. through CAN communication lines, and turns ON turn
signal indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn ON, rear combination lamp control unit sends signal to combi-
nation meter. And then unified meter and A/C amp. ends turn LED burnout status signal to BCM through CAN
communication lines for speeding up turn signal blinking.
HAZARD LAMP OPERATION
Power is supplied at all times
through 50A fusible link (letter M, located in fuse, fusible link and relay box)
to BCM terminal 55,
through 10A fuse [No. 19, located in fuse block (J/B)]
to combination meter terminal 8,
through 10A fuse [No. 20, located in fuse block (J/B)]
to rear combination lamp control unit terminal 1.
Ground is supplied
through BCM terminals 49 and 52
to grounds M35, M45 and M85,
through rear combination lamp control unit terminal 7
to grounds E21, E50 and E51,
through combination meter terminals 5, 6 and 15
to grounds M35, M45 and M85.
When hazard switch is depressed, ground is supplied
to hazard switch terminal 2
through BCM terminal 29,

Page 3982 of 4731

INFINITI FX35 2005 Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS LT-93
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
to grounds M35, M45 and M85
through hazard switch terminal 1.
When the hazard switch i

TURN SIGNAL AND HAZARD WARNING LAMPS LT-93
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
to grounds M35, M45 and M85
through hazard switch terminal 1.
When the hazard switch is depressed, BCM output turn signal from BCM terminals 45 and 46, interpreting it as
turn signal is ON.
Connected from BCM terminal 45 and 46 to front combination lamp terminal 4.
Turn signal lamp turns ON
through front combination lamp terminal 8
to grounds E21, E50 and E51.
Connected form BCM terminals 45 and 46 to rear combination lamp control unit terminals 4 and 5.
Rear turn signal (LED) turns ON
through rear combination lamp control unit terminal 11
to rear combination lamp LH terminal 3,
through rear combination lamp LH terminal 4
to rear combination lamp control unit terminal 10,
through rear combination lamp control unit terminal 9
to rear combination lamp RH terminal 3,
through rear combination lamp RH terminal 4
to rear combination lamp control unit terminal 8.
BCM sends signal to the unified meter and A/C amp. through CAN communication lines, and turns ON turn
signal indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn ON, rear combination lamp control unit sends signal to combi-
nation meter. And then unified meter and A/C amp. ends turn LED burnout status signal to BCM through CAN
communication lines for speeding up turn signal blinking.
REMOTE CONTROL ENTRY SYSTEM OPERATION
Power is supplied at all times
through 50A fusible link (letter M, located in fuse, fusible link and relay box)
to BCM terminal 55,
through 10A fuse [No. 19, located in fuse block (J/B)]
to combination meter terminal 8,
through 10A fuse [No. 20, located in fuse block (J/B)]
to rear combination lamp control unit terminal 1.
Ground is supplied
to BCM terminals 49 and 52
through grounds M35, M45 and M85,
to rear combination lamp control unit terminal 7
through grounds E21, E50 and E51,
to combination meter terminals 5, 6 and 15
through grounds M35, M45 and M85.
When the remote control entry system is triggered by input from key fob, BCM output turn signal from BCM
terminals 45 and 46, interpreting it as turn signal is ON.
Connected from BCM terminals 45 and 46 to front combination lamp terminal 4.
Turn signal lamp turns ON
through front combination lamp terminal 8
to grounds E21, E50 and E51.
Connected form BCM terminals 45 and 46 to rear combination lamp control unit terminals 4 and 5.
Rear turn signal (LED) turns ON
through rear combination lamp control unit terminal 11
to rear combination lamp LH terminal 3,
through rear combination lamp LH terminal 4
to rear combination lamp control unit terminal 10,
through rear combination lamp control unit terminal 9

Page 3983 of 4731

INFINITI FX35 2005 Service Manual LT-94
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2005 July 2005 FX
to rear combination lamp RH terminal 3,
through rear combination lamp RH terminal 4
to rear combination lamp control unit term

Page 3984 of 4731

INFINITI FX35 2005 Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS LT-95
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
SchematicAKS007CZ
TKWM0621E
