Page 1369 of 4731

INFINITI FX35 2005 Service Manual DI-108
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX
4. CHECK LDW SWITCH SIGNAL INPUT CIRCUIT
1. Disconnect LDW camera unit connector.
2. Check continuity between LDW camera unit harness

Page 1370 of 4731

INFINITI FX35 2005 Service Manual LANE DEPARTURE WARNING SYSTEM DI-109
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
8. CHECK LDW SYSTEM ON INDICATOR SIGNAL CIRCUIT
1. Disconnect LDW camera unit connector.
2. C

Page 1371 of 4731

INFINITI FX35 2005 Service Manual DI-110
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX
2. CHECK LDW INDICATOR LAMP SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect LDW camera unit connector and combination meter

Page 1372 of 4731

INFINITI FX35 2005 Service Manual LANE DEPARTURE WARNING SYSTEM DI-111
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

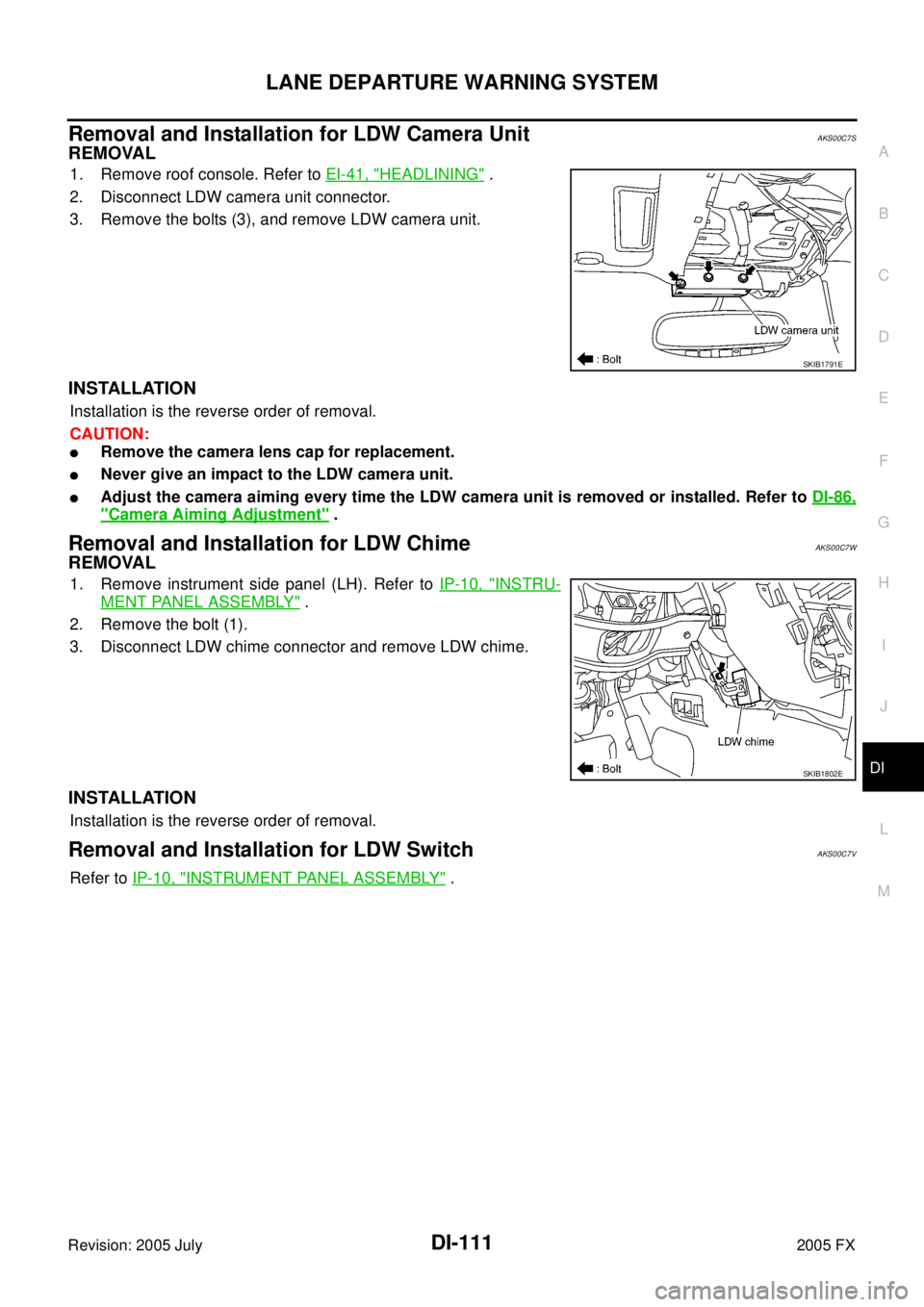

Removal and Installation for LDW Camera UnitAKS00C7S
REMOVAL
1. Remove roof console. Refer to E

Page 1373 of 4731

INFINITI FX35 2005 Service Manual DI-112
CLOCK
Revision: 2005 July 2005 FX
CLOCKPFP:25820
Wiring Diagram — CLOCK —AKS0056I
TKWM0699E

Page 1374 of 4731

INFINITI FX35 2005 Service Manual CLOCK DI-113
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
Removal and Installation of ClockAKS007G3
REMOVAL
1. Remove instrument clock finisher. Refer to IP-12, "(E) Instru-
men

Page 1375 of 4731

INFINITI FX35 2005 Service Manual DI-114
REAR VIEW MONITOR
Revision: 2005 July 2005 FX
REAR VIEW MONITORPFP:28260
System DescriptionAKS0068D
The rear view monitor is equipped to check the rearward of the vehicle with display when A/T

DI-114
REAR VIEW MONITOR
Revision: 2005 July 2005 FX
REAR VIEW MONITORPFP:28260
System DescriptionAKS0068D
The rear view monitor is equipped to check the rearward of the vehicle with display when A/T selector
lever is in reverse position.
The lines of vehicle sides and the distance from the rear end of the vehicle are provided on display as a
guide. It allows the driver to know the distance between the vehicle and a rearward object, and the width
of the vehicle much easier.
POWER SUPPLY AND GROUND
Power is supplied at all time
through 10A fuse [No. 19, located in fuse block (J/B)]
to rear view camera control unit terminal 1.
When ignition switch is in ACC or ON position, power is supplied
through 10A fuse [No. 6, located in fuse block (J/B)]
to rear view camera control unit terminal 2.
When ignition switch is in ON or START position, power is supplied
through 10A fuse (No. 83, located in IPDM E/R)
to back-up lamp relay terminals 2 and 3.
Ground is supplied
to rear view camera control unit terminal 3
through grounds M35, M45 and M85.
AV COMMUNICATION LINE
Rear view camera control unit is connected to the following units with AV communication line. Each unit trans-
mits/receives data with AV communication line.
NAVI control unit
Display
Display control unit
A/C and AV switch
REAR VIEW CAMERA OPERATION
When A/T selector lever is reverse position, power is supplied
through back-up lamp relay terminal 1
to TCM terminal 7.
Then back-up lamp relay is energized,
from back-up lamp relay terminal 5
to rear view camera control unit terminal 4.
Then, rear view camera control unit is sent camera ON signal
through rear view camera control unit terminal 8
to rear view camera terminal 1.
An image taken by rear view camera is sent
through rear view camera terminals 3 and 4
to rear view camera control unit terminals 10 and 9.
Then an image is sent
through rear view camera control unit terminals 12 and 14
to the display terminals 15 and 16.
An image of rear view will be projected on the display.
Side Distance Guideline
When A/T selector lever is in reverse position, rear view camera control unit is sent rear view camera guideline
through rear view camera control unit terminals 12 and 14

Page 1376 of 4731

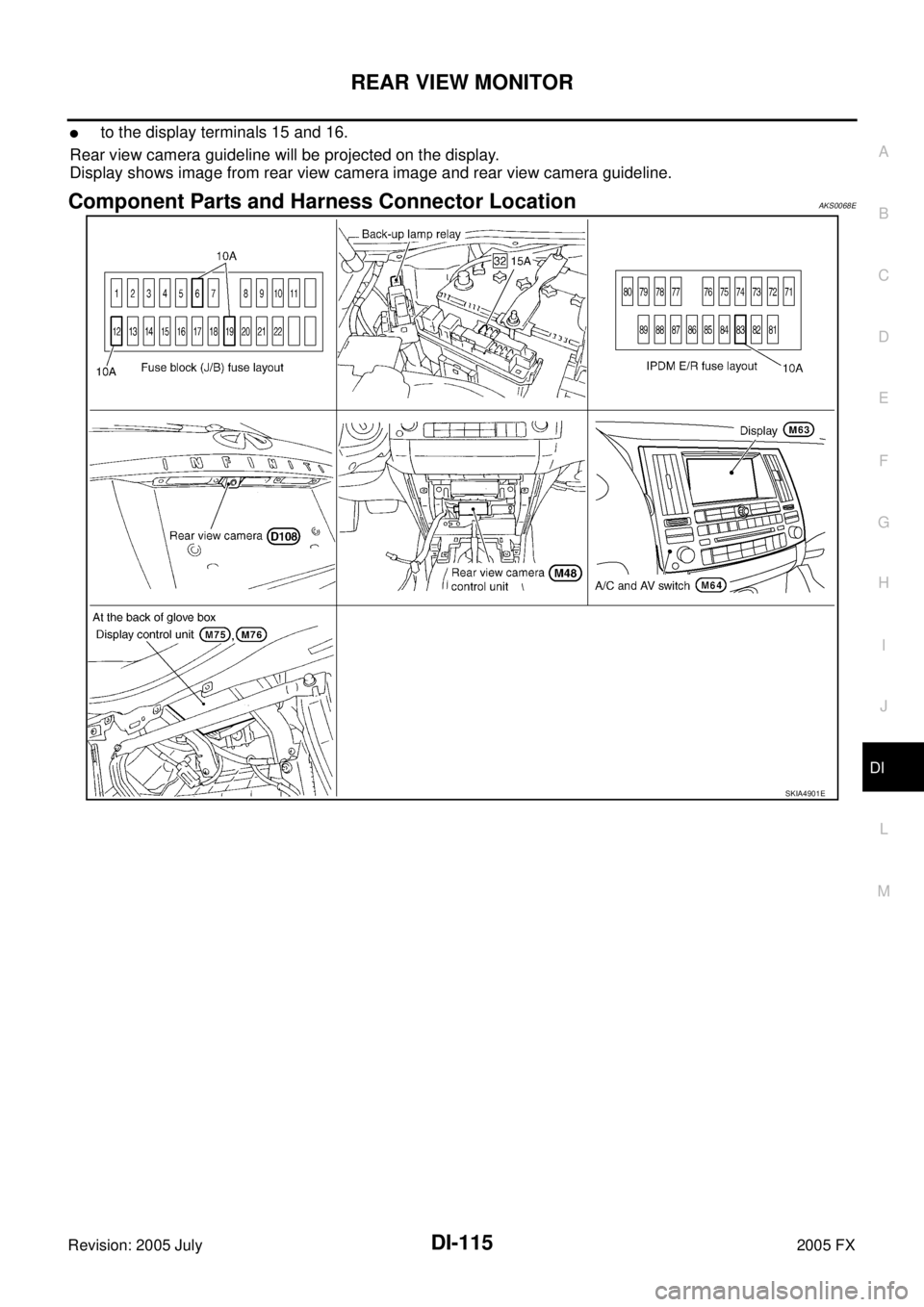

INFINITI FX35 2005 Service Manual REAR VIEW MONITOR DI-115
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
to the display terminals 15 and 16.
Rear view camera guideline will be projected on the display.
Display
