Page 3545 of 4731

INFINITI FX35 2005 Service Manual LAN-126 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX CAN SYSTEM (TYPE 3)PFP:23710 Component Parts and Harness Connector LocationAKS00CEA PKIB5968E

Page 3546 of 4731

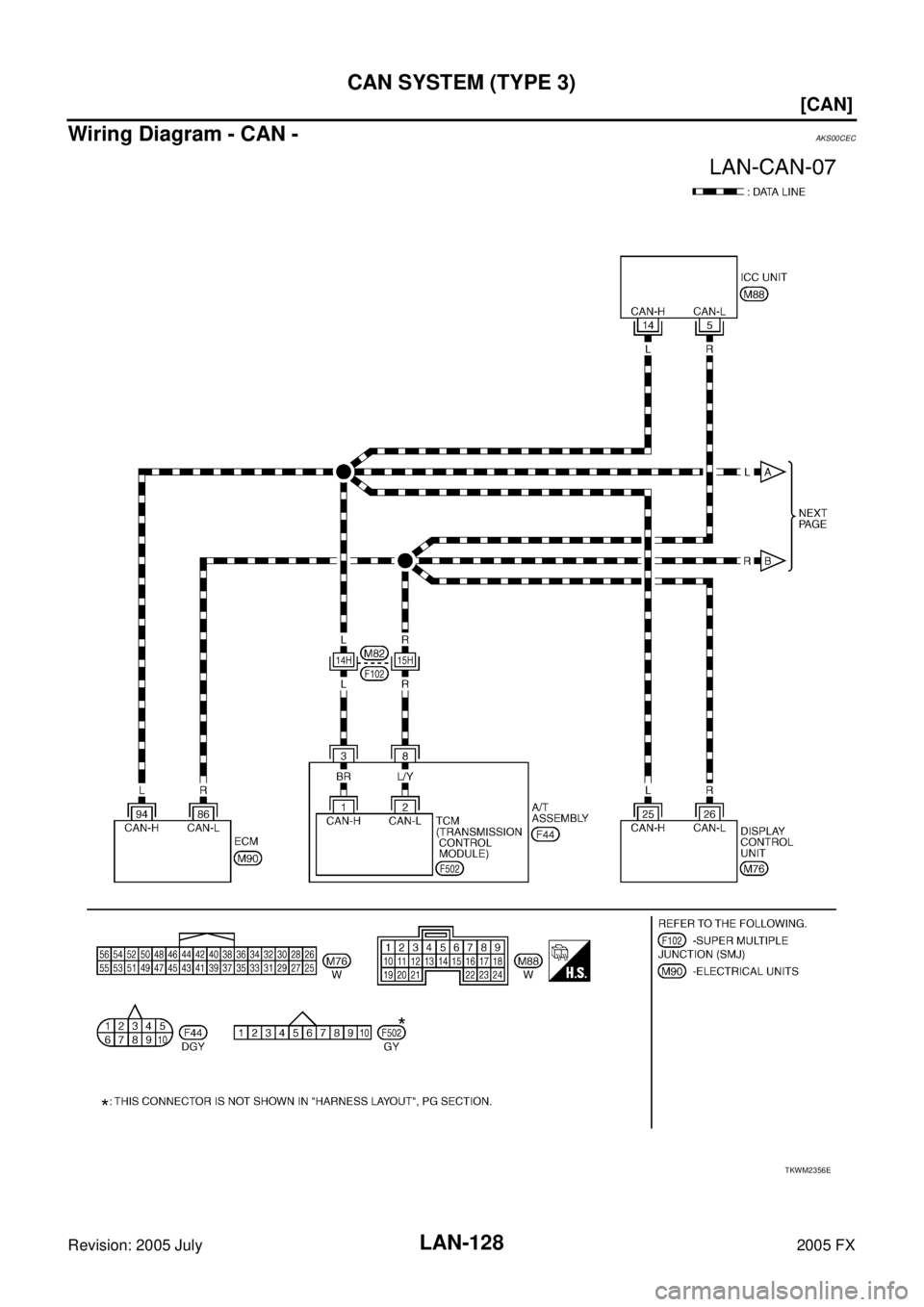

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-127 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX SchematicAKS00CEB TKWM2355E

Page 3547 of 4731

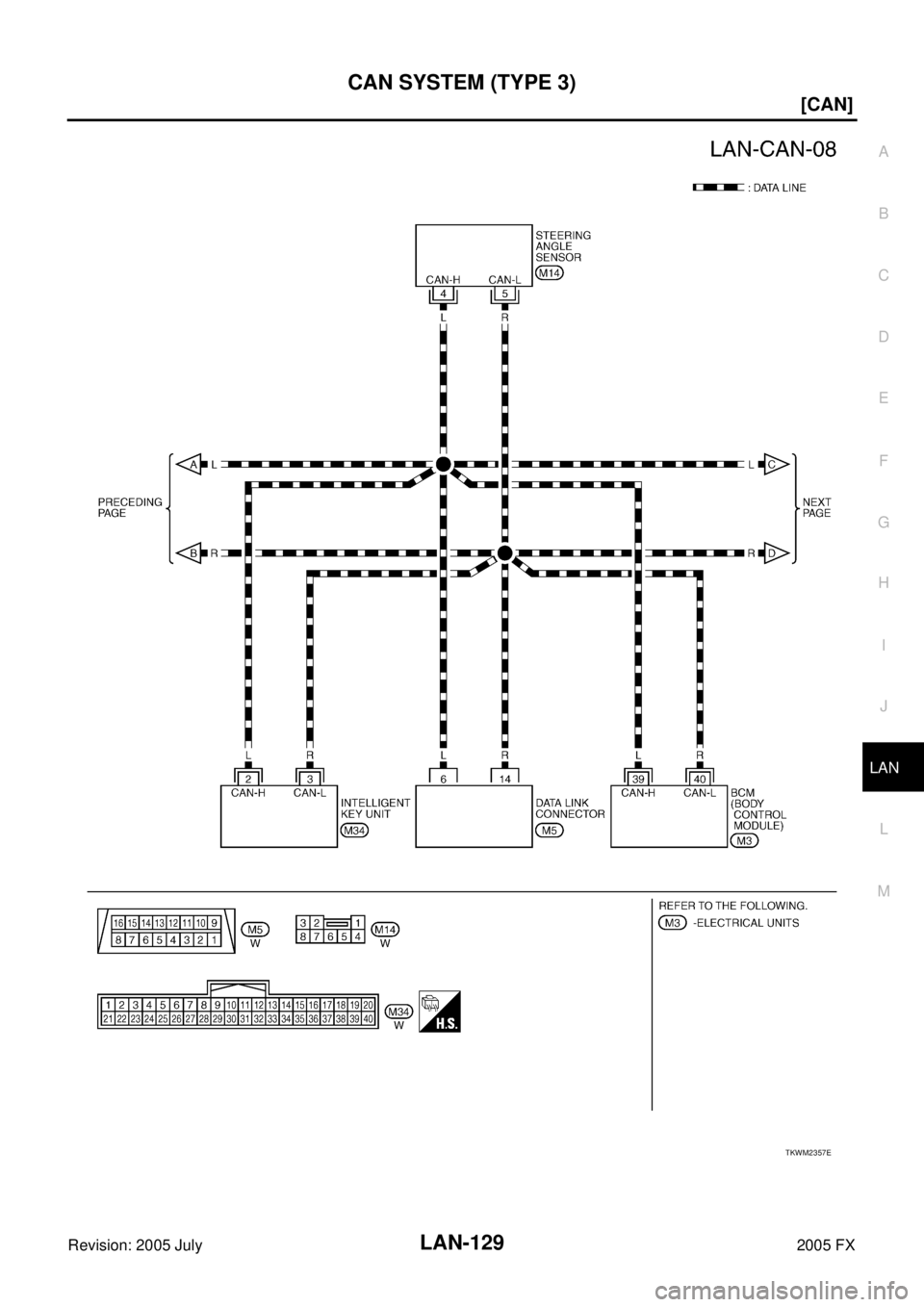

INFINITI FX35 2005 Service Manual LAN-128 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX Wiring Diagram - CAN -AKS00CEC TKWM2356E

Page 3548 of 4731

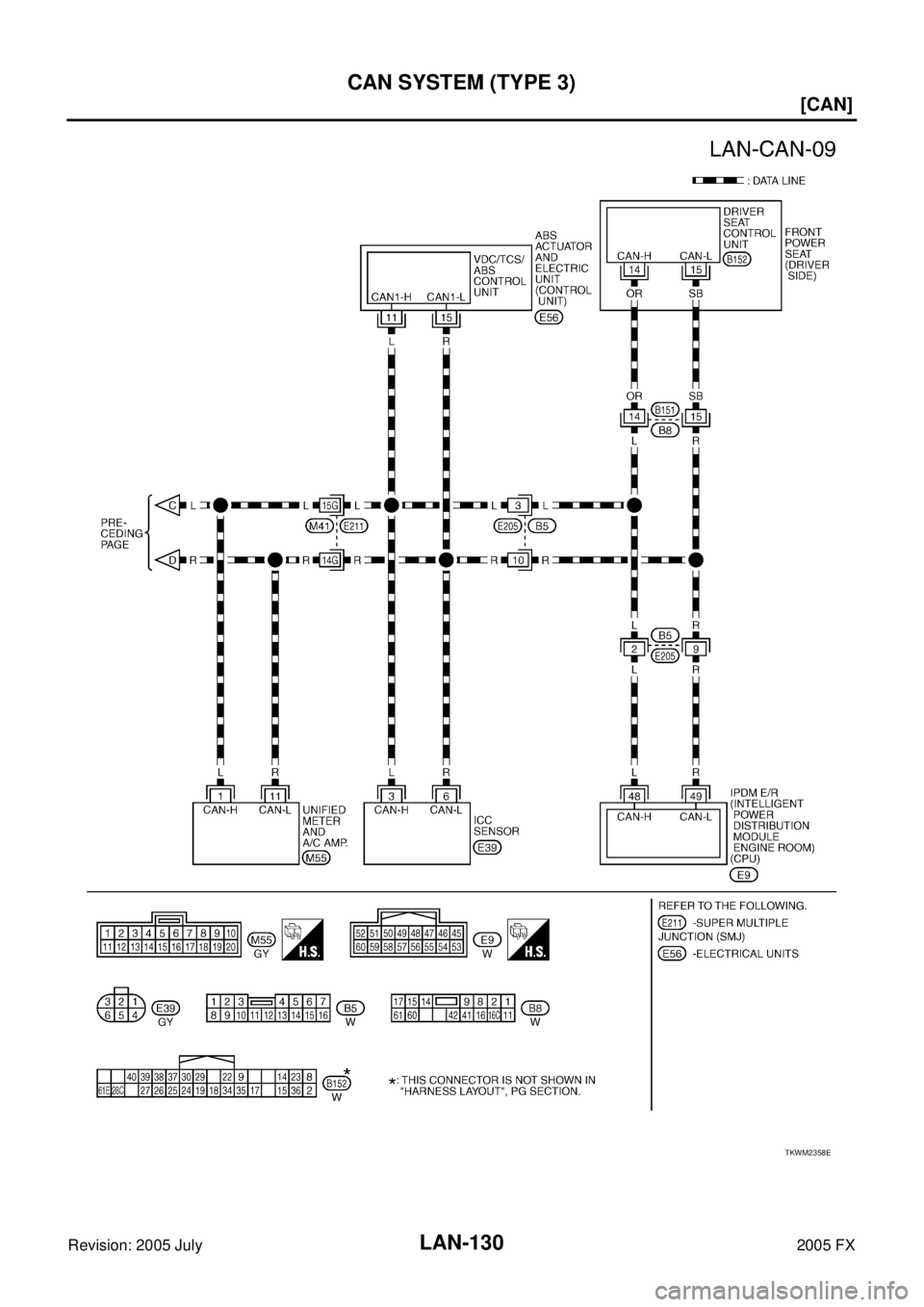

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-129 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX TKWM2357E

Page 3549 of 4731

INFINITI FX35 2005 Service Manual LAN-130 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX TKWM2358E

Page 3550 of 4731

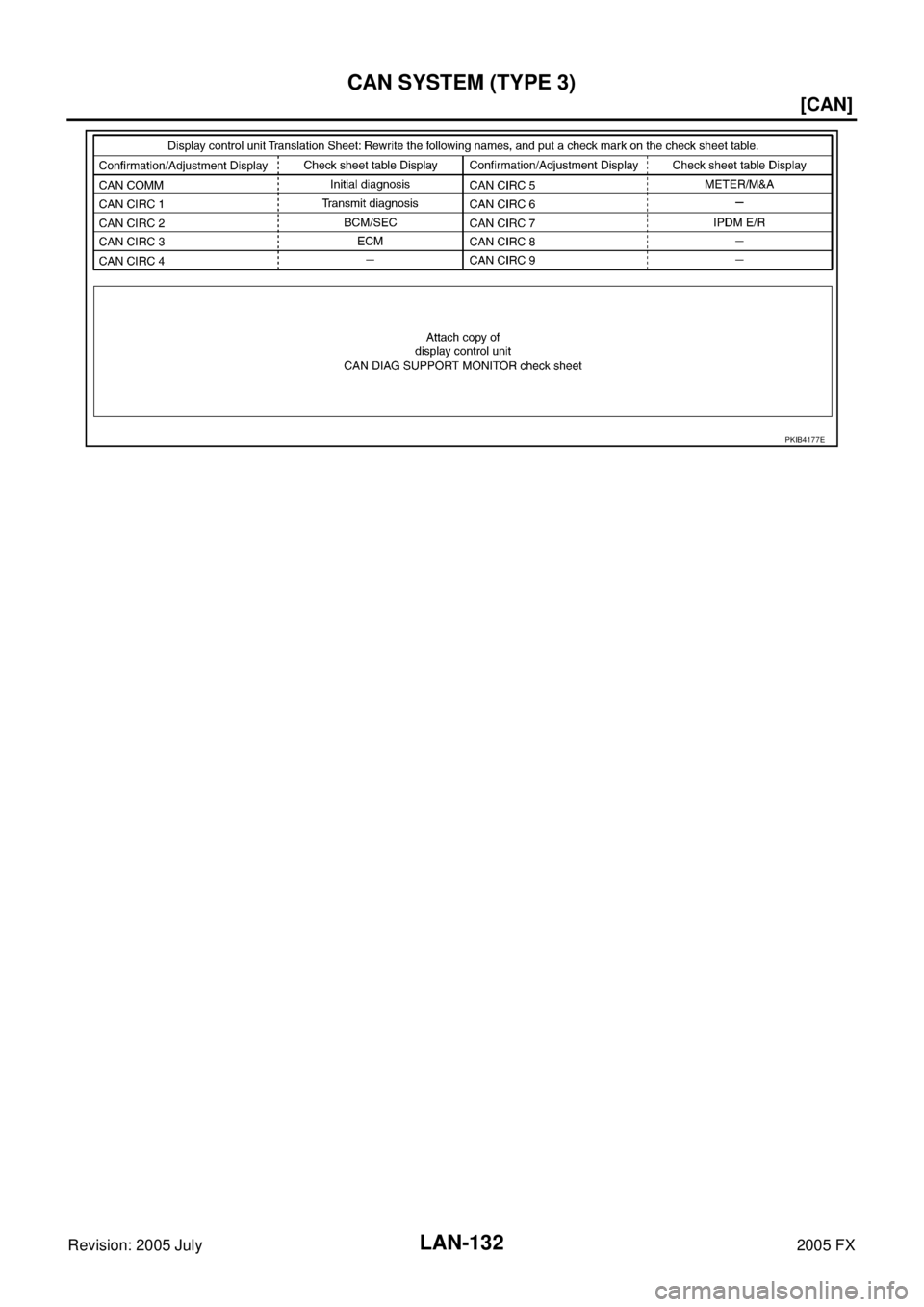

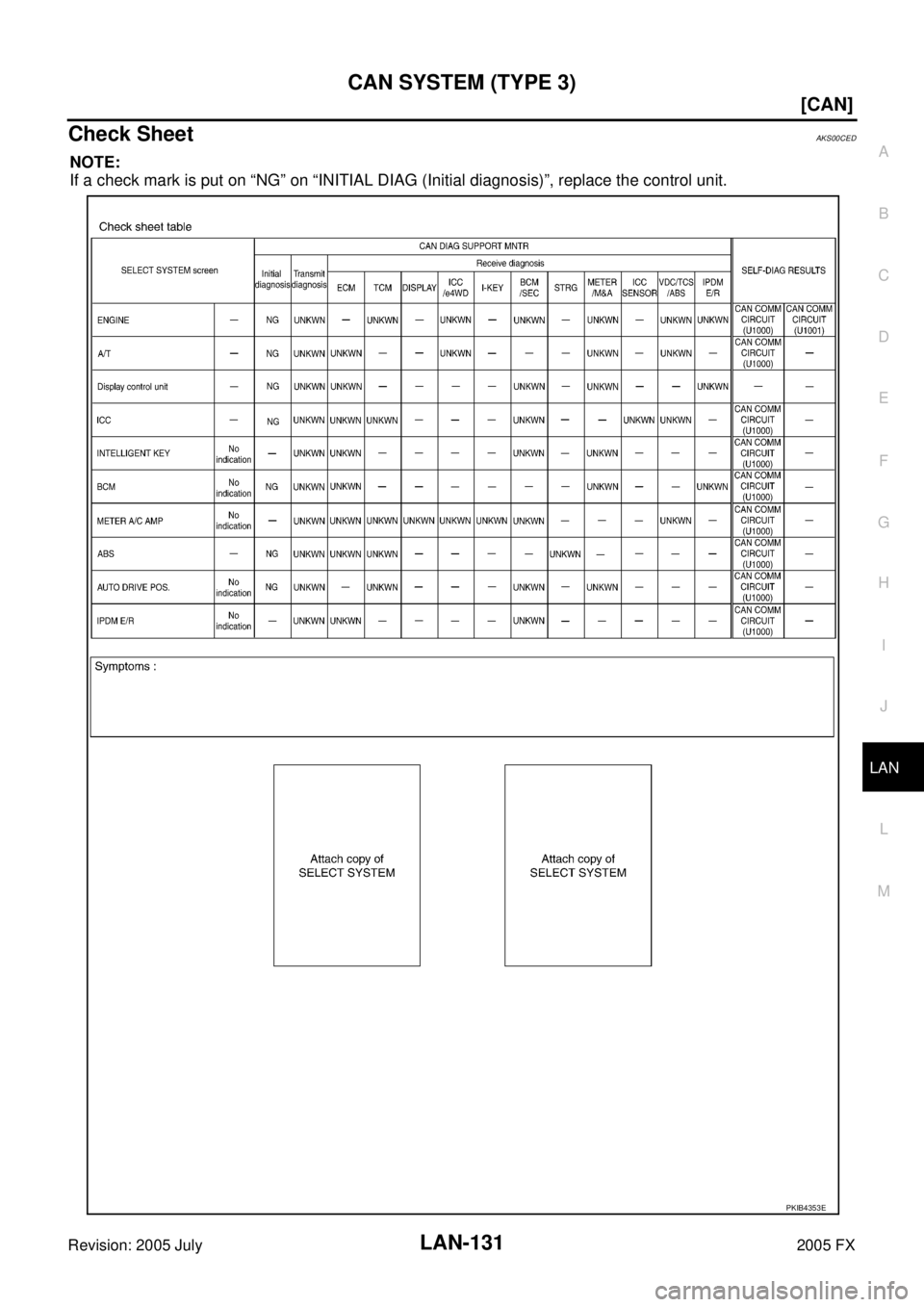

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-131 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Check SheetAKS00CED NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnos

Page 3551 of 4731

INFINITI FX35 2005 Service Manual LAN-132 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX PKIB4177E

Page 3552 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-133 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX PKIB4354E
