Check Door SwitchAIS004MM
CHECK DOOR SWITCH (EXCEPT BACK DOOR SWITCH)
1. CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check door switches (“DOOR SW-DR”, “DOOR SW-AS”, “DOOR
SW-RL” and “DOOR SW-RR”) in “DATA MONITOR” mode with
CONSULT-II.
Without CONSULT-II
Check voltage between BCM connector and ground.
OK or NG
OK >> Door switch circuit is OK.
NG >> GO TO 2.
Monitor item Condition DATA MONITOR
DOOR SW-DR CLOSE ↓
OPEN: OFF
↓
ON
DOOR SW-AS
DOOR SW-RL
DOOR SW-RR
Item Connector Terminals
(Wire color) Door
condition Voltage (V)
(Approx.)
(+) (-)
Driver side B14 62 (W)
Ground CLOSE
↓
OPEN Battery voltage
↓0
Rear LH 63 (P)
Passenger side M3 12 (P/B)
Rear RH 13 (P/L)
PIIA6469E
PIIA7003E
Page 890 of 4731

REMOTE KEYLESS ENTRY SYSTEM BL-75
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
2. CHECK DOOR SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door switch and BCM connector.
3. Check continuity between door switch connector B26, B36, B46, B206 terminals 1 and BCM connector M3, B14 terminals 62, 12,
63, 13.
4. Check continuity between door switch connector B26, B36, B46, B206 terminal 1 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK DOOR SWITCH
Check continuity between door switch terminal 1 and ground part of
door switch.
OK or NG
OK >> Check door switch case ground condition.
NG >> Replace door switch. Driver side door
1 (W) – 62 (W) : Continuity should exist.
Passenger side door
1 (SB) – 12 (P/B) : Continuity should exist.
Rear door LH
1 (P) – 63 (P) : Continuity should exist.
Rear door RH
1 (P) – 13 (P/L) : Continuity should exist.
1 (W, SB, P) – Ground : Continuity should not exist.
PIIA7004E
Terminal Door switch condition Continuity
1 Ground part of door switch Pushed No
Released Yes
PIIA3351E
Page 891 of 4731
BL-76
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2005 July 2005 FX
CHECK BACK DOOR SWITCH
1. CHECK BACK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check (“BACK DOOR SW”) in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
Check voltage between BCM connector and ground.
OK or NG
OK >> Back door switch circuit is OK.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and back door closure motor connector.
3. Check continuity between BCM connector B14 terminal 58 and back door closure motor connector D109 terminal 7.
4. Check continuity between BCM connector B14 terminal 58 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
Monitor item Condition DATA MONITOR
BACK DOOR SW OPEN
↓
CLOSE ON
↓
OFF

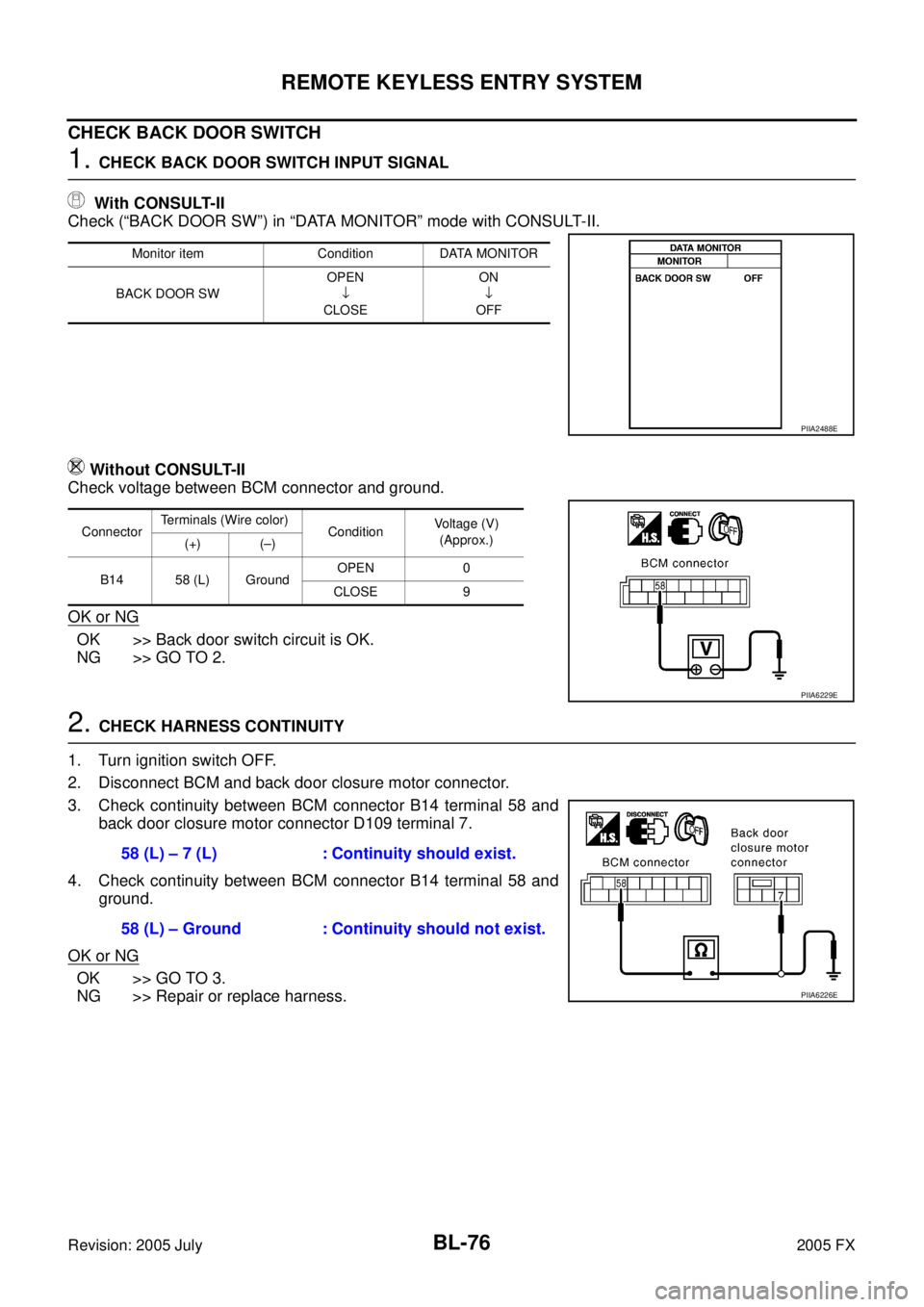

PIIA2488E
Connector Terminals (Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
B14 58 (L) Ground OPEN 0
CLOSE 9
PIIA6229E
58 (L) – 7 (L) : Continuity should exist.
58 (L) – Ground : Continuity should not exist.
PIIA6226E
Page 892 of 4731
REMOTE KEYLESS ENTRY SYSTEM BL-77
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
3. CHECK GROUND CIRCUIT
Check continuity between back door closure motor connector D109
terminal 8 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK BACK DOOR SWITCH
Check continuity between back door closure motor D109 terminals 7
and 8.
OK or NG
OK >> GO TO 5.
NG >> Replace back door closure motor.
5. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace BCM. 8 (B) – Ground : Continuity should exist.
PIIA6170E
Terminals Back door condition Continuity
78 Open Yes
Close No
PIIA9934E
58 (L) – Ground : Approx. 9V
PIIA6229E
Page 893 of 4731

BL-78
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2005 July 2005 FX
Check Key SwitchAIS004MN
1. CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-II
Check ignition key switch “KEY ON SW” in “DATA MONITOR” mode
with CONSULT-II.
When key is inserted in ignition key cylinder
When key is removed from ignition key cylinder
Without CONSULT-II
Check voltage between BCM connector M3 terminal 37 (B/W) and
ground.
OK or NG
OK >> Key switch circuit is OK.
NG >> GO TO 2.
2. CHECK KEY SWITCH
1. Disconnect key switch connector.
2. Check continuity between key switch terminals 1 and 2.
OK or NG
OK >> Check the following.
15A fuse [No. 22, located in fuse block (J/B)]
Harness for open or short between key switch and fuse
Harness for open or short between BCM and key switch
NG >> Replace key switch. KEY ON SW : ON
KEY ON SW : OFF
PIIA6470E
Condition of ignition key cylinder Voltage (V)
Approx.
Key is inserted Battery voltage
Key is removed 0
PIIA6471E
Terminal Key switch condition Continuity
12 Key is inserted in IGN key cylinder. Yes
Key is removed from IGN key cylinder No
PIIA2627E
Page 894 of 4731
REMOTE KEYLESS ENTRY SYSTEM BL-79
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
Check Remote Keyless Entry ReceiverAIS0069Y
1. CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Check remote keyless entry receiver connector M78 terminal 2 (L) and ground signal with oscilloscope.
OK or NG
OK >> Remote keyless entry receiver circuit is OK.
NG >> GO TO 2.
2. CHECK REMOTE KEYLESS ENTRY RECEIVER INPUT VOLTAGE
1. Disconnect remote keyless entry receiver connector.
2. Check voltage between remote keyless entry receiver connector M78 terminal 4 (R) and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Connector Terminal
(Wire color) Condition
of keyfob Voltag e
(Reference value)
(+) (–)
M78 2 Ground No function
Any button is pressed
PIIB1375E
OCC3879D
OCC3880D
4 (Y) – Ground : Approx. 4.5V
PIIB3953E
Page 895 of 4731

BL-80
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2005 July 2005 FX
3. CHECK REMOTE KEYLESS ENTRY RECEIVER POWER SUPPLY CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between remote keyless entry receiver connector M78 terminal 4 (R) and BCM connec- tor M1 terminal 19 (R).
3. Check continuity between remote keyless entry receiver connector M78 terminal 4 (R) and ground.
OK or NG
OK >> Check harness connection.
If it is OK, replace BCM.
If it is NG, repair or replace malfunction part.
NG >> Repair or replace the harness.
4. CHECK REMOTE KEYLESS ENTRY RECEIVER GROUND CIRCUIT
1. Check continuity between remote keyless entry receiver con- nector M78 terminal 1 (B) and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. CHECK REMOTE KEYLESS ENTRY RECEIVER GROUND CIRCUIT
1. Check continuity between remote keyless entry receiver con- nector M78 terminal 1 (B) and BCM connector M1 terminal 18
(B)
OK or NG
OK >> Check harness connection.
If it is OK, replace BCM.
If it is NG, repair or replace malfunction part.
NG >> Repair or replace the harness. 4 (R) – 19 (R) : Continuity should exist.
4 (R) – Ground : Continuity should not exist.
PIIA9630E
1 (B) – Ground : Continuity should exist.
PIIB1376E
1 (B) – 18 (B) : Continuity should exist.
PIIB3952E
Page 896 of 4731
REMOTE KEYLESS ENTRY SYSTEM BL-81
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
6. CHECK REMOTE KEYLESS ENTRY RECEIVER SIGNAL CIRCUIT
1. Check continuity between remote keyless entry receiver connector M78 terminal 2 (Y) and BCM connec- tor M1 terminal 20 (Y).
2. Check continuity between remote keyless entry receiver connector M78 terminal 2 (Y) and ground.
OK or NG
OK >> Check harness connection.
If it is OK, replace remote keyless entry receiver.
If it is NG, repair or replace malfunction part.
NG >> Repair or replace harness. 2 (Y) – 20 (Y) : Continuity should exist.
2 (Y) – Ground : Continuity should not exist.
PIIA9633E
