Page 1297 of 4731

DI-36
UNIFIED METER AND A/C AMP
Revision: 2005 July 2005 FX

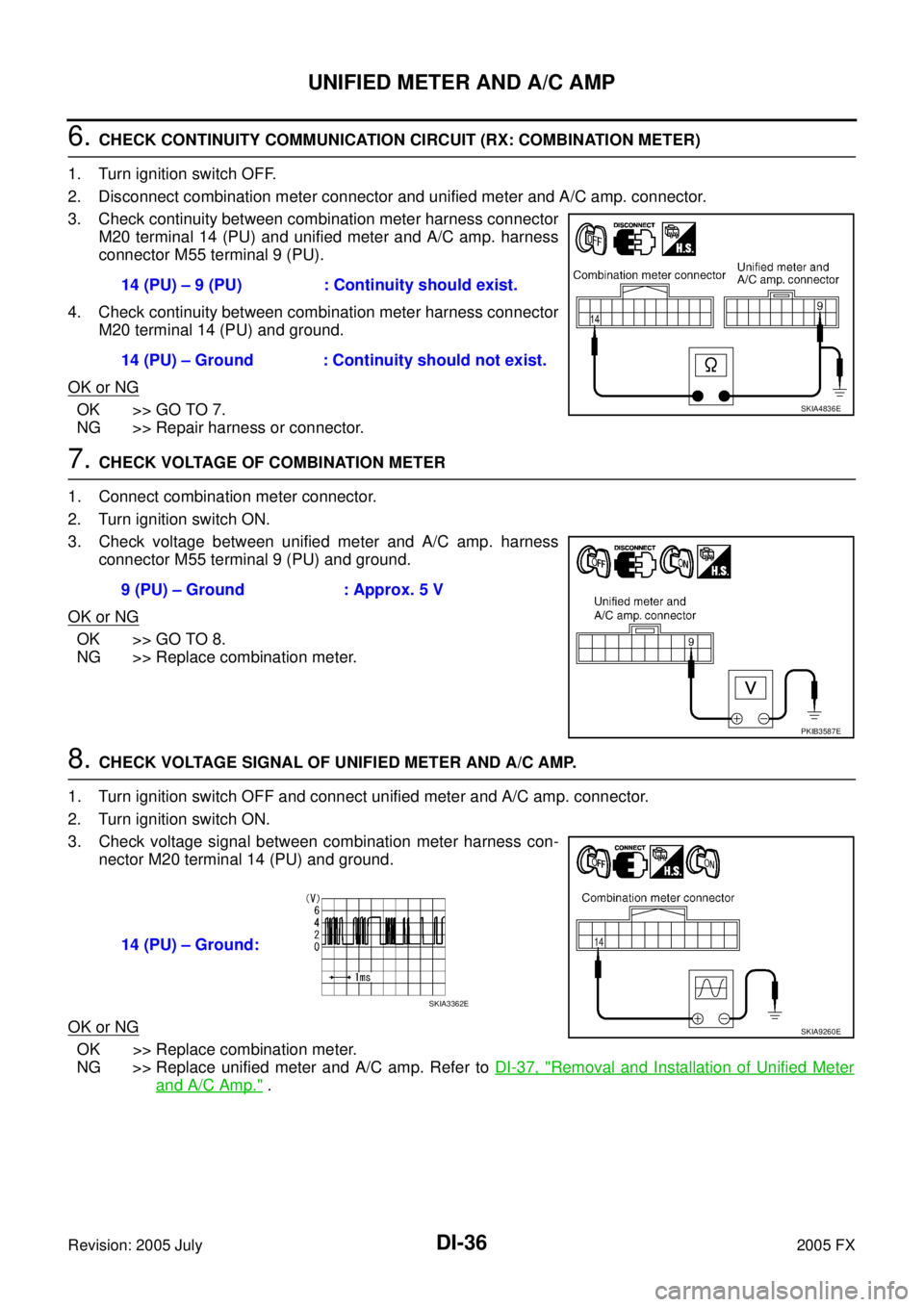

6. CHECK CONTINUITY COMMUNICATION CIRCUIT (RX: COMBINATION METER)
1. Turn ignition switch OFF.
2. Disconnect combination meter connector and unified meter and A/C amp. connector.
3. Check continuity between combination meter harness connector M20 terminal 14 (PU) and unified meter and A/C amp. harness
connector M55 terminal 9 (PU).
4. Check continuity between combination meter harness connector M20 terminal 14 (PU) and ground.
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.
7. CHECK VOLTAGE OF COMBINATION METER
1. Connect combination meter connector.
2. Turn ignition switch ON.
3. Check voltage between unified meter and A/C amp. harness connector M55 terminal 9 (PU) and ground.
OK or NG
OK >> GO TO 8.
NG >> Replace combination meter.
8. CHECK VOLTAGE SIGNAL OF UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF and connect unified meter and A/C amp. connector.
2. Turn ignition switch ON.
3. Check voltage signal between combination meter harness con- nector M20 terminal 14 (PU) and ground.
OK or NG
OK >> Replace combination meter.
NG >> Replace unified meter and A/C amp. Refer to DI-37, "
Removal and Installation of Unified Meter
and A/C Amp." .
14 (PU) – 9 (PU) : Continuity should exist.
14 (PU) – Ground : Continuity should not exist.
SKIA4836E
9 (PU) – Ground : Approx. 5 V
PKIB3587E
14 (PU) – Ground:
SKIA9260E
SKIA3362E
Page 1298 of 4731
UNIFIED METER AND A/C AMP DI-37
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
DTC [B2205] Vehicle Speed CircuitAKS00CM9
Symptom: Display VEHICLE SPEED CIRC [B2205] at the result of self-diagnosis for unified meter and A/C
amp.
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS
Preform the ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-25, "
CONSULT-II Func-
tions" .
Self
-diagnostic results content
No malfunction detected>>Replace unified meter and A/C amp.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.

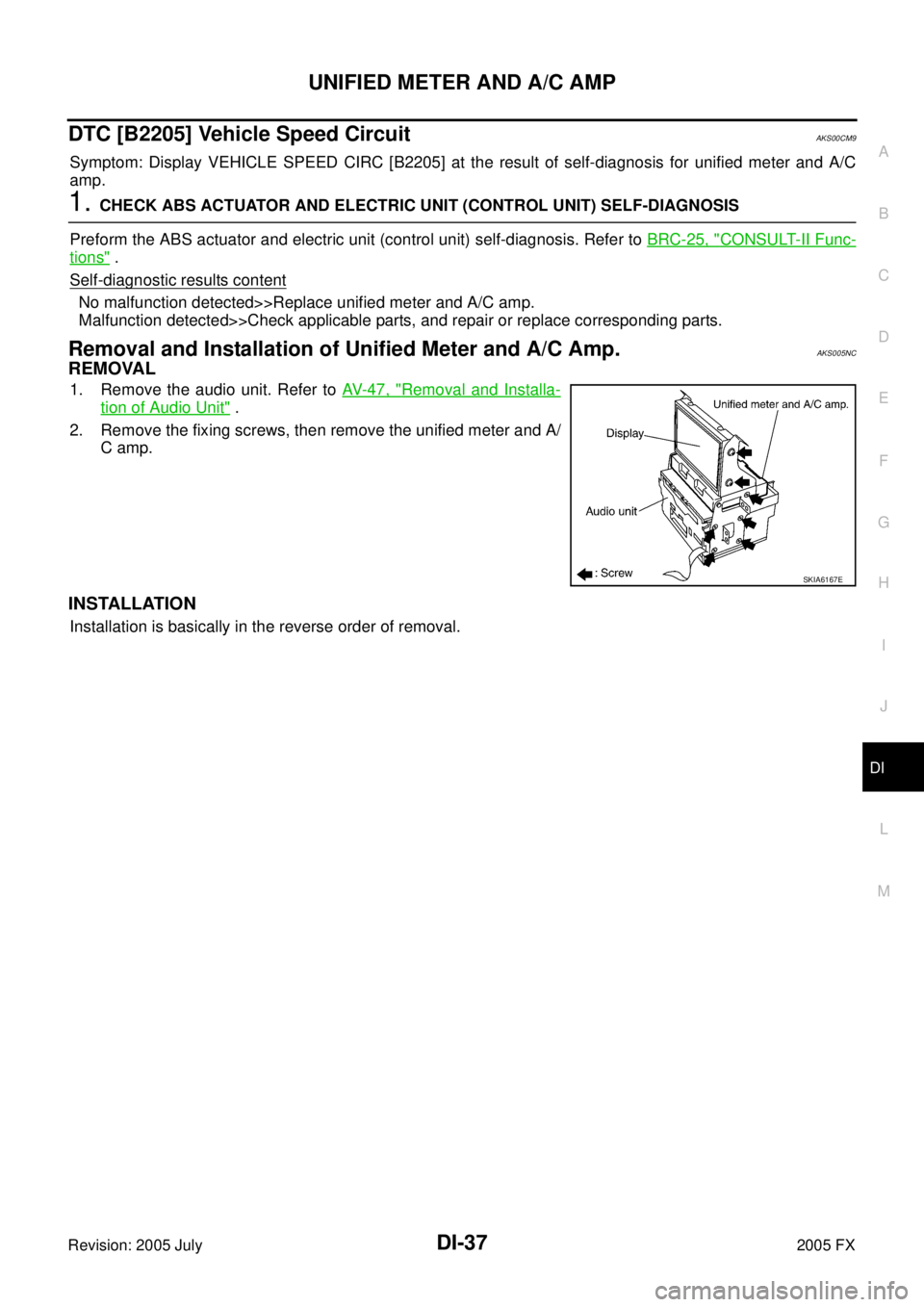

Removal and Installation of Unified Meter and A/C Amp. AKS005NC
REMOVAL
1. Remove the audio unit. Refer to AV- 4 7 , "Removal and Installa-
tion of Audio Unit" .
2. Remove the fixing screws, then remove the unified meter and A/ C amp.
INSTALLATION
Installation is basically in the reverse order of removal.
SKIA6167E
Page 1299 of 4731

DI-38
COMPASS
Revision: 2005 July 2005 FX
COMPASSPFP:24835
System DescriptionAKS007AO
This unit displays earth magnetism and heading direction of vehicle.
DIRECTION DISPLAY
Push the switch when the ignition key is in the “ON” or “START” position. The direction will be displayed.
Pushing the “COMP” switch a second time will turn off the display.
1. If the display reads “C” calibrate the compass by driving the vehicle in 3 complete circles at less than 8 km/h (5 MPH).
2. To adjust for compass variance:
a. Press the “COMP” switch for more than 3 seconds. The current zone number will appear in the display.
b. Find your current location and variance zone number on the zone map.
c. Press the “COMP” switch until the new zone number appears in the display. After you stop pressing the button in, the display will show a compass direction within a few seconds.
NOTE:
1. Do not install the ski rack, antenna, etc. which are attached to the vehicle by means of a magnet. They affect the operation of the compass.
2. If the compass deviates from the correct indication soon after repeated adjustment, have the compass checked at an authorized dealer.
3. The compass may not indicate the correct compass point in tunnels or while driving up or down a steep hill. (The compass returns to the correct compass point when the vehicle moves to an area where the
geomagnetism is stabilized.)
3. Cleaning the Mirror When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not
spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing.
“C” is displayed in the compass window.
SKIA5335E
Page 1300 of 4731
COMPASS DI-39
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
The compass needs to be calibrated. Drive the vehicle in 3 circles at
8 km/h (5 MPH) or less until the display reads a direction. You can
also calibrate the compass by driving your vehicle on your everyday
routine. The compass will be calibrated once it has tracked 3 com-
plete circles.

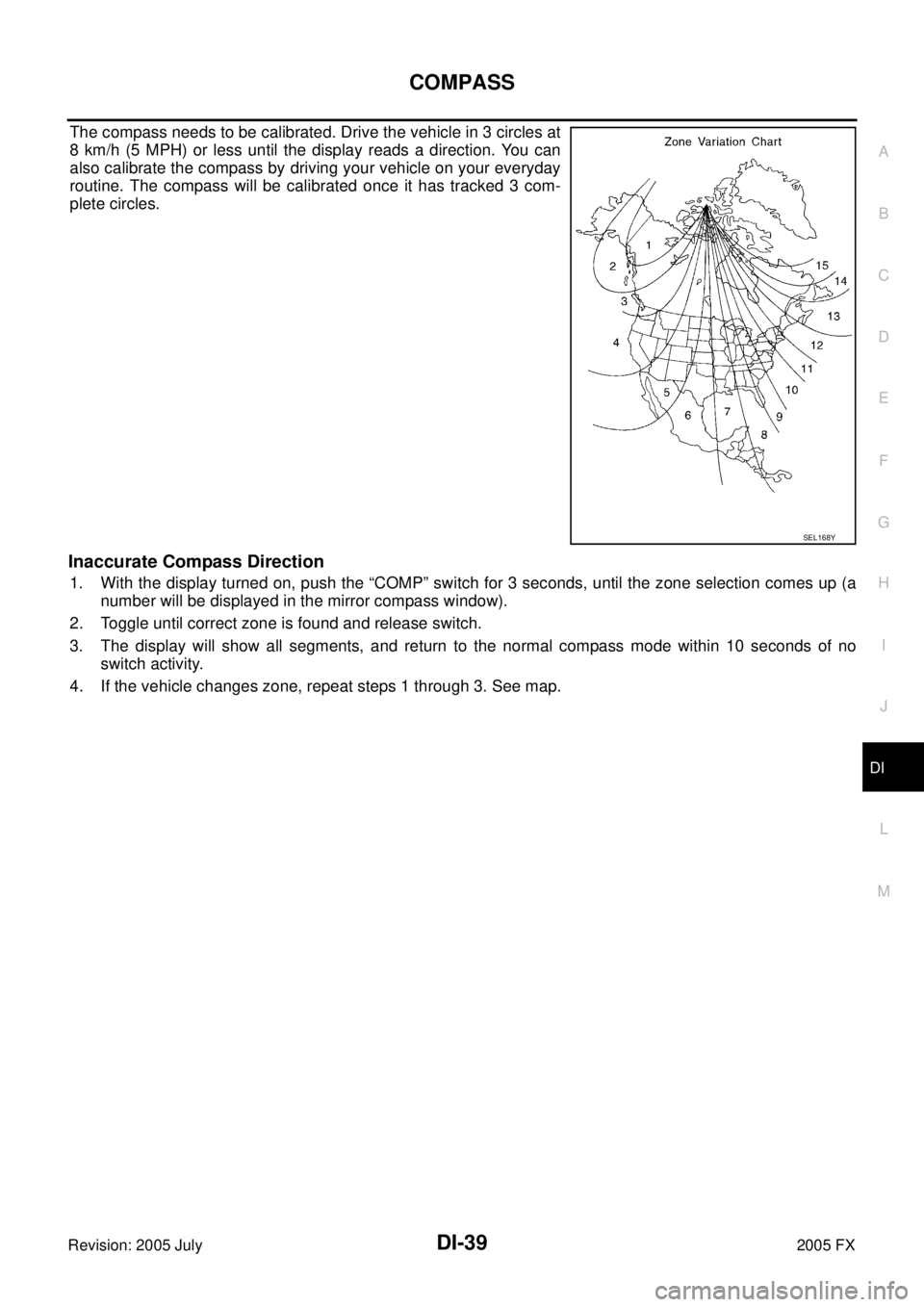

Inaccurate Compass Direction
1. With the display turned on, push the “COMP” switch for 3 seconds, until the zone selection comes up (a
number will be displayed in the mirror compass window).
2. Toggle until correct zone is found and release switch.
3. The display will show all segments, and return to the normal compass mode within 10 seconds of no switch activity.
4. If the vehicle changes zone, repeat steps 1 through 3. See map.
SEL168Y
Page 1301 of 4731
DI-40
COMPASS
Revision: 2005 July 2005 FX

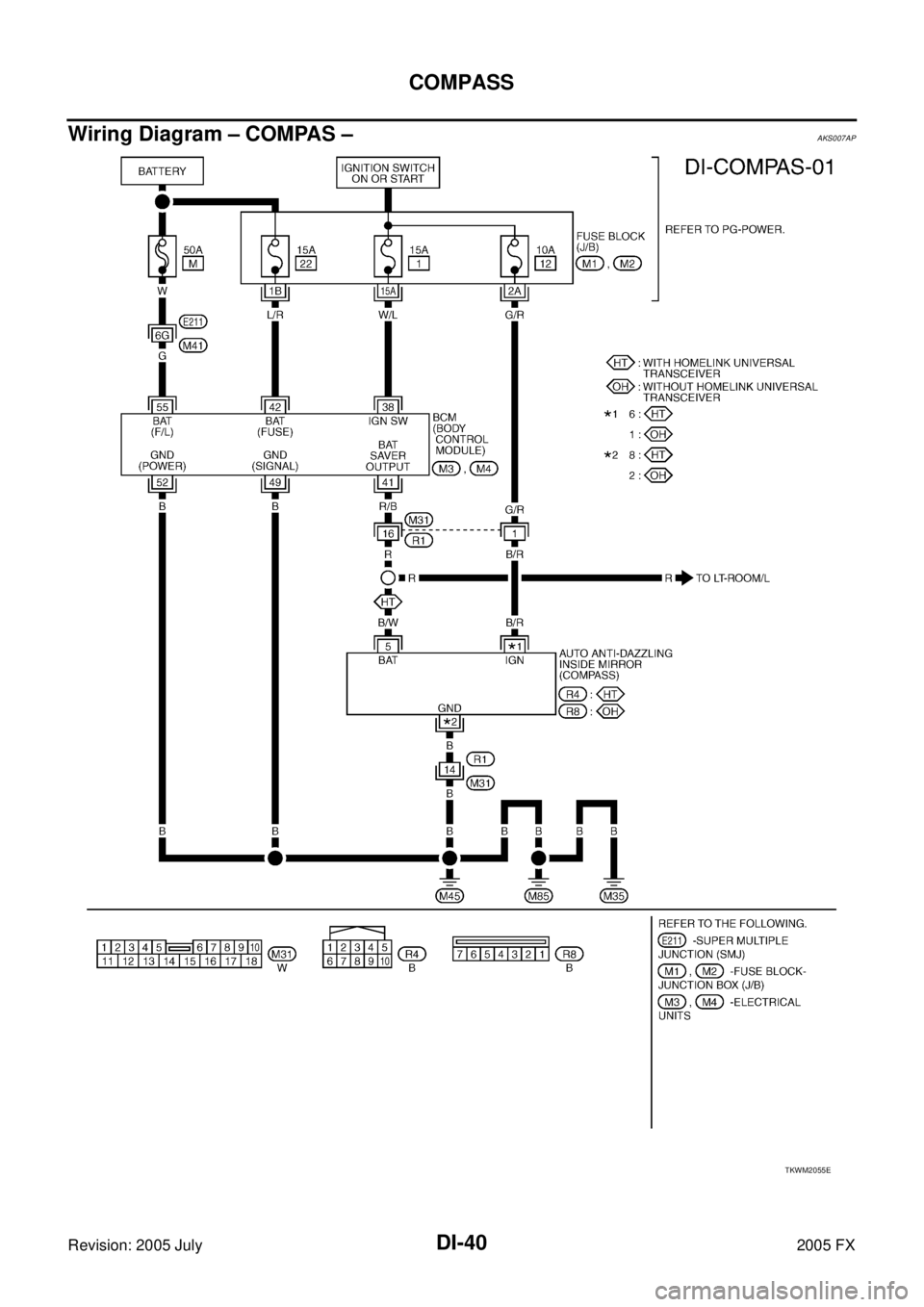

Wiring Diagram – COMPAS –AKS007AP
TKWM2055E
Page 1302 of 4731
COMPASS DI-41
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

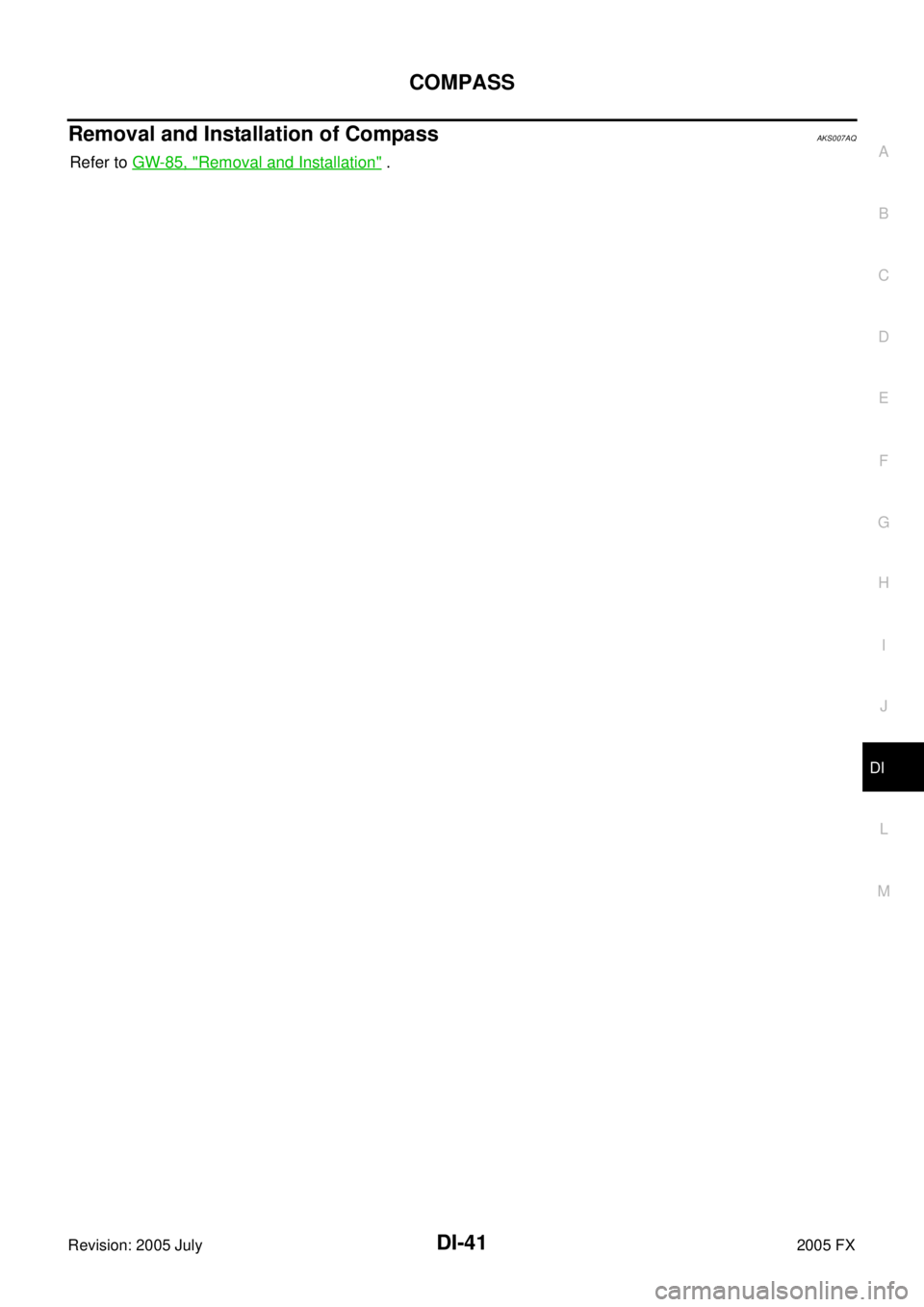

Removal and Installation of CompassAKS007AQ
Refer to GW-85, "Removal and Installation" .
Page 1303 of 4731
DI-42
WARNING LAMPS
Revision: 2005 July 2005 FX
WARNING LAMPSPFP:24814

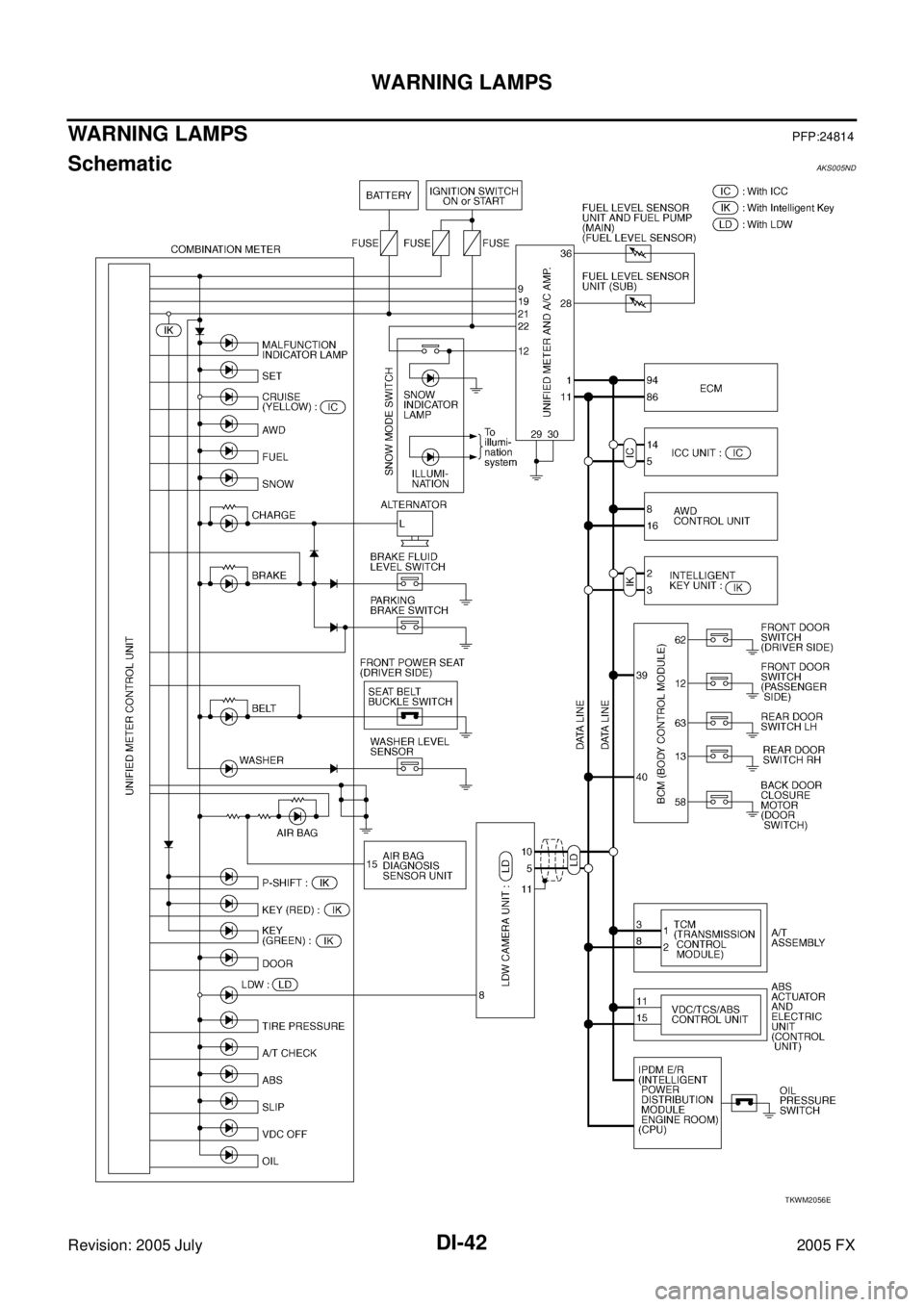

SchematicAKS005ND
TKWM2056E
Page 1304 of 4731
WARNING LAMPS DI-43
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

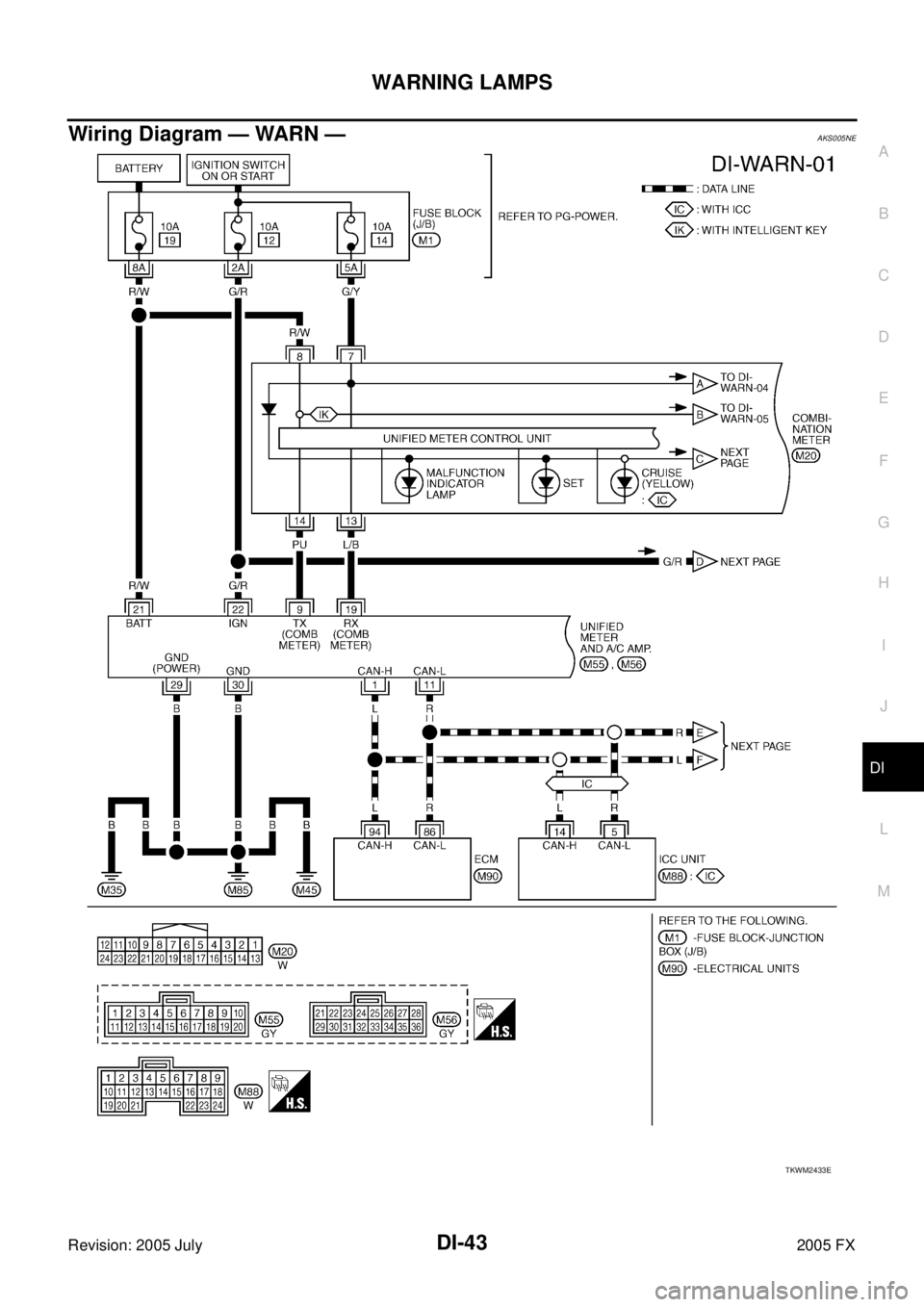

Wiring Diagram — WARN —AKS005NE
TKWM2433E
