Page 3513 of 4731

INFINITI FX35 2005 Service Manual LAN-94 [CAN] CAN SYSTEM (TYPE 2) Revision: 2005 July 2005 FX Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to L A N - 111 , "Inspection Between Data Link Conne

Page 3514 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-95 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (contro

Page 3515 of 4731

INFINITI FX35 2005 Service Manual LAN-96 [CAN] CAN SYSTEM (TYPE 2) Revision: 2005 July 2005 FX Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN- 11 2 , "Inspection

Page 3516 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-97 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 5 Check ECM circuit. Refer to LAN-113, "ECM Circuit Inspection" . PKIB4427E PKIB4294E

Page 3517 of 4731

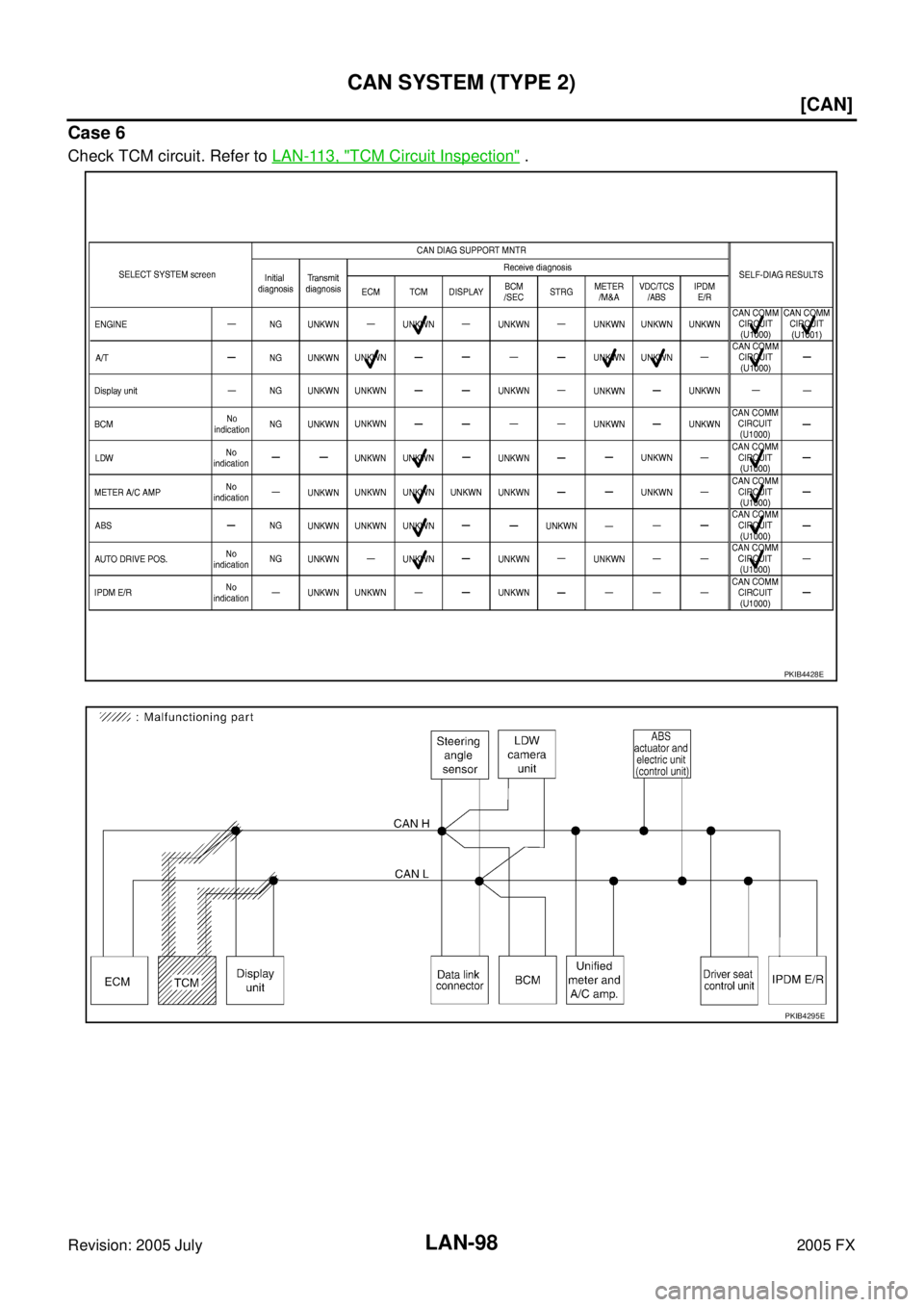

INFINITI FX35 2005 Service Manual LAN-98 [CAN] CAN SYSTEM (TYPE 2) Revision: 2005 July 2005 FX Case 6 Check TCM circuit. Refer to LAN-113, "TCM Circuit Inspection" . PKIB4428E PKIB4295E

Page 3518 of 4731

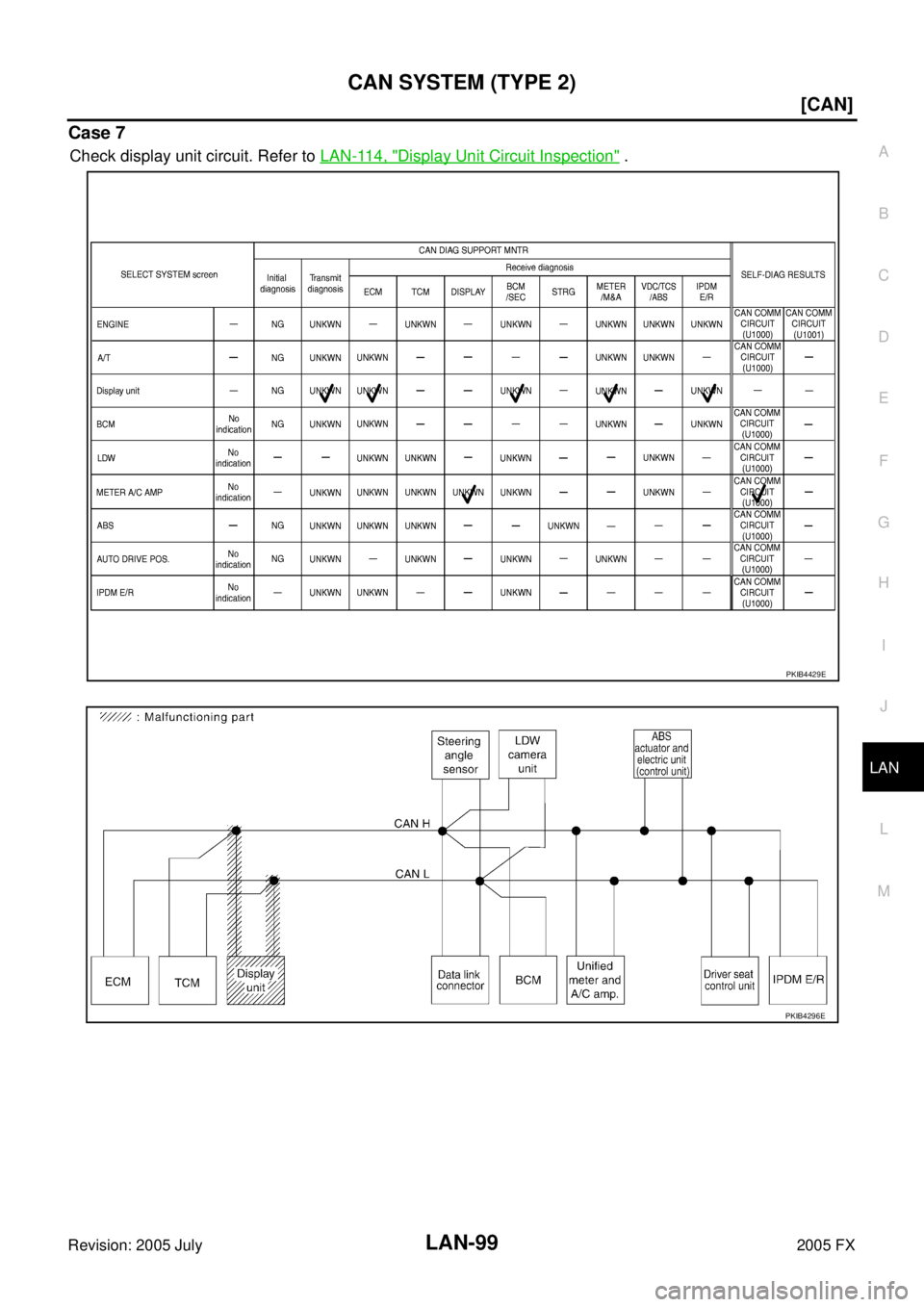

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-99 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 7 Check display unit circuit. Refer to LAN-114, "Display Unit Circuit Inspection" . PKIB4429E

Page 3519 of 4731

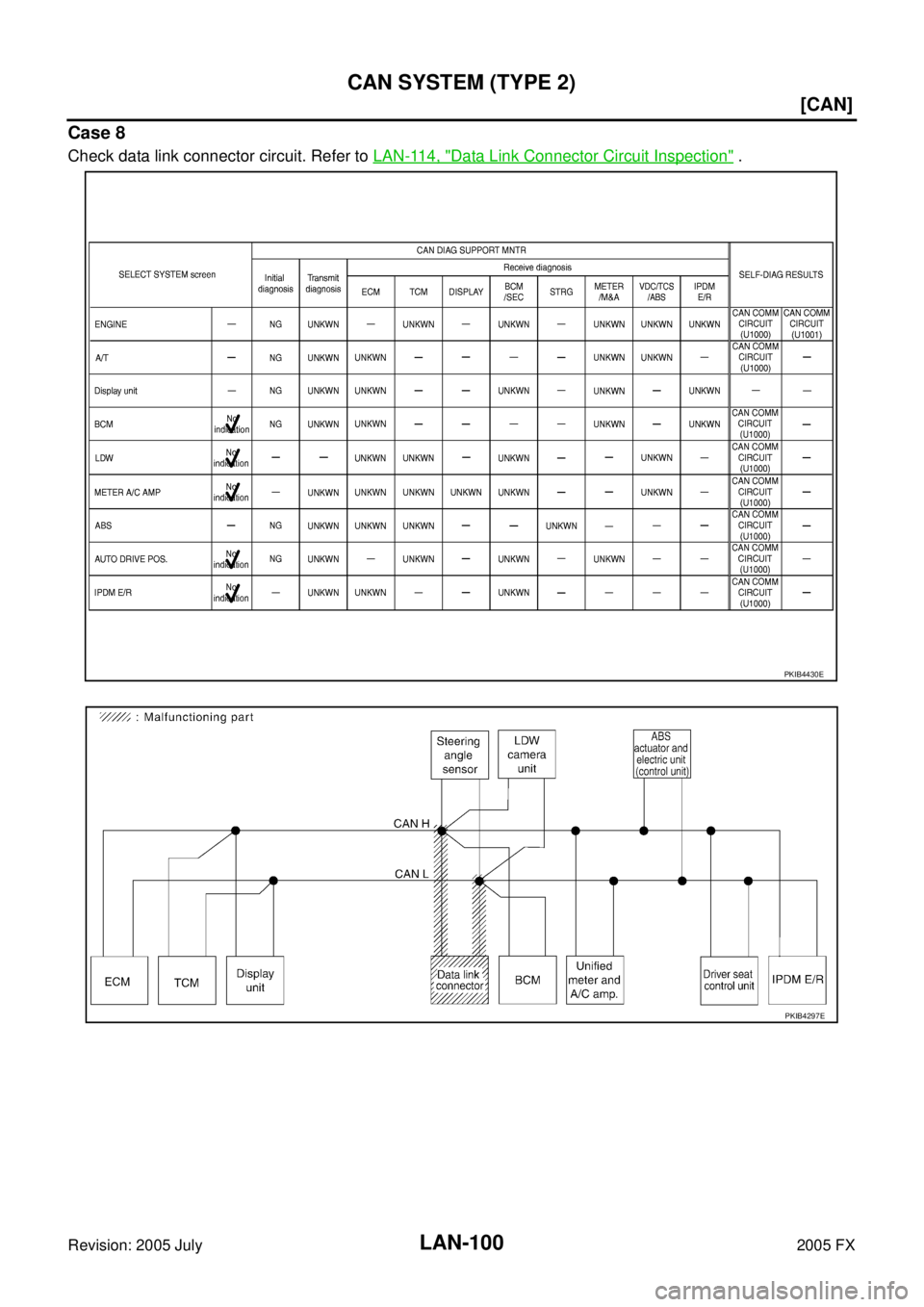

INFINITI FX35 2005 Service Manual LAN-100 [CAN] CAN SYSTEM (TYPE 2) Revision: 2005 July 2005 FX Case 8 Check data link connector circuit. Refer to LAN-114, "Data Link Connector Circuit Inspection" . PKIB4430E PKIB4297E

Page 3520 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-101 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 9 Check BCM circuit. Refer to LAN-115, "BCM Circuit Inspection" . PKIB4431E PKIB4298E
