Page 4001 of 4731
LT-112
COMBINATION SWITCH
Revision: 2005 July 2005 FX
COMBINATION SWITCHPFP:25567
Wiring Diagram — COMBSW —AKS007G4
TKWM0814E
Page 4002 of 4731

COMBINATION SWITCH LT-113
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
Combination Switch Reading FunctionAKS007G5
For details, refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" in "BCS" section.
CONSULT-II Functions (BCM)AKS007G6
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition
switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “BCM” on “SELECT SYSTEM” screen. If “BCM” is not indicated, refer to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnosis part Diagnosis mode Description
COMB SW DATA MONITOR Displays BCM input data in real time.
PBIB1503E
BCIA0029E
BCIA0030E
Page 4003 of 4731

LT-114
COMBINATION SWITCH
Revision: 2005 July 2005 FX
4. Touch “COMB SW”.
DATA MONITOR
Operation Procedure
1. Touch “COMB SW” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
4. When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is selected, all the signals will be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop recording, touch “STOP”.
Display Item List
PKIA5223E
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects items and monitors them.
Monitor item Contents
TURN SIGNAL R “ON/OFF” Displays “Turn Right (ON)/Other (OFF)” status, determined from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays “Turn Left (ON)/Other (OFF)” status, determined from lighting switch signal.
HI BEAM SW “ON/OFF” Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.
HEAD LAMP SW 1 “ON/OFF” Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 1 judged from lighting
switch signal.
HEAD LAMP SW 2 “ON/OFF” Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from lighting
switch signal.
LIGHT SW 1ST “ON/OFF” Displays status (lighting switch 1ST or 2ND position: ON/Others: OFF) of lighting switch judged
from lighting switch signal.
PASSING SW “ON/OFF” Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from lighting
switch signal.
AUTO LIGHT SW “ON/OFF” Displays “Auto light switch (ON)/Other (OFF)” status, determined from lighting switch signal.
FR FOG SW “ON/OFF” Displays “Front fog lamp switch (ON)/Other (OFF)” status, determined from lighting switch signal.
FR WIPER HI “ON/OFF” Displays “Front Wiper HI (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER LOW “ON/OFF” Displays “Front Wiper LOW (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER INT “ON/OFF” Displays “Front Wiper INT (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WASHER SW “ON/OFF” Displays “Front Washer Switch (ON)/Other (OFF)” status, determined from wiper switch signal.
INT VOLUME “1 - 7” Displays intermittent operation knob setting (1 - 7), determined from wiper switch signal.
RR WIPER ON “ON/OFF” Displays “rear Wiper (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WIPER INT “ON/OFF” Displays “rear Wiper INT (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WASHER SW “ON/OFF” Displays “rear Washer Switch (ON)/Other (OFF)” status as judged from wiper switch signal.
Page 4004 of 4731

COMBINATION SWITCH LT-115
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
Combination Switch InspectionAKS007G7
1. SYSTEM CHECK
1. Referring to table below, check which system malfunctioning switch belongs to.
>> Check the system to which malfunctioning switch belongs, and GO TO 2.
2. SYSTEM CHECK
With CONSULT-II
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Connect CONSULT-II, and select “COMB SW” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR”.
3. Select “START”, and confirm that other switches in malfunction- ing system operate normally.
Example: When the auto light switch is malfunctioning, confirm
that “FRONT WIPER LOW” and “FRONT WIPER INT” in Sys-
tem 3, to which the auto light switch belongs, turn ON-OFF nor-
mally.
Without CONSULT-II
Operating combination switch, and confirm that other switches in malfunctioning system operate normally.
Example: When the auto light switch is malfunctioning, confirm that FRONT WIPER LOW and FRONT WIPER
INT in System 3, to which the auto light switch belongs, operate normally.
Check results
Other switches in malfunctioning system operate normally.>>Replace lighting switch or wiper switch.
Other switches in malfunctioning system do not operate normally.>>GO TO 3.
System 1 System 2 System 3 System 4 System 5
— FR WASHER FR WIPER LO TURN LH TURN RH
FR WIPER HI — FR WIPER INT PASSING HEAD LAMP1
INT VOLUME 1 RR WASHER — HEAD LAMP2 HI BEAM RR WIPER INT INT VOLUME 3 AUTO LIGHT — LIGHT SW 1ST
INT VOLUME 2 RR WIPER ON — FR FOG —
PKIA7602E
Page 4005 of 4731

LT-116
COMBINATION SWITCH
Revision: 2005 July 2005 FX
3. HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect BCM and combination switch connectors.
3. Check continuity between BCM harness connector of the suspect system and the corresponding combi- nation switch connector terminals.
4. Check for continuity between each terminal of BCM harness connector in suspect malfunctioning system and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness between BCM and combination switch for open or short circuit.
Sus-
pect
system Terminal
Continuity
BCM Combination switch
Connector Terminal
(Wire color) ConnectorTe r m i n a l
(Wire color)
1
M3 Input 1 6 (SB)
M17 6 (SB)
Ye s
Output 1 36 (W/R) 1 (W/R)
2 Input 2 5 (Y/R) 7 (Y/R)
Output 2 35 (W/G) 2 (W/G)
3 Input 3 4 (PU/W) 10 (PU/W)
Output 3 34 (W/B) 3 (W/B)
4 Input 4 3 (L/B) 9 (L/B)
Output 4 33 (G) 4 (G)
5 Input 5 2 (GY) 8 (GY)
Output 5 32 (GY/R) 5 (GY/R)
Suspect
system Terminal
Continuity
BCM
Ground
Connector Terminal (Wire color)
1
M3 Input 1 6 (SB)
No
Output 1 36 (W/R)
2 Input 2 5 (Y/R)
Output 2 35 (W/G)
3 Input 3 4 (PU/W)
Output 3 34 (W/B)
4 Input 4 3 (L/B)
Output 4 33 (G)
5 Input 5 2 (GY)
Output 5 32 (GY/R)
PKIA7603E
PKIA7604E
Page 4006 of 4731

COMBINATION SWITCH LT-117
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
4. BCM OUTPUT TERMINAL INSPECTION
1. Turn lighting switch and wiper switch into ON.
2. Set wiper dial position 4.
3. Connect BCM and combination switch connectors, and check BCM output terminal voltage waveform of suspect malfunction-
ing system.
OK or NG
OK >> Open circuit in combination switch, GO TO 5.
NG >> Replace BCM. Refer to BCS-16, "
Removal and Installa-
tion of BCM" .
5. COMBINATION SWITCH INSPECTION
Referring to table below, perform combination switch inspection.
>> INSPECTION END
Removal and InstallationAKS007G8
For details, refer to LT- 11 0 , "LIGHTING AND TURN SIGNAL SWITCH" .
Suspect
system Terminal
Combination switch (+) (-)
Connector Terminal (Wire color)
1
M17 1 (W/R)
Ground
22 (W/G)
33 (W/B)
44 (G)
55 (GY/R)
PKIA5232E
Procedure
123456 7
Replace
lighting
switch Confirm
check
results OK INSPECTION END
Confirm
check
results OK INSPECTION END
Confirm
check
results OK INSPECTION END
NG Replace wiper
switch NGReplace switch
base NGConfirm symptom
again
Page 4007 of 4731
LT-118
STOP LAMP
Revision: 2005 July 2005 FX
STOP LAMPPFP:26550

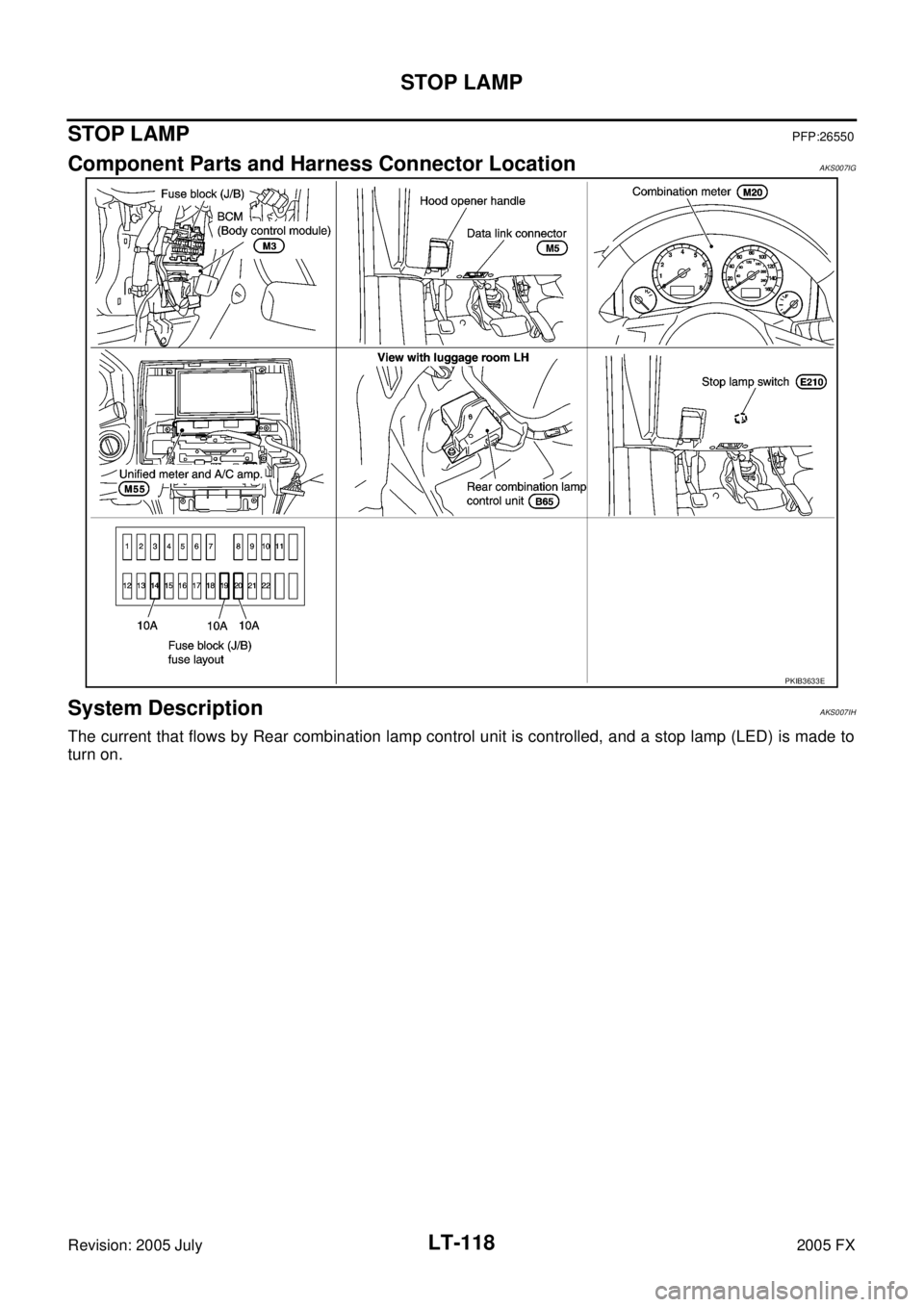

Component Parts and Harness Connector LocationAKS007IG
System DescriptionAKS007IH
The current that flows by Rear combination lamp control unit is controlled, and a stop lamp (LED) is made to
turn on.
PKIB3633E
Page 4008 of 4731
STOP LAMP LT-119
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX

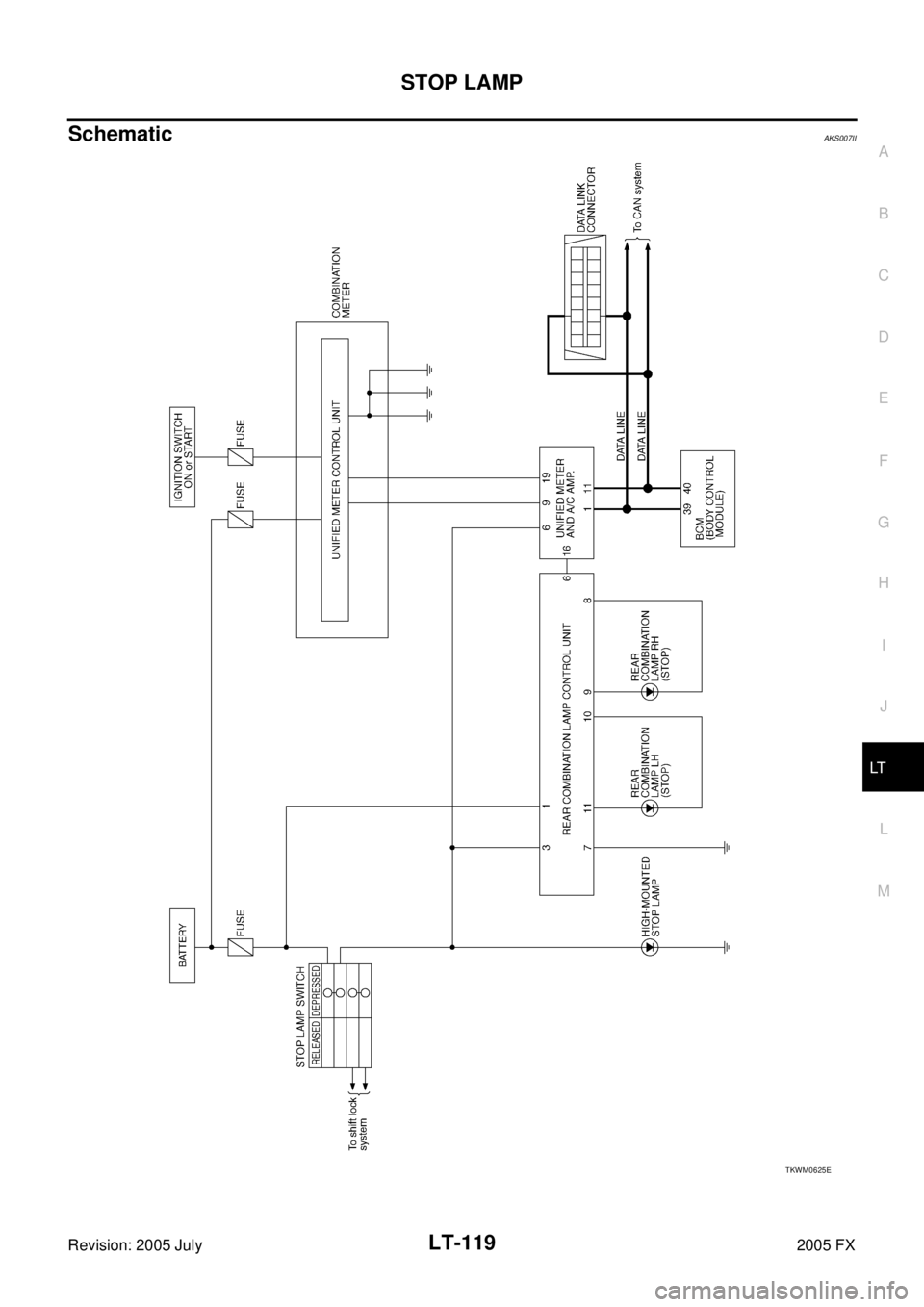

SchematicAKS007II
TKWM0625E
