Page 3857 of 4731

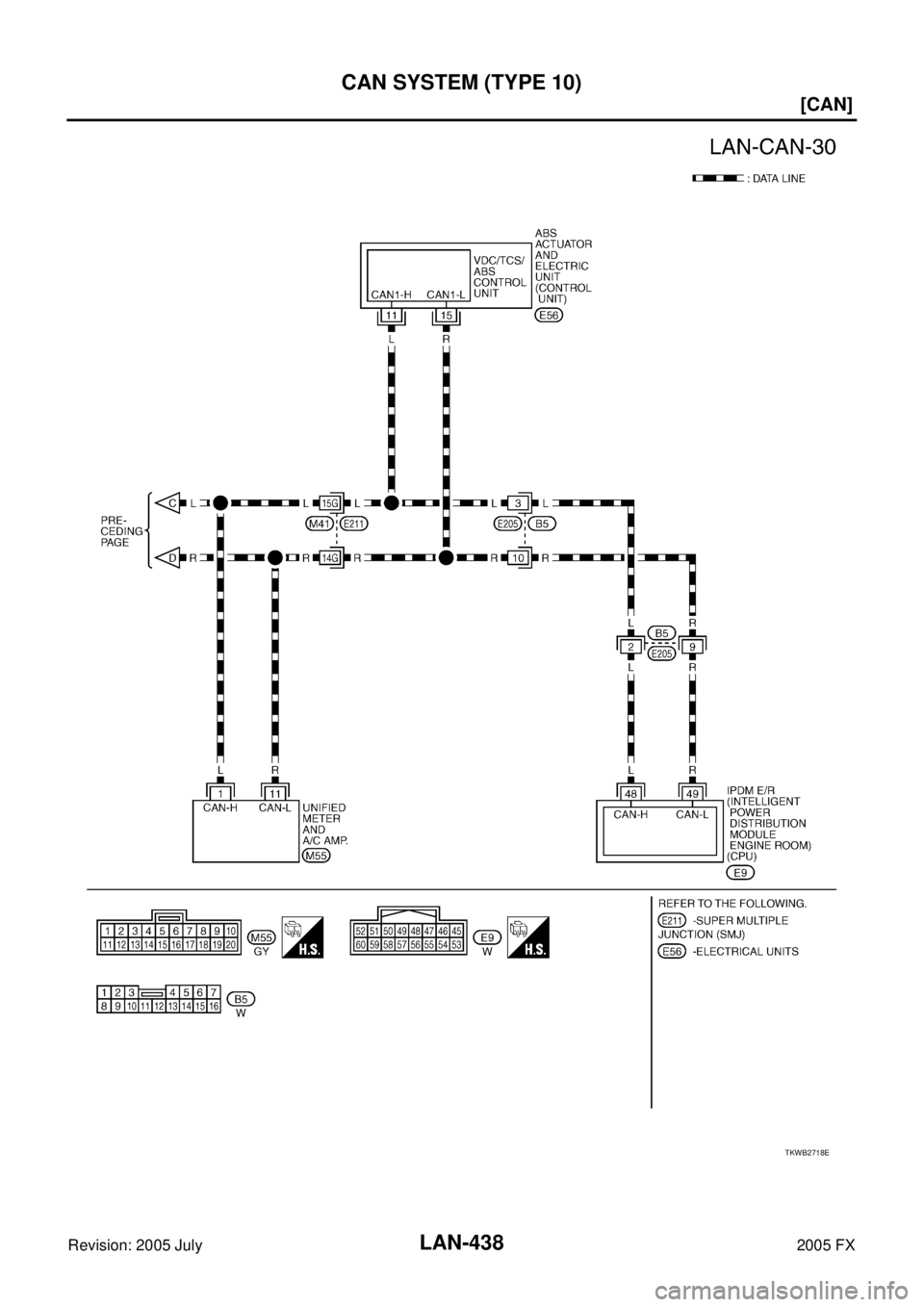

INFINITI FX35 2005 Service Manual LAN-438 [CAN] CAN SYSTEM (TYPE 10) Revision: 2005 July 2005 FX TKWB2718E

Page 3858 of 4731

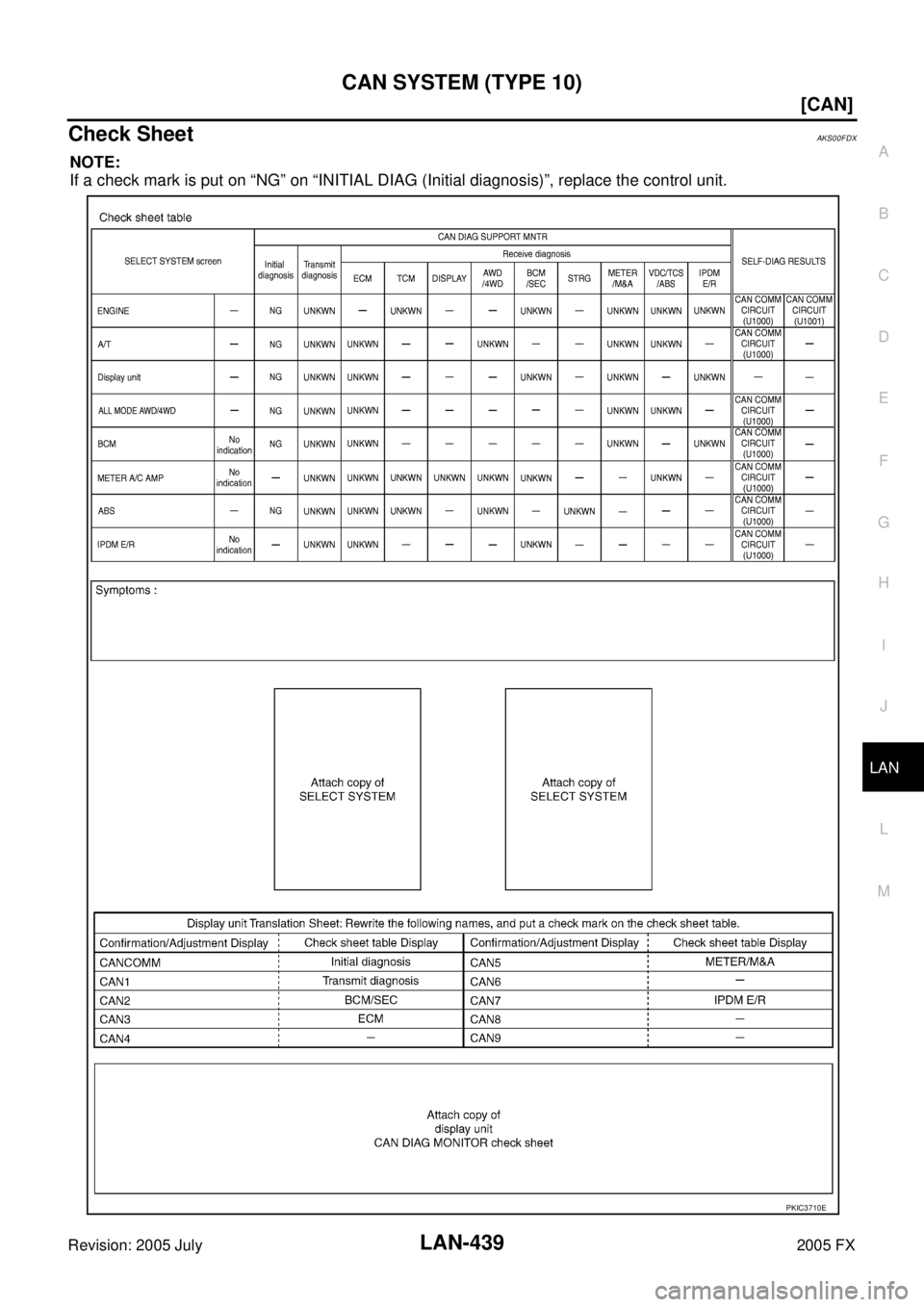

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-439 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Check SheetAKS00FDX NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagno

Page 3859 of 4731

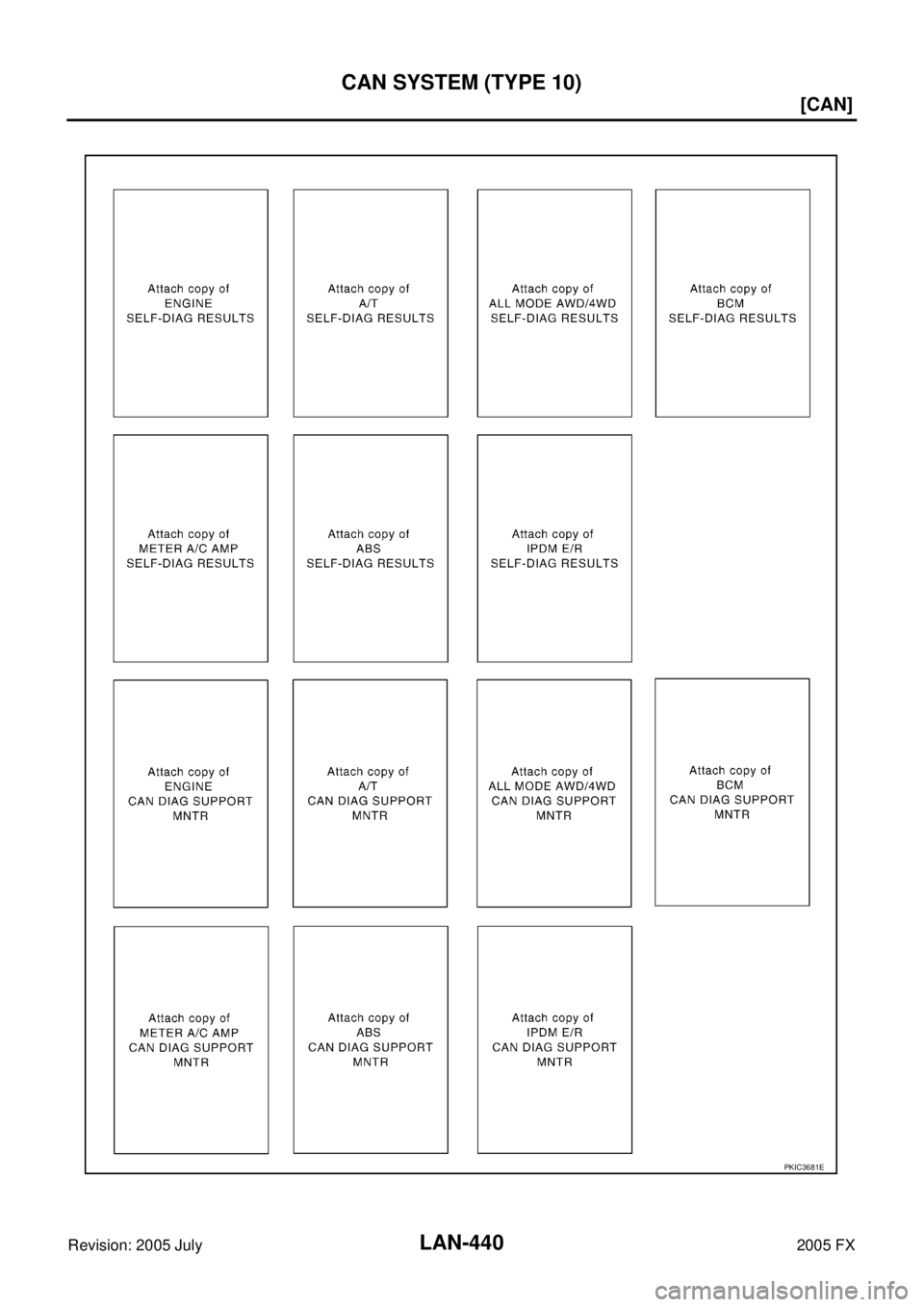

INFINITI FX35 2005 Service Manual LAN-440 [CAN] CAN SYSTEM (TYPE 10) Revision: 2005 July 2005 FX PKIC3681E

Page 3860 of 4731

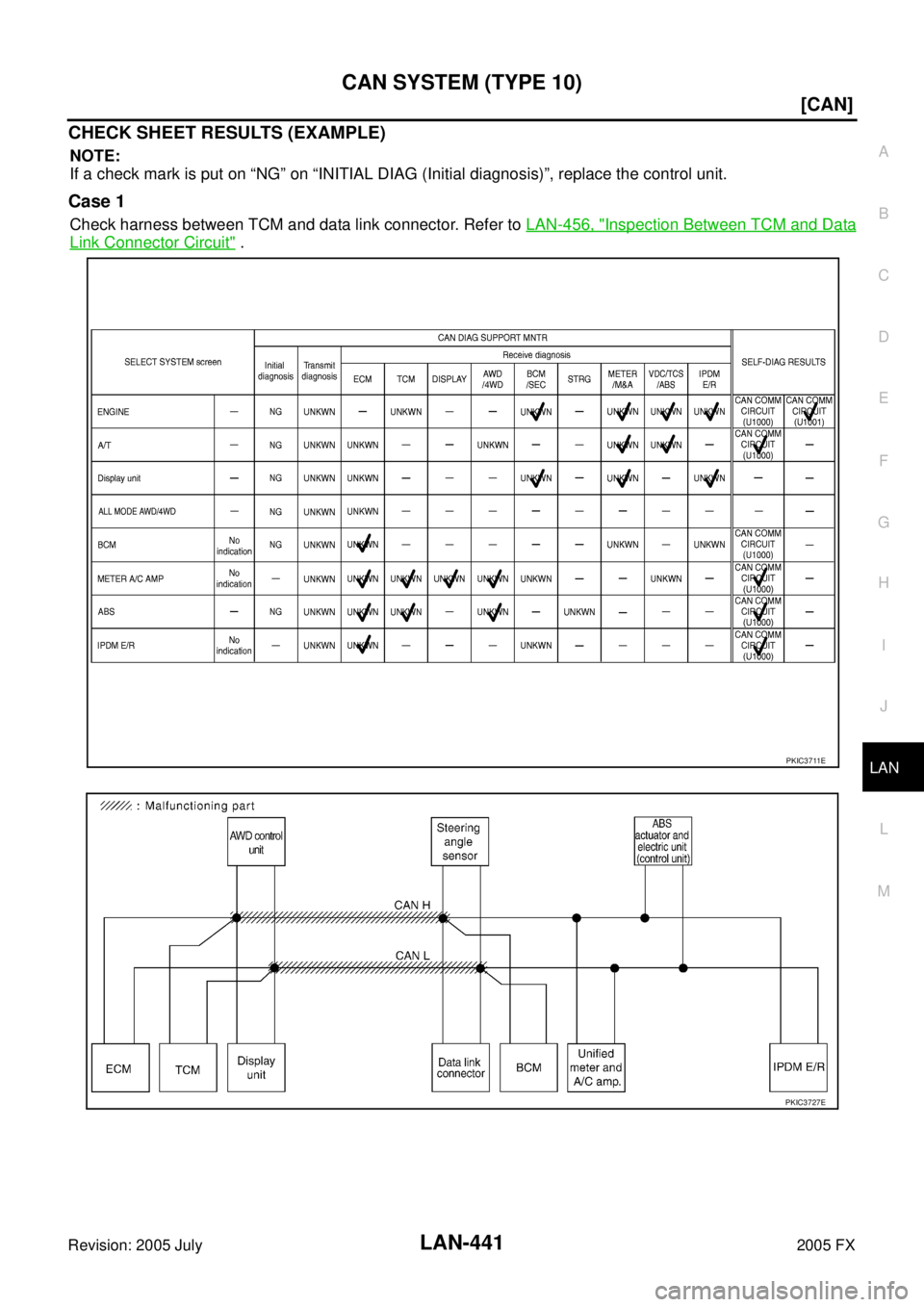

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-441 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Init

Page 3861 of 4731

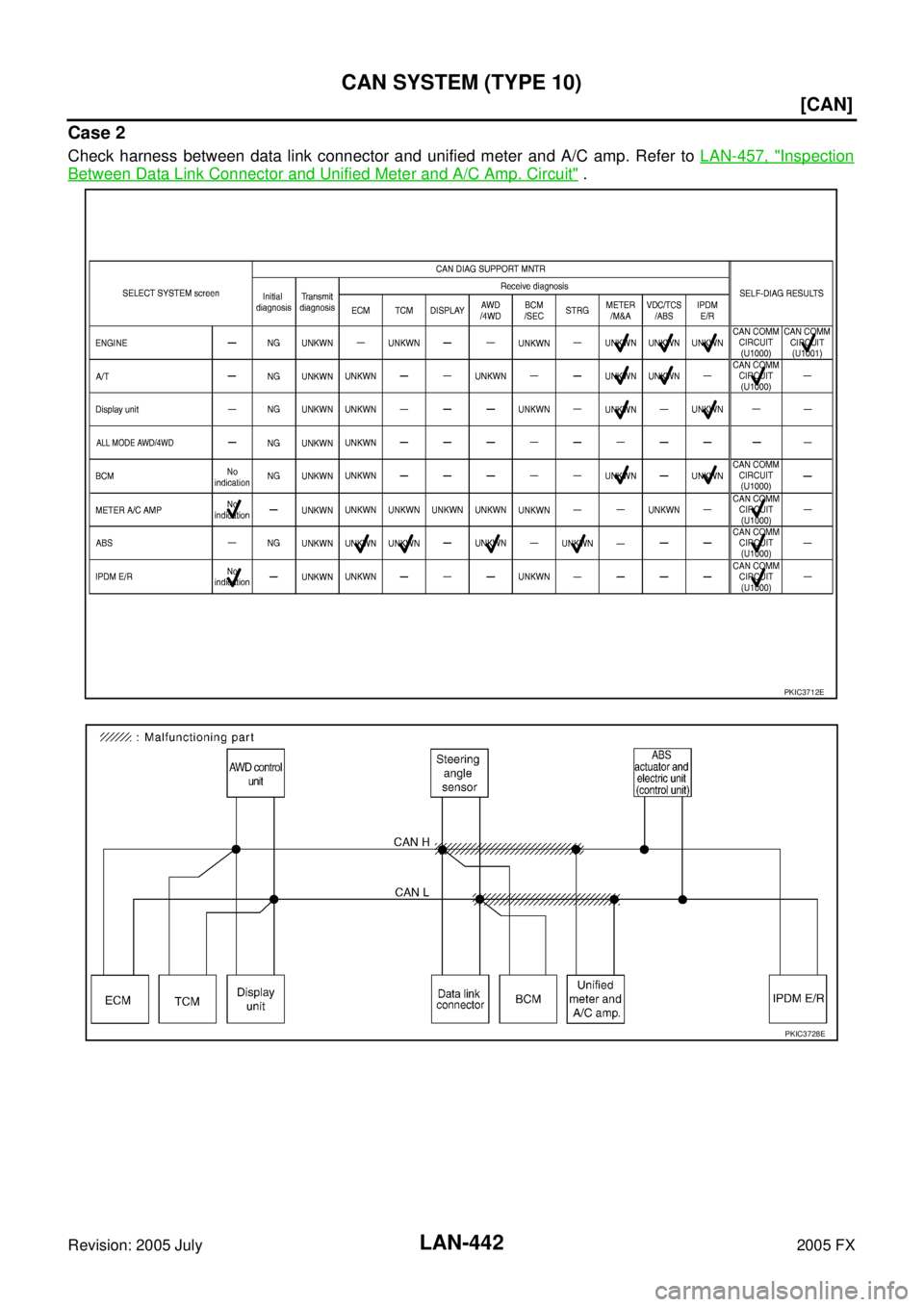

INFINITI FX35 2005 Service Manual LAN-442 [CAN] CAN SYSTEM (TYPE 10) Revision: 2005 July 2005 FX Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-457, "Inspection Between Data Link Connector

Page 3862 of 4731

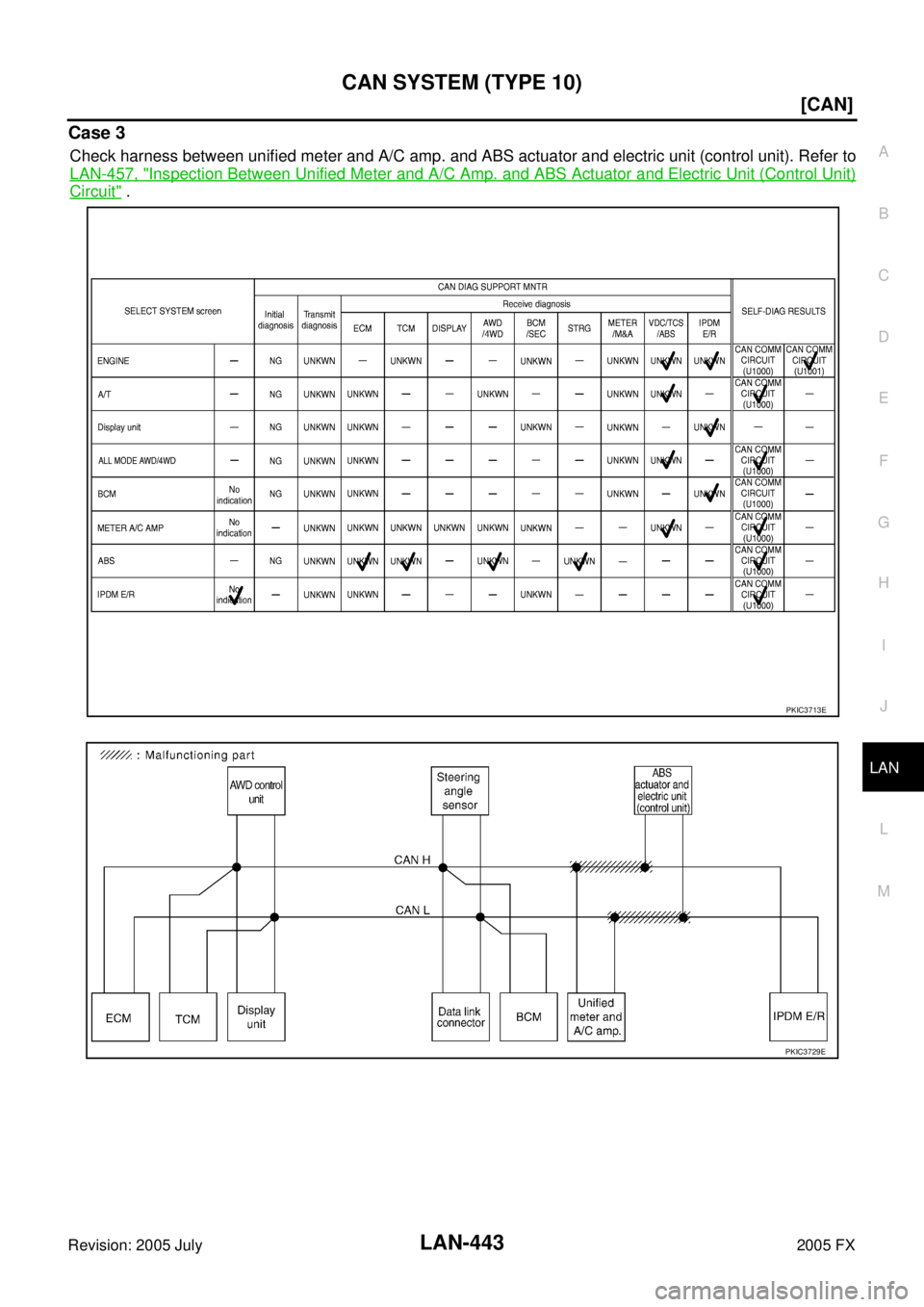

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-443 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (cont

Page 3863 of 4731

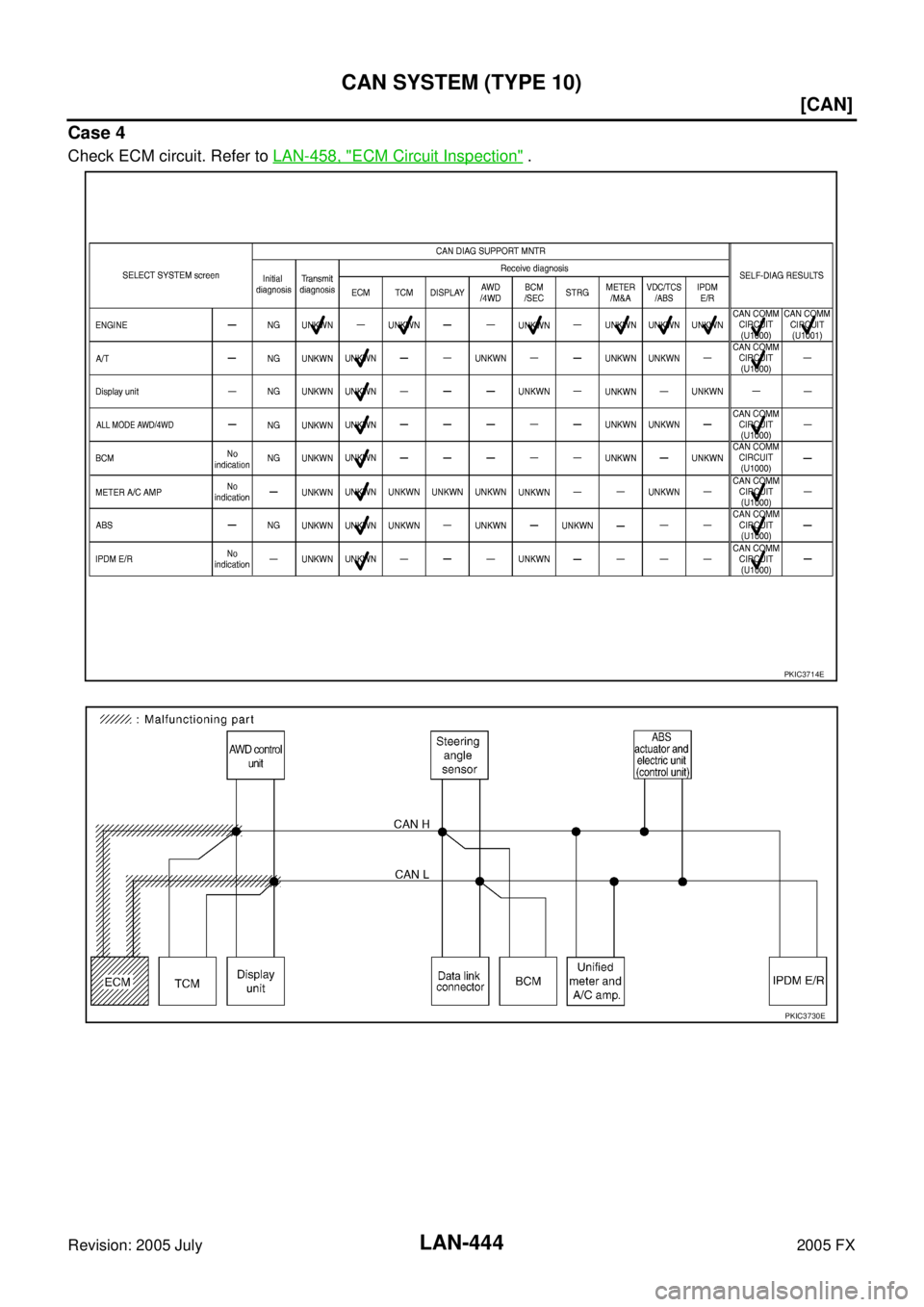

INFINITI FX35 2005 Service Manual LAN-444 [CAN] CAN SYSTEM (TYPE 10) Revision: 2005 July 2005 FX Case 4 Check ECM circuit. Refer to LAN-458, "ECM Circuit Inspection" . PKIC3714E PKIC3730E

Page 3864 of 4731

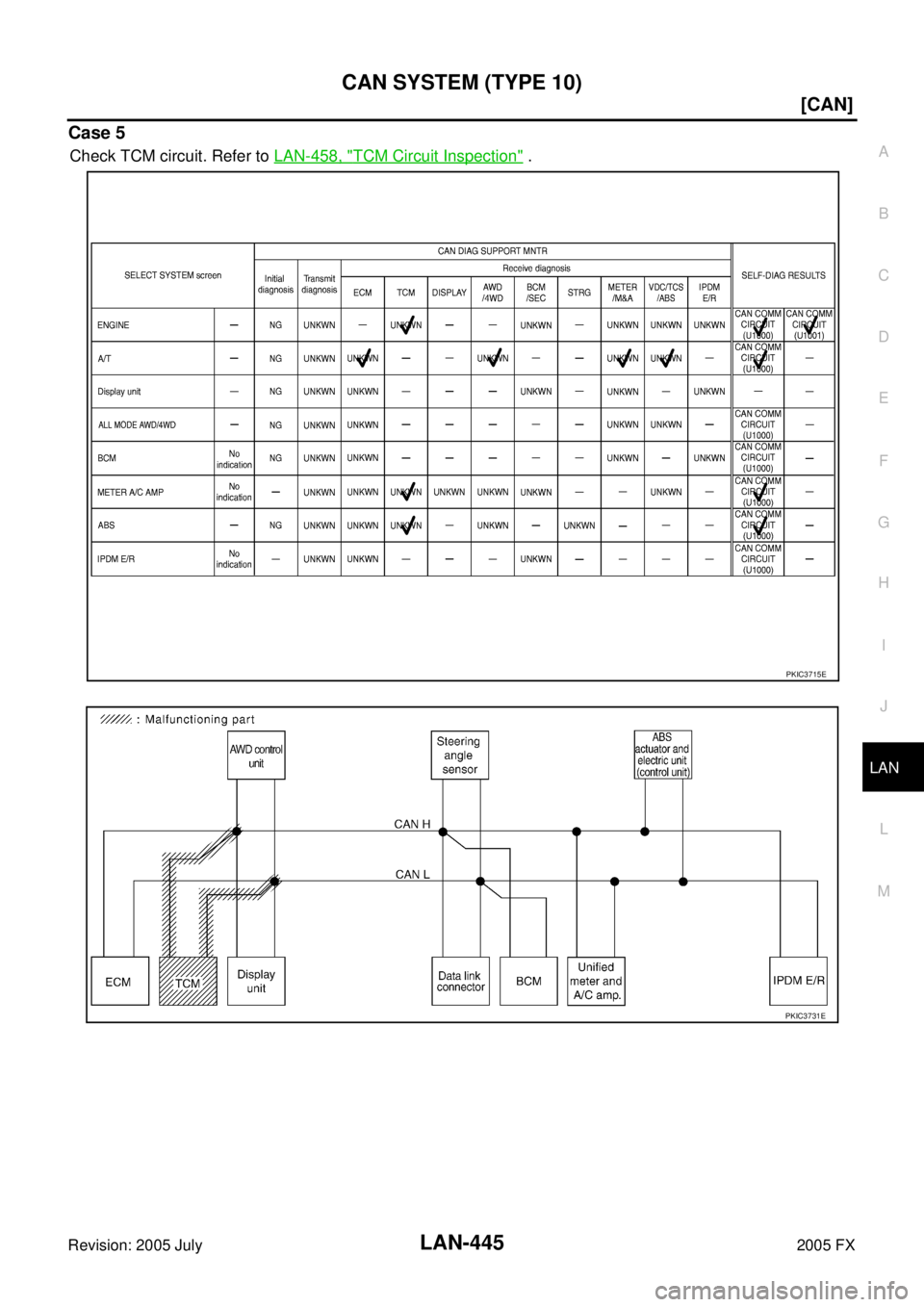

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-445 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 5 Check TCM circuit. Refer to LAN-458, "TCM Circuit Inspection" . PKIC3715E PKIC3731E
