Page 1345 of 4731

INFINITI FX35 2005 Service Manual DI-84
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX
System Diagram
Components Description
NOTE:
*: This indicates in a few seconds for the system check during ignition switch ON.
POWER S

DI-84
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX
System Diagram
Components Description
NOTE:
*: This indicates in a few seconds for the system check during ignition switch ON.
POWER SUPPLY AND GROUND CIRCUIT
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 12, located in the fuse block (J/B)]
to LDW camera unit terminal 1.
Ground is supplied
to LDW camera unit terminals 6 and 12
through grounds M45, M85 and M35.
CAN CommunicationAKS00C6X
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with two
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
SKIB1784E
Component Description
LDW camera unit Detects the lane marker by the built-in camera, gives judgement for the warning according to the
result of detection and signals from each unit, and transmits the operation signal to LDW chime and
LDW indicator lamp.
LDW switch
Selects ON/OFF of the system.
Indicates ON/OFF of the signal with LDW system ON indicator.
LDW chime Gives a warning chime according to the direction from LDW camera unit.
LDW indicator lamp Installed in combination meter, and indicates the system condition.
Blinks when LDW system is functioning to alert the driver.
Stays on when LDW system is malfunctioning.*
BCM Transmits turn indicator signal to LDW camera unit with CAN communication signal.
ABS actuator and electric unit
(control unit) Transmits vehicle speed signal to LDW camera unit with CAN communication signal.
TCM Transmits vehicle speed signal to LDW camera unit with CAN communication signal. (For detecting
incorrect speed.)

Page 1346 of 4731

INFINITI FX35 2005 Service Manual LANE DEPARTURE WARNING SYSTEM DI-85
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
CAN COMMUNICATION UNIT
Refer to LAN-30, "CAN Communication Unit" in “LAN SYSTEM”.
Action T

Page 1347 of 4731

INFINITI FX35 2005 Service Manual DI-86
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX
Camera Aiming AdjustmentAKS00C7J
OUTLINE
Adjust the camera aiming every time the LDW camera unit is removed or installed.
CAUTION:
Pla

Page 1348 of 4731

INFINITI FX35 2005 Service Manual LANE DEPARTURE WARNING SYSTEM DI-87
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

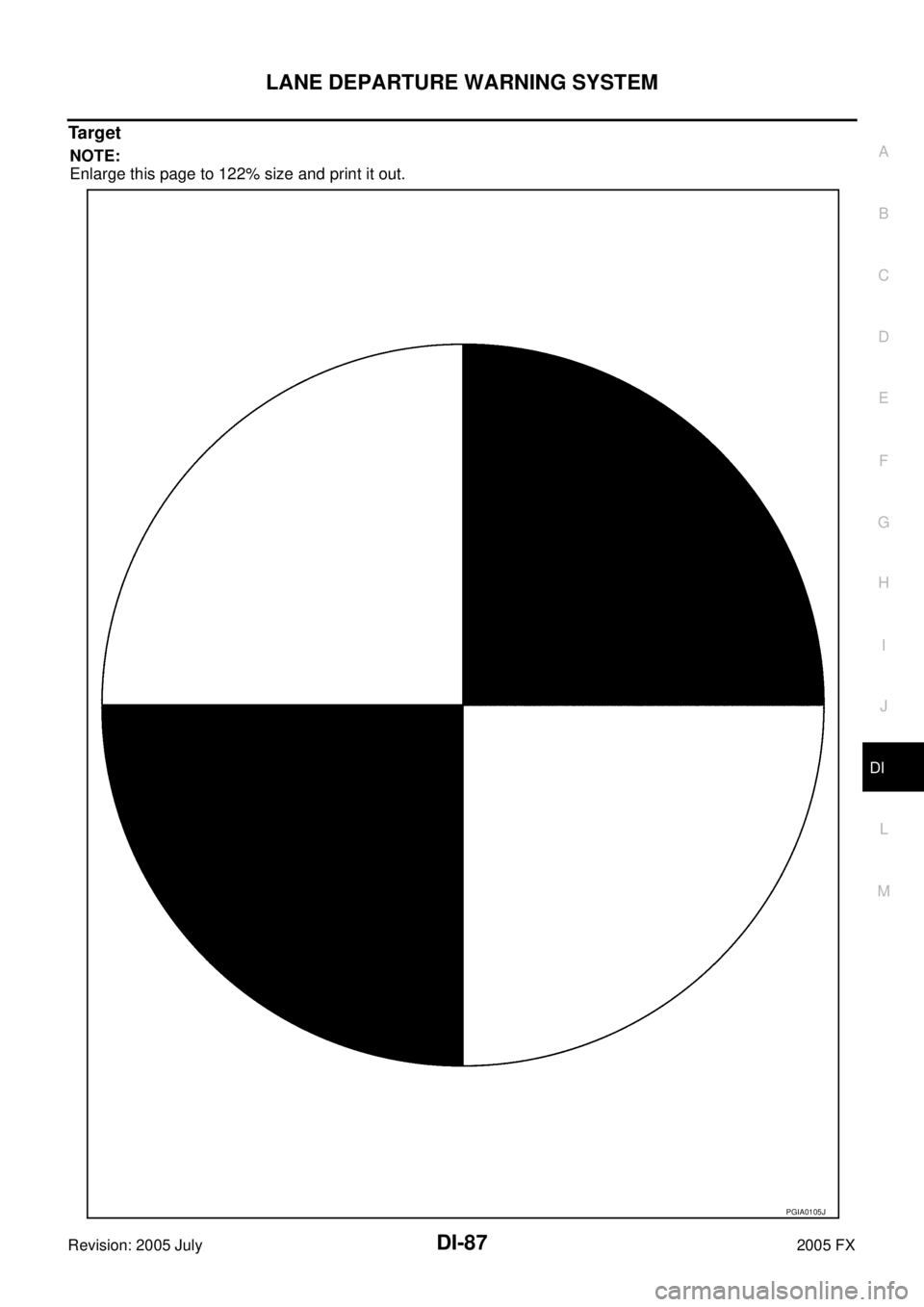

Ta r g e t
NOTE:
Enlarge this page to 122% size and print it out.
PGIA0105J

Page 1349 of 4731

INFINITI FX35 2005 Service Manual DI-88
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX

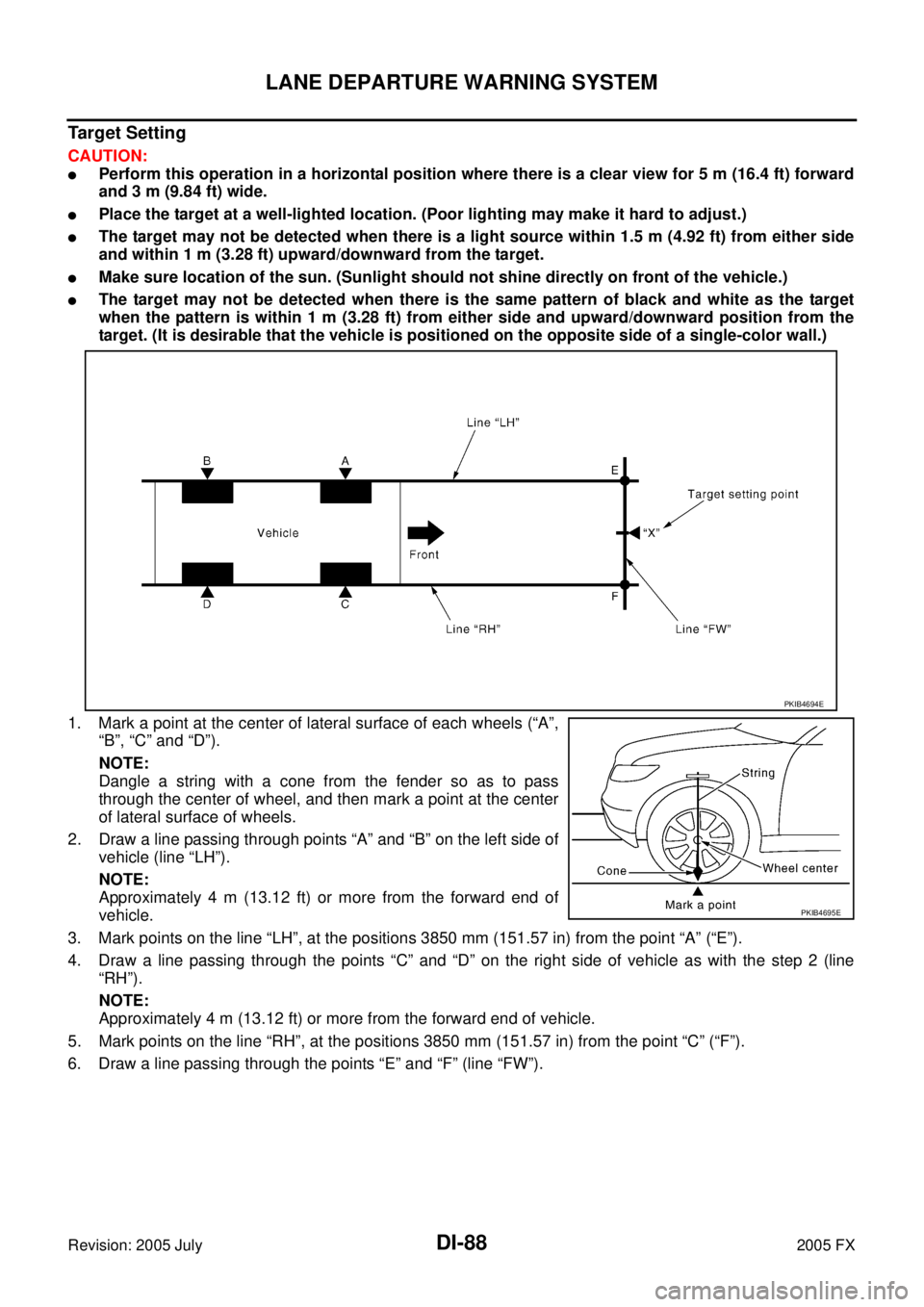

Target Setting
CAUTION:
Perform this operation in a horizontal position where there is a clear view for 5 m (16.4 ft) forward
and 3 m

Page 1350 of 4731

INFINITI FX35 2005 Service Manual LANE DEPARTURE WARNING SYSTEM DI-89
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

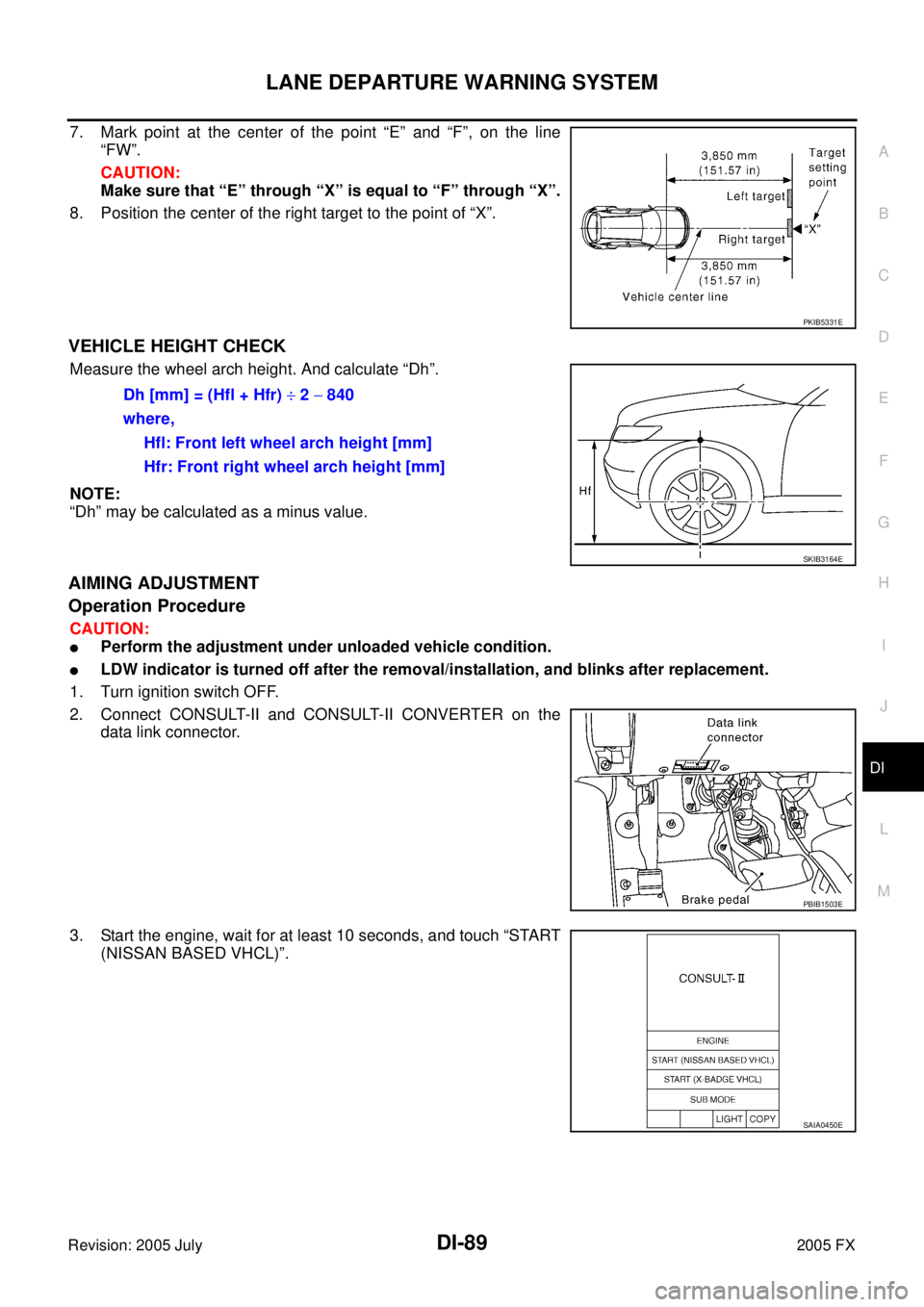

7. Mark point at the center of the point “E” and “F”, on the line
“FW”.
CAUTION:

Page 1351 of 4731

INFINITI FX35 2005 Service Manual DI-90
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX

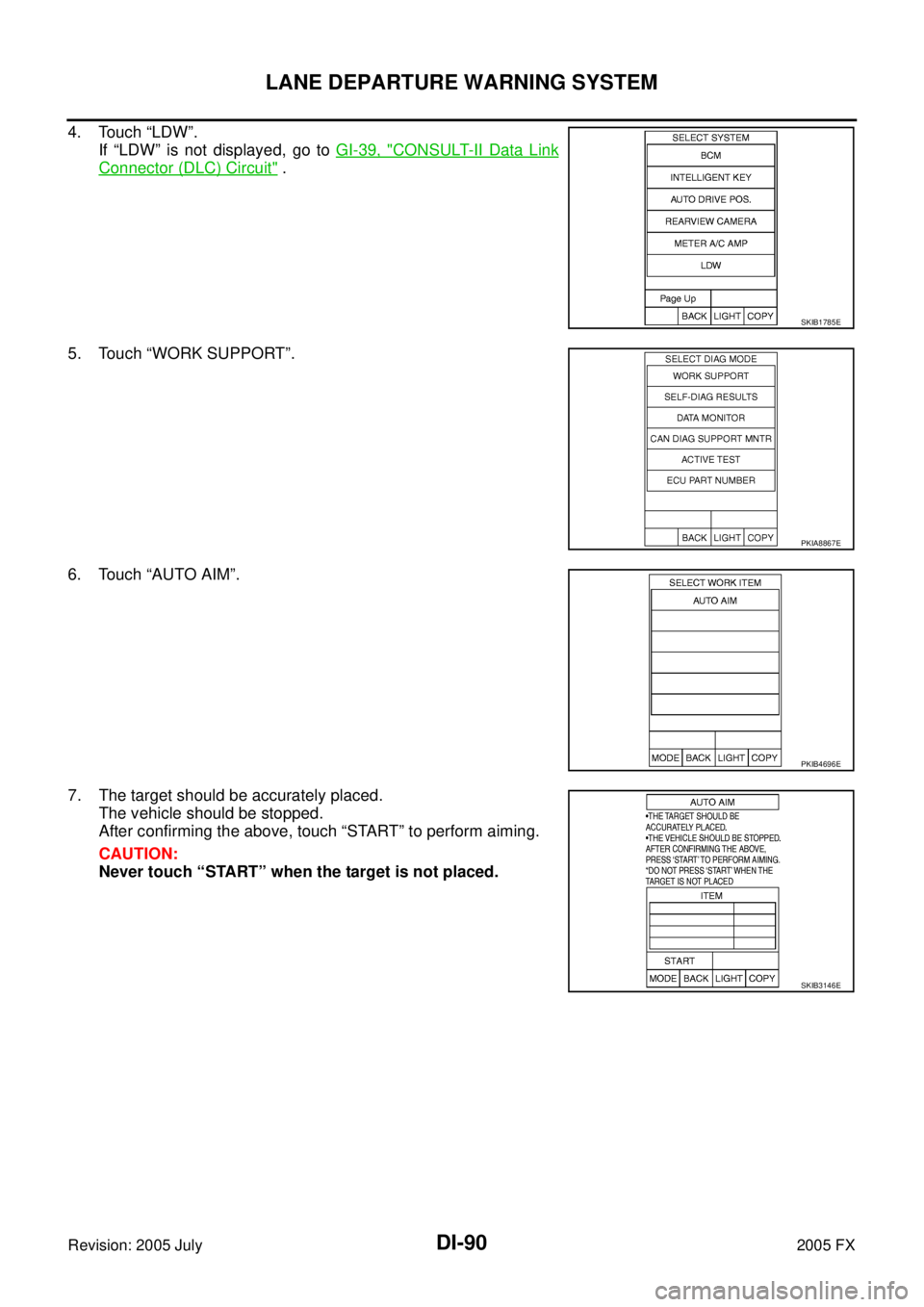

4. Touch “LDW”.
If “LDW” is not displayed, go to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
5. Touch “WORK S

Page 1352 of 4731

INFINITI FX35 2005 Service Manual LANE DEPARTURE WARNING SYSTEM DI-91
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
8. Touch “NEXT”, then a keyboard window is displayed. And input
“Dh”, and then touch �
