2005 INFINITI FX35 Service Manual

gearboxheadlamptraction controlfuelOBD portair filter
Popular search:
AT oil changeMirrorsfog light bulbtrailerchange wheelwheelSC-10
Previous
Next
Load previous 8 pages

Page 3505 of 4731

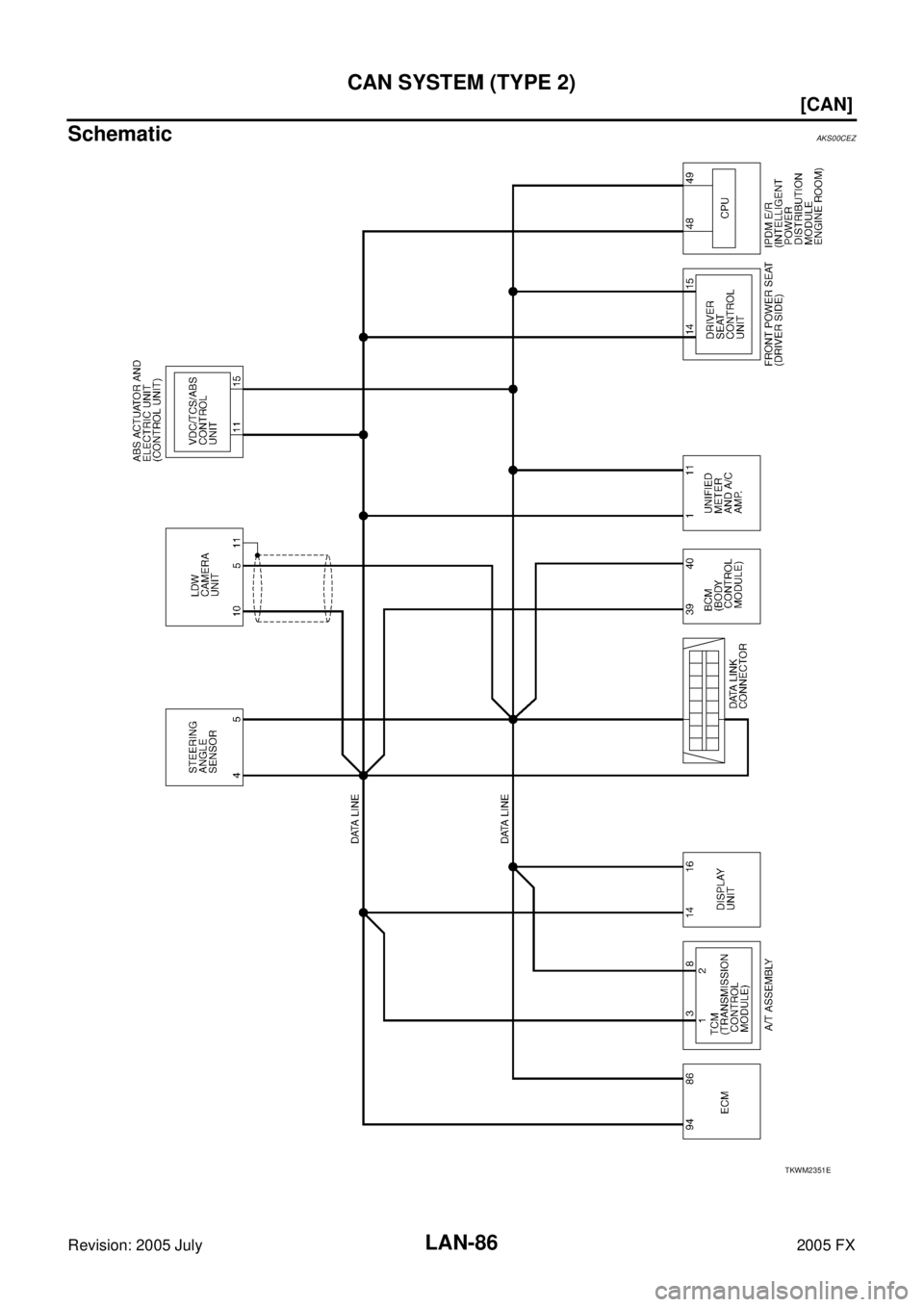

INFINITI FX35 2005 Service Manual LAN-86 [CAN] CAN SYSTEM (TYPE 2) Revision: 2005 July 2005 FX SchematicAKS00CEZ TKWM2351E

Page 3506 of 4731

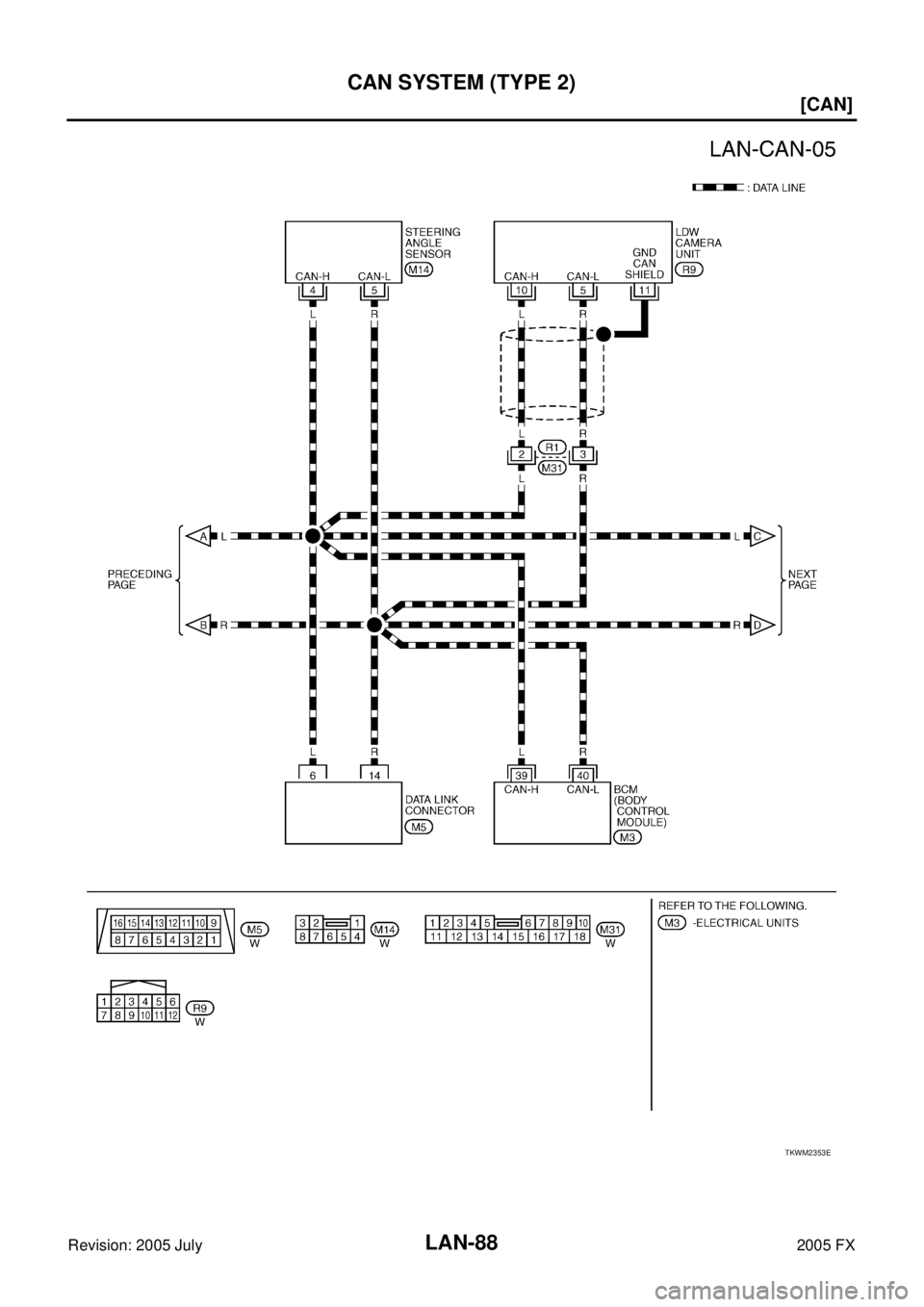

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-87 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Wiring Diagram - CAN -AKS00CF0 TKWM2352E

Page 3507 of 4731

INFINITI FX35 2005 Service Manual LAN-88 [CAN] CAN SYSTEM (TYPE 2) Revision: 2005 July 2005 FX TKWM2353E

Page 3508 of 4731

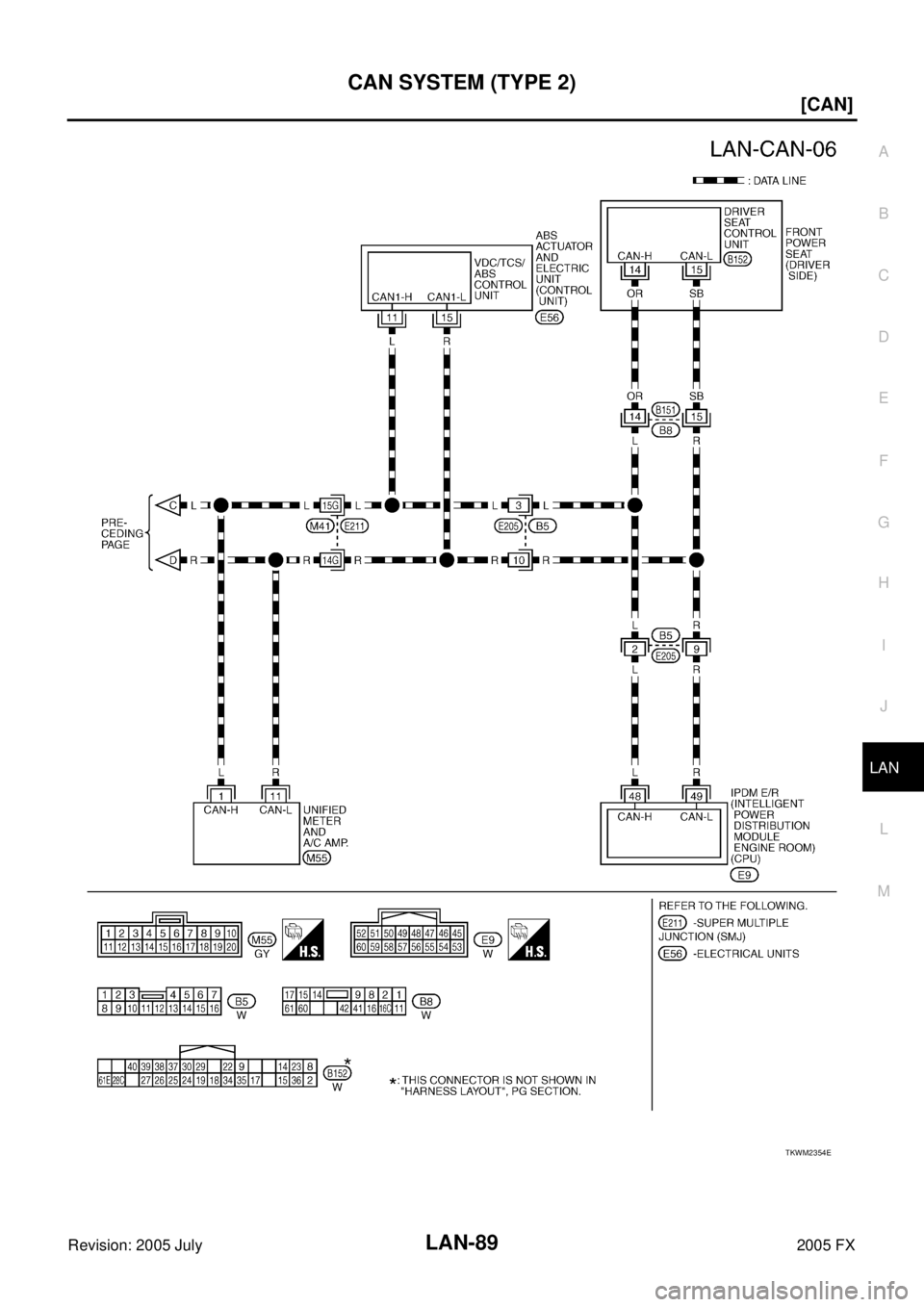

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-89 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX TKWM2354E

Page 3509 of 4731

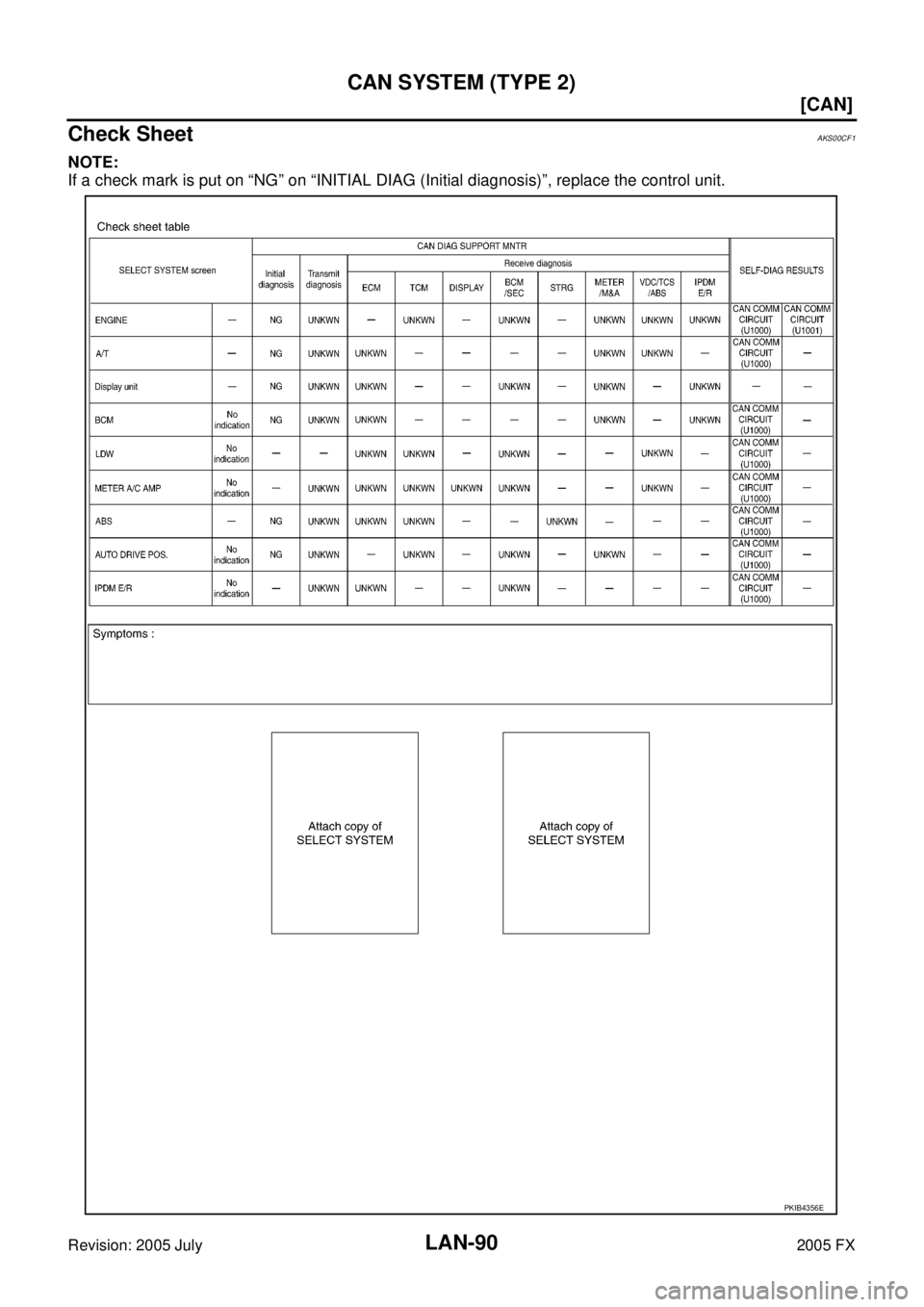

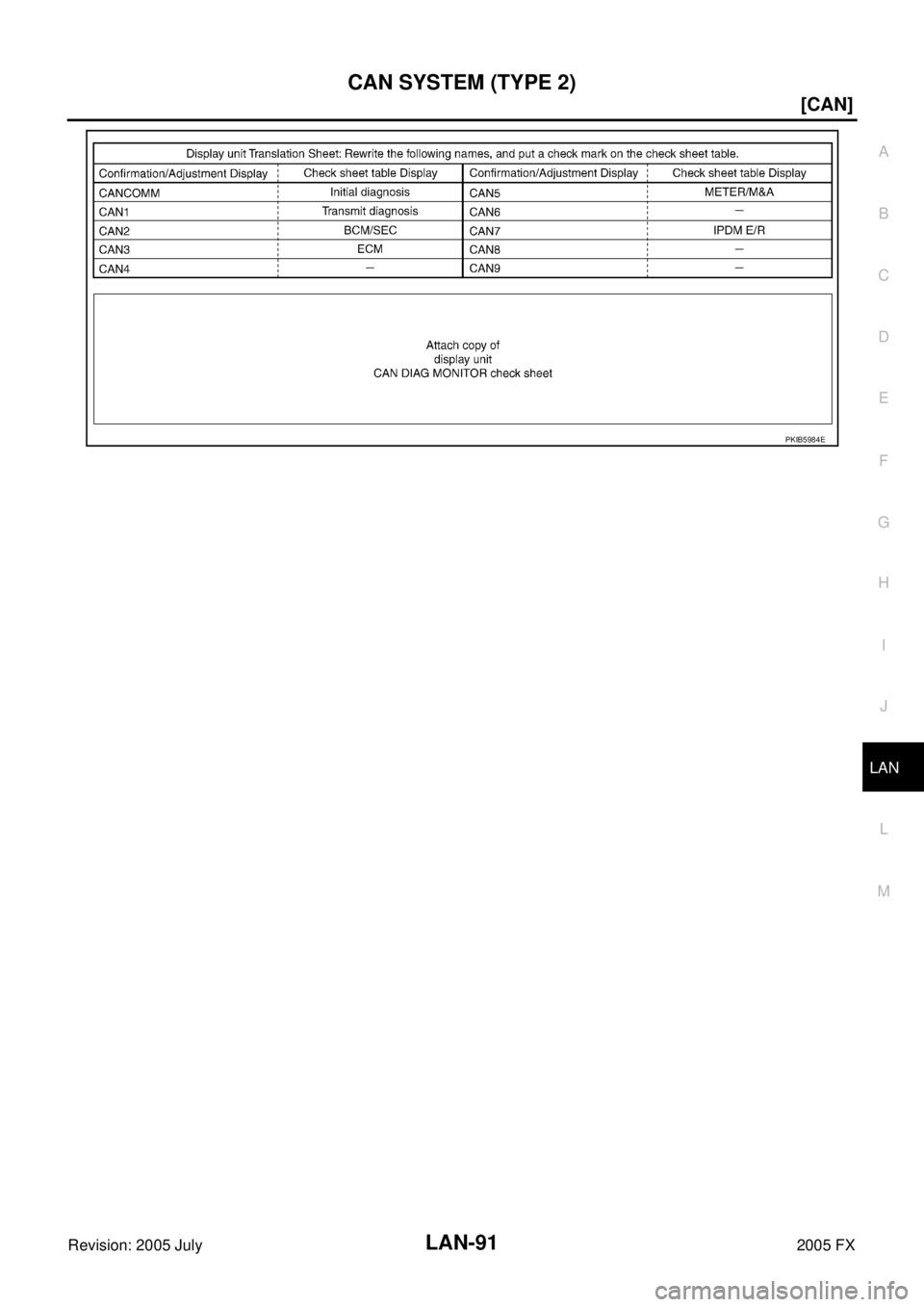

INFINITI FX35 2005 Service Manual LAN-90 [CAN] CAN SYSTEM (TYPE 2) Revision: 2005 July 2005 FX Check SheetAKS00CF1 NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIB4356

Page 3510 of 4731

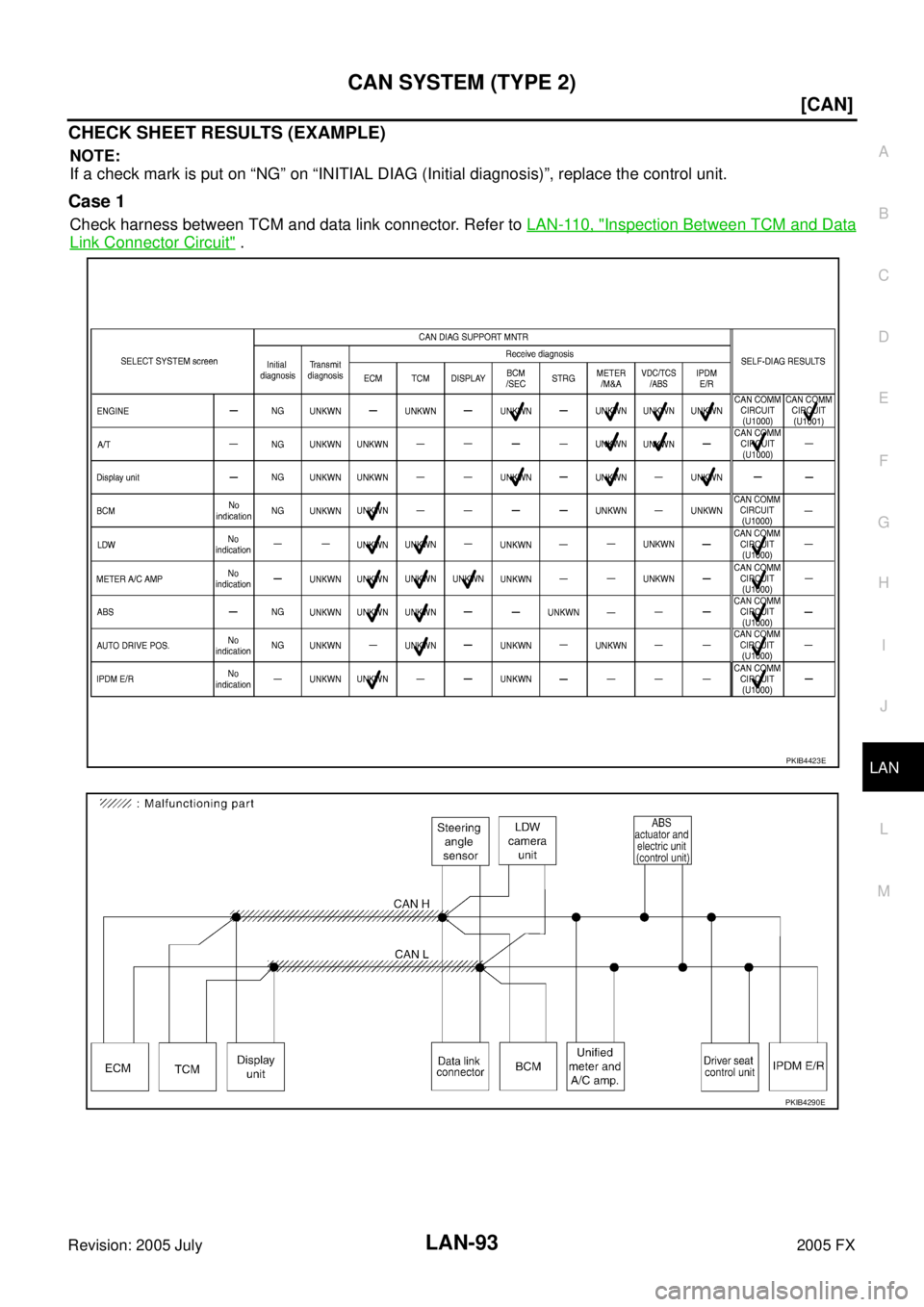

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-91 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX PKIB5984E

Page 3511 of 4731

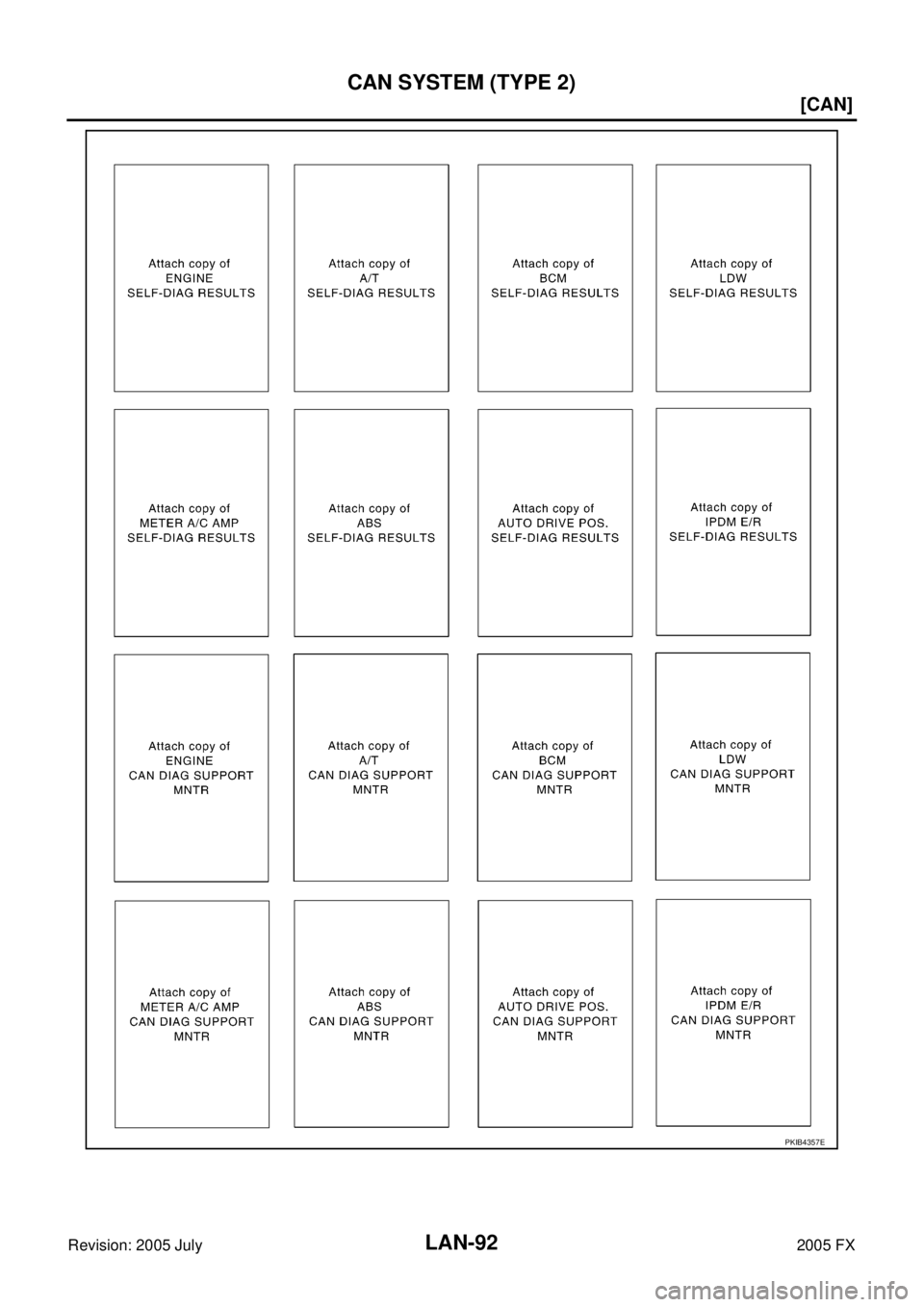

INFINITI FX35 2005 Service Manual LAN-92 [CAN] CAN SYSTEM (TYPE 2) Revision: 2005 July 2005 FX PKIB4357E

Page 3512 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-93 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initia
