INFINITI FX35 2005 Service Manual EC-1056
[VK45DE]
DTC P0441 EVAP CONTROL SYSTEM
Revision: 2005 July 2005 FX
DTC P0441 EVAP CONTROL SYSTEMPFP:14950

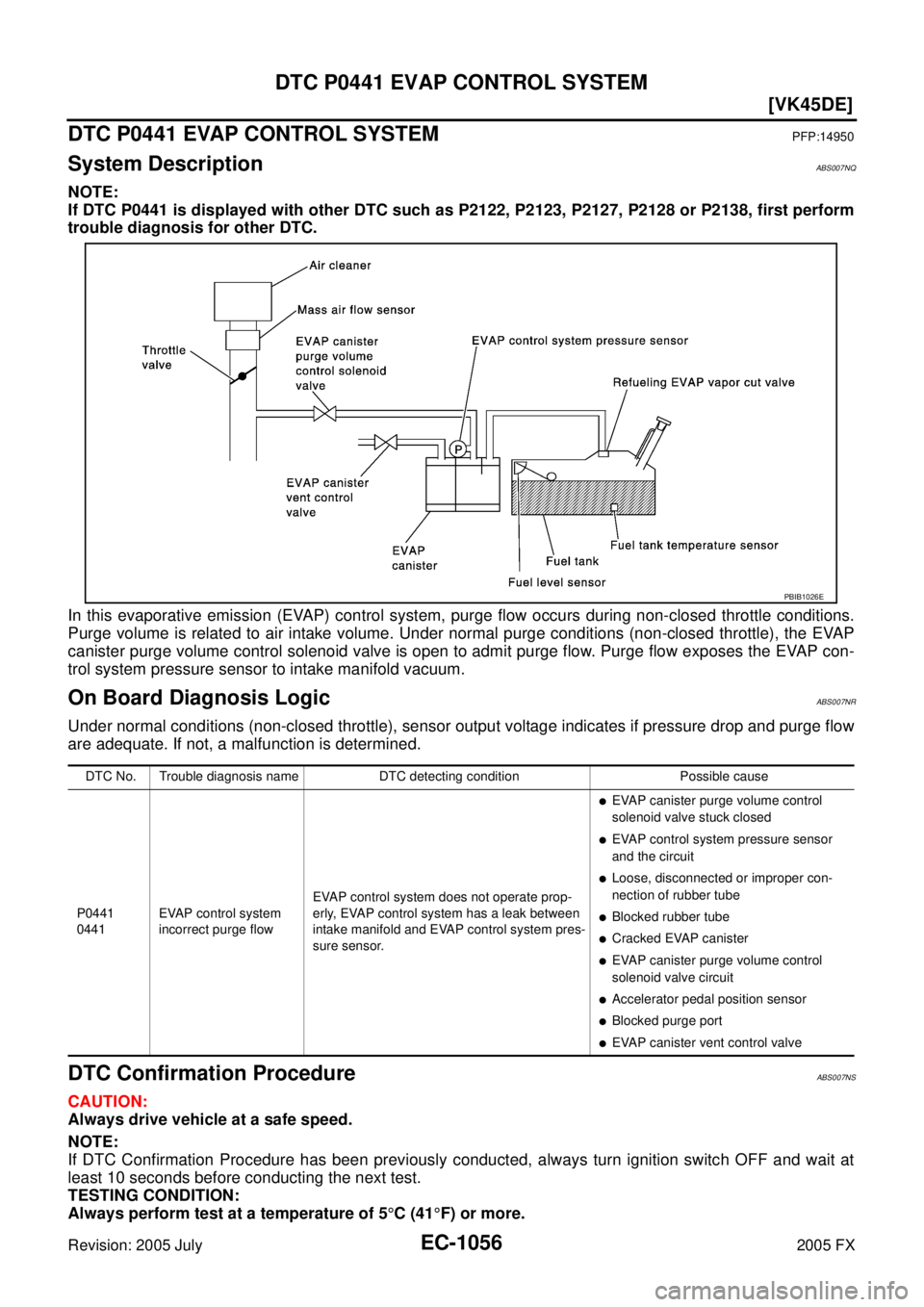

System DescriptionABS007NQ
NOTE:
If DTC P0441 is displayed with other DTC such as P21

Page 2450 of 4731

INFINITI FX35 2005 Service Manual DTC P0441 EVAP CONTROL SYSTEM EC-1057
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2.

DTC P0441 EVAP CONTROL SYSTEM EC-1057
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and let it idle for at least 70 seconds.
4. Select “PURG FLOW P0441” of “EVAPORATIVE SYSTEM” in “DTC CONFIRMATION” mode with CON- SULT-II.
5. Touch “START”. If “COMPLETED” is displayed, go to step 7.

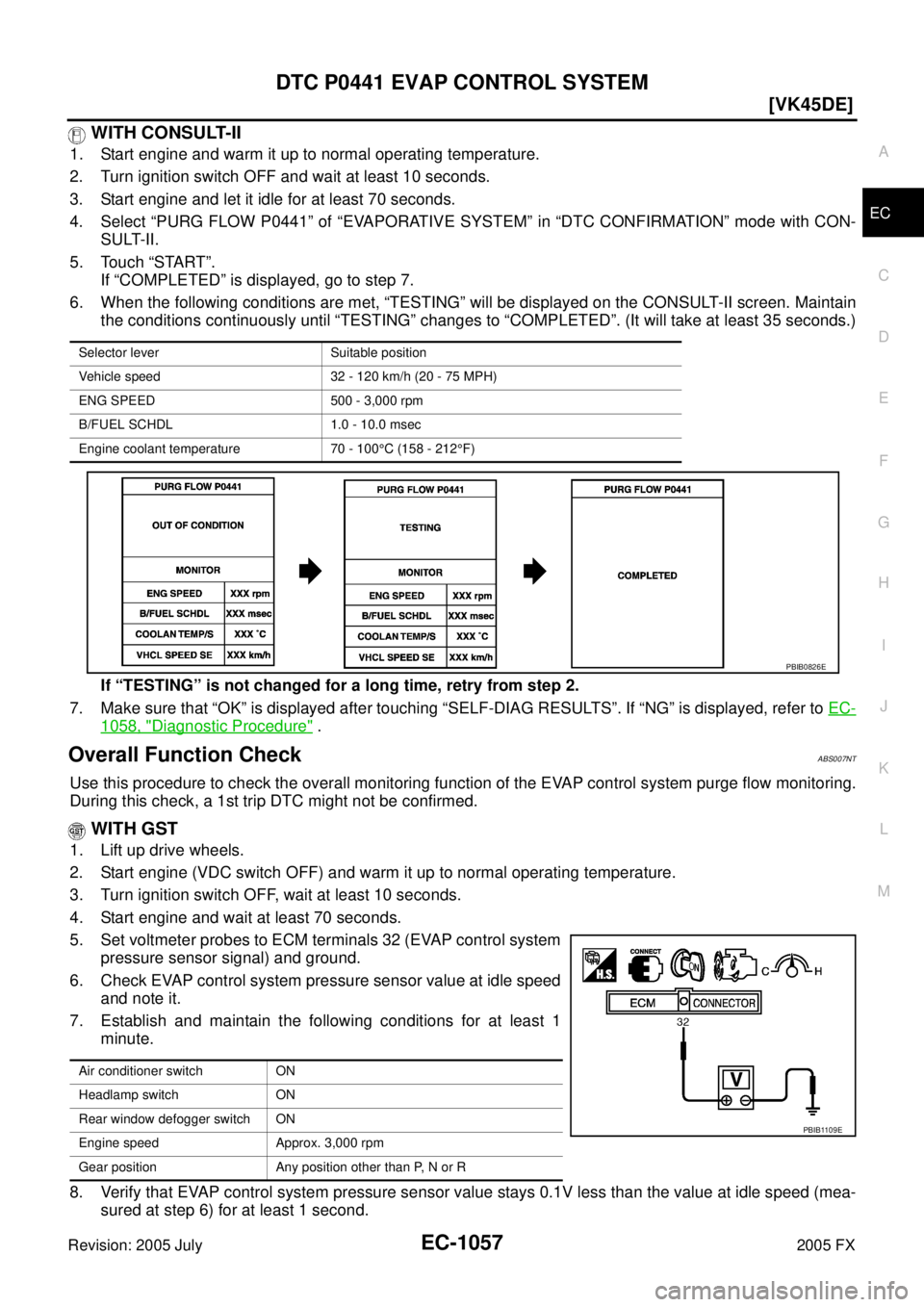

6. When the following conditions are met, “TESTING” will be displayed on the CONSULT-II screen. Maintain the conditions continuously until “TESTING” changes to “COMPLETED”. (It will take at least 35 seconds.)
If “TESTING” is not changed for a long time, retry from step 2.
7. Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”. If “NG” is displayed, refer to EC-
1058, "Diagnostic Procedure" .
Overall Function CheckABS007NT
Use this procedure to check the overall monitoring function of the EVAP control system purge flow monitoring.
During this check, a 1st trip DTC might not be confirmed.
WITH GST
1. Lift up drive wheels.
2. Start engine (VDC switch OFF) and warm it up to normal operating temperature.
3. Turn ignition switch OFF, wait at least 10 seconds.
4. Start engine and wait at least 70 seconds.
5. Set voltmeter probes to ECM terminals 32 (EVAP control system pressure sensor signal) and ground.
6. Check EVAP control system pressure sensor value at idle speed and note it.
7. Establish and maintain the following conditions for at least 1 minute.
8. Verify that EVAP control system pressure sensor value stays 0.1V less than the value at idle speed (mea- sured at step 6) for at least 1 second.
Selector lever Suitable position
Vehicle speed 32 - 120 km/h (20 - 75 MPH)
ENG SPEED 500 - 3,000 rpm
B/FUEL SCHDL 1.0 - 10.0 msec
Engine coolant temperature 70 - 100 °C (158 - 212 °F)
PBIB0826E
Air conditioner switch ON
Headlamp switch ON
Rear window defogger switch ON
Engine speed Approx. 3,000 rpm
Gear position Any position other than P, N or R
PBIB1109E

Page 2451 of 4731

INFINITI FX35 2005 Service Manual EC-1058
[VK45DE]
DTC P0441 EVAP CONTROL SYSTEM
Revision: 2005 July 2005 FX
9. If NG, go to EC-1058, "Diagnostic Procedure" .

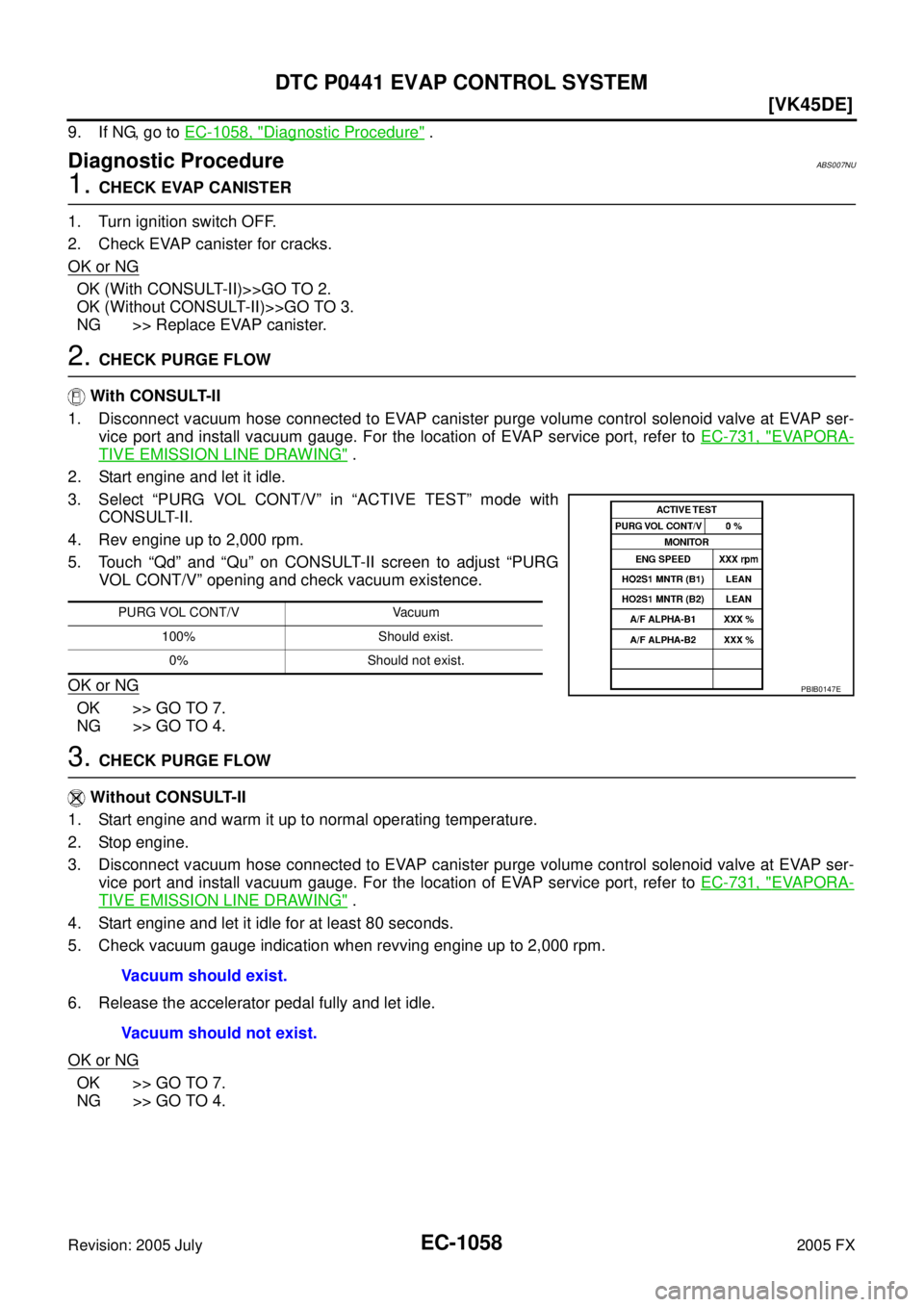

Diagnostic ProcedureABS007NU
1. CHECK EVAP CANISTER
1. Turn ignition switc

Page 2452 of 4731

INFINITI FX35 2005 Service Manual DTC P0441 EVAP CONTROL SYSTEM EC-1059
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

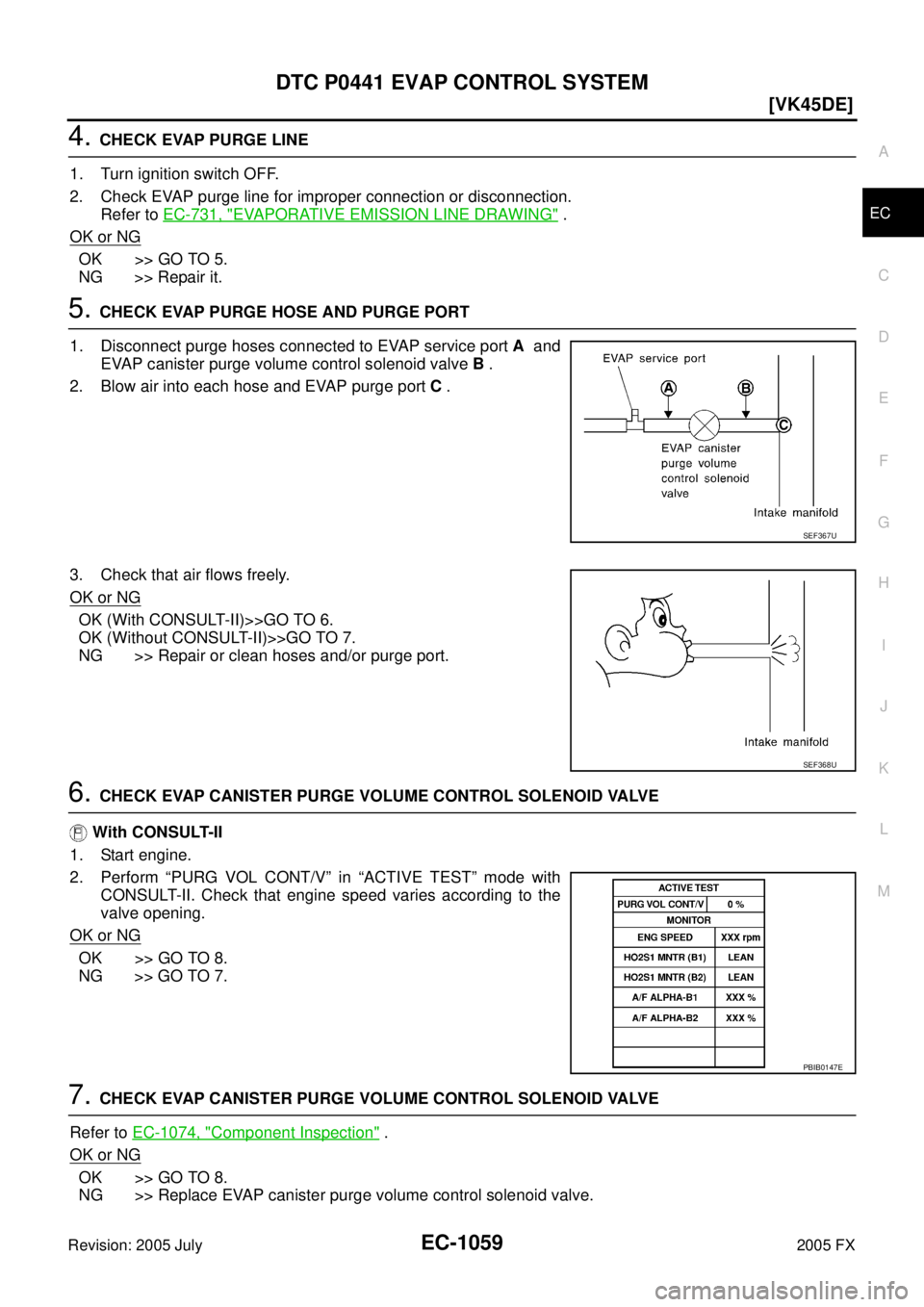

4. CHECK EVAP PURGE LINE
1. Turn ignition switch OFF.
2. Check EVAP purge line for

Page 2453 of 4731

INFINITI FX35 2005 Service Manual EC-1060
[VK45DE]
DTC P0441 EVAP CONTROL SYSTEM
Revision: 2005 July 2005 FX
8. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.

Page 2454 of 4731

INFINITI FX35 2005 Service Manual DTC P0442 EVAP CONTROL SYSTEM EC-1061
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

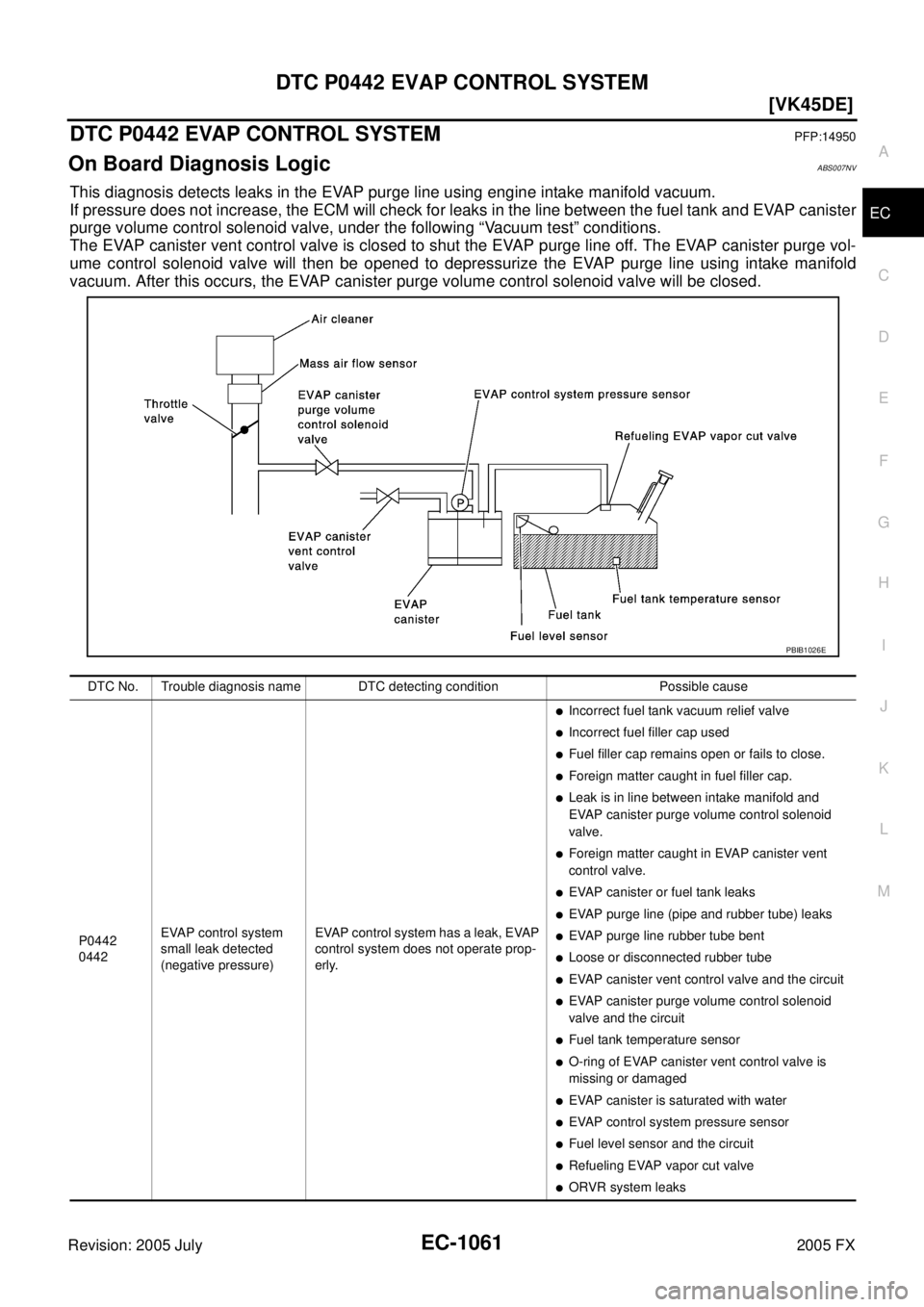

DTC P0442 EVAP CONTROL SYSTEMPFP:14950
On Board Diagnosis LogicABS007NV
This diagnosi

Page 2455 of 4731

INFINITI FX35 2005 Service Manual EC-1062
[VK45DE]
DTC P0442 EVAP CONTROL SYSTEM
Revision: 2005 July 2005 FX

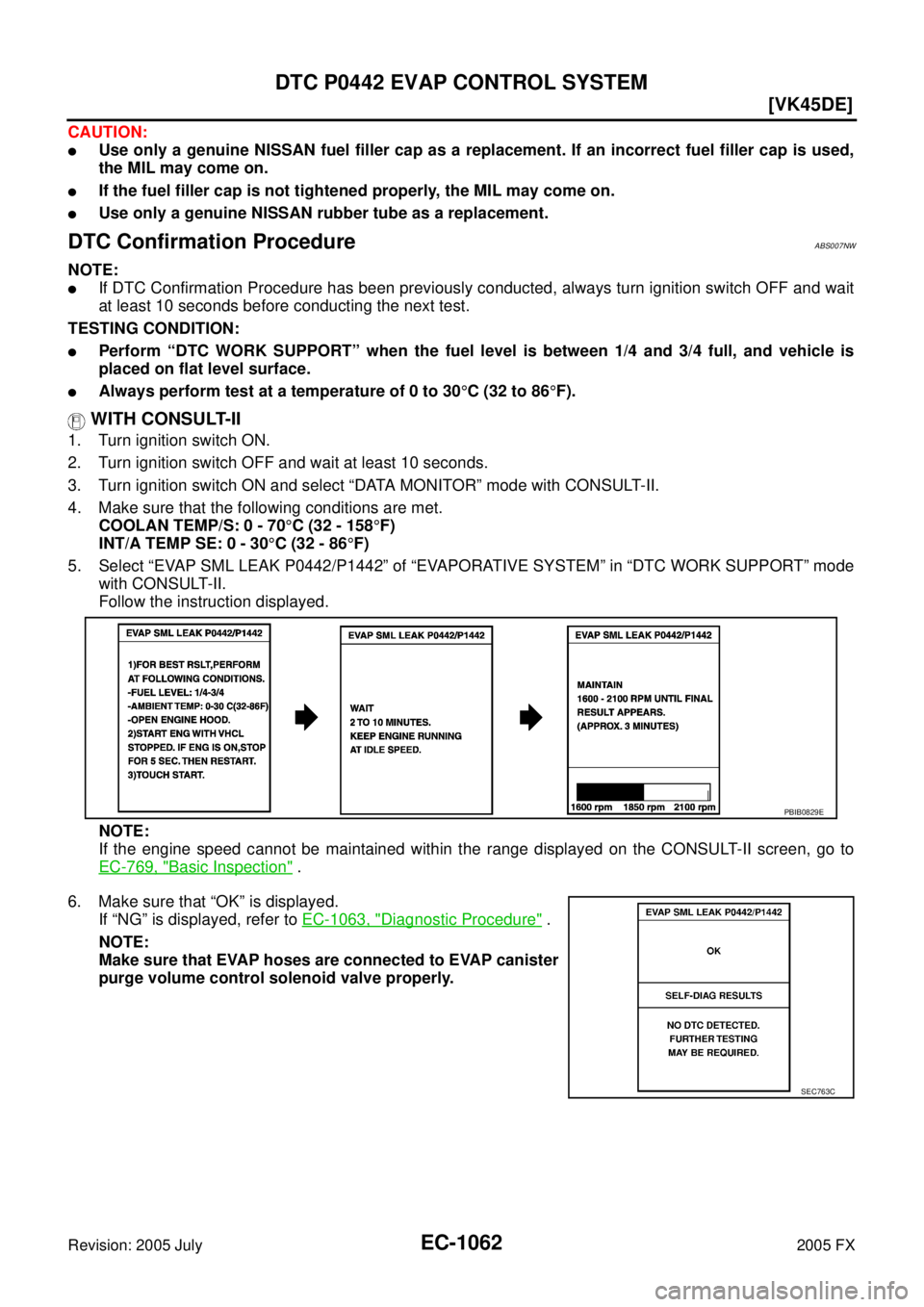

CAUTION:

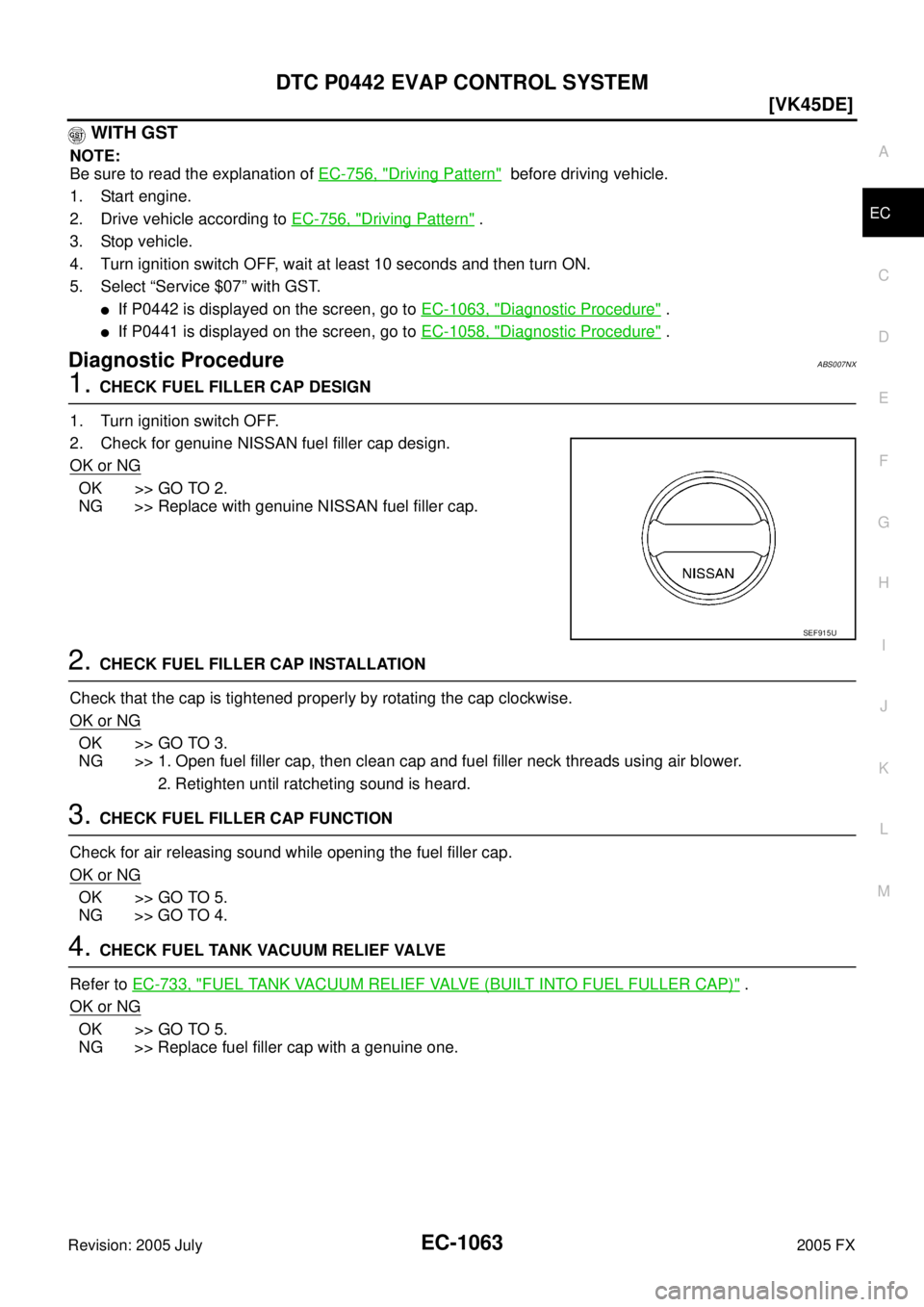

Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used,
the MIL may c

Page 2456 of 4731

INFINITI FX35 2005 Service Manual DTC P0442 EVAP CONTROL SYSTEM EC-1063
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
WITH GST
NOTE:
Be sure to read the explanation of EC-756, "
Driving Pattern" bef
