3. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M3 terminal 9 and ground.
OK or NG
OK >> Replace A/C and AV switch.
NG >> Replace BCM.
Rear Window Defogger Power Supply Circuit CheckAIS004RB
1. CHECK FUSE
Check 10A fuse [No.12, located in the fuse block (J/B)]
Check 20A fuse (No.75, located in the IPDM E/R)
Check 20A fuse (No.80, located in the IPDM E/R)
NOTE:
Refer to GW-86, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse, refer to
PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Remove rear window defogger relay.
3. Turn ignition switch ON.
4. Check voltage between rear window defogger relay connector E13 terminals 1, 3, 6 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness. 9 (L/W) – Ground : Approx. 5
PIIA6208E
1 (OR) – Ground : Battery voltage
3 (W) – Ground : Battery voltage
6 (R) – Ground : Battery voltage
PIIA4233E
Page 3378 of 4731

REAR WINDOW DEFOGGER GW-101
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
3. CHECK REAR WINDOW DEFOGGER RELAY
Check continuity between rear window defogger terminals 3 and 5, 6
and 7.
OK or NG
OK >> GO TO 4.
NG >> Replace rear window defogger relay.
4. CHECK REAR WINDOW DEFOGGER RELAY GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Installation rear window defogger relay.
3. Turn ignition switch ON.
4. Check voltage between IPDM E/R connector and ground.
OK or NG
OK >> Rear window defogger power supply circuit is OK.
NG >> GO TO 5.
5. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and rear window defogger relay.
3. Check continuity between IPDM E/R connector E9 terminal 52 and rear window defogger relay connector E13 terminal 2.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness.
Terminal Condition Continuity
35 12V direct current supply
between terminals 1 and 2 Ye s
No current supply No
67 12V direct current supply
between terminals 1 and 2 Ye s
No current supply No
SEC202B
Connector Terminals (Wire color)
Condition Voltage (V)
(Approx.)
(+) (-)
E9 52 (G) Ground When rear window defog-
ger switch ON 0
When rear window defog-
ger switch OFF Battery
voltage
PIIA6210E
52 (G) – 2 (G) : Continuity should exist.
PIIA6211E
Page 3379 of 4731

GW-102
REAR WINDOW DEFOGGER
Revision: 2005 July 2005 FX

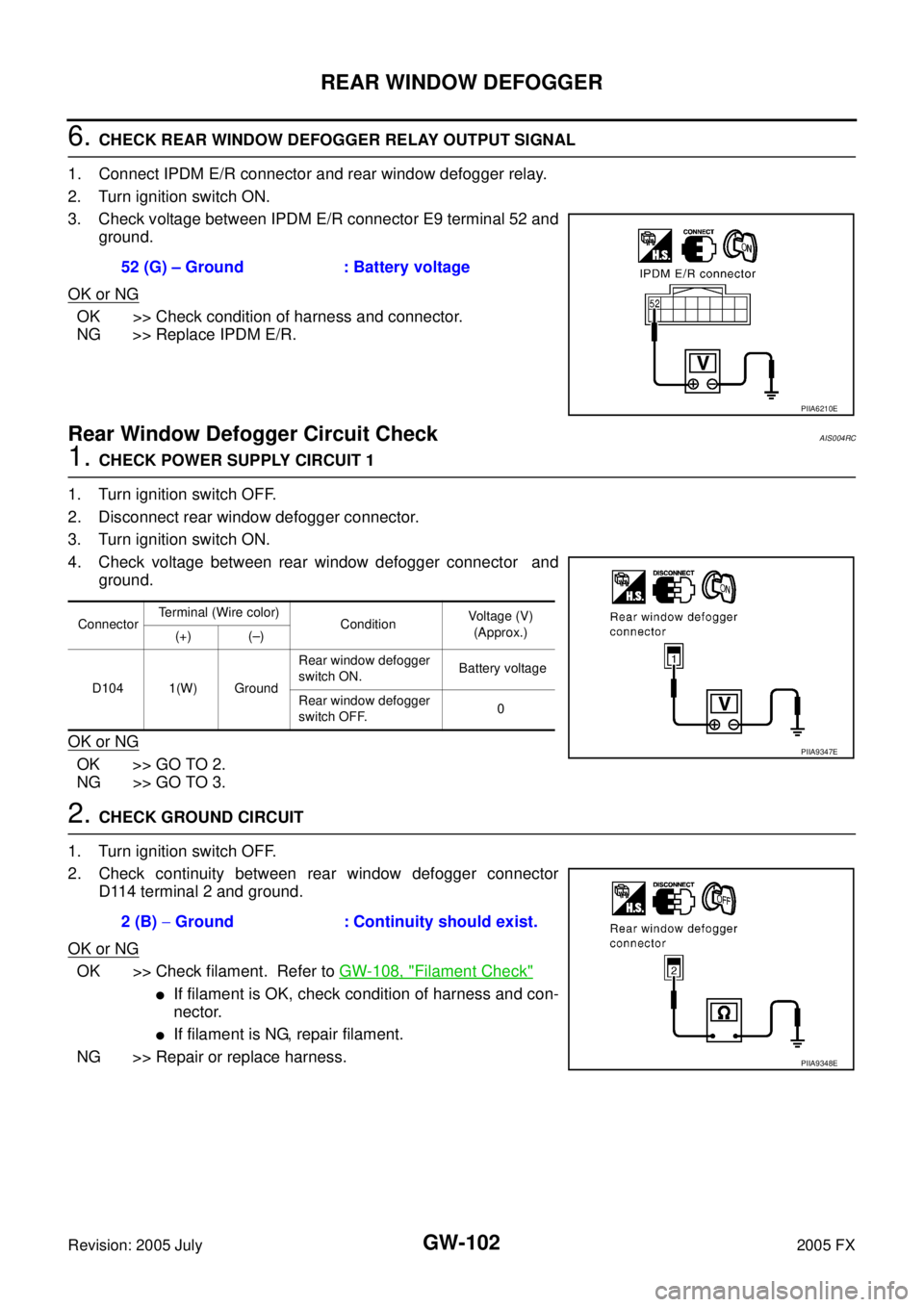

6. CHECK REAR WINDOW DEFOGGER RELAY OUTPUT SIGNAL
1. Connect IPDM E/R connector and rear window defogger relay.
2. Turn ignition switch ON.
3. Check voltage between IPDM E/R connector E9 terminal 52 and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace IPDM E/R.
Rear Window Defogger Circuit CheckAIS004RC
1. CHECK POWER SUPPLY CIRCUIT 1
1. Turn ignition switch OFF.
2. Disconnect rear window defogger connector.
3. Turn ignition switch ON.
4. Check voltage between rear window defogger connector and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between rear window defogger connector D114 terminal 2 and ground.
OK or NG
OK >> Check filament. Refer to GW-108, "Filament Check"
If filament is OK, check condition of harness and con-
nector.
If filament is NG, repair filament.
NG >> Repair or replace harness. 52 (G) – Ground : Battery voltage
PIIA6210E
Connector
Terminal (Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
D104 1(W) Ground Rear window defogger
switch ON. Battery voltage
Rear window defogger
switch OFF. 0
PIIA9347E
2 (B)
− Ground : Continuity should exist.
PIIA9348E
Page 3380 of 4731

REAR WINDOW DEFOGGER GW-103
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
3. CHECK REAR WINDOW DEFOGGER RELAY CIRCUIT
1. Turn ignition switch OFF.
2. Remove rear window defogger relay.
3. Check continuity between rear window defogger relay connector E13 terminal 5, 7 and rear window defogger connector D104 ter-
minal 1.
OK or NG
OK >> Check condition of harness and connector.
NG >> Repair or replace harness.
Door Mirror Defogger Power Supply Circuit CheckAIS004RD
1. CHECK FUSE
Check 15A fuse [No.8, located in fuse block (J/B)]
NOTE:
Refer to GW-86, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to
PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT 1
1. Turn ignition switch ON.
2. Check voltage between fuse block (J/B) connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK POWER SUPPLY CIRCUIT 2
Check voltage between fuse block (J/B) connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace fuse block (J/B). 5 (B) – 1 (W) : Continuity should exist.
7 (B) – 1 (W) : Continuity should exist.
PIIA9349E
Connector Terminal (Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
E201 2C (B) Ground Rear window defogger
switch ON Battery voltage
Rear window defogger
switch OFF 0
PIIA2388E
Connector Terminal (Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
M2 5B (L) Ground Rear window defogger
switch ON Battery voltage
Rear window defogger
switch OFF 0
PIIA2386E
Page 3381 of 4731

GW-104
REAR WINDOW DEFOGGER
Revision: 2005 July 2005 FX
4. CHECK DOOR MIRROR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect fuse block (J/B) and door mirror connector.
3. Check continuity between fuse block (J/B) connector M2 termi- nal 5B and door mirror connector D2 (driver side) or D32 (pas-
senger side) terminal 1.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness.
5. CHECK GROUND CIRCUIT
Check continuity between each door mirror connector D2 (driver
side), D32 (passenger side) terminal 2 and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness.
6. CHECK DOOR MIRROR DEFOGGER
1. Connect door mirror connector.
2. Check continuity between each door mirror connector D2 (driver side), D32 (passenger side) terminals 1 and 2.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace malfunctioning door mirror. 5B (L) – 1 (L) : Continuity should exist.
PIIA6213E
2 (B) – Ground : Continuity should exist.
PIIA6214E
1 (L) – 2 (B) : Continuity should exist.
PIIA6215E
Page 3382 of 4731

REAR WINDOW DEFOGGER GW-105
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX

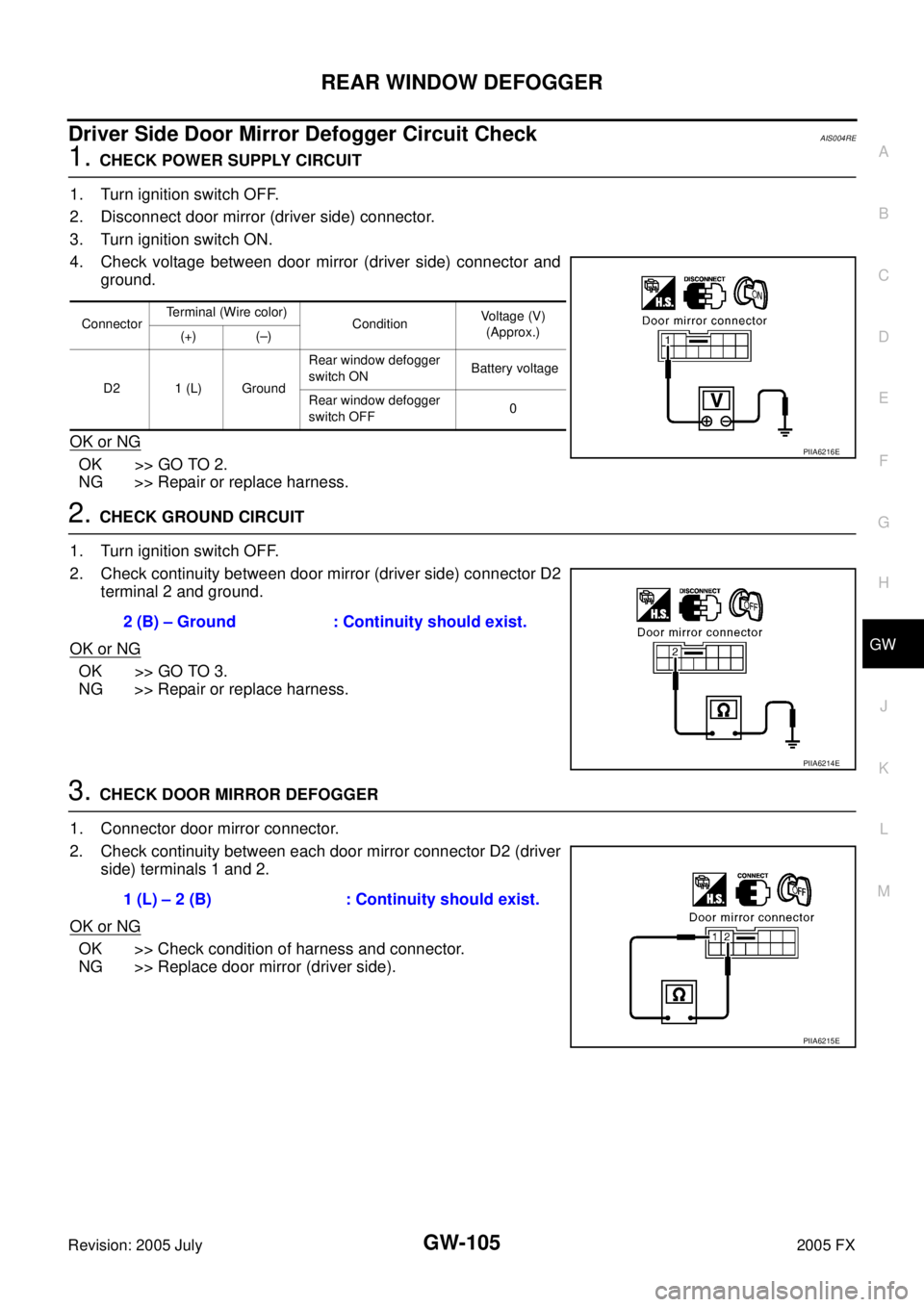

Driver Side Door Mirror Defogger Circuit CheckAIS004RE
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door mirror (driver side) connector.
3. Turn ignition switch ON.
4. Check voltage between door mirror (driver side) connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between door mirror (driver side) connector D2 terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK DOOR MIRROR DEFOGGER
1. Connector door mirror connector.
2. Check continuity between each door mirror connector D2 (driver side) terminals 1 and 2.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace door mirror (driver side).
Connector Terminal (Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
D2 1 (L) Ground Rear window defogger
switch ON Battery voltage
Rear window defogger
switch OFF 0
PIIA6216E
2 (B) – Ground : Continuity should exist.
PIIA6214E
1 (L) – 2 (B) : Continuity should exist.
PIIA6215E
Page 3383 of 4731

GW-106
REAR WINDOW DEFOGGER
Revision: 2005 July 2005 FX
Passenger Side Door Mirror Defogger Circuit Check AIS004RF
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door mirror (passenger side) connector.
3. Turn ignition switch ON.
4. Check voltage between door mirror (passenger side) connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between door mirror (passenger side) connec- tor D32 terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK DOOR MIRROR DEFOGGER
1. Connector door mirror connector.
2. Check continuity between each door mirror connector D32 (pas- senger side) terminals 1 and 2.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace door mirror (passenger side).
Rear Window Defogger Signal CheckAIS004RG
1. CHECK REAR WINDOW DEFOGGER SWITCH LAMP
A/C and AV switch self-diagnosis is performed. Refer to AV- 3 7 , "
A/C and AV Switch Self-Diagnosis Function"
Does rear window defogger switch light?
YES >> GO TO 2.
NO >> Replace A/C and AV switch.
Connector Terminal (Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
D32 1 (L) Ground Rear window defogger
switch ON Battery voltage
Rear window defogger
switch OFF 0
PIIA6216E
2 (B) – Ground : Continuity should exist.
PIIA6214E
1 (L) – 2 (B) : Continuity should exist.
PIIA6215E
Page 3384 of 4731
REAR WINDOW DEFOGGER GW-107
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
2. CHECK AV COMMUNICATION LINE
AV communication line check is performed. Refer to AV- 8 4 , "
AV Communication Line Inspection"
Is rear window defogger displayed on the display?
YES >> GO TO 3.
NO >> Replace display control unit.
3. CHECK CAN COMMUNICATION LINE
CAN communication line check is performed. Refer to AV- 8 5 , "
CAN Communication Line Inspection"
OK or NG
OK >> Check condition of harness and connector.
NG >> In addition, it is necessary to check CAN communication line. Refer to AV- 8 5 , "
CAN Communica-
tion Line Inspection"
