INFINITI FX35 2005 Service Manual EC-1008
[VK45DE]
DTC P0181 FTT SENSOR
Revision: 2005 July 2005 FX
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors B1, M11
Harness for open or short between ECM and “fuel lev

Page 2402 of 4731

INFINITI FX35 2005 Service Manual DTC P0181 FTT SENSOR EC-1009
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

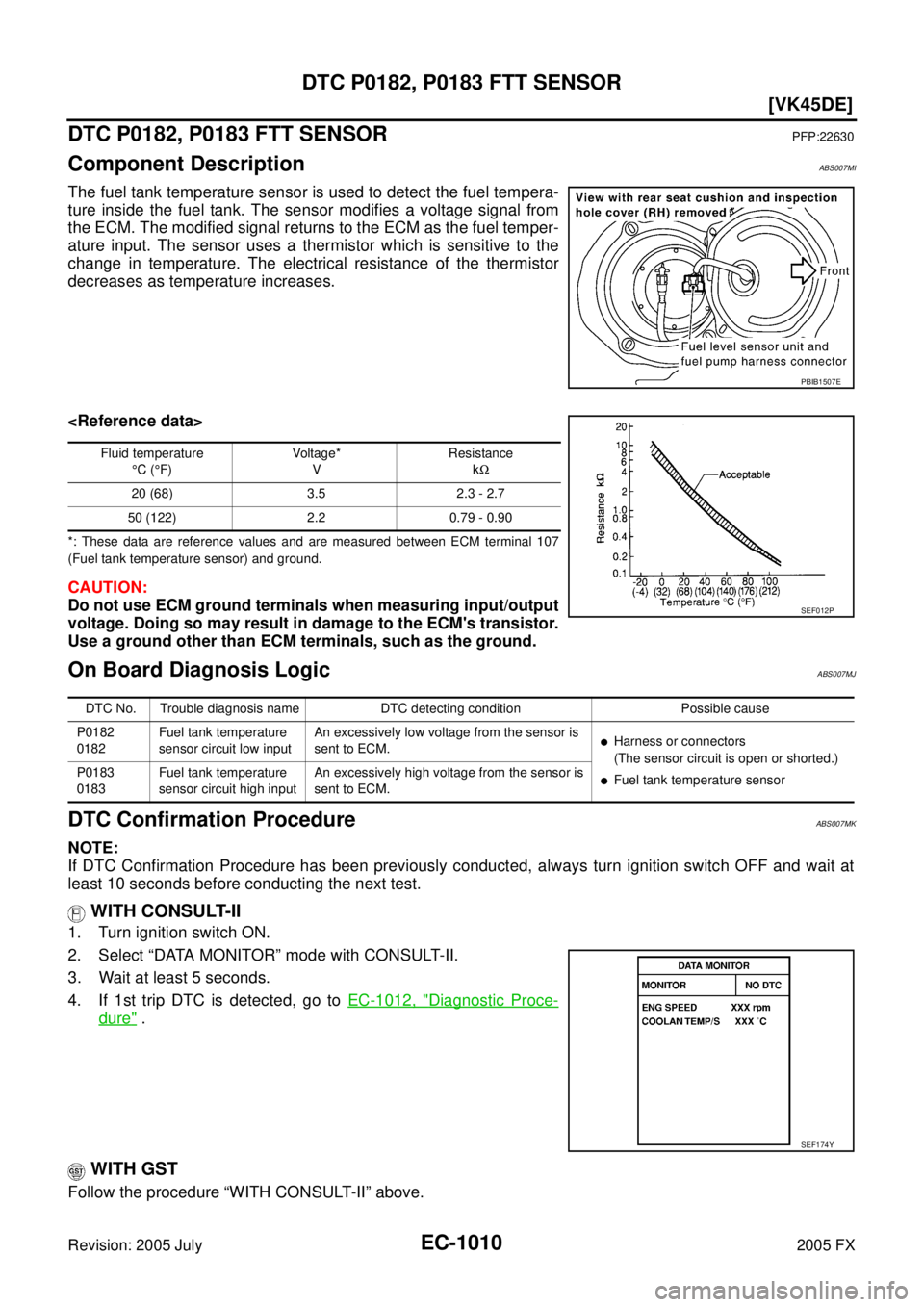

Component InspectionABS007MG
FUEL TANK TEMPERATURE SENSOR
1. Remove fuel level sensor unit.
2

Page 2403 of 4731

INFINITI FX35 2005 Service Manual EC-1010
[VK45DE]
DTC P0182, P0183 FTT SENSOR
Revision: 2005 July 2005 FX
DTC P0182, P0183 FTT SENSORPFP:22630
Component DescriptionABS007MI
The fuel tank temperature sensor is used to detect the fuel

Page 2404 of 4731

INFINITI FX35 2005 Service Manual DTC P0182, P0183 FTT SENSOR EC-1011
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Wiring DiagramABS007ML
TBWM0861E

Page 2405 of 4731

INFINITI FX35 2005 Service Manual EC-1012
[VK45DE]
DTC P0182, P0183 FTT SENSOR
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS007MM
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground sc

Page 2406 of 4731

INFINITI FX35 2005 Service Manual DTC P0182, P0183 FTT SENSOR EC-1013
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors B1, M11
Harnes

Page 2407 of 4731

INFINITI FX35 2005 Service Manual EC-1014
[VK45DE]
DTC P0182, P0183 FTT SENSOR
Revision: 2005 July 2005 FX
Component InspectionABS007MN
FUEL TANK TEMPERATURE SENSOR
1. Remove fuel level sensor unit.
2. Check resistance between “fue

Page 2408 of 4731

INFINITI FX35 2005 Service Manual DTC P0222, P0223 TP SENSOR EC-1015
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P0222, P0223 TP SENSORPFP:16119
Component DescriptionABS007MP
Electric throttle cont

DTC P0222, P0223 TP SENSOR EC-1015
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P0222, P0223 TP SENSORPFP:16119
Component DescriptionABS007MP
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeABS007MQ
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicABS007MR
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)
Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0222
0222 Throttle position sensor
1 circuit low input An excessively low voltage from the TP sensor
1 is sent to ECM.
Harness or connectors
(TP sensor 1 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
Electric throttle control actuator
(TP sensor 1)
Accelerator pedal position sensor
(APP sensor 2)
P0223
0223 Throttle position sensor
1 circuit high input An excessively high voltage from the TP sen-
sor 1 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
