INFINITI FX35 2005 Service Manual LAN-350 [CAN] CAN SYSTEM (TYPE 7) Revision: 2005 July 2005 FX 16. CHECK UNIT REPRODUCIBILITY Performs the following procedure for each unit, and then perform reproducibility test. 1. Turn ignition s

Page 3770 of 4731

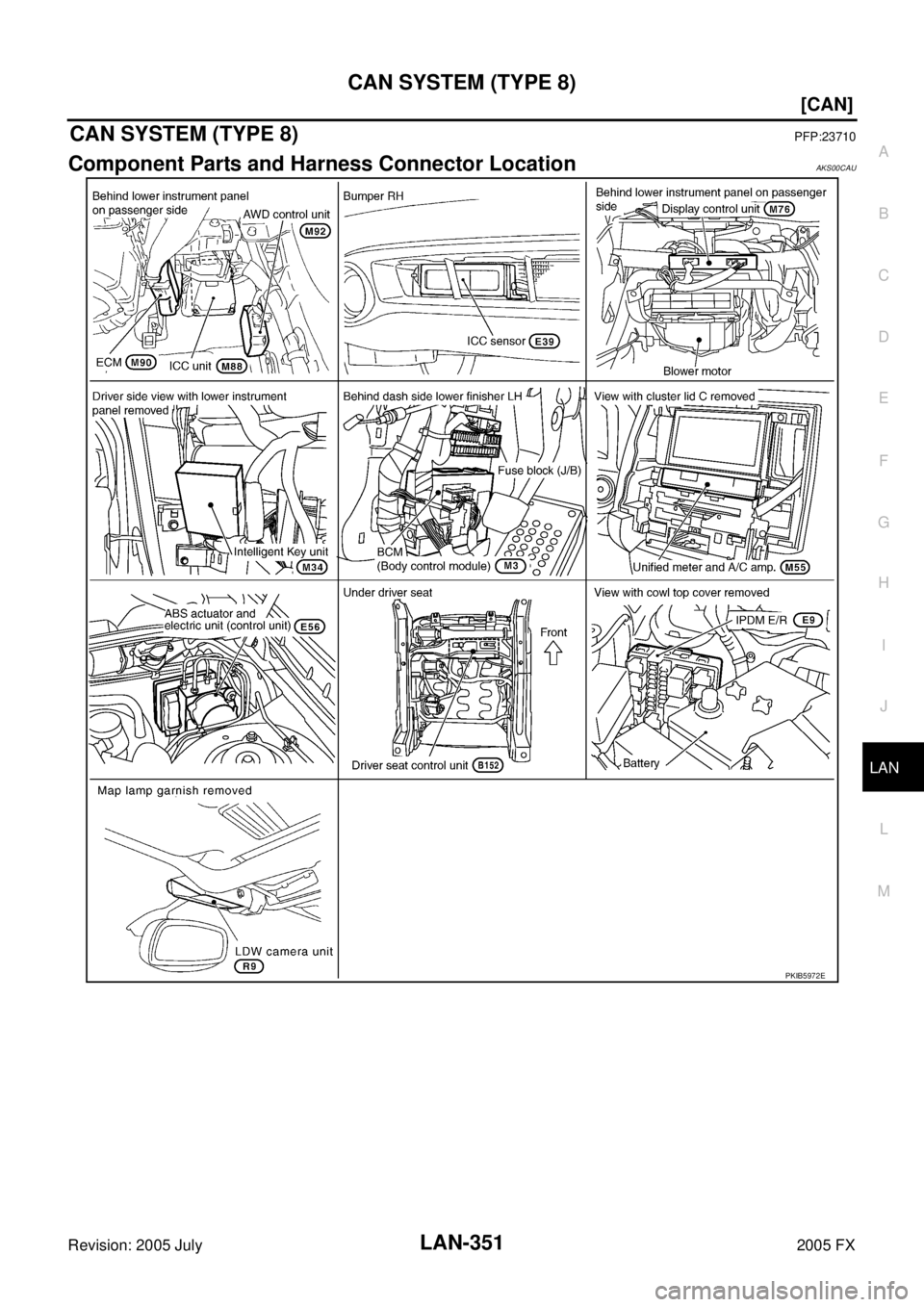

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 8) LAN-351 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX CAN SYSTEM (TYPE 8)PFP:23710 Component Parts and Harness Connector LocationAKS00CAU PKIB5972E

Page 3771 of 4731

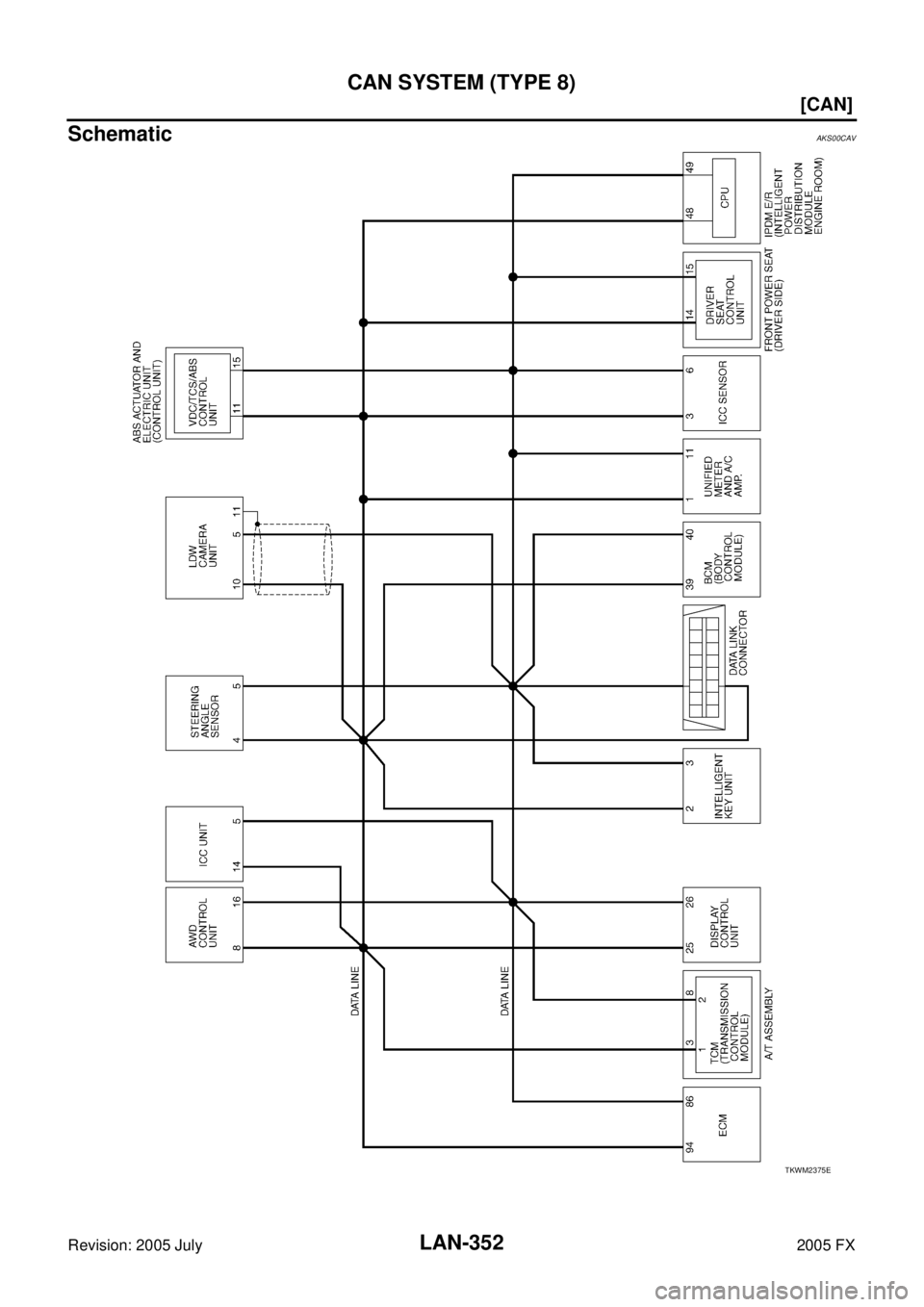

INFINITI FX35 2005 Service Manual LAN-352 [CAN] CAN SYSTEM (TYPE 8) Revision: 2005 July 2005 FX SchematicAKS00CAV TKWM2375E

Page 3772 of 4731

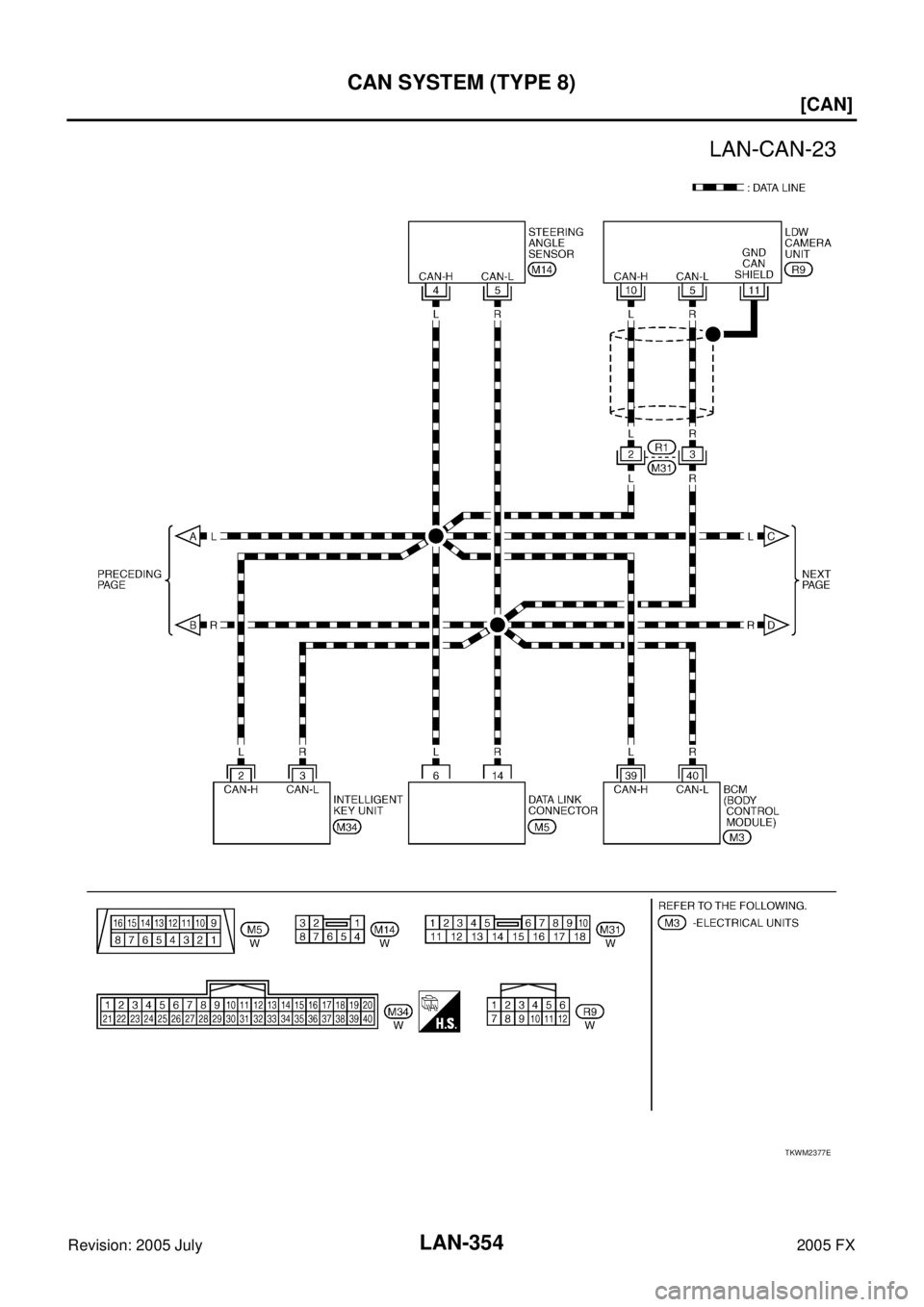

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 8) LAN-353 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Wiring Diagram - CAN -AKS00CAW TKWM2376E

Page 3773 of 4731

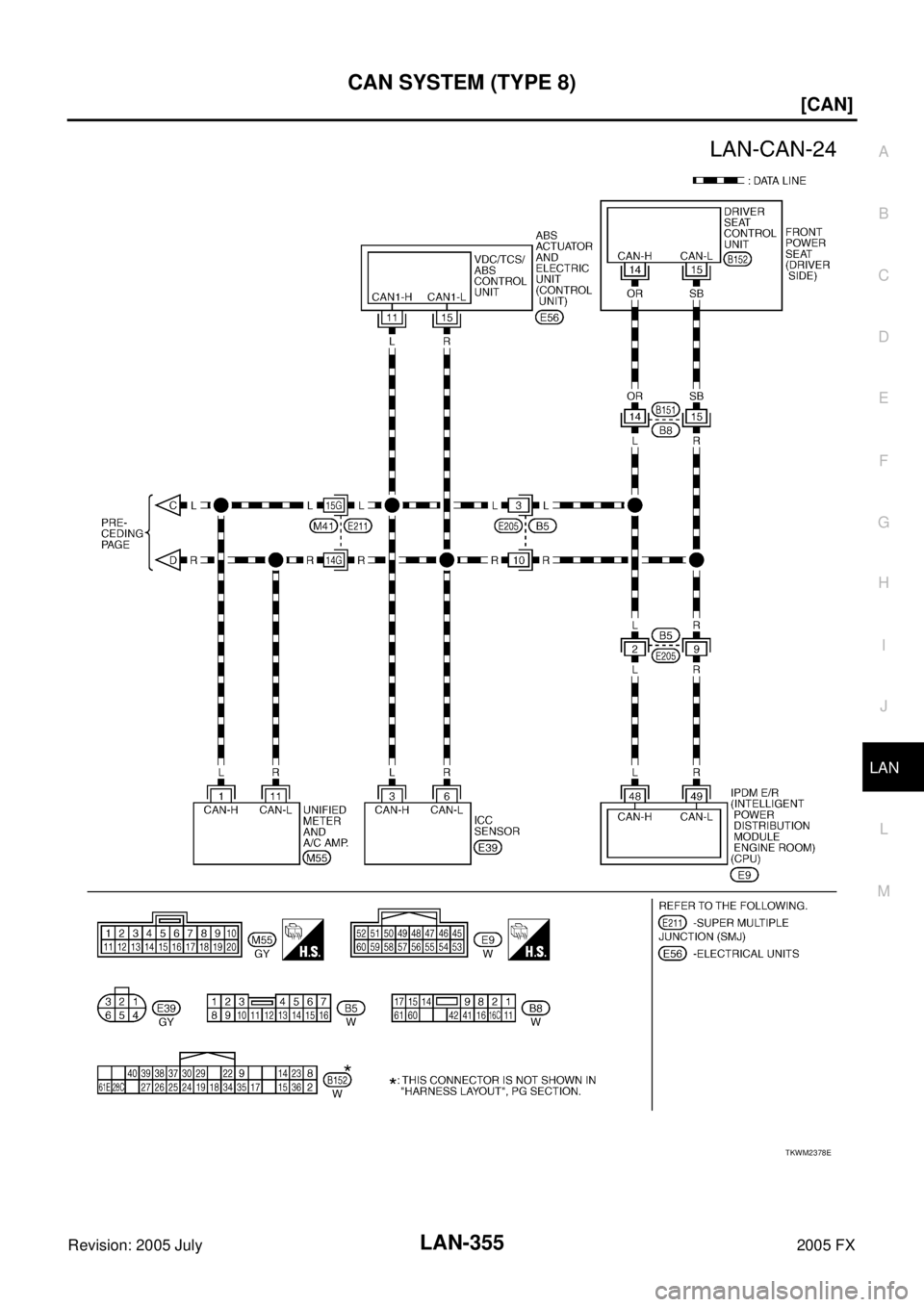

INFINITI FX35 2005 Service Manual LAN-354 [CAN] CAN SYSTEM (TYPE 8) Revision: 2005 July 2005 FX TKWM2377E

Page 3774 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 8) LAN-355 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX TKWM2378E

Page 3775 of 4731

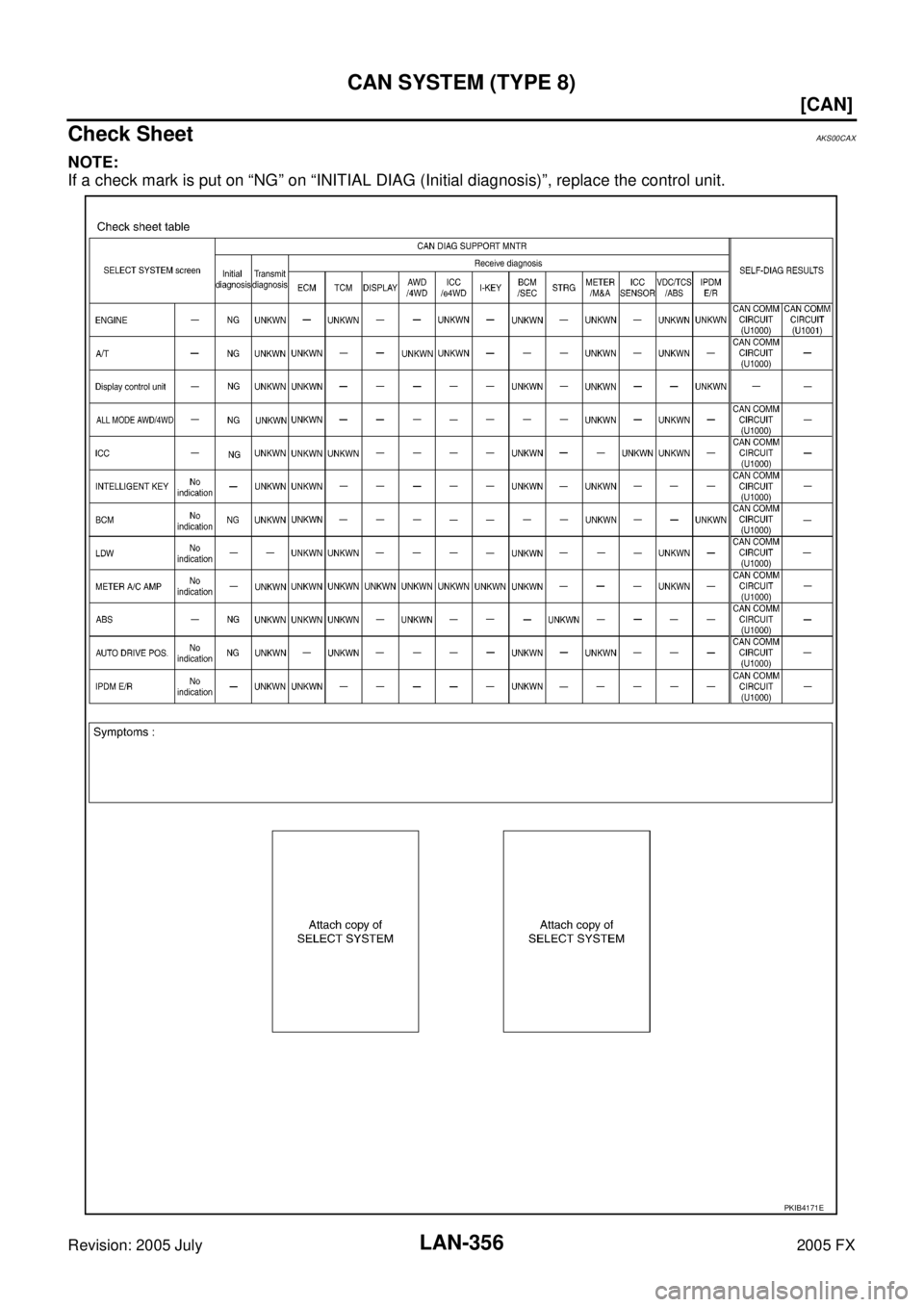

INFINITI FX35 2005 Service Manual LAN-356 [CAN] CAN SYSTEM (TYPE 8) Revision: 2005 July 2005 FX Check SheetAKS00CAX NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIB417

Page 3776 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 8) LAN-357 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX PKIB4177E
