EC-1384
[VK45DE]
ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and stop lamp switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK STOP LAMP SWITCH
Refer to EC-1384, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> Replace stop lamp switch.
13. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END

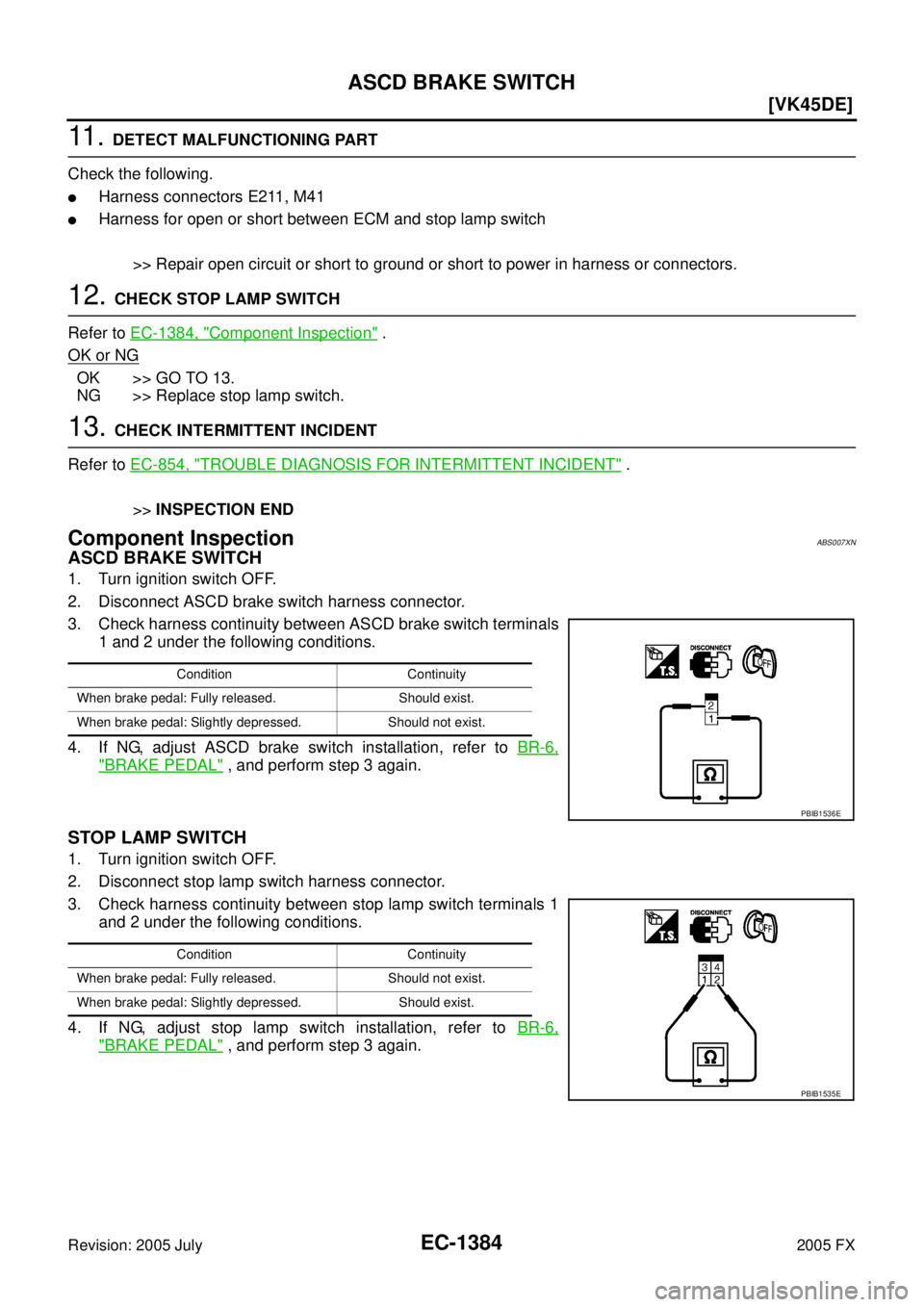

Component InspectionABS007XN
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.
4. If NG, adjust ASCD brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
4. If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
Condition Continuity
When brake pedal: Fully released. Should exist.
When brake pedal: Slightly depressed. Should not exist.
PBIB1536E
Condition Continuity
When brake pedal: Fully released. Should not exist.
When brake pedal: Slightly depressed. Should exist.
PBIB1535E
Page 2778 of 4731
![INFINITI FX35 2005 Service Manual ASCD INDICATOR EC-1385
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
ASCD INDICATORPFP:24814
Component DescriptionABS007XO
ASCD indicator lamp illuminates to indicate AS INFINITI FX35 2005 Service Manual ASCD INDICATOR EC-1385
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
ASCD INDICATORPFP:24814
Component DescriptionABS007XO
ASCD indicator lamp illuminates to indicate AS](/manual-img/42/57020/w960_57020-2777.png)
ASCD INDICATOR EC-1385
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
ASCD INDICATORPFP:24814
Component DescriptionABS007XO
ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE lamp illuminates when MAIN switch on ASCD steering switch is turned ON to indicated that ASCD
system is ready for operation.
SET lamp illuminates when following conditions are met.
CRUISE lamp is illuminated.
SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of
ASCD setting.
SET lamp remains lit during ASCD control.
Refer to EC-727, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeABS007XP
Specification data are reference value.
MONITOR ITEM CONDITION SPECIFICATION
CRUISE LAMP
Ignition switch: ON MAIN switch: Pressed at the 1st time
→
at the 2nd time ON
→ OFF
SET LAMP
MAIN switch: ON
When vehicle speed is between
40 km/h (25 MPH) and 144 km/h
(89 MPH) ASCD is operating ON
ASCD is not operating OFF
Page 2779 of 4731
EC-1386
[VK45DE]
ASCD INDICATOR
Revision: 2005 July 2005 FX

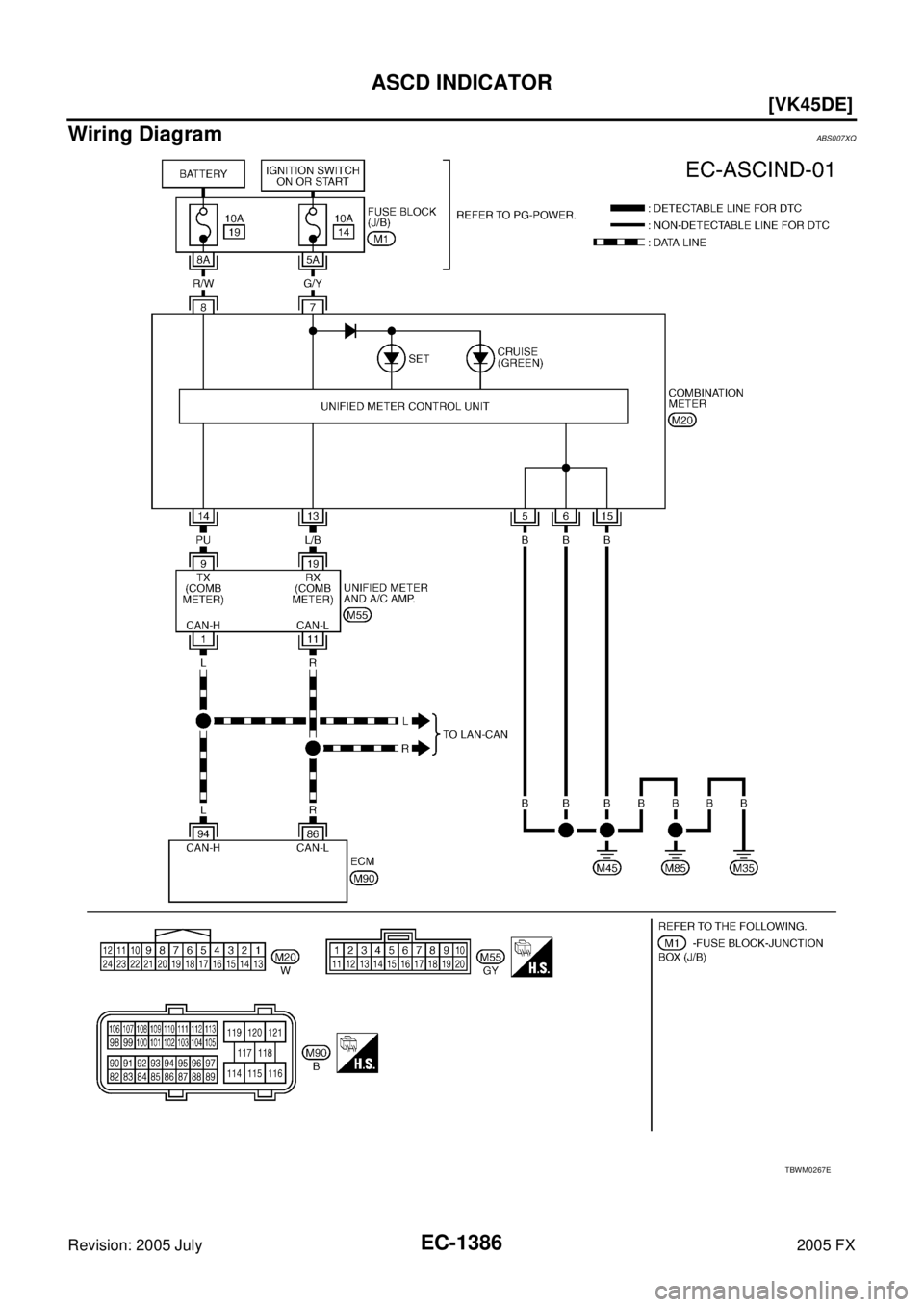

Wiring DiagramABS007XQ
TBWM0267E
Page 2780 of 4731
![INFINITI FX35 2005 Service Manual ASCD INDICATOR EC-1387
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS007XR
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following con INFINITI FX35 2005 Service Manual ASCD INDICATOR EC-1387
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS007XR
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following con](/manual-img/42/57020/w960_57020-2779.png)
ASCD INDICATOR EC-1387
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS007XR
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
2. CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
OK >> GO TO 3.
NG >> Perform trouble diagnosis for DTC U1000, U1001. Refer to EC-862, "
DTC U1000, U1001 CAN
COMMUNICATION LINE" .
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-32, "
SELF-DIAGNOSTIC RESULTS" .
OK or NG
OK >> GO TO 4.
NG >> Go to DI-34, "
DTC [B2202] Meter Communication Circuit" .
4. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
ASCD INDICATOR CONDITION SPECIFICATION
CRUISE LAMP
Ignition switch: ON
MAIN switch: Pressed at the
1st time →
at the 2nd time ON
→ OFF
SET LAMP
MAIN switch: ON
When vehicle speed is
between 40 km/h (25 MPH)
and 144 km/h (89 MPH)
ASCD is operating ON
ASCD is not operating OFF
Page 2781 of 4731
EC-1388
[VK45DE]
SNOW MODE SWITCH
Revision: 2005 July 2005 FX
SNOW MODE SWITCHPFP:25130
DescriptionABS00A2I
The snow mode switch signal is sent to the “unified meter and A/C amp.” from the snow mode switch. The
“unified meter and A/C amp.” then sends the signal to the ECM by CAN communication line.
The snow mode is used for driving or starting the vehicle on snowy roads or slippery areas. If the snow mode
is activated, the vehicle speed will not be accelerated immediately than your original pedal in due to avoid the
vehicle slip. In other words, ECM controls the rapid engine torque change by controlling the electric throttle
control actuator operating speed.
CONSULT-II Reference Value in the Data Monitor ModeABS00A2J
MONITOR ITEM CONDITION SPECIFICATION
SNOW MODE SW
Ignition switch: ON Snow mode switch: ON ON
Snow mode switch: OFF OFF
Page 2782 of 4731
SNOW MODE SWITCH EC-1389
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

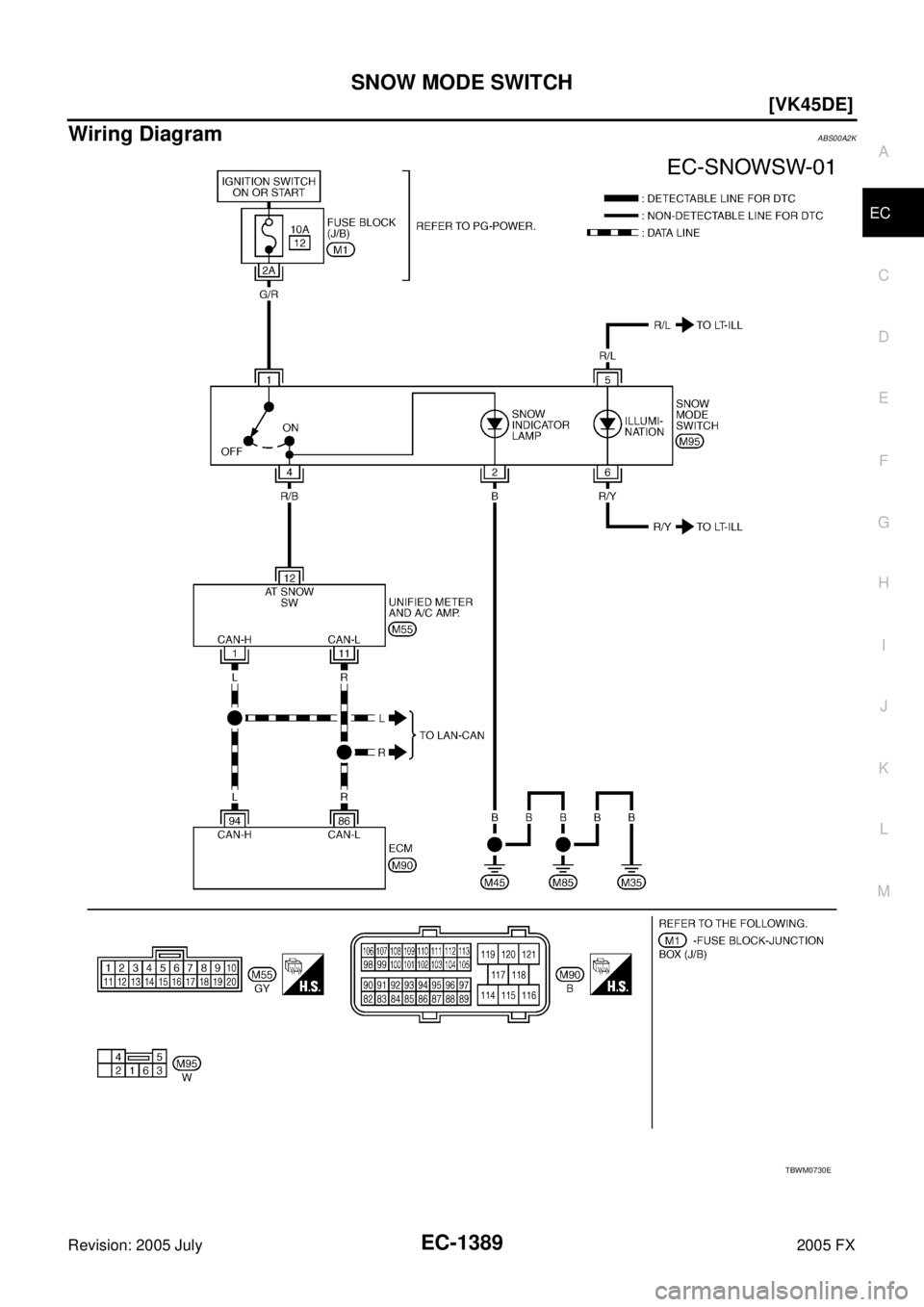

Wiring DiagramABS00A2K
TBWM0730E
Page 2783 of 4731
![INFINITI FX35 2005 Service Manual EC-1390
[VK45DE]
SNOW MODE SWITCH
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS00A2L

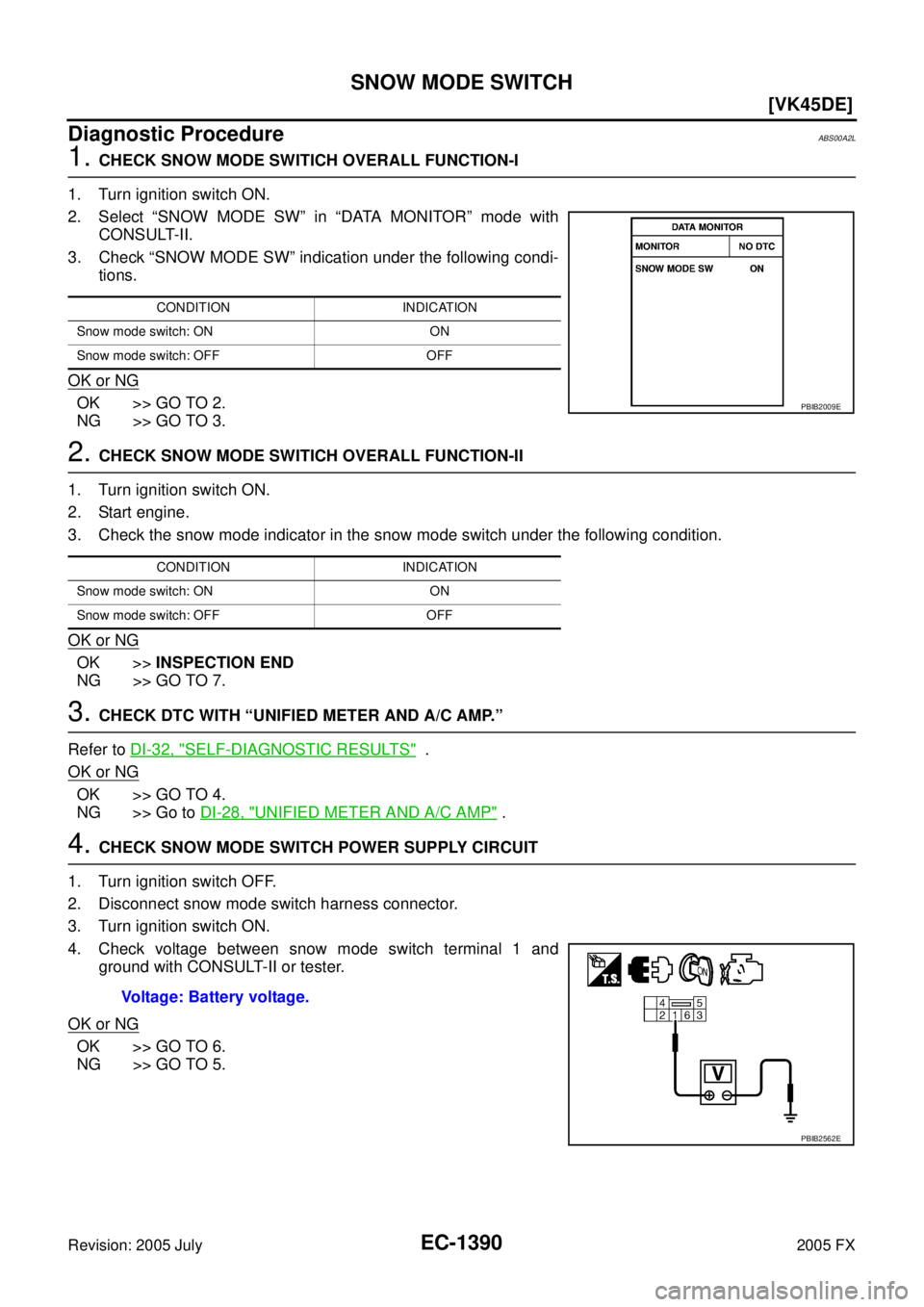

1. CHECK SNOW MODE SWITICH OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Select “SNOW MODE SW” in INFINITI FX35 2005 Service Manual EC-1390
[VK45DE]
SNOW MODE SWITCH
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS00A2L
1. CHECK SNOW MODE SWITICH OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Select “SNOW MODE SW” in](/manual-img/42/57020/w960_57020-2782.png)
EC-1390
[VK45DE]
SNOW MODE SWITCH
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS00A2L
1. CHECK SNOW MODE SWITICH OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Select “SNOW MODE SW” in “DATA MONITOR” mode with CONSULT-II.
3. Check “SNOW MODE SW” indication under the following condi- tions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK SNOW MODE SWITICH OVERALL FUNCTION-II
1. Turn ignition switch ON.
2. Start engine.
3. Check the snow mode indicator in the snow mode switch under the following condition.
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-32, "
SELF-DIAGNOSTIC RESULTS" .
OK or NG
OK >> GO TO 4.
NG >> Go to DI-28, "
UNIFIED METER AND A/C AMP" .
4. CHECK SNOW MODE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect snow mode switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between snow mode switch terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
CONDITION INDICATION
Snow mode switch: ON ON
Snow mode switch: OFF OFF
PBIB2009E
CONDITION INDICATION
Snow mode switch: ON ON
Snow mode switch: OFF OFF
Voltage: Battery voltage.
PBIB2562E
Page 2784 of 4731
![INFINITI FX35 2005 Service Manual SNOW MODE SWITCH EC-1391
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. DETECT MALFUNCTIONING PART
Check the following.
10A fuse
Harness for open or short between s INFINITI FX35 2005 Service Manual SNOW MODE SWITCH EC-1391
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. DETECT MALFUNCTIONING PART
Check the following.
10A fuse
Harness for open or short between s](/manual-img/42/57020/w960_57020-2783.png)
SNOW MODE SWITCH EC-1391
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. DETECT MALFUNCTIONING PART
Check the following.
10A fuse
Harness for open or short between snow mode switch and fuse.
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK SNOW MODE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C amp.” harness connector.
3. Check harness continuity between snow mode switch terminal 4 and “unified meter and A/C amp.” termi- nal 12. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.

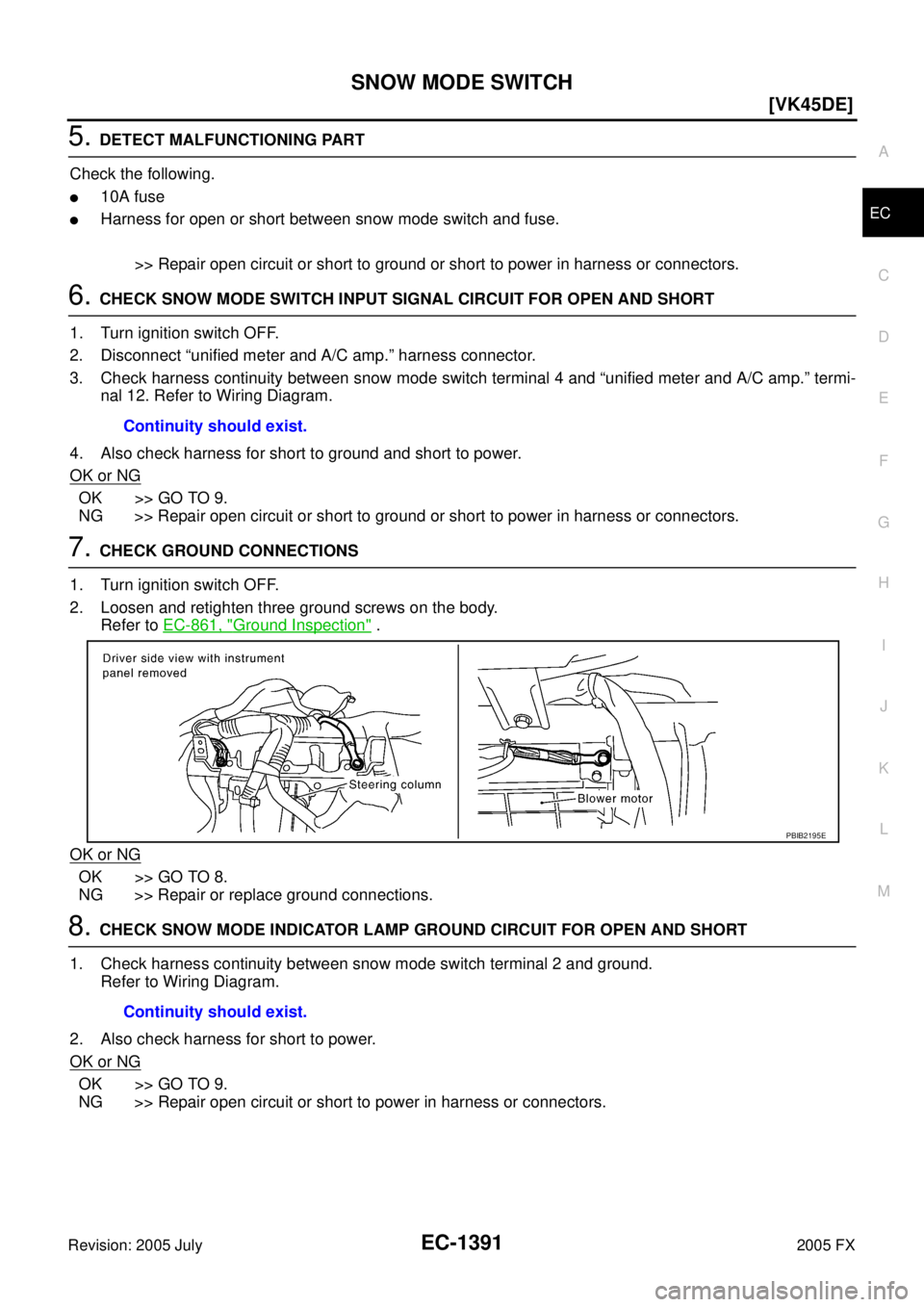

7. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-861, "
Ground Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace ground connections.
8. CHECK SNOW MODE INDICATOR LAMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between snow mode switch terminal 2 and ground. Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to power in harness or connectors. Continuity should exist.
PBIB2195E
Continuity should exist.
