Page 3825 of 4731

INFINITI FX35 2005 Service Manual LAN-406 [CAN] CAN SYSTEM (TYPE 9) Revision: 2005 July 2005 FX PKIC3680E

Page 3826 of 4731

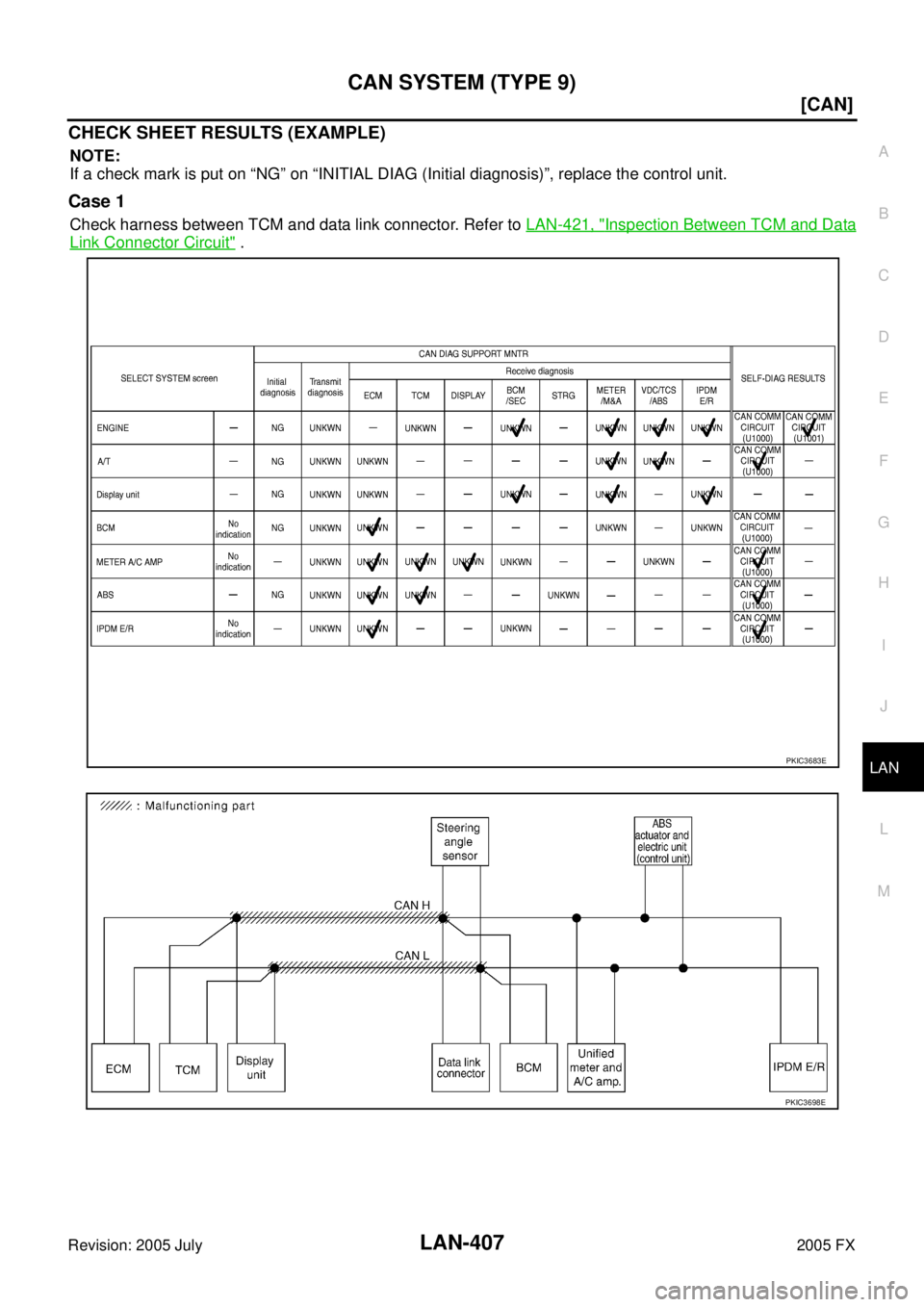

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 9) LAN-407 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initi

Page 3827 of 4731

INFINITI FX35 2005 Service Manual LAN-408 [CAN] CAN SYSTEM (TYPE 9) Revision: 2005 July 2005 FX Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-422, "Inspection Between Data Link Connector

Page 3828 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 9) LAN-409 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (contr

Page 3829 of 4731

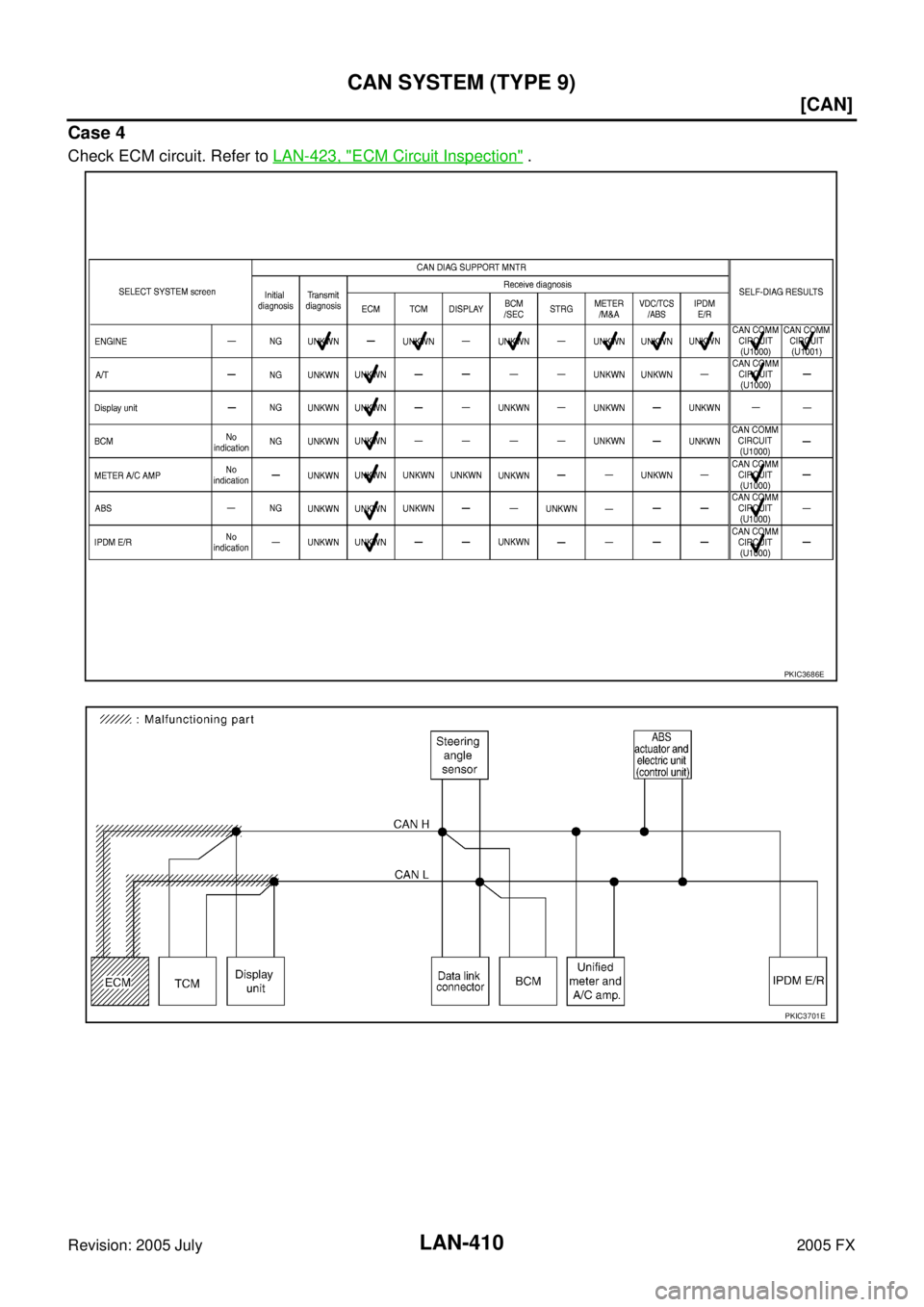

INFINITI FX35 2005 Service Manual LAN-410 [CAN] CAN SYSTEM (TYPE 9) Revision: 2005 July 2005 FX Case 4 Check ECM circuit. Refer to LAN-423, "ECM Circuit Inspection" . PKIC3686E PKIC3701E

Page 3830 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 9) LAN-411 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 5 Check TCM circuit. Refer to LAN-423, "TCM Circuit Inspection" . PKIC3687E PKIC3702E

Page 3831 of 4731

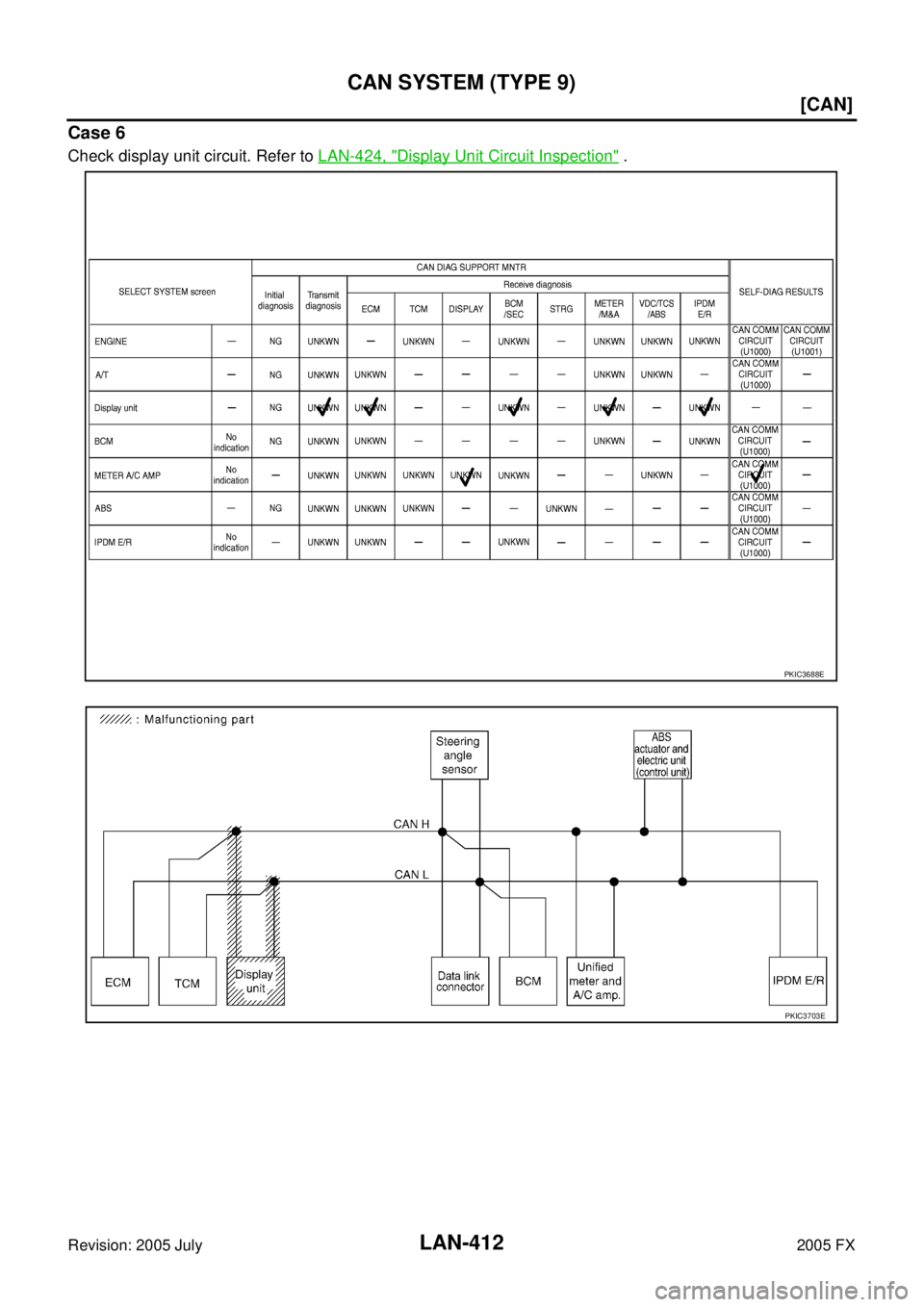

INFINITI FX35 2005 Service Manual LAN-412 [CAN] CAN SYSTEM (TYPE 9) Revision: 2005 July 2005 FX Case 6 Check display unit circuit. Refer to LAN-424, "Display Unit Circuit Inspection" . PKIC3688E PKIC3703E

Page 3832 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 9) LAN-413 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 7 Check data link connector circuit. Refer to LAN-424, "Data Link Connector Circuit Inspecti
