Page 969 of 4731
BL-154
DOOR
Revision: 2005 July 2005 FX
STRIKER ADJUSTMENT
1. Adjust the striker so that it becomes parallel with the lock inser-
tion direction.
Removal and Installation of Front DoorAIS004NW
CAUTION:
When removing and installing the front door assembly, support the door with a jack and cloth to
protect the door and body.
When removing and installing front door assembly, be sure to carry out the fitting adjustment
Refer to BL-153, "
Fitting Adjustment" .
Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.
After installing, apply touch-up paint (the body color) onto the head of the hinge mounting nuts.
Operate with two workers, because of its heavy weight.
After installing, check operation.
REMOVAL
1. Pull the lever and remove the front door harness connector
while removing tabs of door harness connector.
2. Remove the mounting bolts of the check link on the vehicle.
PIIA6019E
PIIA2514E
PIIA6020E
Page 970 of 4731
DOOR
BL-155
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
3. Remove the door-side hinge mounting nuts, and remove the
door assembly.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Rear DoorAIS004NX
CAUTION:
When removing and installing the rear door assembly, support the door with a jack and cloth to
protect the door and body.
When removing and installing rear door assembly, be sure to carry out the fitting adjustment Refer
to BL-153, "
Fitting Adjustment" .
After installing, apply touch-up paint (the body color) onto the head of the hinge mounting nuts.
Operate with two workers, because of its heavy weight.
Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.
After installing, check operation.
REMOVAL
1. Grommet is pulled out, and the Rear door harness connector is
detached.
2. Remove the mounting bolts of the check link on the vehicle.
PIIA6021E
PIIA2787E
PIIA6022E
Page 971 of 4731
BL-156
DOOR
Revision: 2005 July 2005 FX
3. Remove the door-side hinge mounting nuts, and remove the
door assembly.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Door WeatherstripAIS004NY
REMOVAL
1. Remove the mounting bolts of the check link on the vehicle. Refer to BL-154, "Removal and Installation of
Front Door" or BL-155, "Removal and Installation of Rear Door" .
2. Remove the weatherstrip clips and remove weatherstrip.
INSTALLATION
Install in the reverse order of removal.
PIIA6023E
1. Weatherstrip 2. Clip
PIIA6024E
Page 972 of 4731

FRONT DOOR LOCK BL-157
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX

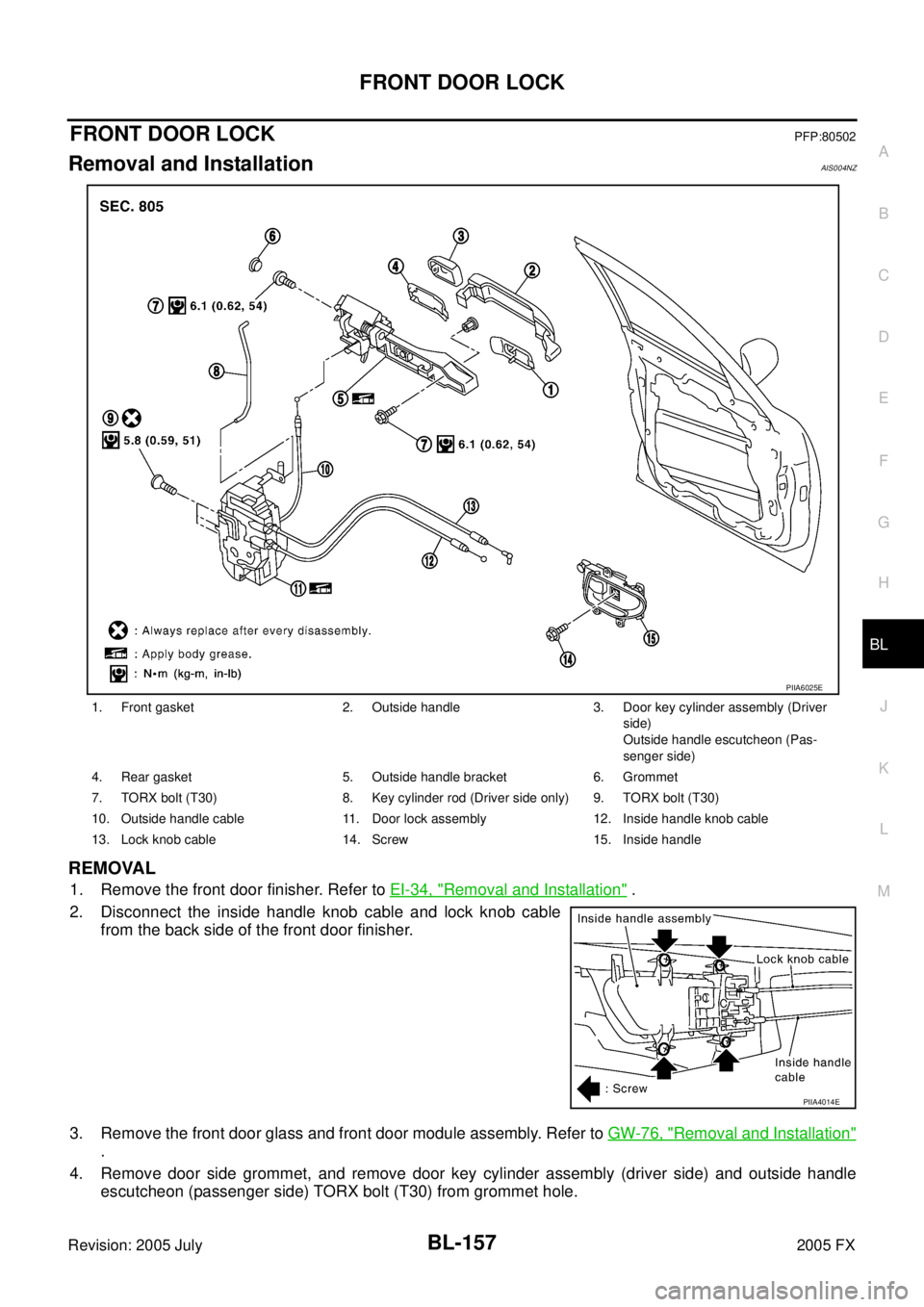

FRONT DOOR LOCKPFP:80502
Removal and InstallationAIS004NZ
REMOVAL
1. Remove the front door finisher. Refer to EI-34, "Removal and Installation" .
2. Disconnect the inside handle knob cable and lock knob cable from the back side of the front door finisher.
3. Remove the front door glass and front door module assembly. Refer to GW-76, "
Removal and Installation"
.
4. Remove door side grommet, and remove door key cylinder assembly (driver side) and outside handle escutcheon (passenger side) TORX bolt (T30) from grommet hole.
1. Front gasket 2. Outside handle 3. Door key cylinder assembly (Driver
side)
Outside handle escutcheon (Pas-
senger side)
4. Rear gasket 5. Outside handle bracket 6. Grommet
7. TORX bolt (T30) 8. Key cylinder rod (Driver side only) 9. TORX bolt (T30)
10. Outside handle cable 11. Door lock assembly 12. Inside handle knob cable
13. Lock knob cable 14. Screw 15. Inside handle
PIIA6025E
PIIA4014E
Page 973 of 4731
BL-158
FRONT DOOR LOCK
Revision: 2005 July 2005 FX
CAUTION:
Do not forcibly remove the TORX bolt (T30).
5. Reach to separate the key cylinder rod connection (on the handle).
6. While pulling the outside handle, remove door key cylinder assembly (driver side) and outside handle escutcheon (passen-
ger side).
7. Disconnect the door request switch connector. (Intelligent Key only)
8. While pulling outside handle, slide toward rear of vehicle to remove outside handle.
9. Remove the front gasket and rear gasket.
PIIA3553E
PIIA3554E
PIIA3555E
PIIA3557E
Page 974 of 4731
FRONT DOOR LOCK BL-159
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
10. Remove the TORX bolt (T30) of the outside handle bracket.
11. While pulling outside handle bracket, slide toward front of vehi-
cle to remove outside handle bracket.
12. Reach to separate outside handle cable connection.
13. Remove the TORX bolts (T30) of door lock assembly.
14. Disconnect the door lock actuator connector and remove door lock assembly.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
To install each rod, be sure to rotate the rod holder until a click is felt.
PIIA7117E
PIIA3558E
PIIA6026E
PIIA1090E
Page 975 of 4731
BL-160
FRONT DOOR LOCK
Revision: 2005 July 2005 FX
Disassembly and AssemblyAIS004O1
DOOR KEY CYLINDER ASSEMBLY
Remove the key cylinder escutcheon pawl and remove the door key cylinder.
1. Door key cylinder assembly 2. Key cylinder escutcheon 3. Door key cylinder
PIIA6431E
Page 976 of 4731
REAR DOOR LOCK BL-161
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
REAR DOOR LOCKPFP:82502
Removal and InstallationAIS004O2
REMOVAL
1. Remove the rear door finisher. Refer to EI-34, "Removal and Installation" .
2. Disconnect the inside handle knob cable and lock knob cable from the back side of the front door finisher.
3. Remove the rear door sealing, glass and corner piece assembly. Refer to GW-80, "
Removal and Installa-
tion" .
4. Remove door side grommet, and remove outside handle escutcheon bolt (TORX T30) from grommet hole.
1. Front gasket 2. Outside handle 3. Outside handle escutcheon
4. Rear gasket 5. Outside handle bracket 6. Grommet
7. TORX bolt (T30) 8. Outside handle cable 9. TORX bolts (T30)
10. Door lock assembly 11. Inside handle knob cable 12. Lock knob cable
13. Screw 14. Inside handle
PIIA6027E
PIIA4014E
