45 PU/W ECV (Electric Control Valve)
signal ON
Self-diagnosis. STEP-4
(Code No. 45)
46 L/W Power supply for IGN2 ON — Battery voltage
49 W/G Sensor ground ON — Approx. 0
50 LG Sunload sensor — — —
53 G Blower motor control signal ON Blower speed: 1st step
54 Y/R Power supply for each door
motor ON — Battery voltage
57 BR/Y Blower motor ON signal ON A/C switch: ON
(Blower motor operates.) Approx. 0
OFF switch: ON
(A/C system: OFF) Approx. 5
Te r m i n a l
No. Wire
color ItemIgnition
switch Condition Voltag e
(V)
RJIA1606E
SJIA0116J
Page 490 of 4731
TROUBLE DIAGNOSIS ATC-53
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2005 July 2005 FX
Self-diagnosis FunctionAJS0014P
DESCRIPTION
The self-diagnosis system diagnoses sensors, door motors, blower motor, etc. by system line. Refer to appli-
cable sections (items) for details. Shifting from usual control to the self-diagnosis system is accomplished by
starting the engine (turning the ignition switch ON) and pressing OFF switch for at least 5 seconds. The OFF
switch must be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This system
will be canceled by either pressing AUTO switch or turning the ignition switch OFF. Shifting from one step to
another is accomplished by means of pressing temperature switch (driver side), as required.
Shifting from STEP-5 to AUXILIARY MECHANISM is accomplished by means of pressing (fan) UP switch.
RJIA1967E
Page 491 of 4731

ATC-54
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
FUNCTION CONFIRMATION PROCEDURE
1. SET IN SELF-DIAGNOSIS MODE
1. Turn ignition switch ON.
2. Set in self-diagnosis mode as follows. Within 10 seconds after starting engine (ignition switch is turned ON.), press OFF switch for at least 5 seconds.
CAUTION:
If battery voltage drops below 12 V during diagnosis STEP-3, door motor speed becomes slower
and as a result, the system may generate an error even when operation is normal. To avoid this,
start engine before performing this diagnosis.
Former STEP-1 (LEDs and display screen are checked) does not exist in this self-diagnosis func-
tion.
>> GO TO 2.
2. STEP-2: SENSOR CIRCUITS ARE CHECKED FOR OPEN OR SHORT CIRCUIT
Does code No. 20 appear on the display?
YES >> GO TO 3.
NO >> GO TO 13.
3. CHECK TO ADVANCE SELF-DIAGNOSIS STEP-3
Press temperature (UP) switch (driver side).
Advance to self
-diagnosis STEP-3?
YES >> GO TO 4.
NO >> Replace A/C and AV switch. (Temperature dial malfunctions.)
4. CHECK TO RETURN SELF-DIAGNOSIS STEP-2
Press temperature (DOWN) switch (driver side).
Return to self
-diagnosis STEP-2?
YES >> GO TO 5.
NO >> Malfunctioning OFF switch or unified meter and A/C amp. Refer to ATC-102, "
Self-diagnosis" .
5. STEP-3: MODE DOOR AND INTAKE DOOR POSITIONS ARE CHECKED
Press temperature (UP) switch (driver side).
Does code No. 30 appear on the display?
YES >> GO TO 6.
NO >> GO TO 14.
RJIA0219E
RJIA0220E
Page 492 of 4731

TROUBLE DIAGNOSIS ATC-55
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2005 July 2005 FX
6. STEP-4: OPERATION OF EACH DOOR MOTOR IS CHECKED
1. Press temperature (UP) switch (driver side).
2. Press (DEF) switch. Code No. of each door motor test is indicated on the display.
>> GO TO 7.
7. CHECK ACTUATORS
Refer to the following chart and confirm discharge air flow, air tem-
perature, blower motor duty ratio and compressor operation.
Checks must be made visually, by listening to any noise, or by touching air outlets with hand, etc. for improper
operation.
*1: FOOT position during automatic control. Refer to AT C - 6 0 , "
AUXILIARY MECHANISM: FOOT POSITION
SETTING TRIMMER" .
OK or NG
OK >> GO TO 8.
NG >>
Air outlet does not change.
Go to Mode Door Motor Circuit. Refer to AT C - 7 0 , "
Mode Door Motor Circuit" .
Intake door does not change.
Go to Intake Door Motor Circuit. Refer to AT C - 7 6 , "
Intake Door Motor Circuit" .
Blower motor operation is malfunctioning.
Go to Blower Motor Circuit. Refer to AT C - 7 9 , "
Blower Motor Circuit" .
Magnet clutch does not engage.
Go to Magnet Clutch Circuit. Refer to AT C - 8 4 , "
Magnet Clutch Circuit" .
Discharge air temperature does not change.
Go to Air Mix Door Motor Circuit. Refer to AT C - 7 3 , "
Air Mix Door Motor Circuit" .
RJIA1968E
SJIA0302E
Code No. 414243444546
Mode door position VENT B/L 1 B/L 2 FOOT
*1D/F DEF
Intake door position REC REC 20% FRE FRE FRE FRE
Air mix door position FULL COLD FULL COLD FULL HOT FULL HOT FULL HOT FULL HOT
Blower motor duty ratio 37% 91% 65% 65% 65% 91%
Compressor ON ON OFF OFF ON ON
Electronic control valve
(ECV) duty ratio 100% 100% 0% 0% 50% 100%
Page 493 of 4731

ATC-56
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
8. STEP-5: TEMPERATURE OF EACH SENSOR IS CHECKED
1. Press temperature (UP) switch (driver side).
2. Code No. 51 appears on the display.
>> GO TO 9.
9. CHECK AMBIENT SENSOR

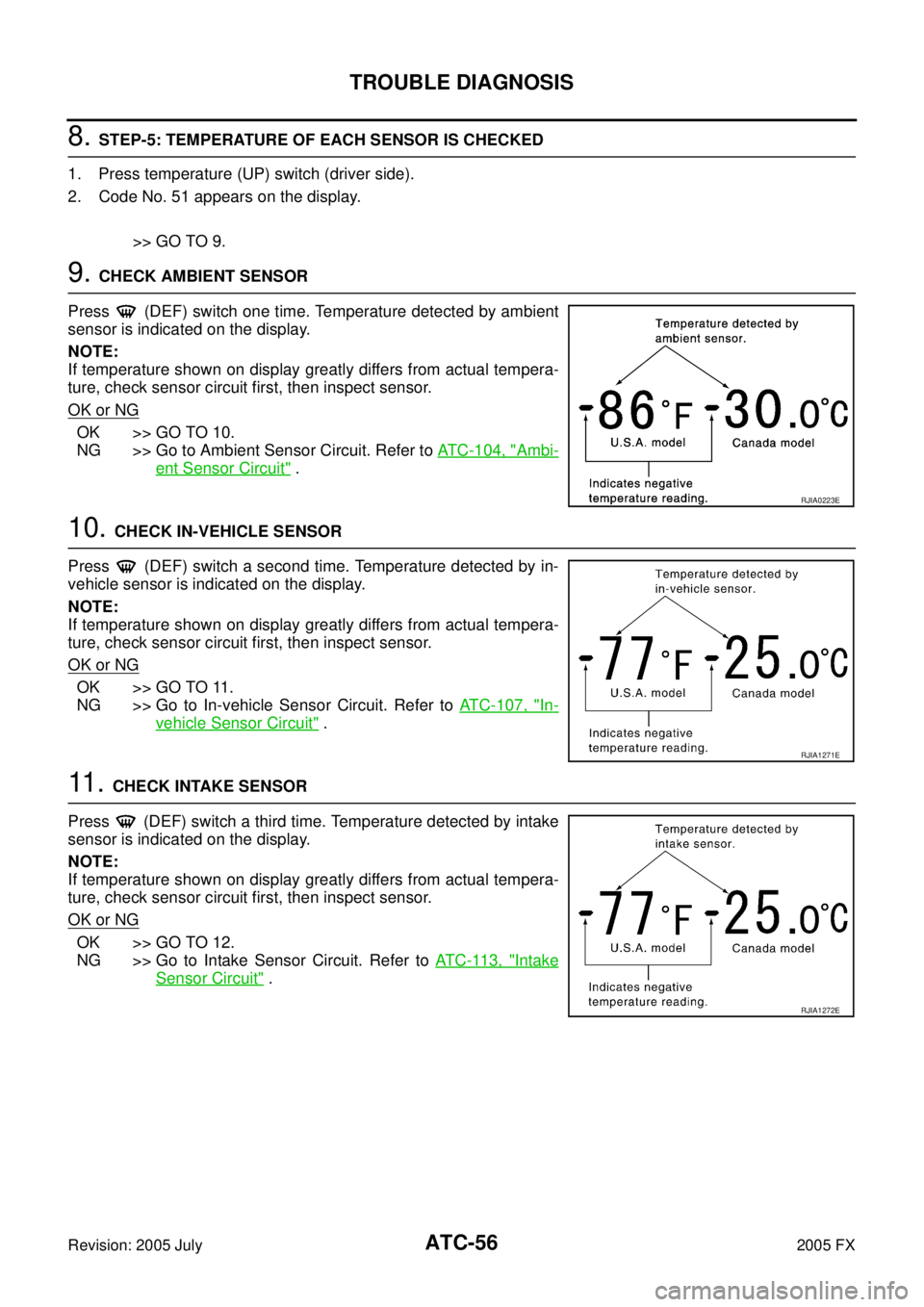

Press (DEF) switch one time. Temperature detected by ambient
sensor is indicated on the display.
NOTE:
If temperature shown on display greatly differs from actual tempera-
ture, check sensor circuit first, then inspect sensor.
OK or NG
OK >> GO TO 10.
NG >> Go to Ambient Sensor Circuit. Refer to ATC-104, "
Ambi-
ent Sensor Circuit" .
10. CHECK IN-VEHICLE SENSOR
Press (DEF) switch a second time. Temperature detected by in-
vehicle sensor is indicated on the display.
NOTE:
If temperature shown on display greatly differs from actual tempera-
ture, check sensor circuit first, then inspect sensor.
OK or NG
OK >> GO TO 11.
NG >> Go to In-vehicle Sensor Circuit. Refer to ATC-107, "
In-
vehicle Sensor Circuit" .
11 . CHECK INTAKE SENSOR
Press (DEF) switch a third time. Temperature detected by intake
sensor is indicated on the display.
NOTE:
If temperature shown on display greatly differs from actual tempera-
ture, check sensor circuit first, then inspect sensor.
OK or NG
OK >> GO TO 12.
NG >> Go to Intake Sensor Circuit. Refer to AT C - 11 3 , "
Intake
Sensor Circuit" .
RJIA0223E
RJIA1271E
RJIA1272E
Page 494 of 4731

TROUBLE DIAGNOSIS ATC-57
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2005 July 2005 FX
12. CHECK CAN COMMUNICATION ERROR
1. Press (REC) switch.
2. CAN communication error between unified meter and A/C amp. and display unit or display control unit is detected.
OK or NG
OK >> 1. Turn ignition switch OFF or AUTO switch ON. 2. INSPECTION END
NG >> Go to CAN communication. Refer to BCS-15, "
CAN
Communication Inspection Using CONSULT-II (Self-
Diagnosis)" .
Unified meter and A/C amp. - Display unit
Unified meter and A/C amp. - Display control unit
13. CHECK MALFUNCTIONING SENSOR
Refer to the following chart for malfunctioning code No.
(If two or more sensors malfunction, corresponding code Nos. blink respectively twice.)
*1: Perform self-diagnosis STEP-2 under sunshine.
When performing indoors, aim a light (more than 60 W) at sunload sensor, otherwise code No. 25 will indicate
despite that sunload sensor is functioning properly.
*2: ATC-104, "
DIAGNOSIS PROCEDURE FOR AMBIENT SENSOR" .
*3: ATC-108, "
DIAGNOSIS PROCEDURE FOR IN-VEHICLE SENSOR" .
*4: AT C - 11 3 , "
DIAGNOSIS PROCEDURE FOR INTAKE SENSOR" .
*5: AT C - 11 0 , "
DIAGNOSIS PROCEDURE FOR SUNLOAD SENSOR" .
*6: AT C - 7 5 , "
DIAGNOSIS PROCEDURE FOR AIR MIX DOOR MOTOR PBR" .
>> INSPECTION END
RJIA1969E
Code No. Malfunctioning sensor (Including circuits) Reference page 21 / −21 Ambient sensor *2
22 / −22 In-vehicle sensor *3
24 / −24 Intake sensor *4
25 / −25
Sunload sensor *
1*5
26 / −26 Air mix door motor PBR (Driver side)
*6
27 / −27 Air mix door motor PBR (Passenger side)
RJIA0227E
Page 495 of 4731

ATC-58
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
14. CHECK MALFUNCTIONING DOOR MOTOR POSITION SWITCH
Mode and/or intake door motor PBR(s) is/are malfunctioning.
(If two or more mode or intake doors are out of order, corresponding code numbers blink respectively twice.)
*1: If mode door motor harness connector is disconnected, the following display pattern will appear.
31 →32 →33 →34 →35 →36 →Return to 31
*2: If intake door motor harness connector is disconnected, the following display pattern will appear.
37 →38 →39 →Return to 37
*3: FOOT position during automatic control. Refer to AT C - 6 0 , "
AUXILIARY MECHANISM: FOOT POSITION
SETTING TRIMMER" .
*4: AT C - 7 2 , "
DIAGNOSIS PROCEDURE FOR MODE DOOR MOTOR" .
*5: AT C - 7 8 , "
DIAGNOSIS PROCEDURE FOR INTAKE DOOR MOTOR" .
>> INSPECTION END
Code No. *1 *2Mode or intake door position Reference page
31 VENT
Mode door motor *4
32 B/L 1
33 B/L 2
34 FOOT*
3
35 D/F
36 DEF
37 FRE
Intake door motor *5
38 20% FRE
39 REC
RJIA0228E
Page 496 of 4731
TROUBLE DIAGNOSIS ATC-59
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2005 July 2005 FX
AUXILIARY MECHANISM: TEMPERATURE SETTING TRIMMER
The trimmer compensates for differences in range of ±3°C ( ±6°F) between temperature setting (displayed dig-
itally) and temperature felt by customer.
Operating procedures for this trimmer are as follows:
1. Begin self-diagnosis STEP-5 mode. Refer to AT C - 5 3 , "
Self-diagnosis Function" .
2. Press (fan) UP switch to set system in auxiliary mode.
3. Display shows 61 in auxiliary mechanism. It takes approximately 3 seconds.
4. Press temperature switch (driver side) as desired. Temperature will change at a rate of 0.5 °C (1.0 °F) each
time a switch is pressed.
CAUTION:
A decimal point is not indicated when the display shows “ °C”.
When battery cable is disconnected, trimmer operation is canceled. Temperature set becomes that of initial
condition, i.e. 0 °C (0 °F).
