Page 3633 of 4731

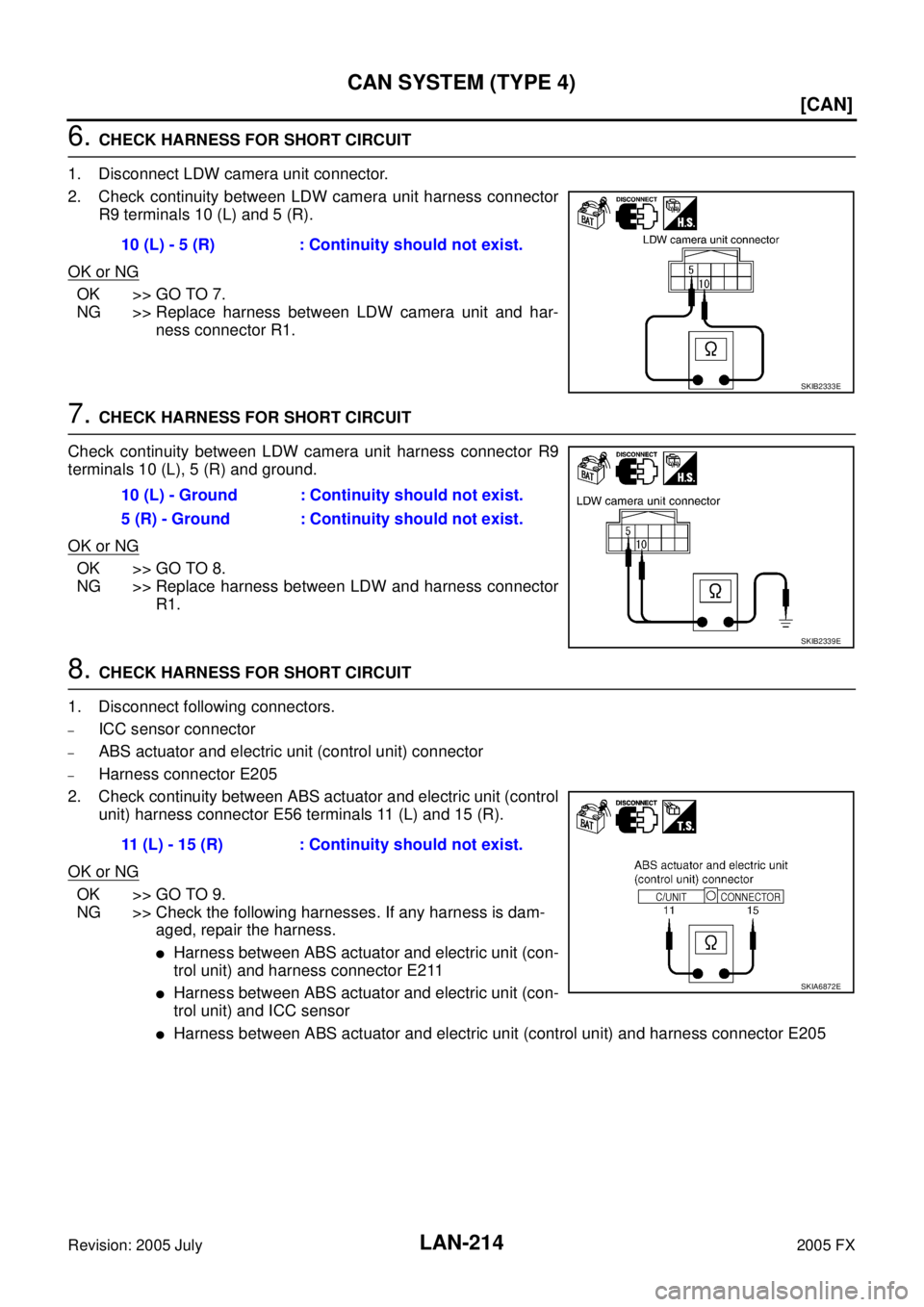

INFINITI FX35 2005 Service Manual LAN-214 [CAN] CAN SYSTEM (TYPE 4) Revision: 2005 July 2005 FX 6. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect LDW camera unit connector. 2. Check continuity between LDW camera unit harness connecto

Page 3634 of 4731

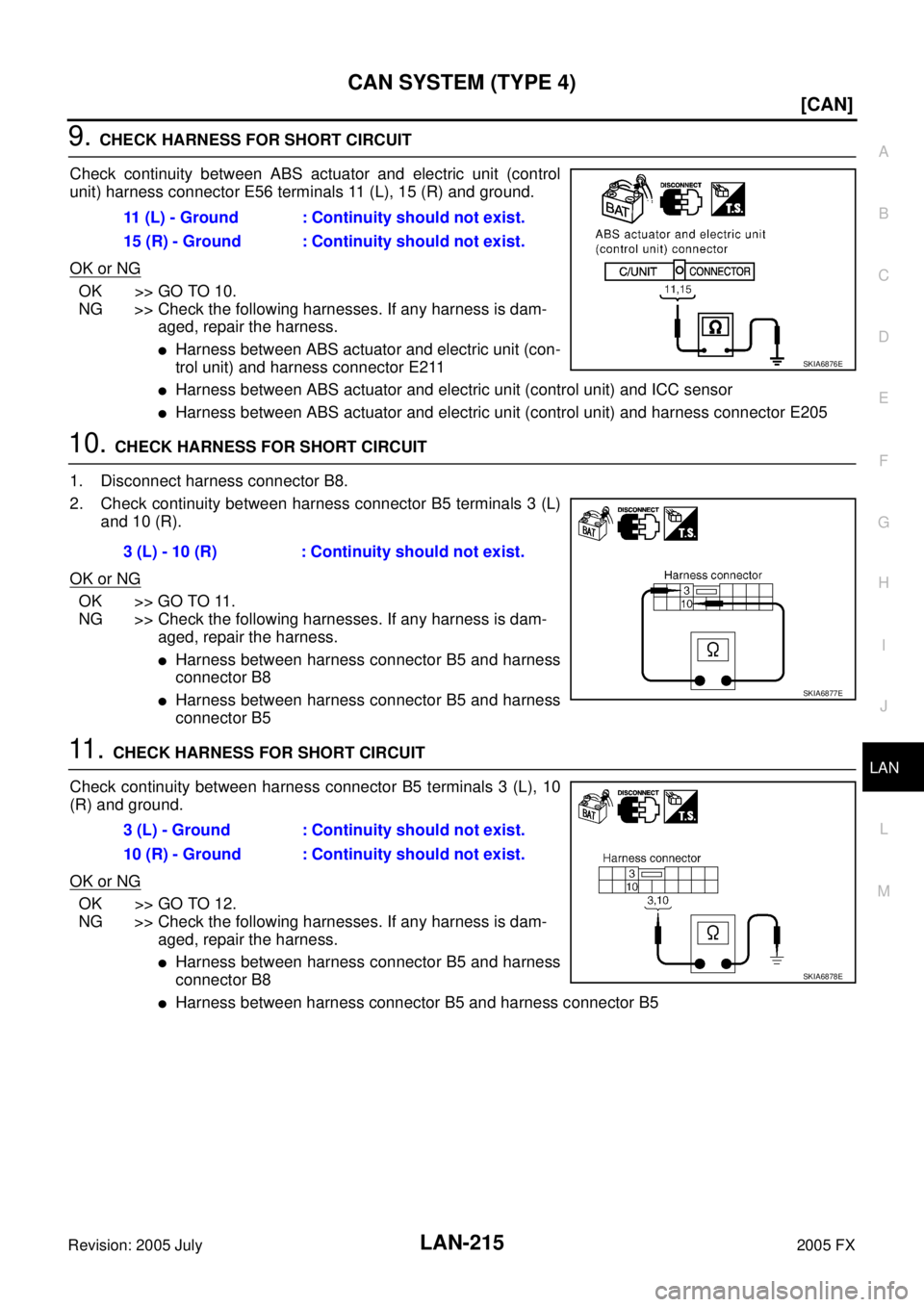

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 4) LAN-215 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX 9. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between ABS actuator and electric unit (cont

Page 3635 of 4731

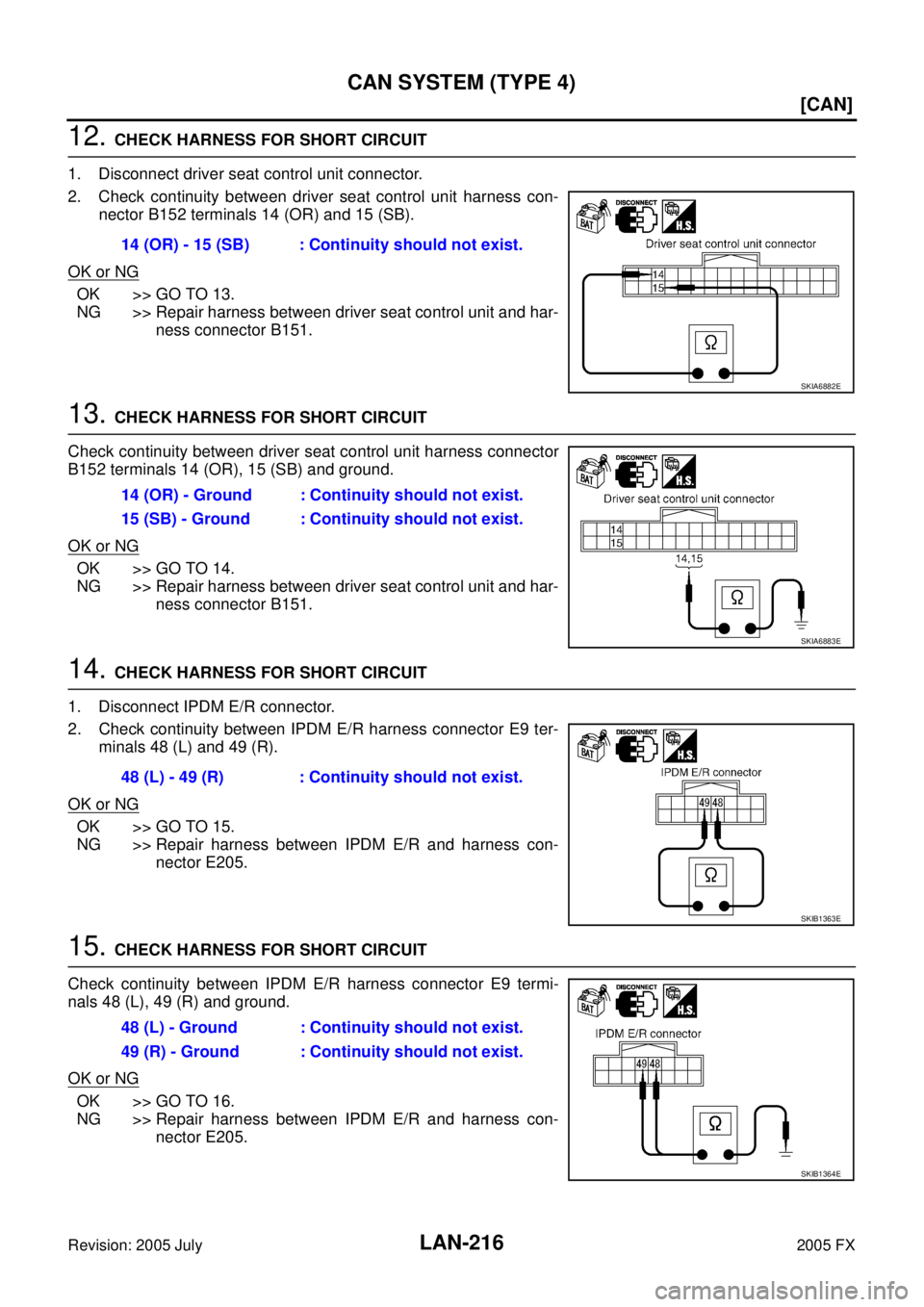

INFINITI FX35 2005 Service Manual LAN-216 [CAN] CAN SYSTEM (TYPE 4) Revision: 2005 July 2005 FX 12. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect driver seat control unit connector. 2. Check continuity between driver seat control un

Page 3636 of 4731

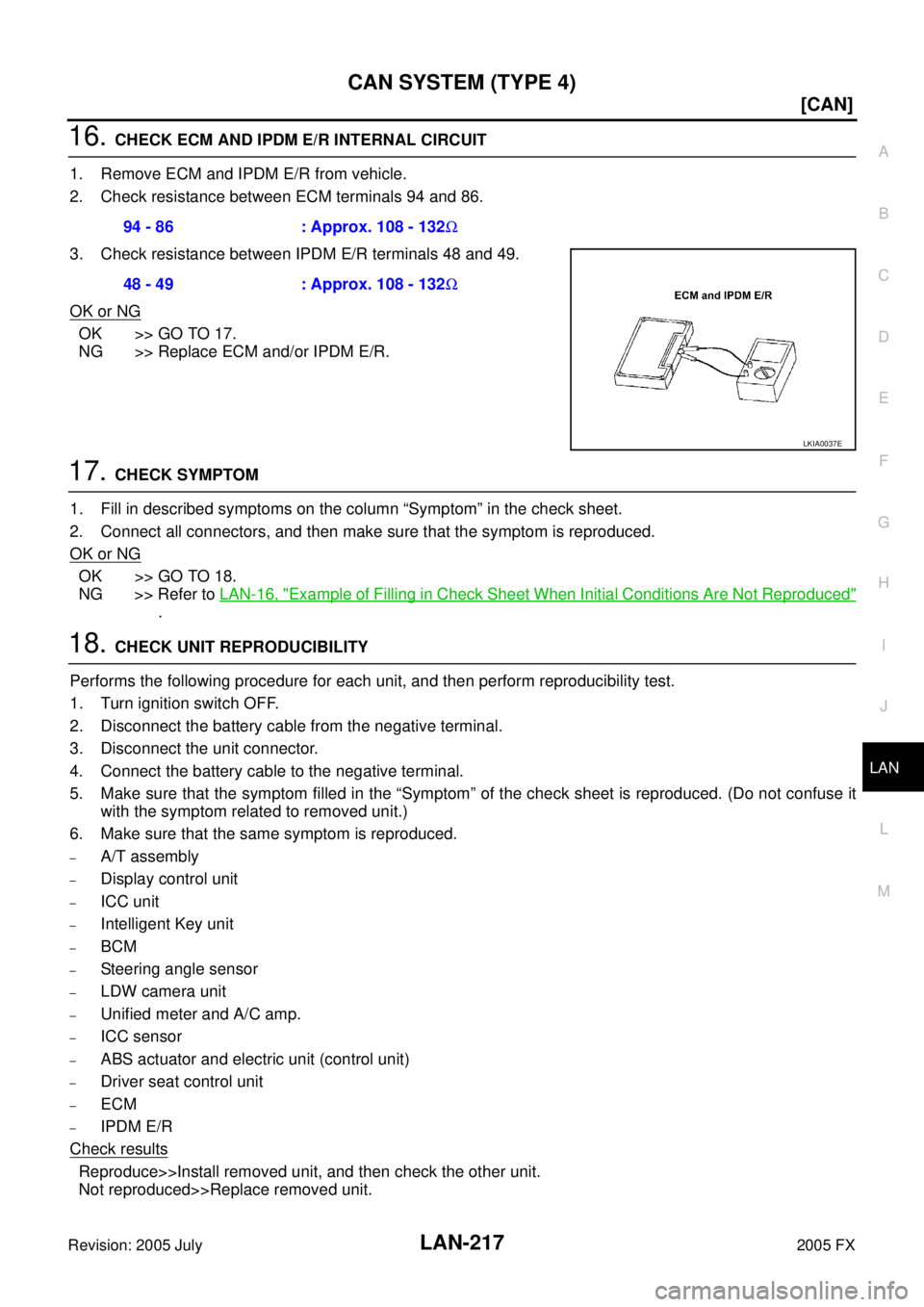

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 4) LAN-217 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX 16. CHECK ECM AND IPDM E/R INTERNAL CIRCUIT 1. Remove ECM and IPDM E/R from vehicle. 2. Check r

Page 3637 of 4731

INFINITI FX35 2005 Service Manual LAN-218 [CAN] CAN SYSTEM (TYPE 4) Revision: 2005 July 2005 FX IPDM E/R Ignition Relay Circuit InspectionAKS00CE9 Check the following. If no malfunction is found, replace the IPDM E/R. IPDM E/R power

Page 3638 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 5) LAN-219 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX CAN SYSTEM (TYPE 5)PFP:23710 Component Parts and Harness Connector LocationAKS00CD1 SKIA7122E

Page 3639 of 4731

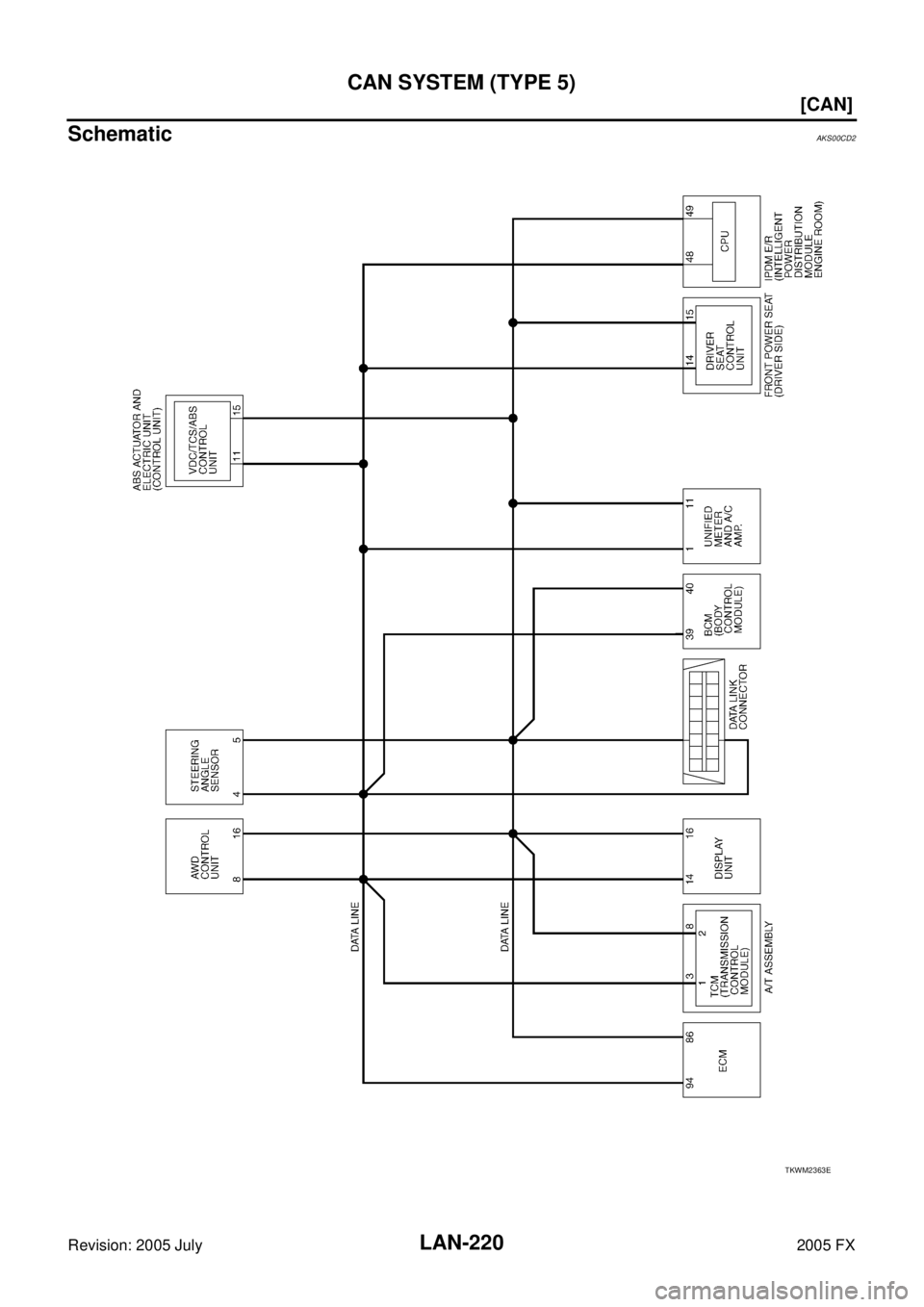

INFINITI FX35 2005 Service Manual LAN-220 [CAN] CAN SYSTEM (TYPE 5) Revision: 2005 July 2005 FX SchematicAKS00CD2 TKWM2363E

Page 3640 of 4731

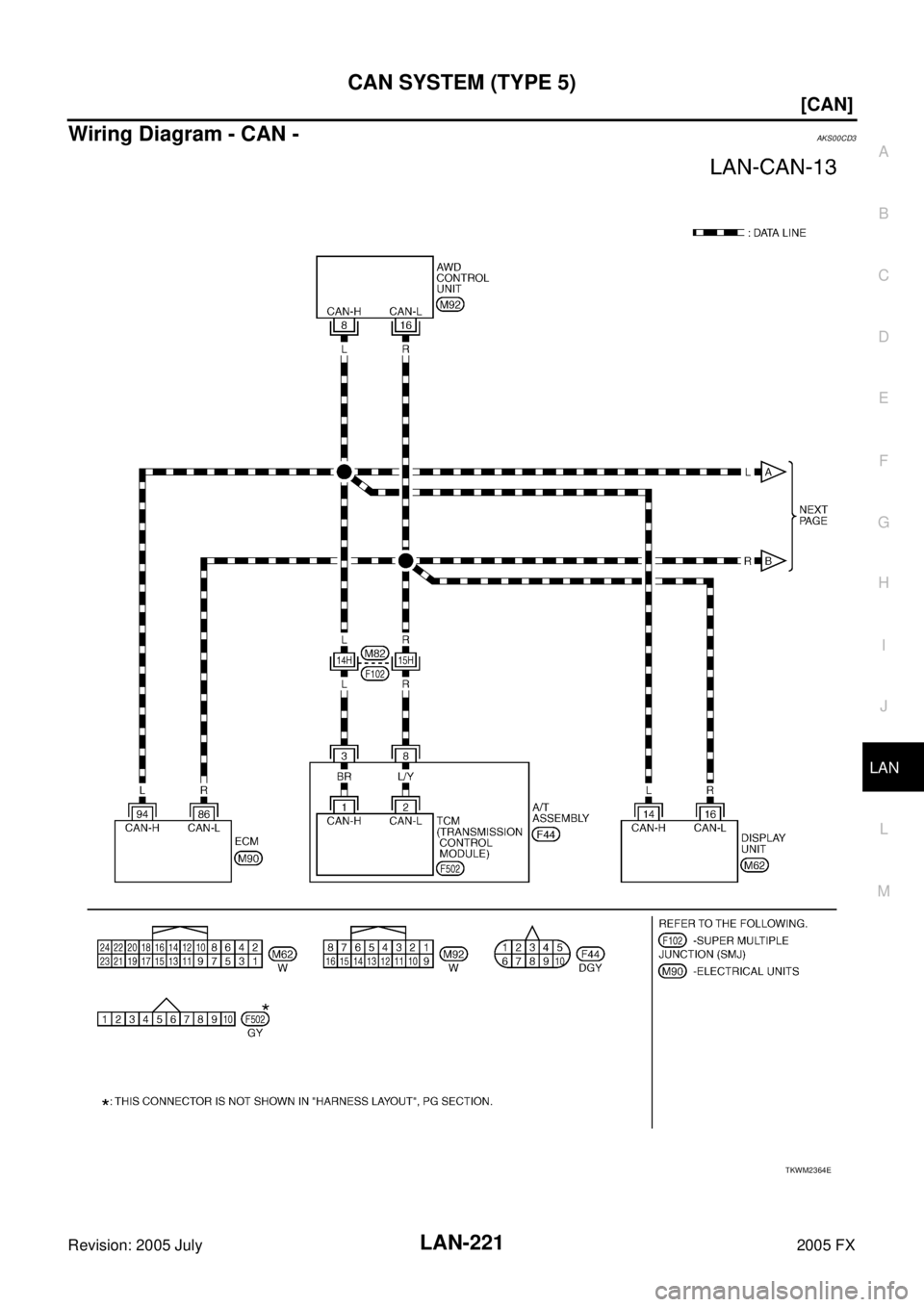

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 5) LAN-221 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Wiring Diagram - CAN -AKS00CD3 TKWM2364E
