Page 3865 of 4731

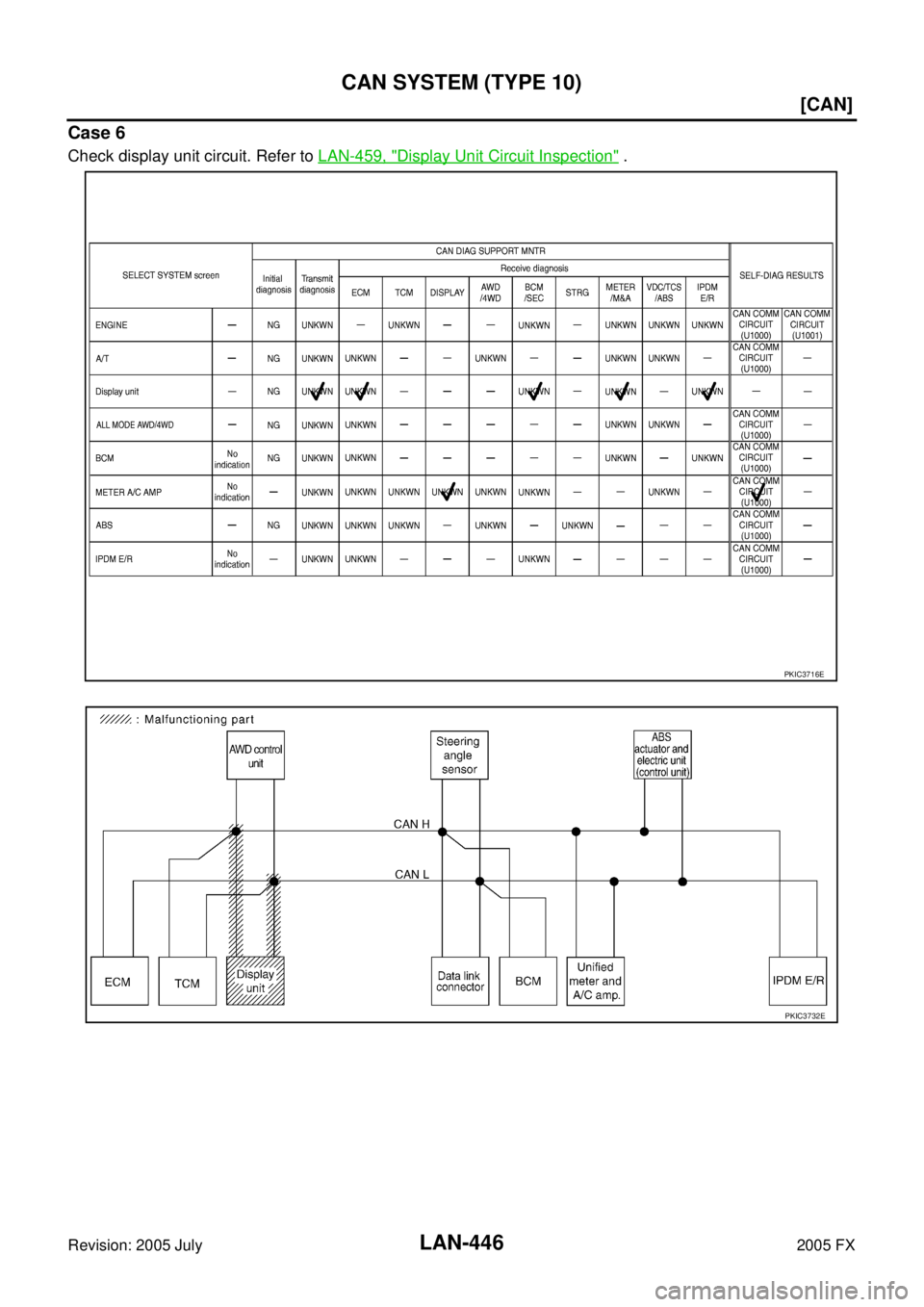

INFINITI FX35 2005 Service Manual LAN-446 [CAN] CAN SYSTEM (TYPE 10) Revision: 2005 July 2005 FX Case 6 Check display unit circuit. Refer to LAN-459, "Display Unit Circuit Inspection" . PKIC3716E PKIC3732E

Page 3866 of 4731

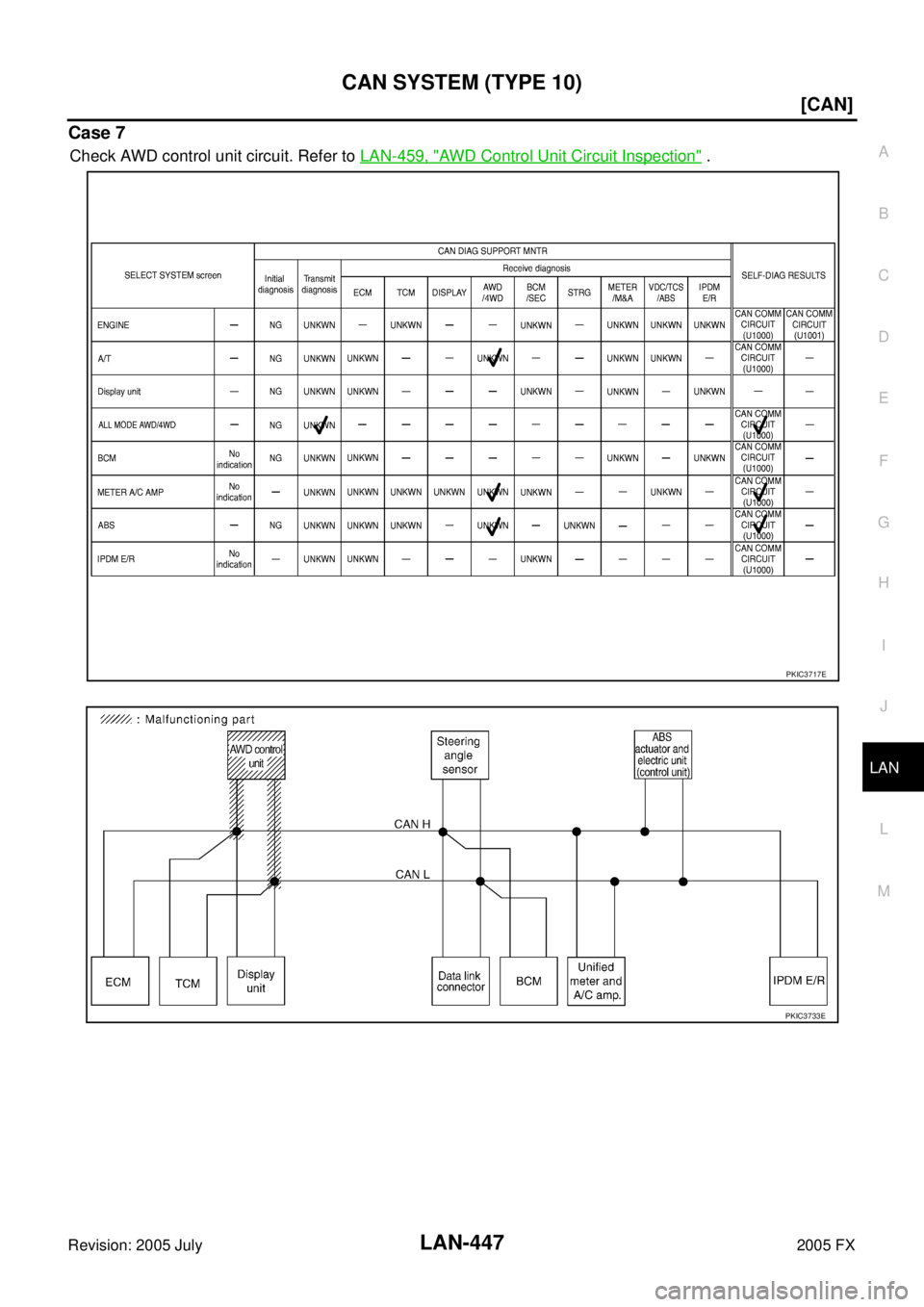

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-447 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 7 Check AWD control unit circuit. Refer to LAN-459, "AWD Control Unit Circuit Inspection" .

Page 3867 of 4731

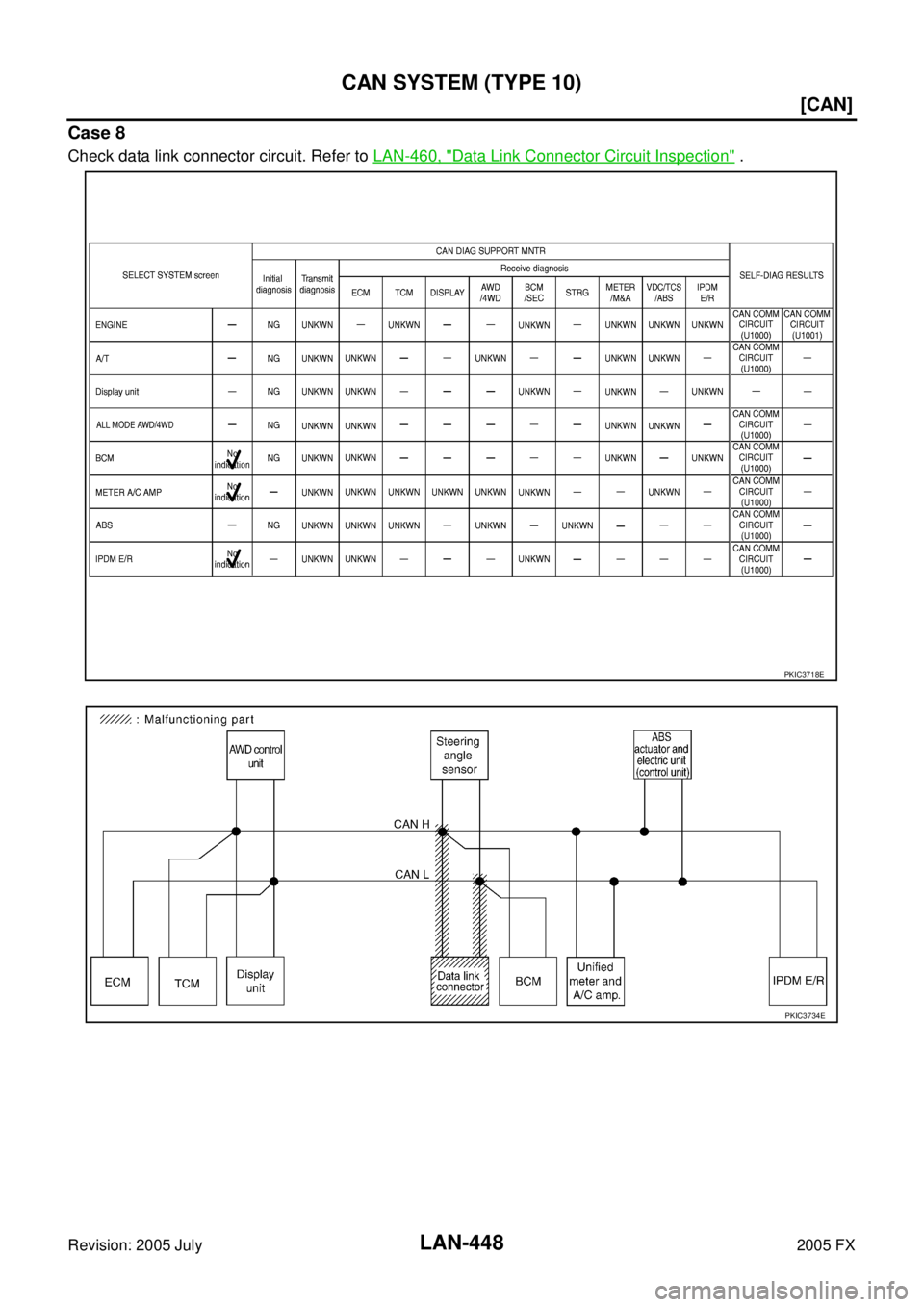

INFINITI FX35 2005 Service Manual LAN-448 [CAN] CAN SYSTEM (TYPE 10) Revision: 2005 July 2005 FX Case 8 Check data link connector circuit. Refer to LAN-460, "Data Link Connector Circuit Inspection" . PKIC3718E PKIC3734E

Page 3868 of 4731

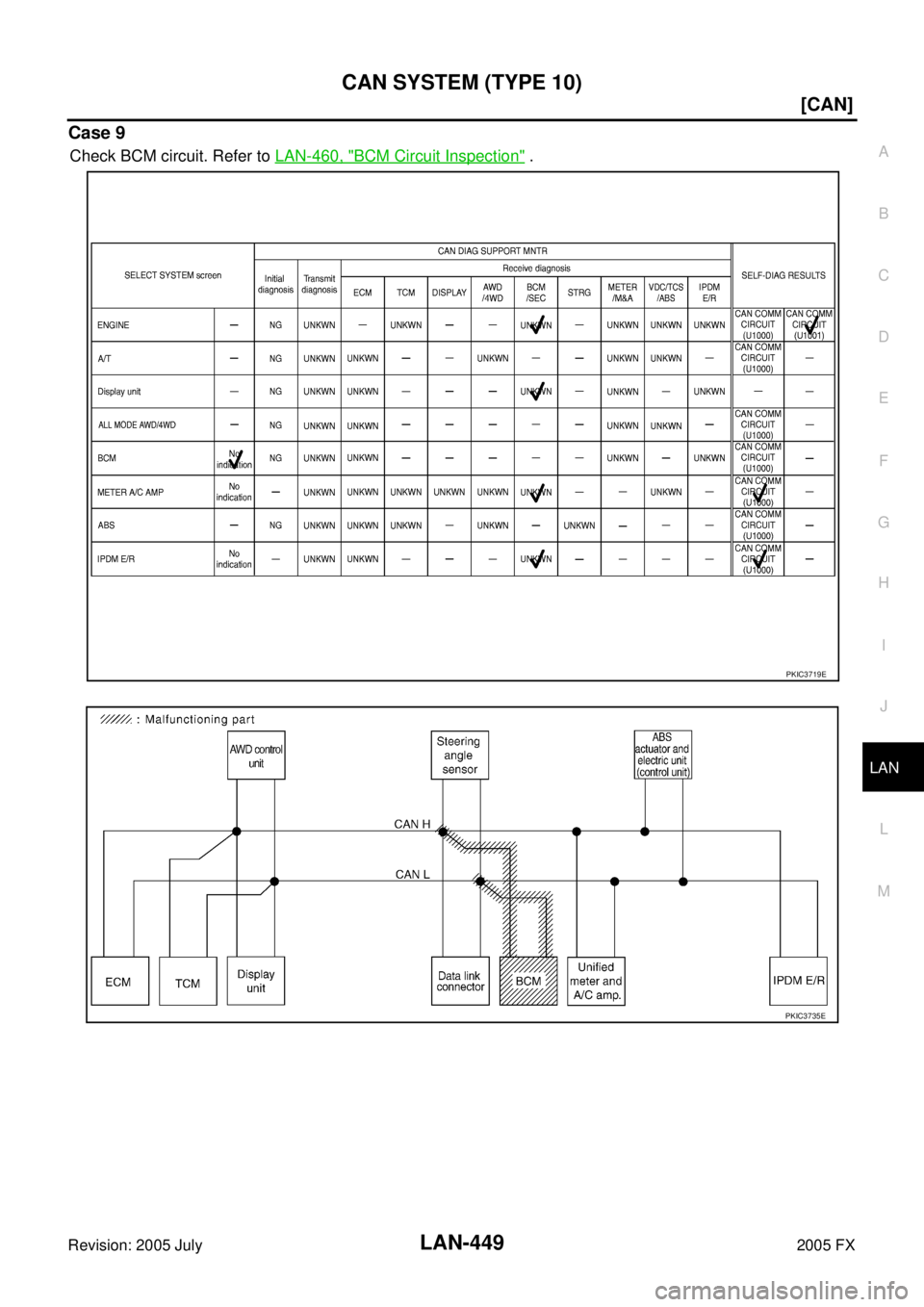

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-449 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 9 Check BCM circuit. Refer to LAN-460, "BCM Circuit Inspection" . PKIC3719E PKIC3735E

Page 3869 of 4731

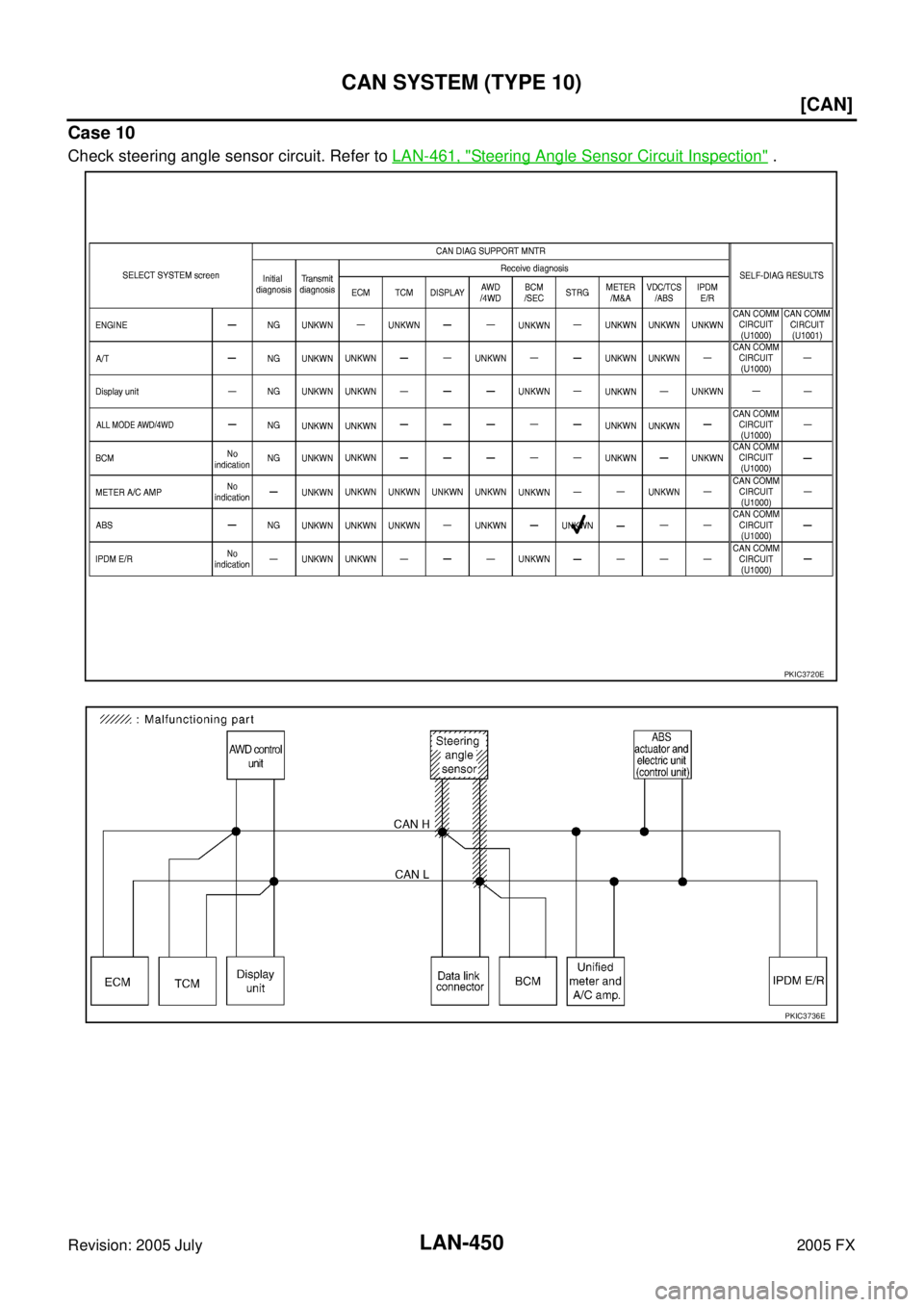

INFINITI FX35 2005 Service Manual LAN-450 [CAN] CAN SYSTEM (TYPE 10) Revision: 2005 July 2005 FX Case 10 Check steering angle sensor circuit. Refer to LAN-461, "Steering Angle Sensor Circuit Inspection" . PKIC3720E PKIC3736E

Page 3870 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-451 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 11 Check unified meter and A/C amp. circuit. Refer to LAN-461, "Unified Meter and A/C Amp.

Page 3871 of 4731

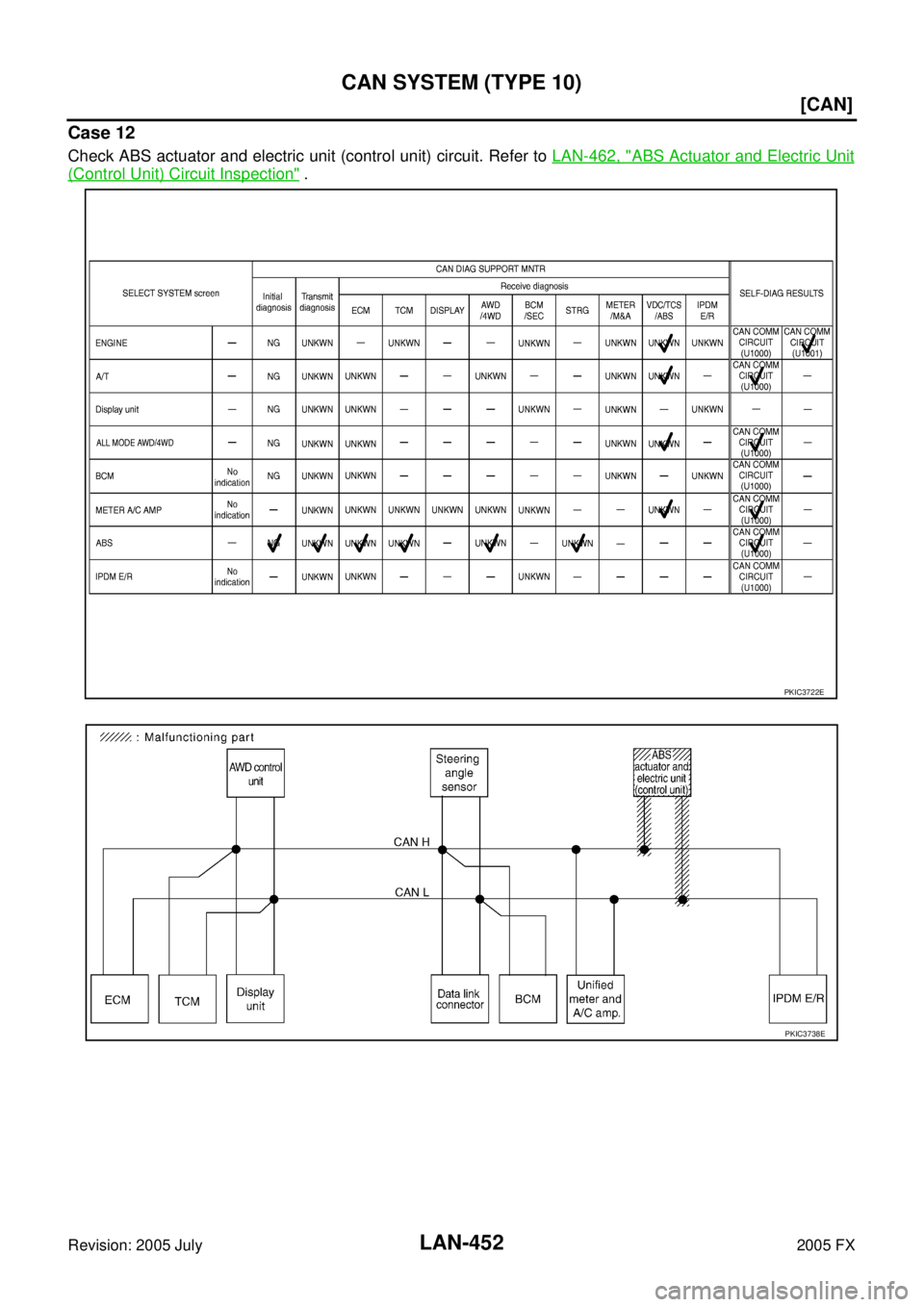

INFINITI FX35 2005 Service Manual LAN-452 [CAN] CAN SYSTEM (TYPE 10) Revision: 2005 July 2005 FX Case 12 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-462, "ABS Actuator and Electric Unit (Control Unit) Cir

Page 3872 of 4731

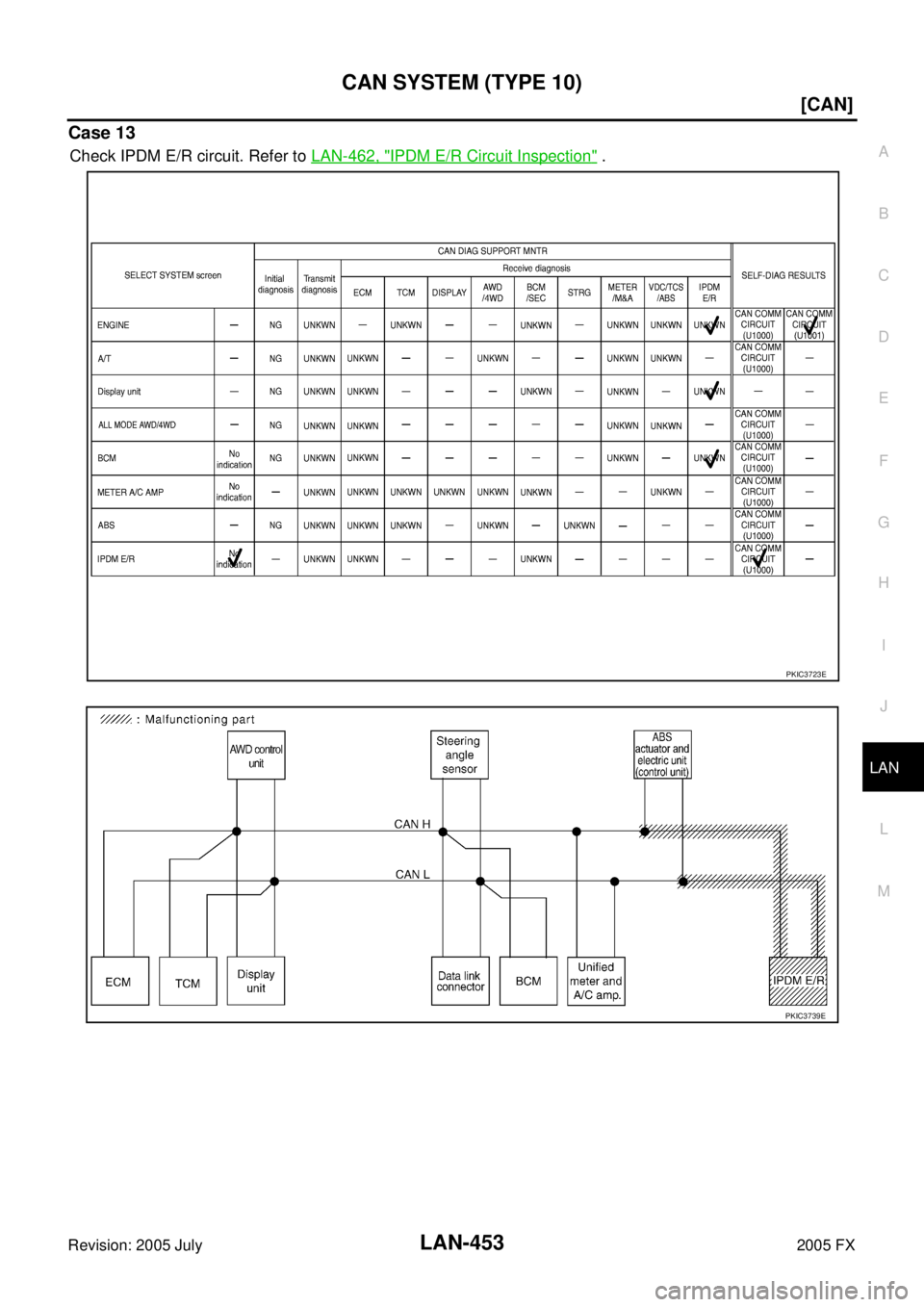

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-453 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 13 Check IPDM E/R circuit. Refer to LAN-462, "IPDM E/R Circuit Inspection" . PKIC3723E PKIC
