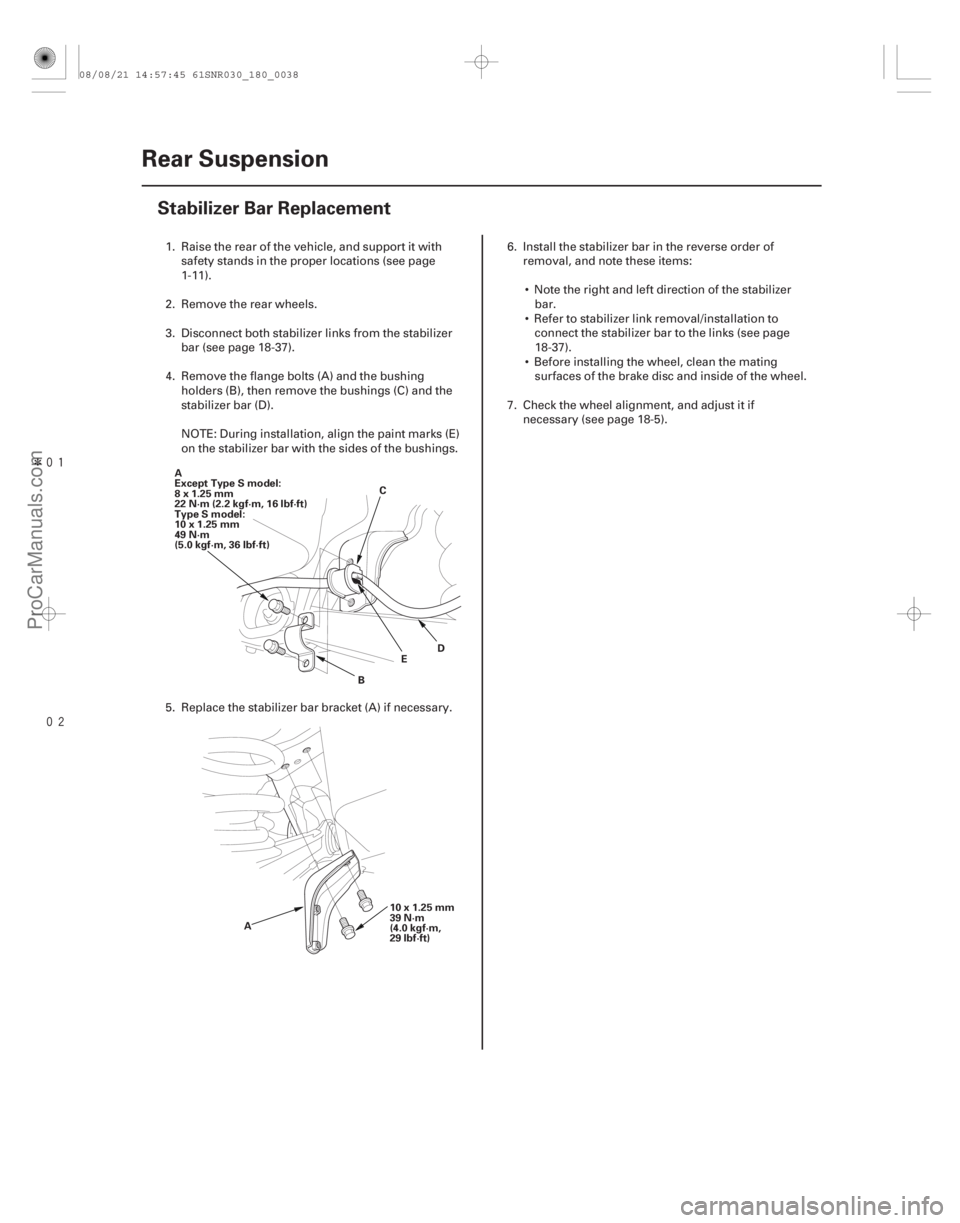

ACURA CSX 2006 Service Repair Manual Î    (#        )  18-38Rear Suspension Stabilizer Bar Replacement B C D A Except Type S model: 8x1.25mm 22N·m(2.2kgf·m,16lbf·ft) Type S model: 10x1.25mm

Page 1450 of 2893

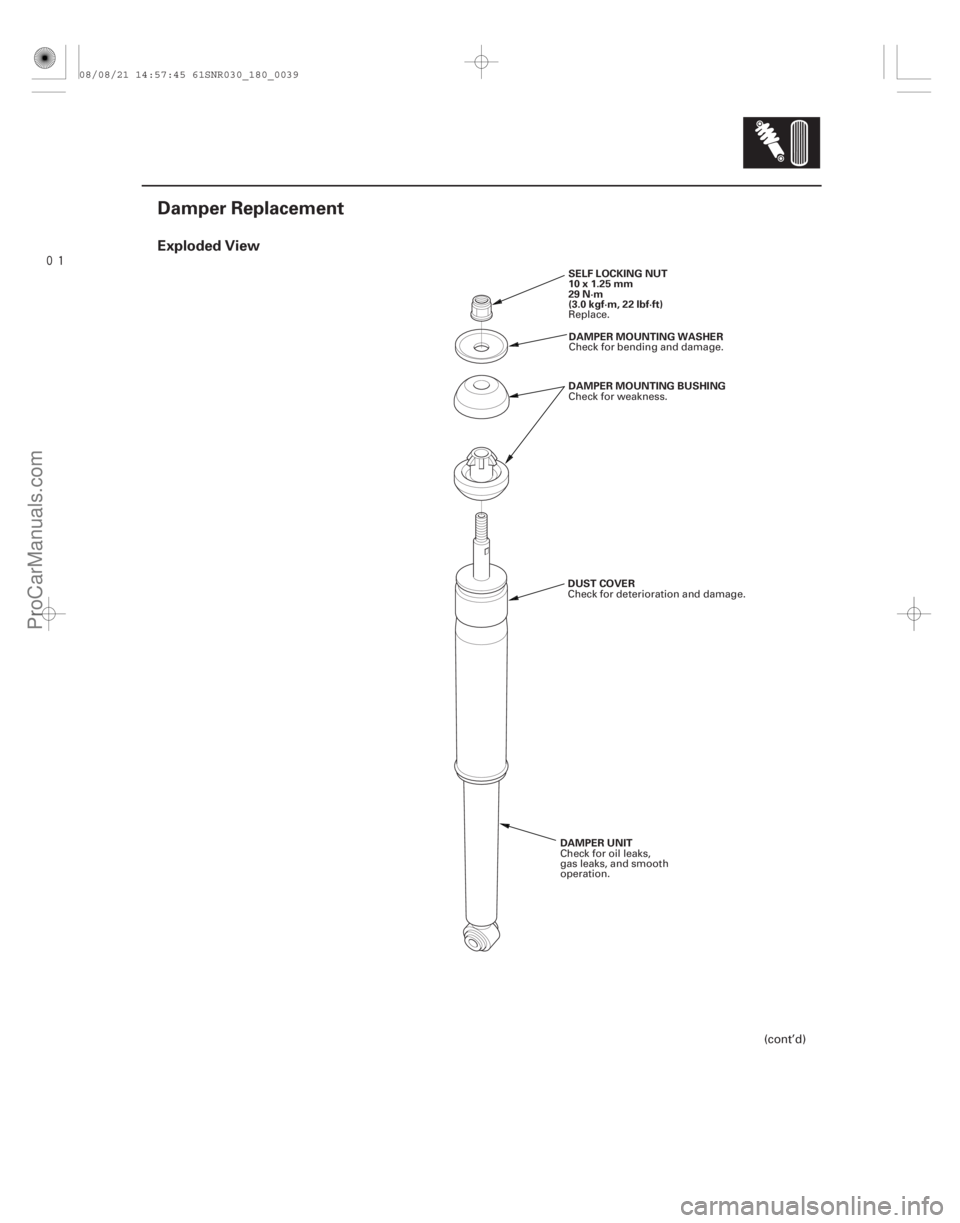

ACURA CSX 2006 Service Repair Manual   (#          )  Exploded View 18-39 Damper Replacement SELF LOCKING NUT 10x1.25mm 29 N·m (3.0 kgf·m, 22 lbf·ft)DAMPER MOUNTING WASHER DAMPER MOUNTING BUSHING

Page 1451 of 2893

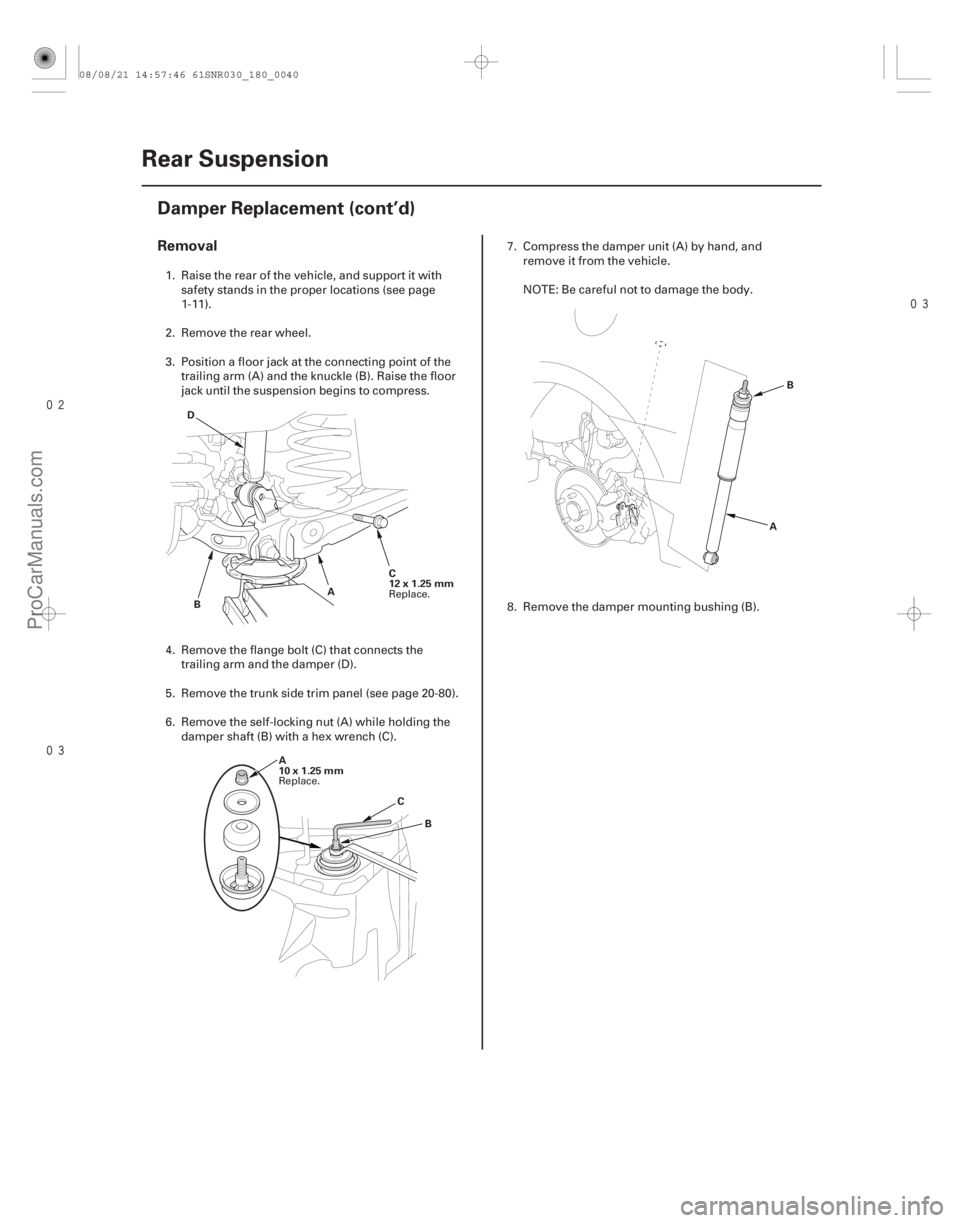

ACURA CSX 2006 Service Repair Manual      Removal 18-40Rear Suspension Damper Replacement (cont’d) C 12x1.25mm A B D A 10x1.25mm B C A B 1. Raise the rear of the vehicle, and support it with safety stands in the proper locatio

Page 1452 of 2893

ACURA CSX 2006 Service Repair Manual      InspectionInstallation 18-41 A B A Except Type S model: 12x1.25mm 59 N·m (6.0 kgf·m, 43 lbf·ft) Type S model: 12x1.25mm 69 N·m (7.0 kgf·m, 51 lbf·ft) 1. Push on the damper as shown

Page 1453 of 2893

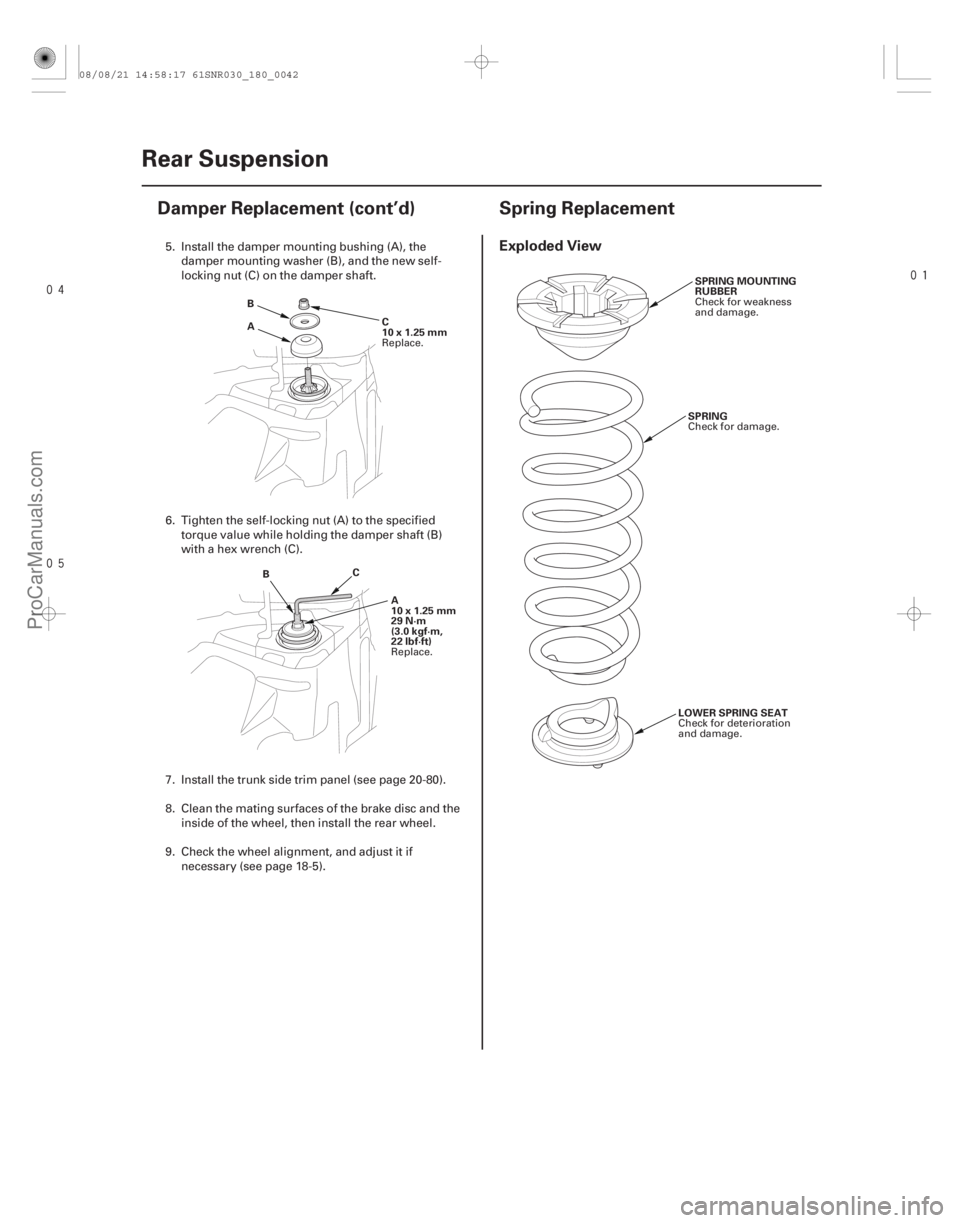

ACURA CSX 2006 Service Repair Manual      (#         )  Exploded View 18-4218-42 Rear Suspension Damper Replacement (cont’d) Spring Replacement A B C 10x1.25mm B C A 10x1.25mm 29 N·m (3.0

Page 1454 of 2893

ACURA CSX 2006 Service Repair Manual      (#         )  Exploded View 18-4218-42 Rear Suspension Damper Replacement (cont’d) Spring Replacement A B C 10x1.25mm B C A 10x1.25mm 29 N·m (3.0

Page 1455 of 2893

ACURA CSX 2006 Service Repair Manual        Removal 18-43 A B 6x1.0mm C 8x1.25mm AC 12x1.25mm D B B C A 12x1.25mm A 12x1.25mm 1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see pa

Page 1456 of 2893

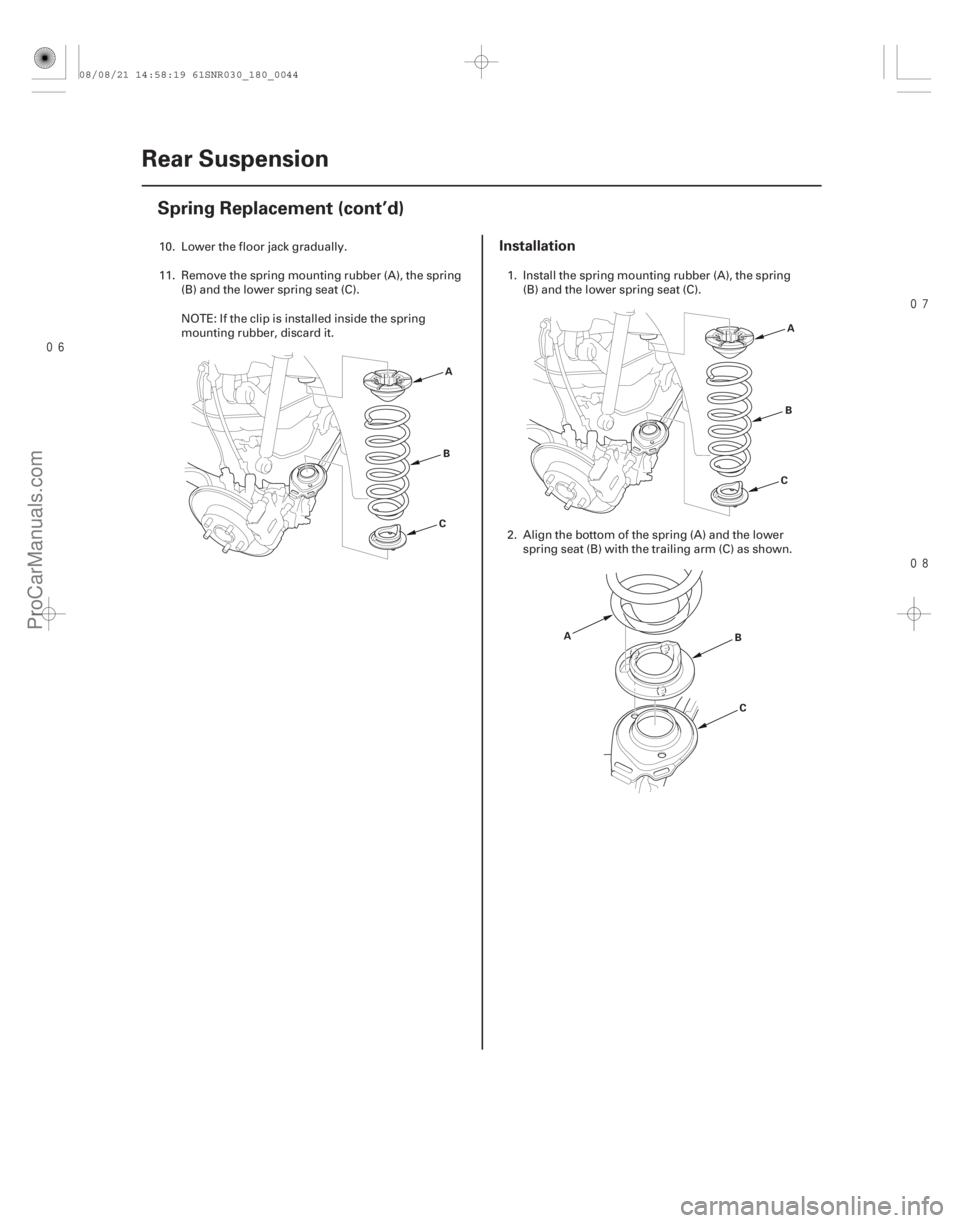

ACURA CSX 2006 Service Repair Manual      Installation 18-44Rear Suspension Spring Replacement (cont’d) A B C A B C A B C 10. Lower the floor jack gradually. 11. Remove the spring mounting rubber (A), the spring (B) and the lo
