Page 1465 of 2893

ÌÏ
(#'
") Special Tools Required
18-5318-53
Tire Pressure Sensor Location
A
8. Turn the ignition switch to LOCK (0).
9. Disconnect the HDS from the DLC.
10. Test-drive the vehicle at 45 km/h (28 mph) or more for at least 1 minute.
11. Make sure the low tire pressure indicator does not blink.
12. Make sure the tires are inflated to the specified tire pressure listed on the doorjamb sticker.
13. Turn the ignition switch to LOCK (0). Bartech Wheelrite Tech300 TPMS tool J-48714
Available through Honda Canada Inc. Technical Tools
Department; Fax 866-398-8665/
e-mail: ch_technicaltools ch.honda.com
NOTE:
This procedure locates where the tire pressure sensors 1, 2, 3, 4 are mounted, when activated by the
TPMS sensor initializer tool.
Position the vehicle at least 3 m (10 ft) away from other vehicles that have tire pressure sensors.
1. With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) (A) located
under the driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the TPMS control unit. If it doesn’t,
troubleshoot the DLC circuit (see page 11-204).
4. Select Function Test from the mode menu, then select Sensor Position Check on the HDS.
(cont’d)
08/08/21 14:58:23 61SNR030_180_0053
ProCarManuals.com
DYNOMITE -2009-
Page 1466 of 2893

ÌÏ
(#'
") Special Tools Required
18-5318-53
Tire Pressure Sensor Location
A
8. Turn the ignition switch to LOCK (0).
9. Disconnect the HDS from the DLC.
10. Test-drive the vehicle at 45 km/h (28 mph) or more for at least 1 minute.
11. Make sure the low tire pressure indicator does not blink.
12. Make sure the tires are inflated to the specified tire pressure listed on the doorjamb sticker.
13. Turn the ignition switch to LOCK (0). Bartech Wheelrite Tech300 TPMS tool J-48714
Available through Honda Canada Inc. Technical Tools
Department; Fax 866-398-8665/
e-mail: ch_technicaltools ch.honda.com
NOTE:
This procedure locates where the tire pressure sensors 1, 2, 3, 4 are mounted, when activated by the
TPMS sensor initializer tool.
Position the vehicle at least 3 m (10 ft) away from other vehicles that have tire pressure sensors.
1. With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) (A) located
under the driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the TPMS control unit. If it doesn’t,
troubleshoot the DLC circuit (see page 11-204).
4. Select Function Test from the mode menu, then select Sensor Position Check on the HDS.
(cont’d)
08/08/21 14:58:23 61SNR030_180_0053
ProCarManuals.com
DYNOMITE -2009-
Page 1467 of 2893
Î

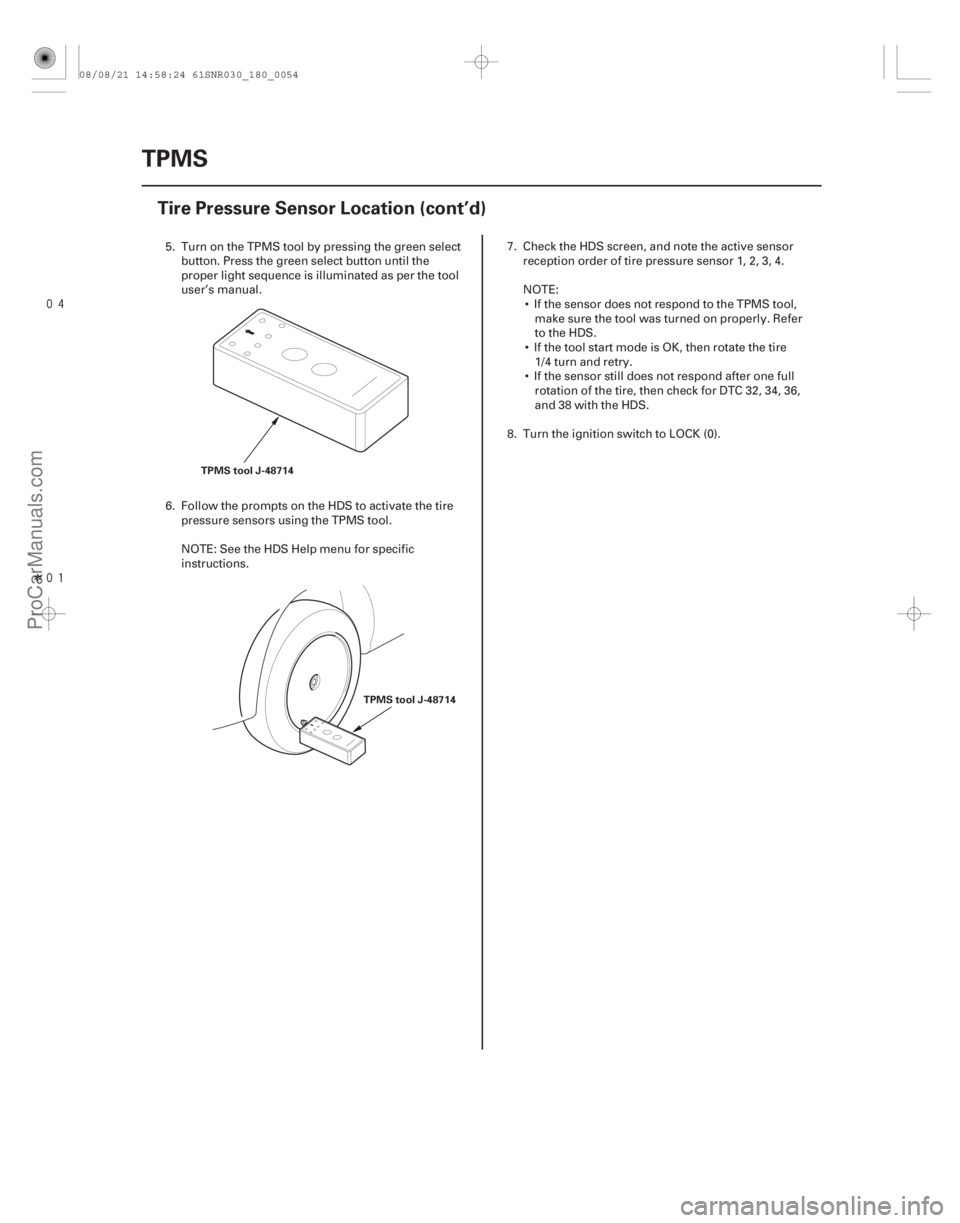

18-54 TPMS
Tire Pressure Sensor Location (cont’d)
TPMS tool J-48714
TPMS tool J-48714
5. Turn on the TPMS tool by pressing the green selectbutton. Press the green select button until the
proper light sequence is illuminated as per the tool
user’s manual.
6. Follow the prompts on the HDS to activate the tire pressure sensors using the TPMS tool.
NOTE: See the HDS Help menu for specific
instructions. 7. Check the HDS screen, and note the active sensor
reception order of tire pressure sensor 1, 2, 3, 4.
NOTE: If the sensor does not respond to the TPMS tool, make sure the tool was turned on properly. Refer
to the HDS.
If the tool start mode is OK, then rotate the tire 1/4 turn and retry.
If the sensor still does not respond after one full rotation of the tire, then check for DTC 32, 34, 36,
and38withtheHDS.
8. Turn the ignition switch to LOCK (0).
08/08/21 14:58:24 61SNR030_180_0054
ProCarManuals.com
DYNOMITE -2009-
Page 1468 of 2893

(#'
)DTC Detection Item Troubleshooting
18-55
DTC Troubleshooting Index
11 Tire 1 Low Air Pressure
(see page 18-63)
13 Tire 2 Low Air Pressure (see page 18-63)
15 Tire 3 Low Air Pressure (see page 18-63)
17 Tire 4 Low Air Pressure (see page 18-63)
21 Tire 1 Pressure Sensor Abnormally High Temperature (see page 18-64)
22 Tire 2 Pressure Sensor Abnormally High Temperature (see page 18-64)
23 Tire 3 Pressure Sensor Abnormally High Temperature (see page 18-64)
24 Tire 4 Pressure Sensor Abnormally High Temperature (see page 18-64)
31 Tire 1 Pressure Sensor Low Battery Voltage (see page 18-65)
32 Tire 1 Pressure Sensor Transmission Failure (see page 18-66)
33 Tire 2 Pressure Sensor Low Battery Voltage (see page 18-65)
34 Tire 2 Pressure Sensor Transmission Failure (see page 18-66)
35 Tire 3 Pressure Sensor Low Battery Voltage (see page 18-65)
36 Tire 3 Pressure Sensor Transmission Failure (see page 18-66)
37 Tire 4 Pressure Sensor Low Battery Voltage (see page 18-65)
38 Tire 4 Pressure Sensor Transmission Failure (see page 18-66)
41 Abnormal Signal Reception Error (see page 18-67)
51 Tire 1 Pressure Sensor Registration Error (see page 18-67)
53 Tire 2 Pressure Sensor Registration Error (see page 18-67)
55 Tire 3 Pressure Sensor Registration Error (see page 18-67)
57 Tire 4 Pressure Sensor Registration Error (see page 18-67)
81 TPMS Control Unit Failure (see page 18-68)
83 No VSP Signal (see page 18-69)
85 F-CAN Communication Failure (see page 18-69)
91 Tire 1 Pressure Sensor Internal Error (see page 18-70)
93 Tire 2 Pressure Sensor Internal Error (see page 18-70)
95 Tire 3 Pressure Sensor Internal Error (see page 18-70)
97 Tire 4 Pressure Sensor Internal Error (see page 18-70)
08/08/21 14:58:24 61SNR030_180_0055
ProCarManuals.com
DYNOMITE -2009-
Page 1469 of 2893
(#'
)Symptom Diagnostic procedure Also check for
18-56
TPMS
Symptom Troubleshooting Index
HDS does not communicate with the
TPMS control unit or the vehicle
Troubleshooting the DLC circuit (see page
11-204)
Low tire pressure indicator does not come
on, and no DTCs are stored Symptom Troubleshooting (see page 18-71)
Low tire pressure indicator does not go off,
andnoDTCsarestored Symptom Troubleshooting (see page 18-72)
TPMS indicator does not come on, and no
DTCs are stored Symptom Troubleshooting (see page 18-73)
TPMS indicator does not go off, and no
DTCs are stored Symptom Troubleshooting (see page 18-73)
08/08/21 14:58:24 61SNR030_180_0056
ProCarManuals.com
DYNOMITE -2009-
Page 1470 of 2893
•••
´
(#'
)
TPMS Control Unit Inputs and Outputs for 20P Connector
Terminalnumber Wire color Terminal sign Description Signal
18-57
System Description
NOTE: Standard battery voltage is about 12 V.
2 WHT CAN H (F-CAN communication
signal high)F-CAN
communication
circuit Ignition switch ON (II): pulses
3 BLK GND (Ground) Ground for the TPMS control unitLess than 0.1 V at all times
7 LT BLU K-LINE (Data link connector)Communications
with the HDS
8 BRN IG1 (Ignition switch 1)Power source for
activating the
system Ignition switch ON (II): battery voltage
Ignition switch in LOCK (0): less than 0.1 V
10 BLU B (Battery positive)Power source for
the TPMS control
unit Battery voltage at all times
11 RED CAN L (F-CAN communication
signal low)F-CAN
communication
circuit Ignition switch ON (II): pulses
(cont’d)
Wire side of female terminals
08/08/21 14:58:24 61SNR030_180_0057
ProCarManuals.com
DYNOMITE -2009-
Page 1471 of 2893

Î
System Structure
Control unit
Indicators
18-58TPMS
System Description (cont’d)
Vehicle
Indicators (LED)
Gauge Control Module (Tach)
Communication
via F-CAN
Control Unit
(with radio
frequency antenna)
Tire Pressure Sensor
(sensor-transmitter
with acceleration sensor) Wheel
(TPMS type)
Tire Pressure Sensor
(sensor-transmitter
with acceleration sensor)
Tire Pressure Sensor
(sensor-transmitter
with acceleration sensor)
Tire Pressure Sensor
(sensor-transmitter
with acceleration sensor)
Wheel
(TPMS type)
Wheel
(TPMS type) Wheel
(TPMS type)
Once the vehicle speed exceeds 45 km/h (28 mph), the TPMS control unit monitors all four tire pressure sensors and
the system function. If it detects low pressure in a tire, it alerts the driver by turning on the low tire pressure indicator.
If it detects a problem in the system, it turns on the TPMS indicator.
Mounted inside of the dash, the TPMS control unit receives wireless pressure sensor ID signals
every time the vehicle
speeds exceeds 45 km/h (28 mph). It also receives wireless signals from the transmitters for tire pressure and the
sensor condition, and it continuously monitors and controls the system. The TPMS control unit cannot directly
determine the position (location) of a tire pressure sensor(s) on the vehicle since it is a wireless system. TPMS sensor
locations will change during scheduled vehicle maintenance (tire rotation).
NOTE: To determine the actual location of each TPMS wheel sensor on the vehicle, do the tire pressure sensor
location procedure (see page 18-53). Once the tire pressure sensor locations are identified, write the sensor ID on the
side wall of the tire with a tire crayon to eliminate confusion.
Two indicators are in the gauge control module (tach): The low tire pressure indicator comes on when any tire
pressure is low, and the TPMS indicator that comes on only if there’s a problem with the system.
The low tire pressure indicator alerts the driver that a tire(s) pressure is low, but does not specify the tire(s) location.
08/08/21 14:58:24 61SNR030_180_0058
ProCarManuals.com
DYNOMITE -2009-
Page 1472 of 2893

Tire pressure sensor
Wheels
18-59
A
B
C
B
C
A B
C A
Each sensor is an integrated unit made up of the tire valve stem, a tire pressure sensor, and a transmitter. The unit is
attached to the inside of the wheel, around the valve stem. The sensor transmits the internal tire information to the
control unit once every 60 seconds when the vehicle speed exceeds 45 km/h (28 mph). When the TPMS control unit
receives a tire pressure signal that is less than 175 kPa (1.8 kgf/cm , 25 psi) with 16 inch wheels, or 183 kPa (1.9 kgf/cm ,
27 psi) with 17 inch wheels, the TPMS control unit then turns on the low tire pressure indicator. When that tire’s
pressure is increased to more than 200 kPa (2.0 kgf/cm , 29 psi) with 16 inch wheels, or 210 kPa (2.1 kgf/cm , 30 psi)
with 17 inch wheels, and the vehicle is driven above 45 km/h (28 mph) the transmitter sends the tire pressure signal to
the control unit, and then the control unit turns the indicator off.
NOTE: Do not mix the TPMS tire pressure sensors or wheels with other TPMS types. Be sure to use the correct type
sensors and wheels for this system.
Sensor are active:
When the wheel rotates over 45 km/h (28 mph), the sensor detects the momentum, switches the sensor to the normal function mode.
The LF (low frequency) signal of the TPMS tool makes the sensor active even t hough the vehicle is stopped. The tire
pressure sensor goes into sleep mode when the acceleration sensor detects the wheel is stationary for 5 minutes or
more continuously.
The TPMS will not work unless TPMS type wheels are installed on the vehicle. There are three different types of
wheels used. The original equipment wheels have a ‘‘TPMS’’ mark (A) on them and are counterweighted (B) the
opposite of the tire pressure sensor (C), and counterbalance the weight of the sensor.
(cont’d)
22
2 2
