Page 1145 of 2893

Î
Î
(#'
)
14-229
ATF Temperature Sensor Test/Replacement
A
18x1.5mm
49 N·m
(5.0 kgf·m, 36 lbf·ft) B A
B
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)
B
C
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
1. Raise the vehicle on a lift, or apply the parkingbrake, block the rear wheels, and raise the front of
the vehicle. Make sure it is securely supported.
2. Remove the splash shield.
3. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).
4. Reinstall the drain plug with a new sealing washer (B).
5. Do the battery removal procedure (see page 22-69).
6. Remove the intake air duct (see page 11-348) and the air cleaner assembly (see page 11-345).
7. Remove the battery tray, the battery base, and the resonator. 8. Remove the shift solenoid valve cover (A), the
dowel pins (B), and the gasket (C).
9. Disconnect the shift solenoid wire harness connector, and remove it from the transmission
housing.
(cont’d)
Replace. Replace.
08/08/21 14:46:51 61SNR030_140_0231
ProCarManuals.com
DYNOMITE -2009-
Page 1146 of 2893

Î
µStandard: 50 25 k
14-230Automatic Transmission
ATF Temperature Sensor Test/Replacement (cont’d)
C
D
B
A
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft) E
G F
10. Measure the ATF temperature sensor resistance between shift solenoid wire harness connector
terminals No. 6 and No. 7.
If the resistance is within the standard, install the shift solenoid wire harness and a new O-ring in
the transmission, then go to step 13.
If the resistance is out of standard, go to step 11.
11. Disconnect the connectors from the shift solenoid valves, and replace the ATF temperature sensor/
shift solenoid harness assembly (F) and the O-ring
(G) with new ones.
NOTE: The ATF temperature sensor is not available
separately from the shift solenoid wire harness.
12. Connect the shift solenoid valve connectors: BLU wire to shift solenoid valve A.
ORN wire to shift solenoid valve B.
GRN wire to shift solenoid valve C.
YEL, WHT, and WHT wire connector to shiftsolenoid valve D.
RED wire to shift solenoid valve E.
13. Install a new gasket, the dowel pins, and the shift solenoid valve cover.
14. Check the connector for rust, dirt, or oil, clean or repair if necessary, then connect the connector
securely. 15. Refill the transmission with ATF (see step 5 on page
14-232).
16. Install the battery tray, the battery base, and the resonator.
17. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
18. Do the battery installation procedure (see page 22-69).
19. Install the splash shield.
Replace.
08/08/21 14:46:51 61SNR030_140_0232
ProCarManuals.com
DYNOMITE -2009-

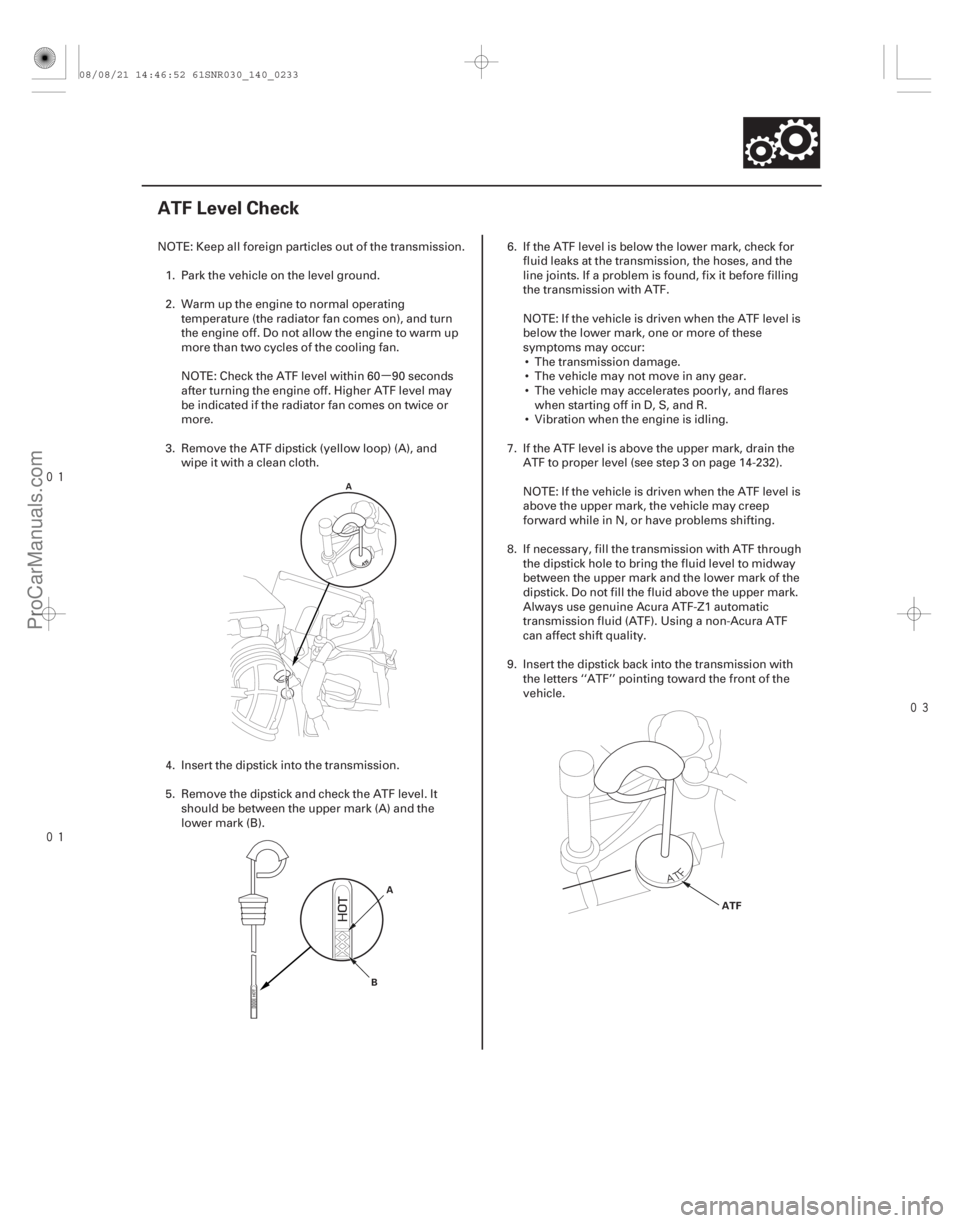

Page 1147 of 2893

µ
(#'
")
14-231
ATF Level Check
A
A
B
ATF
NOTE: Keep all foreign particles out of the transmission. 1. Park the vehicle on the level ground.
2. Warm up the engine to normal operating temperature (the radiator fan comes on), and turn
the engine off. Do not allow the engine to warm up
more than two cycles of the cooling fan.
NOTE: Check the ATF level within 60 90 seconds
after turning the engine off. Higher ATF level may
be indicated if the radiator fan comes on twice or
more.
3. Remove the ATF dipstick (yellow loop) (A), and wipe it with a clean cloth.
4. Insert the dipstick into the transmission.
5. Remove the dipstick and check the ATF level. It should be between the upper mark (A) and the
lower mark (B). 6. If the ATF level is below the lower mark, check for
fluid leaks at the transmission, the hoses, and the
line joints. If a problem is found, fix it before f illing
the transmission with ATF.
NOTE: If the vehicle is driven when the ATF level is
below the lower mark, one or more of these
symptoms may occur: The transmission damage.
The vehicle may not move in any gear.
The vehicle may accelerates poorly, and flares when starting off in D, S, and R.
Vibration when the engine is idling.
7. If the ATF level is above the upper mark, drain the
ATF to proper level (see step 3 on page 14-232).
NOTE: If the vehicle is driven when the ATF level is
above the upper mark, the vehicle may creep
forward while in N, or have problems shifting.
8. If necessary, fill the transmission with ATF through the dipstick hole to bring the fluid level to midway
between the upper mark and the lower mark of the
dipstick. Do not fill the fluid above the upper mark.
Always use genuine Acura ATF-Z1 automatic
transmission fluid (ATF). Using a non-Acura ATF
can affect shift quality.
9. Insert the dipstick back into the transmission with the letters ‘‘ATF’’ pointing toward the front of the
vehicle.
08/08/21 14:46:52 61SNR030_140_0233
ProCarManuals.com
DYNOMITE -2009-

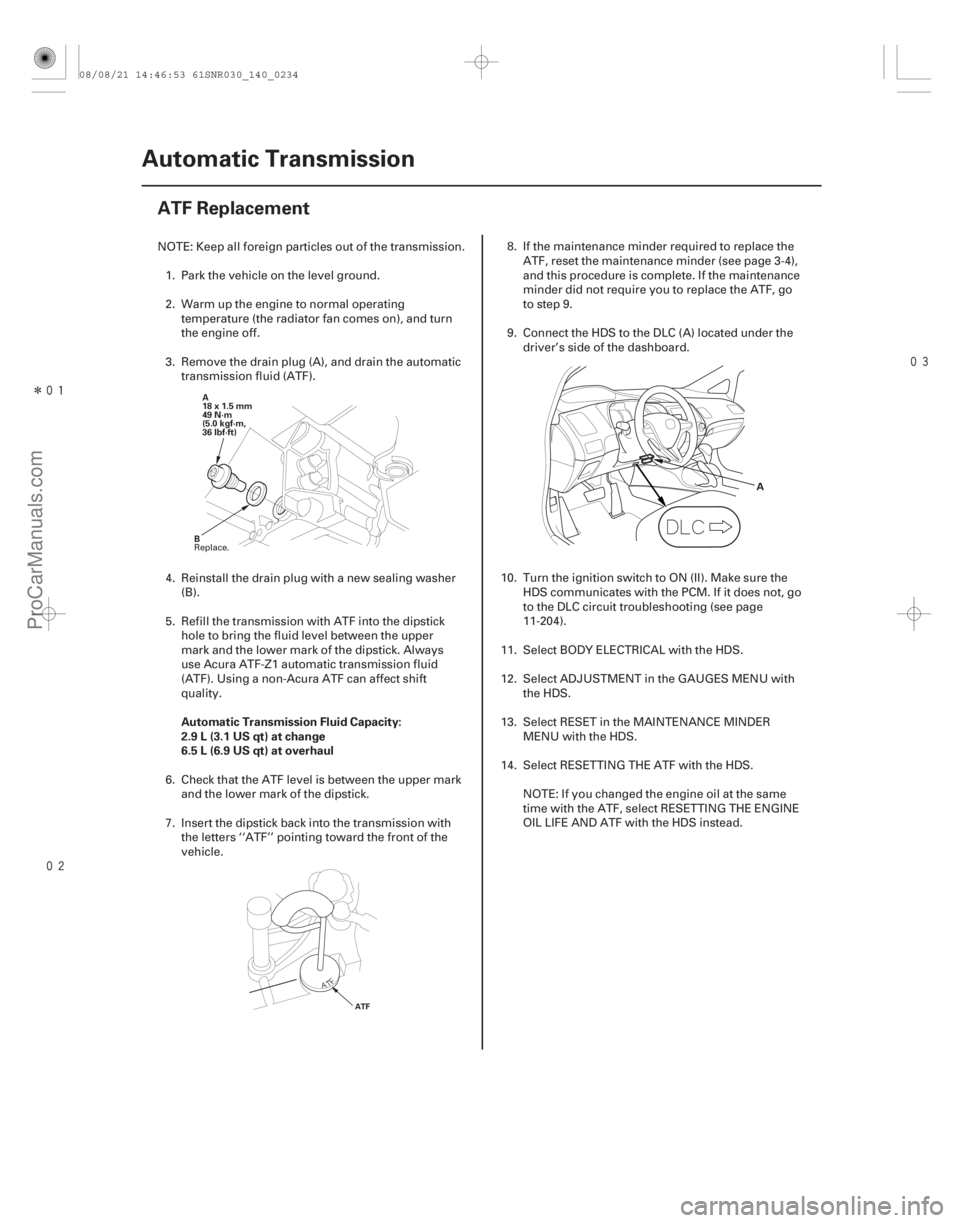

Page 1148 of 2893

Î
(#'
)
Automatic Transmission Fluid Capacity:
2.9 L (3.1 US qt) at change
6.5 L (6.9 US qt) at overhaul
14-232 Automatic Transmission
ATF Replacement
A
18 x 1.5 mm
49 N·m
(5.0 kgf·m,
36 lbf·ft)
B
ATF
A
NOTE: Keep all foreign particles out of the transmission. 1. Park the vehicle on the level ground.
2. Warm up the engine to normal operating temperature (the radiator fan comes on), and turn
the engine off.
3. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).
4. Reinstall the drain plug with a new sealing washer (B).
5. Refill the transmission with ATF into the dipstick hole to bring the fluid level between the upper
mark and the lower mark of the dipstick. Always
use Acura ATF-Z1 automatic transmission fluid
(ATF). Using a non-Acura ATF can affect shift
quality.
6. Check that the ATF level is between the upper mark
and the lower mark of the dipstick.
7. Insert the dipstick back into the transmission with the letters ‘‘ATF’’ pointing toward the front of the
vehicle. 8. If the maintenance minder required to replace the
ATF, reset the maintenance minder (see page 3-4),
and this procedure is complete. If the maintenance
minder did not require you to replace the ATF, go
to step 9.
9. Connect the HDS to the DLC (A) located under the driver’s side of the dashboard.
10. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go
to the DLC circuit troubleshooting (see page
11-204).
11. Select BODY ELECTRICAL with the HDS.
12. Select ADJUSTMENT in the GAUGES MENU with the HDS.
13. Select RESET in the MAINTENANCE MINDER MENU with the HDS.
14. Select RESETTING THE ATF with the HDS.
NOTE: If you changed the engine oil at the same
time with the ATF, select RESETTING THE ENGINE
OIL LIFE AND ATF with the HDS instead.
Replace.
08/08/21 14:46:53 61SNR030_140_0234
ProCarManuals.com
DYNOMITE -2009-

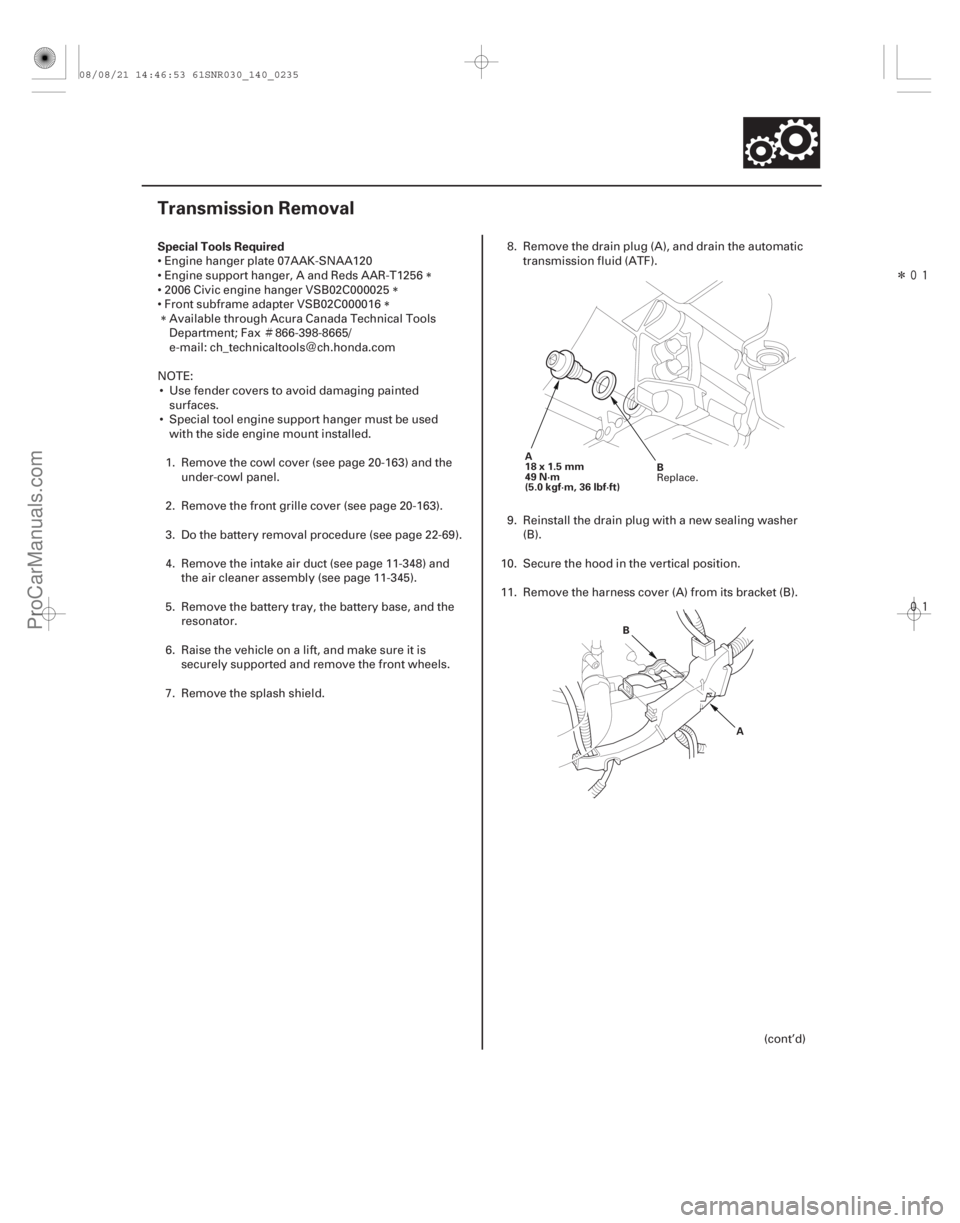

Page 1149 of 2893

ÌÏ Î
(#'
)
Special Tools Required
14-233
Transmission Removal
A
18x1.5mm
49 N·m
(5.0 kgf·m, 36 lbf·ft)
B
A
B
Engine hanger plate 07AAK-SNAA120
Engine support hanger, A and Reds AAR-T
1256
2006 Civic engine hanger VSB02C000025
Front subframe adapter VSB02C000016 Available through Acura Canada Technical Tools
Department; Fax 866-398-8665/
e-mail: ch_technicaltools ch.honda.com
NOTE: Use fender covers to avoid damaging painted surfaces.
Special tool engine support hanger must be used with the side engine mount installed.
1. Remove the cowl cover (see page 20-163) and the under-cowl panel.
2. Remove the front grille cover (see page 20-163).
3. Do the battery removal procedure (see page 22-69).
4. Remove the intake air duct (see page 11-348) and the air cleaner assembly (see page 11-345).
5. Remove the battery tray, the battery base, and the resonator.
6. Raise the vehicle on a lift, and make sure it is securely supported and remove the front wheels.
7. Remove the splash shield. 8. Remove the drain plug (A), and drain the automatic
transmission fluid (ATF).
9. Reinstall the drain plug with a new sealing washer (B).
10. Secure the hood in the vertical position.
11. Remove the harness cover (A) from its bracket (B).
(cont’d)
Replace.
08/08/21 14:46:53 61SNR030_140_0235
ProCarManuals.com
DYNOMITE -2009-

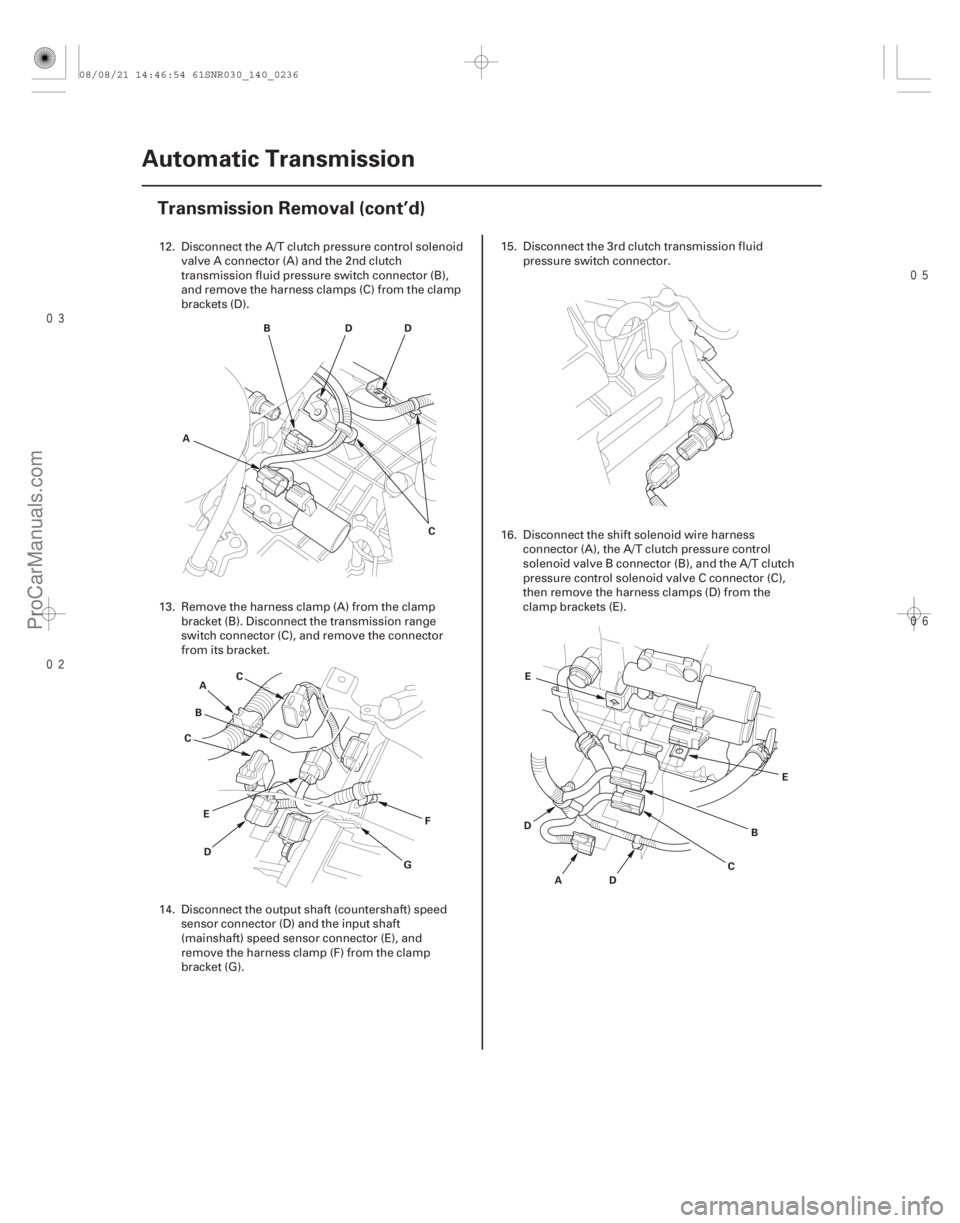

Page 1150 of 2893

14-234Automatic Transmission
Transmission Removal (cont’d)
A
B
C
DD
A
B C
D
E
F
C
GA B
C
D E
D E
12. Disconnect the A/T clutch pressure control solenoid
valve A connector (A) and the 2nd clutch
transmission fluid pressure switch connector (B),
and remove the harness clamps (C) from the clamp
brackets (D).
13. Remove the harness clamp (A) from the clamp bracket (B). Disconnect the transmission range
switch connector (C), and remove the connector
from its bracket.
14. Disconnect the output shaft (countershaft) speed sensor connector (D) and the input shaft
(mainshaft) speed sensor connector (E), and
remove the harness clamp (F) from the clamp
bracket (G). 15. Disconnect the 3rd clutch transmission fluid
pressure switch connector.
16. Disconnect the shift solenoid wire harness connector (A), the A/T clutch pressure control
solenoid valve B connector (B), and the A/T clutch
pressure control solenoid valve C connector (C),
then remove the harness clamps (D) from the
clamp brackets (E).
08/08/21 14:46:54 61SNR030_140_0236
ProCarManuals.com
DYNOMITE -2009-

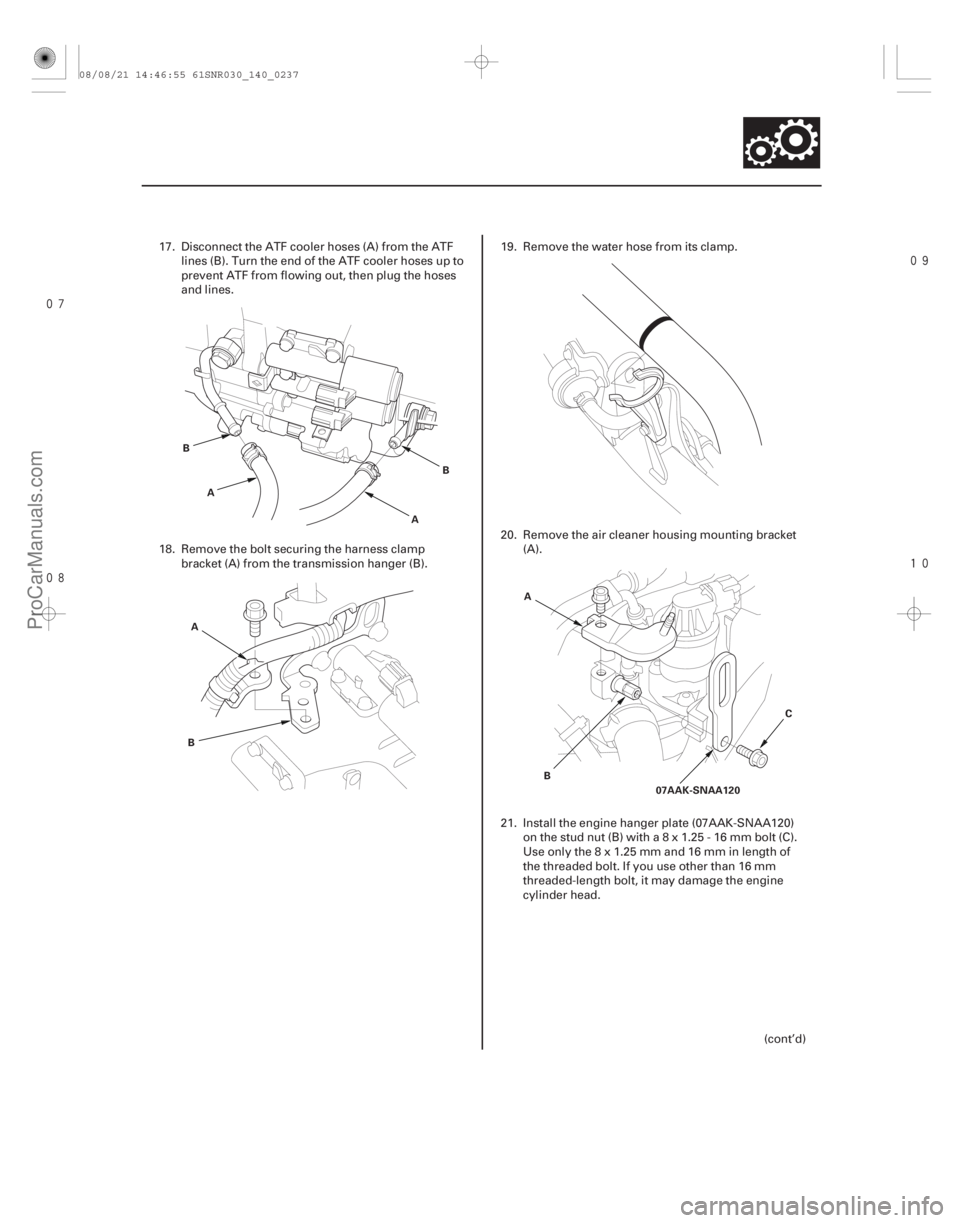

Page 1151 of 2893
14-235
A
B
AB
A
B A
B C
07AAK-SNAA120
17. Disconnect the ATF cooler hoses (A) from the ATF lines (B). Turn the end of the ATF cooler hoses up to
prevent ATF from flowing out, then plug the hoses
and lines.
18. Remove the bolt securing the harness clamp bracket (A) from the transmission hanger (B). 19. Remove the water hose from its clamp.
20. Remove the air cleaner housing mounting bracket
(A).
21. Install the engine hanger plate (07AAK-SNAA120) onthestudnut(B)witha8x1.25-16mmbolt(C).
Useonlythe8x1.25mmand16mminlengthof
the threaded bolt. If you use other than 16 mm
threaded-length bolt, it may damage the engine
cylinder head.
(cont’d)
08/08/21 14:46:55 61SNR030_140_0237
ProCarManuals.com
DYNOMITE -2009-

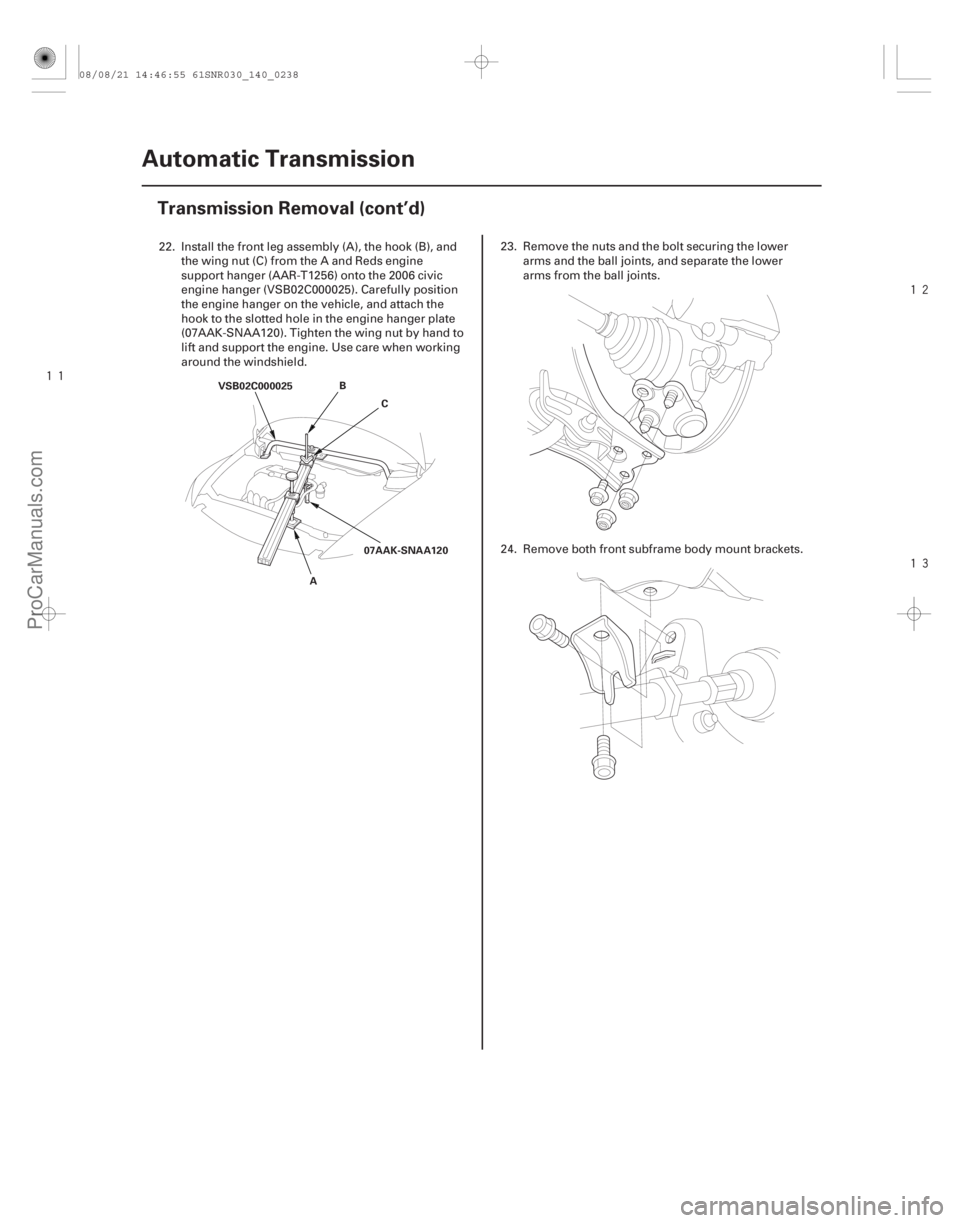

Page 1152 of 2893
14-236Automatic Transmission
Transmission Removal (cont’d)
07AAK-SNAA120
VSB02C000025
AB
C
22. Install the front leg assembly (A), the hook (B), andthe wing nut (C) from the A and Reds engine
support hanger (AAR-T 1256) onto the 2006 civic
engine hanger (VSB02C000025). Carefully position
the engine hanger on the vehicle, and attach the
hook to the slotted hole in the engine hanger plate
(07AAK-SNAA120). Tighten the wing nut by hand to
lift and support the engine. Use care when working
around the windshield. 23. Remove the nuts and the bolt securing the lower
arms and the ball joints, and separate the lower
arms from the ball joints.
24. Remove both front subframe body mount brackets.
08/08/21 14:46:55 61SNR030_140_0238
ProCarManuals.com
DYNOMITE -2009-
