8. To remove a rear drain tube (A) from the body,
remove these parts:
Spare tire lid (see step 2 on page 20-80)
Trunk rear trim panel (see step 4 on page 20-80)
Trunk side trim panel (see step 6 on page 20-81)
Remove the drain valve (B) from the body hole.
Tie a string to the top end of the rear drain tube,
then pull back the trunk side trim panel and pull the
drain tube down out of the pillar. 9. Install the frame and the drain tubes in the reverse
order of removal, and note these items:
Before installing the frame, clear the drain tubes and the drain valves using compressed air.
When installing, tie the string left in the body during drain tube removal to the top end of the
new drain tube and pull it up into the roof.
Check the frame seal.
Clean the surface of the frame.
When installing the frame, first attach the rear hooks into the body holes.
Make sure the connectors are plugged in properly.
When connecting the drain tubes, slide it over the frame nozzles at least 10 mm (0.39 in.).
Adjust the tube clips (A) on the drain tubes (B) up or down so as not to interfere other interior
pieces or body.
10. Check for water leaks. Let the water run freely from a hose without a nozzle. Do not use a high-pressure
spray.
08/08/21 15:01:22 61SNR030_200_0063
ProCarManuals.com
DYNOMITE -2009-
Page 1738 of 2893
(#' )
20-62 Moonroof
Drain Channel Slider and Cable Assembly Replacement
A
B
C D
E 6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
F G
Fastener Locations Fastener Locations
:Screw,2
A:Screw,2 B:Bolt,2E
:Screw,2
F
A
B
C
D
E
C
C
Front
1. Remove the frame (see page 20-60).
2. Remove these parts from the frame:
Sunshade (see page 20-58)
Moonroof motor (see page 20-59)
3. Put on gloves to protect your hands. Remove the screws (A, B) securing the slide stops (C), and the
cable tube rear brackets A (D), the cable tube side
bracket mounting bolts (E) and the cable tube
mounting screws (F) from both sides of the frame
(G). 4. Turn both cable tube side brackets (A) up to release
the hooks (B) from the holes in both sides of the
frame.
5. Pivot the glass brackets (C) down by sliding the link lifters (D) back, then slide both glass brackets back
with the link lifters.
6. Slide the cable assembly (E) half-way back.
08/08/21 15:01:23 61SNR030_200_0064
ProCarManuals.com
DYNOMITE -2009-
Page 1739 of 2893
20-63
A
B
A
B
C D
A
7. Remove the slide stops (A) and the drain channel sliders (B) from both sides.
8. Slide the cable assembly (A) and both glass brackets (B) back, remove the deflector sliders (C)
from both glass brackets, then remove them from
the frame (D). 9. Install the slider and the cable assembly in the
reverse order of removal, and note these items:
Damaged parts should be replaced.
Apply multipurpose grease to the glass bracket (A) and the guide rail portion of the frame (B)
indicated by the arrows.
Before reinstalling the motor, make sure both link lifters are parallel, and in the fully closed
position.
Before reinstalling the motor, install the frame and the glass, then check the opening drag
(see page 20-64).
After reinstalling the motor, do the m oonroof
calibration (see page 22-287).
08/08/21 15:01:23 61SNR030_200_0065
ProCarManuals.com
DYNOMITE -2009-
Page 1740 of 2893

(#')
µµ µ
Closing force: 200 290 N (20 30 kgf, 44 66 lbf)
20-64 Moonroof
Closing Force and Opening Drag Check
B
A
C A
B
1. Remove the headliner (see page 20-84).
2. Closing force check: With a shop towel (A) on the leading edge of theglass (B), attach a spring scale (C) as shown.
Have an assistant hold the switch to close the glass while you measure the force required to
stop it.
Read the force as soon as the glass stops moving, then immediately release the switch and spring
scale.
3. If the force in not within specification, remove the moonroof motor (see page 20-59), and check the
following items:
Check the gear portion and the inner cable for breakage and damage. If the gear portion is
broken, replace the motor. If the inner cable is
damaged, remove the frame (see page 20-60),
and replace the cable (see page 20-62).
Check the moonroof motor (see page 22- 290). If
the motor fails to run or doesn’t turn smoothly,
replace it.
Check the opening drag. Go to step 4. 4. Opening drag check: Protect the leading edge of the
glass with a shop towel (A). Measure the effort
required to open the glass using a spring scale (B)
as shown.
5. If the load is over 40 N (4 kgf, 9 lbf), check: The side clearance and glass position adjustment(see page 20-55).
For broken or damaged sliding parts. If any sliding parts are damaged, replace them.
08/08/21 15:01:24 61SNR030_200_0066
ProCarManuals.com
DYNOMITE -2009-
Page 1741 of 2893

Î
(#')
20-65
Interior Trim

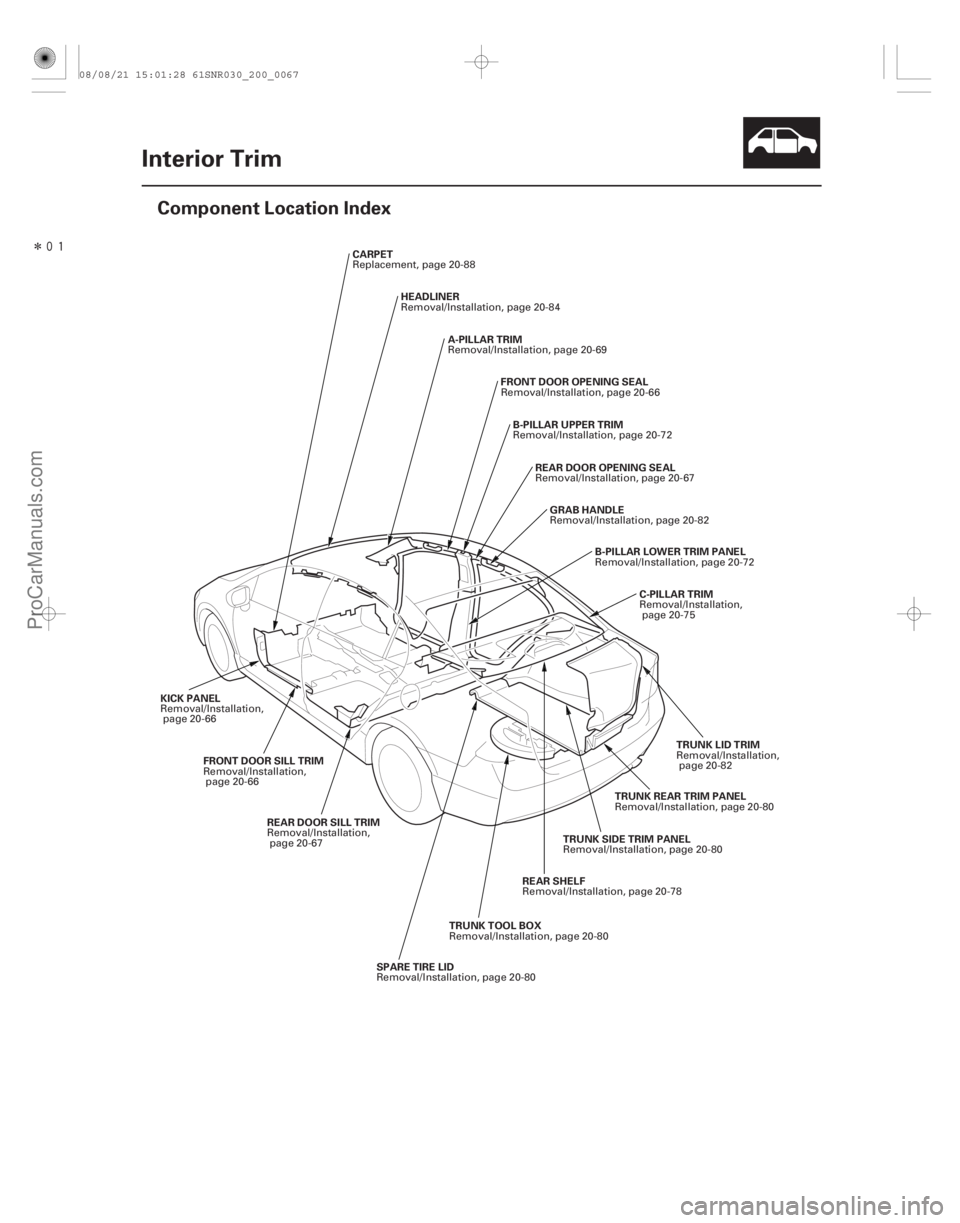

Component Location Index
CARPET
HEADLINER
A-PILLAR TRIM FRONT DOOR OPENING SEAL
B-PILLAR UPPER TRIM REAR DOOR OPENING SEAL
KICK PANEL TRUNK TOOL BOXREAR SHELF
TRUNK SIDE TRIM PANEL TRUNK REAR TRIM PANELC-PILLAR TRIM
FRONT DOOR SILL TRIM REAR DOOR SILL TRIM
SPARETIRELID TRUNK LID TRIM
B-PILLAR LOWER TRIM PANEL
GRAB HANDLE
Replacement, page 20-88
Removal/Installation, page 20-84
Removal/Installation, page 20-69 Removal/Installation, page 20-66
Removal/Installation, page 20-72 Removal/Installation, page 20-67
Removal/Installation, page 20-66
Removal/Installation, page 20-80Removal/Installation, page 20-78
Removal/Installation, page 20-80 Removal/Installation, page 20-80Removal/Installation,
page 20-75
Removal/Installation, page 20-66
Removal/Installation,page 20-67
Removal/Installation, page 20-80 Removal/Installation,
page 20-82
Removal/Installation, page 20-72
Removal/Installation, page 20-82
08/08/21 15:01:28 61SNR030_200_0067
ProCarManuals.com
DYNOMITE -2009-
Page 1742 of 2893

(#' )
S
pecial Tools Required
Driver’s side Passenger’s sideFront Door Sill Area
20-66Interior Trim
Trim Removal/Installation - Door Areas
A
B C
D
E
F
G G
A B A
B
G
G
Fastener Locations
:Clip,1
F : Clip, 4
G
(White)
(Orange)
E Fa
stener Locations
: Clip, 1
F : Clip, 4
G
(White)
(Orange)
A
B
C D E
F
G B
A
A
BG
G
G
E
AB
A
A
KTC trim tool set SOJATP2014
NOTE:
Put on gloves to protect your hands.
Take care not to bend or scratch the trim and panels.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
1. Driver’s side: Remove the footrest (see step 3 on page 20-89).
2. Driver’s side: Remove the front side cap from the front door sill trim, and remove the trunk lid/fuel fill
door opener lock cylinder and the screw (see page
20-184).
3. Detach the hooks (A) and the tabs (B) from the kick panel (C) and the B-pillar lower trim (D), and pull
the front door sill trim (E) up by hand to detach the
clips (F, G), then remove it.
4
. Pull out the front door opening seal (A) from thetrim hooks (B) and around the front door opening
flange, then remove the seal.
08/08/21 15:01:29 61SNR030_200_0068
ProCarManuals.com
DYNOMITE -2009-
Page 1743 of 2893
(#' )
D
river’s side
Passenger’s side Special Tools RequiredRear Door Sill Area
20-6720-67
Fastener Locations
:Clip,2
A
Fastener Locations :Clip,2
B Fastener Locations
:C
lip,2
(White)
A
B C
D
A

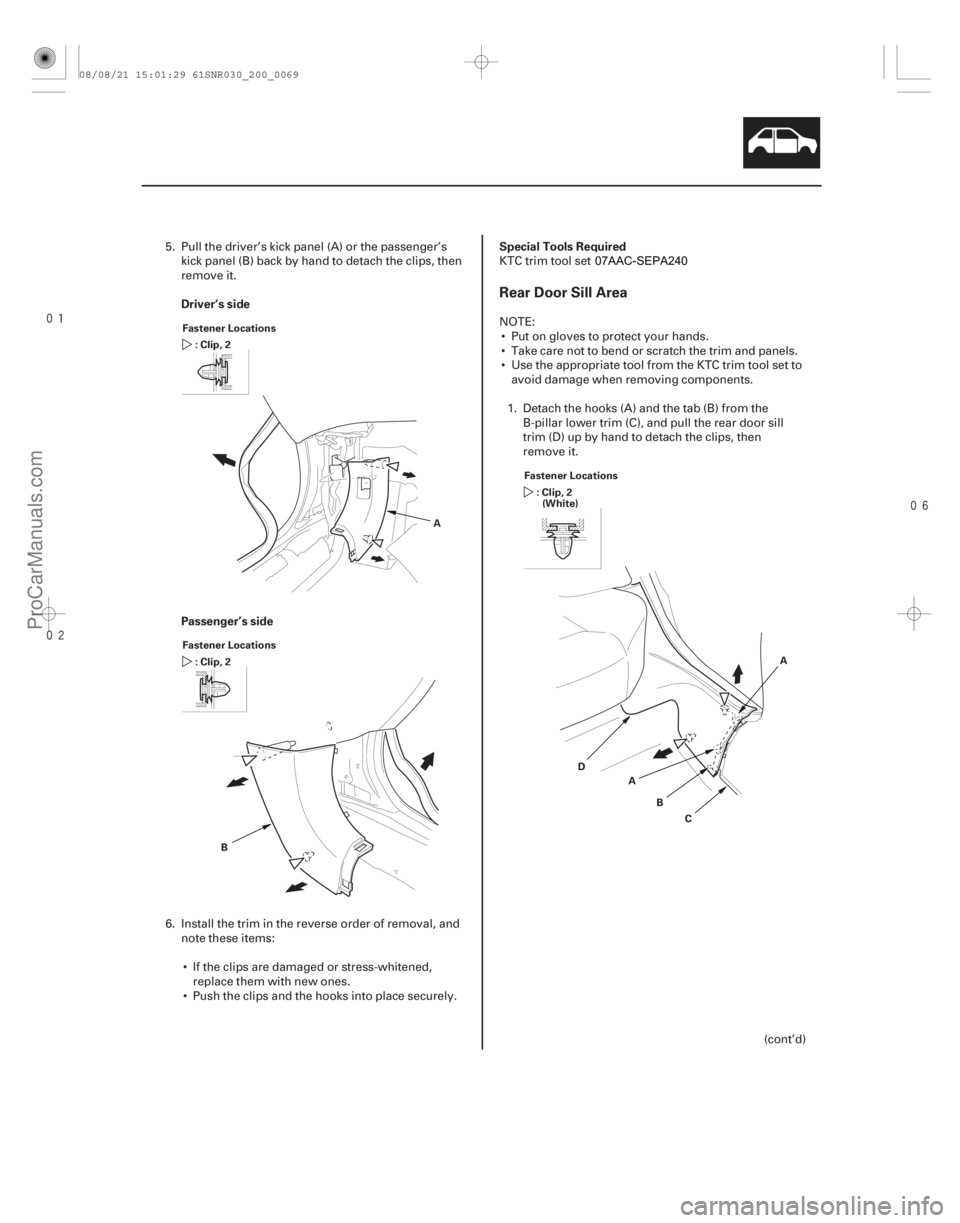

5. Pull the driver’s kick panel (A) or the passenger’skick panel (B) back by hand to detach the clips, then
remove it.
6. Install the trim in the reverse order of removal, and note these items:
If the clips are damaged or stress-whitened, replace them with new ones.
Push the clips and the hooks into place securely. KTC trim tool set SOJATP2014
NOTE:
Put on gloves to protect your hands.
Take care not to bend or scratch the trim and panels.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
1. Detach the hooks (A) and the tab (B) from the B-pillar lower trim (C), and pull the rear door sill
trim(D)upbyhandtodetachtheclips,then
remove it.
(c
ont’d)
08/08/21 15:01:29 61SNR030_200_0069
ProCarManuals.com
DYNOMITE -2009-
Page 1744 of 2893
20-68Interior Trim
Trim Removal/Installation - Door Areas (cont’d)
C
Fastener Locations
: Clip, 2(White)
B D
E
D
D
E
A E
A
B
A
2. Pull the seat hook knob (A) while pushing down on the rear seat cushion (B) to release the hook (C).
While pulling the cushion up, detach the clips and
remove the rear door sill trim (D) from the rear
door opening seal (E).
3. Pull out the rear door opening seal (A) from the trim hooks (B) and around the rear door opening
flange, then remove the seal. 4. Install the trim in the reverse order of removal, and
note these items:
If the clips are damaged or stress-whitened, replace them with new ones.
Push the clips and the hooks into place securely.
08/08/21 15:01:30 61SNR030_200_0070
ProCarManuals.com
