Page 1169 of 2893
µµ
µµ µ µ
µµ
µµ
Î
(#'
)

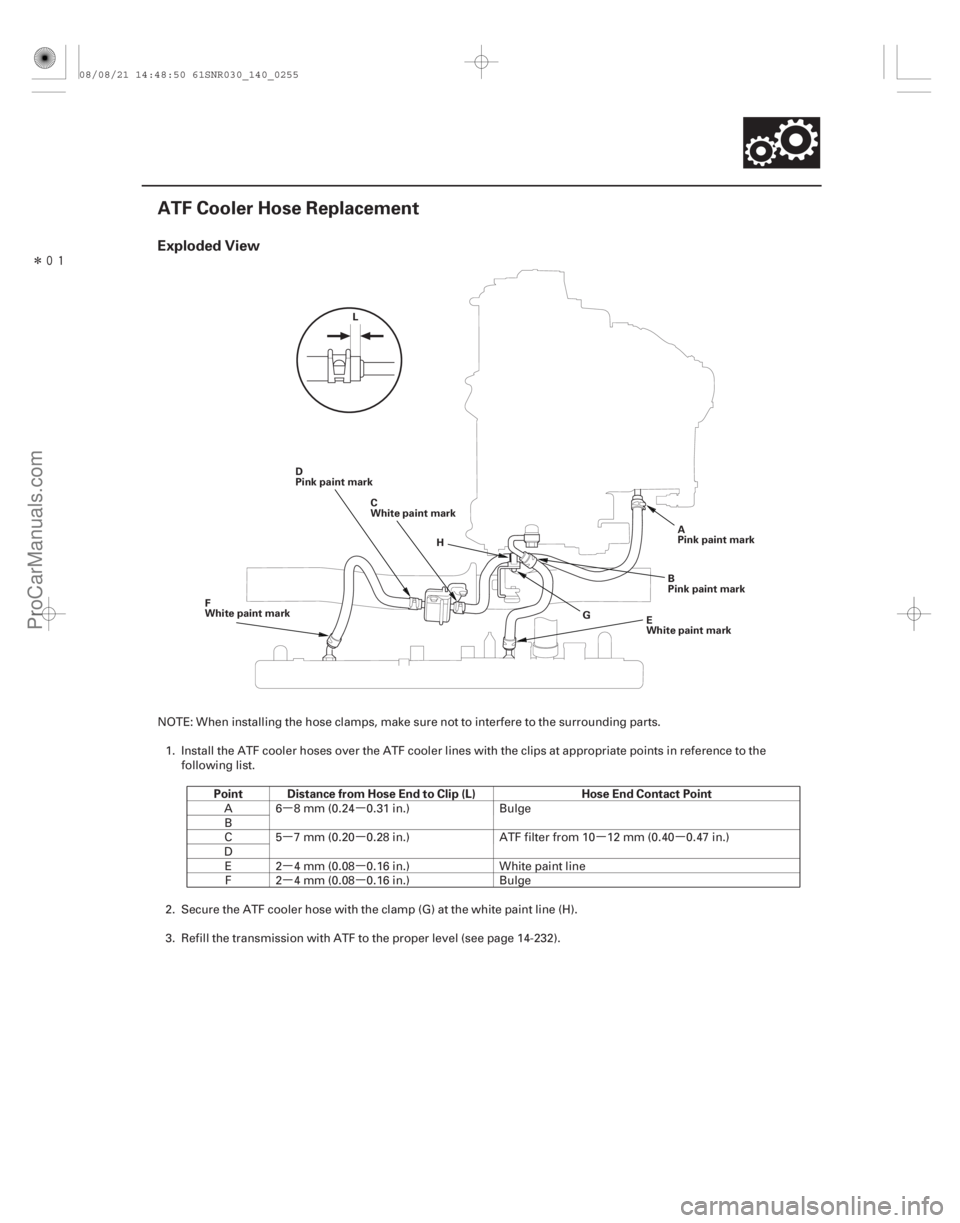

Exploded View
Point Distance from Hose End to Clip (L) Hose End Contact Point
14-253
ATF Cooler Hose Replacement
L
G
H
E
White paint markA
Pink paint mark
B
Pink paint mark
C
White paint mark
D
Pink paint mark
F
White paint mark
NOTE: When installing the hose clamps, make sure not to interfere to the surr ounding parts.
1. Install the ATF cooler hoses over the ATF cooler lines with the clips at appropriate points in reference to the following list.
A 6 8 mm (0.24 0.31 in.) BulgeB
C 5 7 mm (0.20 0.28 in.) ATF filter from 10 12 mm (0.40 0.47 in.)
D E 2 4 mm (0.08 0.16 in.) White paint lineF 2 4 mm (0.08 0.16 in.) Bulge
2. Secure the ATF cooler hose with the clamp (G) at the white paint line (H).
3. Refill the transmission with ATF to the proper level (see page 14-232).
08/08/21 14:48:50 61SNR030_140_0255
ProCarManuals.com
DYNOMITE -2009-
Page 1170 of 2893
(#'
)
14-254 Automatic Transmission
Shift Lever Removal
A
A
B C
A
B
1. Remove the center console (see page 20-92).
2. Move the shift lever to R.

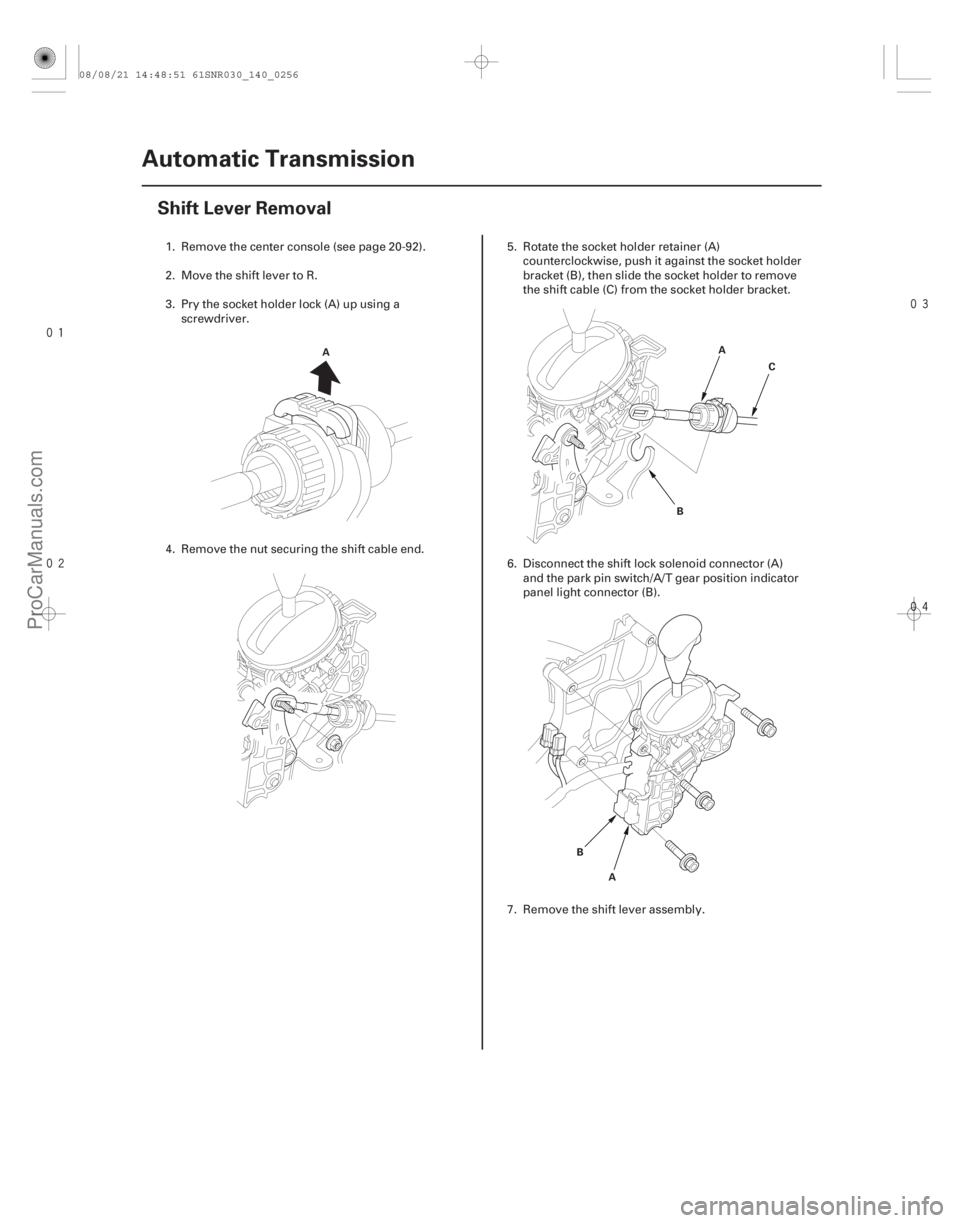

3. Pry the socket holder lock (A) up using a
screwdriver.
4. Remove the nut securing the shift cable end. 5. Rotate the socket holder retainer (A)
counterclockwise, push it against the socket holder
bracket (B), then slide the socket holder to remove
the shift cable (C) from the socket holder bracket.
6. Disconnect the shift lock solenoid connector (A) and the park pin switch/A/T gear position indicator
panel light connector (B).
7. Remove the shift lever assembly.
08/08/21 14:48:51 61SNR030_140_0256
ProCarManuals.com
DYNOMITE -2009-
Page 1171 of 2893
Î
(#'
)
14-255
Shift Lever Installation
B
C
8x1.25mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)A
1. Install the shift lever assembly (A).
2. Connect the shift lock solenoid connector (B) and
the park pin switch/A/T gear position indicator
panel light connector (C).
3. Install the shift cable on the shift lever, and adjust the cable (see step 5 on page 14-259).
08/08/21 14:48:51 61SNR030_140_0257
ProCarManuals.com
DYNOMITE -2009-
Page 1172 of 2893
Î
(#'
")
14-256Automatic Transmission
Shift Lever Disassembly/Reassembly

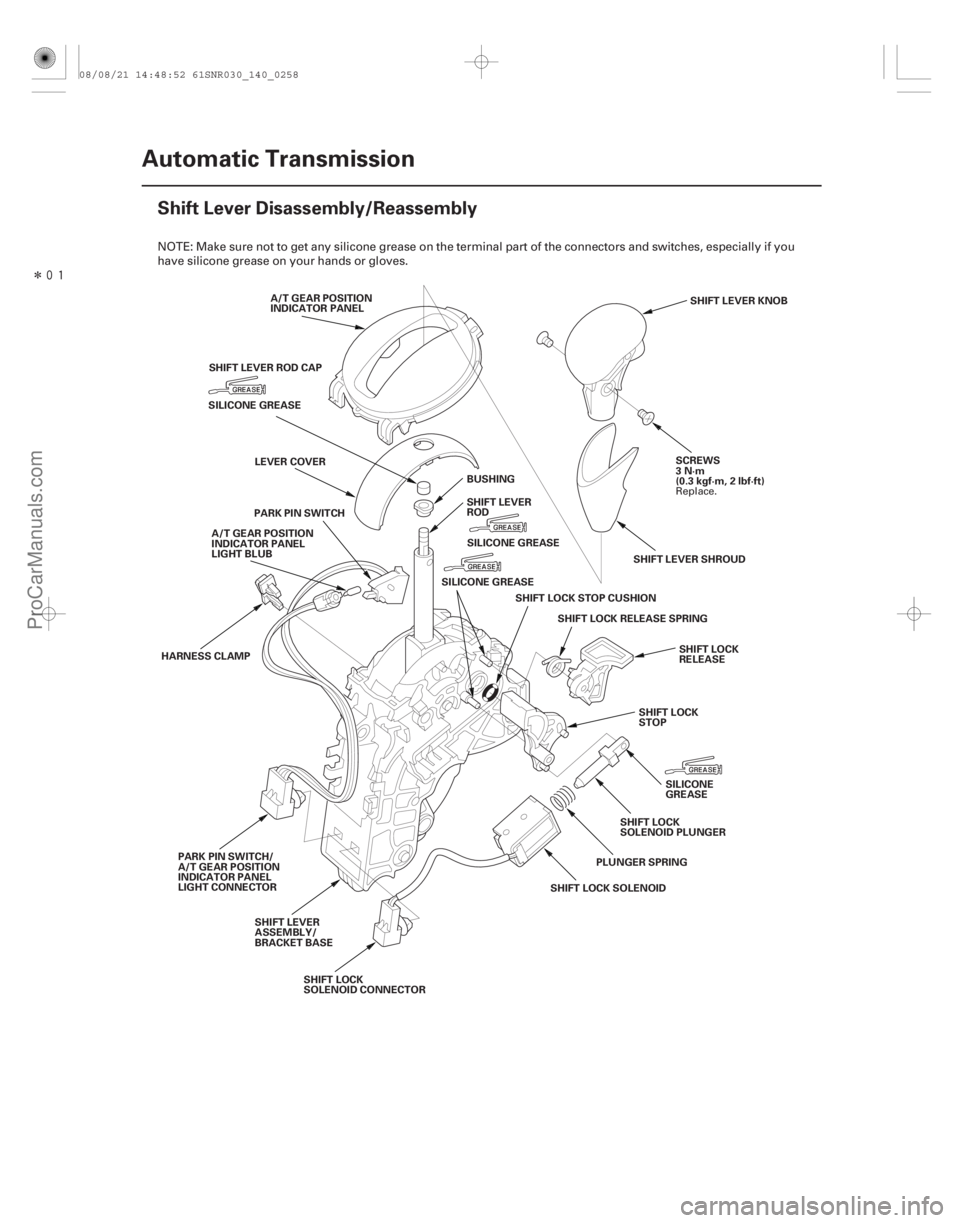

A/T GEAR POSITION
INDICATOR PANEL
SCREWS
3N·m
(0.3 kgf·m, 2 lbf·ft)SHIFT LEVER KNOB
SILICONE GREASE
SHIFT LOCK SOLENOID
HARNESS CLAMP
PARK PIN SWITCH/
A/T GEAR POSITION
INDICATOR PANEL
LIGHT CONNECTOR PARK PIN SWITCH
SHIFT LOCK RELEASE SPRING
SHIFT LOCK
SOLENOID PLUNGER
SHIFTLOCKSTOPCUSHION
SHIFT LOCK
STOP
SHIFT LEVER
ASSEMBLY/
BRACKET BASE SHIFT LEVER
ROD
LEVER COVER
A/T GEAR POSITION
INDICATOR PANEL
LIGHT BLUB
SHIFT LOCK
RELEASE
SHIFT LEVER SHROUD
PLUNGER SPRING SILICONE
GREASE
SHIFT LOCK
SOLENOID CONNECTOR BUSHING
SHIFT LEVER ROD CAP
SILICONE GREASESILICONE GREASE
NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you
have silicone grease on your hands or gloves.
Replace.
08/08/21 14:48:52 61SNR030_140_0258
ProCarManuals.com
DYNOMITE -2009-
Page 1173 of 2893
(#'
)
14-257
Shift Cable Replacement
A A
B C
A BC
D
E
F
1. Raise the vehicle on a lift, or apply the parking
brake, block the rear wheels, and raise the front of
the vehicle. Make sure it is securely supported.
2. Move the shift lever to R.
3. Remove the center console (see page 20-92).
4. Pry the socket holder lock (A) up using a screwdriver.
5. Remove the nut securing the shift cable end. 6. Rotate the socket holder retainer (A)
counterclockwise, push it against the socket holder
bracket (B), then slide the socket holder to remove
the shift cable (C) from the socket holder bracket.

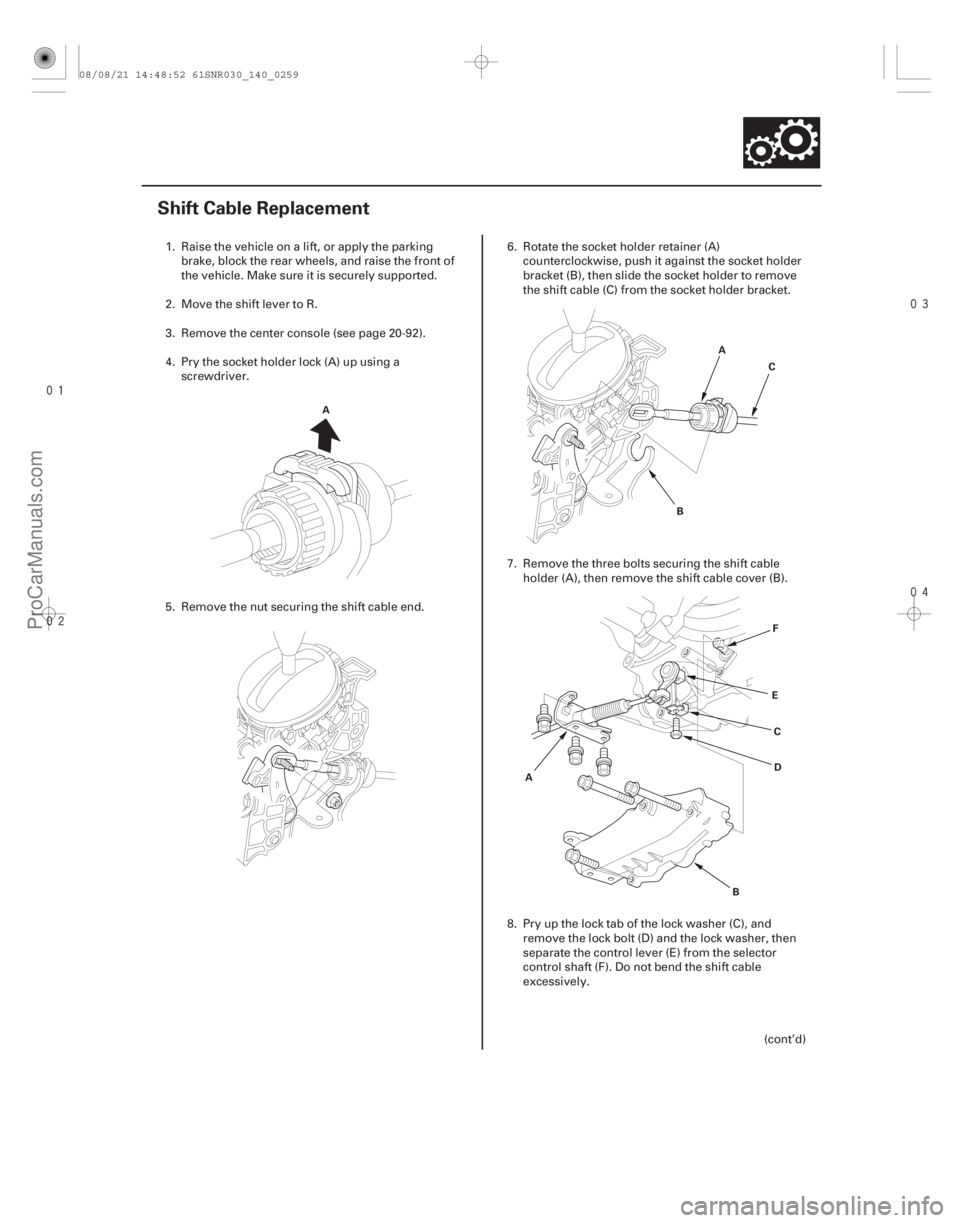

7. Remove the three bolts securing the shift cable holder (A), then remove the shift cable cover (B).
8. Pry up the lock tab of the lock washer (C), and remove the lock bolt (D) and the lock washer, then
separate the control lever (E) from the selector
control shaft (F). Do not bend the shift cable
excessively.
(cont’d)
08/08/21 14:48:52 61SNR030_140_0259
ProCarManuals.com
DYNOMITE -2009-
Page 1174 of 2893

Î
14-258Automatic Transmission
Shift Cable Replacement (cont’d)
6x1.0mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)A
B C
D
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)6x1.0mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)
D
6x1.0mm
14 N·m
(1.4 kgf·m,
10 lbf·ft)A
B
E
F
C

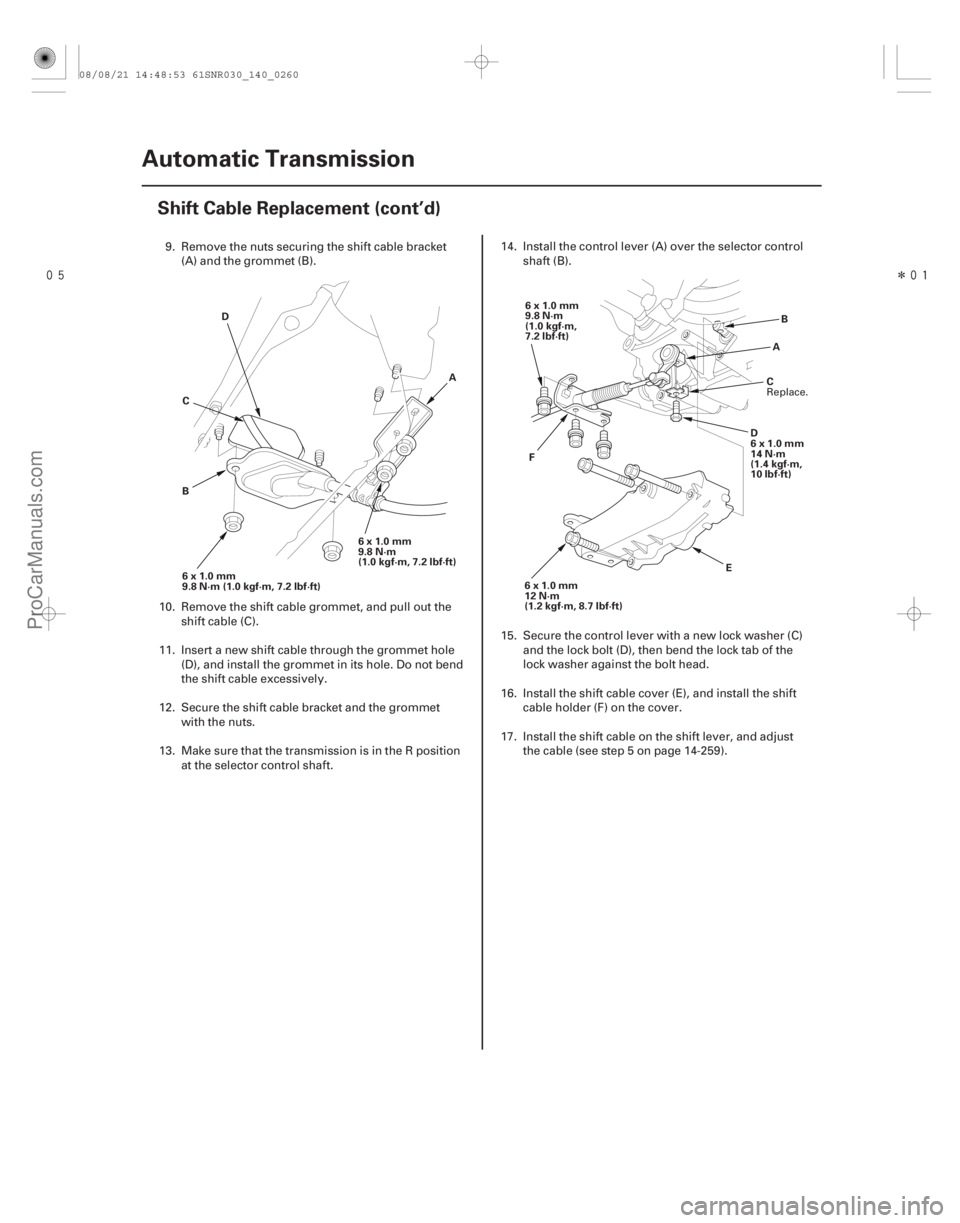

9. Remove the nuts securing the shift cable bracket
(A) and the grommet (B).
10. Remove the shift cable grommet, and pull out the shift cable (C).
11. Insert a new shift cable through the grommet hole (D), and install the grommet in its hole. Do not bend
the shift cable excessively.
12. Secure the shift cable bracket and the grommet with the nuts.
13. Make sure that the transmission is in the R position at the selector control shaft. 14. Install the control lever (A) over the selector control
shaft (B).
15. Secure the control lever with a new lock washer (C) and the lock bolt (D), then bend the lock tab of the
lock washer against the bolt head.
16. Install the shift cable cover (E), and install the shift cable holder (F) on the cover.
17. Install the shift cable on the shift lever, and adjust the cable (see step 5 on page 14-259).
Replace.
08/08/21 14:48:53 61SNR030_140_0260
ProCarManuals.com
DYNOMITE -2009-
Page 1175 of 2893
(#'
")
14-259
Shift Cable Adjustment
A A
B C
A
B C
1. Remove the center console (see page 20-92).

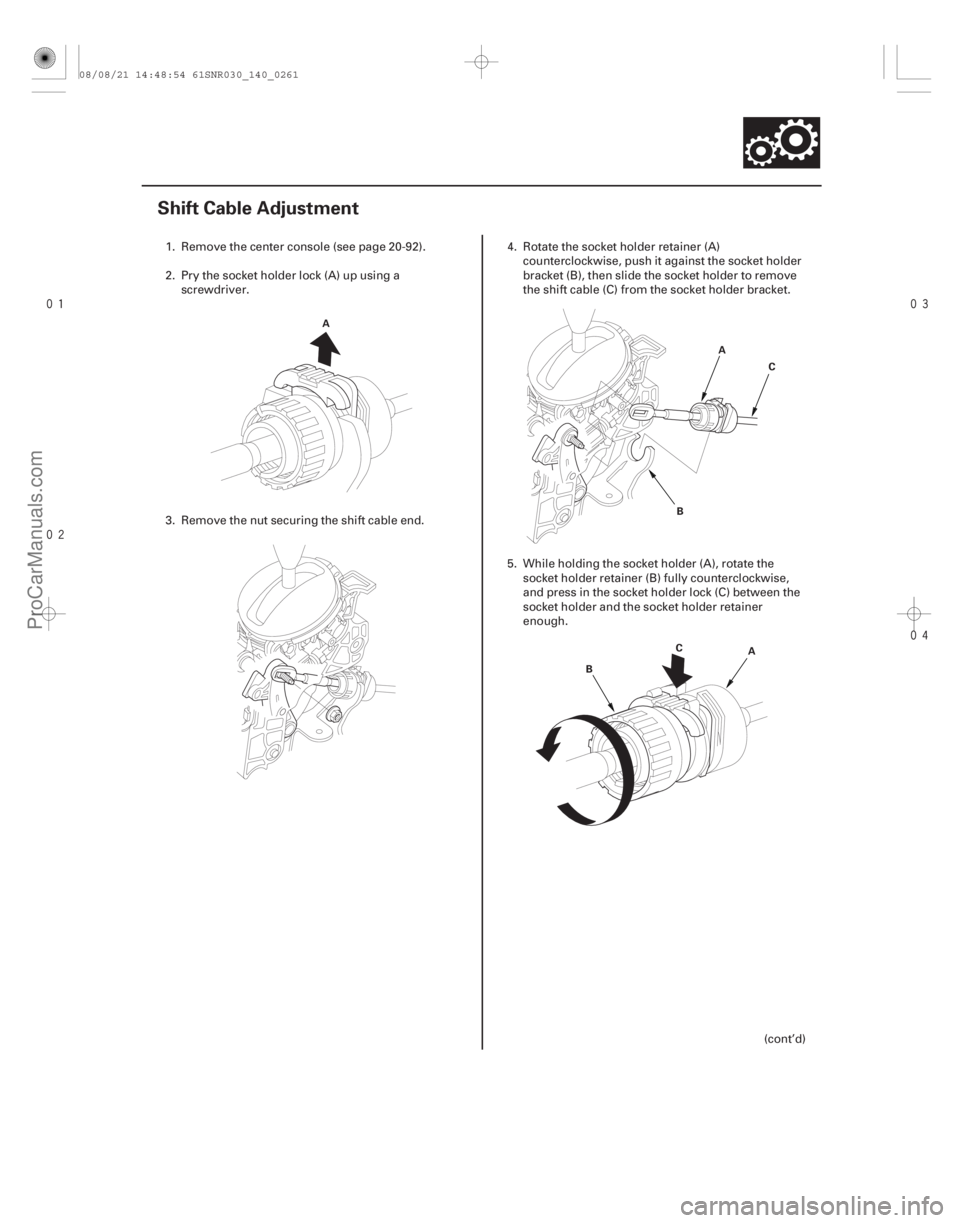

2. Pry the socket holder lock (A) up using a
screwdriver.
3. Remove the nut securing the shift cable end. 4. Rotate the socket holder retainer (A)
counterclockwise, push it against the socket holder
bracket (B), then slide the socket holder to remove
the shift cable (C) from the socket holder bracket.
5. While holding the socket holder (A), rotate the socket holder retainer (B) fully counterclockwise,
and press in the socket holder lock (C) between the
socket holder and the socket holder retainer
enough.
(cont’d)
08/08/21 14:48:54 61SNR030_140_0261
ProCarManuals.com
DYNOMITE -2009-
Page 1176 of 2893
Î
14-260Automatic Transmission
Shift Cable Adjustment (cont’d)
A
B
C
A B
C B
A

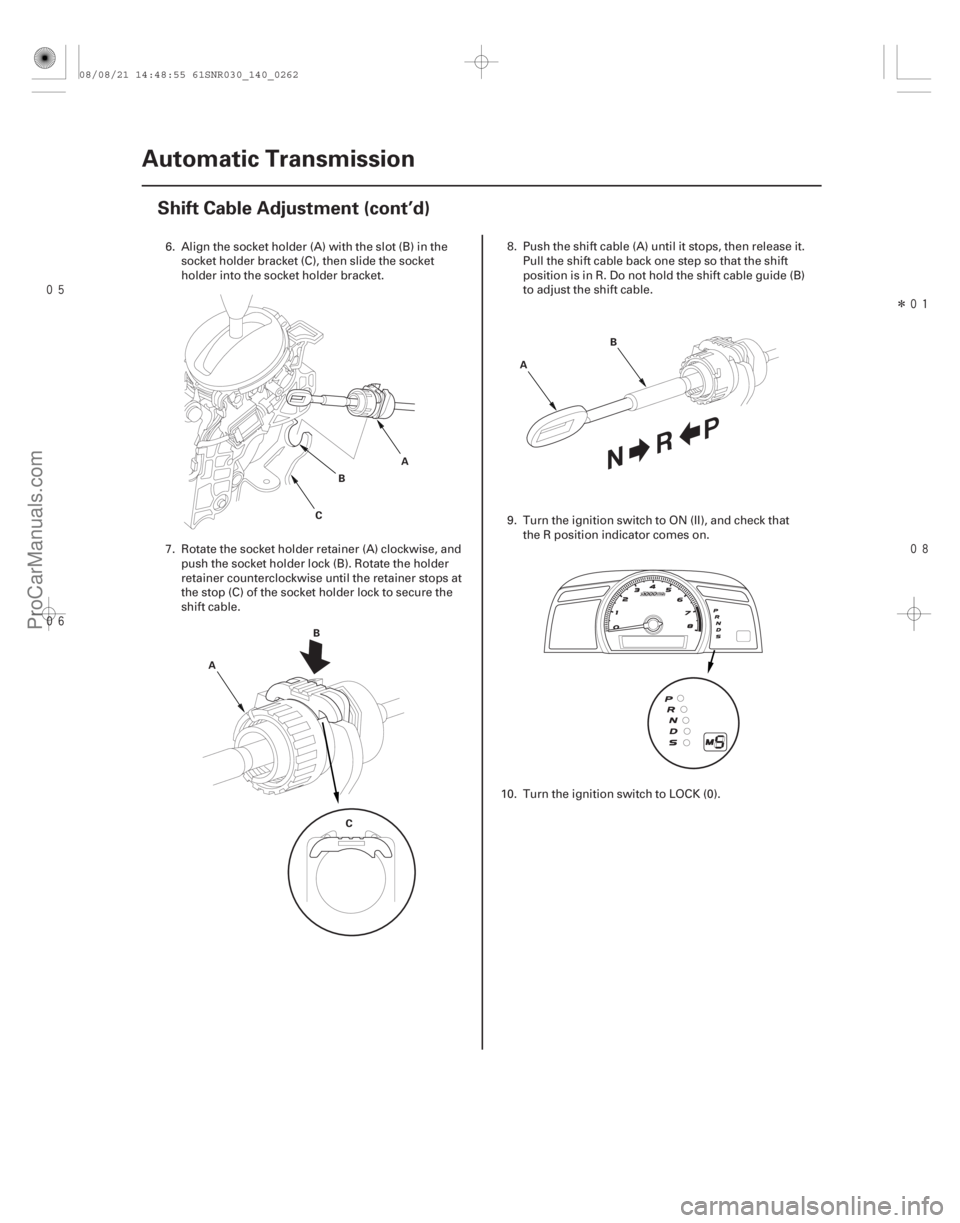

6. Align the socket holder (A) with the slot (B) in the socket holder bracket (C), then slide the socket
holder into the socket holder bracket.
7. Rotate the socket holder retainer (A) clockwise, and push the socket holder lock (B). Rotate the holder
retainer counterclockwise until the retainer stops at
the stop (C) of the socket holder lock to secure the
shift cable. 8. Push the shift cable (A) until it stops, then release it.
Pull the shift cable back one step so that the shift
position is in R. Do not hold the shift cable guide (B)
to adjust the shift cable.
9. Turn the ignition switch to ON (II), and check that the R position indicator comes on.
10. Turn the ignition switch to LOCK (0).
08/08/21 14:48:55 61SNR030_140_0262
ProCarManuals.com
DYNOMITE -2009-
