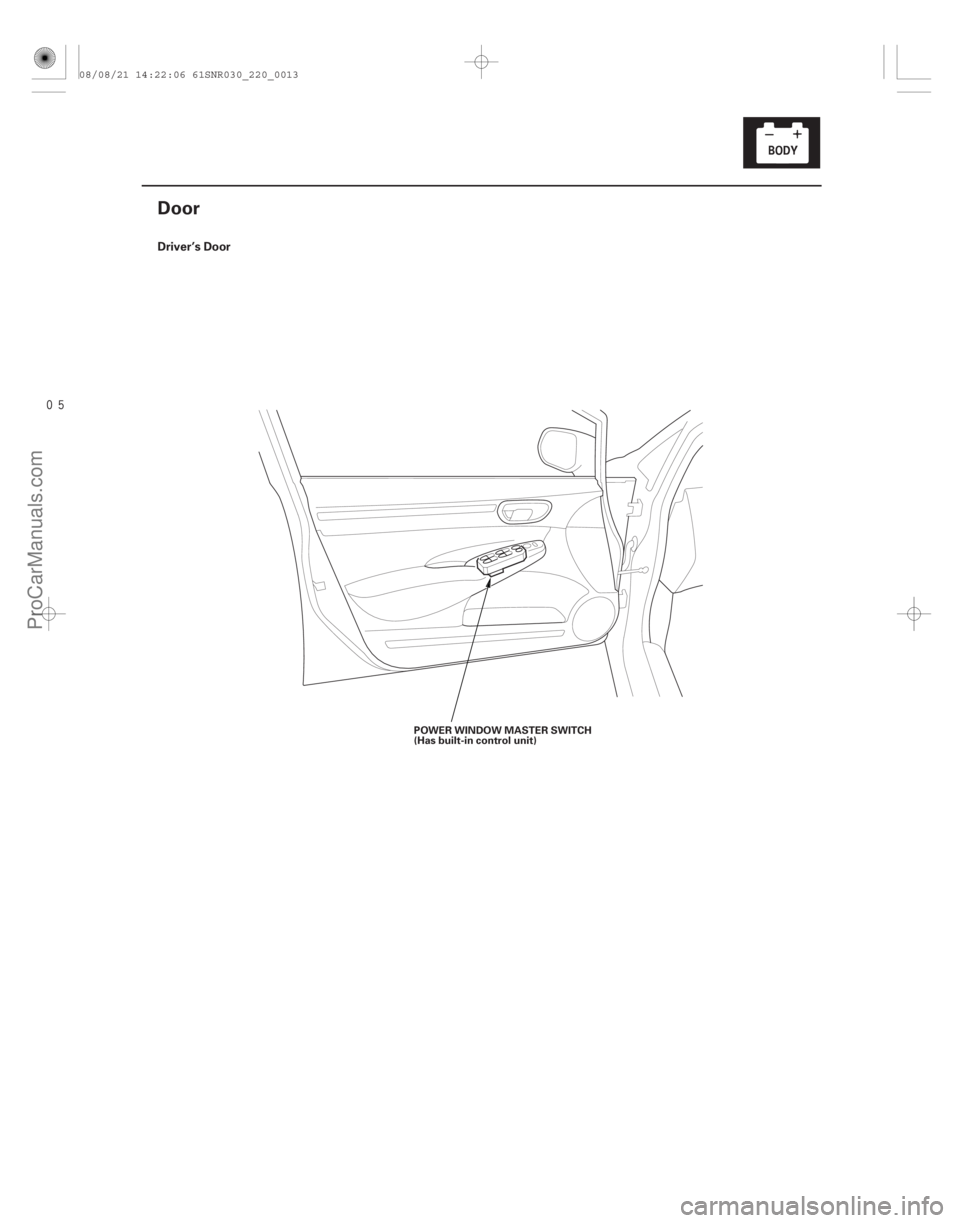

ACURA CSX 2006 Service Repair Manual (#) Driver’s Door
22-11
Door
POWER WINDOW MASTER SWITCH
(Has built-in control unit)
08/08/21 14:22:06 61SNR030_220_0013
ProCarManuals.com
DYNOMITE

Page 2002 of 2893

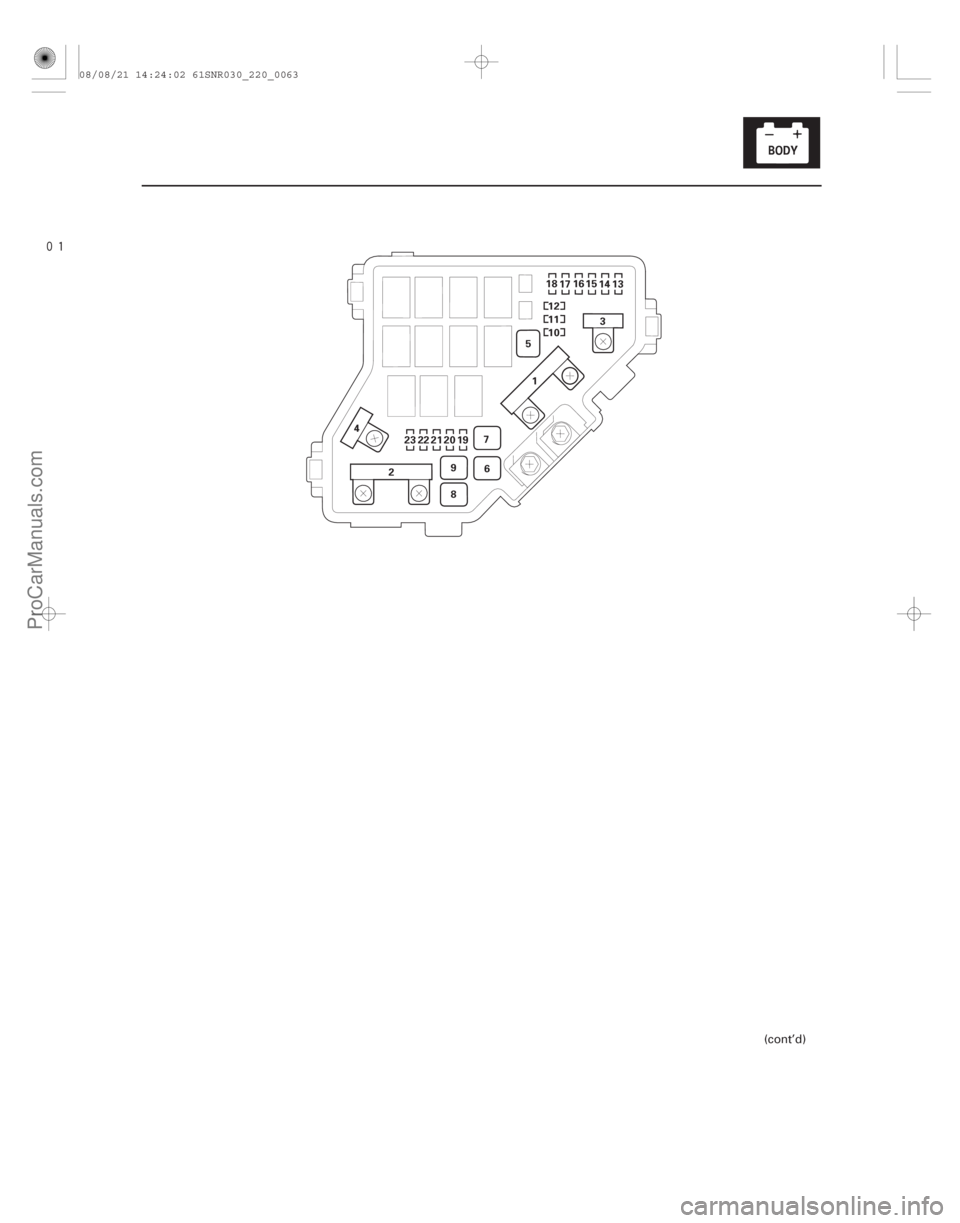

ACURA CSX 2006 Service Repair Manual
(#) Driver’s Seat
Front Passenger’s Seat
22-12Relay and Control Unit Locations
Seat
DRIVER’S SEAT HEATER RELAY (HIGH)
DRIVER’S SEAT HEAT

Page 2003 of 2893

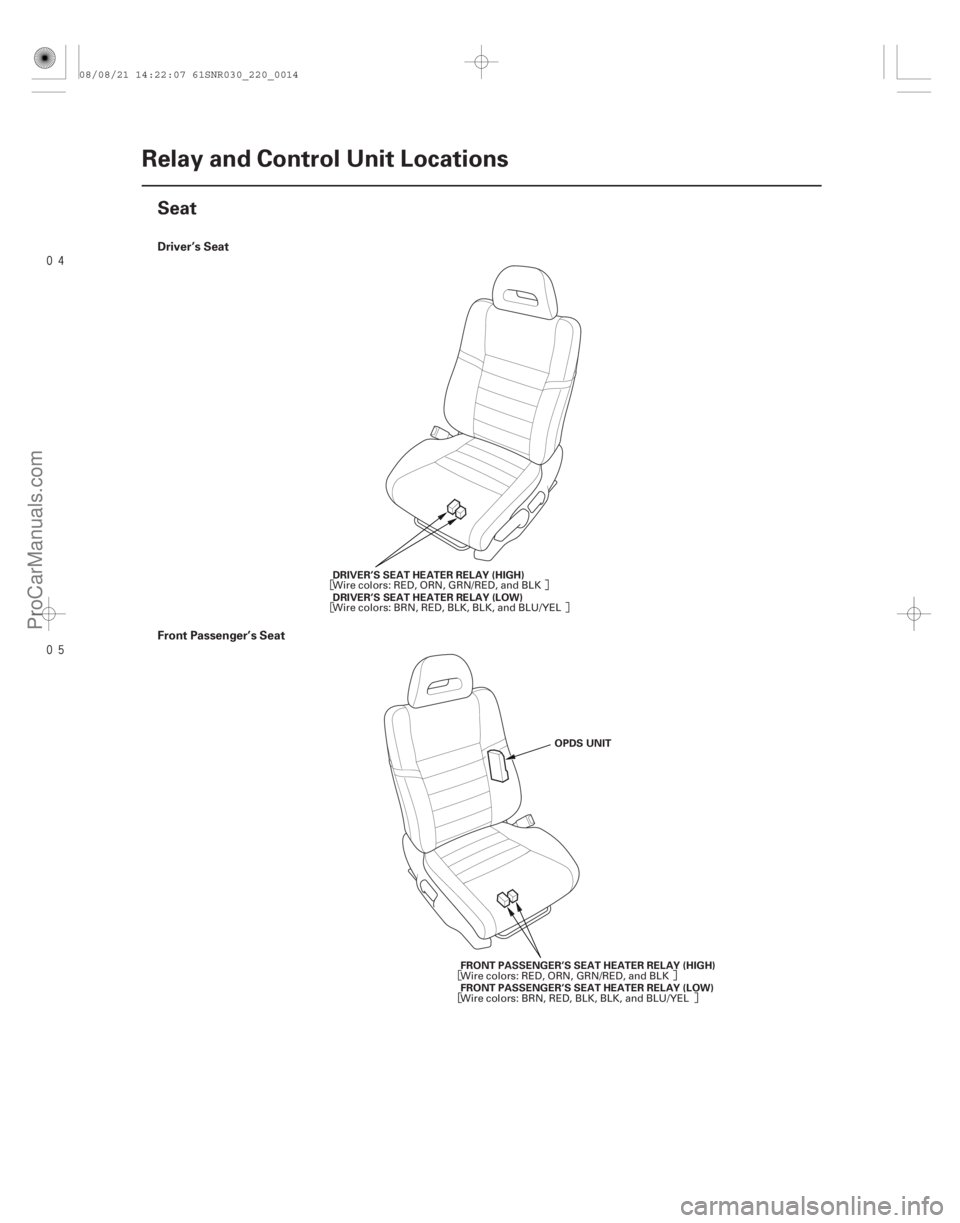

ACURA CSX 2006 Service Repair Manual µ
´
(#)
HarnessLocation
Engine Compartment Dashboard Others (Floor, Door, Trunk, and Roof)Notes
22-13

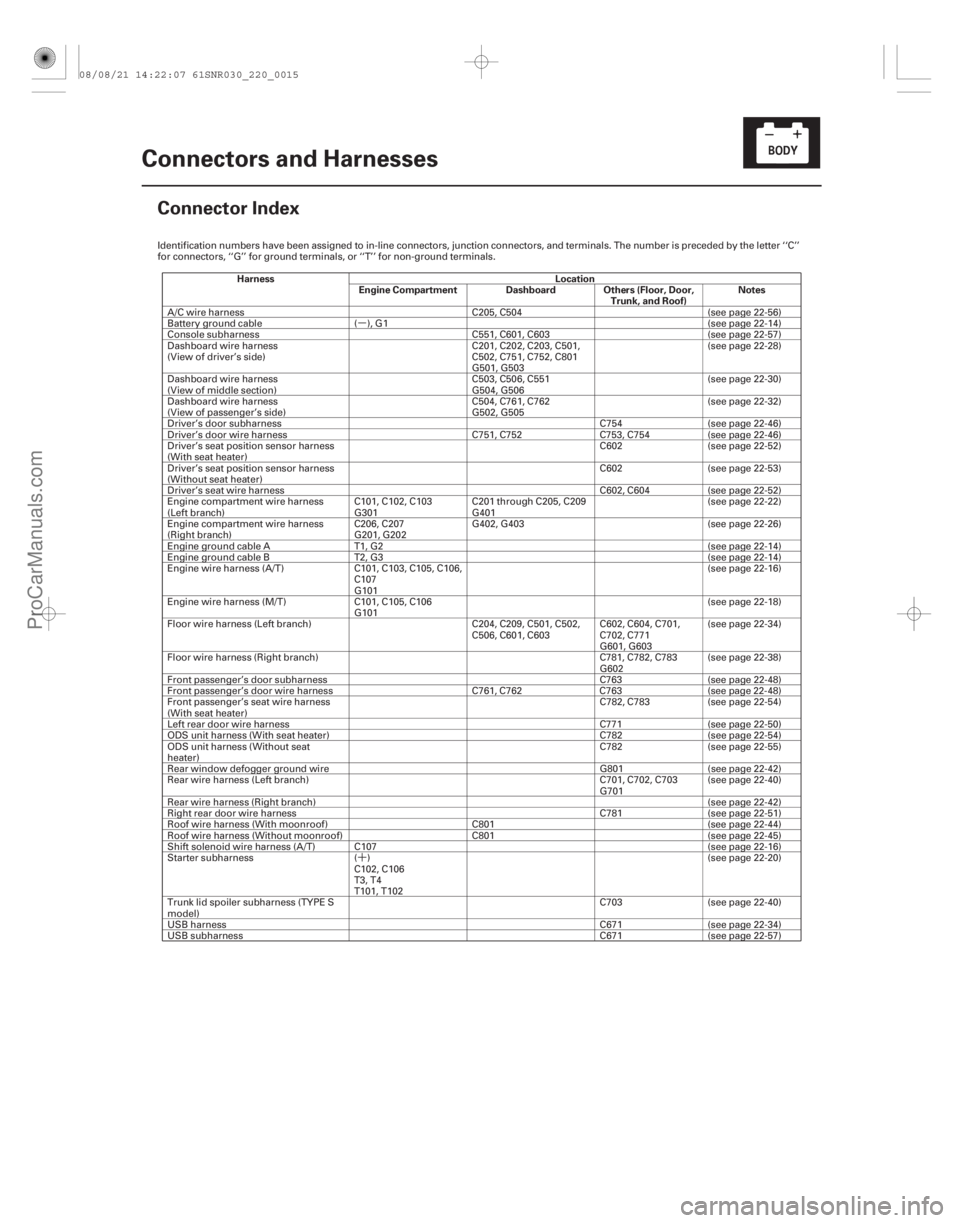

Connectors and Harnesses
Connector Index
Identi

µ
´
(#')
HarnessLocation
Engine Compartment Dashboard Others (Floor, Door, Trunk, and Roof)Notes
22-13
Connectors and Harnesses
Connector Index
Identification numbers have been assigned to in-line connectors, junction connectors, and terminals. The number is preceded by the letter ‘‘C’’
for connectors, ‘‘G’’ for ground terminals, or ‘‘T’’ for non-ground terminals.
A/C wire harness C205, C504 (see page 22-56)
Battery ground cable ( ), G1 (see page 22-14)
Console subharness C551, C601, C603 (see page 22-57)
Dashboard wire harness
(View of driver’s side) C201, C202, C203, C501,
C502, C751, C752, C801
G501, G503(see page 22-28)
Dashboard wire harness
(View of middle section) C503, C506, C551
G504, G506(see page 22-30)
Dashboard wire harness
(View of passenger’s side) C504, C761, C762
G502, G505(see page 22-32)
Driver’s door subharness C754 (see page 22-46)
Driver’s door wire harness C751, C752 C753, C754 (see page 22-46)
Driver’s seat position sensor harness
(With seat heater) C602 (see page 22-52)
Driver’s seat position sensor harness
(Without seat heater) C602 (see page 22-53)
Driver’s seat wire harness C602, C604 (see page 22-52)
Engine compartment wire harness
(Left branch) C101, C102, C103
G301C201 through C205, C209
G401 (see page 22-22)
Engine compartment wire harness
(Right branch) C206, C207
G201, G202G402, G403 (see page 22-26)
Engine ground cable A T1, G2 (see page 22-14)
Engine ground cable B T2, G3 (see page 22-14)
Engine wire harness (A/T) C101, C103, C105, C106, C107
G101 (see page 22-16)
Engine wire harness (M/T) C101, C105, C106 G101 (see page 22-18)
Floor wire harness (Left branch) C204, C209, C501, C502, C506, C601, C603C602, C604, C701,
C702, C771
G601, G603(see page 22-34)
Floor wire harness (Right branch) C781, C782, C783 G602(see page 22-38)
Front passenger’s door subharness C763 (see page 22-48)
Front passenger’s door wire harness C761, C762 C763 (see page 22-48)
Front passenger’s seat wire harness
(With seat heater) C782, C783 (see page 22-54)
Left rear door wire harness C771 (see page 22-50)
ODS unit harness (With seat heater) C782 (see page 22-54)
ODS unit harness (Without seat
heater) C782 (see page 22-55)
Rear window defogger ground wire G801 (see page 22-42)
Rear wire harness (Left branch) C701, C702, C703 G701(see page 22-40)
Rear wire harness (Right branch) (see page 22-42)
Right rear door wire harness C781 (see page 22-51)
Roof wire harness (With moonroof) C801 (see page 22-44)
Roof wire harness (Without moonroof) C801 (see page 22-45)
Shift solenoid wire harness (A/T) C107 (see page 22-16)
Starter subharness ( ) C102, C106
T3, T4
T101, T102 (see page 22-20)
Trunk lid spoiler subharness (TYPE S
model) C703 (see page 22-40)
USB harness C671 (see page 22-34)
USB subharness C671 (see page 22-57)
08/08/21 14:22:07 61SNR030_220_0015
ProCarManuals.com
DYNOMITE -2009-

Page 2004 of 2893

ACURA CSX 2006 Service Repair Manual •••
•••

(#
) Under-hood Fuse/Relay Box
Socket Ref Terminal Connects toNotes
22-58Fuse/Relay Boxes
Connector to Fuse/Relay Box Index

Page 2005 of 2893

ACURA CSX 2006 Service Repair Manual •••

(#
) Under-dash Fuse/Relay Box
Socket Ref Terminal Connects toNotes
22-59
2
3
4
5
1
16
17
18
11
12
14
13
15
10 6
7
8
9 19
20
(View of fro

Page 2006 of 2893

ACURA CSX 2006 Service Repair Manual •••
•••
•••
•••
(#)
Under-hood Fuse/Relay Box
Fuse
Number Amps Component(s) or Circuit(s) Protected
22-60Power Distri

•••
•••
•••
•••
(#')
Under-hood Fuse/Relay Box
Fuse
Number Amps Component(s) or Circuit(s) Protected
22-60Power Distribution
Fuse to Components Index
1 100 A
(BAT)Battery, Power distribution
70 A
(EPS) EPS control unit
250A (IG)Ignition switch
80 A
60 A
(OPTION) No. 5, No. 6, No. 7, No. 27, No. 28, No. 29, and No. 31 fuses (in the under-dash fuse/relay box)
330A (ABS MTR) ABS modulator-control unit , VSA modulator-control unit
30 A
40 A
(ABS FSR) ABS modulator-control unit , VSA modulator-control unit
450A (H/L)No. 18, No. 19, No. 20, and No. 21 fuses (in the under-dash fuse/relay box)
40 A
(P/W) No. 24, No. 25, No. 26, No. 30, No. 32, and No. 33 fuses (in the under-dash fuse/relay box), Power window relay
(in the under-dash fuse/relay box)
5 Not used
6 20 A A/C condenser fan motor (via A/C condenser fan relay)
7 20 A Radiator fan motor (via radiator fan relay)
8 30 A Noise condenser (via rear window defogger relay), Rear window defogger (via rear window defogger relay)
9 40 A Blower motor (via blower motor relay)
10 10 A MICU (turn signal/hazard warning lights circuit)
11 15 A A/F sensor (Sensor 1) (via PGM-FI subrelay), EVAP canister vent shut valve (via PGM-FI subrelay), PGM-FI subrelay, No. 15 fuse (in the under-hood fuse/relay box) (via PGM-FI subrelay)
12 15 A Brake lights, ECM/PCM, Horn, MICU
13 Not used
14 Not used
15 7.5 A A/C condenser fan relay
16 Not used
17 15 A Stereo amplifier
18 15 A Ignition coil relay, Ignition coils (via Ignition coil relay)
19 15 A CKP sensor (via PGM-FI main relay 1), CMP sensor B (via PGM-FI main relay 1), ECM/PCM, ETCS control relay, Injectors (via PGM-FI main relay 1), PGM-FI main relay 1 (FI MAIN), PGM-FI main relay 2 (FUEL PUMP)
20 7.5 A A/C compressor clutch (via A/C compressor clutch relay)
21 15 A ECM/PCM (via ETCS control relay)
22 7.5 A Ceiling light, Courtesy lights, Front individual map lights, Ignition key light, Trunk light, Vanity mirror lights
23 10 A Audio unit , Data link connector (DLC), Gauge control module (speedo), Gauge control module (tach), HandsFreeLink control unit , Immobilizer-keyless control unit, MICU, Moonroof switch, Navigation unit
1: ’06-07 models
2: ’08-09 models
3: ’06-07 Touring and Premium models
4: ’07 TYPE S and ’08-09 models
5: ’08-09 models
6: TYPE S model
7: Without navigation system
8: With navigation system
9: ’09 model with navigation system
1
2
34
3
4 34
6 5
7 9 8
08/08/21 14:24:02 61SNR030_220_0062
ProCarManuals.com
DYNOMITE -2009-

Page 2007 of 2893

ACURA CSX 2006 Service Repair Manual
22-61
23
4 5
1 16
17
19 18
1112 14 13
15
10
6
7
8
9
202122
23
(cont’d)
08/08/21 14:24:02 61SNR030_220_0063
ProCarManuals.com
DYNOMITE -2009-

Page 2008 of 2893

ACURA CSX 2006 Service Repair Manual •••
•••´
´
•••
Under-dash Fuse/Relay Box
Fuse
Number Amps
Component(s) or Circuit(s) Protected
22-62Power Distribution
Fuse to Components Index (cont’d)
1 7.5 A Power

•••
•••´
´
•••
Under-dash Fuse/Relay Box
Fuse
Number Amps
Component(s) or Circuit(s) Protected
22-62Power Distribution
Fuse to Components Index (cont’d)
1 7.5 A Power mirror switch light
2 15 A ECM/PCM, Fuel pump (via PGM-FI main relay 2), Immobilizer-keyless control unit
3 10 A Alternator, CMP sensor A, ECM/PCM (via brake pedal position switch), ELD, EVAP canister purge valve, MAF
sensor/IAT sensor, Reverse lockout solenoid , Secondary HO2S (sensor 2)
4 7.5 A ABS modulator-control unit , EPS control unit, VSA modulator-control unit , Yaw rate-lateral acceleration sensor
5 15 A Seat heaters (via seat heater relays)
6 20 A Fog light relay, Fog lights (via fog light relay)
7 Not used
8 Not used
9 7.5 A ODS unit, Passenger’s airbag cutoff indicator, SRS unit
10 7.5 A Back-up light (M/T), Gauge control module (speedo), Gauge control module (tach), MICU, Shift lock solenoid (A/T), TPMS control unit
11 10 A SRS unit
12 10 A Right headlight (high beam)
13 10 A Left headlight (high beam)
14 7.5 A Audio unit light , Climate control unit light, Dash lights brightness controller and odometer select/reset switch light, Driver’s footwell light , Driver’s seat heater switch light, Glove box light, Hazard warning switch light,
Moonroof switch light, Navigation unit , Park pin switch light (A/T), Passenger’s airbag cutoff indicator light,
Passenger’s footwell light , Passenger’s seat heater switch light, Steering wheel switches light (via cable reel),
VSA OFF switch light
15 7.5 A Parking lights, Taillights, License plate lights, Side marker lights
16 10 A Right headlight (low beam) 15 A Right HID unit
17 10 A Left headlight (low beam) 15 A Left HID unit
18 20 A MICU ( B H/L HI)
19 15 A MICU ( B SMALL LT)
20 Not used
1: ’06-07 Touring and Premium models
2: ’07 TYPE S and ’08-09 models
3: ’08-09 models
4: TYPE S model
5: With HID
6: Without HID
7: TYPE S and ’08 Premium and ’09 models
8: Without navigation system
9: With navigation system
4
1 2
2
7
3
8 49
4
6
5
6
5
08/08/21 14:24:03 61SNR030_220_0064
ProCarManuals.com
DYNOMITE -2009-
