2006 ACURA CSX Service Repair Manual

coolant reservoir fuel fuel consumption battery infotainment spark plugs replace

Page 2641 of 2893

ACURA CSX 2006 Service Repair Manual (##
)Î
Î

(##
)
µ
µ
µ
µ
µ
µ
The Honda Globe Screen (not the Acura
Globe Screen) appears

(#'#
)Î
Î

(#'#
)
µ
µ
µ
µ
µ
µ
The Honda Globe Screen (not the Acura
Globe Screen) appears every time the vehicle
is started
YES
NO
YES
NO
YES
NO
23-35423-354 Navigation System

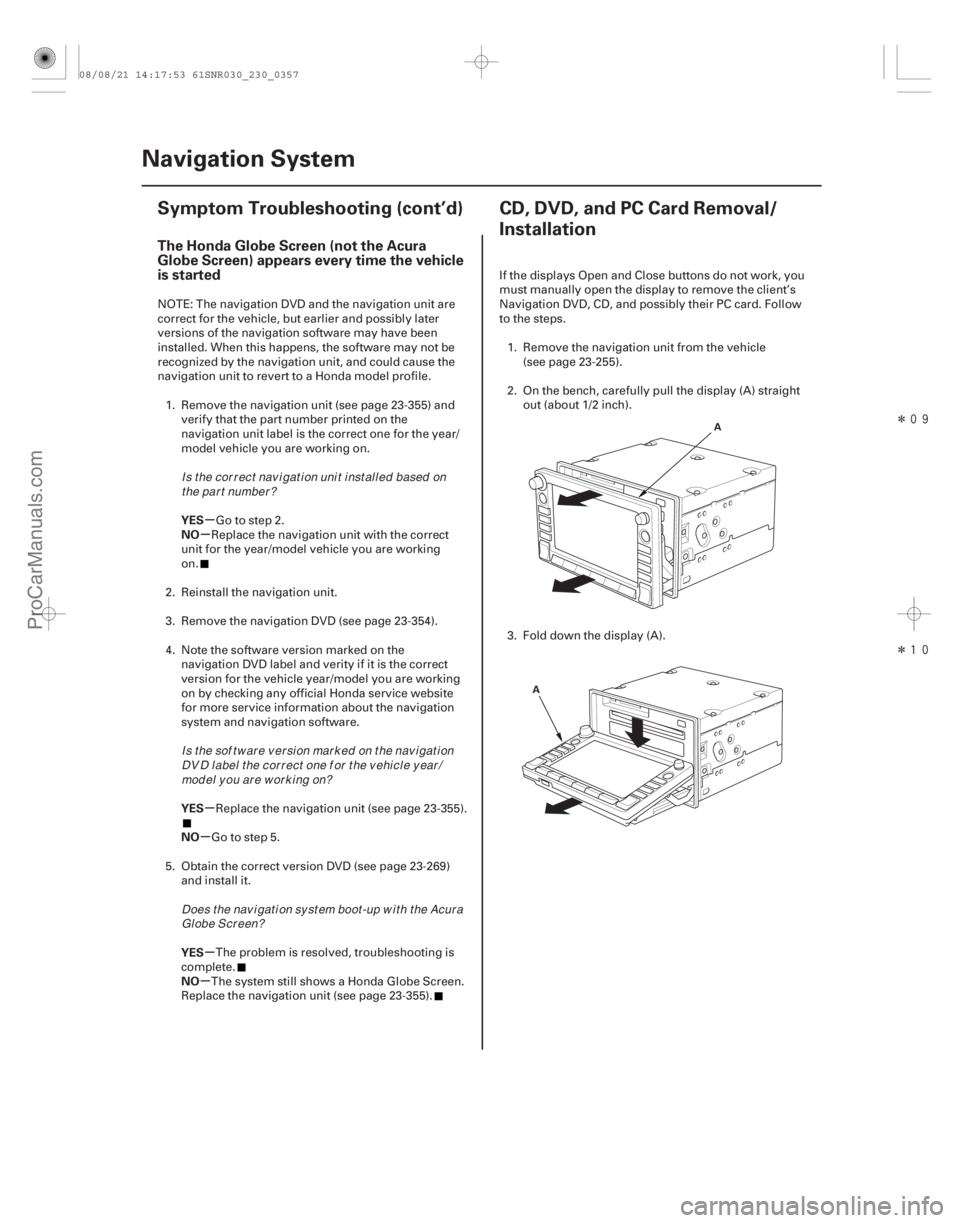

Symptom Troubleshooting (cont’d) CD, DVD, and PC Card Removal/
Installation
A
A
NOTE: The navigation DVD and the navigation unit are
correct for the vehicle, but earlier and possibly later
versions of the navigation software may have been
installed. When this happens, the software may not be
recognized by the navigation unit, and could cause the
navigation unit to revert to a H onda model profile.
1. Remove the navigation unit (see page 23-355) and verify that the part number printed on the
navigation unit label is the correct one for the year/
model vehicle you are working on.
Go to step 2.
Replace the navigation unit with the correct
unit for the year/model vehicle you are working
on.
2. Reinstall the navigation unit.
3. Remove the navigation DVD (see page 23-354).
4. Note the software version marked on the navigation DVD label and verity if it is the correct
version for the vehicle year/model you are working
on by checking any official Honda service website
for more service information about the navigation
system and navigation software.
Replace the navigation unit (see page 23-355).
Go to step 5.
5. Obtain the correct version DVD (see page 23-269) and install it.
The problem is resolved, troubleshooting is
complete. The system still shows a Honda Globe Screen.
Replace the navigation unit (see page 23-355). If the displays Open and Close buttons do not work, you
must manually open the display to remove the client’s
Navigation DVD, CD, and possibly their PC card. Follow
to the steps.
1. Remove the navigation unit from the vehicle (see page 23-255).
2. On the bench, carefully pull the display (A) straight out (about 1/2 inch).
3. Fold down the display (A).
I s t he cor r ect nav i gat i on uni t i nst al l ed based on t he par t number ?
I s t he sof t w ar e v er si on mar k ed on t he nav i gat i onDV D l abel t he cor r ect one f or t he v ehi cl e y ear /mod el y ou ar e w or k i ng on?
Does t he nav i gat i on sy st em boot -up w i t h t he Acur aGl obe Scr een?
08/08/21 14:17:53 61SNR030_230_0357
ProCarManuals.com
DYNOMITE -2009-

Page 2642 of 2893

ACURA CSX 2006 Service Repair Manual Î

(##

)
23-35523-355

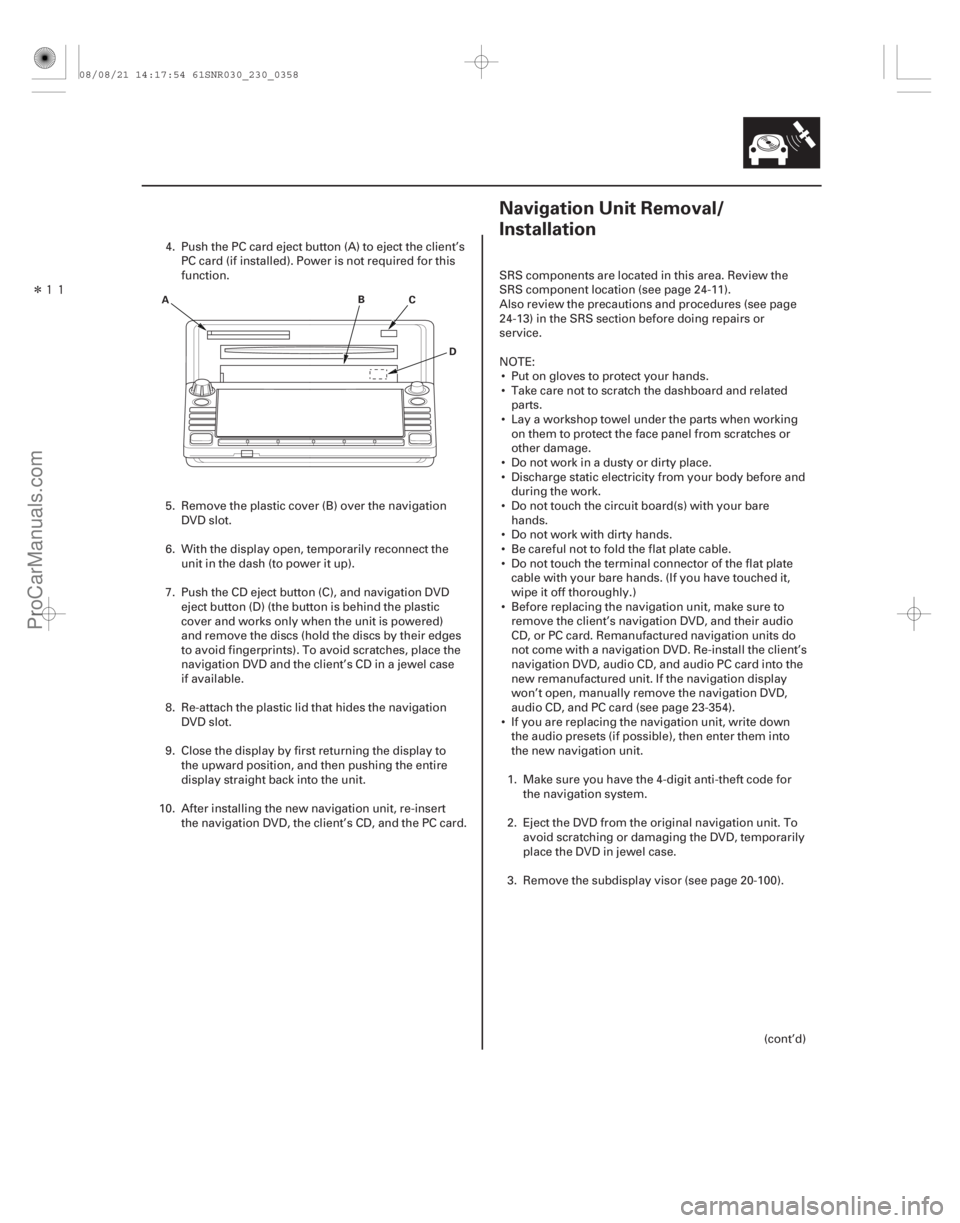

Navigation Unit Removal/
Installation
AB
C
D
4. Push the PC card eject button (A) to eject the client’sPC card (if installed).

Î

(#'#

)
23-35523-355
Navigation Unit Removal/
Installation
AB
C
D
4. Push the PC card eject button (A) to eject the client’sPC card (if installed). Power is not required for this
function.
5. Remove the plastic cover (B) over the navigation DVD slot.
6. With the display open, temporarily reconnect the unit in the dash (to power it up).
7. Push the CD eject button (C), and navigation DVD eject button (D) (the button is behind the plastic
cover and works only when the unit is powered)
and remove the discs (hold the discs by their edges
to avoid fingerprints). To avoid scratches, place the
navigation DVD and the client’s CD in a jewel case
if available.
8. Re-attach the plastic lid that hides the navigation DVD slot.
9. Close the display by first returning the display to the upward position, and then pushing the entire
display straight back into the unit.
10. After installing the new navigation unit, re-insert the navigation DVD, the client’s CD, and the PC card. SRS components are located in this area. Review the
SRS component location (see page 24-11).
Also review the precautions and procedures (see page
24-13) in the SRS section before doing repairs or
service.
NOTE:
Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a workshop towel under the parts when working on them to protect the face panel from scratches or
other damage.
Do not work in a dusty or dirty place.
Discharge static electricity from your body before and during the work.
Do not touch the circuit board(s) with your bare hands.
Do not work with dirty hands.
Be careful not to fold the flat plate cable.
Do not touch the terminal connector of the flat plate cable with your bare hands. (If you have touched it,
wipe it off thoroughly.)
Before replacing the navigation unit, make sure to remove the client’s navigation DVD, and their audio
CD, or PC card. Remanufactured navigation units do
not come with a navigation DVD. Re-install the client’s
navigation DVD, audio CD, and audio PC card into the
new remanufactured unit. If the navigation display
won’t open, manually remove the navigation DVD,
audio CD, and PC card (see page 23-354).
If you are replacing the navigation unit, write down the audio presets (if possible), then enter them into
the new navigation unit.
1. Make sure you have the 4-digit anti-theft code for the navigation system.
2. Eject the DVD from the original navigation unit. To avoid scratching or damaging the DVD, temporarily
place the DVD in jewel case.
3. Remove the subdisplay visor (see page 20-100).
(cont’d)
08/08/21 14:17:54 61SNR030_230_0358
ProCarManuals.com
DYNOMITE -2009-

Page 2643 of 2893

Page 2644 of 2893

ACURA CSX 2006 Service Repair Manual Î
Î
23-356Navigation System

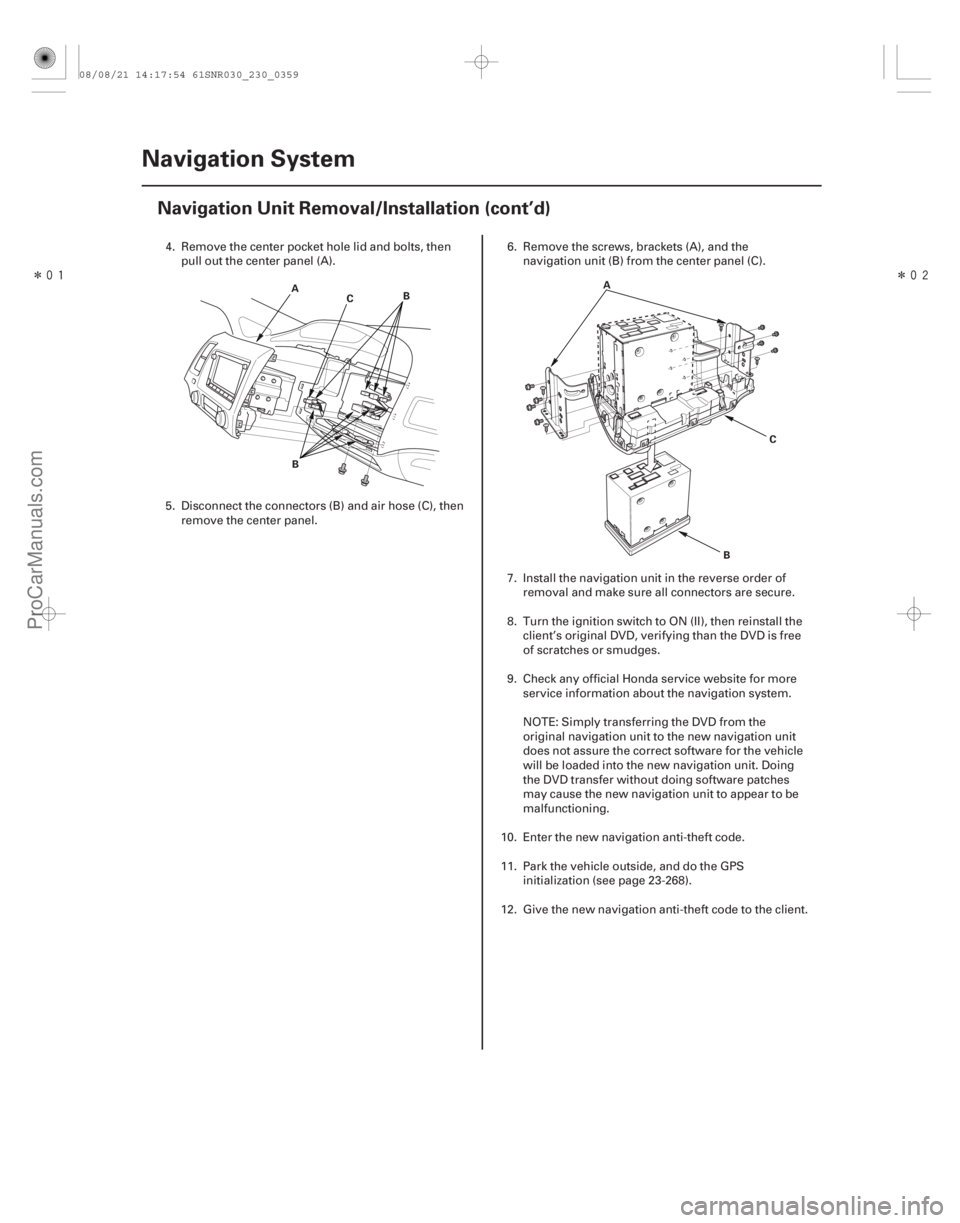

Navigation Unit Removal/Installation (cont’d)
A
B B
C A
BC
4. Remove the center pocket hole lid and bolts, then
pull out the center panel (A).
5. Disconnect th

Page 2645 of 2893

ACURA CSX 2006 Service Repair Manual Î
(##

) (##

)Position Resistance
23-35723-357
Voice Control Switch Test
Voice Control Switch Replacement

Page 2646 of 2893

ACURA CSX 2006 Service Repair Manual
(##

) Î
(##

)
23-35823-358 Navigation System
HFL-Navigation Microphone
Removal/Installation
GPS

Page 2647 of 2893

ACURA CSX 2006 Service Repair Manual Î
(##
)
23-359
HandsFreeLink System
Component Location Index
HFL-NAVIGATION MICROPHONE
(Built into the roof console)
HANDSFREELINK
CONTROL UNIT HFL VO

Page 2648 of 2893

ACURA CSX 2006 Service Repair Manual Î
(##

)
How to Check for DTCs with the HDS
23-360HandsFreeLink System
General Troubleshooting Information
A
NOTE: Check the vehicle battery condition

Load next 8 pages
