Page 2785 of 2893

µ
µ
µ
µ
YES
NO
YES
NO
24-105
FLOOR WIRE HARNESS
2P CONNECTOR070AZ-SNAA300 A
8. Read the DTC (see page 24-22). Go to step 9.
Short to ground in the front passenger’s side
airbag inflator; replace the front passenger’s side
airbag (see page 24-189), then clear the DTC.
9. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3
minutes.
10. Disconnect both seat belt buckle tensioner connectors (see step 8 on page 24-21) and both
seat belt tensioner connectors (see step 7 on page
24-21).
11. Disconnect SRS unit connector B (28P) from the SRS unit (see step 9 on page 24-21).
12. Disconnect the SRS inflator simulator from the SRS simulator lead. Do not disconnect the simulator
lead from the floor wire harness 2P connector. 13. Measure the resistance between each terminal of
the black SRS simulator lead (A) and body ground.
There should be an open circuit or at least 1 M .
Faulty SRS unit or poor connection at SRS
unit connector B (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 24-203).
Short to ground in the floor wire harness;
replace the floor wire harness, then clear the
DTC.
Is DTC 32-9x indicated?
Is the resistance as specif ied?
08/08/21 13:58:21 61SNR030_240_0105
ProCarManuals.com
DYNOMITE -2009-
Page 2786 of 2893

(#'
'
-)
µ
µ
µ
µ
DTC 33-1x (‘‘x’’ can be 0 thru 9 or A thru F):
Special Tools Required
YES
NO YES
NO
24-106SRS
DTC Troubleshooting (cont’d)
B
070AZ-SNAA300 07SAZ-TB4011A
A
Open in the Left Side Curtain Airbag Inflator
SRS inflator simulator 07SAZ-TB4011A
SRS simulator lead L 070AZ-SNAA300
NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13), General Troubleshooting Information (see page
24-22), and Battery Terminal Disconnection and
Reconnection (see page 22-68).
1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds
and then goes off.
Go to step 3.
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
3. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3
minutes. 4. Remove the headliner (see page 20-84), then
disconnect the left side curtain airbag 2P connector
(A) from the floor wire harness (B).
5. Connect the SRS inflator simulator (2 connector) and simulator lead L to the floor wire harness.
6. Reconnect the negative cable to the battery.
7. Clear the DTC memory.
8. Read the DTC (see page 24-22).
Go to step 9.
Open in the left side curtain airbag; replace
the left side curtain airbag (see page 24-192), then
clear the DTC.
Does the SRS indicator stay on, and is DT C 33-1x indicated?
Is DTC 33-1x indicated?
08/08/21 13:58:21 61SNR030_240_0106
ProCarManuals.com
DYNOMITE -2009-
Page 2787 of 2893

(#'
'-)
µ
µ µ
µ
YES
NO Special Tools Required
YES
NO
DTC 33-3x (‘‘x’’ can be 0 thru 9 or A thru F):
24-10724-107
FLOOR WIRE HARNESS
2P CONNECTOR 070AZ-SNAA300 A
9. Turn the ignition switch to LOCK (0). Disconnect thenegative cable from the battery, then wait at least 3
minutes.
10. Disconnect both seat belt buckle tensioner connectors (see step 8 on page 24-21) and both
seat belt tensioner connectors (see step 7 on page
24-21).
11. Disconnect SRS unit connector B (28P) from the SRS unit (see step 9 on page 24-21).
12. Disconnect the SRS inflator simulator from the SRS simulator lead. Do not disconnect the simulator
lead from the floor wire harness 2P connector.
13. Measure the resistance between the terminals of the black SRS simulator lead (A). There should be
less than 1.0 .
Faulty SRS unit or poor connection at the
SRS unit connector B (28P) and the SRS unit. Check
the connection; if the connection is OK, replace the
SRS unit (see page 24-203).
Open in the harness; replace the floor wire
harness, then clear the DTC. SRS inflator simulator 07SAZ-TB4011A
SRS simulator lead L 070AZ-SNAA300
SRS short canceller 070AZ-SAA0100
NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13), General Troubleshooting Information (see page
24-22), and Battery Terminal Disconnection and
Reconnection (see page 22-68).
1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds
and then goes off.
Go to step 3.
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
(cont’d)
Short to Another Wire or Decreased
Resistance in the Left Side Curtain Airbag
Inflator
Is the resistance as specif ied? Does the SRS indicator stay on, and is DT C 33-3x
indicated?
08/08/21 13:58:21 61SNR030_240_0107
ProCarManuals.com
DYNOMITE -2009-
Page 2788 of 2893

µ
µ µ
µ
YES
NO YES
NO
24-108SRS
DTC Troubleshooting (cont’d)
A
070AZ-SNAA300 07SAZ-TB4011A
B FLOOR WIRE HARNESS
2P CONNECTOR
070AZ-SNAA300 A
3. Turn the ignition switch to LOCK (0). Disconnect thenegative cable from the battery, then wait at least 3
minutes.
4. Remove the headliner (see page 20-84), then disconnect the left side curtain airbag 2P connector
(A) from the floor wire harness (B).
5. Connect the SRS inflator simulator (2 connector) and simulator lead L to the floor wire harness.
6. Reconnect the negative cable to the battery.
7. Clear the DTC memory.
8. Read the DTC (see page 24-22).
Go to step 9.
Short to another wire in the left side curtain
airbag inflator; replace the left side curtain airbag
(see page 24-192), then clear the DTC.
9. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3
minutes.
10. Disconnect both seat belt buckle tensioner connectors (see step 8 on page 24-21) and both
seat belt tensioner connectors (see step 7 on page
24-21).
11. Disconnect SRS unit connector B (28P) from the SRS unit (see step 9 on page 24-21). 12. Disconnect the SRS inflator simulator from the SRS
simulator lead. Do not disconnect the simulator
lead from the floor wire harness 2P connector.
13. Connect the SRS short cancellers (070AZ-SAA0100) to SRS unit connector B (28P) terminals No. 21 and
No. 22 (see page 24-18).
14. Measure the resistance between the terminals of the black SRS simulator lead (A). There should be
an open circuit or at least 1 M .
Faulty SRS unit or poor connection at SRS
unit connector B (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 24-203).
Short to another wire in the floor wire
harness; replace the floor wire harness, then clear
the DTC.
Is DT C 33-3x ind icated ? Is the resistance as specif ied?
08/08/21 13:58:21 61SNR030_240_0108
ProCarManuals.com
DYNOMITE -2009-
Page 2789 of 2893

(#'
'-)
µ
µ
DTC 33-8x (‘‘x’’ can be 0 thru 9 or A thru F):
Special Tools Required
YES
NO
24-109
A
070AZ-SNAA300 07SAZ-TB4011A
B
Short to Power in the Left Side Curtain
Airbag Inflator
SRS inflator simulator 07SAZ-TB4011A
SRS simulator lead L 070AZ-SNAA300
NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13), General Troubleshooting Information (see page
24-22), and Battery Terminal Disconnection and
Reconnection (see page 22-68).
1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds
and then goes off.
Go to step 3.
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
3. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3
minutes. 4. Remove the headliner (see page 20-84), then
disconnect the left side curtain airbag 2P connector
(A) from the floor wire harness (B).
5. Connect the SRS inflator simulator (2 connector) and simulator lead L to the floor wire harness.
6. Reconnect the negative cable to the battery.
7. Clear the DTC memory.
(cont’d)
Does the SRS indicator stay on, and is DT C 33-8xindicated?
08/08/21 13:58:22 61SNR030_240_0109
ProCarManuals.com
DYNOMITE -2009-
Page 2790 of 2893

µ
µ
µ
µ
YES
NO
YES
NO
24-110SRS
DTC Troubleshooting (cont’d)
FLOOR WIRE HARNESS
2P CONNECTOR
070AZ-SNAA300 A

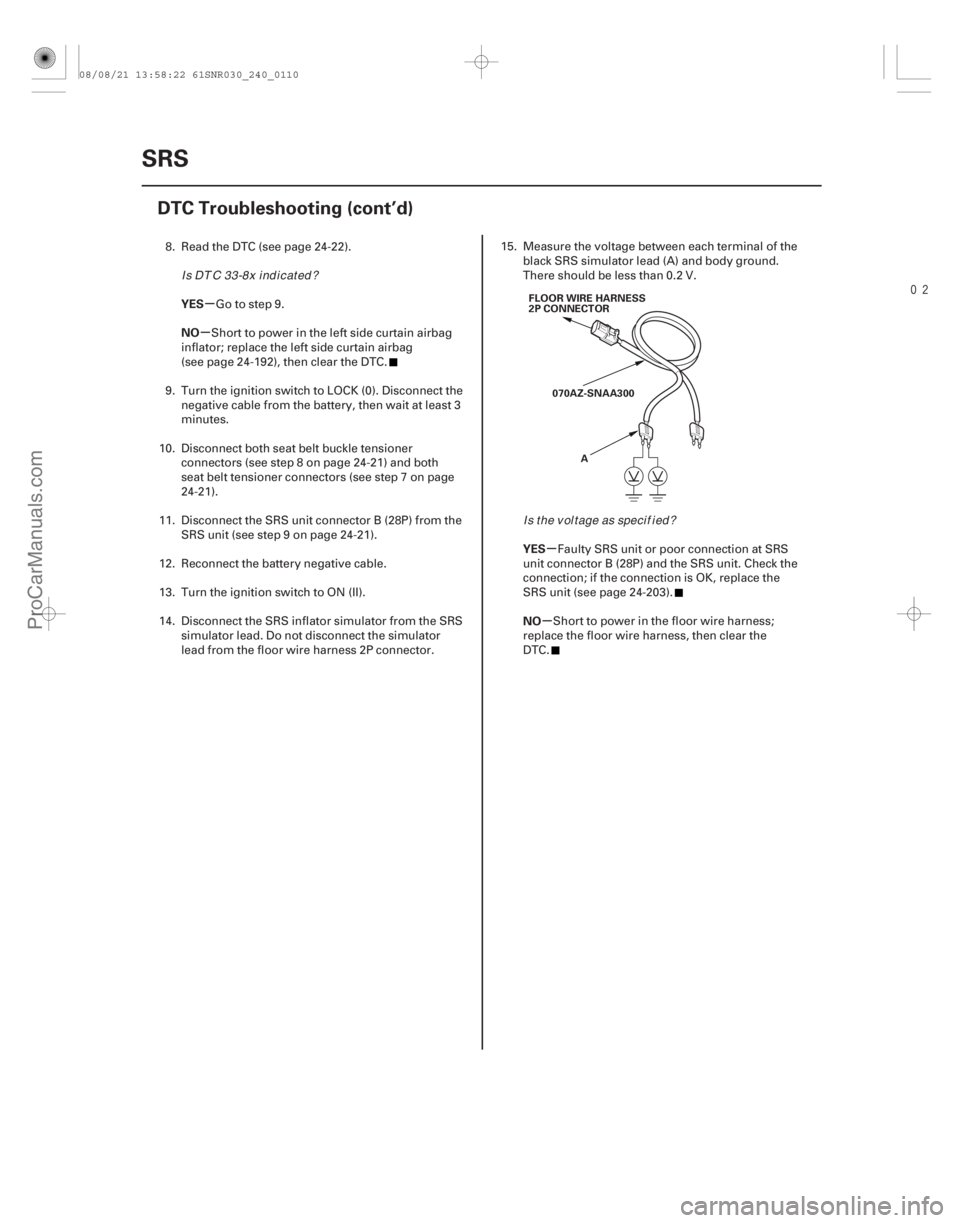

8. Read the DTC (see page 24-22). Go to step 9.
Short to power in the left side curtain airbag
inflator; replace the left side curtain airbag
(see page 24-192), then clear the DTC.
9. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3
minutes.
10. Disconnect both seat belt buckle tensioner connectors (see step 8 on page 24-21) and both
seat belt tensioner connectors (see step 7 on page
24-21).
11. Disconnect the SRS unit connector B (28P) from the SRS unit (see step 9 on page 24-21).
12. Reconnect the battery negative cable.
13. Turn the ignition switch to ON (II).
14. Disconnect the SRS inflator simulator from the SRS simulator lead. Do not disconnect the simulator
lead from the floor wire harness 2P connector. 15. Measure the voltage between each terminal of the
black SRS simulator lead (A) and body ground.
There should be less than 0.2 V.
Faulty SRS unit or poor connection at SRS
unit connector B (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 24-203).
Short to power in the floor wire harness;
replace the floor wire harness, then clear the
DTC.
Is DTC 33-8x indicated?
Is the voltage as specif ied?
08/08/21 13:58:22 61SNR030_240_0110
ProCarManuals.com
DYNOMITE -2009-
Page 2791 of 2893

(#'
'-)
µ
µ
DTC 33-9x (‘‘x’’ can be 0 thru 9 or A thru F):
Special Tools Required
YES
NO
24-111
A
070AZ-SNAA300 07SAZ-TB4011A
B
Short to Ground in the Left Side Curtain
Airbag Inflator
SRS inflator simulator 07SAZ-TB4011A
SRS simulator lead L 070AZ-SNAA300
NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13), General Troubleshooting Information (see page
24-22), and Battery Terminal Disconnection and
Reconnection (see page 22-68).
1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds
and then goes off.
Go to step 3.
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
3. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3
minutes. 4. Remove the headliner (see page 20-84), then
disconnect the left side curtain airbag 2P connector
(A) from the floor wire harness (B).
5. Connect the SRS inflator simulator (2 connector) and simulator lead L to the floor wire harness.
6. Reconnect the negative cable to the battery.
7. Clear the DTC memory.
(cont’d)
Does the SRS indicator stay on, and is DT C 33-9xindicated?
08/08/21 13:58:22 61SNR030_240_0111
ProCarManuals.com
DYNOMITE -2009-
Page 2792 of 2893

µ
µ
µ
µ
YES
NO
YES
NO
24-112SRS
DTC Troubleshooting (cont’d)
FLOOR WIRE HARNESS
2P CONNECTOR
070AZ-SNAA300 A

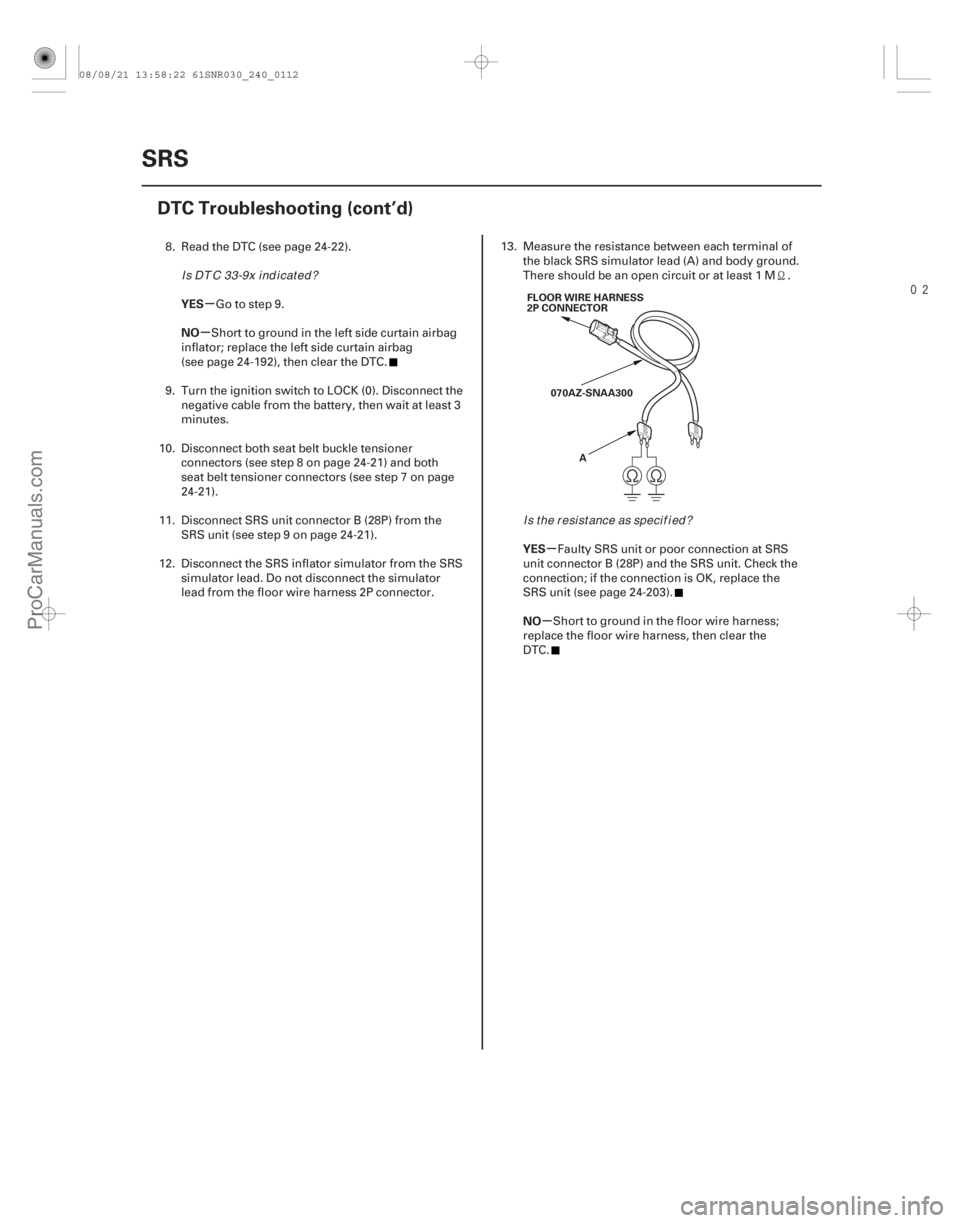

8. Read the DTC (see page 24-22). Go to step 9.
Short to ground in the left side curtain airbag
inflator; replace the left side curtain airbag
(see page 24-192), then clear the DTC.
9. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3
minutes.
10. Disconnect both seat belt buckle tensioner connectors (see step 8 on page 24-21) and both
seat belt tensioner connectors (see step 7 on page
24-21).
11. Disconnect SRS unit connector B (28P) from the SRS unit (see step 9 on page 24-21).
12. Disconnect the SRS inflator simulator from the SRS simulator lead. Do not disconnect the simulator
lead from the floor wire harness 2P connector. 13. Measure the resistance between each terminal of
the black SRS simulator lead (A) and body ground.
There should be an open circuit or at least 1 M .
Faulty SRS unit or poor connection at SRS
unit connector B (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 24-203).
Short to ground in the floor wire harness;
replace the floor wire harness, then clear the
DTC.
Is DT C 33-9x ind icated ?
Is the resistance as specif ied?
08/08/21 13:58:22 61SNR030_240_0112
ProCarManuals.com
DYNOMITE -2009-
