Page 2193 of 2893

ACURA CSX 2006 Service Repair Manual
The Communication Line Check
Ending the self-diagnostic function
TYPE S model Error Code ListError code Type of communication line(s) error
Except TYPE S model Error Code List Error code Type of

The Communication Line Check
Ending the self-diagnostic function
TYPE S model Error Code ListError code Type of communication line(s) error
Except TYPE S model Error Code List Error code Type of communication line(s) error
Example Indication
22-243
Normal (all segments come on.): Faulty (Error 1):
Fault (Error 13): Fault (Error 123):
While in the self-diagnostic mode, the Communication Line Check starts after the LCD Segments Check.
If all segments come on, the communication line is OK. If faulty, the word ‘‘Error’’ will be indicated on the odometer
display followed by number(s).
Error 1 F-CAN communication
Error 2 B-CAN communication
Error 12 F-CAN and B-CAN communication
Error 1 F-CAN communication
Error 2 B-CAN communication
Error 3 UART communication
Error 12 F-CAN and B-CAN communication
Error 13 F-CAN and UART communication
Error 23 B-CAN and UART communication
Error 123 F-CAN, B-CAN and UART communication
If the word ‘‘Error 1’’ is indicated, there is a malfunction in the communication line between the gauge control module (tach) and the fast-controller area network (F-CAN). Check for DTCs in the ECM/PCM and troubleshoot any
DTCs found. If no DTCs are found, go to indicated troubleshooting.
If the word ‘‘Error 2’’ is indicated, there is a malfunction in the communication line between the gauge control module (tach) and the body-controller area network (B-CAN). Go to indicated troubleshooting (B 1155 to B1160).
Except TYPE S model: If the word ‘‘Error 3’’ is indicated, there is a malfunction in the UART communication line between the gauge control module (tach) and the gauge control module (speedo). Go to the gauge control module
(tach) input test and check terminal No. 20. If the wire harness is OK, substitute a known-good gauge control module
(speedo) and recheck.
If any F-CAN or B-CAN communication line errors are found, go to DTC check using HDS.
Turn the ignition switch to LOCK (0).
NOTE: If the vehicle speed exceeds 2 km/h (1.2 mph), the self-diagnostic function ends.
08/08/21 14:35:12 61SNR030_220_0245
ProCarManuals.com
DYNOMITE -2009-

Page 2194 of 2893

ACURA CSX 2006 Service Repair Manual Î(#
)
Except TYPE S model
22-244Gauges
Circuit Diagram - Gauge Control Module (Tach)
UART
WHT
IG1 HOT in ON (II) and START (III)
UNDER-HOOD FUSE/REL

Page 2195 of 2893

ACURA CSX 2006 Service Repair Manual Î
µ
µ
22-245
C
(LED)
LCD DISPLAY
LCD DRIVERMAIN CIRCUIT
33
ORN
ORN 32
LT GRN
3 1
PUR (LED)
(LED)
(LED)
C
LCD DISPLAY
B
A
GAUGE CONTROL MODULE (TACH)
ODO,
TRIP A/TRIP B
OUTSIDE AIR
TEMPERATUR

Page 2196 of 2893

ACURA CSX 2006 Service Repair Manual Î
22-246Gauges

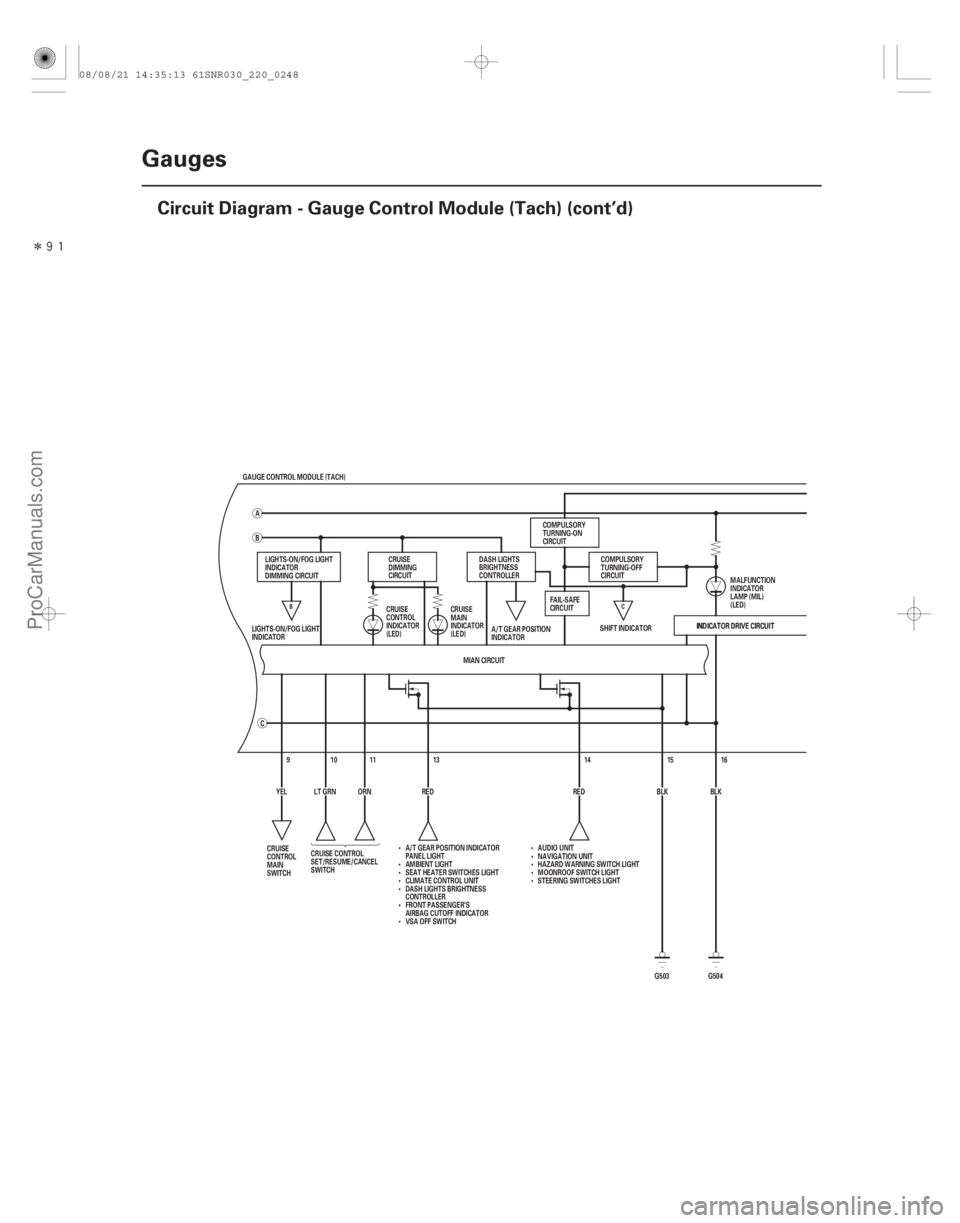

Circuit Diagram - Gauge Control Module (Tach) (cont’d)
G504
G503
SHIFT INDICATOR
AUDIO UNIT
NAVIGATION UNIT
HAZARD WARNING SWITCH LIGHT
MOONROOF SWITCH LIGHT
STEERING SWITCHES L

Page 2197 of 2893

ACURA CSX 2006 Service Repair Manual Î
µ´µ

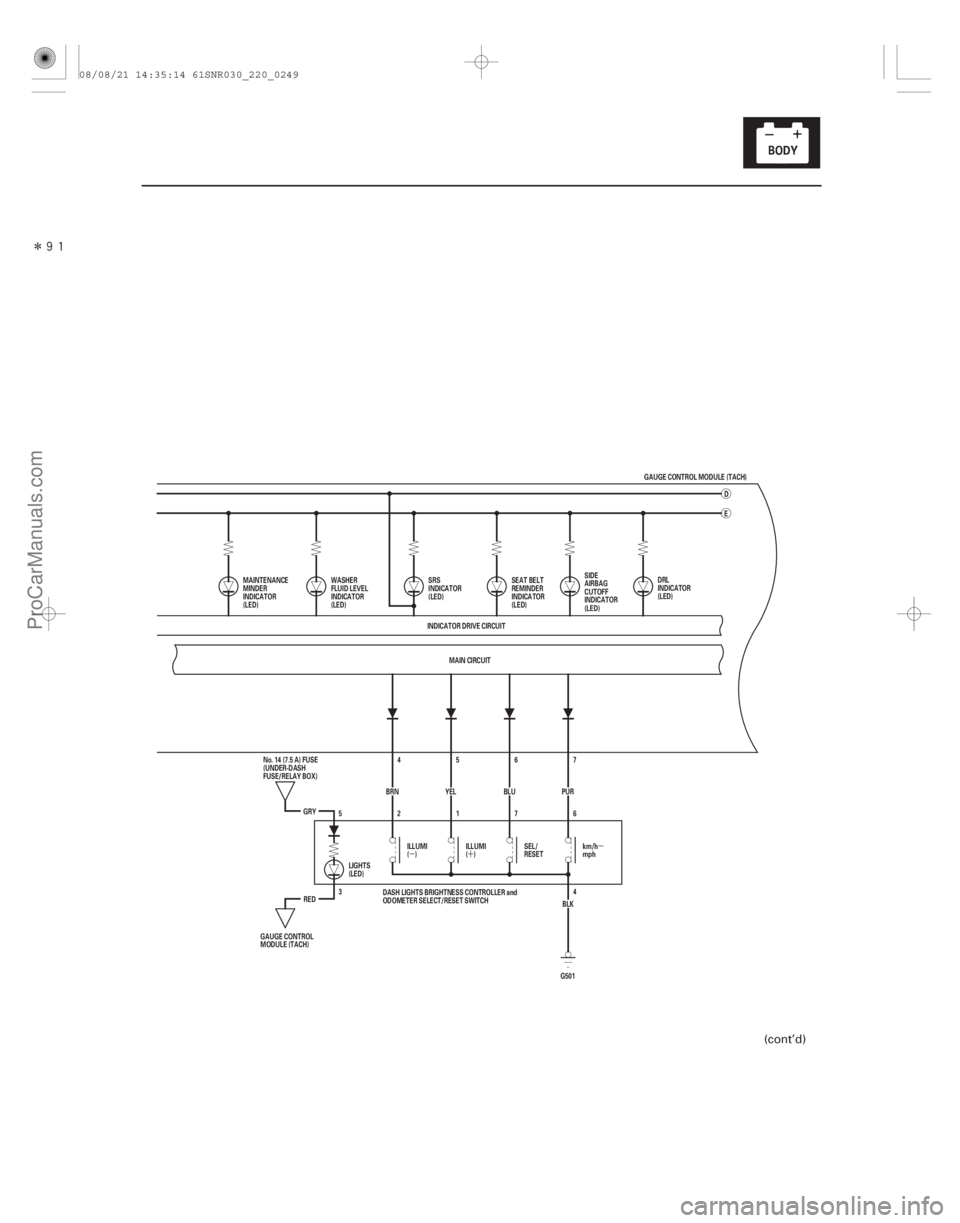

22-247
G5014
3 6
7
1
2
5
BLK
PUR
7
BLU 6
YEL 5
4
BRN
GRY
RED MAIN CIRCUIT
D
INDICATOR DRIVE CIRCUIT E
MAINTENANCE
MINDER
INDICATOR
(LED) SIDE
AIRBAG
CUTOFF
INDICATOR
(LED)
ILLUMI
()

Page 2198 of 2893

ACURA CSX 2006 Service Repair Manual Î
22-248Gauges

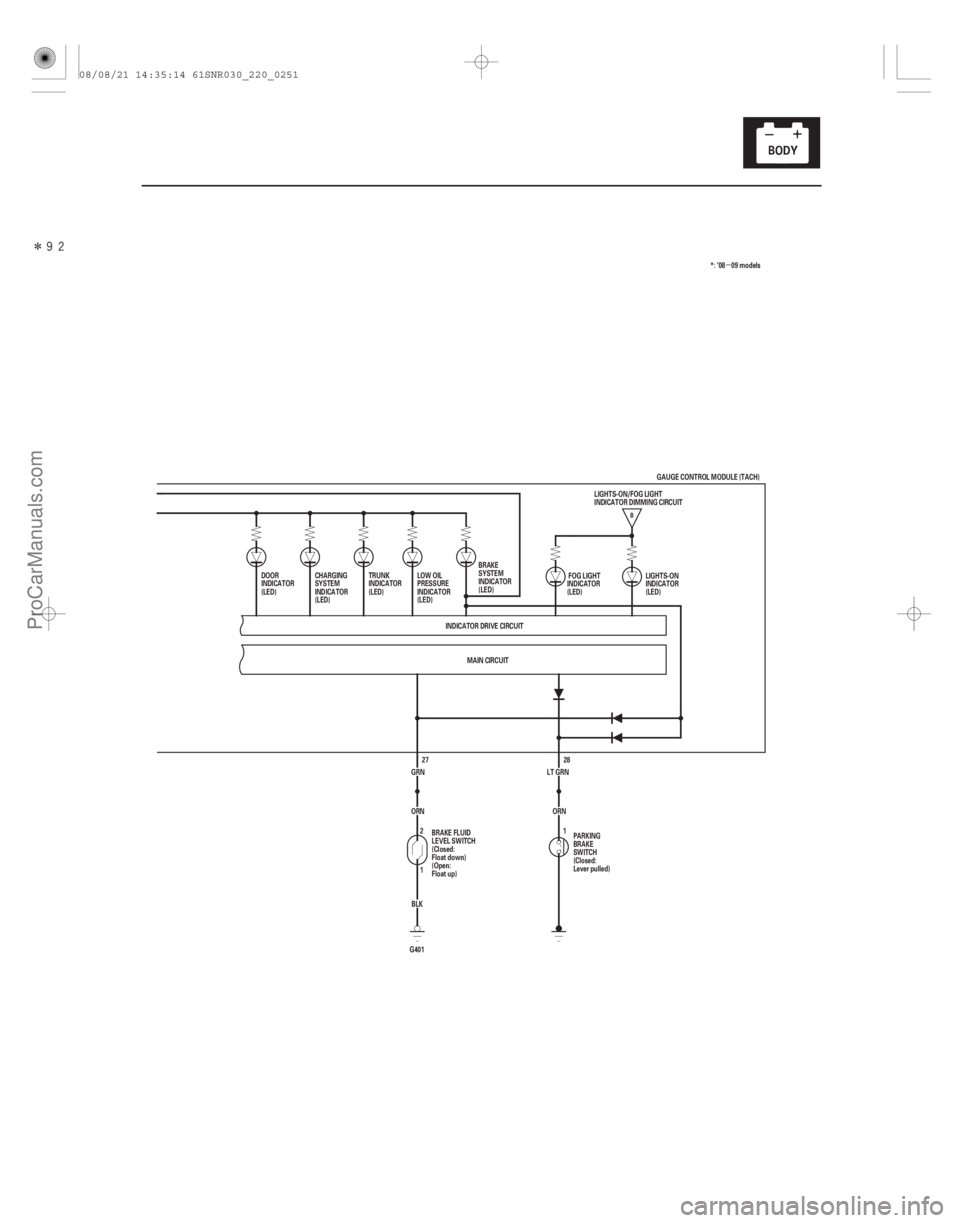

Circuit Diagram - Gauge Control Module (Tach) (cont’d)
GAUGE CONTROL MODULE (TACH)
ED
BLUYEL
BLK
G401 2 1
8 MAIN CIRCUIT
INDICATOR DRIVE CIRCUIT
EPS
INDICATOR
(LED)
LOW TIRE
PRE

Page 2199 of 2893

ACURA CSX 2006 Service Repair Manual Î
µ
22-249
B
28
LT GRN
MAIN CIRCUIT
INDICATOR DRIVE CIRCUIT
TRUNK
INDICATOR
(LED)
LOW OIL
PRESSURE
INDICATOR
(LED)
PARKING
BRAKE
SWITCH
(Closed:
Lever pulled)LIGHTS-ON
INDICATOR
(LED)
LIGHTS-O

Page 2200 of 2893

ACURA CSX 2006 Service Repair Manual Î(#
)
TYPE S model
22-250Gauges
Circuit Diagram - Gauge Control Module (Tach) (cont’d)
UART
WHT
IG1 HOT in ON (II) and START (III)
UNDER-HOOD FUSE
