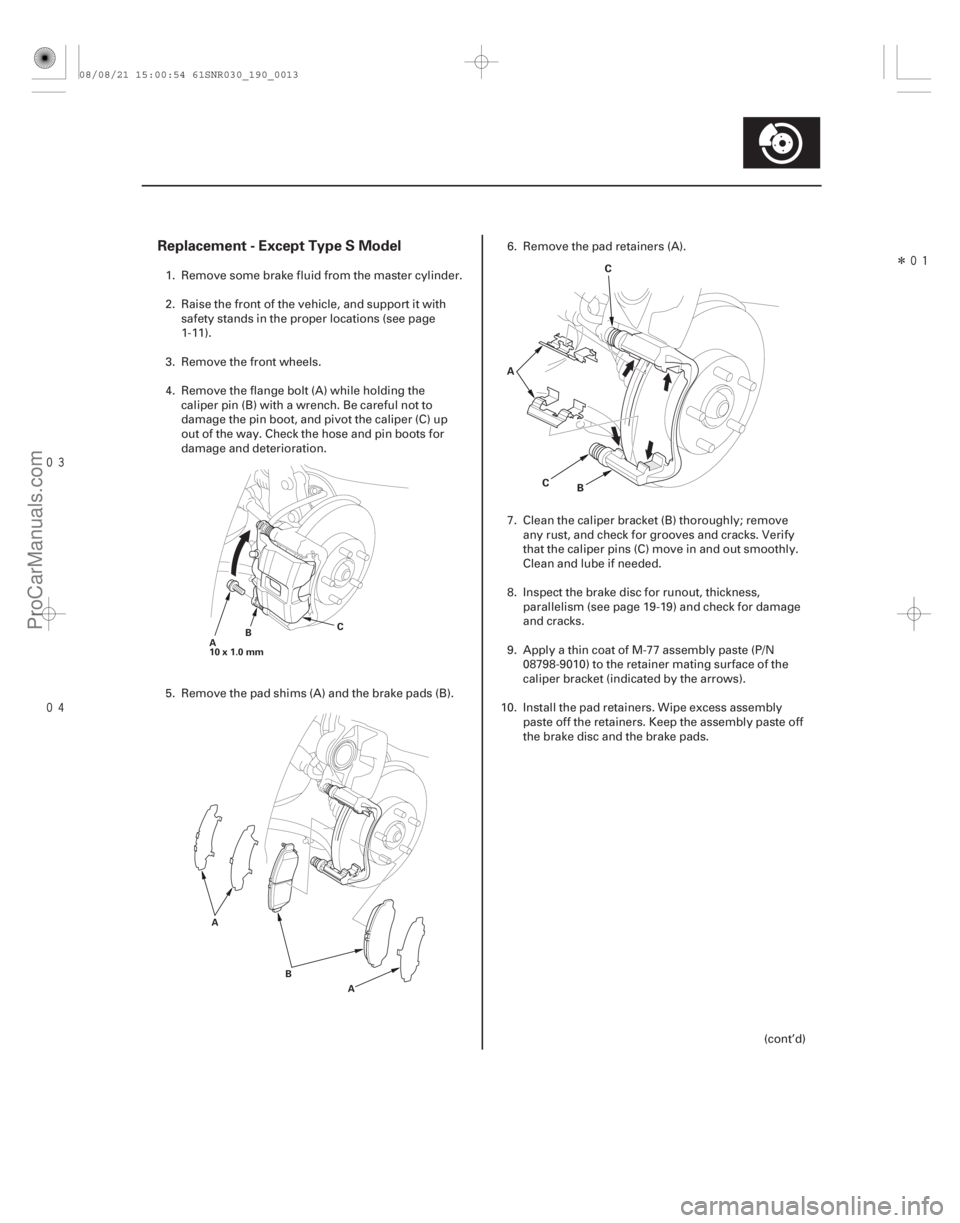

Page 1505 of 2893

Î
Replacement - Except Type S Model
19-13
A
10 x 1.0 mm
B
C
A A
B
B
A
C C
1. Remove some brake fluid from the master cylinder.
2. Raise the front of the vehicle, and support it with
safety stands in the proper locations (see page
1-11).
3. Remove the front wheels.
4. Remove the flange bolt (A) while holding the caliper pin (B) with a wrench. Be careful not to
damage the pin boot, and pivot the caliper (C) up
out of the way. Check the hose and pin boots for
damage and deterioration.
5. Remove the pad shims (A) and the brake pads (B). 6. Remove the pad retainers (A).
7. Clean the caliper bracket (B) thoroughly; remove
any rust, and check for grooves and cracks. Verify
that the caliper pins (C) move in and out smoothly.
Clean and lube if needed.
8. Inspect the brake disc for runout, thickness, parallelism (see page 19-19) and check for damage
and cracks.
9. Apply a thin coat of M-77 assembly paste (P/N 08798-9010) to the retainer mating surface of the
caliper bracket (indicated by the arrows).
10. Install the pad retainers. Wipe excess assembly pasteofftheretainers.Keeptheassemblypasteoff
the brake disc and the brake pads.
(cont’d)
08/08/21 15:00:54 61SNR030_190_0013
ProCarManuals.com
DYNOMITE -2009-

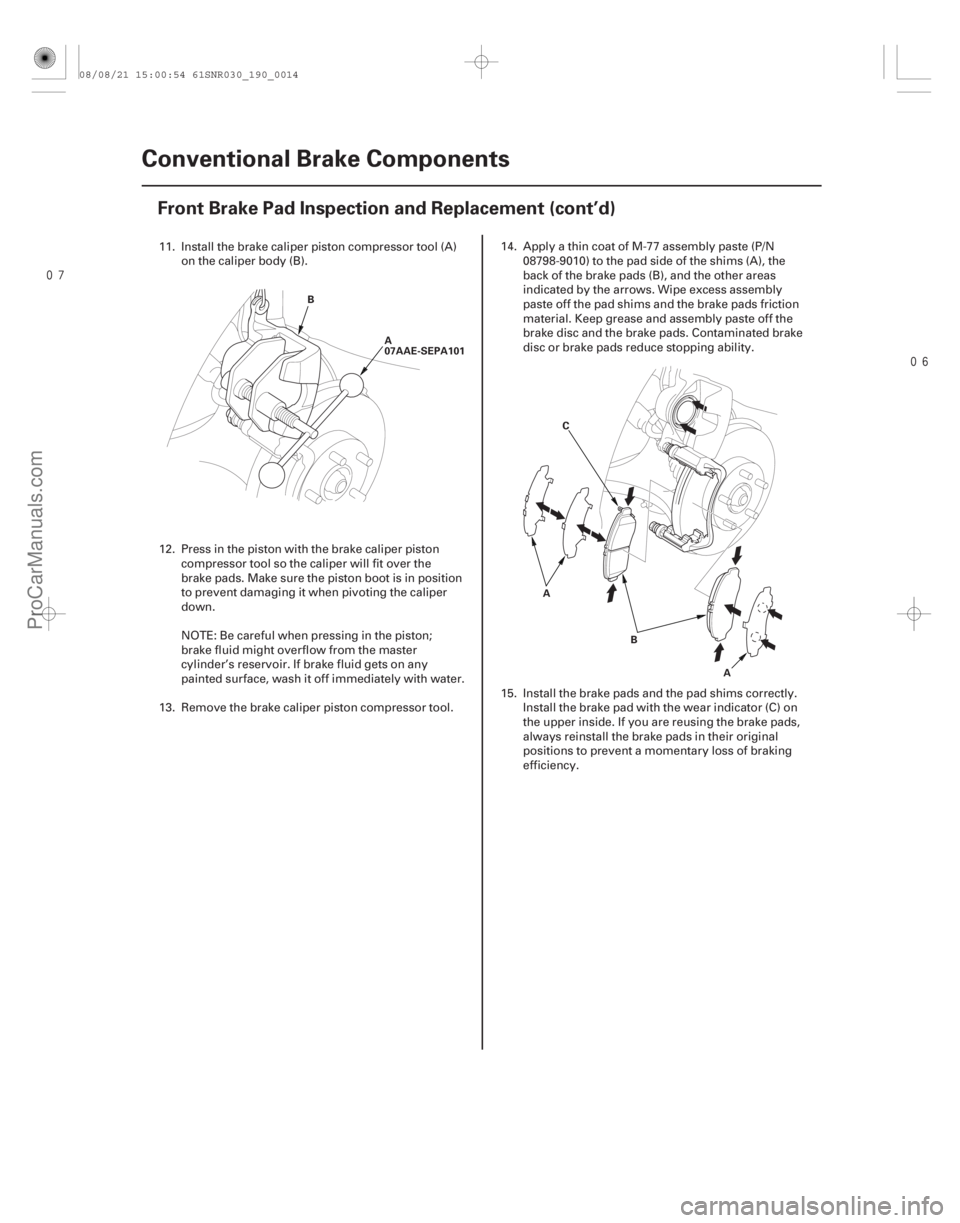

Page 1506 of 2893

19-14Conventional Brake Components
Front Brake Pad Inspection and Replacement (cont’d)
B
A
07AAE-SEPA101
A A
B
C
11. Install the brake caliper piston compressor tool (A)
on the caliper body (B).
12. Press in the piston with the brake caliper piston compressor tool so the caliper will fit over the
brake pads. Make sure the piston boot is in position
to prevent damaging it when pivoting the caliper
down.
NOTE: Be careful when pressing in the piston;
brake fluid might overflow from the master
cylinder’s reservoir. If brake fluid gets on any
painted surface, wash it off immediately with water.
13. Remove the brake caliper piston compressor tool. 14. Apply a thin coat of M-77 assembly paste (P/N
08798-9010) to the pad side of the shims (A), the
back of the brake pads (B), and the other areas
indicated by the arrows. Wipe excess assembly
paste off the pad shims and the brake pads friction
material. Keep grease and assembly paste off the
brake disc and the brake pads. Contaminated brake
disc or brake pads reduce stopping ability.
15. Install the brake pads and the pad shims correctly. Install the brake pad with the wear indicator (C) on
the upper inside. If you are reusing the brake pads,
always reinstall the brake pads in their original
positions to prevent a momentary loss of braking
efficiency.
08/08/21 15:00:54 61SNR030_190_0014
ProCarManuals.com
DYNOMITE -2009-

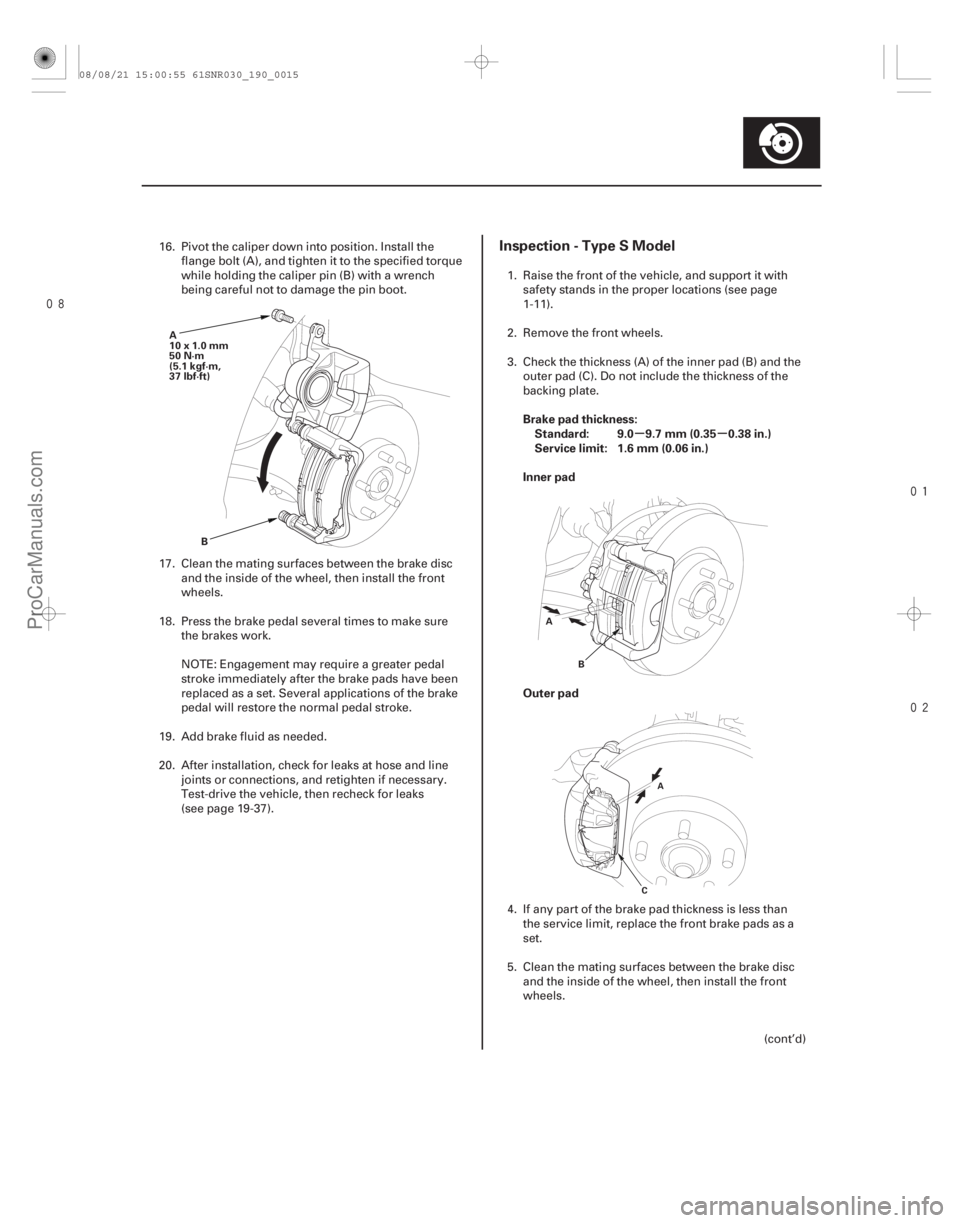

Page 1507 of 2893

µµ
Inspection - Type S Model
Brake pad thickness:
Standard: 9.0 9.7 mm (0.35 0.38 in.)
Service limit: 1.6 mm (0.06 in.)
Inner pad
Outer pad
19-15
A
10x1.0mm
50 N·m
(5.1 kgf·m,
37 lbf·ft)
B
A B
A
C
16. Pivot the caliper down into position. Install the flange bolt (A), and tighten it to the specified torque
while holding the caliper pin (B) with a wrench
being careful not to damage the pin boot.
17. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front
wheels.
18. Press the brake pedal several times to make sure the brakes work.
NOTE: Engagement may require a greater pedal
stroke immediately after the brake pads have been
replaced as a set. Several applications of the brake
pedal will restore the normal pedal stroke.
19. Add brake fluid as needed.
20. After installation, check for leaks at hose and line joints or connections, and retighten if necessary.
Test-drive the vehicle, then recheck for leaks
(see page 19-37). 1. Raise the front of the vehicle, and support it with
safety stands in the proper locations (see page
1-11).
2. Remove the front wheels.
3. Check the thickness (A) of the inner pad (B) and the outer pad (C). Do not include the thickness of the
backing plate.
4. If any part of the brake pad thickness is less than the service limit, replace the front brake pads as a
set.
5. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front
wheels.
(cont’d)
08/08/21 15:00:55 61SNR030_190_0015
ProCarManuals.com
DYNOMITE -2009-

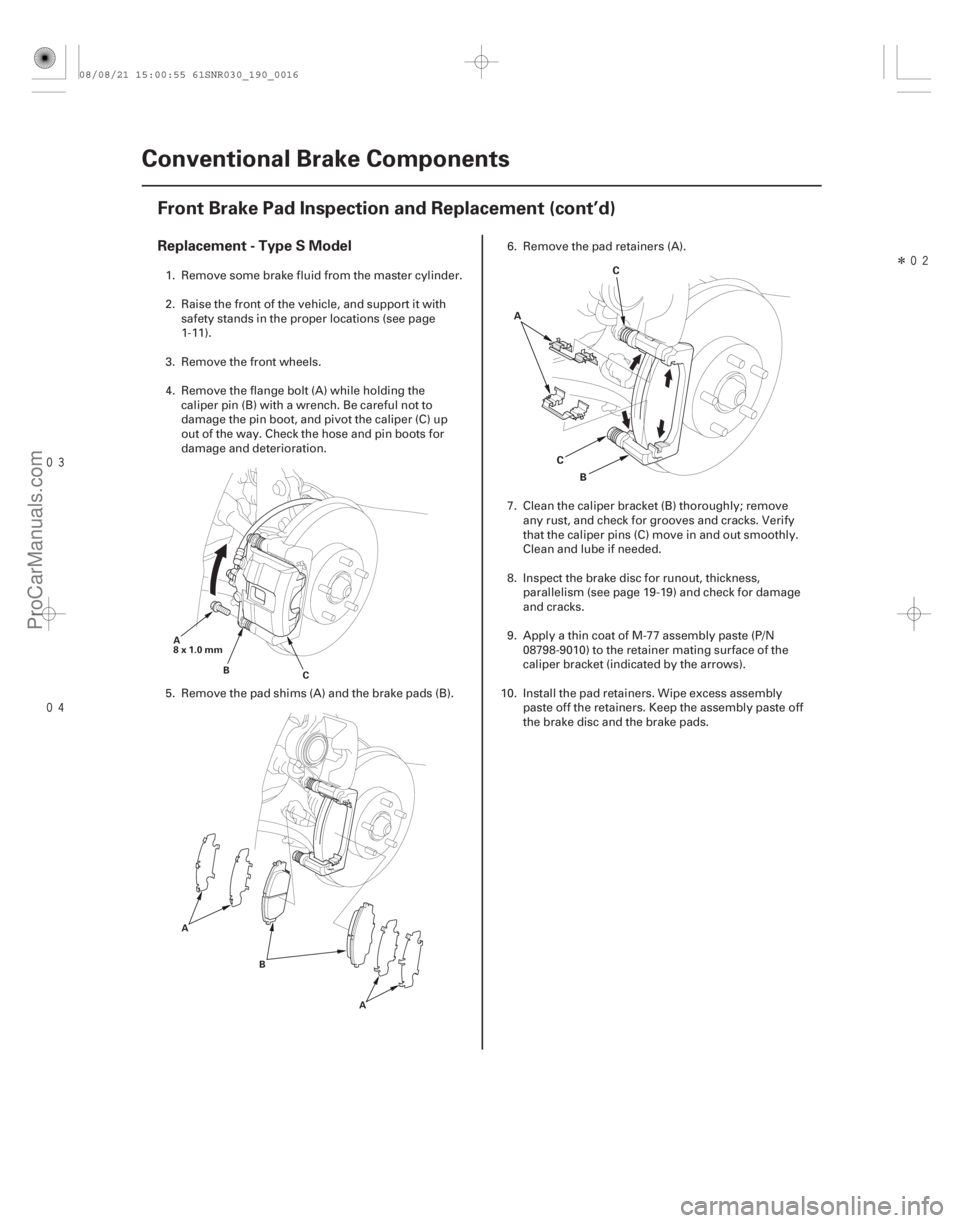

Page 1508 of 2893

Î
Replacement - Type S Model
19-16Conventional Brake Components
Front Brake Pad Inspection and Replacement (cont’d)
A
8x1.0mm
B C
A B
A
A
B
C C
1. Remove some brake fluid from the master cylinder.
2. Raise the front of the vehicle, and support it with
safety stands in the proper locations (see page
1-11).
3. Remove the front wheels.
4. Remove the flange bolt (A) while holding the caliper pin (B) with a wrench. Be careful not to
damage the pin boot, and pivot the caliper (C) up
out of the way. Check the hose and pin boots for
damage and deterioration.
5. Remove the pad shims (A) and the brake pads (B). 6. Remove the pad retainers (A).
7. Clean the caliper bracket (B) thoroughly; remove
any rust, and check for grooves and cracks. Verify
that the caliper pins (C) move in and out smoothly.
Clean and lube if needed.
8. Inspect the brake disc for runout, thickness, parallelism (see page 19-19) and check for damage
and cracks.
9. Apply a thin coat of M-77 assembly paste (P/N 08798-9010) to the retainer mating surface of the
caliper bracket (indicated by the arrows).
10. Install the pad retainers. Wipe excess assembly pasteofftheretainers.Keeptheassemblypasteoff
the brake disc and the brake pads.
08/08/21 15:00:55 61SNR030_190_0016
ProCarManuals.com
DYNOMITE -2009-

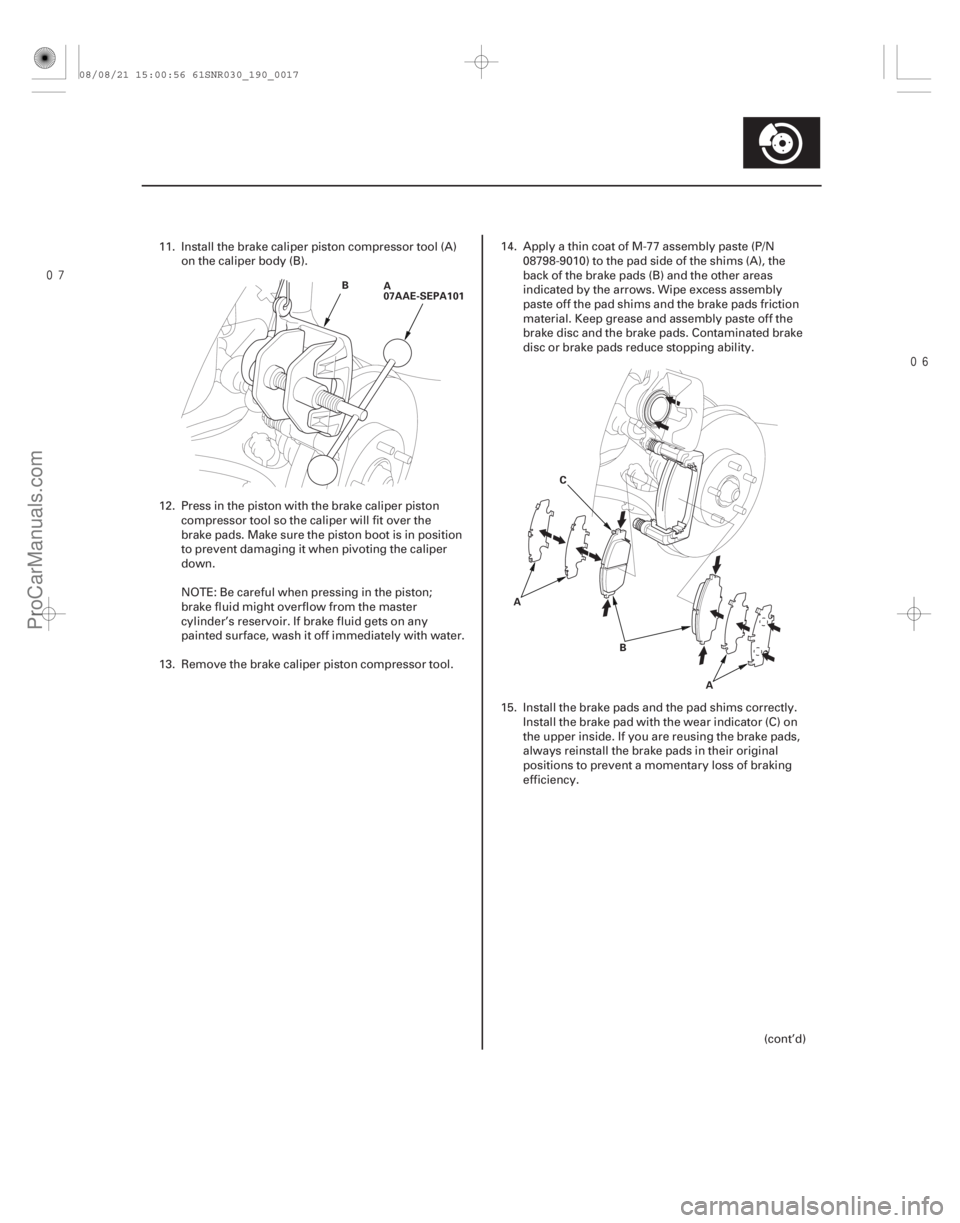

Page 1509 of 2893

19-17
A
07AAE-SEPA101
B
ABA
C
11. Install the brake caliper piston compressor tool (A)
on the caliper body (B).
12. Press in the piston with the brake caliper piston compressor tool so the caliper will fit over the
brake pads. Make sure the piston boot is in position
to prevent damaging it when pivoting the caliper
down.
NOTE: Be careful when pressing in the piston;
brake fluid might overflow from the master
cylinder’s reservoir. If brake fluid gets on any
painted surface, wash it off immediately with water.
13. Remove the brake caliper piston compressor tool. 14. Apply a thin coat of M-77 assembly paste (P/N
08798-9010) to the pad side of the shims (A), the
back of the brake pads (B) and the other areas
indicated by the arrows. Wipe excess assembly
paste off the pad shims and the brake pads friction
material. Keep grease and assembly paste off the
brake disc and the brake pads. Contaminated brake
disc or brake pads reduce stopping ability.
15. Install the brake pads and the pad shims correctly. Install the brake pad with the wear indicator (C) on
the upper inside. If you are reusing the brake pads,
always reinstall the brake pads in their original
positions to prevent a momentary loss of braking
efficiency.
(cont’d)
08/08/21 15:00:56 61SNR030_190_0017
ProCarManuals.com
DYNOMITE -2009-

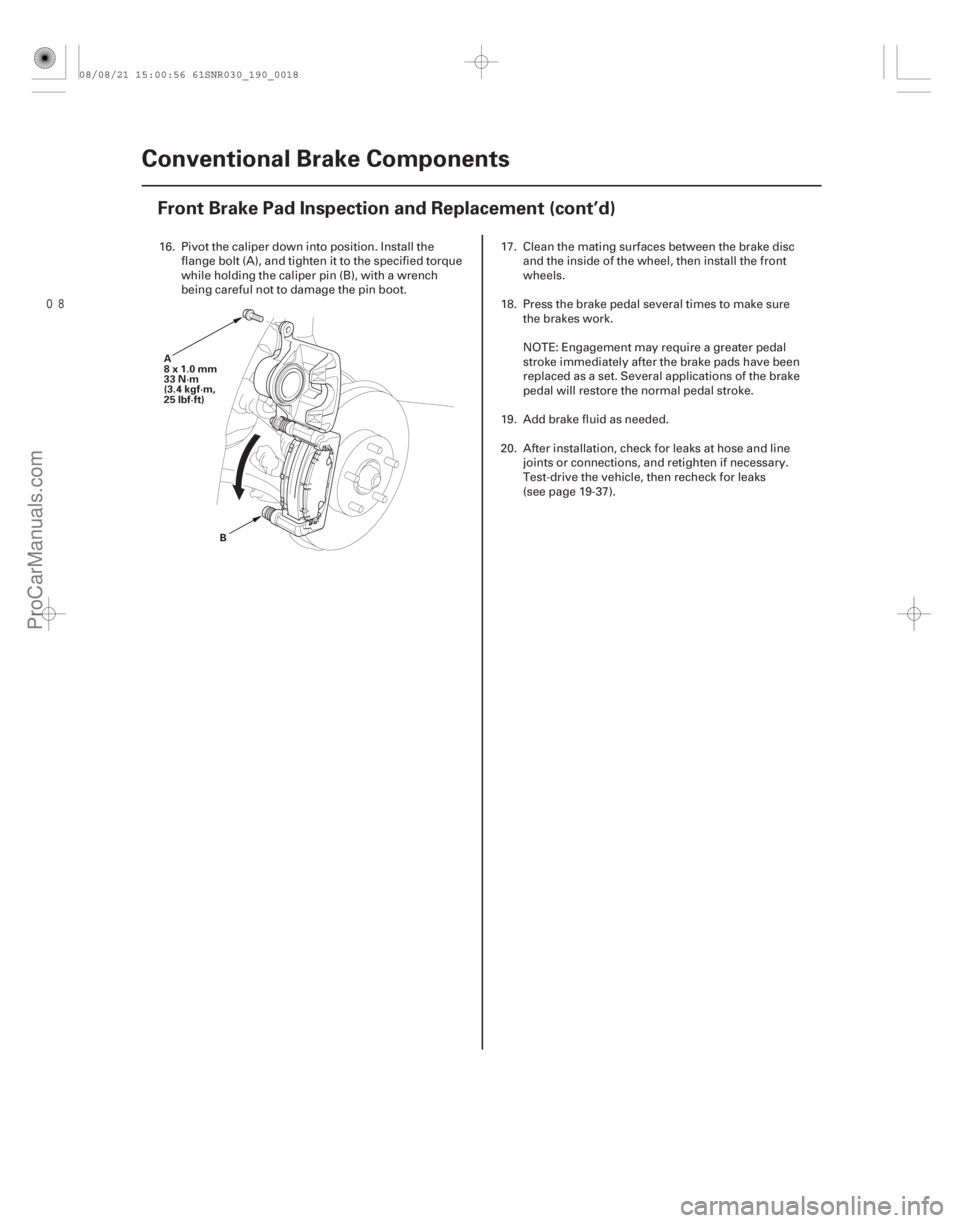

Page 1510 of 2893
19-18Conventional Brake Components
Front Brake Pad Inspection and Replacement (cont’d)
A
8x1.0mm
33 N·m
(3.4 kgf·m,
25 lbf·ft)
B
16. Pivot the caliper down into position. Install theflange bolt (A), and tighten it to the specified torque
while holding the caliper pin (B), with a wrench
being careful not to damage the pin boot. 17. Clean the mating surfaces between the brake disc
and the inside of the wheel, then install the front
wheels.
18. Press the brake pedal several times to make sure the brakes work.
NOTE: Engagement may require a greater pedal
stroke immediately after the brake pads have been
replaced as a set. Several applications of the brake
pedal will restore the normal pedal stroke.
19. Add brake fluid as needed.
20. After installation, check for leaks at hose and line joints or connections, and retighten if necessary.
Test-drive the vehicle, then recheck for leaks
(see page 19-37).
08/08/21 15:00:56 61SNR030_190_0018
ProCarManuals.com
DYNOMITE -2009-
Page 1511 of 2893

(#'
")

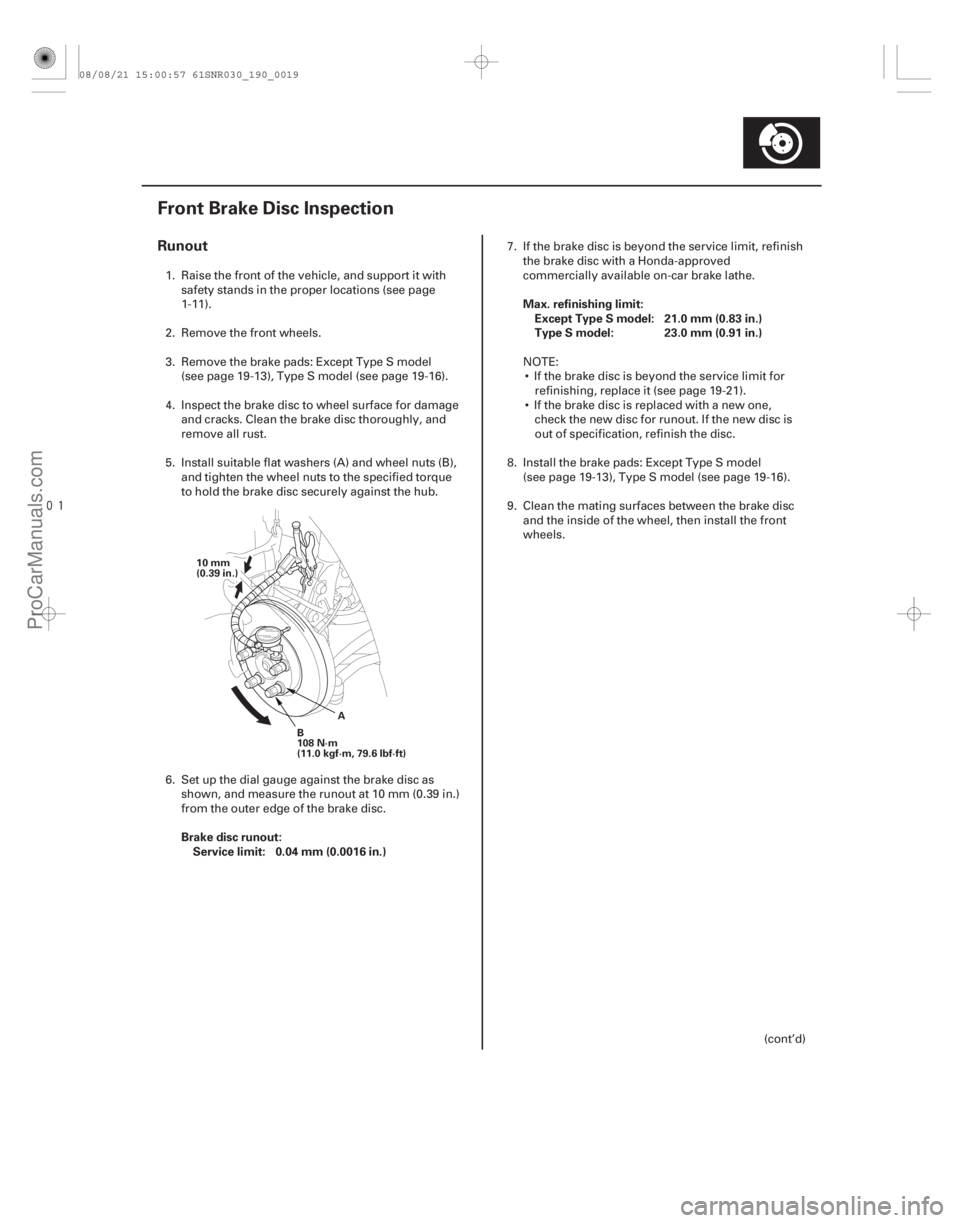

Runout
Brake disc runout:Service limit: 0.04 mm (0.0016 in.) Max. refinishing limit:
Except Type S model: 21.0 mm (0.83 in.)
Type S model: 23.0 mm (0.91 in.)
19-19
Front Brake Disc Inspection
B
108 N·m
(11.0 kgf·m, 79.6 lbf·ft) A
10 mm
(0.39 in.)
1. Raise the front of the vehicle, and support it with
safety stands in the proper locations (see page
1-11).
2. Remove the front wheels.
3. Remove the brake pads: Except Type S model (see page 19-13), Type S model (see page 19-16).
4. Inspect the brake disc to wheel surface for damage and cracks. Clean the brake disc thoroughly, and
remove all rust.
5. Install suitable flat washers (A) and wheel nuts (B), and tighten the wheel nuts to the specified torque
to hold the brake disc securely against the hub.
6. Set up the dial gauge against the brake disc as shown, and measure the runout at 10 mm (0.39 in.)
from the outer edge of the brake disc. 7. If the brake disc is beyond the service limit, refinish
the brake disc with a Honda-approved
commercially available on-car brake lathe.
NOTE: If the brake disc is beyond the service limit for refinishing, replace it (see page 19-21).
If the brake disc is replaced with a new one, check the new disc for runout. If the new disc is
out of specification, refinish the disc.
8. Install the brake pads: Except Type S model (see page 19-13), Type S model (see page 19-16).
9. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front
wheels.
(cont’d)
08/08/21 15:00:57 61SNR030_190_0019
ProCarManuals.com
DYNOMITE -2009-

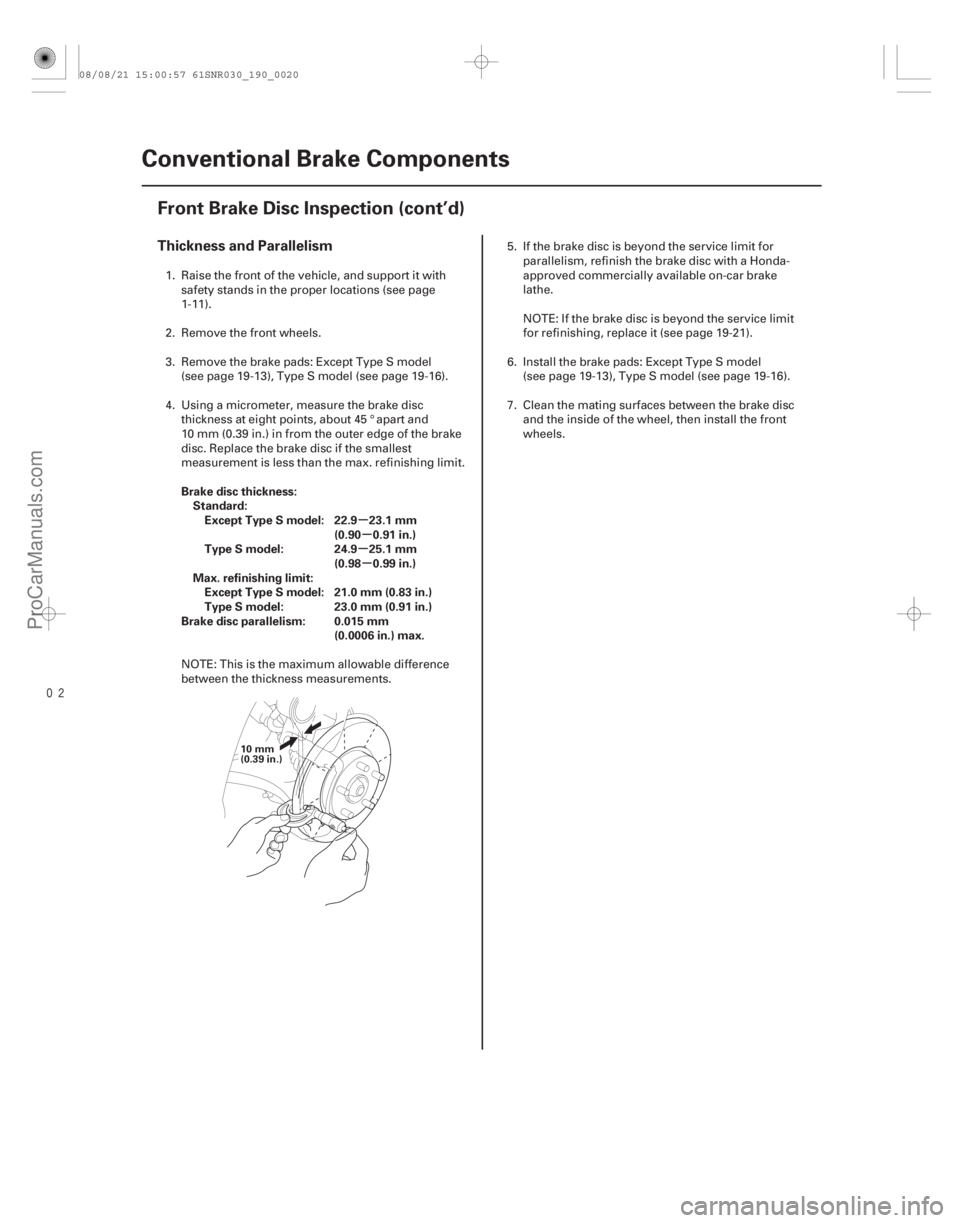

Page 1512 of 2893

µ
µ
µ µ
Thickness and Parallelism
Brake disc thickness: Standard:Except Type S model: 22.9 23.1 mm (0.90 0.91 in.)
Type S model: 24.9 25.1 mm (0.98 0.99 in.)
Max. refinishing limit: Except Type S model: 21.0 mm (0.83 in.)
Type S model: 23.0 mm (0.91 in.)
Brake disc parallelism: 0.015 mm (0.0006 in.) max.
19-20Conventional Brake Components
Front Brake Disc Inspection (cont’d)
10 mm
(0.39 in.)
1. Raise the front of the vehicle, and support it with
safety stands in the proper locations (see page
1-11).
2. Remove the front wheels.
3. Remove the brake pads: Except Type S model (see page 19-13), Type S model (see page 19-16).
4. Using a micrometer, measure the brake disc thickness at eight points, about 45 ° apart and
10 mm (0.39 in.) in from the outer edge of the brake
disc. Replace the brake disc if the smallest
measurement is less than the max. refinishing limit.
NOTE: This is the maximum allowable difference
between the thickness measurements. 5. If the brake disc is beyond the service limit for
parallelism, refinish the brake disc with a Honda-
approved commercially available on-car brake
lathe.
NOTE: If the brake disc is beyond the service limit
for refinishing, replace it (see page 19-21).
6. Install the brake pads: Except Type S model (see page 19-13), Type S model (see page 19-16).
7. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front
wheels.
