Audio GlossaryItem Definition
23-9
GA-Net The GA-Net allows the audio unit to communicate with all the audio and
navigation components in a vehicle. If there is an open in the GA-Net or
components, components or the entire audio and navigation system may
appear inoperative.
GB (Gigabyte) A unit of memory or disk storage equal to billion bytes (1000 million bytes).
HDD Abbreviation for hard disc drive. They are sensitive to heat and it is not
recommended that they be used in the PC card slot for playing audio files.
Hertz (Hz) The unit of frequency equal to one cycle per second (cps). One kilohertz (kHz)
equals 1,000 cps; one megahertz (MHz) equals 1 million cps.
Integrated amplifier A component that combines a pre amp and a power amp into a single unit. A
receiver combines an integrated amp and a tuner into a single unit.
Jewel case The hard plastic case that contains a compact disc or DVD. Always use a jewel
case to prevent scratches on the underside of a CD or DVD.
LCD (Liquid Crystal Display) A type of digital display that changes reflectance or transmittance when an electrical field is applied to it.
Memory Circuitry or devices that hold information in electrical or magnetic form, such
as the AM/FM radio presets.
MB (Megabyte) One million bytes. Written as 1 MB. Megabytes are used as a measure of digital
storage space. For example, a CD can hold 650 MB.
Mic An abbreviation for microphone. For vehicles with navigation, the microphone
accepts navigation voice commands to control audio and navigation functions.
MP3 music files MP3 is an audio coding format. MP3 is a popular audio compression format on
the Internet and computers. CDs and PC Cards with these files can be played on
some vehicle’s audio system.
Mute When the navigation gives guidance, the front speakers are muted (no music).
When you use the voice control system, all of the speakers are muted.
Noise Unwanted random sounds like buzzing, hiss, pops, static, whine, etc.
PC card The slot used for playing MP3 and WMA music files. The PC Card is usually a
combination of a small flash card in a PCMCIA adaptor that slides into the slot.
The ATA, SD, and compact flash types of cards have been tested up to 1 GB.
PCMCIA A computer standard for the slot that the PC card slides into. Another term for
the PC card slot.
Processor The part of an audio device that performs tasks/calculations. In the audio unit
the processor handles muting to allow the navi to speak its voice commands,
and the decoding/playback of the sound files etc.
Radio A head unit that combines a tuner, a preamplifier, and often a power-amplifier.
Route guidance (RG) Spoken voice used for turn-by-turn navigation from the audio speakers.
SCF (Cold Start Fix) screens These screens are displayed if the system requires a GPS initialization. The vehicle should be moved outside into an open area away from buildings/power
lines.
Stereo A recording of at least two channels where you can hear sound or music from
the left or right side.
SD (Secure Digital) card This compact type of memory card allows for fast data transfer and has built-in security functions. SD cards have a small write-protection switch on the side.
Shield A metallic foil or braided wire layer surr ounding conductors which are
designed to prevent electrostatic or electromagnetic interference (noise) from
external sources such as buzzing, or popping sounds heard on the speakers.
Speaker (Loudspeaker) A device that converts electrical energy into acoustical energy (sound).
Speed-sensitive volume
compensation (SVC) The SVC increases the audio volume to compensate for increased interior noise
when the vehicle drivers at freeway speeds.
Subwoofer A loudspeaker made to reproduce the lowest audio frequencies, about 25 Hz to
125 Hz.
(cont’d)
08/08/21 14:03:45 61SNR030_230_0012
ProCarManuals.com
DYNOMITE -2009-
Page 2290 of 2893

Audio GlossaryItem Definition
23-10Audio System
System Description (cont’d)
Track
A sound recording on a CD, tape, or PC Card.
Treble An adjustment to control the volume of the high frequency sounds.
Tuner A component (or part of a component) that receives radio signals and selects
one broadcast from many.
Tweeter A speaker designed to reproduce the higher frequencies (treble) only.
USB Universal Serial Bus. The USB is used for playing the compressed audio files
(MP3, WMA, and AAC) on an external device through the audio unit.
Voice coil A coil of wire wrapped around a tube and then attached to the speaker cone or
diaphragm. When an audio signal is applied, the coil becomes an
electromagnet and interacts with the permanent magnet causing the come or
diaphragm to vibrate. We interpret this vibrations as sound.
Volume control Allows you to control the loudness of the music.
WMA music file Windows Media Audio File. This is an accepted format for music files to be
played on either a CD-R, a CD-RW or a PC Card.
Woofer A speaker that is designed to reproduce low (bass) frequencies only.
XM radio Satellite based radio transmission, which also uses a ground based repeater
network to ensure seamless reception. The channels originate from XM’s
broadcast center, in Washington, DC, and uplink to two satellites. These
satellites transmit the signal across the entire continental United States.
XM receiver The external component that receives and processes the XM signals from the
XM satellites, and terrestrial (land) stations. The audio unit communicates to
the XM receiver over the GA-Net bus.
08/08/21 14:03:45 61SNR030_230_0013
ProCarManuals.com
DYNOMITE -2009-
Page 2291 of 2893
Î
Î
Audio Unit Connector for Inputs and Outputs
With navigation (navigation unit)
Without navigation
23-11
NAVIGATION UNIT
CONNECTOR B (22P)
NAVIGATION UNIT
CONNECTOR A (17P)
NAVIGATION UNIT
CONNECTOR E (14P)
NAVIGATION UNIT
CONNECTOR G (3P)
AUDIO UNIT CONNECTOR B (22P)
AUDIO UNIT
CONNECTOR E (14P)
AUDIO UNIT
CONNECTOR A (17P)
AUDIO UNIT
CONNECTOR G (3P)
(cont’d)
08/08/21 14:03:45 61SNR030_230_0014
ProCarManuals.com
DYNOMITE -2009-
Page 2292 of 2893

µµ
µ
µ
µ µ
´ ´
´
´
´ ´
´ µ
µ
µµ
´
´
´´
´
Î
NAVIGATION UNIT/AUDIO UNIT CONNECTOR A (17P)
Except Type S model
Cavity Wire Color Connect toType S model
Cavity Wire Color Connect to
23-12Audio System
System Description (cont’d)
A1 RED Dash lights brightness
controller
A2 BRN Left rear speaker ( )
A3 PNK Driver’s door speaker ( ), Left tweeter ( )
A4 GRN Multiplex integrated control unit (MICU) (SCTY RADIO)
A6 LT BLU Multiplex integrated control unit(MICU)(K-LINE)
A7 BRN Front passenger’s door speaker ( ), Right tweeter
()
A8 ORN Right rear speaker ( )
A9 BLK Ground (G 505)
A10 GRY Lights-on signal
A11 YEL Left rear speaker ( )
A12 LT GRN Driver’s door speaker ( ), Left tweeter ( )
A13 BLU ECM/PCM (VSP)
A14 PUR Multiplex integrated control unit(MICU)(ACCRADIO)
A15 GRY Front passenger’s door speaker ( ), Right tweeter
()
A16 BLU Right rear speaker ( )
A17 WHT Multiplex integrated control unit (MICU) ( B BACK UP) A1 RED Dash lights brightness
controller
A2 WHT Stereo amplifier (RL SIG )
A3 ORN Stereo amplifier (FL SIG )
A4 GRN Multiplex integrated control unit (MICU) (SCTY RADIO)
A6 LT BLU Multiplex integrated control unit(MICU)(K-LINE)
A7 PNK Stereo amplifier (FR SIG )
A8 PUR Stereo amplifier (RR SIG )
A9 BLK Ground (G505)
A10 GRY Lights-on signal
A11 BLK Stereo amplifier (RL SIG )
A12 BLU Stereo amplifier (FL SIG )
A13 BLU ECM/PCM (VSP)
A14 PUR Multiplex integrated control unit(MICU)(ACCRADIO)
A15 BLU Stereo amplifier (FR SIG )
A16 LT GRN Stereo amplifier (RR SIG )
A17 WHT Multiplex integrated control unit (MICU) ( B BACK UP)
Wire side of female terminals
08/08/21 14:03:46 61SNR030_230_0015
ProCarManuals.com
DYNOMITE -2009-
Page 2293 of 2893

ÎÎ
NAVIGATION UNIT CONNECTOR B (22P) (wit
hout
navigation)
Cavity Wire Color Connect to AUDIO UNIT CONNECTOR B (20P) (with navigation)
Cavity Wire Color Connect to
23-13
B1 BRN Auxiliary jack assembly (AUX SGND)
B2 GRY Shield for terminals No. 1, No. 3, No. 11, No. 12, and
No. 13 (AUX SH GND)
B3 BLU Auxiliary jack assembly (AUX GND)
B6 BRN Radio remote switch (AUDIO REMOTE GND)
B7 PNK Radio remote switch (AUDIO REMOTE SW)
B11 YEL Auxiliary jack assembly (AUX L)
B12 GRN Auxiliary jack assembly (AUX R)
B13 WHT Auxiliary jack assembly (AUX DET)
B20 LT BLU Stereo amplifier (AMP ON)
1: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may
not match the color of the wire listed on the
schematic.
2: Type S model B3 BRN Auxiliary jack assembly
(AUX SGND)
B4 GRY Shield for terminals No. 3, No. 5, No. 13, No. 14, and
No. 15 (AUX SH GND)
B5 BLU Auxiliary jack assembly (AUX GND)
B6 BRN Radio remote switch (AUDIO REMOTE GND)
B7 PNK Radio remote switch (AUDIO REMOTE SW)
B13 YEL Auxiliary jack assembly (AUX L)
B14 GRN Auxiliary jack assembly (AUX R)
B15 WHT Auxiliary jack assembly (AUX DET)
: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may
not match the color of the wire listed on the
schematic.
(cont’d)
1
2
Wire side of female terminals Wire side of female terminals
08/08/21 14:03:46 61SNR030_230_0016
ProCarManuals.com
DYNOMITE -2009-
Page 2294 of 2893

´
´
´
´
µ µ
µ
•••
•••
••• ´
Î
Î
NAVIGATION UNIT CONNECTOR E (14P) (with
navigation)
Cavity Wire Color Connect to NAVIGATION UNIT/AUDIO UNIT CONNECTOR G (3P)
Cavity Wire Color Connect to
23-14Audio System
System Description (cont’d)
E2 LT BLU XM receiver
(SAT SYS ACC)
E3 BRN Shield for terminals No. 9 and No. 10
(BUS SH GND)
E4 GRY Shield for terminals No. 5, No. 6, No. 13, and No. 14
(SAT SH GND)
E5 WHT XM receiver (SAT R )
E6 RED XM receiver (SAT L )
E7 BLU XM receiver ( B)
E9 BLU XM receiver (SAT BUS (GA-NET))
E10 PNK XM receiver (SAT BUS (GA-NET))
E11 BLK XM receiver (GND)
E13 BLK XM receiver (SAT R )
E14 GRN XM receiver (SAT L )
: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may
not match the color of the wire listed on the
schematic. G1 AM/FM antenna amplifier (RF
IN)
G2 Shield for terminal No.1 (RF SH)
G3 AM/FM antenna amplifier (SWD B)
Wire side of female terminals Terminal side of female terminals
08/08/21 14:03:46 61SNR030_230_0017
ProCarManuals.com
DYNOMITE -2009-
Page 2295 of 2893
Î

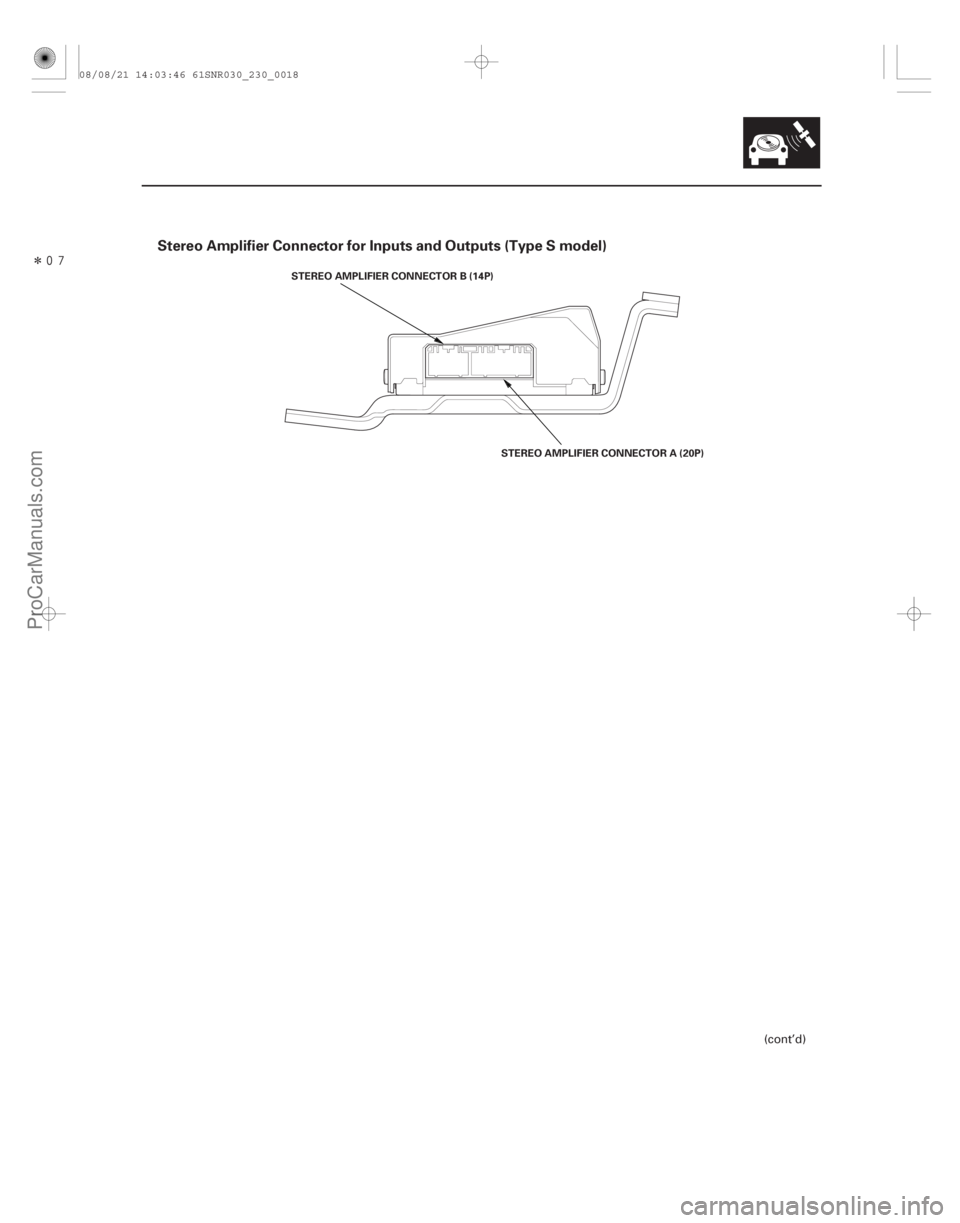

Stereo Amplifier Connector for Inputs and Outputs (Type S model)
23-15
STEREO AMPLIFIER CONNECTOR B (14P)STEREO AMPLIFIER CONNECTOR A (20P)
(cont’d)
08/08/21 14:03:46 61SNR030_230_0018
ProCarManuals.com
DYNOMITE -2009-
Page 2296 of 2893

´
´ ´
´
´ ´
´
´ µ
µ µ
µ
µ µ
µ ´
´
´´
µ
µ
µµ
Î
Î
STEREO AMPLIFIER CONNECTOR A (20P)
Cavity Wire Color Connect to STEREO AMPLIFIER CONNECTOR B (14P)
Cavity Wire Color Connect to
23-16Audio System
System Description (cont’d)
A1 PNK Right tweeter ( )
A2 GRY Front passenger’s door
speaker ( )
A3 LT GRN Driver’s door speaker ( )
A4 RED Left tweeter ( )
A5 GRN Subwoofer ( )
A7 BLU Right rear speaker ( )
A8 GRY Left rear speaker ( )
A9 PUR Multiplex integrated control unit(MICU)(ACCRADIO)
A10 LT GRN B (Main stereo power supply)
A11 BLU Right tweeter ( )
A12 BRN Front passenger’s door speaker ( )
A13 PNK Driver’s door speaker ( )
A14 GRN Left tweeter ( )
A15 RED Subwoofer ( )
A17 ORN Right rear speaker ( )
A18 BRN Left rear speaker ( )
A20 BLK Ground (G 505) B1 BLU Navigation unit (FL SIG )
B2 BRN Shield for terminals No. 1 and
No. 8 (FL SH GND)
B3 BLK Navigation unit (RL SIG )
B4 BLU Navigation unit (FR SIG )
B5 GRY Shield for terminals No. 4 and No. 11 (FR SH GND)
B6 LT GRN Navigation unit (RR SIG )
B7 LT BLU Navigation unit (AMP ON)
B8 RED Navigation unit (FL SIG )
B9 GRN Shield for terminals No. 3 and No. 10 (RL SH GND)
B10 WHT Navigation unit (RL SIG )
B11 PNK Navigation unit (FR SIG )
B12 YEL Shield for terminals No. 6 and No. 13 (RR SH GND)
B13 PUR Navigation unit (RR SIG )
: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of
the insulating tube, typically black or dark gray,
may not match the color of the wire listed on the
schematic.
Wire side of female terminals Wire side of female terminals
08/08/21 14:03:47 61SNR030_230_0019
ProCarManuals.com
DYNOMITE -2009-
