Page 1777 of 2893
(#'
)
S
pecial Tools Required
20-100 Dashboard
Subdisplay Visor Removal/Installation
Fastener Location
:Screw,1 Fa
stener Locations
:Clip,4
B, E
A B
C
B BF
D
E
D
KTC trim tool set SOJATP2014
NOTE:
Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
1. Remove the driver’s dashboard lower cover (see page 20-102).
2. Tilt the steering column down, and pull it fully out.
3. Remove the screw. 4
. Pull the back of the driver’s pocket (A) by hand from
the driver’s lower cover opening to release the clips
(B) and the hook (C) on the outside.
5. Pry up on the inside edge of the subdisplay visor (D) with a trim tool to detach the clip (E), and
release the pin (F).
08/08/21 15:02:53 61SNR030_200_0102
ProCarManuals.com
DYNOMITE -2009-
Page 1778 of 2893
20-101
Fastener Locations
:Clip,6 A
B A Fastener Locations
:Screw,5
A
B C

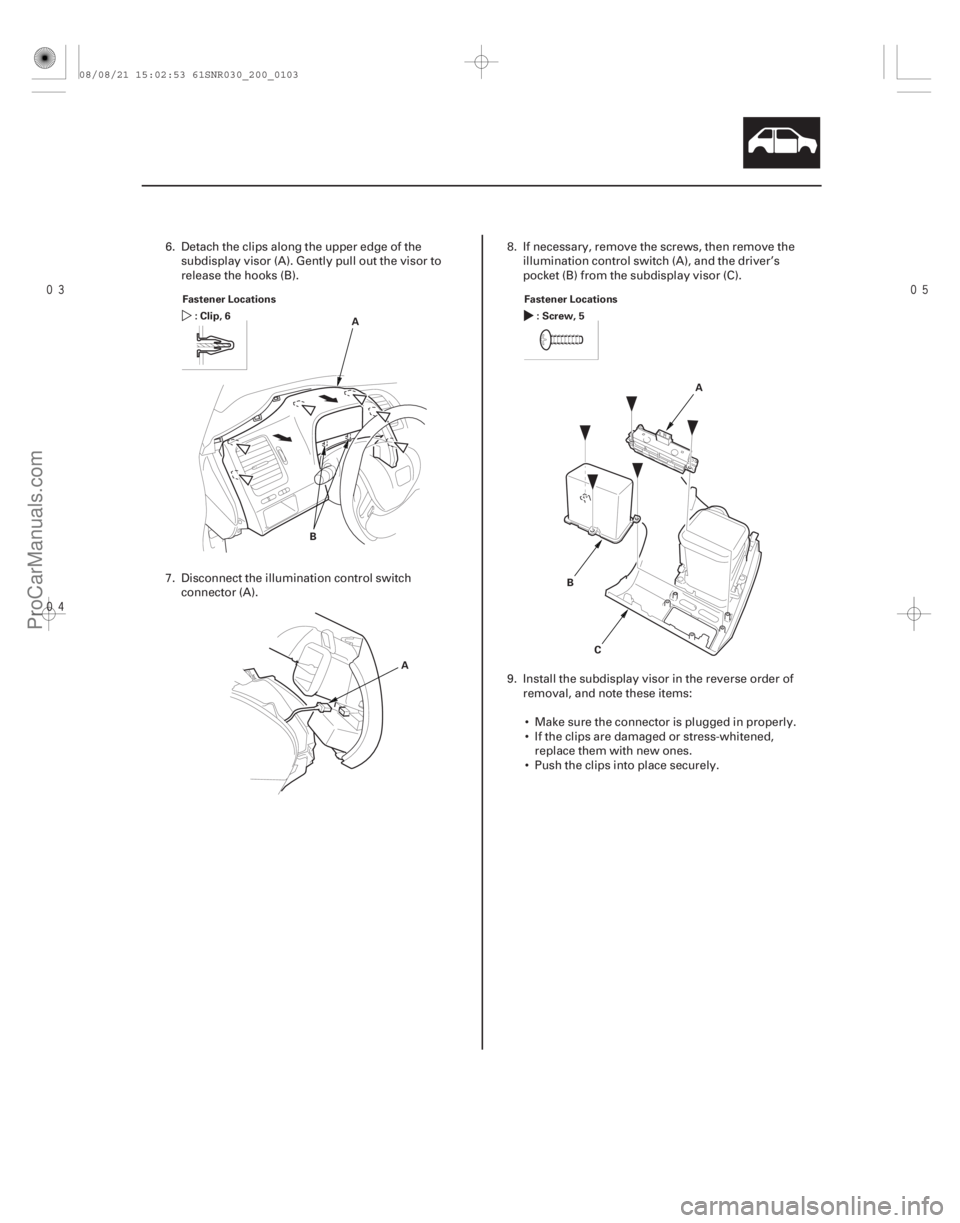

6. Detach the clips along the upper edge of thesubdisplay visor (A). Gently pull out the visor to
release the hooks (B).
7. Disconnect the illumination control switch
connector (A). 8. If necessary, remove the screws, then remove the
illumination control switch (A), and the driver’s
pocket (B) from the subdisplay visor (C).
9. Install the subdisplay visor in the reverse order of removal, and note these items:
Make sure the connector is plugged in properly.
If the clips are damaged or stress-whitened, replace them with new ones.
Push the clips into place securely.
08/08/21 15:02:53 61SNR030_200_0103
ProCarManuals.com
DYNOMITE -2009-
Page 1779 of 2893
(#'
)
S
pecial Tools Required
20-102 Dashboard
Driver’s Dashboard Lower Cover Removal/Installation
A
Fastener Locations
:Clip,3 F
astener Locations
: Clip, 5
AB
C
KTC trim tool set SOJATP2014
NOTE:
Use the appropriate tool from the KTC trim tool set to
avoid damage when removing components.
Take care not to scratch the dashboard and related parts.
1. Tilt the steering column fully upward.
2. Gently pull out on the lower edge of the dashboard lower cover (A) to detach the lower clips. 3
. Detach the upper clips, and release the hook (A)
and the pin (B) by pulling the driver’s das hboard
lower cover (C) back.
4. Install the lower cover in the reverse order of removal, and note these items:
If the clips are damaged or stress-whitened, replace them with new ones.
Push the clips into place securely.
08/08/21 15:02:54 61SNR030_200_0104
ProCarManuals.com
DYNOMITE -2009-
Page 1780 of 2893

(#'
)
(#'
)
20-10320-103

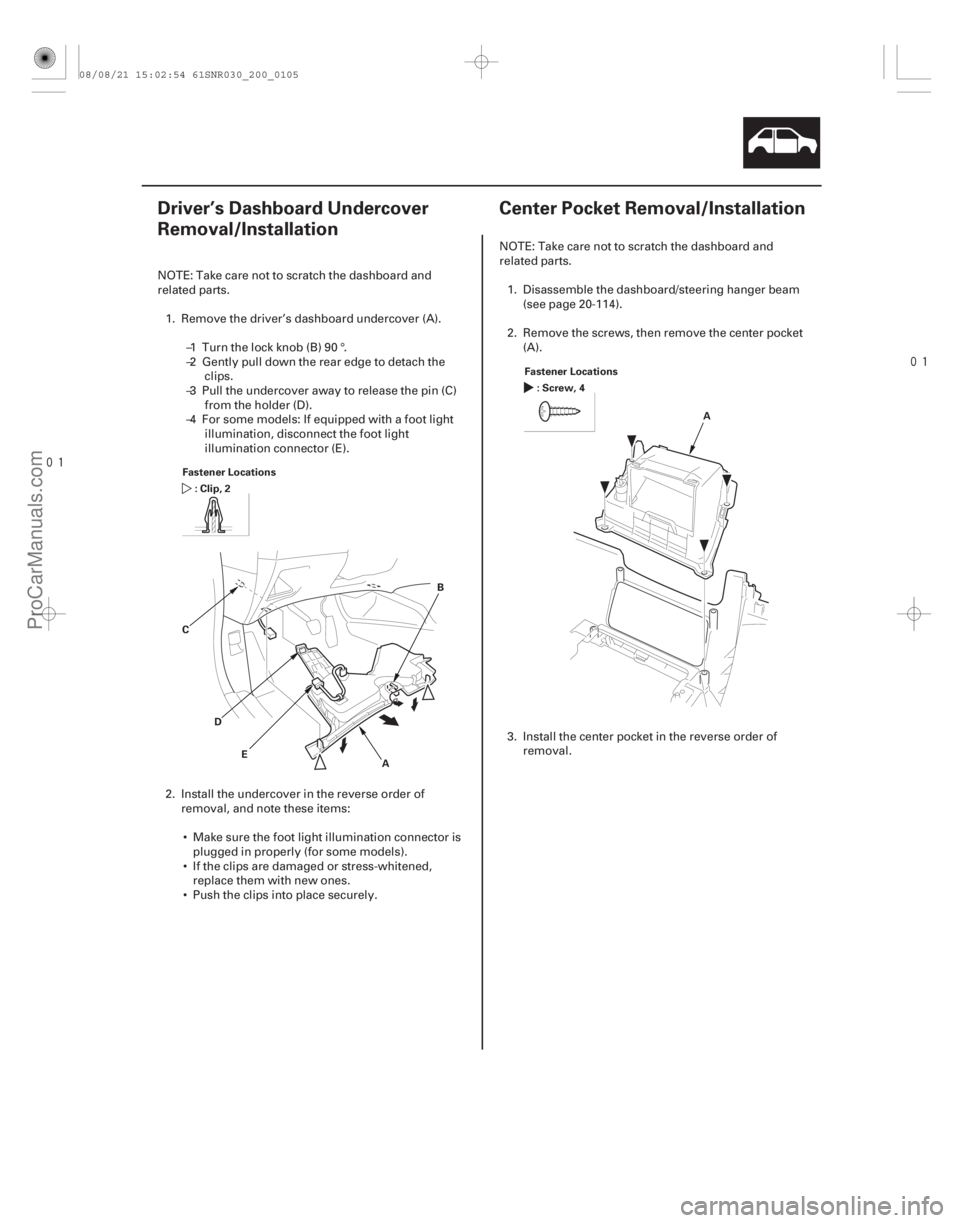

Driver’s Dashboard Undercover
Removal/Installation Center Pocket Removal/Installation
Fastener Locations
:Clip,2
C DE AB Fastener Locations
:Screw,4
A
NOTE: Take care not to scratch the dashboard and
related parts.1. Remove the driver’s dashboard undercover (A). –1 Turn the lock knob (B) 90 °.
–2 Gently pull down the rear edge to detach theclips.
–3 Pull the undercover away to release the pin (C) from the holder (D).
–4 For some models: If equipped with a foot light illumination, disconnect the foot light
illumination connector (E).
2. Install the undercover in the r everse order of
removal, and note these items:
Make sure the foot light illumination connector is plugged in properly (for some models).
If the clips are damaged or stress-whitened, replace them with new ones.
Push the clips into place securely. NOTE: Take care not to scratch the dashboard and
related parts.
1. Disassemble the dashboard/steering hanger beam (see page 20-114).
2. Remove the screws, then remove the center pocket (A).
3. Install the center pocket in the reverse order of removal.
08/08/21 15:02:54 61SNR030_200_0105
ProCarManuals.com
DYNOMITE -2009-
Page 1781 of 2893

(#'
)
(#'
)
20-10420-104 Dashboard

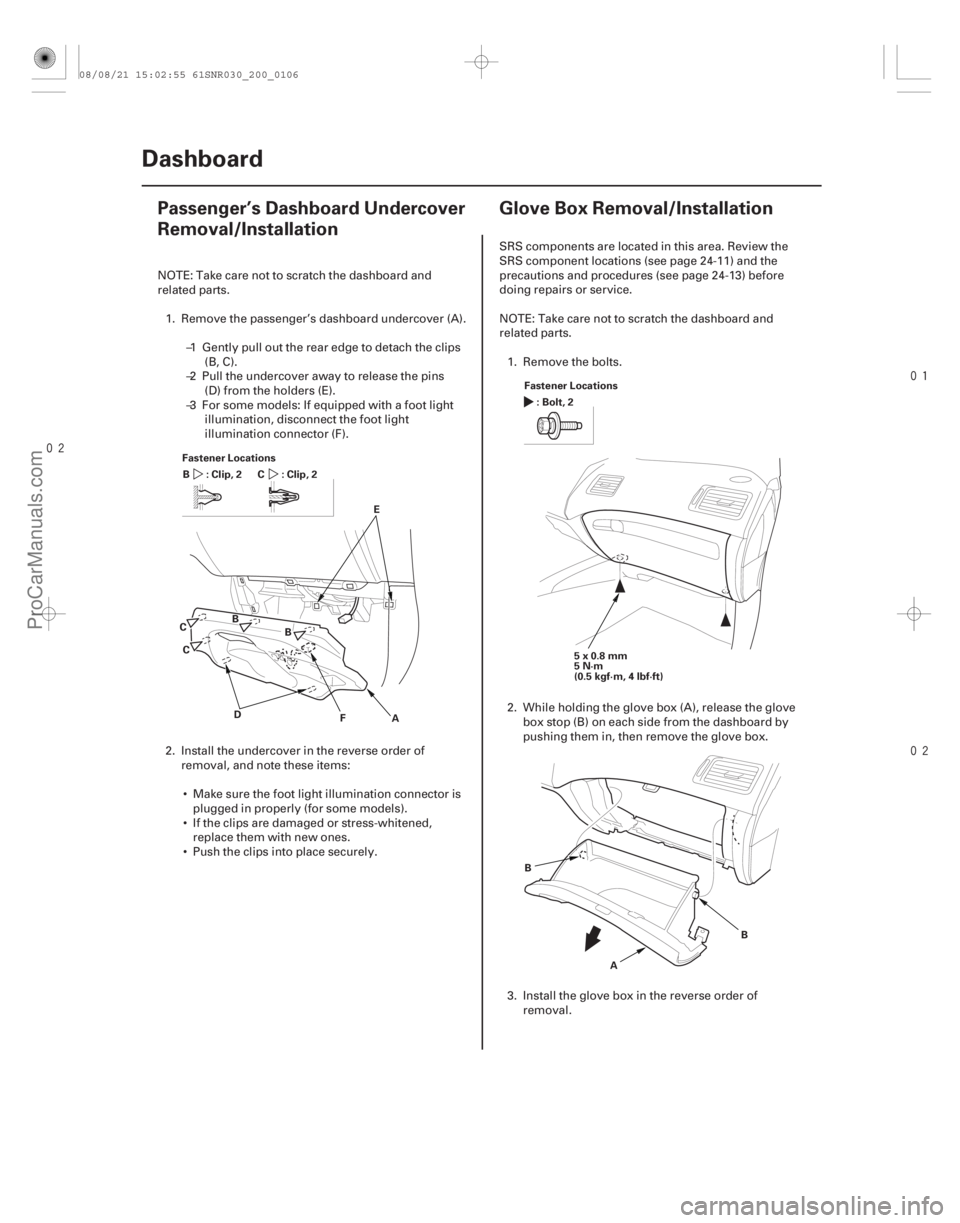

Passenger’s Dashboard Undercover
Removal/Installation
Glove Box Removal/Installation
Fastener Locations
:Clip,2
B : Clip, 2 C
D FA
E
C C B
B Fastener Locations
:Bolt,2
5x0.8mm
5N·m
(0.5 kgf·m, 4 lbf·ft)
A B
B
NOTE: Take care not to scratch the dashboard and
related parts.
1. Remove the passenger’s dashboard undercover (A). –1 Gently pull out the rear edge to detach the clips(B, C).
–2 Pull the undercover away to release the pins (D) from the holders (E).
–3 For some models: If equipped with a foot light illumination, disconnect the foot light
illumination connector (F).
2. Install the undercover in the r everse order of
removal, and note these items:
Make sure the foot light illumination connector is plugged in properly (for some models).
If the clips are damaged or stress-whitened, replace them with new ones.
Push the clips into place securely. SRS components are located in this area. Review the
SRS component locations (see page 24-11) and the
precautions and procedures (see page 24-13) before
doing repairs or service.
NOTE: Take care not to scratch the dashboard and
related parts.
1. Remove the bolts.
2. While holding the glove box (A), release the glove box stop (B) on each side from the dashboard by
pushing them in, then remove the glove box.
3. Install the glove box in the reverse order of removal.
08/08/21 15:02:55 61SNR030_200_0106
ProCarManuals.com
DYNOMITE -2009-
Page 1782 of 2893

(#'
)
S
pecial Tools Required
Dr
iver’s Center Vent
20-105
Dashboard Vent Removal/Installation
Fastener Locations
A
B
:Screw,3
F
astener Locations
A
B
:Screw,3
KTC trim tool set SOJATP2014
NOTE: Take care not to scratch the dashboard and
r
elated parts.
1. Remove the subdisplay visor (see page 20- 100).
2. Remove the screws securing the driver’s outer vent (A), then remove the driver’s outer vent from the
subdisplay visor (B).
3. Install the outer vent in the reverse order of removal. N
OTE: Take care not to scratch the dashboard and
related parts.
1. Remove these items: Navigation unit, with navigation system– ’06-08 models (see page 23-155)
– ’09 model (see page 23-355)
Audio unit, without navigation system – ’06-08 models (see page 23-80)
– ’09 model (see page 23-256)
2. Remove the screws securing the driver’s center vent (A), then remove the driver’s center vent from
the center panel (B).
3. Install the center vent in the reverse order of removal.
(cont’d)
08/08/21 15:02:55 61SNR030_200_0107
ProCarManuals.com
DYNOMITE -2009-
Page 1783 of 2893

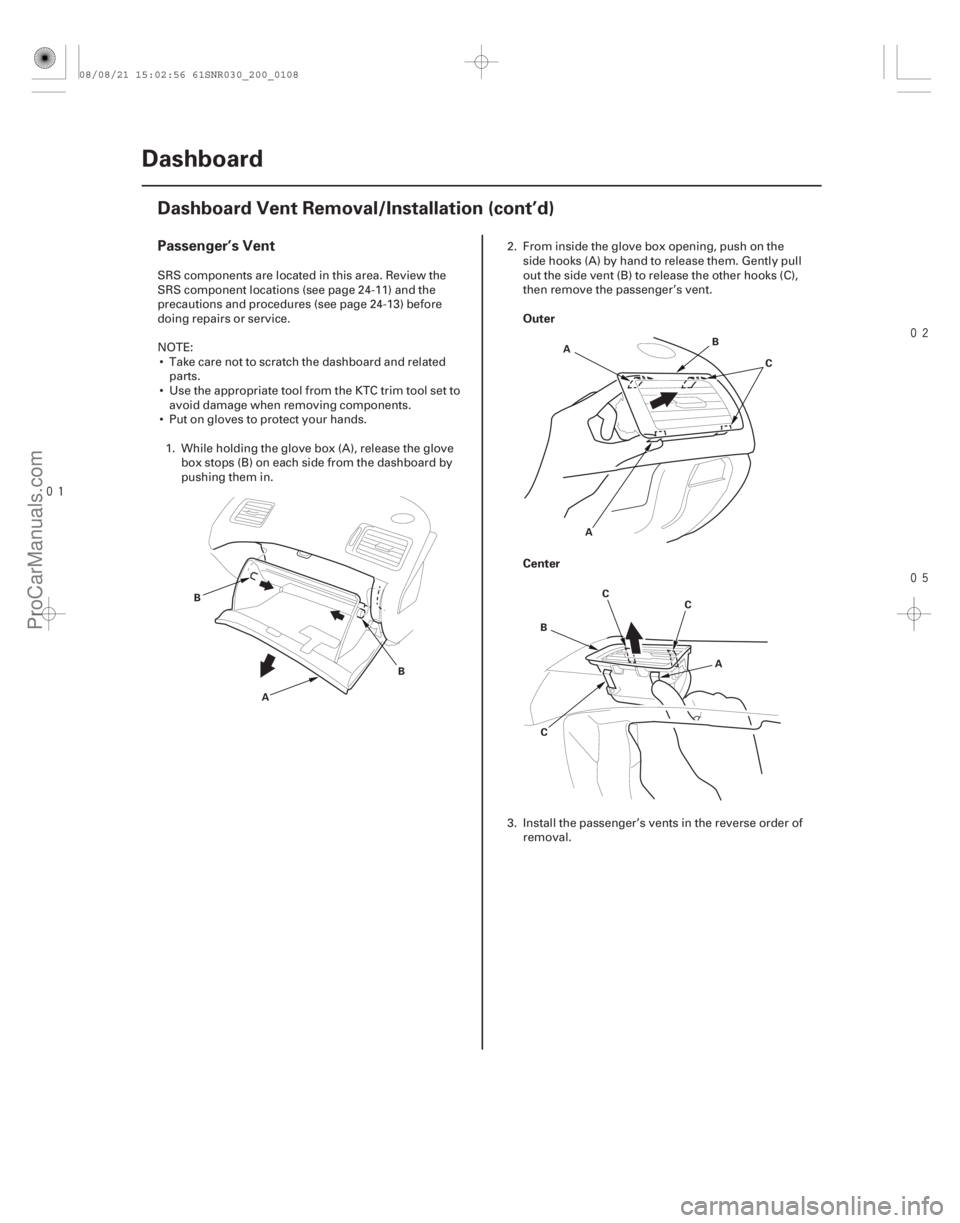

Passenger’s Vent
Outer
Center
20-106Dashboard
Dashboard Vent Removal/Installation (cont’d)
A
B
BAB
C
A
B A
C
C
C
SRS components are located in this area. Review the
SRS component locations (see page 24-11) and the
precautions and procedures (see page 24-13) before
doing repairs or service.
NOTE: Take care not to scratch the dashboard and related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Put on gloves to protect your hands.
1. While holding the glove box (A), release the glove box stops (B) on each side from the dashboard by
pushing them in. 2. From inside the glove box opening, push on the
side hooks (A) by hand to release them. Gently pull
out the side vent (B) to release the other hooks (C),
then remove the passenger’s vent.
3. Install the passenger’s vents in the reverse order of removal.
08/08/21 15:02:56 61SNR030_200_0108
ProCarManuals.com
DYNOMITE -2009-
Page 1784 of 2893

(#'
)
(#'
) S
pecial Tools Required
20-10720-107

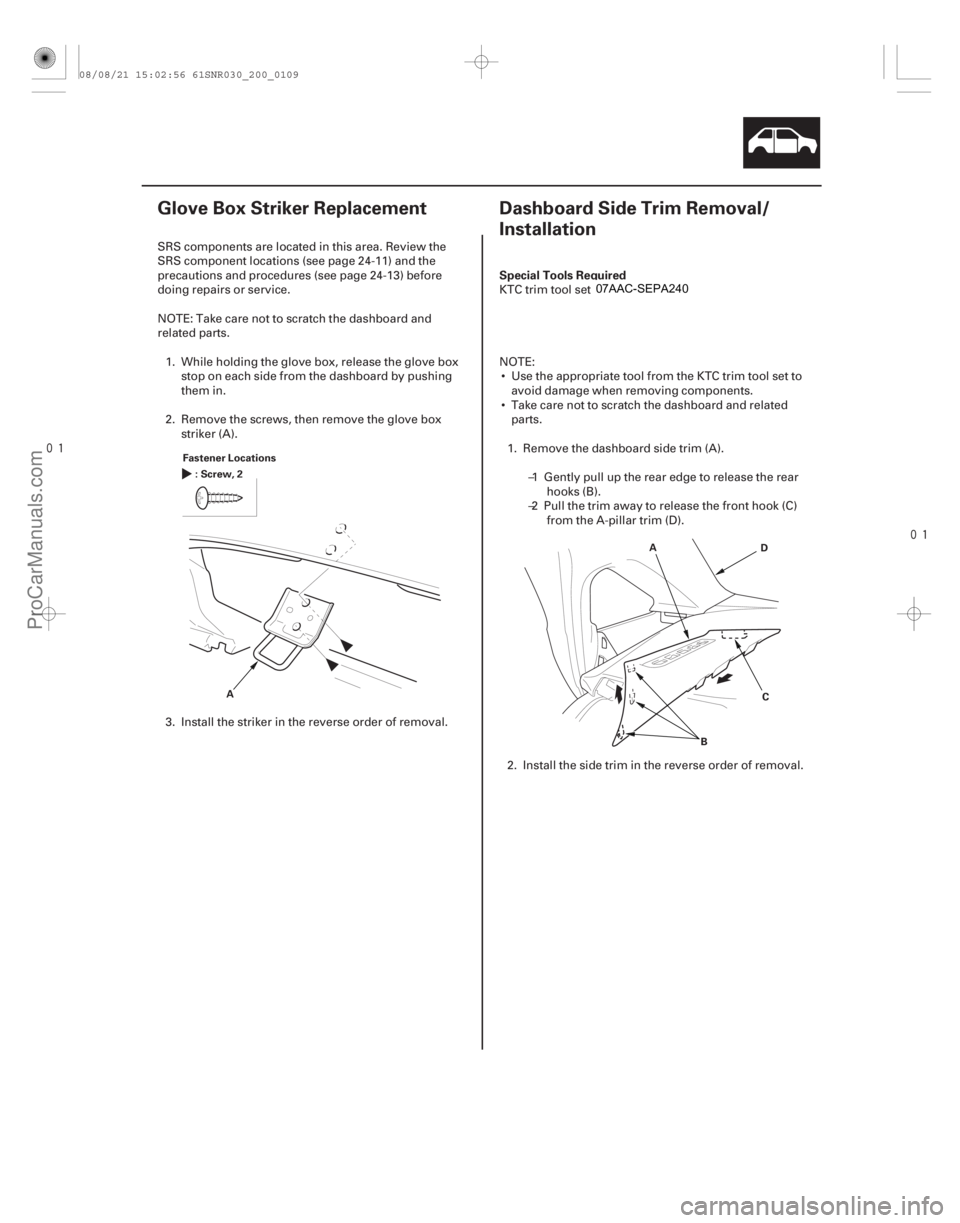

Glove Box Striker Replacement Dashboard Side Trim Removal/
Installation
Fastener Locations
A
:Screw,2
A
B C
D
SRS components are located in this area. Review the
SRS component locations (see page 24-11) and the
precautions and procedures (see page 24-13) before
doing repairs or service.
NOTE: Take care not to scratch the dashboard and
related parts.
1. While holding the glove box, release the glove box stop on each side from the dashboard by pushing
them in.
2. Remove the screws, then remove the glove box striker (A).
3. Install the striker in the reverse order of removal. KTC trim tool set SOJATP2014
NOTE:
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Take care not to scratch the dashboard and related parts.
1. Remove the dashboard side trim (A). –1 Gently pull up the rear edge to release the rearhooks (B).
–2 Pull the trim away to release the front hook (C) from the A-pillar trim (D).
2. Install the side trim in the reverse order of removal.
08/08/21 15:02:56 61SNR030_200_0109
