Alternator FR Signal Circuit
Troubleshooting
ECM/PCM CONNECTOR A (44P)
ACC (RED)JUMPER WIRE
ECM/PCM CONNECTOR B (44P)ALTF
(WHT/RED)
13. Momentarily connect ECM/PCM connector terminalA14 to body ground with a jumper wire s everal
times.
Update the ECM/PCM if it does not have the
latest software (see page 11-227), or substitute a
known-good ECM/PCM (see page 11-7), then
recheck. If the symptom/indication goes away with
a known-good ECM/PCM, replace the original ECM/
PCM (see page 11-228).
Check for poor connections or loose terminals
attheA/CclutchrelayandtheECM/PCM.Ifthe
connections and the terminals are OK, check the
A/C compressor clutch relay (see page 22-70),
repair open in the wires between the ECM/PCM
(A14), the A/C compressor clutch relay, and other
A/C systems parts. 1. Start the engine, and let it idle.
2. Monitor the ALTERNATOR in the DATA LIST with
the HDS.
3. Check if the indicated percentage varies when the headlight switch is turned on.
The alternator signal circuit is OK.
Go to step 4.
4. Turn the headlight switch and ignition switch to LOCK (0).
5. Jump the SCS line with the HDS.
6. Disconnect the alternator 4P connector.
7. Disconnect ECM/PCM connector B (44P).
8. Check for continuity between body ground and ECM/PCM connector terminal B43.
Repair short in the wire between the ECM/
PCM (B43) and the alternator.
Update the ECM/PCM if it does not have the
latest software (see page 11-227), or substitute a
known-good ECM/PCM (see page 11-7), then
recheck. If the symptom/indication goes away with
a known-good ECM/PCM, replace the original ECM/
PCM (see page 11-228).
Terminal side of female terminals
Terminal side of female terminals
I s t her e a cl i ck i ng noi se f r om t he A/ C compr essorclutch? Does t he per cent age v ar y ?
Is there continuity?
08/08/21 14:29:37 61SNR030_110_0307
ProCarManuals.com
DYNOMITE -2009-
Page 634 of 2893

(#'
)
µ
µ
µ
µ µ
µ
YES
NO
YES
NO
YES
NO
11-308Idle Control System
Brake Pedal Position Switch Signal Circuit Troubleshooting
ECM/PCM CONNECTOR A (44P)
BKSW (LT GRN)
1. Turn the ignition switch to ON (II).
2. Check the BRAKE SWITCH in the DATA LIST withthe HDS.
Go to step 3.
Inspect the brake pedal position switch
(see page 19-6).
3. Press the brake pedal while checking the BRAKE SWITCH in the DATA LIST with the HDS.
The brake pedal position switch signal circuit
(BKSW line) is OK.
Go to step 4.
4. Turn the ignition switch to LOCK (0).
5. Jump the SCS line with the HDS.
6. Disconnect the brake pedal position switch 4P connector.
7. Disconnect ECM/PCM connector A (44P). 8. Check for continuity between ECM/PCM connector
terminal A40 and body ground.
Repair short in the wire between the ECM/
PCM (A40) and the No. 12 HORN/STOP (15 A) fuse.
Also, replace the No. 12 HORN/STOP (15 A) fuse.
Go to step 9.
Terminal side of female terminals
Does it indicate OFF?
Does i t change t o ON ? Is there continuity?
08/08/21 14:29:37 61SNR030_110_0308
ProCarManuals.com
DYNOMITE -2009-
Page 635 of 2893

(#'
")
µ
µ
YES
NO
11-30911-309
Idle Speed Inspection
BRAKE PEDAL POSITION SWITCH
4P CONNECTOR
BKSW
(LT GRN)JUMPER WIRE
ECM/PCM CONNECTOR A (44P) BKSW (LT GRN) A
9. Connect brake pedal position switch 4P connector
terminal No. 2 to body ground with a jumper wire.
10. Check for continuity between ECM/PCM connector terminal A40 and body ground.
Repair open in the wire between the brake
pedal position switch and the No. 12 HORN/STOP
(15 A) fuse. Also, inspect the brake pedal position
switch (see page 19-6).
Repair open in the wire between the ECM/
PCM (A40) and the brake pedal position switch. NOTE:
Before checking the idle speed, check these items: – The malfunction indicator lamp (MIL) has not been reported on, and there are no DTCs.
– Ignition timing
– Spark plugs
– Air cleaner
– PCV system
Apply the parking brake, and make sure the headlights are off.
1. Disconnect the evaporative emission (EVAP) canister purge valve connector (see step 5 on page
11-409).
2. Connect the HDS to the data link connector (DLC) (A) located under the driver’s side of the dashboard.
3. Make sure the HDS communicates with the ECM/ PCM. If it doesn’t, go to the DLC circuit
troubleshooting (see page 11-204).
(cont’d)
Wire side of female terminals
Terminal side of female terminals
Is there continuity?
08/08/21 14:29:38 61SNR030_110_0309
ProCarManuals.com
DYNOMITE -2009-
Page 636 of 2893

(#'
")
µ
µ
YES
NO
11-30911-309
Idle Speed Inspection
BRAKE PEDAL POSITION SWITCH
4P CONNECTOR
BKSW
(LT GRN)JUMPER WIRE
ECM/PCM CONNECTOR A (44P) BKSW (LT GRN) A
9. Connect brake pedal position switch 4P connector
terminal No. 2 to body ground with a jumper wire.
10. Check for continuity between ECM/PCM connector terminal A40 and body ground.
Repair open in the wire between the brake
pedal position switch and the No. 12 HORN/STOP
(15 A) fuse. Also, inspect the brake pedal position
switch (see page 19-6).
Repair open in the wire between the ECM/
PCM (A40) and the brake pedal position switch. NOTE:
Before checking the idle speed, check these items: – The malfunction indicator lamp (MIL) has not been reported on, and there are no DTCs.
– Ignition timing
– Spark plugs
– Air cleaner
– PCV system
Apply the parking brake, and make sure the headlights are off.
1. Disconnect the evaporative emission (EVAP) canister purge valve connector (see step 5 on page
11-409).
2. Connect the HDS to the data link connector (DLC) (A) located under the driver’s side of the dashboard.
3. Make sure the HDS communicates with the ECM/ PCM. If it doesn’t, go to the DLC circuit
troubleshooting (see page 11-204).
(cont’d)
Wire side of female terminals
Terminal side of female terminals
Is there continuity?
08/08/21 14:29:38 61SNR030_110_0309
ProCarManuals.com
DYNOMITE -2009-
Page 637 of 2893

(#'
)
¶
¶
¶
¶
¶
¶
Idle speed should be:
K20Z2 engine:
M/T 700 50 rpm
A/T 800 50 rpm (in P or N)
K20Z3 engine: M/T 750 50 rpm
Idle speed should be:
K20Z2 engine: M/T 780 50 rpm
A/T 800 50 rpm (in P or N)
K20Z3 engine: M/T 750 50 rpm
Procedure
11-31011-310Idle Control System
Idle Speed Inspection (cont’d) ECM/PCM Idle Learn Procedure
4. Start the engine. Hold the engine speed at
3,000 rpm without load (A/T in P or N, M/T in
neutral) until the radiator fan comes on, then let it
idle.
5. Check the idle speed without load conditions: headlights, blower fan, radiator fan, and air
conditioner off.
6. Let the engine idle for 1 minute with high electric load (A/C switch on, temperature set to max cool,
blower fan on high, and headlights on high beam).
NOTE: If the idle speed is not within specification,
dotheECM/PCMidlelearnprocedure(seepage
11-310). If the idle speed is still not within
specification, go to the symptom troubleshooting.
7. Reconnect the EVAP canister purge valve connector. The idle learn procedure must be done so the ECM/PCM
can learn the engine idle characteristics.
Do the idle learn procedure whenever you do any of
these actions:
Replace the ECM/PCM.
Reset the ECM/PCM.
Update the ECM/PCM.
Replace or clean the throttle body.
Disassemble the engine or the transmission.
NOTE: Erasing DTCs with the HDS does not require you
to do the idle learn procedure.
1. Make sure all electrical items (A/C, audio, lights, etc.) are off.
2. Reset the ECM/PCM with the HDS.
3. Turn the ignition switch to ON (II), and wait 2 seconds.
4. Start the engine. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in
neutral) until the radiator fan comes on, or until the
engine coolant temperature reaches 90 °C (194 °F).
5. Let the engine idle for about 5 minutes with the throttle fully closed.
NOTE: If the radiator fan comes on, do not include
its running time in the 5 minutes.
08/08/21 14:29:38 61SNR030_110_0310
ProCarManuals.com
DYNOMITE -2009-
Page 638 of 2893

(#'
)
¶
¶
¶
¶
¶
¶
Idle speed should be:
K20Z2 engine:
M/T 700 50 rpm
A/T 800 50 rpm (in P or N)
K20Z3 engine: M/T 750 50 rpm
Idle speed should be:
K20Z2 engine: M/T 780 50 rpm
A/T 800 50 rpm (in P or N)
K20Z3 engine: M/T 750 50 rpm
Procedure
11-31011-310Idle Control System
Idle Speed Inspection (cont’d) ECM/PCM Idle Learn Procedure
4. Start the engine. Hold the engine speed at
3,000 rpm without load (A/T in P or N, M/T in
neutral) until the radiator fan comes on, then let it
idle.
5. Check the idle speed without load conditions: headlights, blower fan, radiator fan, and air
conditioner off.
6. Let the engine idle for 1 minute with high electric load (A/C switch on, temperature set to max cool,
blower fan on high, and headlights on high beam).
NOTE: If the idle speed is not within specification,
dotheECM/PCMidlelearnprocedure(seepage
11-310). If the idle speed is still not within
specification, go to the symptom troubleshooting.
7. Reconnect the EVAP canister purge valve connector. The idle learn procedure must be done so the ECM/PCM
can learn the engine idle characteristics.
Do the idle learn procedure whenever you do any of
these actions:
Replace the ECM/PCM.
Reset the ECM/PCM.
Update the ECM/PCM.
Replace or clean the throttle body.
Disassemble the engine or the transmission.
NOTE: Erasing DTCs with the HDS does not require you
to do the idle learn procedure.
1. Make sure all electrical items (A/C, audio, lights, etc.) are off.
2. Reset the ECM/PCM with the HDS.
3. Turn the ignition switch to ON (II), and wait 2 seconds.
4. Start the engine. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in
neutral) until the radiator fan comes on, or until the
engine coolant temperature reaches 90 °C (194 °F).
5. Let the engine idle for about 5 minutes with the throttle fully closed.
NOTE: If the radiator fan comes on, do not include
its running time in the 5 minutes.
08/08/21 14:29:38 61SNR030_110_0310
ProCarManuals.com
DYNOMITE -2009-
Page 639 of 2893
Î
(#')
11-311
Fuel Supply System

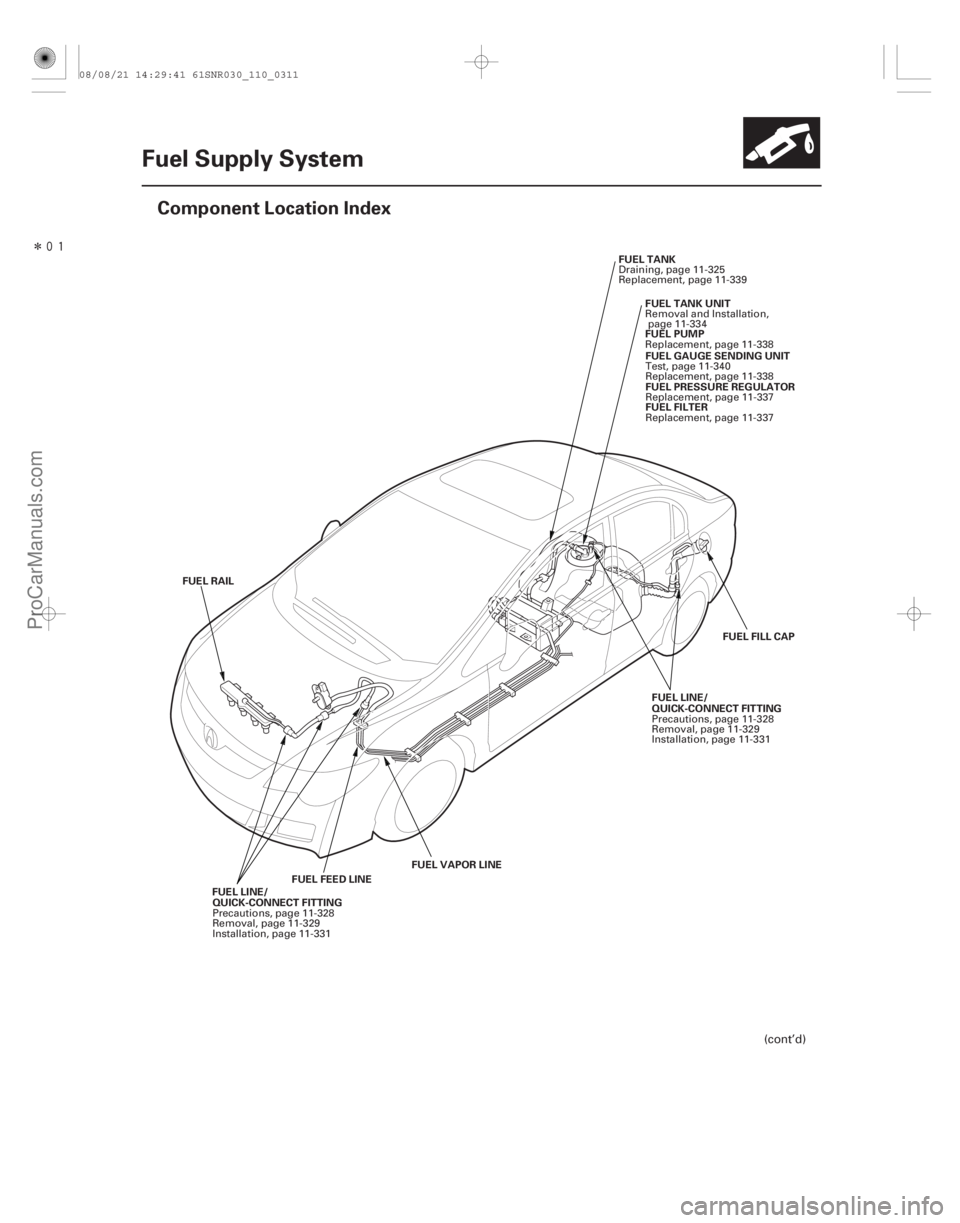

Component Location Index
FUEL FEED LINE
FUEL VAPOR LINE
FUEL RAIL
QUICK-CONNECT FITTING QUICK-CONNECT FITTING
FUEL FILL CAP
FUEL TANK
FUEL PUMPFUEL GAUGE SENDING UNIT
FUEL PRESSURE REGULATOR
FUEL FILTER
FUEL TANK UNIT
FUEL LINE/
FUEL LINE/
(cont’d)
Precautions, page 11-328
Removal, page 11-329
Installation, page 11-331 Precautions, page 11-328
Removal, page 11-329
Installation, page 11-331
Draining, page 11-325
Replacement, page 11-339
Replacement, page 11-338Test, page 11-340
Replacement, page 11-338Replacement, page 11-337
Replacement, page 11-337
Removal and Installation,
page 11-334
08/08/21 14:29:41 61SNR030_110_0311
ProCarManuals.com
DYNOMITE -2009-
Page 640 of 2893
Î
Î
11-312Fuel Supply System

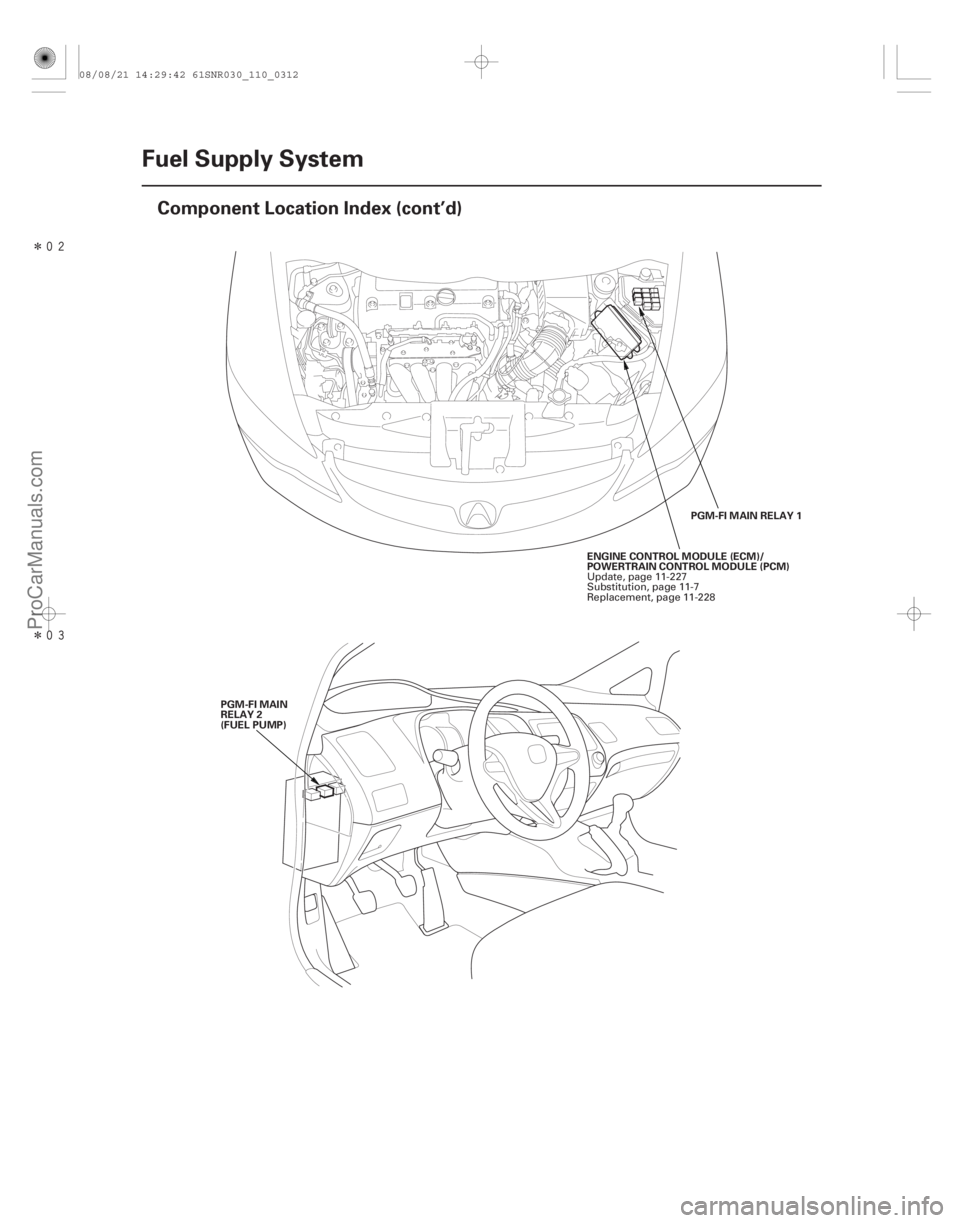

Component Location Index (cont’d)
PGM-FI MAIN RELAY 1
ENGINE CONTROL MODULE (ECM)/
POWERTRAIN CONTROL MODULE (PCM)
PGM-FI MAIN
RELAY 2
(FUEL PUMP) Update, page 11-227
Substitution, page 11-7
Replacement, page 11-228
