DTC B2-17, B2-8x, B2-9x, B2-Ax, B2-Bx (‘‘x’’
can be 0 thru 9 or A thru F):
24-17724-177
REAR SAFING SENSOR 4P CONNECTOR
18. Measure the resistance between rear safing sensor
4P connector terminal No. 2 and No. 3. There
should be less than 1.0 .
Faulty rear safing sensor or poor connection
at the floor wire harness 4P connector and the rear
safing sensor. Check the connection between the
connector and the rear safing sensor. If the
connection is OK, replace the rear safing sensor
(see page 24-206), then clear the DTC.
Open in the floor wire harness; replace the
floor wire harness, then clear the DTC. NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13) and General Troubleshooting Information
(see page 24-22).
1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds
and then goes off.
Replace the rear safing sensor (see page
24-206), then clear the DTC. If the DTC returns,
replace the SRS unit (see page 24-203).
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
Internal Failure of
the Rear Safing Sensor
Terminal side of female terminals
Is the resistance as specif ied? Does the SRS indicator stay on, and is B2-17,
B2-8x, B2-9x, B2-Ax, or B2-Bx ind icated ?
08/08/21 14:00:58 61SNR030_240_0177
ProCarManuals.com
DYNOMITE -2009-
Page 2858 of 2893
(#' '
--) (#' '
--)

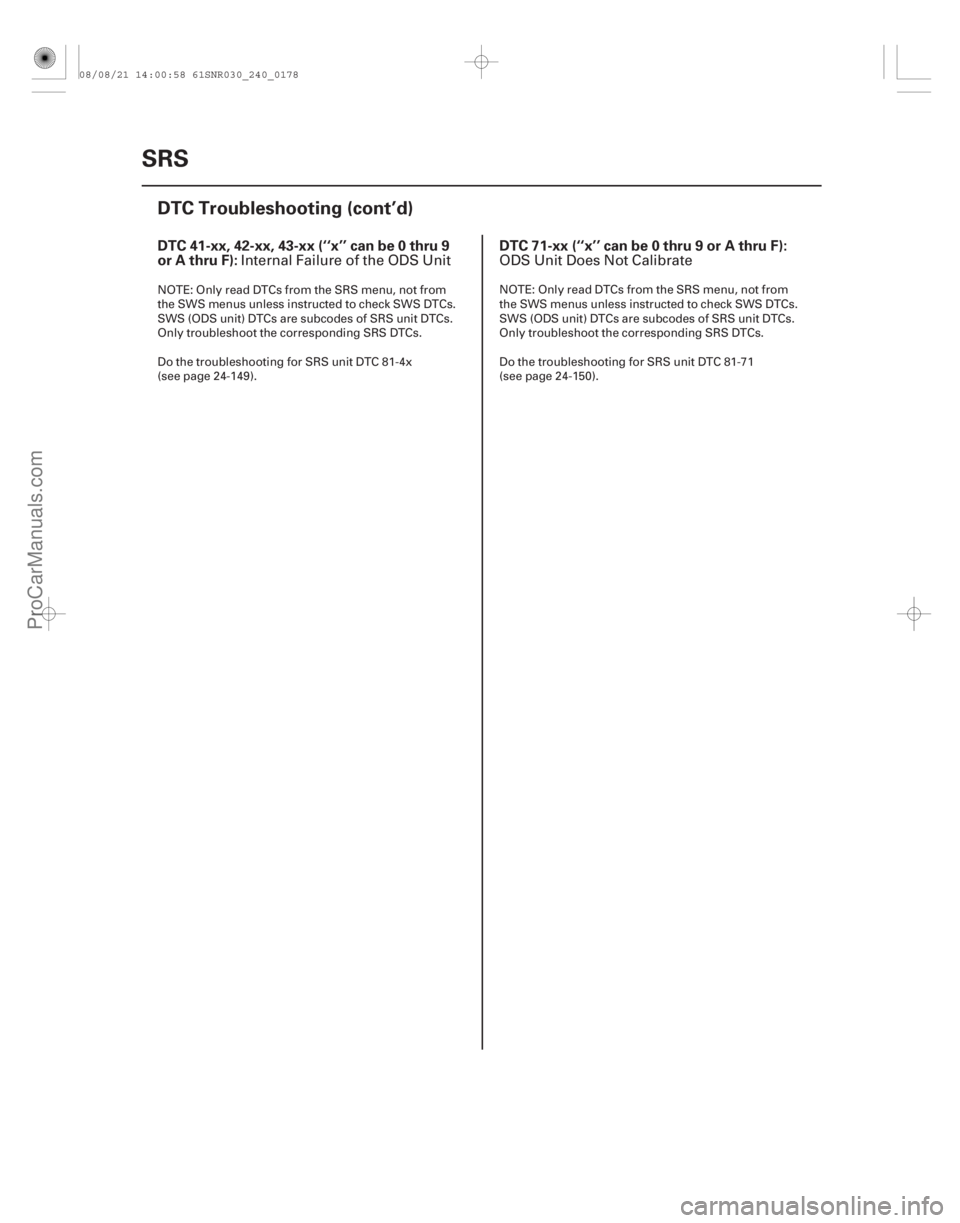

DTC 41-xx, 42-xx, 43-xx (‘‘x’’ can be 0 thru 9
or A thru F):DTC 71-xx (‘‘x’’ can be 0 thru 9 or A thru F):
24-17824-178SRS
DTC Troubleshooting (cont’d)
Internal Failure of the ODS Unit ODS Unit Does Not Calibrate
NOTE: Only read DTCs from the SRS menu, not from
the SWS menus unless instructed to check SWS DTCs.
SWS (ODS unit) DTCs are subcodes of SRS unit DTCs.
Only troubleshoot the corresponding SRS DTCs.
Do the troubleshooting for SRS unit DTC 81-4x
(see page 24-149).
NOTE: Only read DTCs from the SRS menu, not from
the SWS menus unless instructed to check SWS DTCs.
SWS (ODS unit) DTCs are subcodes of SRS unit DTCs.
Only troubleshoot the corresponding SRS DTCs.
Do the troubleshooting for SRS unit DTC 81-71
(see page 24-150).
08/08/21 14:00:58 61SNR030_240_0178
ProCarManuals.com
DYNOMITE -2009-
Page 2859 of 2893

(#' '
) (#' '
)

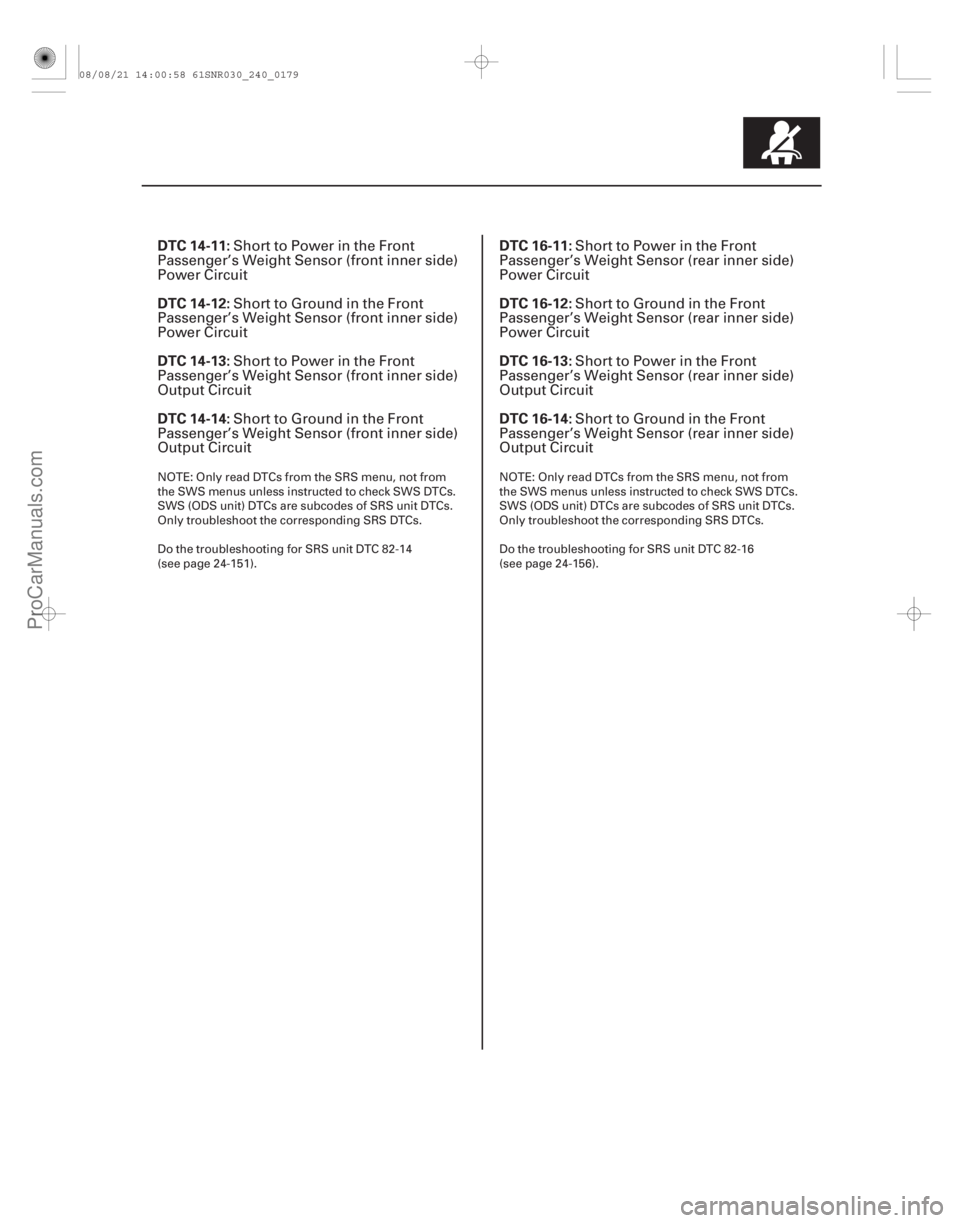

DTC 14-11:
DTC 14-12:
DTC 14-13:
DTC 14-14:DTC 16-11:
DTC 16-12:
DTC 16-13:
DTC 16-14:
24-17924-179
Short to Power in the Front
Passenger’s Weight Sensor (front inner side)
Power Circuit
Short to Ground in the Front
Passenger’s Weight Sensor (front inner side)
Power Circuit
Short to Power in the Front
Passenger’s Weight Sensor (front inner side)
Output Circuit
Short to Ground in the Front
Passenger’s Weight Sensor (front inner side)
Output Circuit Short to Power in the Front
Passenger’s Weight Sensor (rear inner side)
Power Circuit
Short to Ground in the Front
Passenger’s Weight Sensor (rear inner side)
Power Circuit
Short to Power in the Front
Passenger’s Weight Sensor (rear inner side)
Output Circuit
Short to Ground in the Front
Passenger’s Weight Sensor (rear inner side)
Output Circuit
NOTE: Only read DTCs from the SRS menu, not from
the SWS menus unless instructed to check SWS DTCs.
SWS (ODS unit) DTCs are subcodes of SRS unit DTCs.
Only troubleshoot the corresponding SRS DTCs.
Do the troubleshooting for SRS unit DTC 82-14
(see page 24-151). NOTE: Only read DTCs from the SRS menu, not from
the SWS menus unless instructed to check SWS DTCs.
SWS (ODS unit) DTCs are subcodes of SRS unit DTCs.
Only troubleshoot the corresponding SRS DTCs.
Do the troubleshooting for SRS unit DTC 82-16
(see page 24-156).
08/08/21 14:00:58 61SNR030_240_0179
ProCarManuals.com
DYNOMITE -2009-
Page 2860 of 2893

(#' '
) (#' '
)

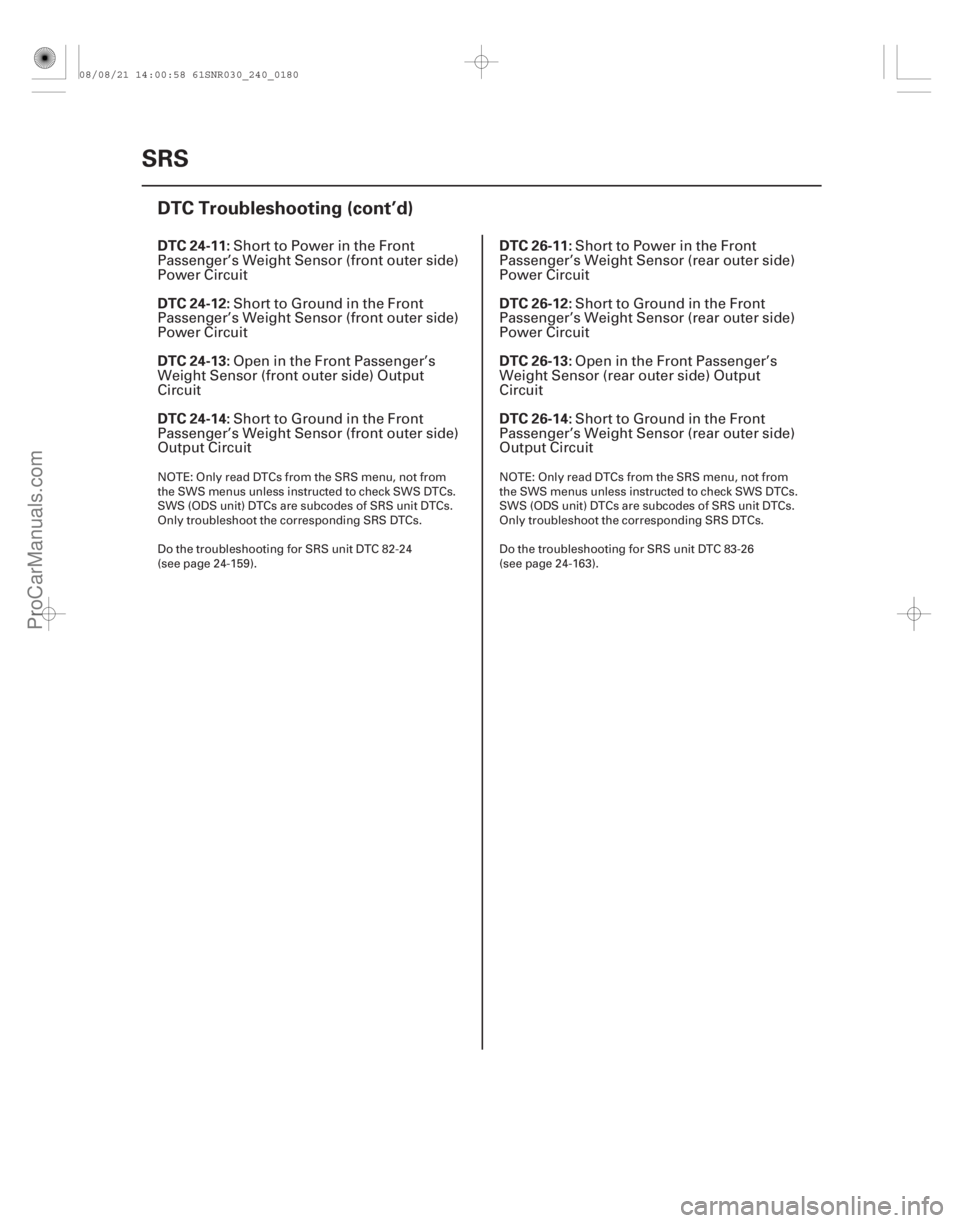

DTC 24-11:
DTC 24-12:
DTC 24-13:
DTC 24-14:DTC 26-11:
DTC 26-12:
DTC 26-13:
DTC 26-14:
24-18024-180SRS
DTC Troubleshooting (cont’d)
Short to Power in the Front
Passenger’s Weight Sensor (front outer side)
Power Circuit
Short to Ground in the Front
Passenger’s Weight Sensor (front outer side)
Power Circuit
Open in the Front Passenger’s
Weight Sensor (front outer side) Output
Circuit
Short to Ground in the Front
Passenger’s Weight Sensor (front outer side)
Output Circuit Short to Power in the Front
Passenger’s Weight Sensor (rear outer side)
Power Circuit
Short to Ground in the Front
Passenger’s Weight Sensor (rear outer side)
Power Circuit
Open in the Front Passenger’s
Weight Sensor (rear outer side) Output
Circuit
Short to Ground in the Front
Passenger’s Weight Sensor (rear outer side)
Output Circuit
NOTE: Only read DTCs from the SRS menu, not from
the SWS menus unless instructed to check SWS DTCs.
SWS (ODS unit) DTCs are subcodes of SRS unit DTCs.
Only troubleshoot the corresponding SRS DTCs.
Do the troubleshooting for SRS unit DTC 82-24
(see page 24-159). NOTE: Only read DTCs from the SRS menu, not from
the SWS menus unless instructed to check SWS DTCs.
SWS (ODS unit) DTCs are subcodes of SRS unit DTCs.
Only troubleshoot the corresponding SRS DTCs.
Do the troubleshooting for SRS unit DTC 83-26
(see page 24-163).
08/08/21 14:00:58 61SNR030_240_0180
ProCarManuals.com
DYNOMITE -2009-
Page 2861 of 2893

(#' '
-)(#')µ
µ
µ
µ

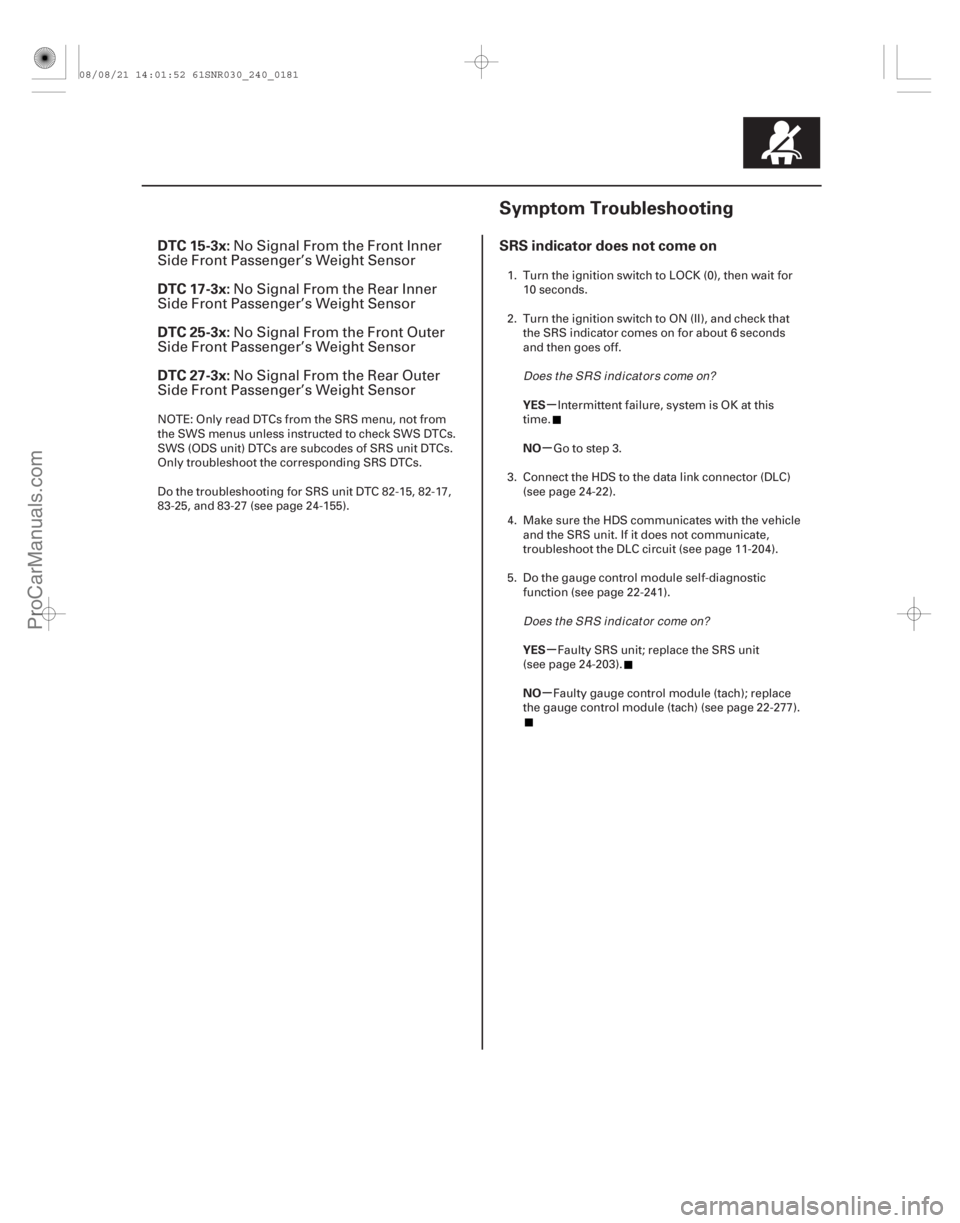

DTC 15-3x:
DTC 17-3x:
DTC 25-3x:
DTC 27-3x: SRS indicator does not come on
YES
NO
YES
NO
24-18124-181
Symptom Troubleshooting
No Signal From the Front Inner
Side Front Passenger’s Weight Sensor
No Signal From the Rear Inner
Side Front Passenger’s Weight Sensor
No Signal From the Front Outer
Side Front Passenger’s Weight Sensor
No Signal From the Rear Outer
Side Front Passenger’s Weight Sensor
NOTE: Only read DTCs from the SRS menu, not from
the SWS menus unless instructed to check SWS DTCs.
SWS (ODS unit) DTCs are subcodes of SRS unit DTCs.
Only troubleshoot the corresponding SRS DTCs.
Do the troubleshooting for SRS unit DTC 82-15, 82-17,
83-25, and 83-27 (see page 24-155). 1. Turn the ignition switch to LOCK (0), then wait for
10 seconds.
2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds
and then goes off.
Intermittent failure, system is OK at this
time.
Go to step 3.
3. Connect the HDS to the data link connector (DLC) (see page 24-22).
4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11-204).
5. Do the gauge control module self-diagnostic function (see page 22-241).
Faulty SRS unit; replace the SRS unit
(see page 24-203).
Faulty gauge control module (tach); replace
the gauge control module (tach) (see page 22-277).
Does the SRS indicators come on?
Does t he SRS i nd i cat or come on?
08/08/21 14:01:52 61SNR030_240_0181
ProCarManuals.com
DYNOMITE -2009-
Page 2862 of 2893

(#' '
-)(#')µ
µ
µ
µ
DTC 15-3x:
DTC 17-3x:
DTC 25-3x:
DTC 27-3x: SRS indicator does not come on
YES
NO
YES
NO
24-18124-181
Symptom Troubleshooting
No Signal From the Front Inner
Side Front Passenger’s Weight Sensor
No Signal From the Rear Inner
Side Front Passenger’s Weight Sensor
No Signal From the Front Outer
Side Front Passenger’s Weight Sensor
No Signal From the Rear Outer
Side Front Passenger’s Weight Sensor
NOTE: Only read DTCs from the SRS menu, not from
the SWS menus unless instructed to check SWS DTCs.
SWS (ODS unit) DTCs are subcodes of SRS unit DTCs.
Only troubleshoot the corresponding SRS DTCs.
Do the troubleshooting for SRS unit DTC 82-15, 82-17,
83-25, and 83-27 (see page 24-155). 1. Turn the ignition switch to LOCK (0), then wait for
10 seconds.
2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds
and then goes off.
Intermittent failure, system is OK at this
time.
Go to step 3.
3. Connect the HDS to the data link connector (DLC) (see page 24-22).
4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11-204).
5. Do the gauge control module self-diagnostic function (see page 22-241).
Faulty SRS unit; replace the SRS unit
(see page 24-203).
Faulty gauge control module (tach); replace
the gauge control module (tach) (see page 22-277).
Does the SRS indicators come on?
Does t he SRS i nd i cat or come on?
08/08/21 14:01:52 61SNR030_240_0181
ProCarManuals.com
DYNOMITE -2009-
Page 2863 of 2893

Î
(#')
µ
µ
µ
µ
µ
µ µ
µ
µ
µ
SRS indicator stays on, but no DTCs are
stored
YES
NO
YES
NO
YES
NO YES
NO
YES
NO
24-182
SRS
Symptom Troubleshooting (cont’d)
SRS UNIT CONNECTOR A (28P)

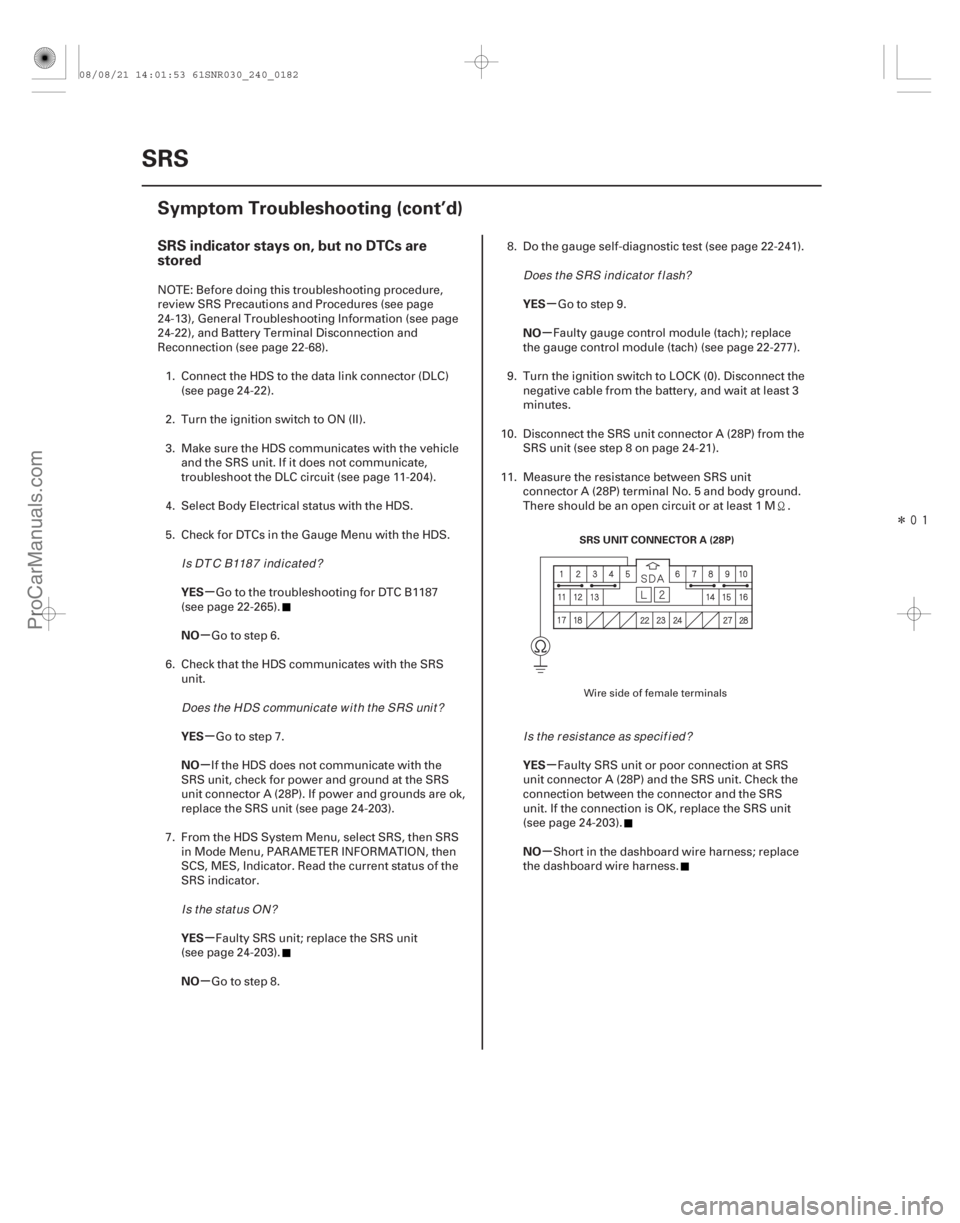

NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13), General Troubleshooting Information (see page
24-22), and Battery Terminal Disconnection and
Reconnection (see page 22-68).
1. Connect the HDS to the data link connector (DLC) (see page 24-22).
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11- 204).
4. Select Body Electrical status with the HDS.
5. Check for DTCs in the Gauge Menu with the HDS.
Go to the troubleshooting for DTC B 1187
(see page 22-265).
Go to step 6.
6. Check that the HDS communicates with the SRS unit.
Go to step 7.
If the HDS does not communicate with the
SRS unit, check for power and ground at the SRS
unit connector A (28P). If power and grounds are ok,
replace the SRS unit (see page 24-203).
7. From the HDS System Menu, select SRS, then SRS in Mode Menu, PARAMETER INFORMATION, then
SCS, MES, Indicator. Read the current status of the
SRS indicator.
Faulty SRS unit; replace the SRS unit
(see page 24-203).
Go to step 8. 8. Do the gauge self-diagnostic test (see page 22-241).
Go to step 9.
Faulty gauge control module (tach); replace
the gauge control module (tach) (see page 22-277).
9. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, and wait at least 3
minutes.
10. Disconnect the SRS unit connector A (28P) from the SRS unit (see step 8 on page 24-21).
11. Measure the resistance between SRS unit connector A (28P) terminal No. 5 and body ground.
There should be an open circuit or at least 1 M .
Faulty SRS unit or poor connection at SRS
unit connector A (28P) and the SRS unit. Check the
connection between the connector and the SRS
unit. If the connection is OK, replace the SRS unit
(see page 24-203).
Short in the dashboard wire harness; replace
the dashboard wire harness.
Wire side of female terminals
I s DT C B1187 i nd i cat ed ?
Does the HDS communicate with the SRS unit?
Is the status ON? Does the SRS indicator f lash?
Is the resistance as specif ied?
08/08/21 14:01:53 61SNR030_240_0182
ProCarManuals.com
DYNOMITE -2009-
Page 2864 of 2893

(#')(#')
µ
µ
µ
µ
µ
µ µ
µ
µ
µ
Side airbag cutoff indicator stays on Side airbag cutoff indicator does not come
on
YES
NO
YES
NO
YES
NO YES
NO
YES
NO
24-18324-183

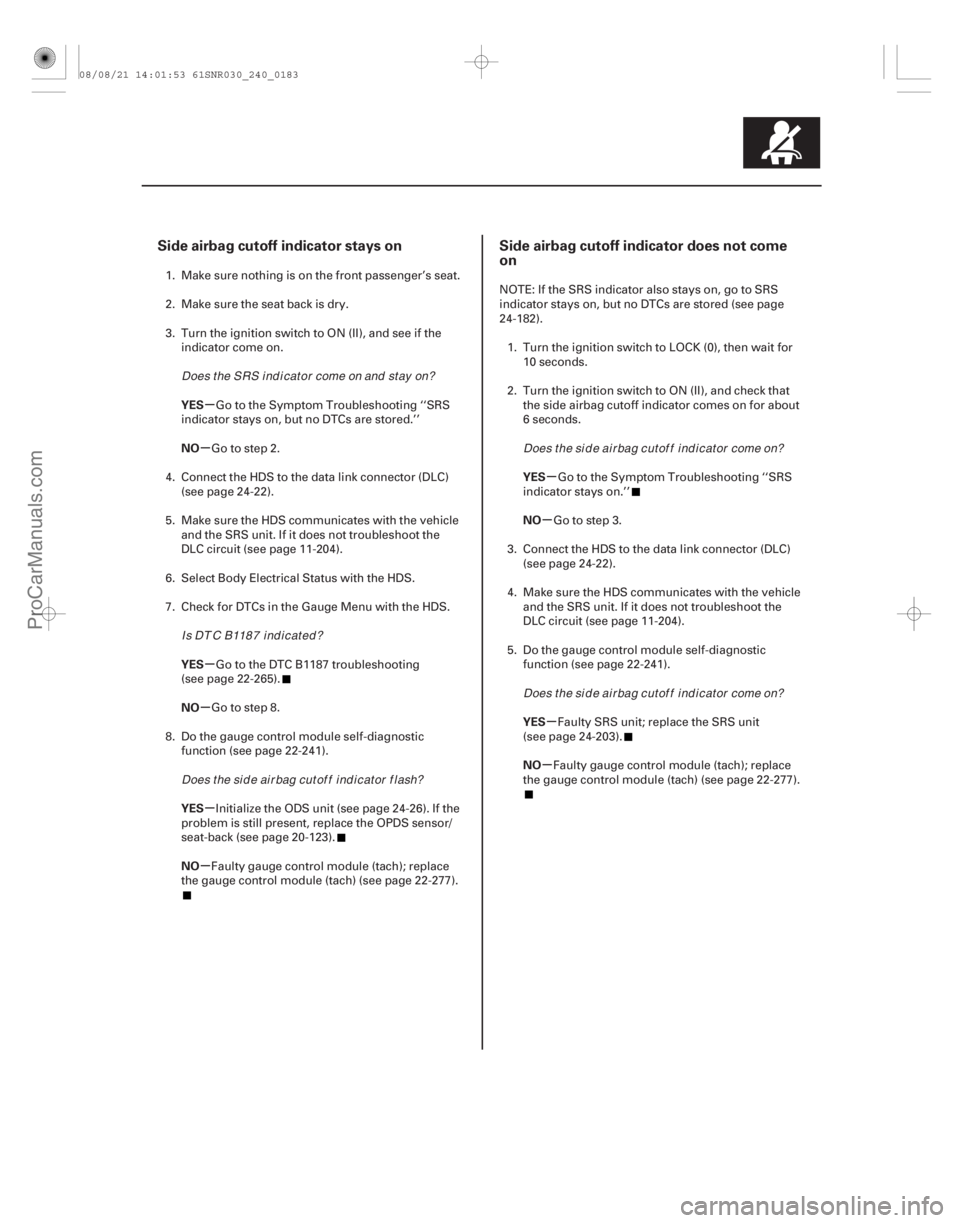

1. Make sure nothing is on the front passenger’s seat.
2. Make sure the seat back is dry.
3. Turn the ignition switch to ON (II), and see if the
indicator come on.
Go to the Symptom Troubleshooting ‘‘SRS
indicator stays on, but no DTCs are stored.’’
Go to step 2.
4. Connect the HDS to the data link connector (DLC) (see page 24-22).
5. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not troubleshoot the
DLC circuit (see page 11-204).
6. Select Body Electrical Status with the HDS.
7. Check for DTCs in the Gauge Menu with the HDS.
Go to the DTC B1187 troubleshooting
(see page 22-265).
Go to step 8.
8. Do the gauge control module self-diagnostic function (see page 22-241).
Initialize the ODS unit (see page 24-26). If the
problem is still present, replace the OPDS sensor/
seat-back (see page 20-123).
Faulty gauge control module (tach); replace
the gauge control module (tach) (see page 22- 277).NOTE: If the SRS indicator also stays on, go to SRS
indicator stays on, but no DTCs are stored (see page
24-182).
1. Turn the ignition switch to LOCK (0), then wait for 10 seconds.
2. Turn the ignition switch to ON (II), and check that the side airbag cutoff indicator comes on for about
6 seconds.
Go to the Symptom Troubleshooting ‘‘SRS
indicator stays on.’’
Go to step 3.
3. Connect the HDS to the data link connector (DLC) (see page 24-22).
4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not troubleshoot the
DLC circuit (see page 11-204).
5. Do the gauge control module self-diagnostic function (see page 22-241).
Faulty SRS unit; replace the SRS unit
(see page 24-203).
Faulty gauge control module (tach); replace
the gauge control module (tach) (see page 22-277).
Does t he SRS i nd i cat or come on and st ay on?
I s DT C B1187 i nd i cat ed ?Does t he si d e ai r bag cut of f i nd i cat or f l ash? Does t he si d e ai r bag cut of f i nd i cat or come on?
Does t he si d e ai r bag cut of f i nd i cat or come on?
08/08/21 14:01:53 61SNR030_240_0183
ProCarManuals.com
DYNOMITE -2009-
