Page 1137 of 2893

Î
(#'
)
14-221

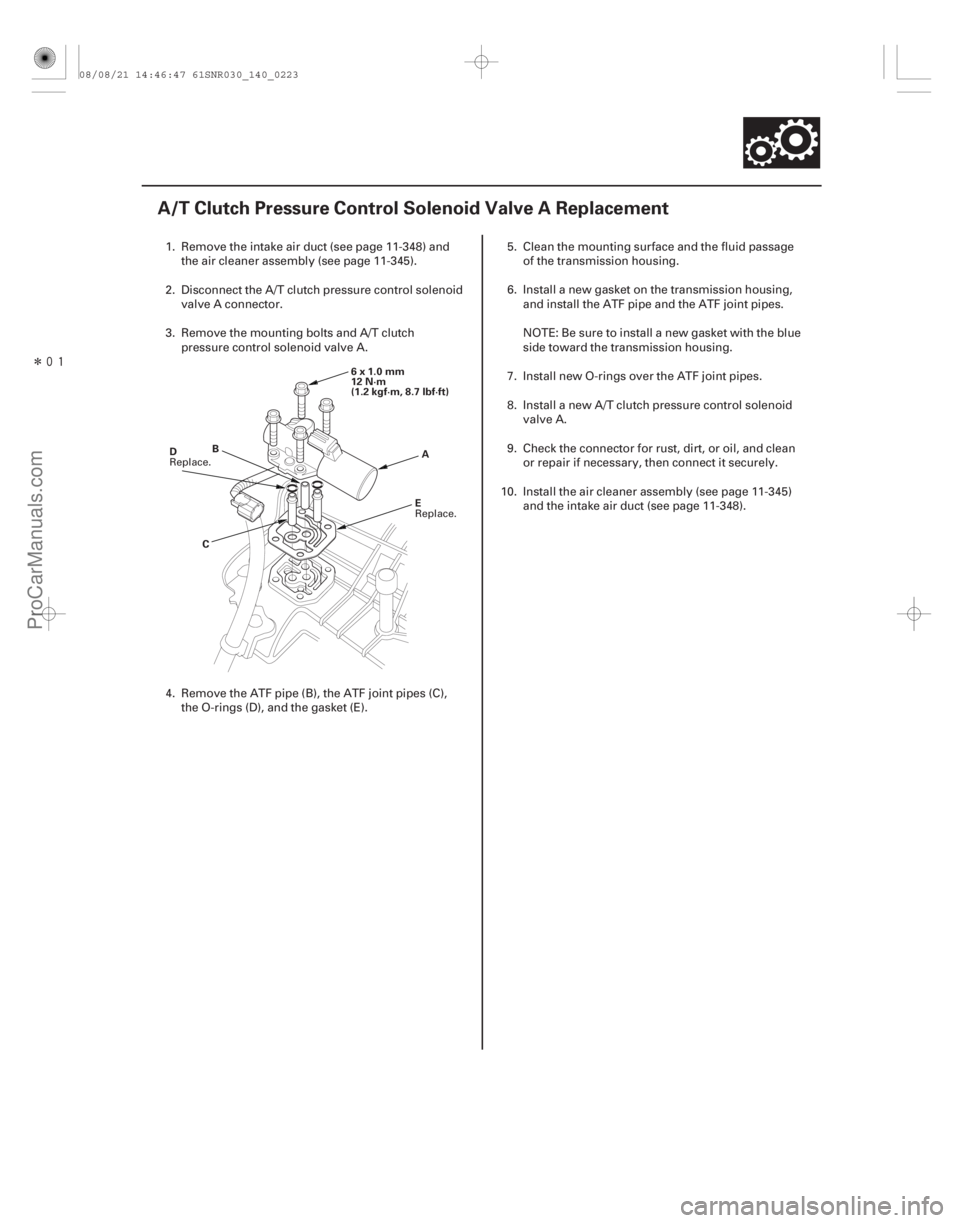

A/T Clutch Pressure Control Solenoid Valve A Replacement
A
C B
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
E
D
1. Remove the intake air duct (see page 11-348) and
the air cleaner assembly (see page 11-345).
2. Disconnect the A/T clutch pressure control solenoid valve A connector.
3. Remove the mounting bolts and A/T clutch pressure control solenoid valve A.
4. Remove the ATF pipe (B), the ATF joint pipes (C), the O-rings (D), and the gasket (E). 5. Clean the mounting surface and the fluid passage
of the transmission housing.
6. Install a new gasket on the transmission housing, and install the ATF pipe and the ATF joint pipes.
NOTE: Be sure to install a new gasket with the blue
side toward the transmission housing.
7. Install new O-rings over the ATF joint pipes.
8. Install a new A/T clutch pressure control solenoid valve A.
9. Check the connector for rust, dirt, or oil, and clean or repair if necessary, then connect it securely.
10. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
Replace.
Replace.
08/08/21 14:46:47 61SNR030_140_0223
ProCarManuals.com
DYNOMITE -2009-
Page 1138 of 2893

(#'
) µ
Standard: 3 10
14-222
Automatic Transmission

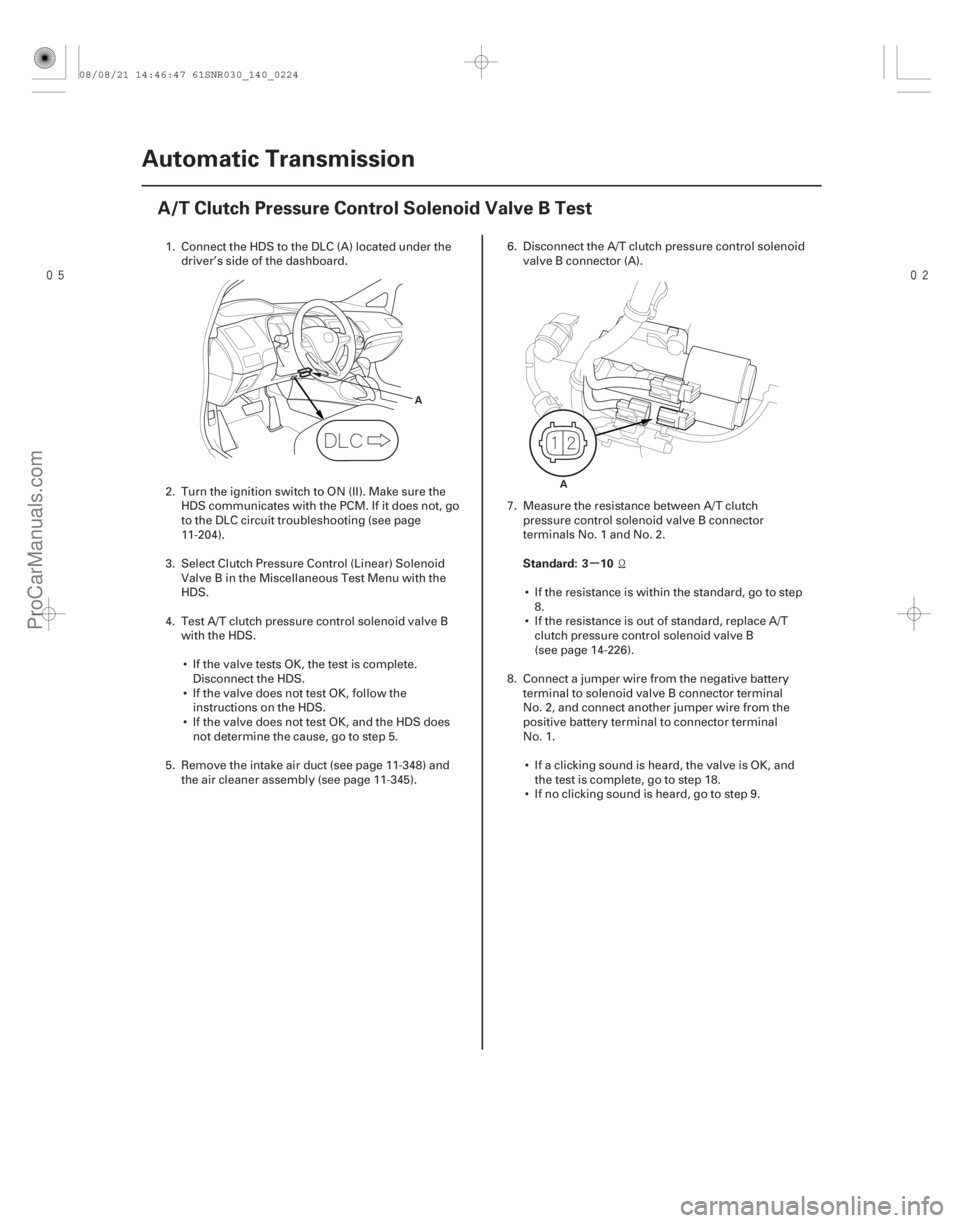

A/T Clutch Pressure Control Solenoid Valve B Test
A
A
1. Connect the HDS to the DLC (A) located under thedriver’s side of the dashboard.
2. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go
to the DLC circuit troubleshooting (see page
11-204).
3. Select Clutch Pressure Control (Linear) Solenoid Valve B in the Miscellaneous Test Menu with the
HDS.
4. Test A/T clutch pressure control solenoid valve B with the HDS.
If the valve tests OK, the test is complete. Disconnect the HDS.
If the valve does not test OK, follow the instructions on the HDS.
If the valve does not test OK, and the HDS does not determine the cause, go to step 5.
5. Remove the intake air duct (see page 11-348) and the air cleaner assembly (see page 11-345). 6. Disconnect the A/T clutch pressure control solenoid
valve B connector (A).
7. Measure the resistance between A/T clutch pressure control solenoid valve B connector
terminals No. 1 and No. 2.
If the resistance is within the standard, go to step 8.
If the resistance is out of standard, replace A/T clutch pressure control solenoid valve B
(see page 14-226).
8. Connect a jumper wire from the negative battery terminal to solenoid valve B connector terminal
No. 2, and connect another jumper wire from the
positive battery terminal to connector terminal
No. 1.
If a clicking sound is heard, the valve is OK, and the test is complete, go to step 18.
If no clicking sound is heard, go to step 9.
08/08/21 14:46:47 61SNR030_140_0224
ProCarManuals.com
DYNOMITE -2009-
Page 1139 of 2893

Î
14-223
AD
BC
A
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft) F
E
B

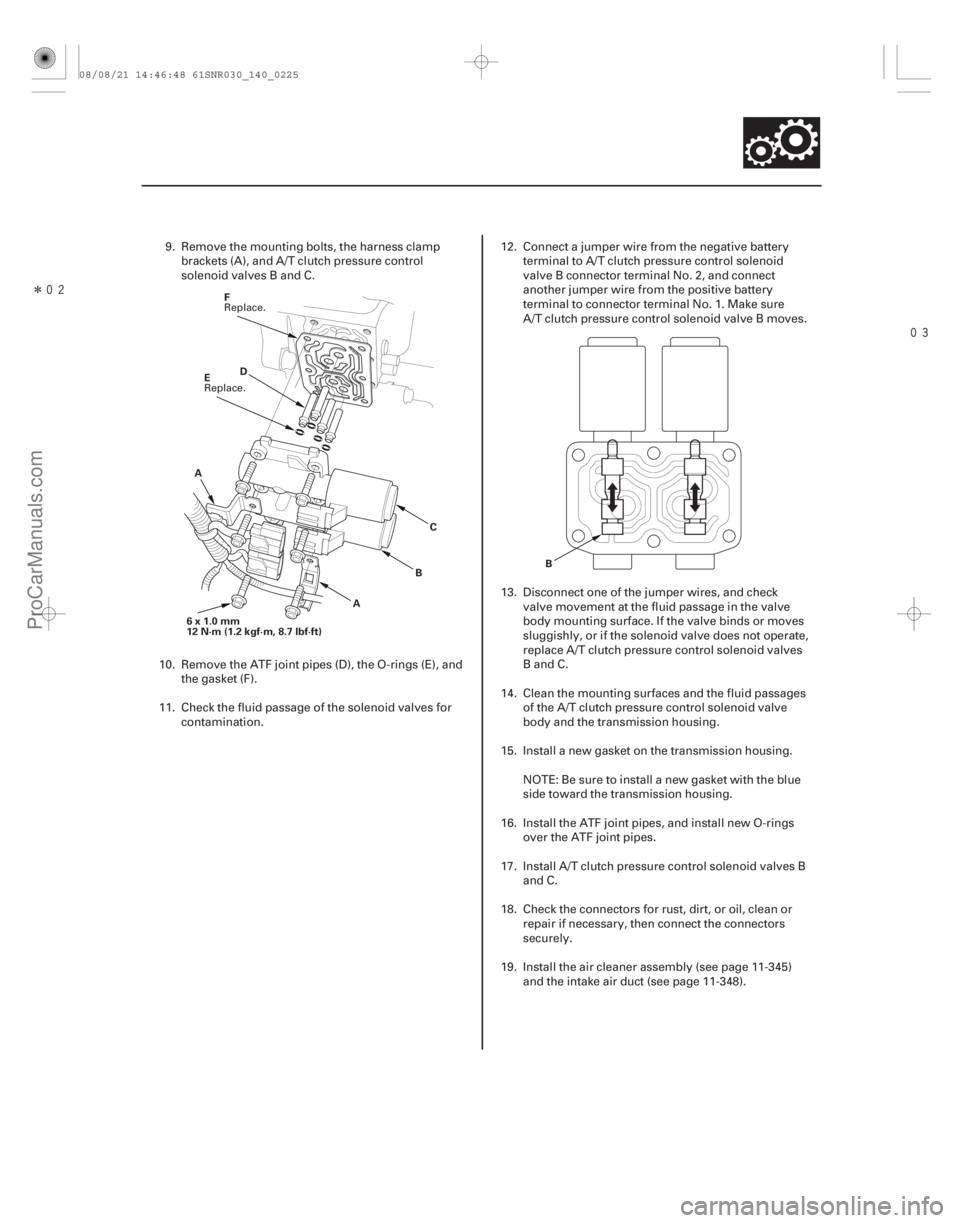

9. Remove the mounting bolts, the harness clampbrackets (A), and A/T clutch pressure control
solenoid valves B and C.
10. Remove the ATF joint pipes (D), the O-rings (E), and the gasket (F).
11. Check the fluid passage of the solenoid valves for contamination. 12. Connect a jumper wire from the negative battery
terminal to A/T clutch pressure control solenoid
valve B connector terminal No. 2, and connect
another jumper wire from the positive battery
terminal to connector terminal No. 1. Make sure
A/T clutch pressure control solenoid valve B moves.
13. Disconnect one of the jumper wires, and check valve movement at the fluid passage in the valve
body mounting surface. If the valve binds or moves
sluggishly, or if the solenoid valve does not operate,
replace A/T clutch pressure control solenoid valves
BandC.
14. Clean the mounting surfaces and the fluid passages of the A/T clutch pressure control solenoid valve
body and the transmission housing.
15. Install a new gasket on the transmission housing.
NOTE: Be sure to install a new gasket with the blue
side toward the transmission housing.
16. Install the ATF joint pipes, and install new O-rings over the ATF joint pipes.
17. Install A/T clutch pressure control solenoid valves B and C.
18. Check the connectors for rust, dirt, or oil, clean or repair if necessary, then connect the connectors
securely.
19. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
Replace.
Replace.
08/08/21 14:46:48 61SNR030_140_0225
ProCarManuals.com
DYNOMITE -2009-
Page 1140 of 2893

(#'
)
µ
Standard: 3 10
14-224
Automatic Transmission

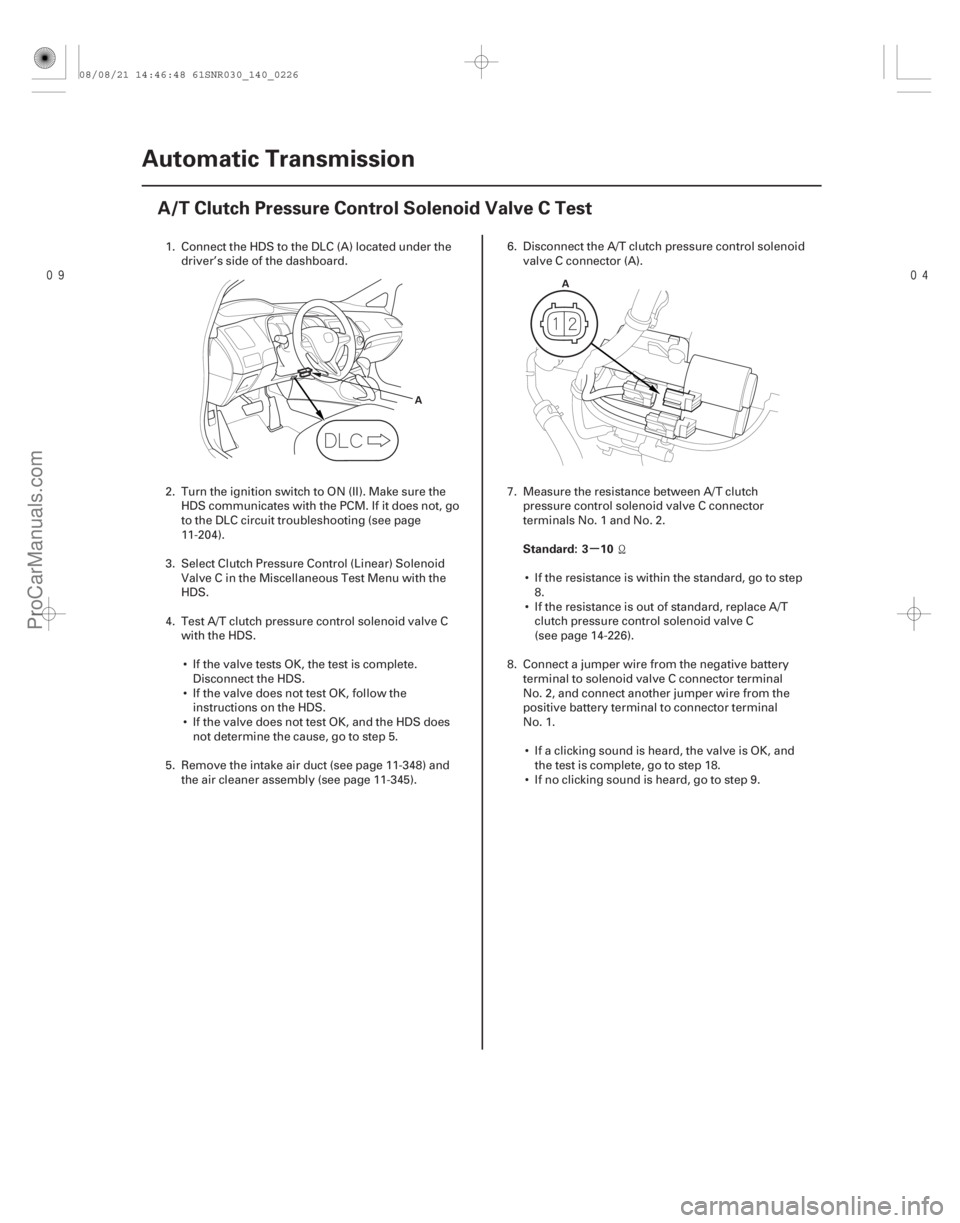

A/T Clutch Pressure Control Solenoid Valve C Test
A
A
1. Connect the HDS to the DLC (A) located under the
driver’s side of the dashboard.
2. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go
to the DLC circuit troubleshooting (see page
11-204).
3. Select Clutch Pressure Control (Linear) Solenoid Valve C in the Miscellaneous Test Menu with the
HDS.
4. Test A/T clutch pressure control solenoid valve C with the HDS.
If the valve tests OK, the test is complete. Disconnect the HDS.
If the valve does not test OK, follow the instructions on the HDS.
If the valve does not test OK, and the HDS does not determine the cause, go to step 5.
5. Remove the intake air duct (see page 11-348) and the air cleaner assembly (see page 11-345). 6. Disconnect the A/T clutch pressure control solenoid
valve C connector (A).
7. Measure the resistance between A/T clutch pressure control solenoid valve C connector
terminals No. 1 and No. 2.
If the resistance is within the standard, go to step 8.
If the resistance is out of standard, replace A/T clutch pressure control solenoid valve C
(see page 14-226).
8. Connect a jumper wire from the negative battery terminal to solenoid valve C connector terminal
No. 2, and connect another jumper wire from the
positive battery terminal to connector terminal
No. 1.
If a clicking sound is heard, the valve is OK, and the test is complete, go to step 18.
If no clicking sound is heard, go to step 9.
08/08/21 14:46:48 61SNR030_140_0226
ProCarManuals.com
DYNOMITE -2009-
Page 1141 of 2893

Î
14-225
AD
BC
A
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft) F
E
C

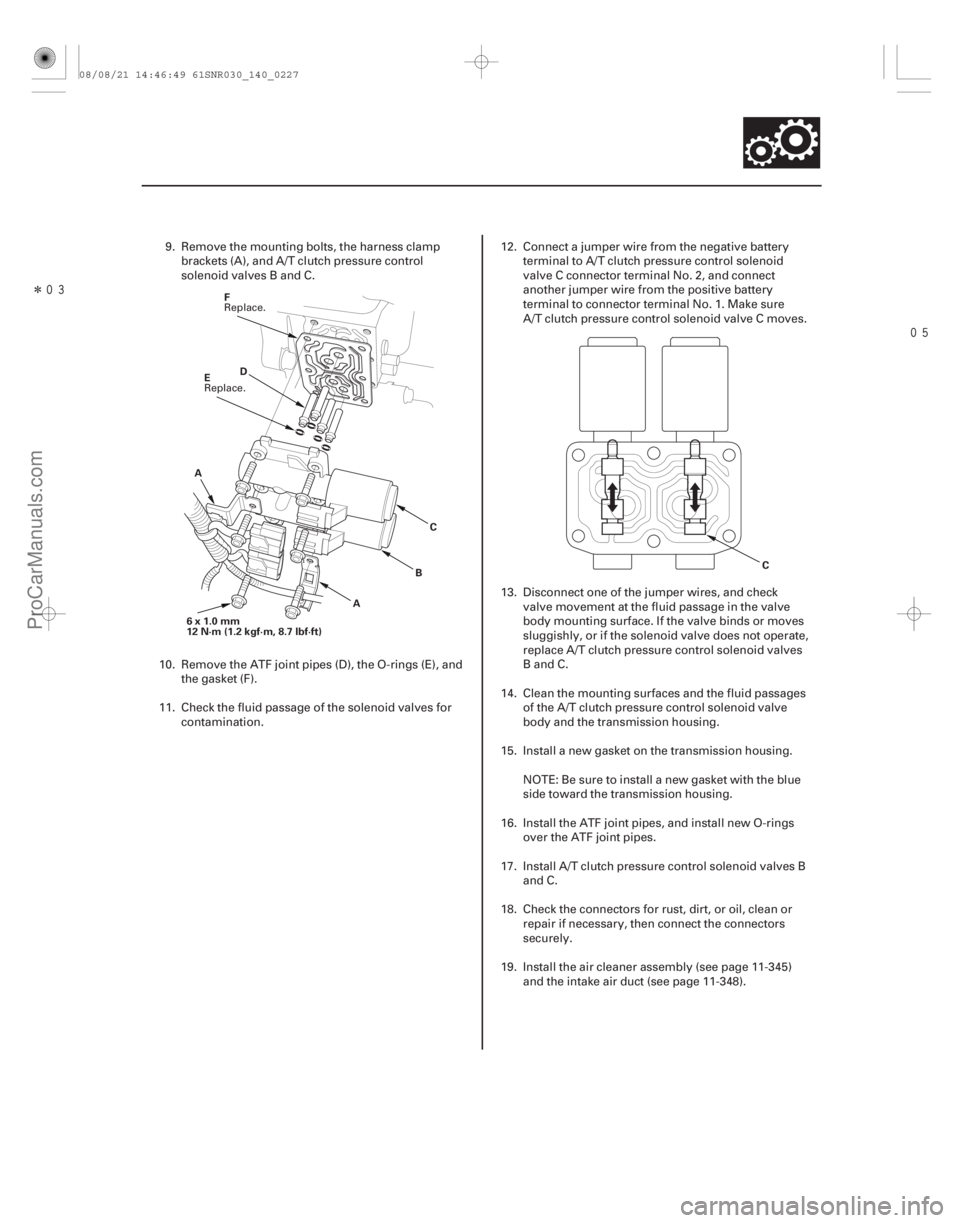

9. Remove the mounting bolts, the harness clampbrackets (A), and A/T clutch pressure control
solenoid valves B and C.
10. Remove the ATF joint pipes (D), the O-rings (E), and the gasket (F).
11. Check the fluid passage of the solenoid valves for contamination. 12. Connect a jumper wire from the negative battery
terminal to A/T clutch pressure control solenoid
valve C connector terminal No. 2, and connect
another jumper wire from the positive battery
terminal to connector terminal No. 1. Make sure
A/T clutch pressure control solenoid valve C moves.
13. Disconnect one of the jumper wires, and check valve movement at the fluid passage in the valve
body mounting surface. If the valve binds or moves
sluggishly, or if the solenoid valve does not operate,
replace A/T clutch pressure control solenoid valves
BandC.
14. Clean the mounting surfaces and the fluid passages of the A/T clutch pressure control solenoid valve
body and the transmission housing.
15. Install a new gasket on the transmission housing.
NOTE: Be sure to install a new gasket with the blue
side toward the transmission housing.
16. Install the ATF joint pipes, and install new O-rings over the ATF joint pipes.
17. Install A/T clutch pressure control solenoid valves B and C.
18. Check the connectors for rust, dirt, or oil, clean or repair if necessary, then connect the connectors
securely.
19. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
Replace.
Replace.
08/08/21 14:46:49 61SNR030_140_0227
ProCarManuals.com
DYNOMITE -2009-
Page 1142 of 2893

Î(#'
)
14-226Automatic Transmission

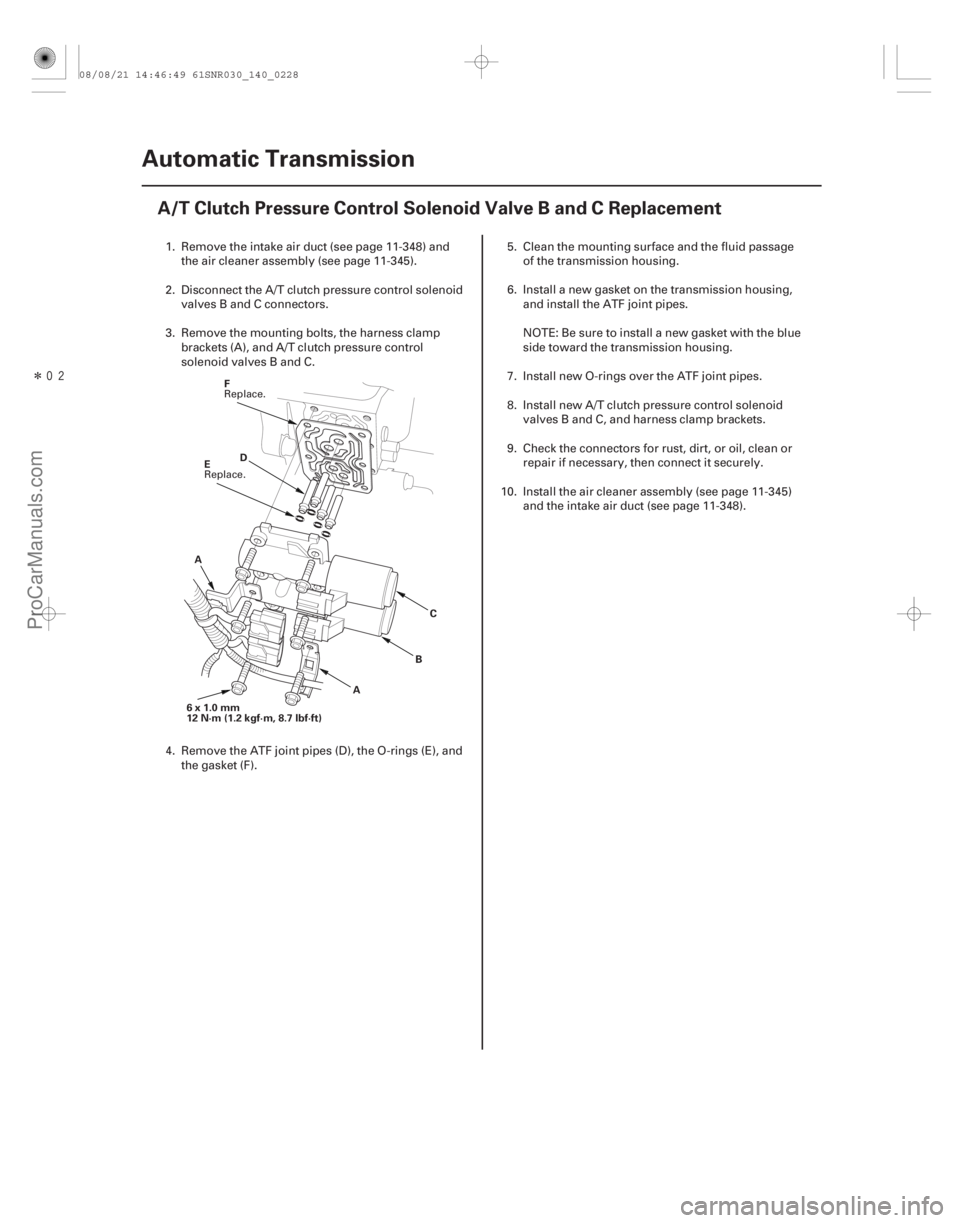

A/T Clutch Pressure Control Solenoid Valve B and C Replacement
A
D
BC
A
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft) F
E
1. Remove the intake air duct (see page 11-348) and the air cleaner assembly (see page 11-345).
2. Disconnect the A/T clutch pressure control solenoid valves B and C connectors.
3. Remove the mounting bolts, the harness clamp brackets (A), and A/T clutch pressure control
solenoid valves B and C.
4. Remove the ATF joint pipes (D), the O-rings (E), and the gasket (F). 5. Clean the mounting surface and the fluid passage
of the transmission housing.
6. Install a new gasket on the transmission housing, and install the ATF joint pipes.
NOTE: Be sure to install a new gasket with the blue
side toward the transmission housing.
7. Install new O-rings over the ATF joint pipes.
8. Install new A/T clutch pressure control solenoid valves B and C, and harness clamp brackets.
9. Check the connectors for rust, dirt, or oil, clean or repair if necessary, then connect it securely.
10. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
Replace.
Replace.
08/08/21 14:46:49 61SNR030_140_0228
ProCarManuals.com
DYNOMITE -2009-
Page 1143 of 2893

Î
(#'
)
Î
(#'
)
14-22714-227

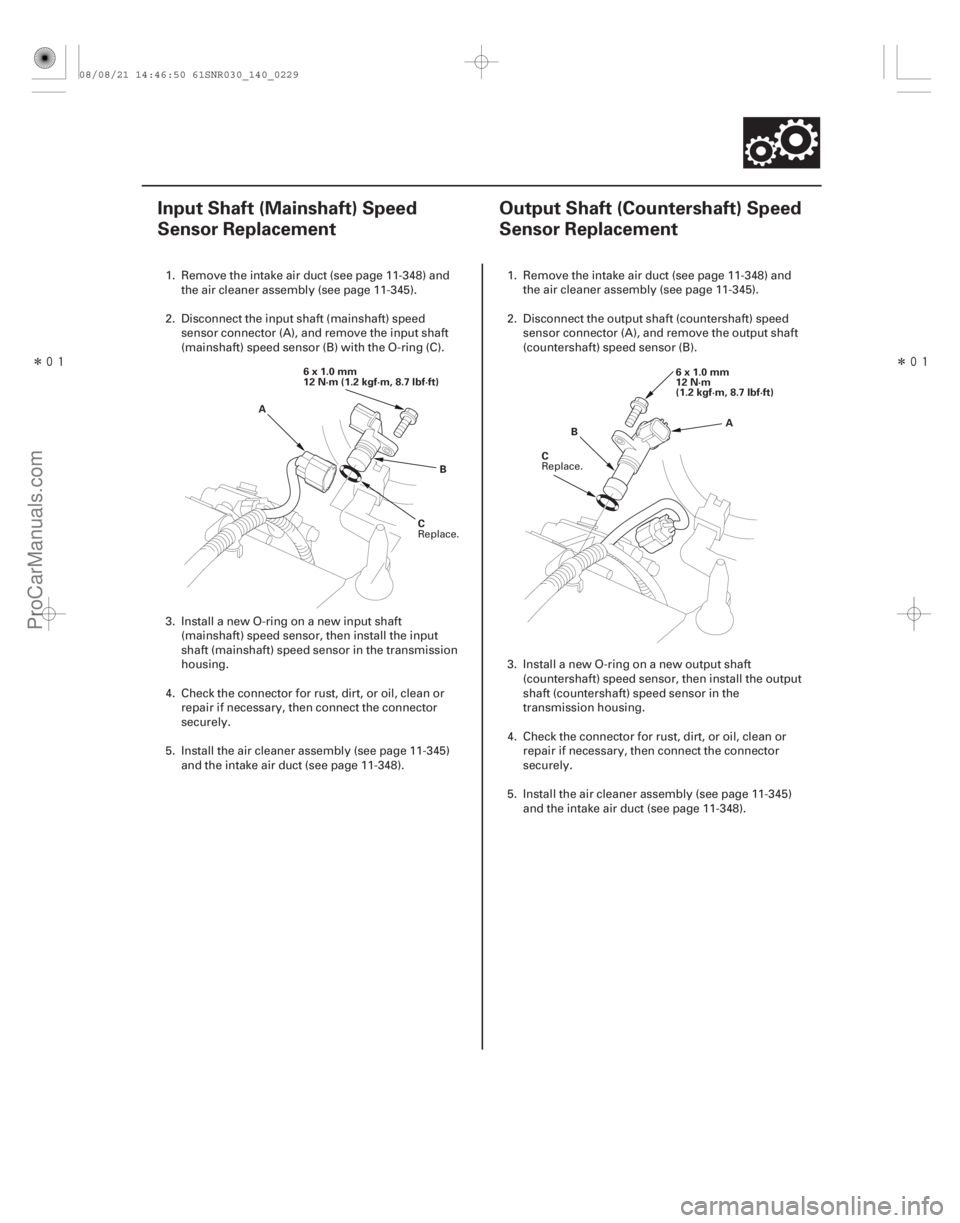

Input Shaft (Mainshaft) Speed
Sensor Replacement Output Shaft (Countershaft) Speed
Sensor Replacement
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)
B
C
A
B6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
A
C
1. Remove the intake air duct (see page 11-348) and the air cleaner assembly (see page 11-345).
2. Disconnect the input shaft (mainshaft) speed sensor connector (A), and remove the input shaft
(mainshaft) speed sensor (B) with the O-ring (C).
3. Install a new O-ring on a new input shaft (mainshaft) speed sensor, then install the input
shaft (mainshaft) speed sensor in the transmission
housing.
4. Check the connector for rust, dirt, or oil, clean or repair if necessary, then connect the connector
securely.
5. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348). 1. Remove the intake air duct (see page 11-348) and
the air cleaner assembly (see page 11-345).
2. Disconnect the output shaft (countershaft) speed sensor connector (A), and remove the output shaft
(countershaft) speed sensor (B).
3. Install a new O-ring on a new output shaft (countershaft) speed sensor, then install the output
shaft (countershaft) speed sensor in the
transmission housing.
4. Check the connector for rust, dirt, or oil, clean or repair if necessary, then connect the connector
securely.
5. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
Replace. Replace.
08/08/21 14:46:50 61SNR030_140_0229
ProCarManuals.com
DYNOMITE -2009-
Page 1144 of 2893

Î
(#'
) Î
(#'
)
14-22814-228 Automatic Transmission

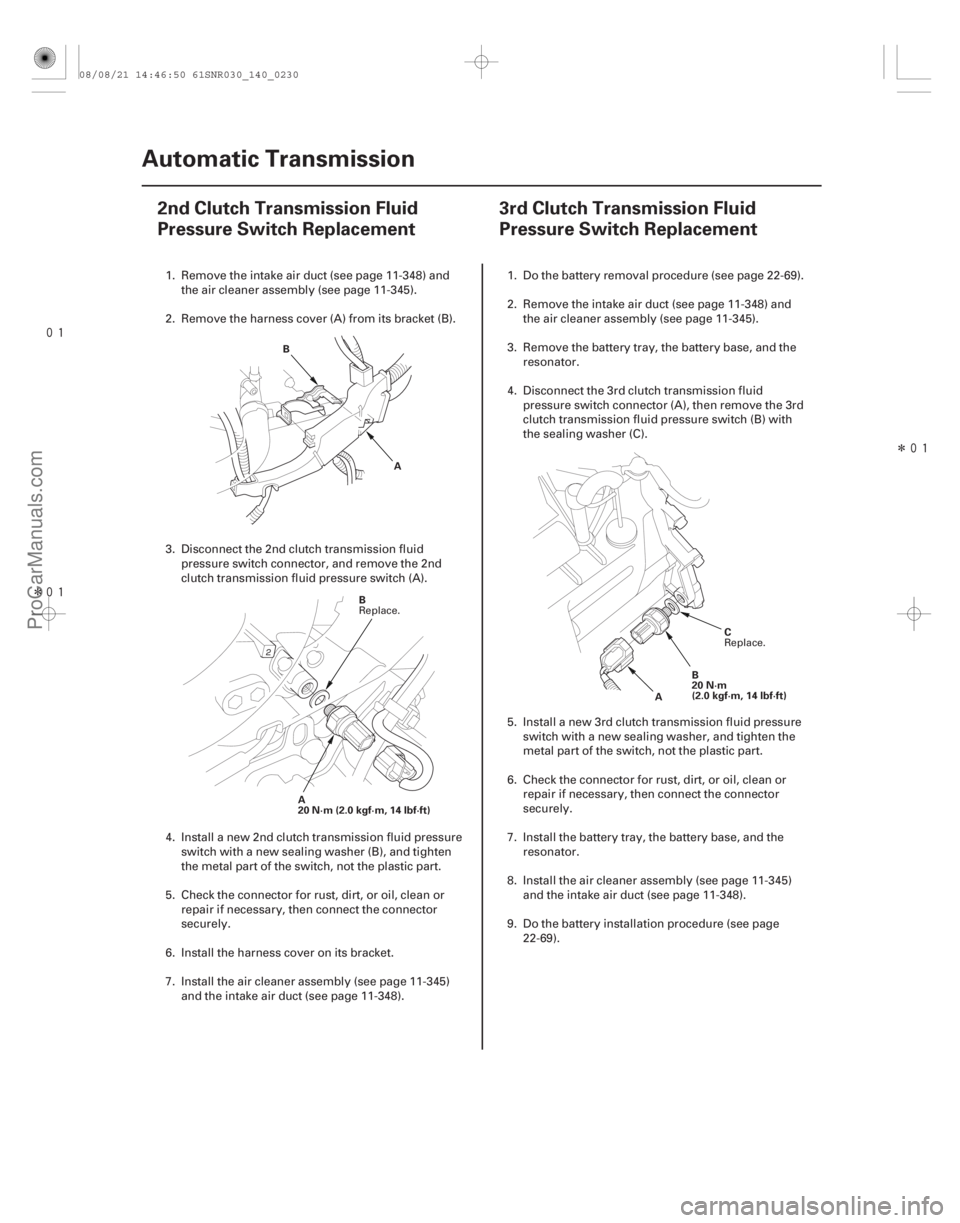

2nd Clutch Transmission Fluid
Pressure Switch Replacement
3rd Clutch Transmission Fluid
Pressure Switch Replacement
A
B
A
20 N·m (2.0 kgf·m, 14 lbf·ft) B
B
20 N·m
(2.0 kgf·m, 14 lbf·ft)
A C
1. Remove the intake air duct (see page 11-348) and
the air cleaner assembly (see page 11-345).
2. Remove the harness cover (A) from its bracket (B).
3. Disconnect the 2nd clutch transmission fluid pressure switch connector, and remove the 2nd
clutch transmission fluid pressure switch (A).
4. Install a new 2nd clutch transmission fluid pressure switch with a new sealing washer (B), and tighten
the metal part of the switch, not the plastic part.
5. Check the connector for rust, dirt, or oil, clean or repair if necessary, then connect the connector
securely.
6. Install the harness cover on its bracket.
7. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348). 1. Do the battery removal procedure (see page 22-69).
2. Remove the intake air duct (see page 11-348) and
the air cleaner assembly (see page 11-345).
3. Remove the battery tray, the battery base, and the resonator.
4. Disconnect the 3rd clutch transmission fluid pressure switch connector (A), then remove the 3rd
clutch transmission fluid pressure switch (B) with
the sealing washer (C).
5. Install a new 3rd clutch transmission fluid pressure switch with a new sealing washer, and tighten the
metal part of the switch, not the plastic part.
6. Check the connector for rust, dirt, or oil, clean or repair if necessary, then connect the connector
securely.
7. Install the battery tray, the battery base, and the resonator.
8. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
9. Do the battery installation procedure (see page 22-69).
Replace.
Replace.
